YOUR IDEA + OUR TOOLS = YOUR SIGNATURE DESIGN. VEIL is a custom-perforated metal wall and ceiling system, designed by you in our online interface. Upload an image, logo, or pattern, and the interface converts it into a perforation pattern across the panel face — every panel one-of-one, every layout unique. Drawn in minutes. Built in days. Shipped in weeks. Drops into any standard 600×1200 metric or 2'×4' imperial grid.

Start designing

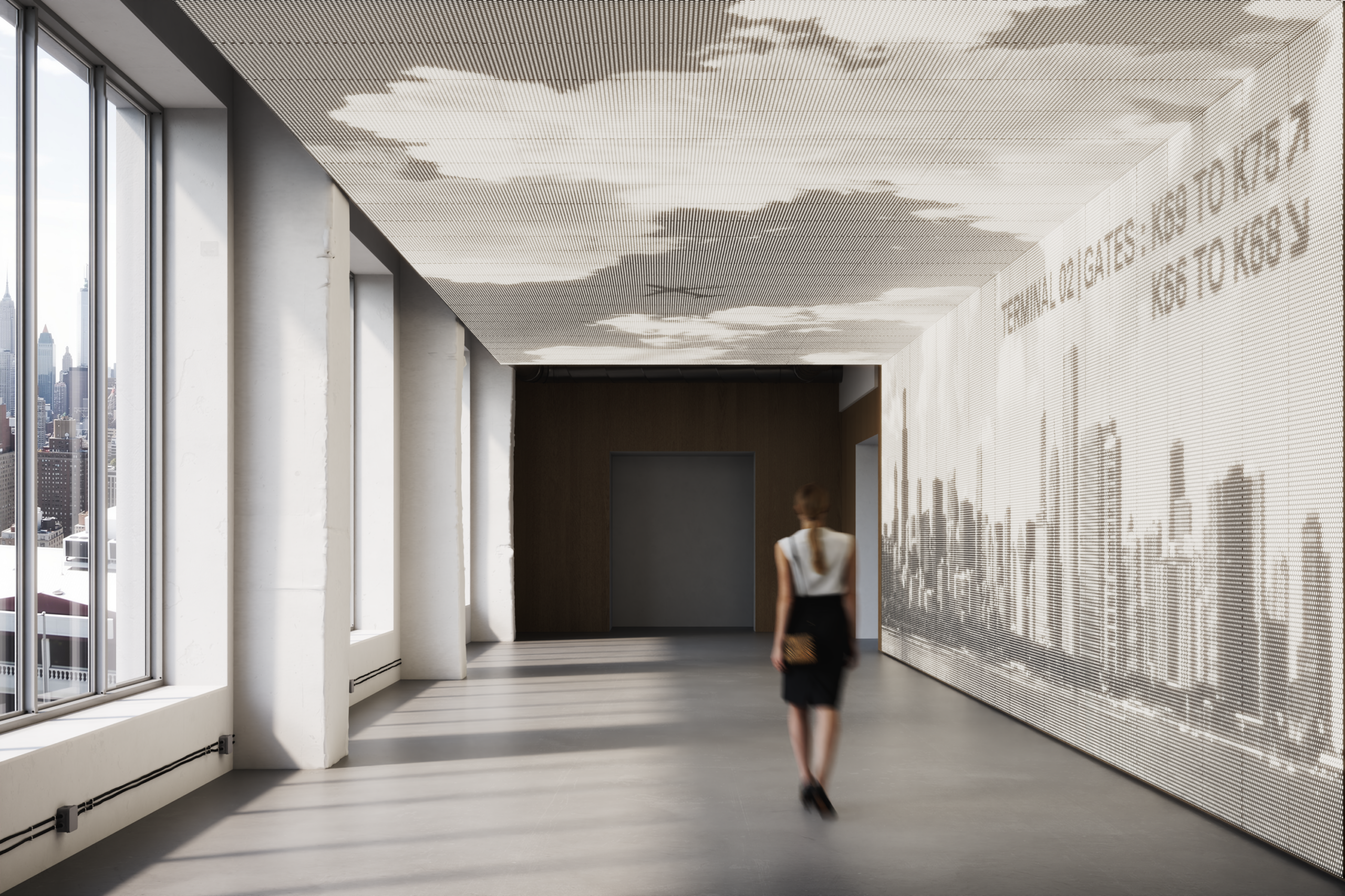

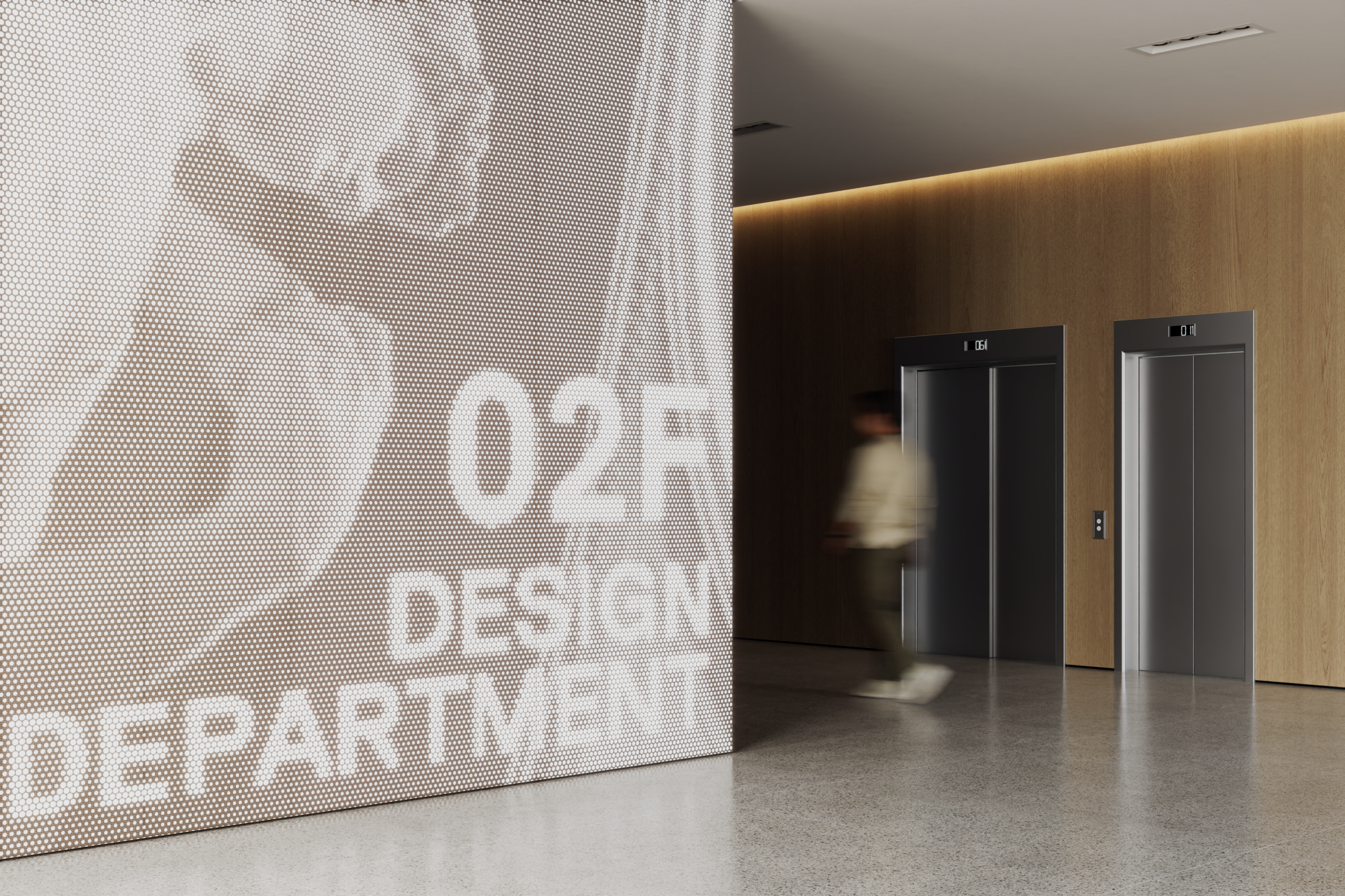

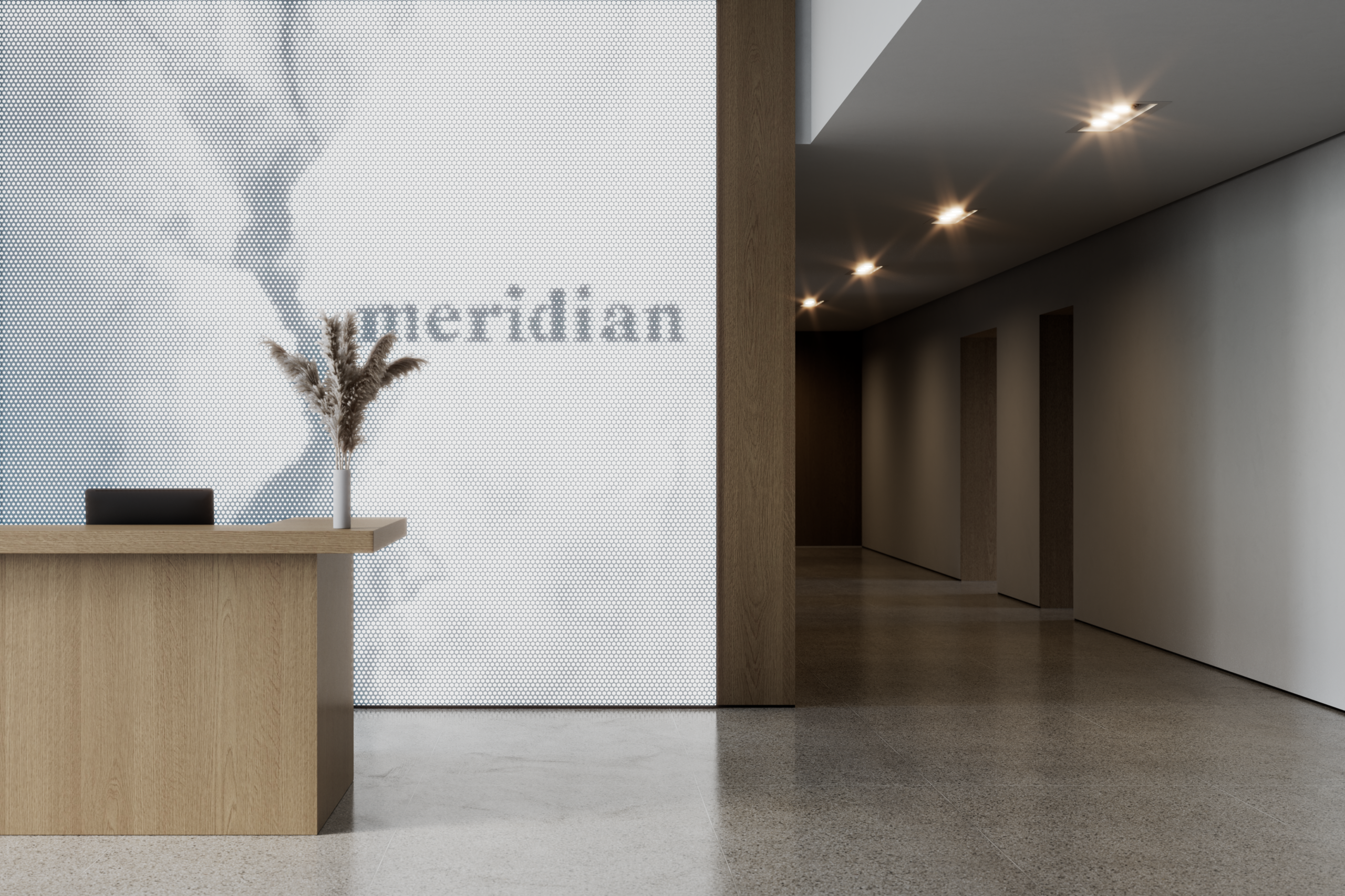

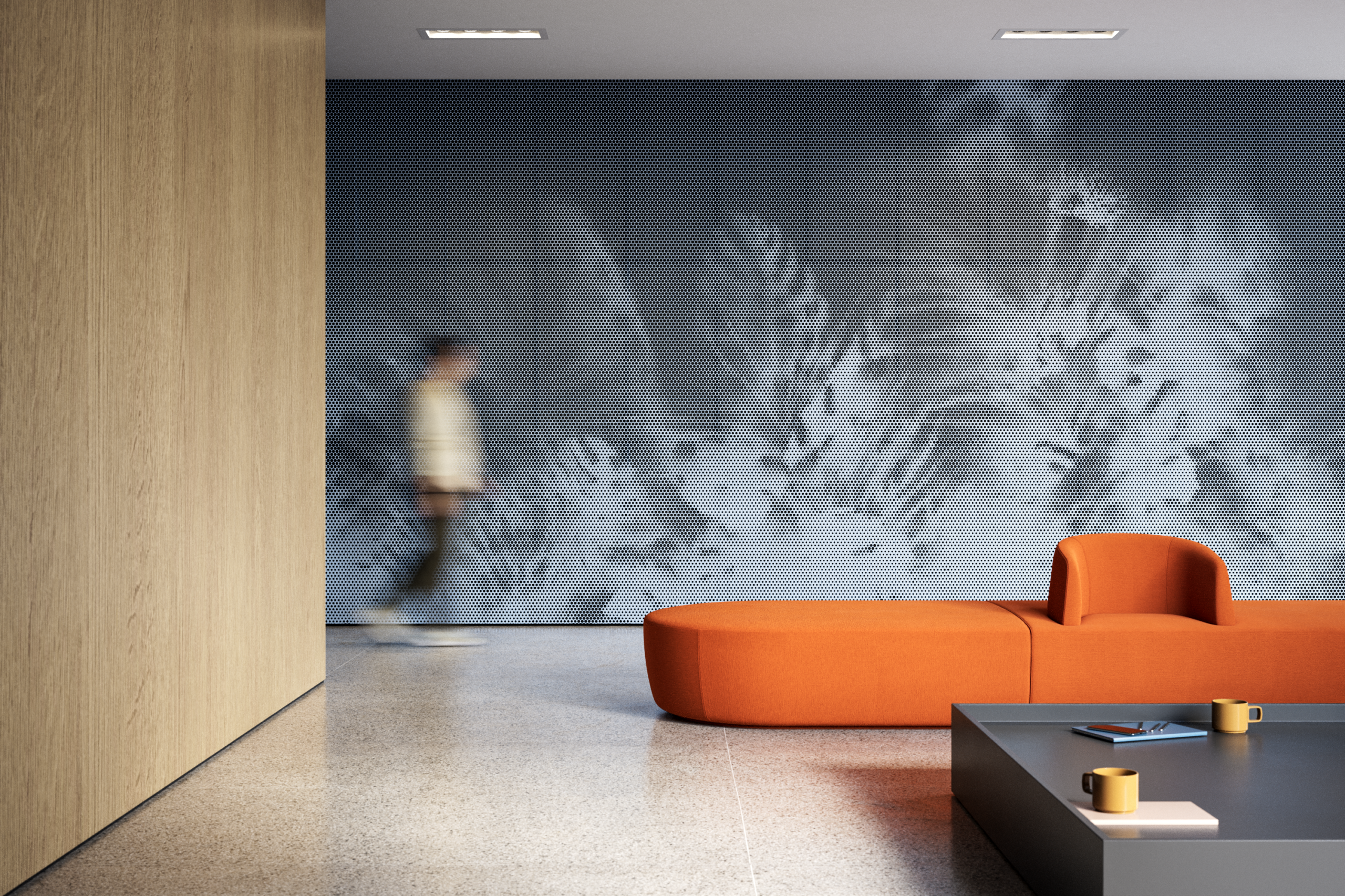

spectRAL in use

Caractéristiques principales

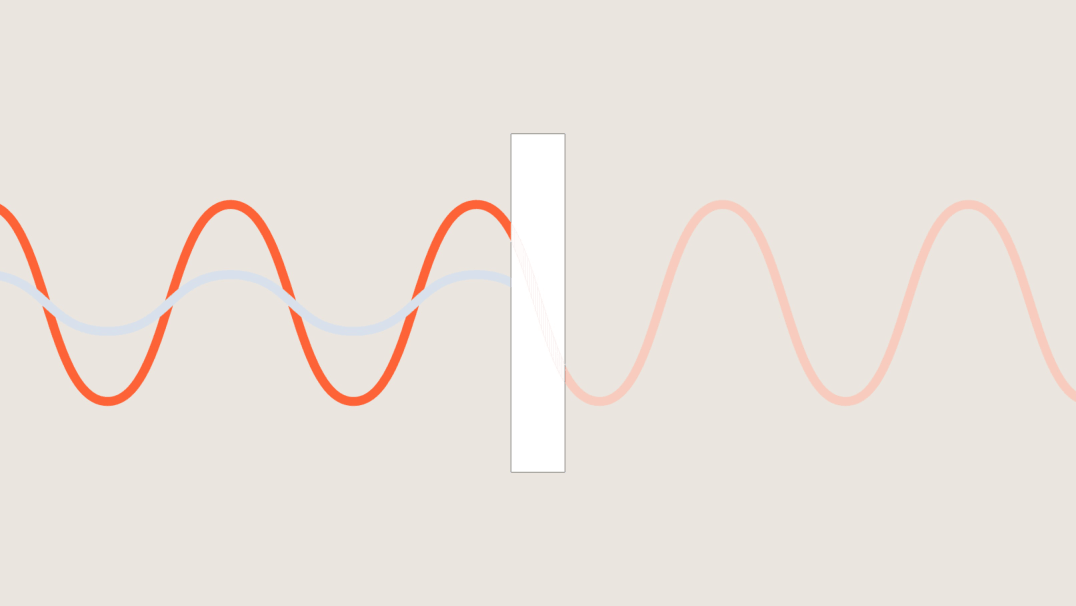

Reduce noise & enhance acoustics

Add an Asoft® acoustic backer to absorb sound across the panel face. Asoft® is 12mm of acoustic PET felt, layered behind the perforated panel. Available in multiple densities to tune the assembly's NRC rating for the space from conference rooms to assembly halls.

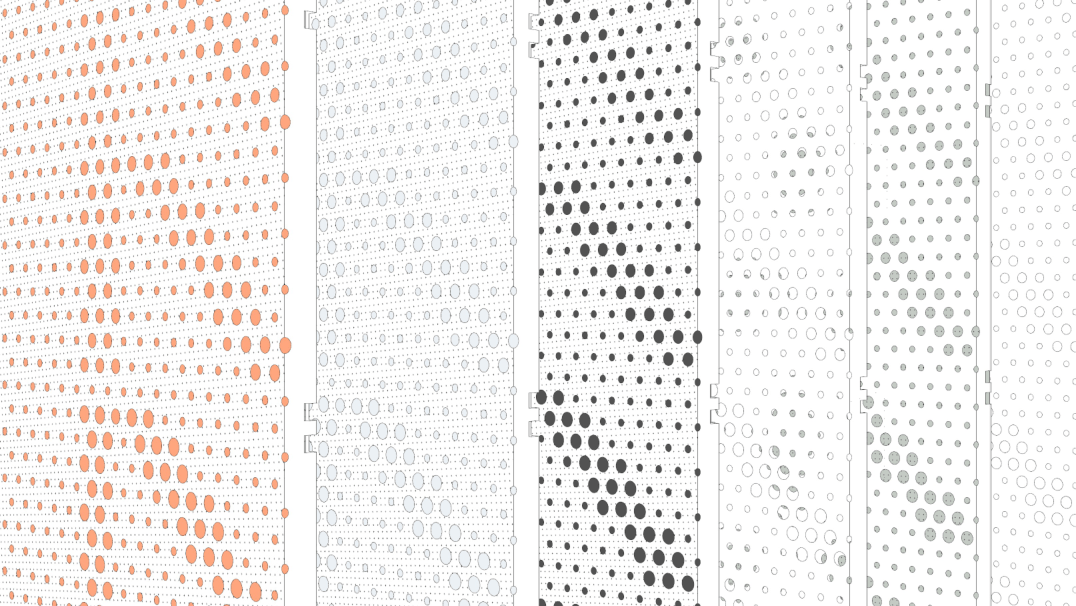

Versatile configuration

Veil® panels offer various configuration to fit your needs. Choose from material / finishes and backers to make your tailored configuration to match your needs.
Facilité d'installation et d'accès

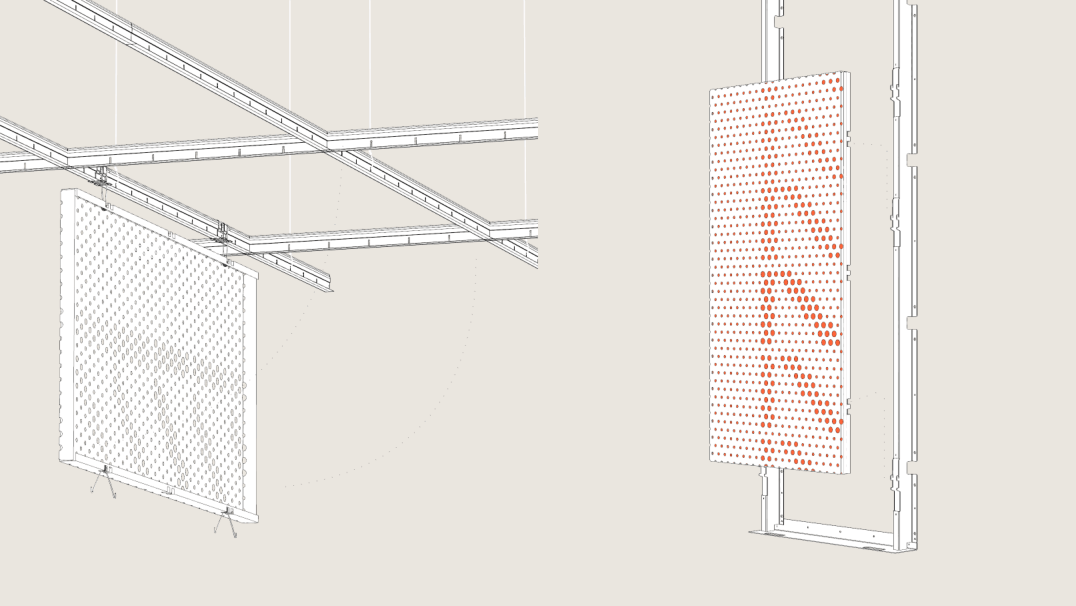

Drops into any standard T-bar grid with torsion-spring clips. Hooks onto walls with the NOWN wall channel system. Each panel lifts out for above-grid access.

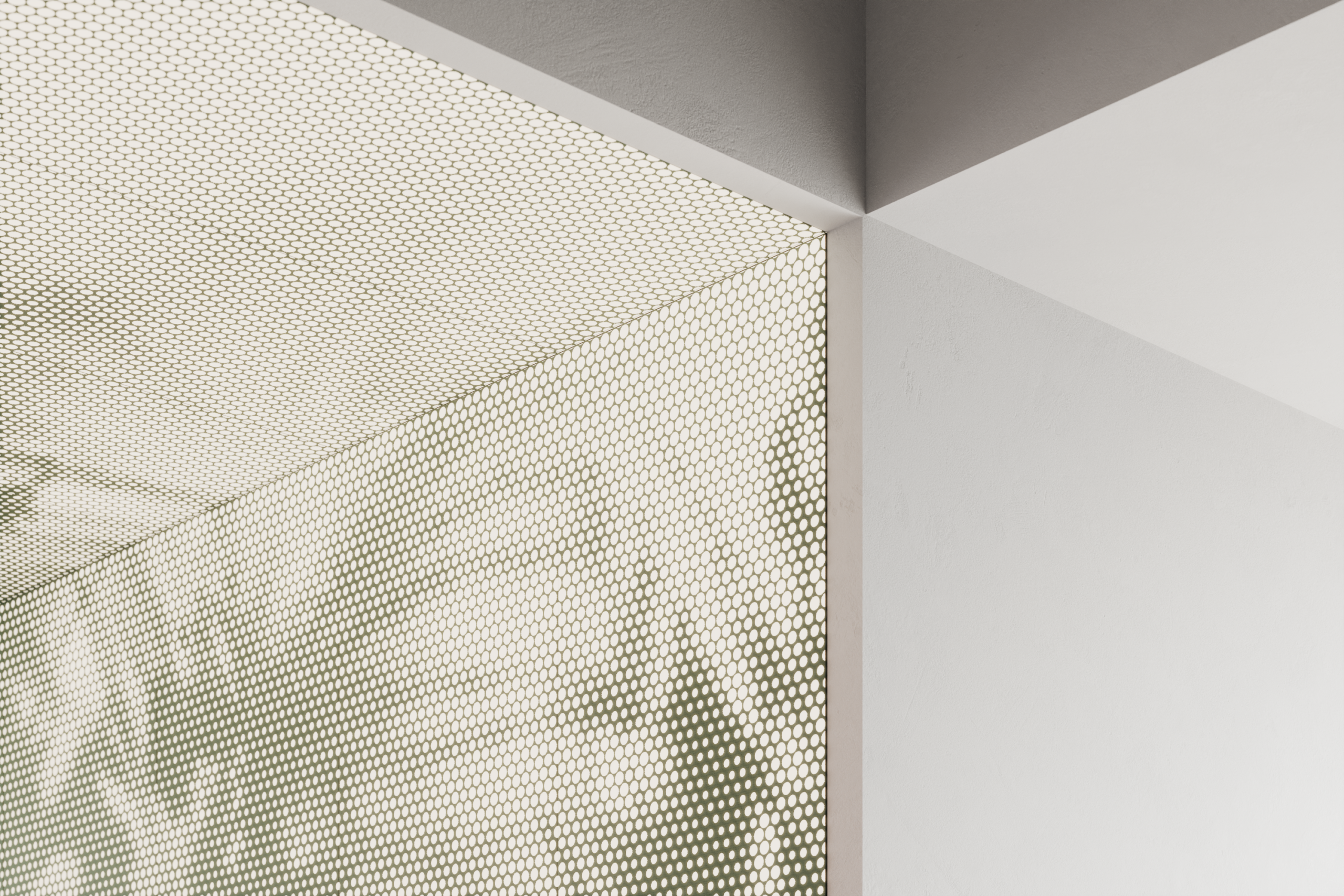

Continuous pattern aesthetic

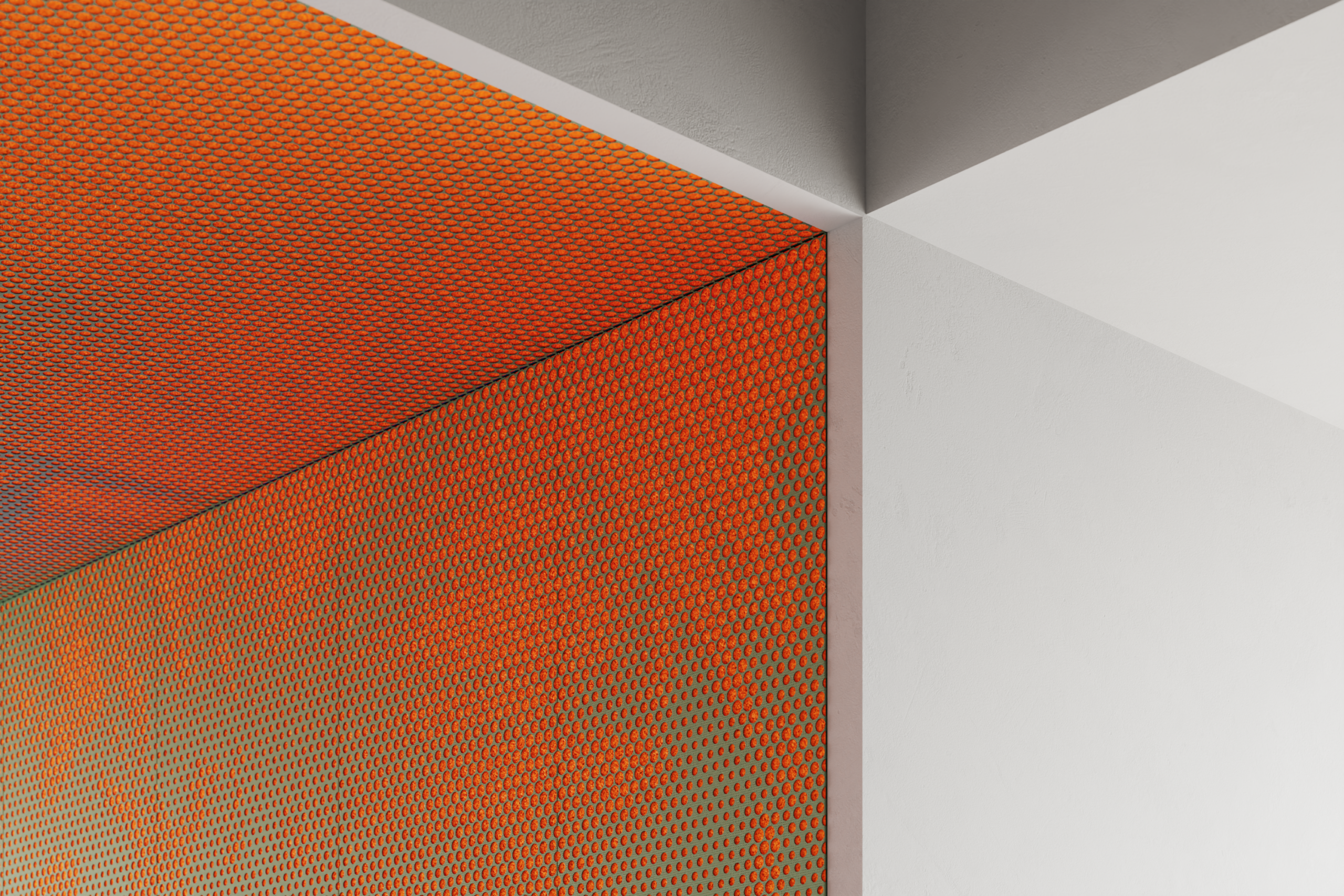

VEIL panels meet at wall-to-ceiling junctions and inside/outside corners using continuous perforation patterns calculated across both planes. The pattern reads as one surface even as it changes direction, with the Veil Trim closing the corner detail.
Endless customizability

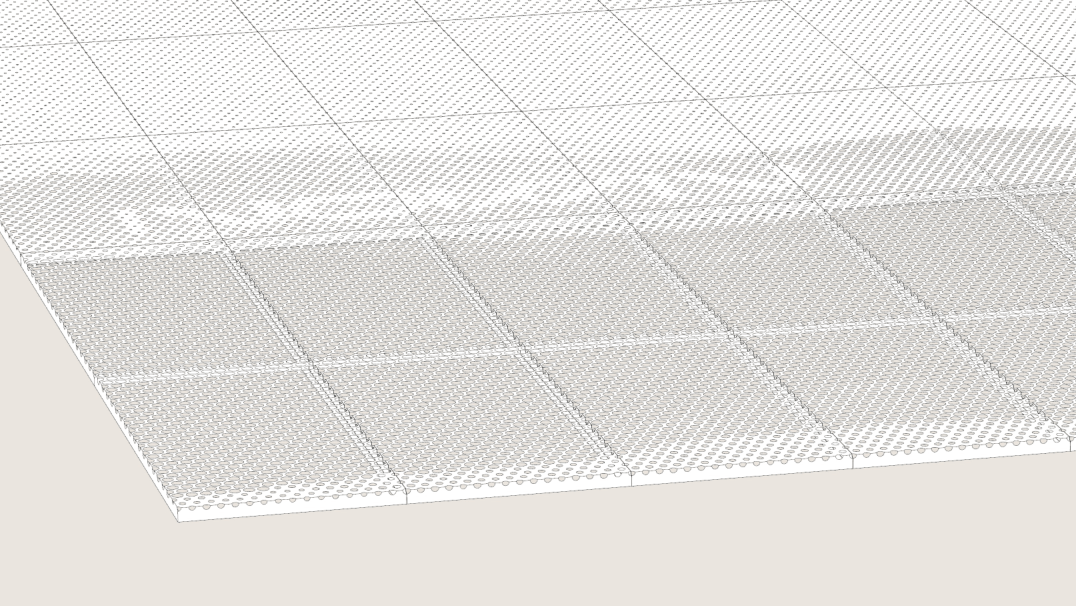

Upload an image, logo, or custom pattern. Our online interface converts it into a perforation pattern acrossthe panel face. Adjust the density and scale, then select your material, finish, backer, and RAL color. The output is a one-of-one panel ready for manufacturing.

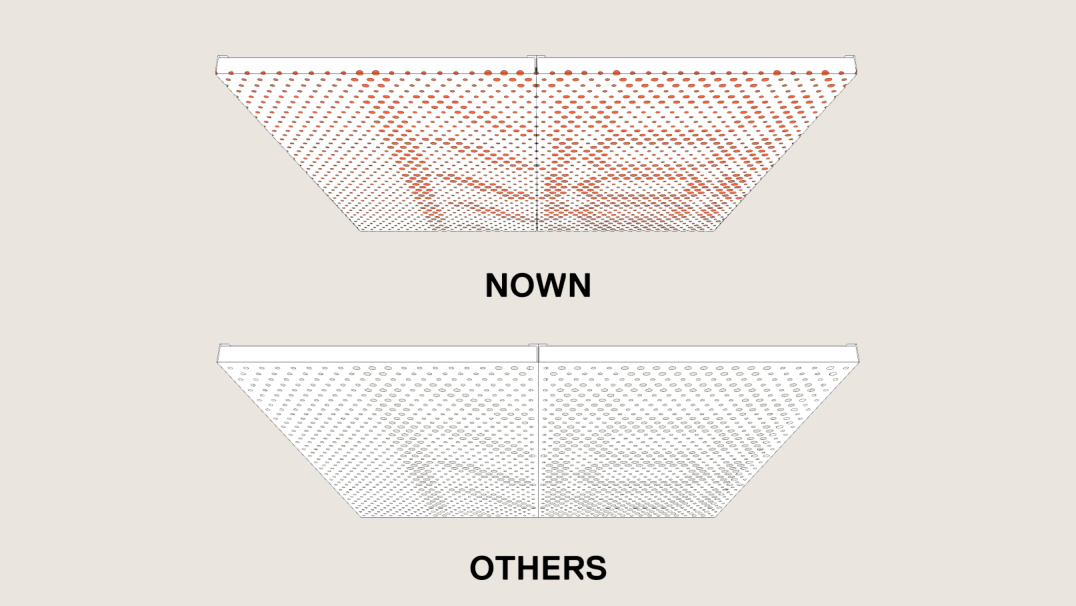

Superior flatness & strength

Veil® panels are manufactured from aluminum that is on average 50% thicker than the competition, which in combination with our precision processes result in unrivaled flatness

Détails du produit

Spécifications

Dimensions

600 x 1200 x 30,8

Matériau du panneau

Aluminum OR Steel

Backer Material

12mm Asoft™ (PET)

Ouverture du plan

22.1%

Classement au feu

ASTM E84 - Classe A | UNE-EN 13501-1, B-s1,d0

Acoustique

True NRC® 0.90 : Plafond avec support acoustique ; Méthode E-300
True NRC® 0.85 : Mur avec support acoustique ; Méthode F-70
True NRC® 0.45 : Plafond avec support translucide ; Méthode E-300
True NRC® 0.45 : Mur avec support translucide ; Méthode F-70

Fixation au plafond

Grille de torsion (par d'autres)

Fixation murale

NWN Channel

Accessibilité

Charnière à ressort de torsion

Accessoires

Acoustic Backer, Translucent Backer, Backlight, InLine Light, Soundtex. Microdose

Diagrammes de produits

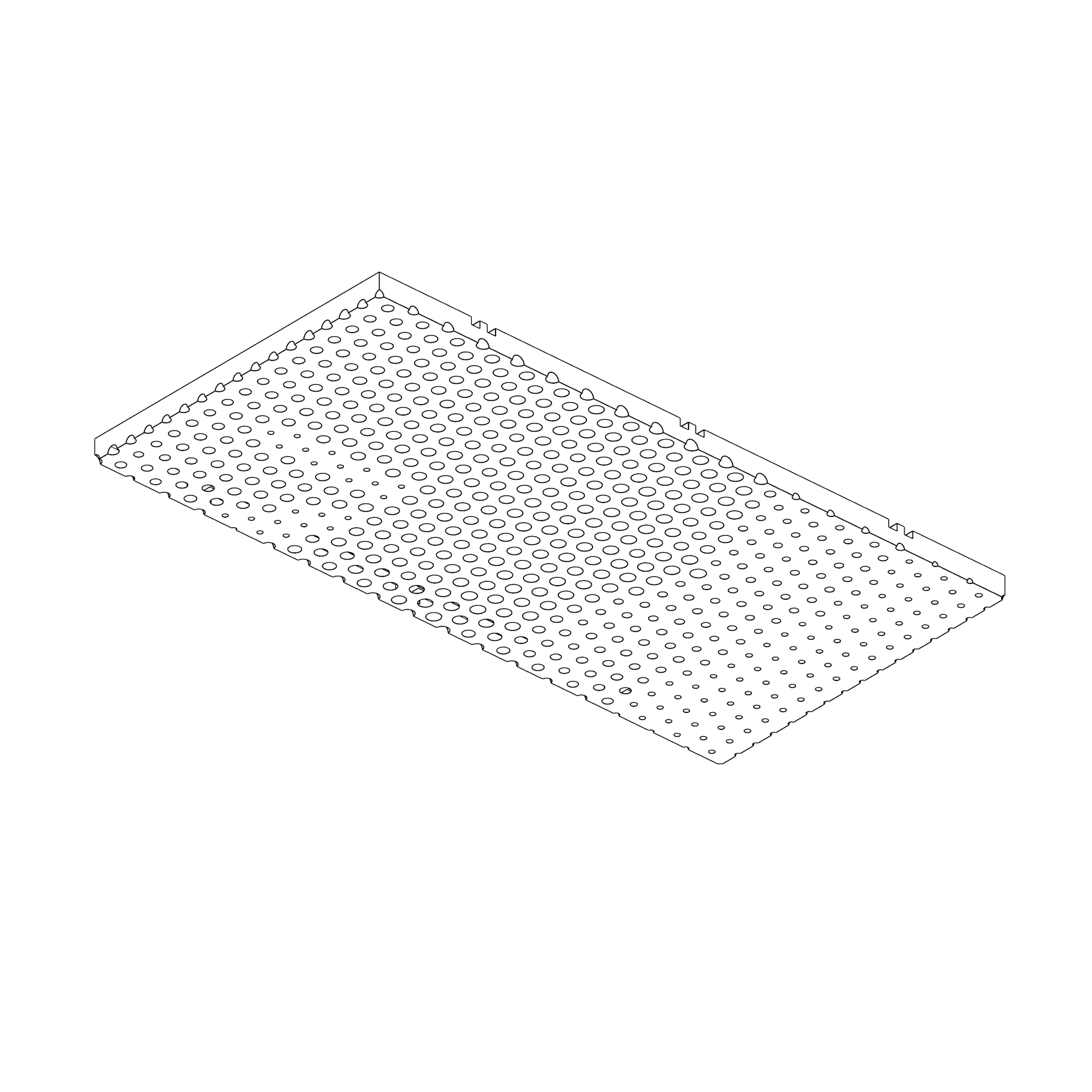

Panneau standard

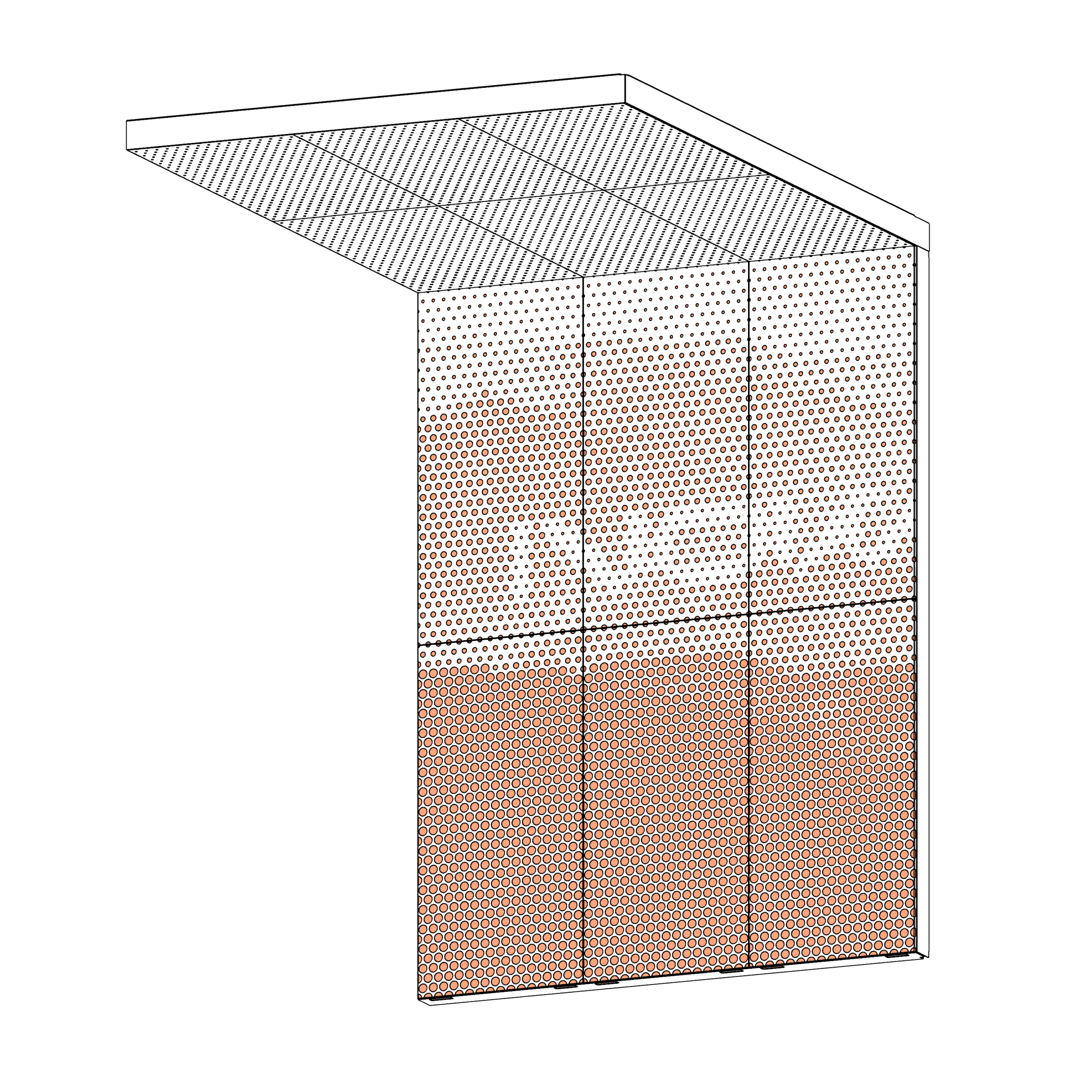

Assemblage sans faille des murs et des plafonds

Comprendre le panel

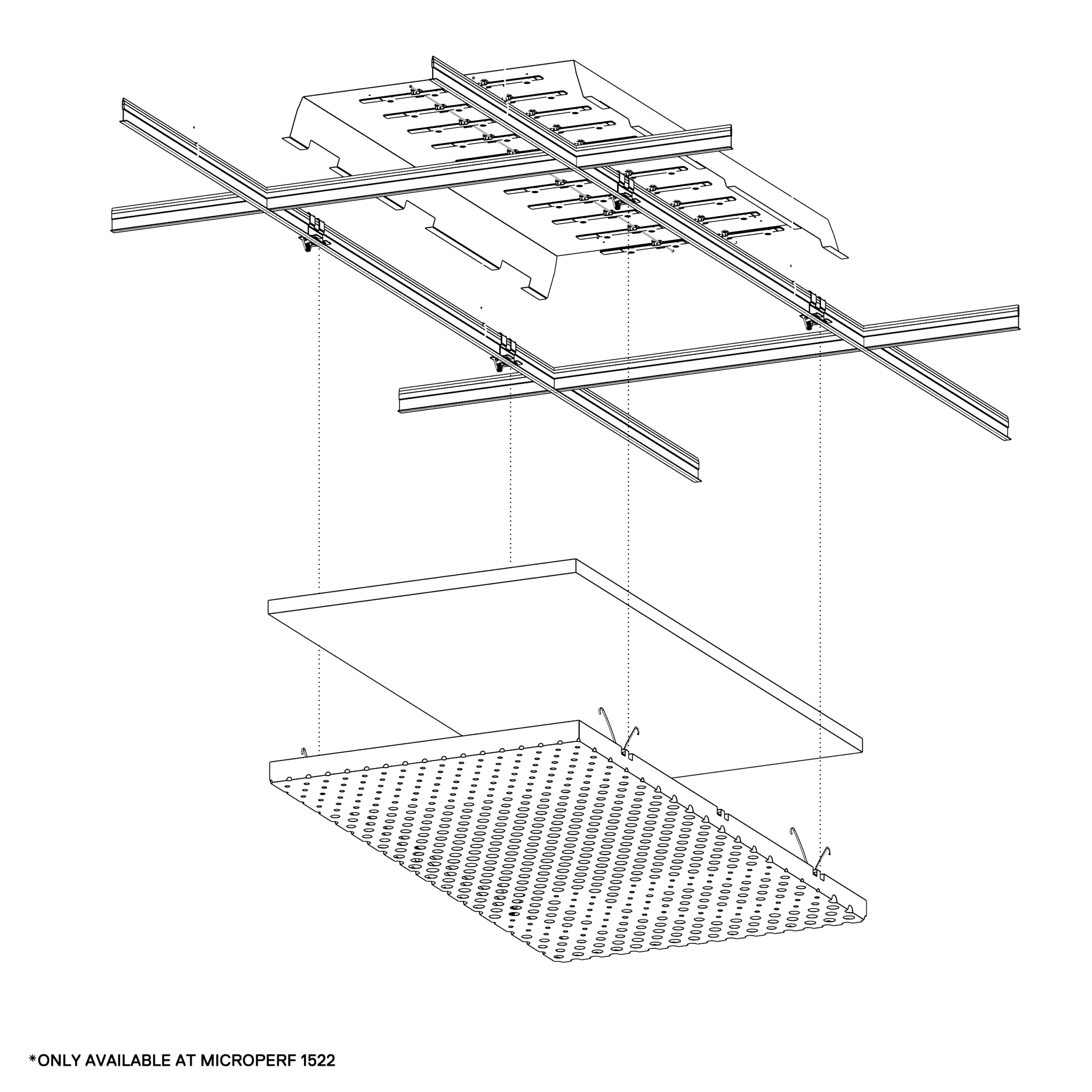

Option Accessoire - Plafond

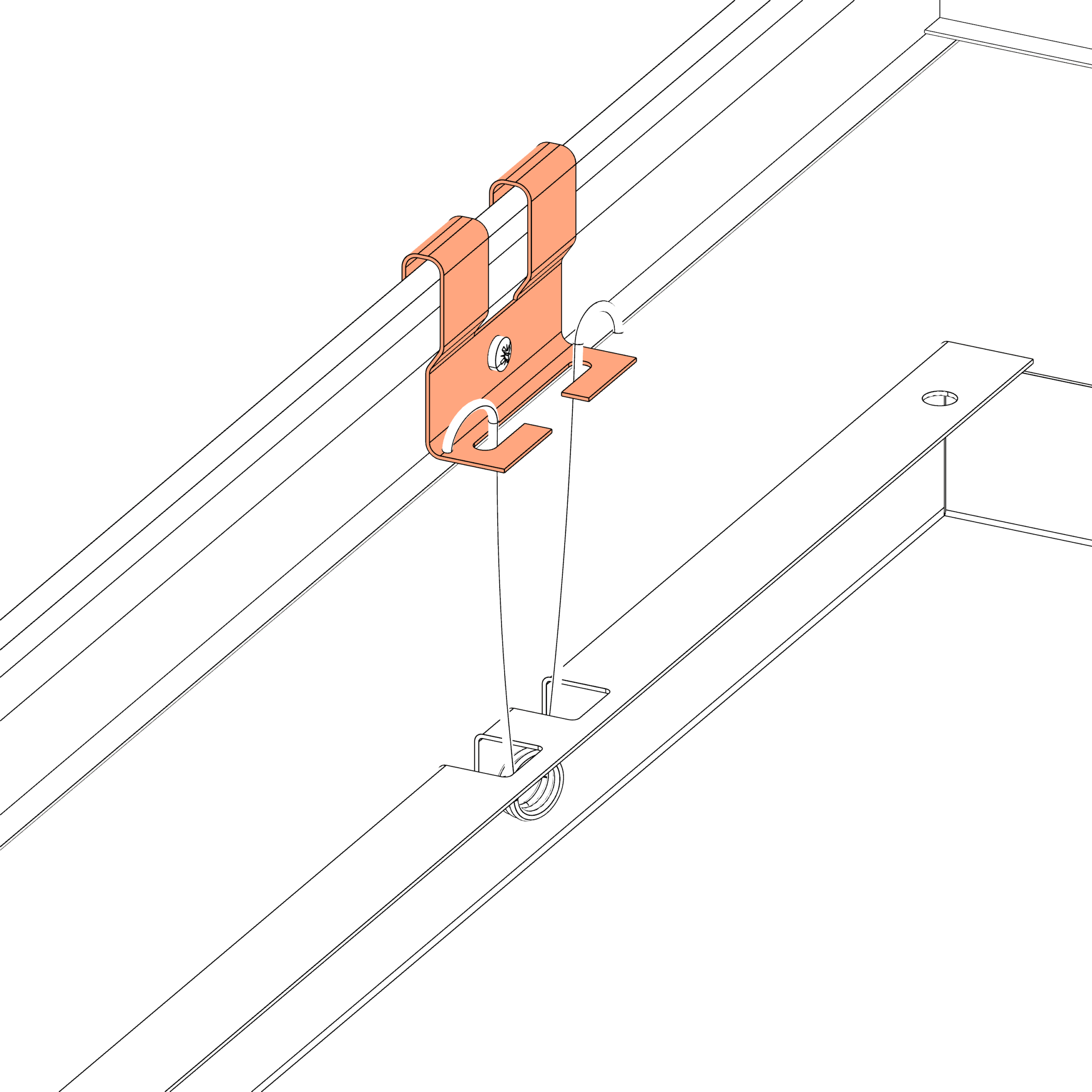

Options d'accessoires - Kit de clips d'adaptation

Option Accessoire - Mur

Développement durable et certifications

120 / 50

Chaque module est fabriqué à partir de 120 canettes d'aluminium recyclées et d'un support acoustique composé de 50 bouteilles d'eau recyclées.
Cradle to Cradle® (du berceau au berceau)

Bronze Statut en attente
100%

Déclarer certifié comme étant entièrement récupérable/réutilisable, recyclable (100%)
Déclarer

Liste rouge libre
