SoundEdge®

Technical documents Get models Find an agent

Acoustic
Ceiling Baffles

SoundEdge® ceiling system offers flexible building blocks to easily achieve enhanced acoustical performance and design effects. Its modular single fin design, available in a multitude of lengths and depths, is easy to install, and can be mixed and matched in numerous configurations. SoundEdge® is constructed from our Soft Sound® acoustical material (100% PET plastic with up to 60% recycled content) to drastically reduce sound reverberation.

SoundEdge® in use

—

Key Features

Reduce Noise & Enhance Acoustics

SoundEdge®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Its material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
Open Plan Accesibility

SoundEdge®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins allow access to larger systems and the open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.
Expansive Soft Sound® Library

Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.
Minimal Hanging Hardware

SoundEdge® provides structure and support with a narrow metal bracket and thin suspension cable that is virtually invisible when viewed from below.
Profiles to Suit Your Needs

SoundEdge® is available in a range of lengths, heights, and configurable options, giving you complete design flexibility.

Product Details

Specifications

Dimentions

600-2700 x VARIES x 12 MM

Material

12mm Soft Sound® (PET)

Fire Rating

ASTM E84 - Class A | UNE-EN 13501-1, B-s1,d0

Attachment Method

1/32" Stainless Cable and Hardware

Acoustics

True NRC® Up to 1.1

Accessibility

Yes, quick release cables

Trimmability

Yes, per installation manual

Product Diagrams

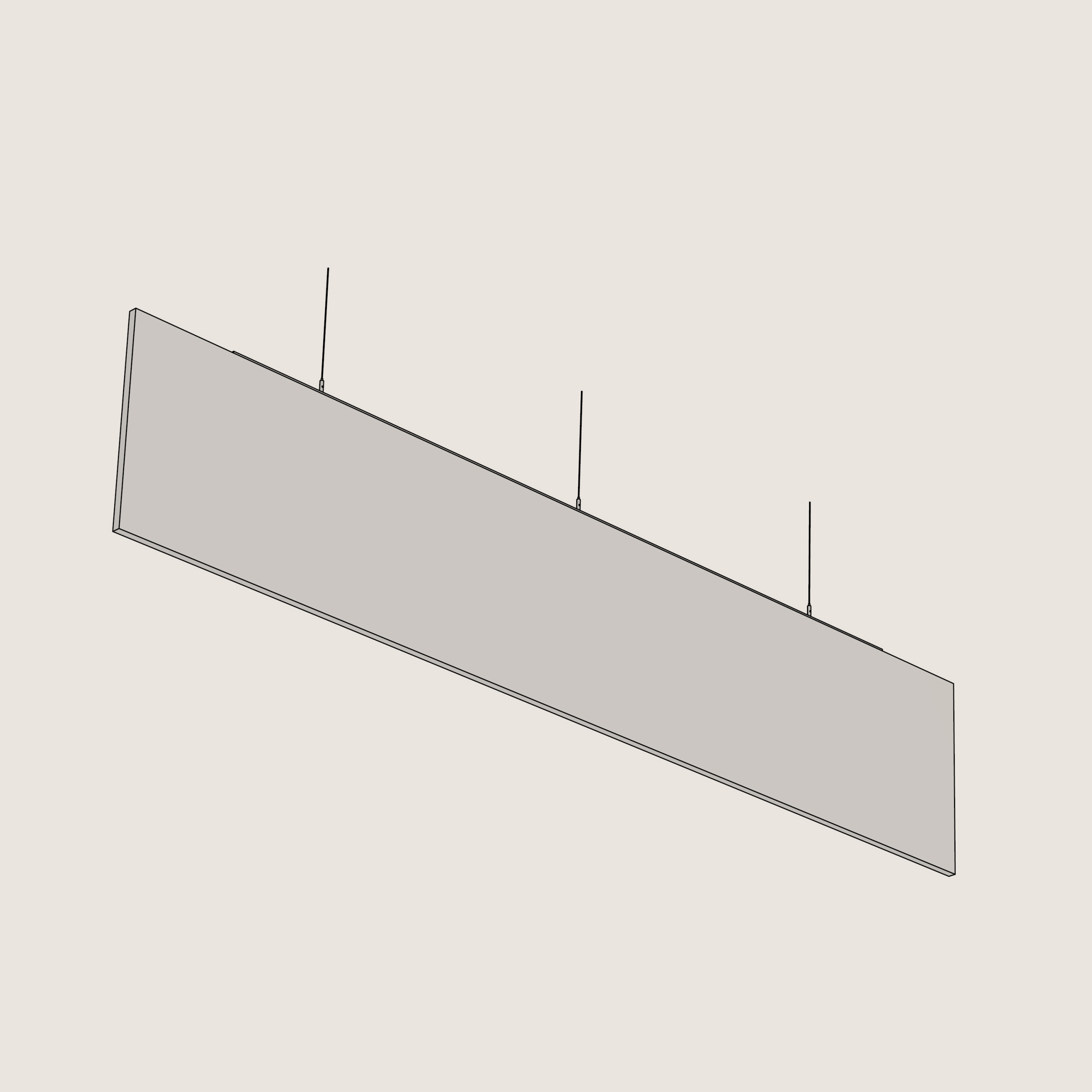

Standard Configuration

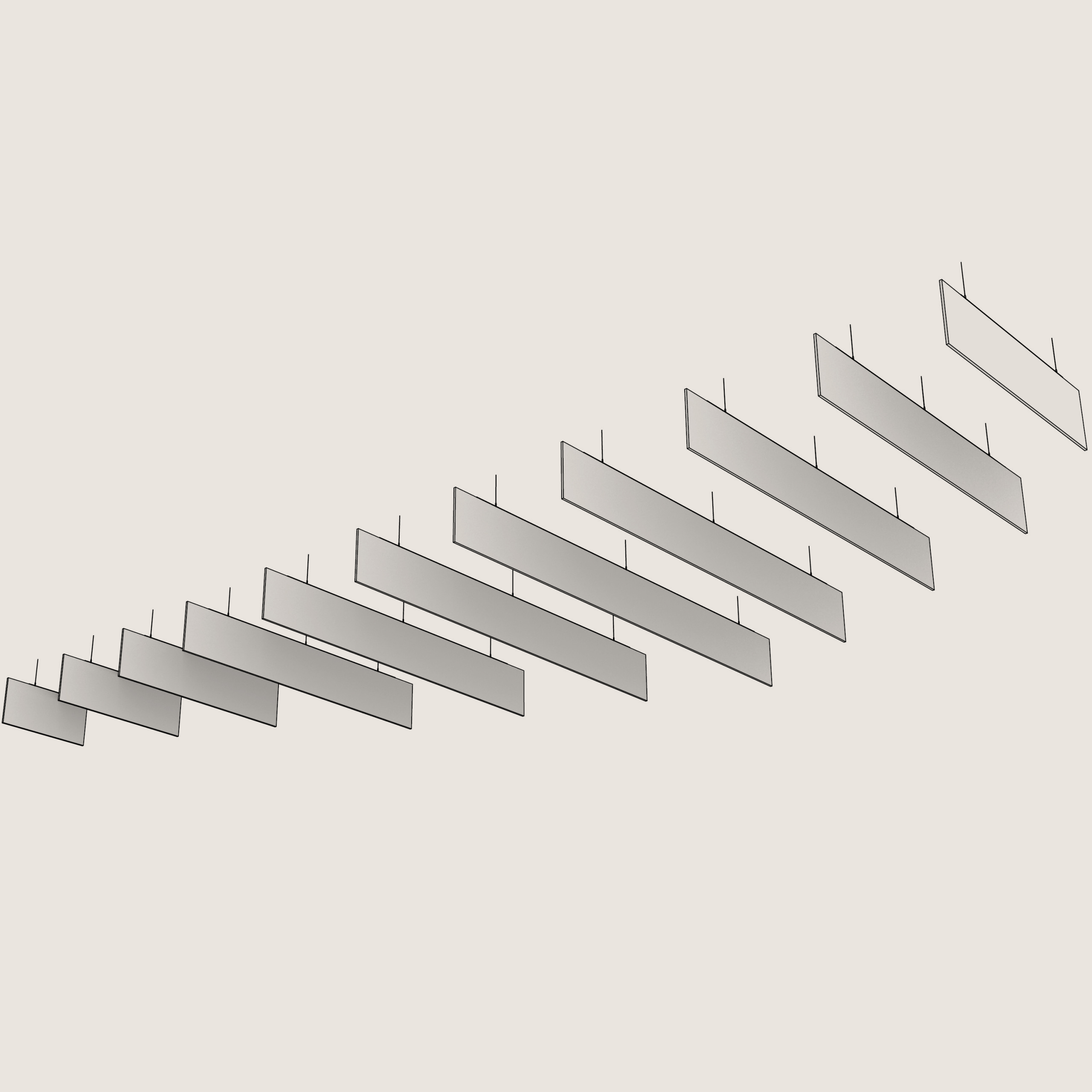

Multiple Modules

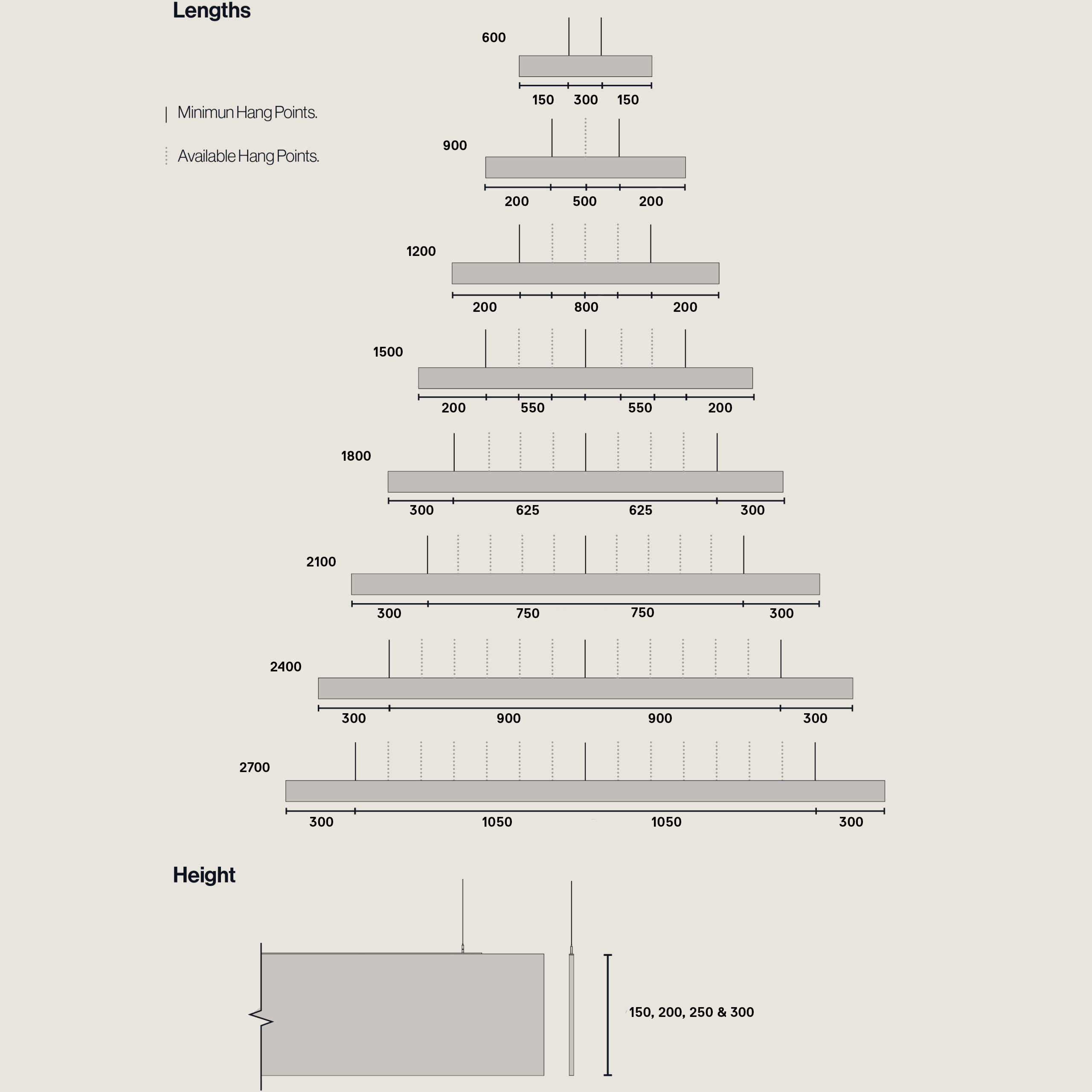

Dimensions

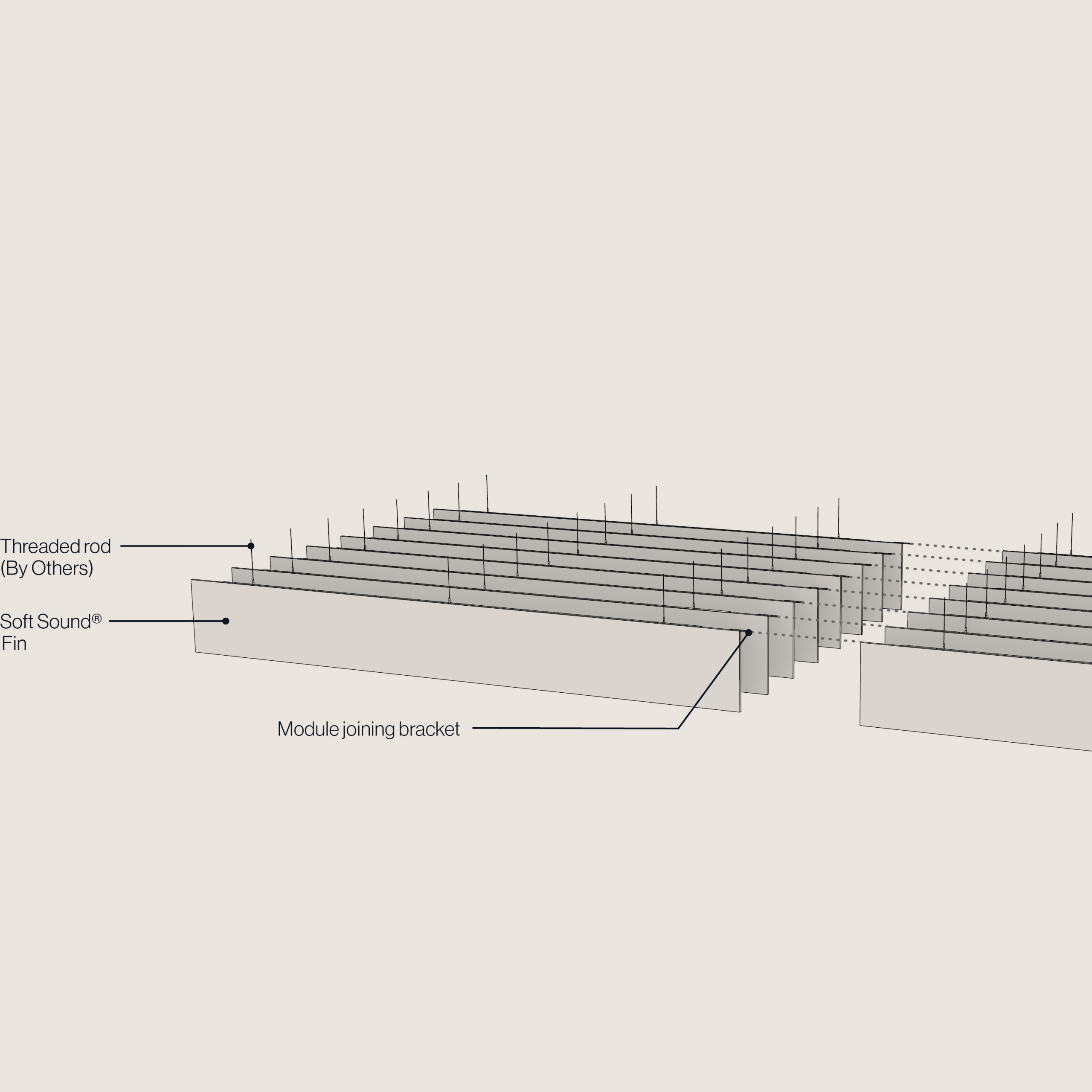

Attachment & Install

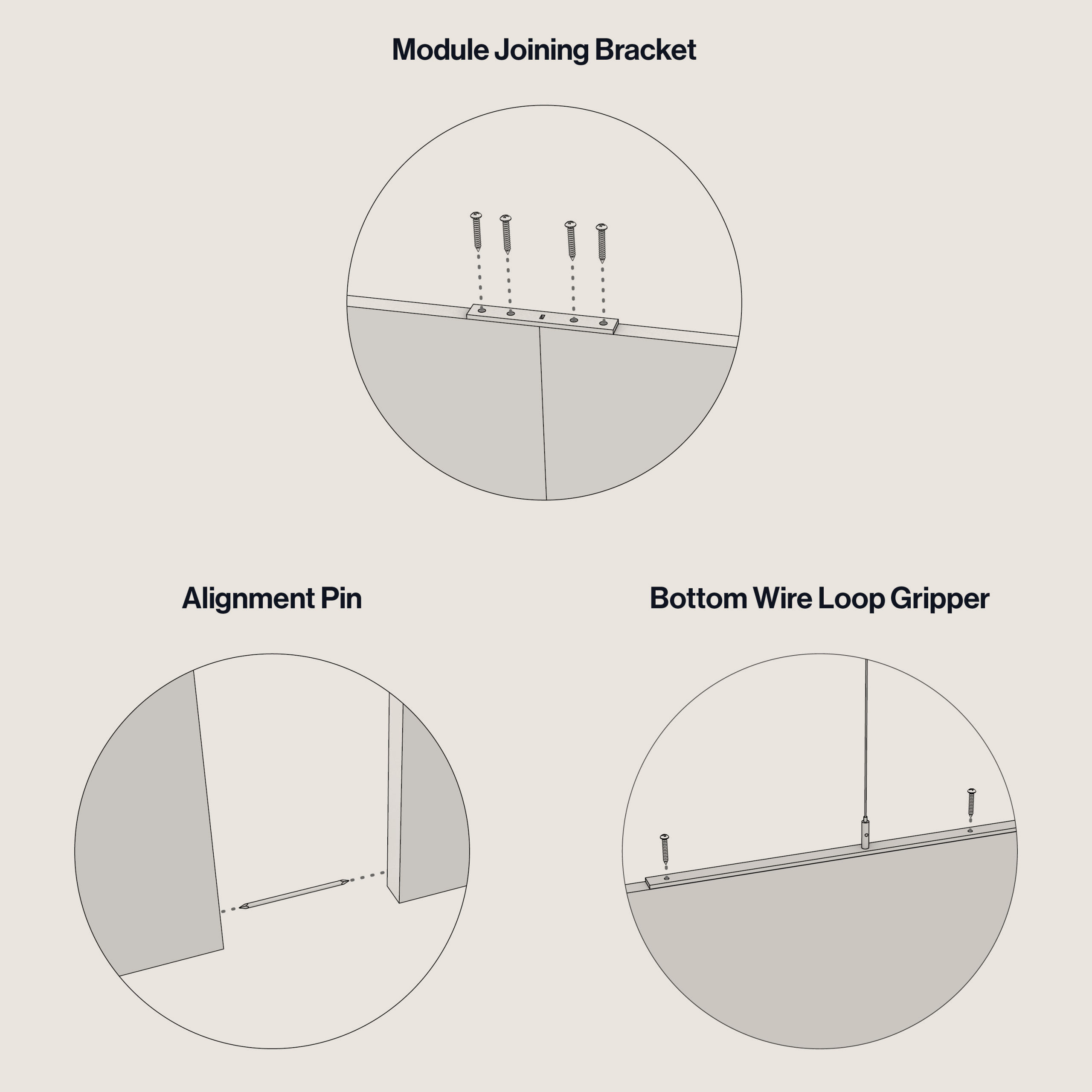

Attachment Details

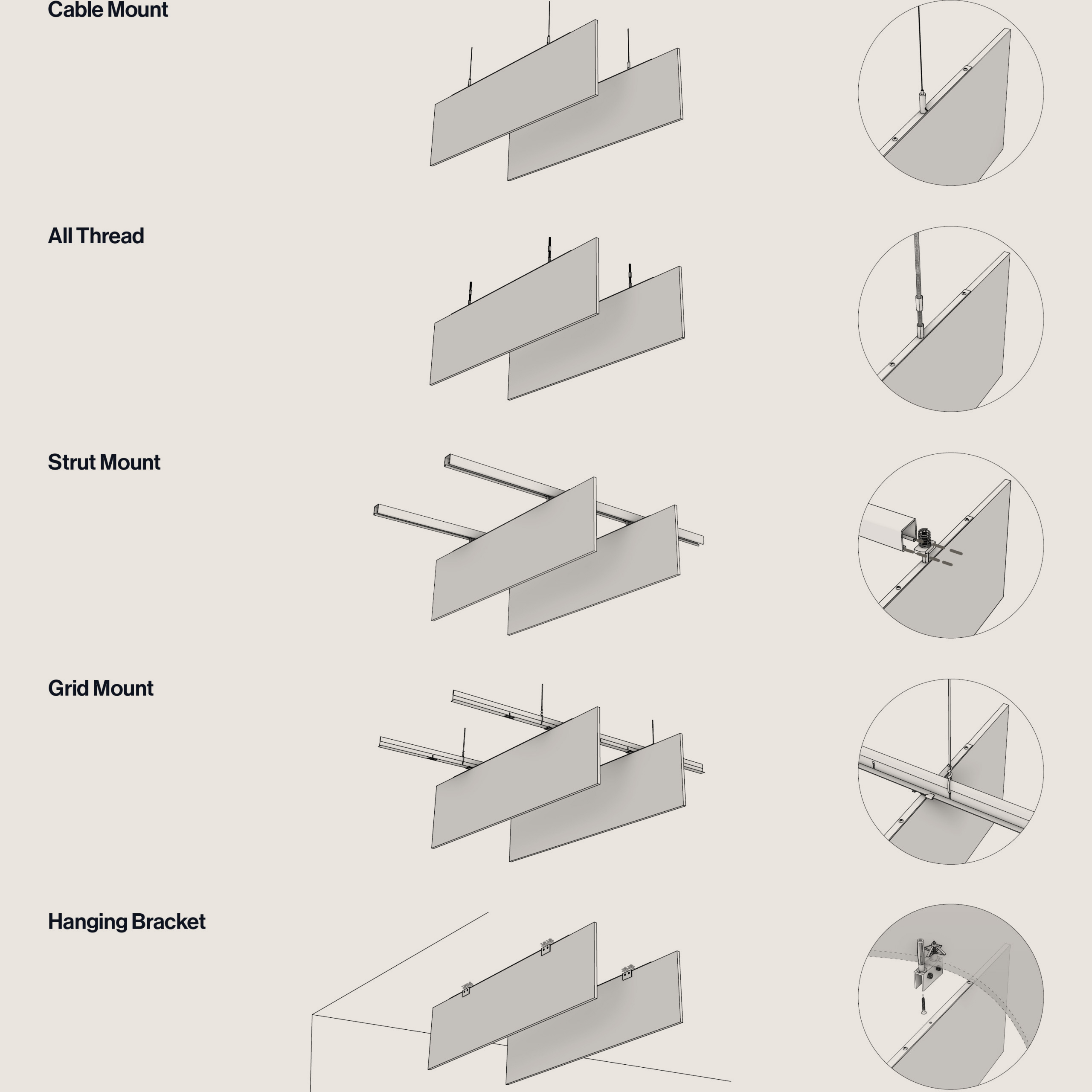

Multiple Attachment Options

Sustainability and Certification

366

Each module is made from 366 recycled water bottles.
Cradle to Cradle®

Status Pending
100%

Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)
Declare

Red list free
