SoftScreen® ALCAZAR

Acoustic
Partitions

SoftScreen® Alcazar’s acoustic panels and partitions create a design inspired by the Alcazar palace in Seville, a repeating pattern of triangles and lines that add up to an image you can’t look away from. Choose from Hanging Bracket, Cable Hung, Sliding Track, and Direct mounting methods to fit the needs of your space. Alcazar is available in full and half pattern panels to provide flexibility in acoustic performance and peace of mind. Made from our Soft Sound material, they also provide sound control exactly where you need it.

SoftScreen® ALCAZAR in use

—

The System

Key Features

Reduce Noise & Enhance Acoustics

SoftScreen®'s Soft Sound® material reduces noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftScreen®'s material works in concert with wall coverage or partition capabilities and diffuses sound while enhancing wellness in spaces from busy office environments to soothing waiting rooms.
Expansive Soft Sound® Library

Choose from a expanding library of Soft Sound® colors and wood textures. Mix and match colors to accent panels and complement the color scheme of your space.
Varying Degrees of Separation

SoftScreen®'s growing collection of solid, half, and full pattern designs create a diverse range of physical separation and visual obstruction to fit the privacy, collaboration, and partition needs of any space.
Continuous Aesthetic

SoftScreen's thoughtful design allows for a continuous pattern aesthetic across an array of panels.
Height Options

SoftScreen® offers two variable heights to accommodate use in a diverse range of spaces.
Diverse Mounting Methods

SoftScreen® attachments are available to create both static and operable panels. Choose from Hanging Bracket, Cable Hung, Sliding Track, or Direct mounting methods to make SoftScreen's various functions a suitable fit for any interior space.

Product Details

Specifications

Dimensions

1220 x 2440 x 10.3 (20mm w/ Channel)
1220 x 2740 x 10.3 (20mm w/ Channel)

Material

12mm Soft Sound® (PET) and Aluminum Track

Openness

Fire Rating

ASTM E84 - Class A | UNE-EN 13501-1, B-s1,d0

Acoustics

True NRC® 0.30: Wall A Method

Ceiling/Floor Attachment

Track or Wire

Wall Attachment

Adhesive

Trimmability

Yes, per installation manual

Product Diagrams

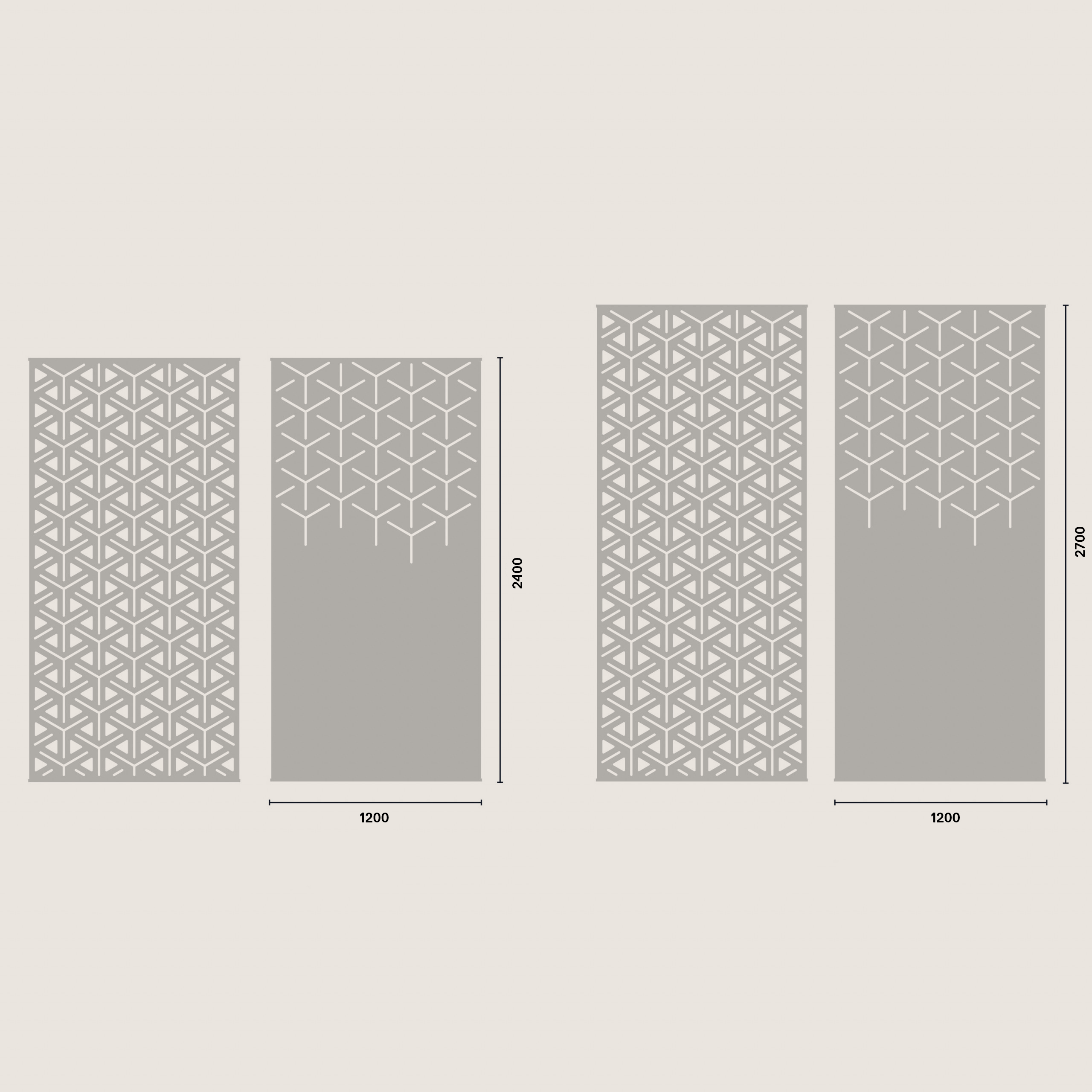

Pattern Options

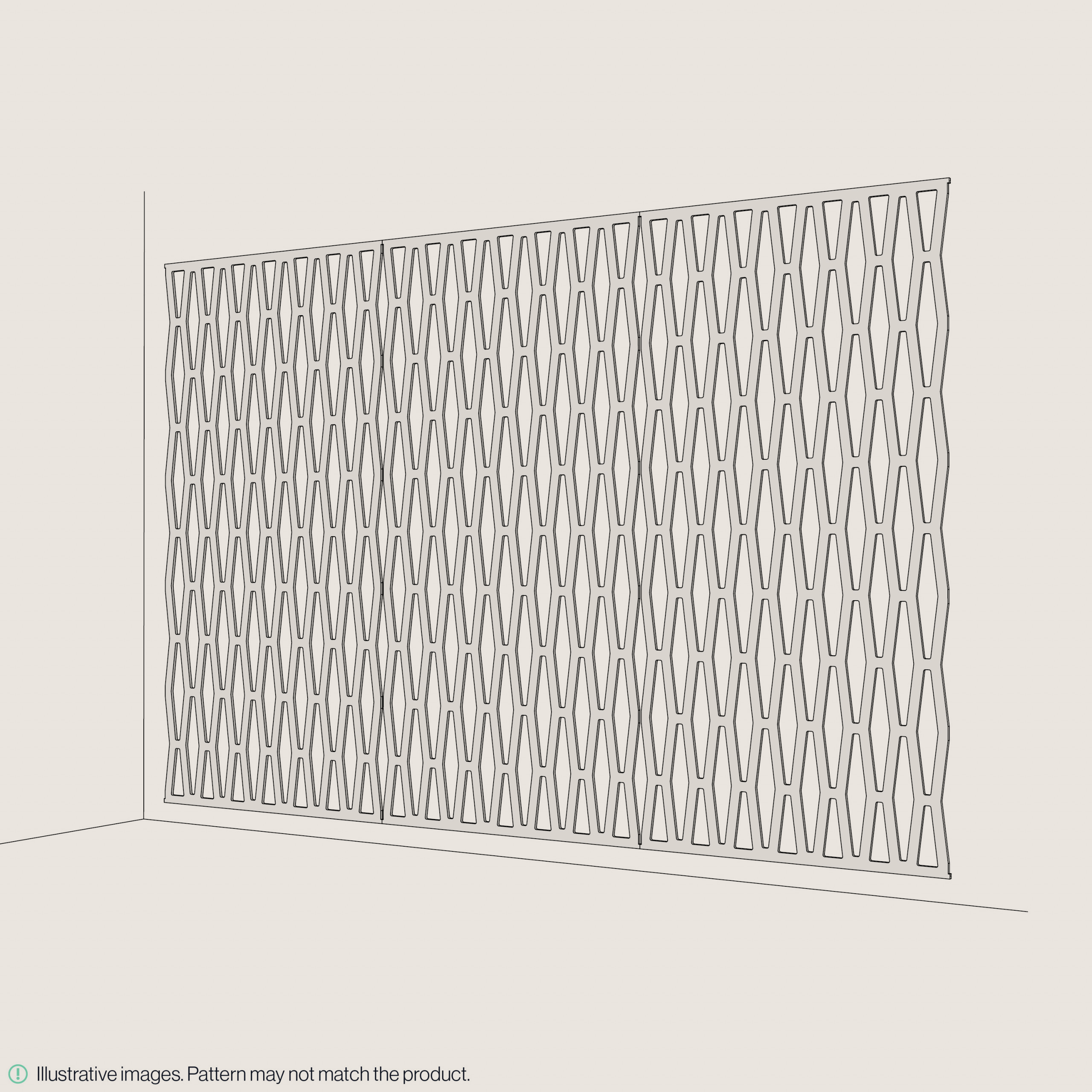

Install Option: Direct

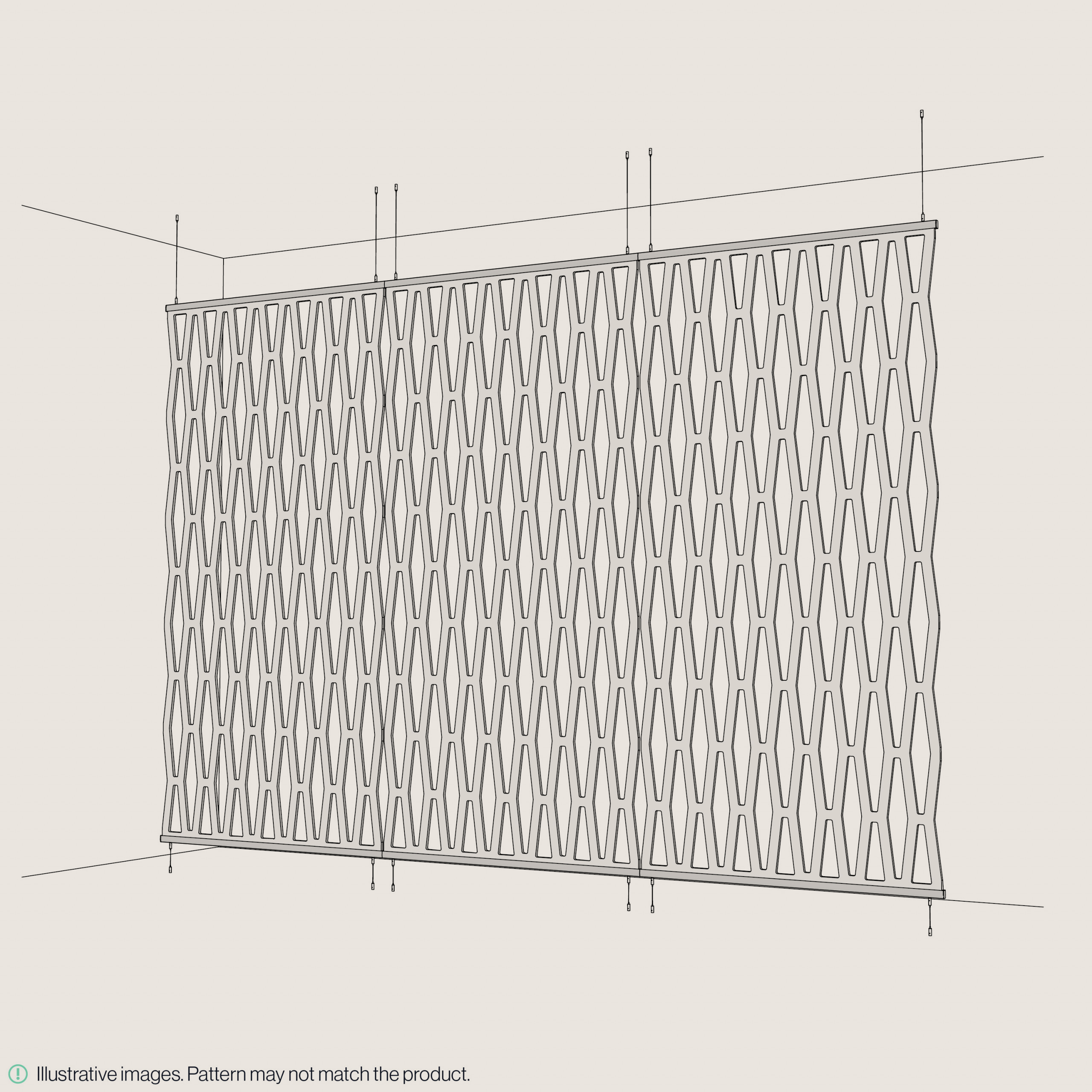

Install Option: Cable Hung

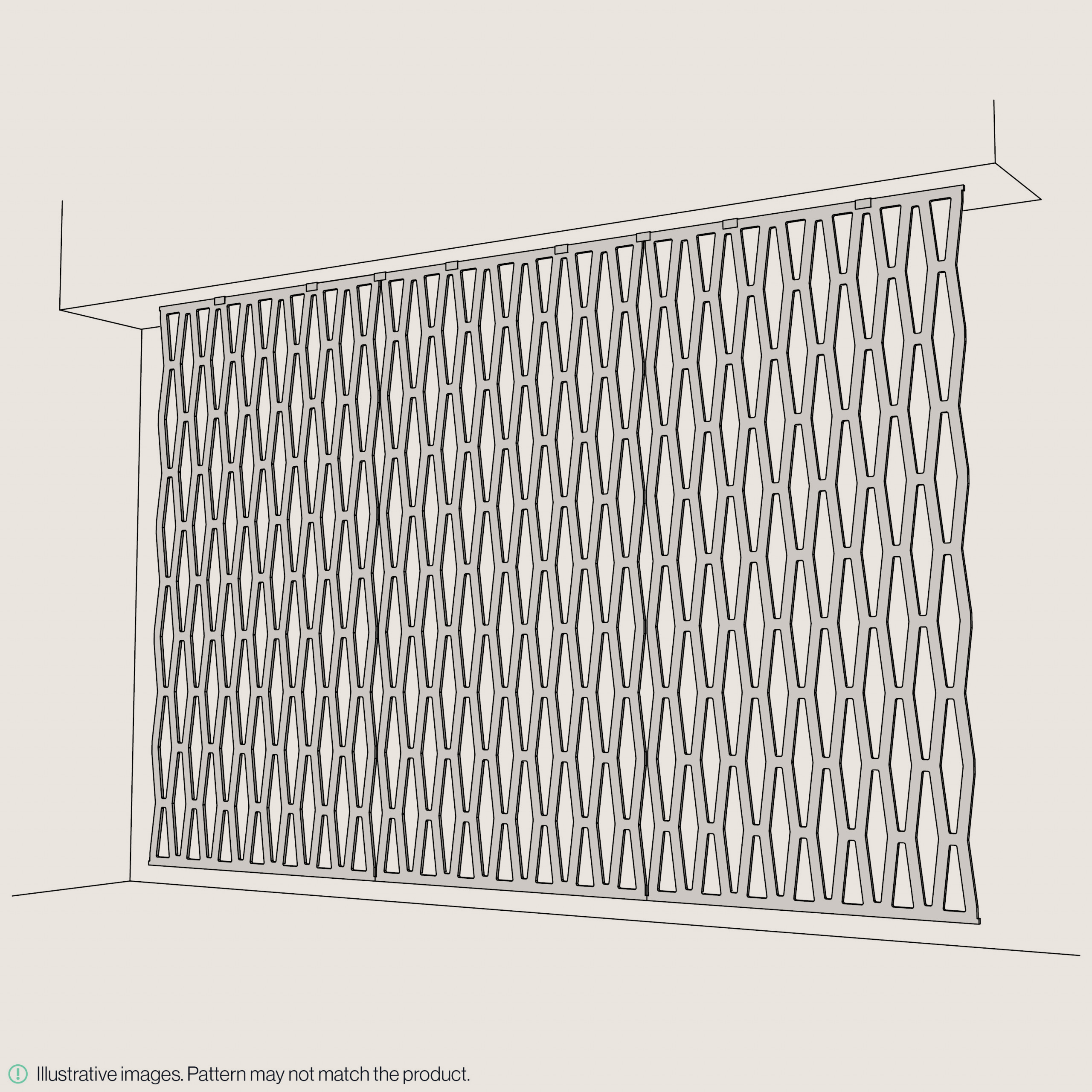

Install Option: Hanging Bracket

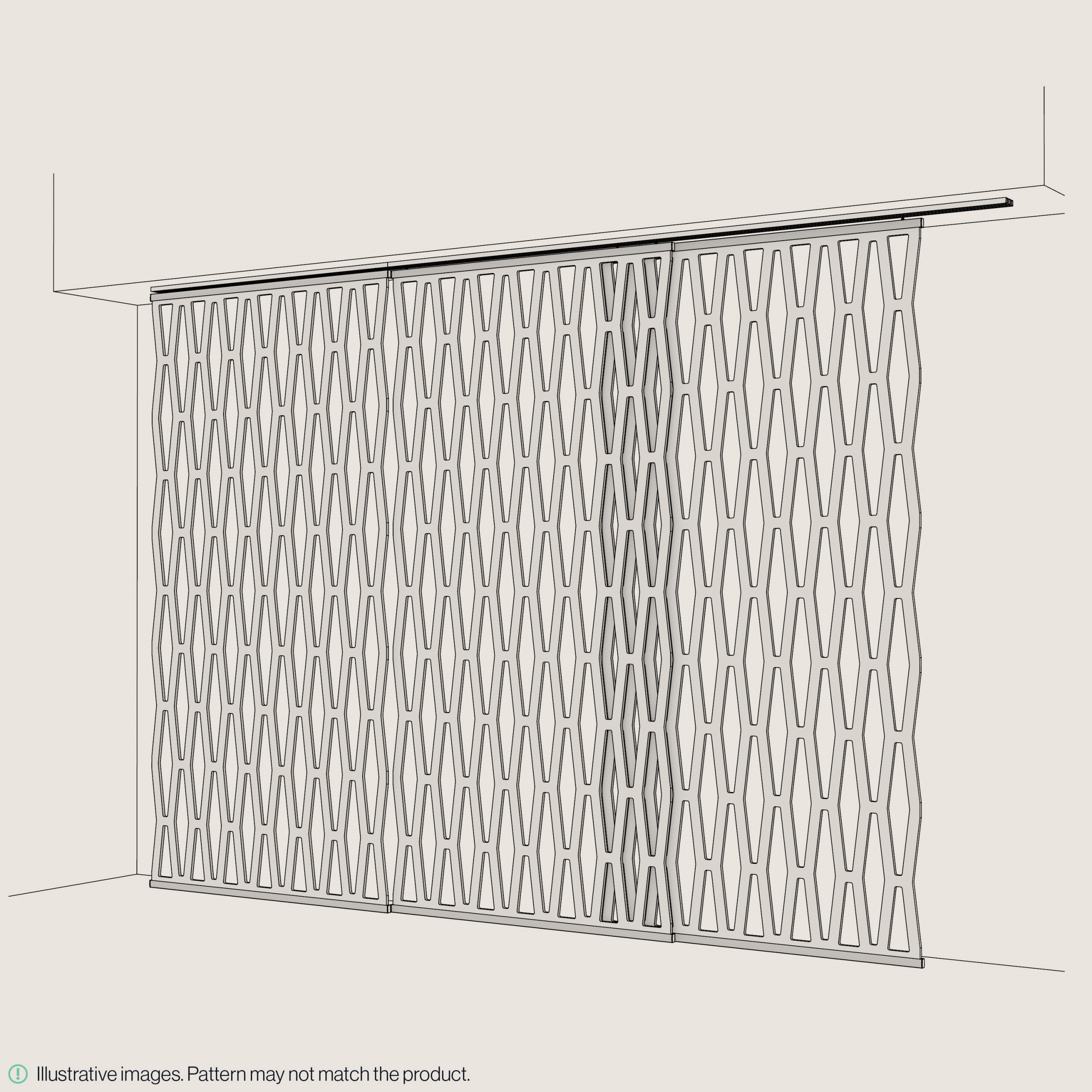

Install Option: Sliding

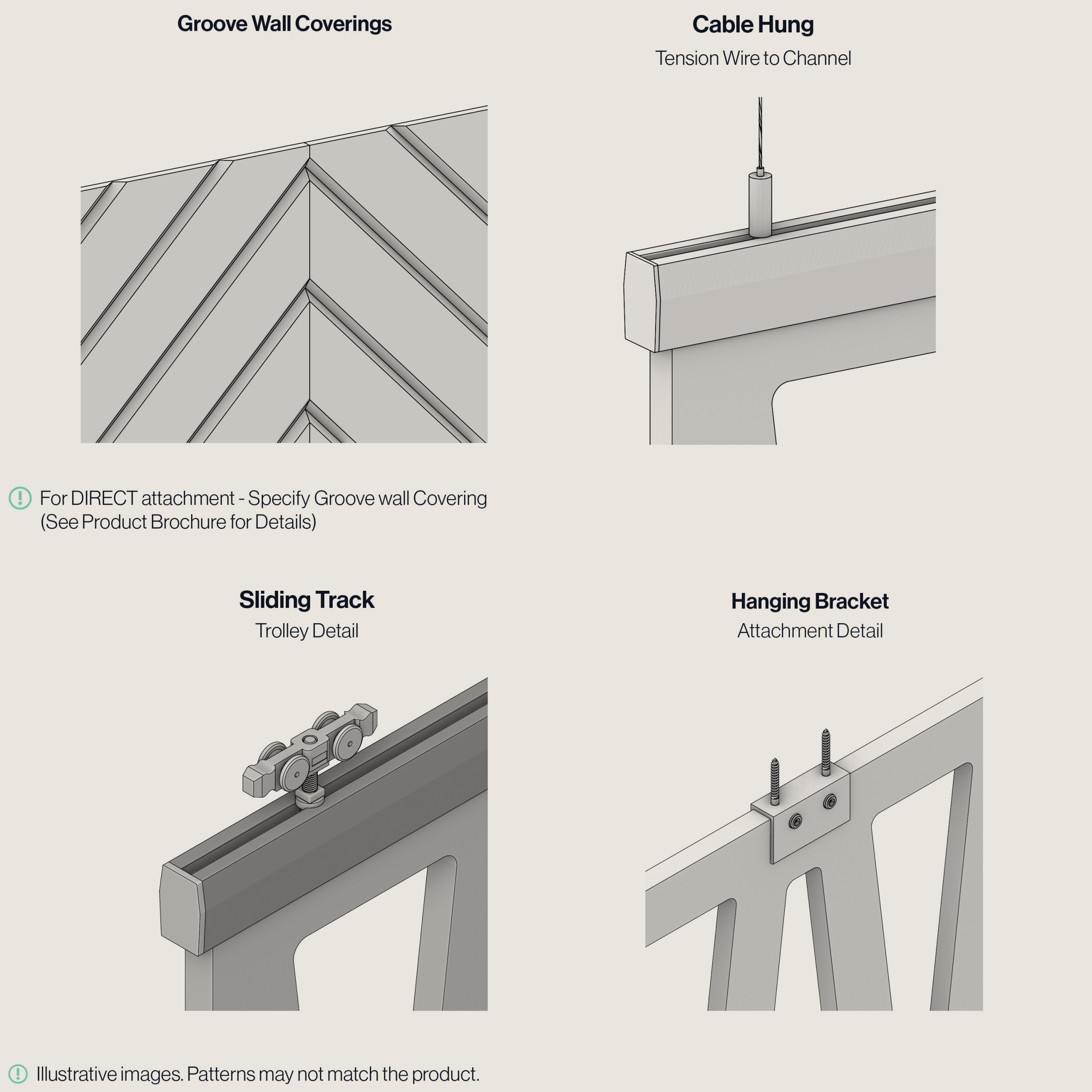

Attachment Details

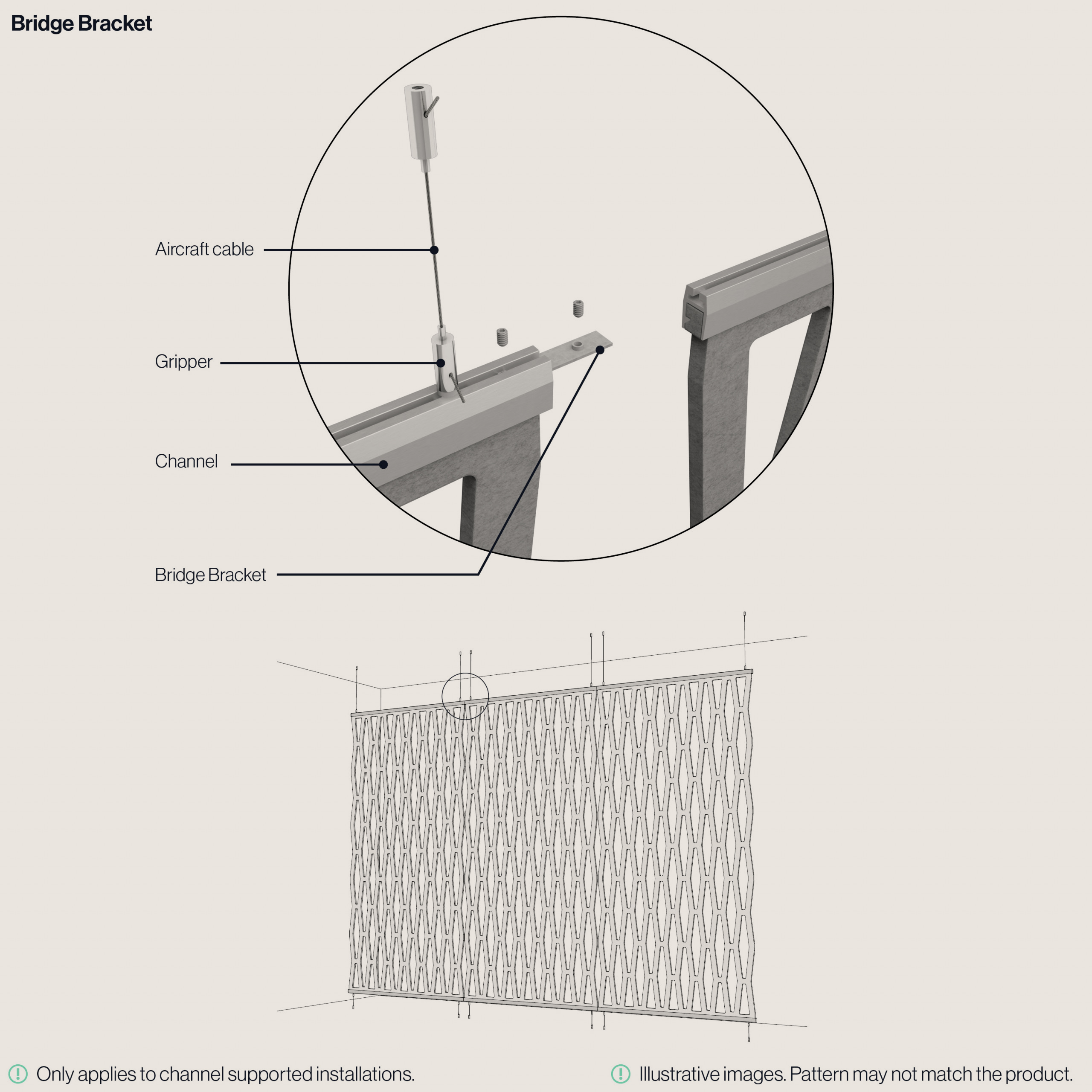

Accessories: Bridge

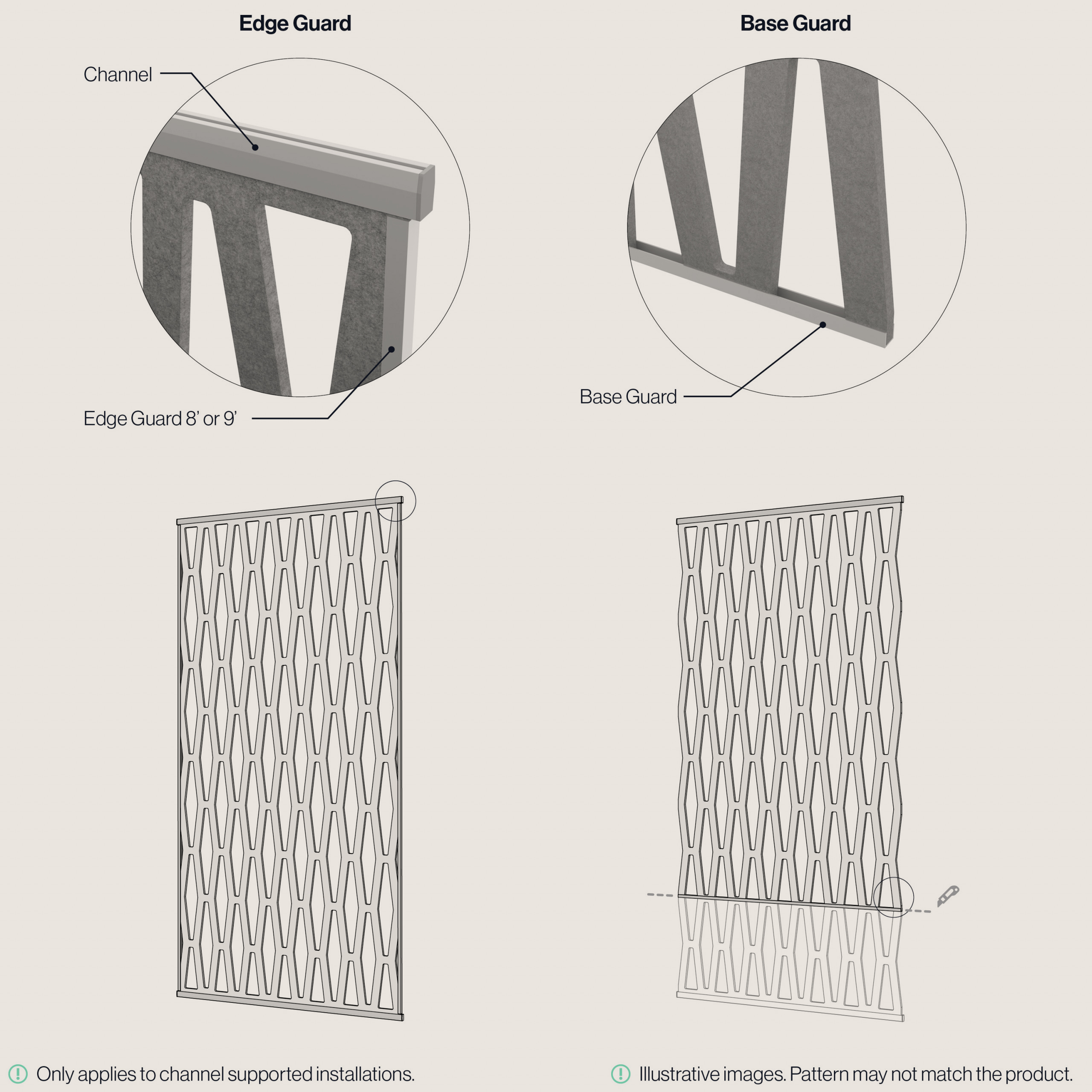

Accessories: Edge

Sustainability and Certifications

144

Each module is made from 144 recycled water bottles
Cradle to Cradle®

Bronze Status Pending
100%

Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)
Declare

Red list free
