About SoftScreen® GROOVE ANGLED

SoftScreen® Groove Angled panels and partitions bring a lively texture to spaces while creating a barrier from noise and air current. Use its linear pattern in a single direction or to zig-zag across a space. Choose from 3 spacing options for its angled lines, all providing acoustic comfort thanks to their Soft Sound® construction. Choose from Hanging Bracket, Cable Hung, and Sliding Track mounting methods to fit the needs of your space. Ask about Groove Wall Coverings for Direct mounting applications or refer to the final page of the product brochure for more info.

The System

Key Features

  1. Reduce Noise & Enhance Acoustics

    SoftScreen®'s Soft Sound® material reduces noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftScreen®'s material works in concert with wall coverage or partition capabilities and diffuses sound while enhancing wellness in spaces from busy office environments to soothing waiting rooms.

  2. Expansive Soft Sound® Library

    Choose from a expanding library of Soft Sound® colors and wood textures. Mix and match colors to accent panels and complement the color scheme of your space.

  3. Varying Degrees of Separation

    SoftScreen®'s growing collection of solid, half, and full pattern designs create a diverse range of physical separation and visual obstruction to fit the privacy, collaboration, and partition needs of any space.

  4. Continuous Aesthetic

    SoftScreen's thoughtful design allows for a continuous pattern aesthetic across an array of panels.

  5. Height Options

    SoftScreen® offers two variable heights to accommodate use in a diverse range of spaces.

  6. Diverse Mounting Methods

    SoftScreen® attachments are available to create both static and operable panels. Choose from Hanging Bracket, Cable Hung, Sliding Track, or Direct mounting methods to make SoftScreen's various functions a suitable fit for any interior space.

Product Details

  1. Specifications


    • 1220 x 2460.2 x 10.3 (20mm w/ Channel)

    • 1220 x 2760.2 x 10.3 (20mm w/ Channel)


    • 12mm Soft Sound® (PET) and Aluminum Track


    • 0%

    Fire Rating

    • ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0

    Ceiling/Floor Attachment

    • Track or Wire

    Wall Attachment

    • Adhesive


    • Yes, per installation manual

  2. Product Diagrams

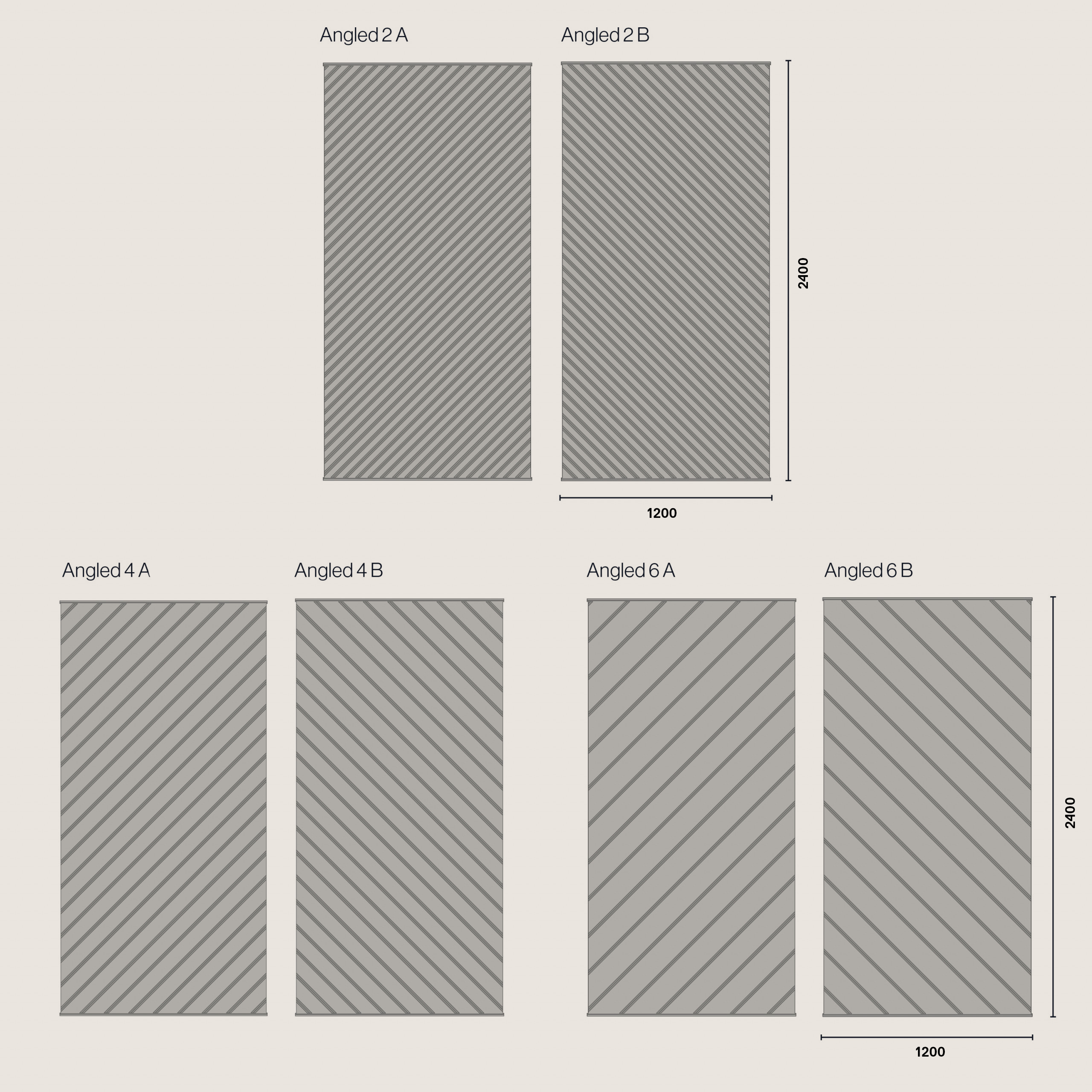

    • Pattern Options

    • Pattern Options

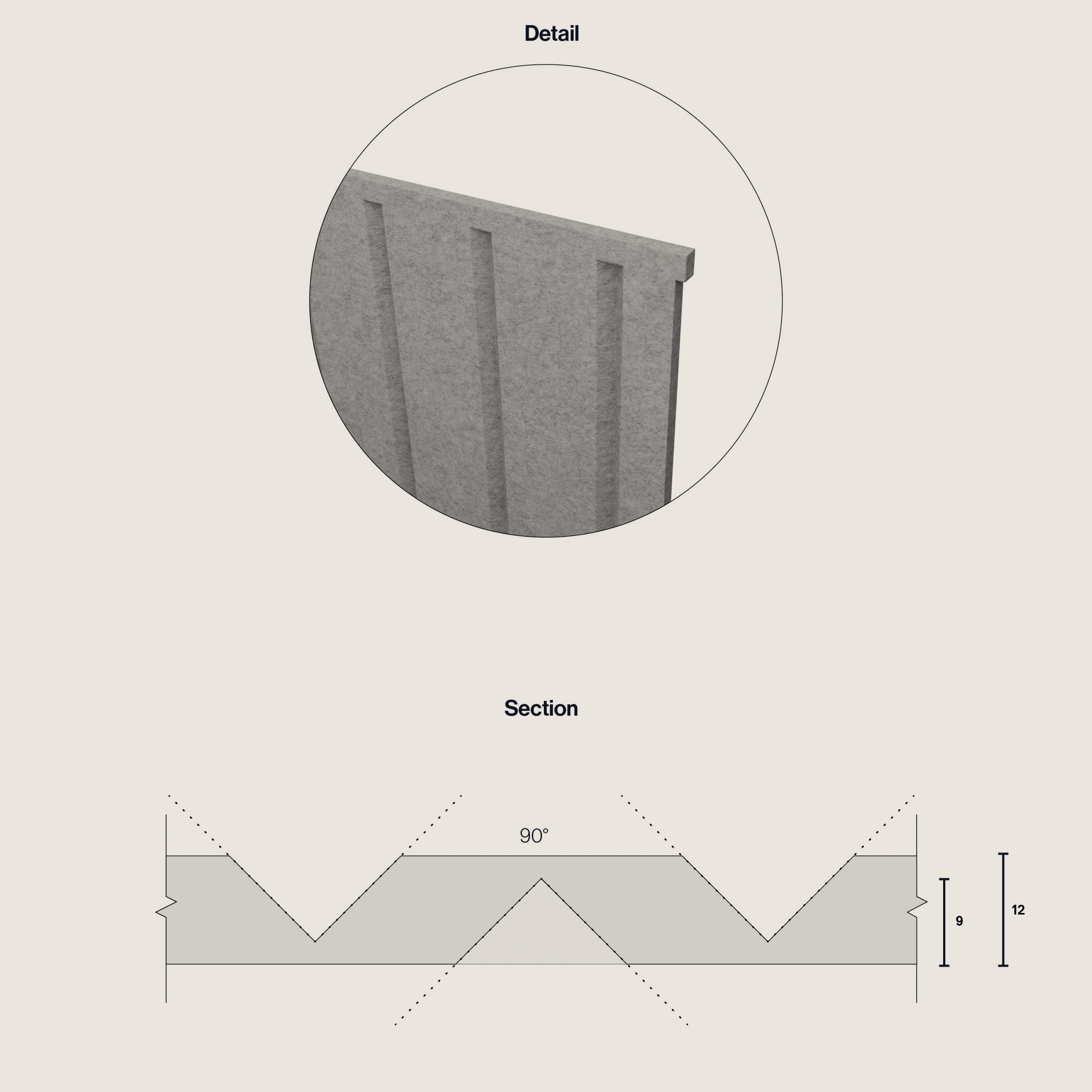

    • Section: Plan

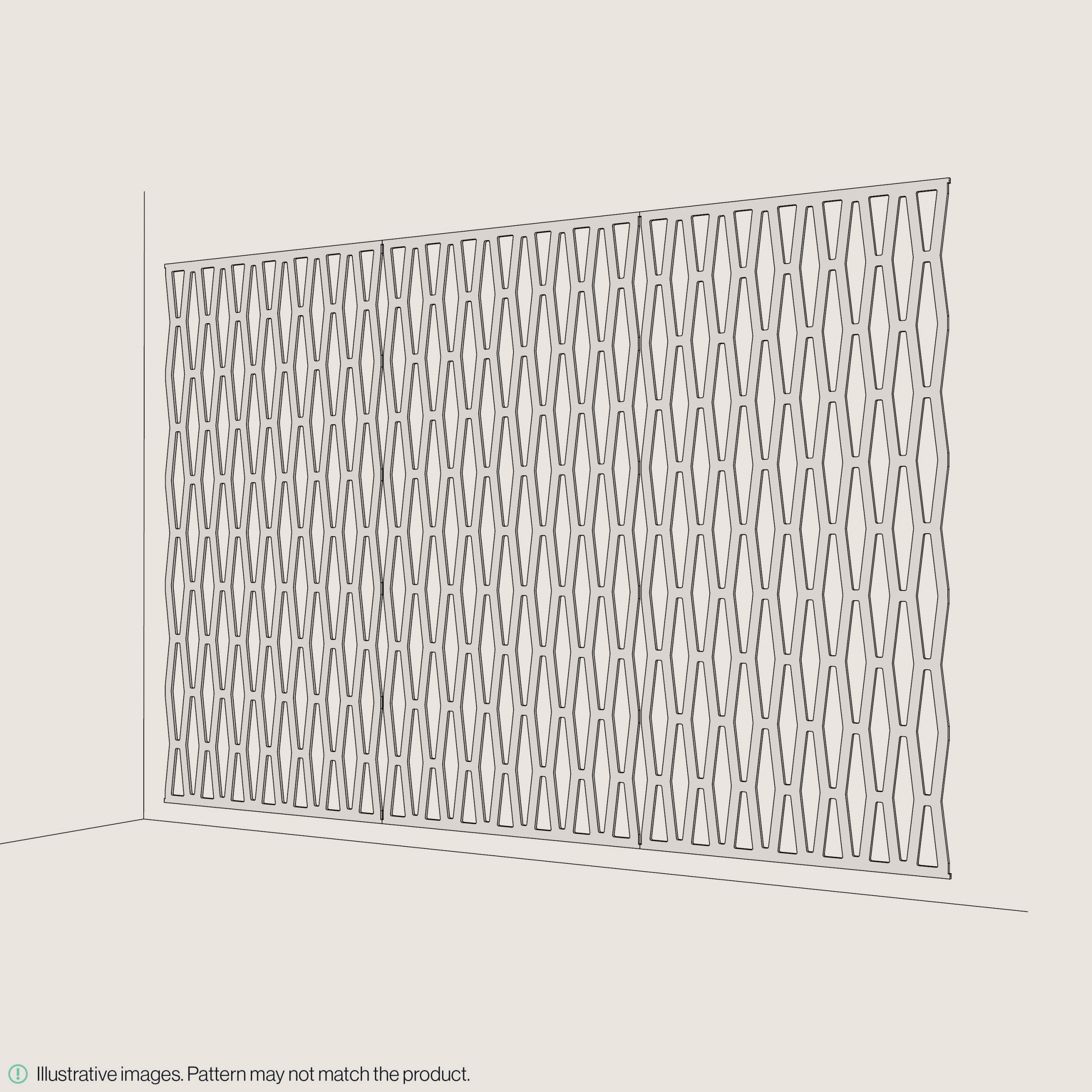

    • Install Option: Direct

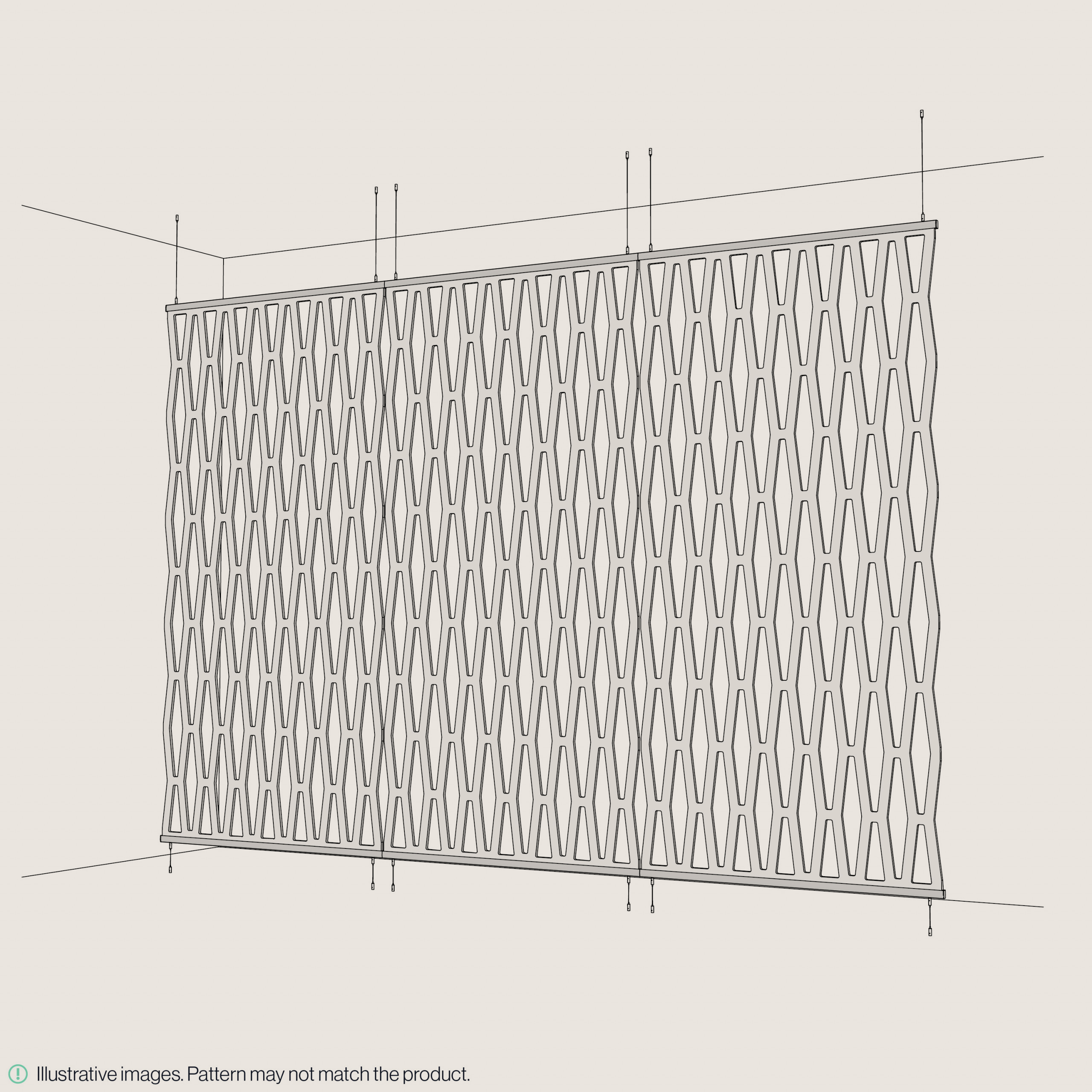

    • Install Option: Cable Hung

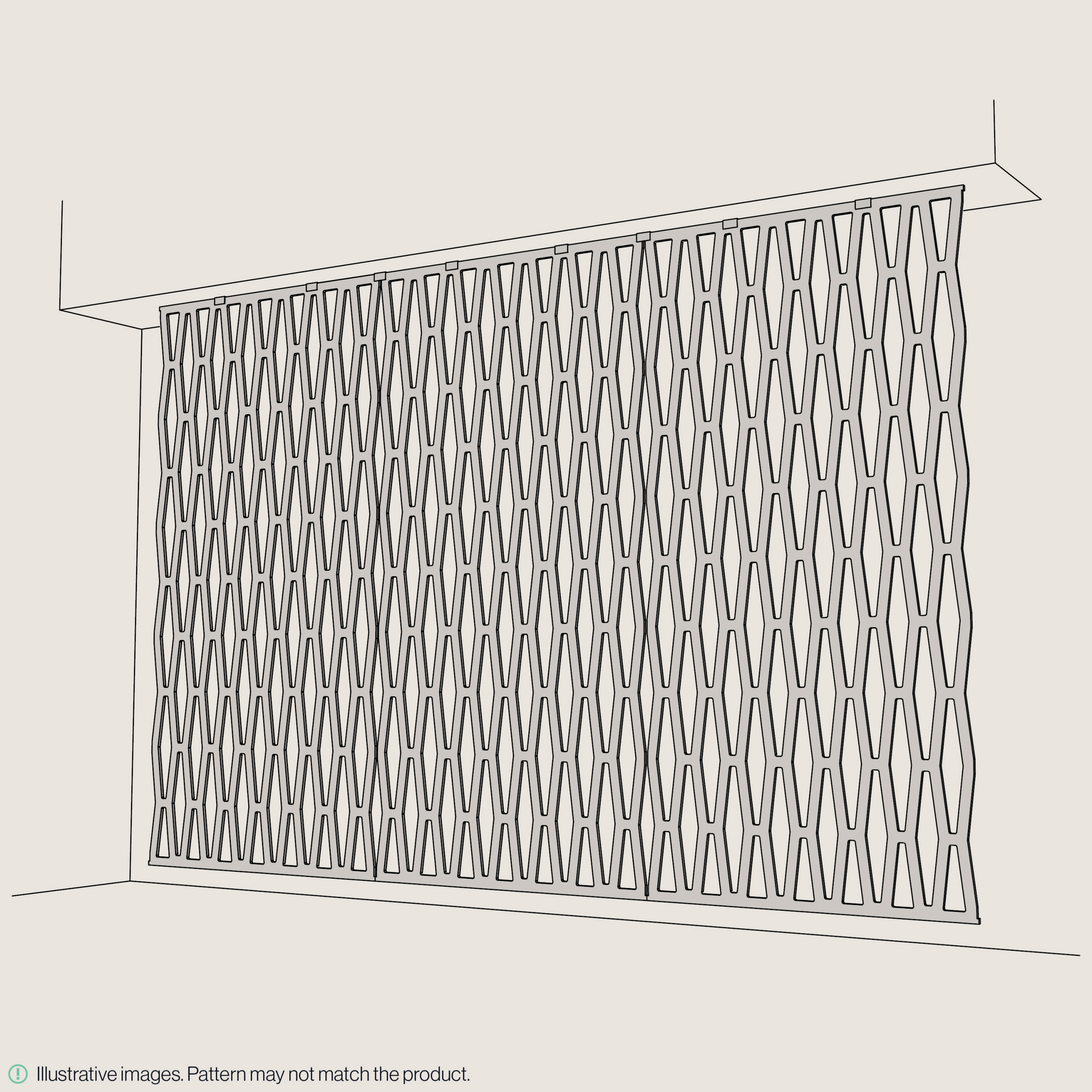

    • Install Option: Hanging Bracket

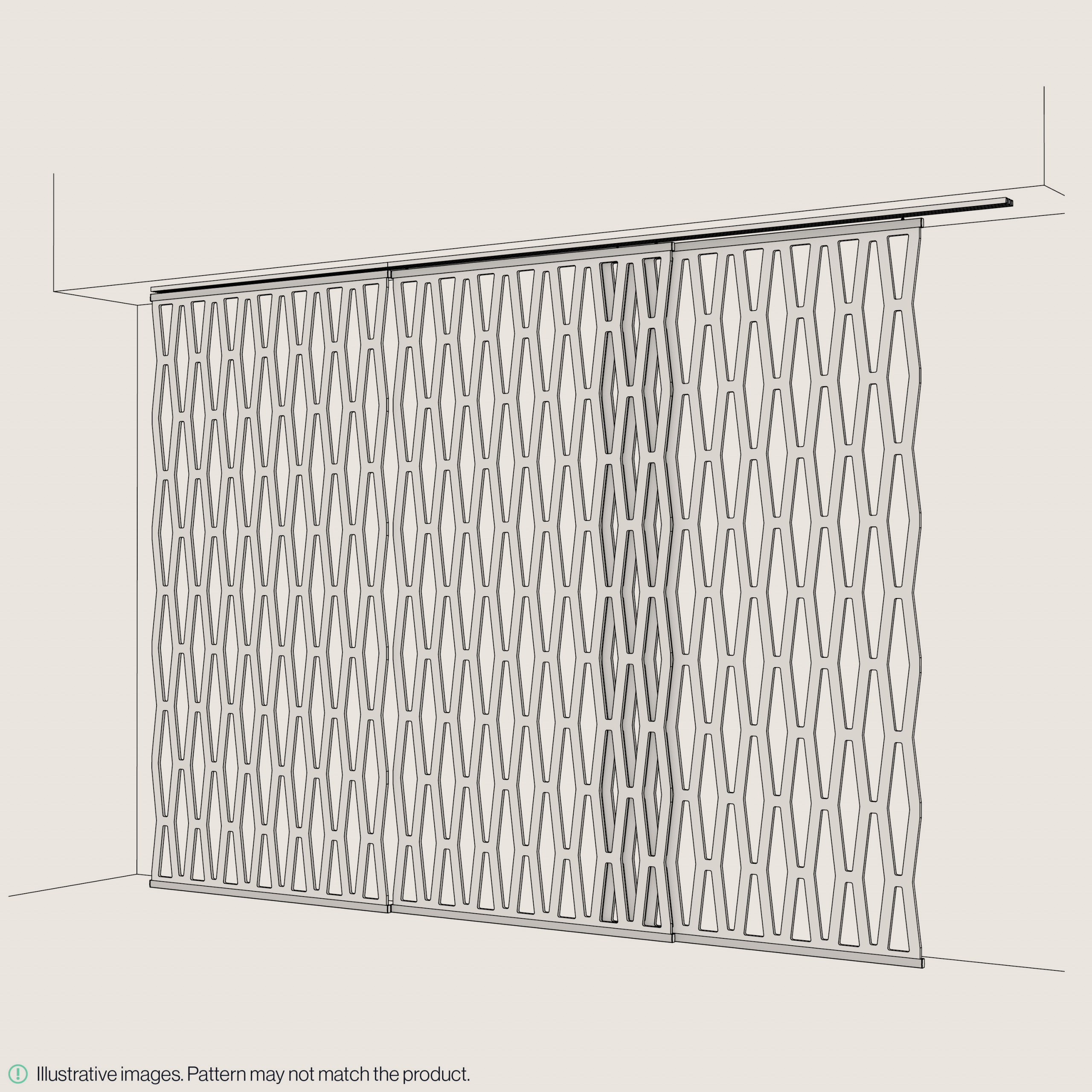

    • Install Options: Sliding

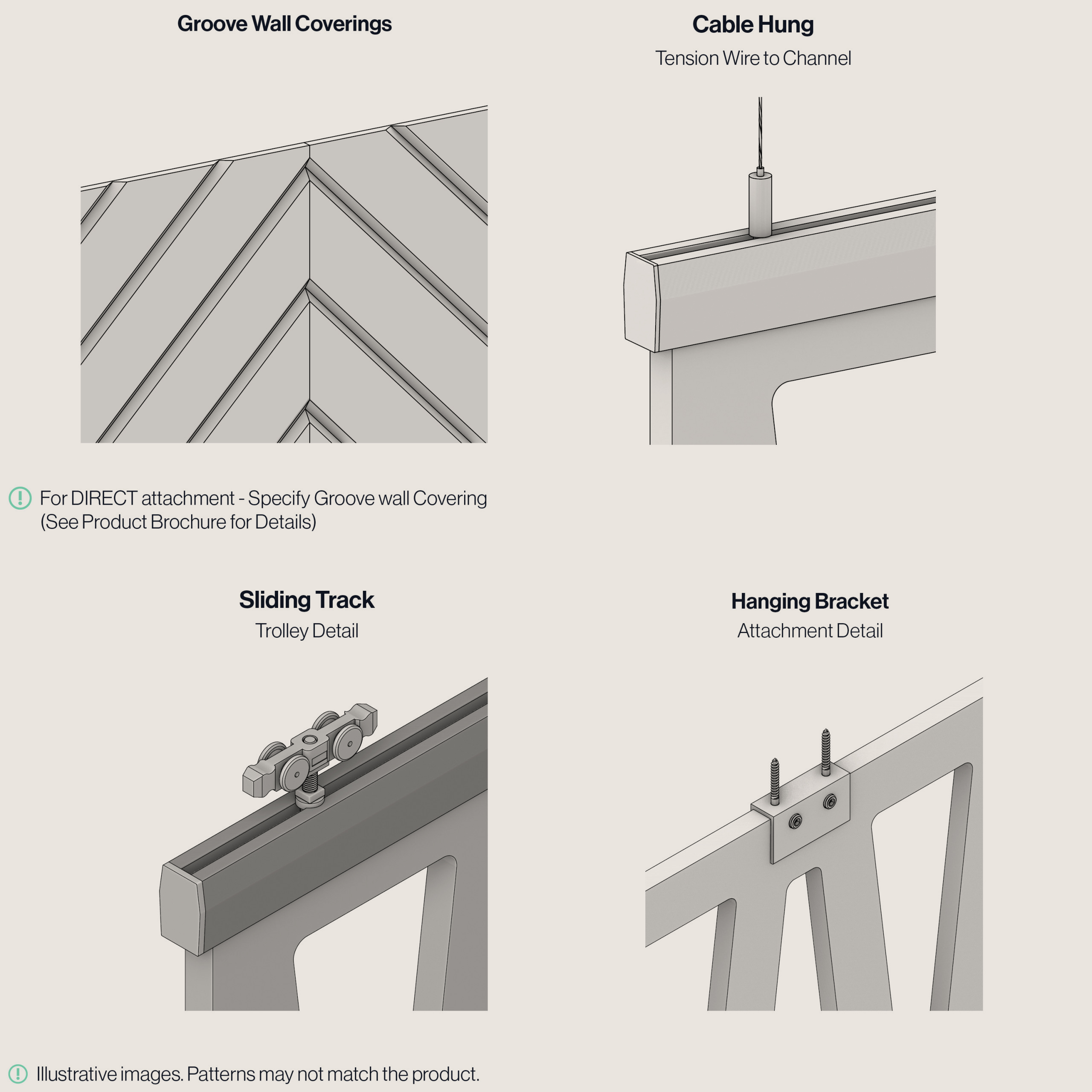

    • Attachment Details

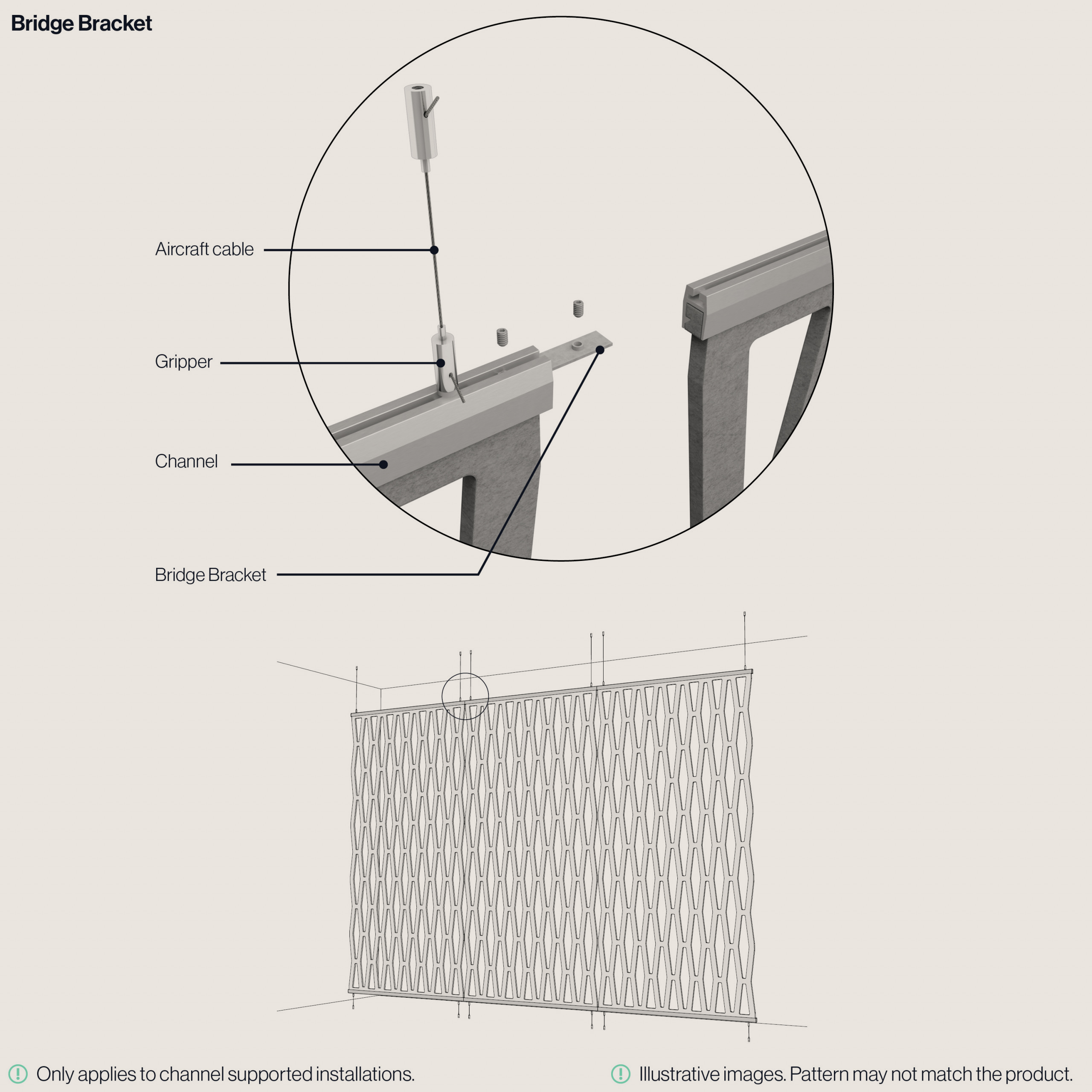

    • Accessories: Bridge

    • Accessories: Edge

  3. Sustainability and Certification
    • 144

      Each module is made from 144 recycled water bottles

    • Cradle to Cradle®

      Bronze Status Pending

    • 100%

      Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)

    • Declare

      Red list free

Materials and Finishes

  1. Materials and Finishes

    Soft Sound® Color Group A

    • White


    • Snow


    • Marble


    • Heather Gray

      Heather Gray

    • Graphite


    • Carbon


    • Onyx


    • Apple


    • Tangerine


    • Lemon


    • Taupe


    • Sand


    • Kiwi


    • Whisper


    • Sky Blue

      Sky Blue

    • Denim


    • Absinthe


    • Abyss


    • Azore


    • Mars


    • Macchiato


    Soft Sound® Wood Texture

    • Gray Ash

      Gray Ash

    • White Oak

      White Oak

    • Golden Oak

      Golden Oak

    • Oak


    • American Walnut

      American Walnut

    • Charred Oak

      Charred Oak

    • Charred Ash

      Charred Ash

    • Ebony
