About SoundAngle®

SoundAngle® ceiling system’s V-shaped baffles offer a scalable way to add dimensionality and decrease acoustical reverberations across spaces. Its angled face design and construction from our Soft Sound® acoustical material combine to dramatically reduce noise from all directions. SoundAngle® can be configured in numerous ways to adapt to existing structural elements and fit your design vision. Choose from two depths and a range of lengths, all available in a variety of colors and finishes, including wood-grain textures.

Key Features

  1. Reduce Noise & Enhance Acoustics

    SoundAngle®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Its material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  2. Open Plan Accessibility

    SoundAngle®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins allow access to larger systems and the open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.

  3. Expansive Soft Sound® Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to an accent fins and complement the color scheme of your space.

  4. Minimal Hanging Hardware

    SoundAngle® provides structure and support with an angled metal bracket and thin suspension cable that is virtually invisible when viewed from below.

  5. Profiles to Suit Your Needs

    SoundAngle® is available in a range of lengths, heights, and configurable options, giving you complete design flexibility.

Product Details

  1. Specifications

    Dimensions

    • Fin Depths: 150 & 300.5

    • Lengths: 610, 910, 1220, 1520, 1830, 2130, 2440, 2740

    Material

    • 12mm Soft Sound® (PET)

    Fire Rating

    • ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0

    Acoustics

    • True NRC® 0.95: SoundAngle® 12” by 9’ (Fins Touching); E-300 Method

    • True NRC® 0.95: SoundAngle® 6” by 9’ (Fins Touching); E-300 Method

    • True NRC® 0.75: SoundAngle® 12” by 9’ (6” Gap); E-300 Method

    • True NRC® 0.70: SoundAngle® 6” by 9’ (6” Gap); E-300 Method

    • True NRC® 0.65: SoundAngle® 12” by 9’ (12” Gap); E-300 Method

    • True NRC® 0.55: SoundAngle® 6” by 9’ (12” Gap); E-300 Method

    Attachment Method

    • 1/32” Stainless Cable and Hardware

    Accessibility

    • Yes, quick release cables

    Trimmability

    • Yes, per installation manual

  2. Product Diagrams

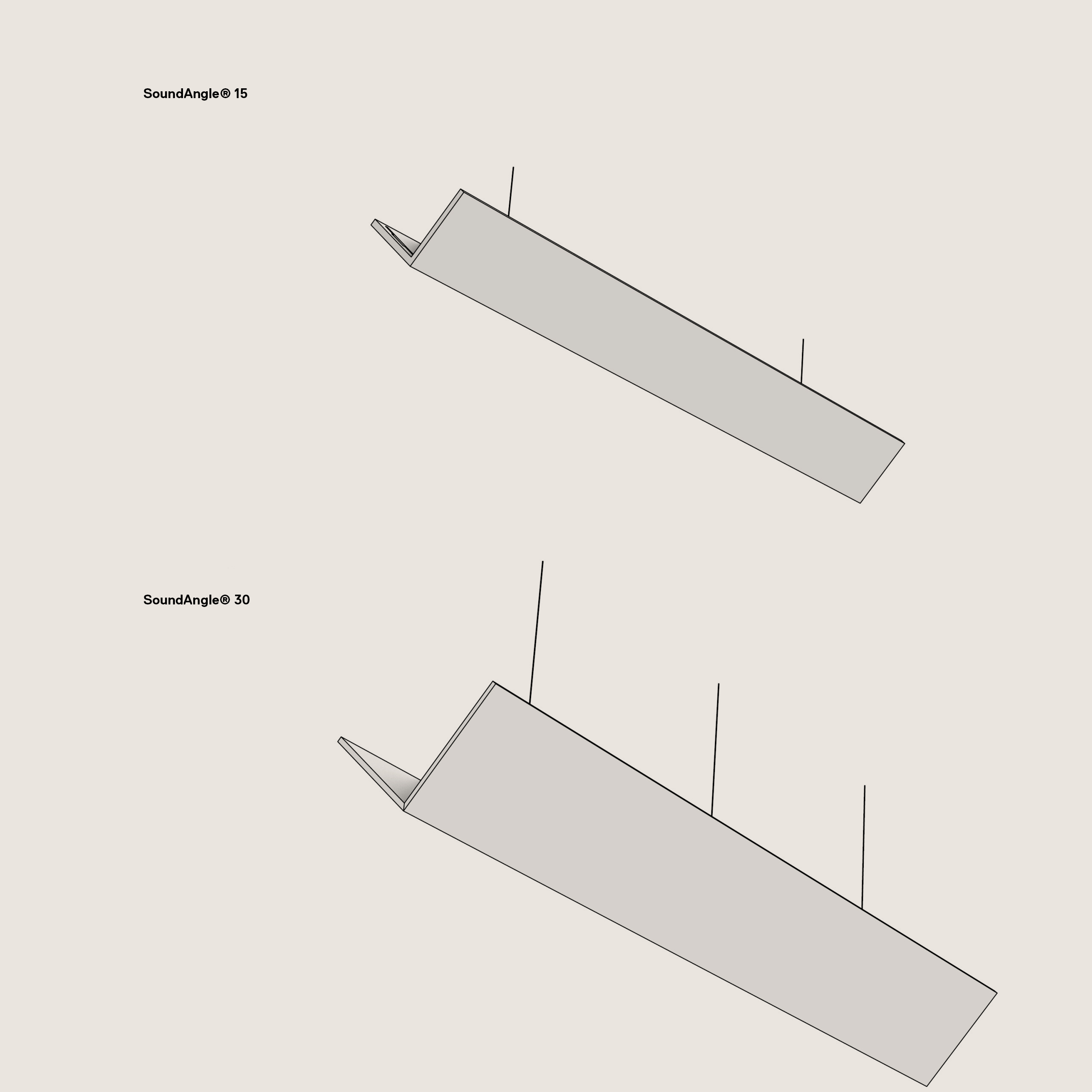

    • Standard Configurations

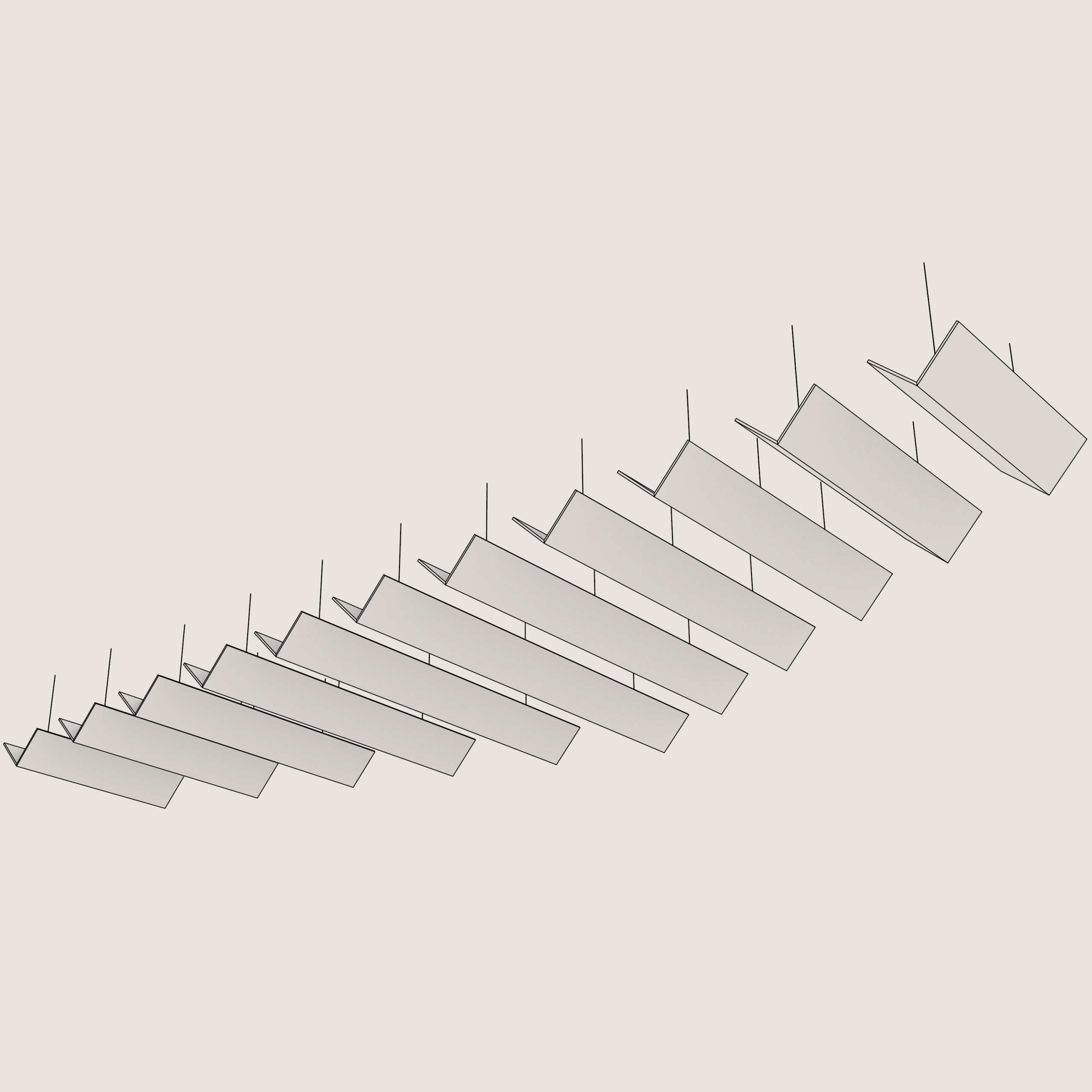

    • Multiple Modules

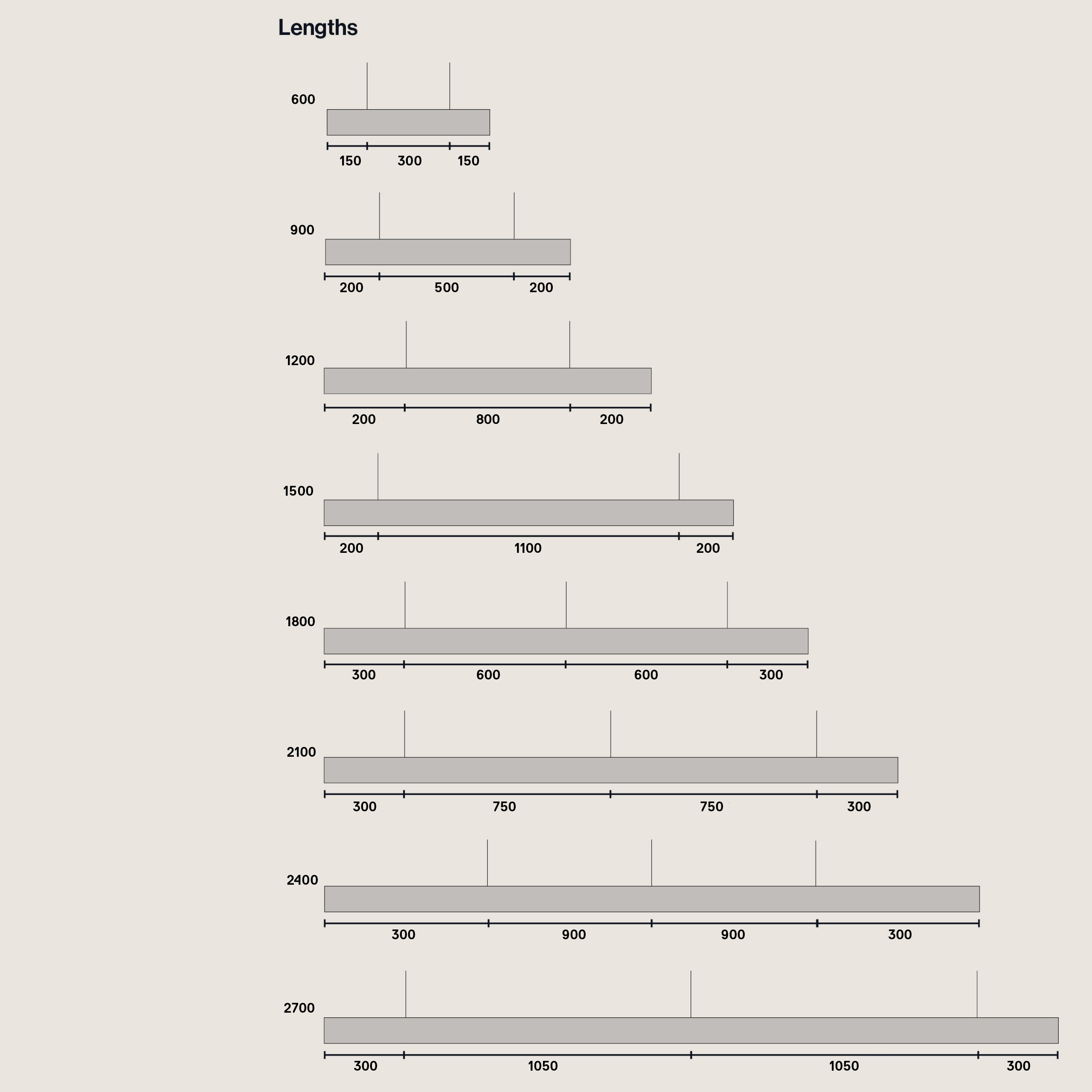

    • Dimensions

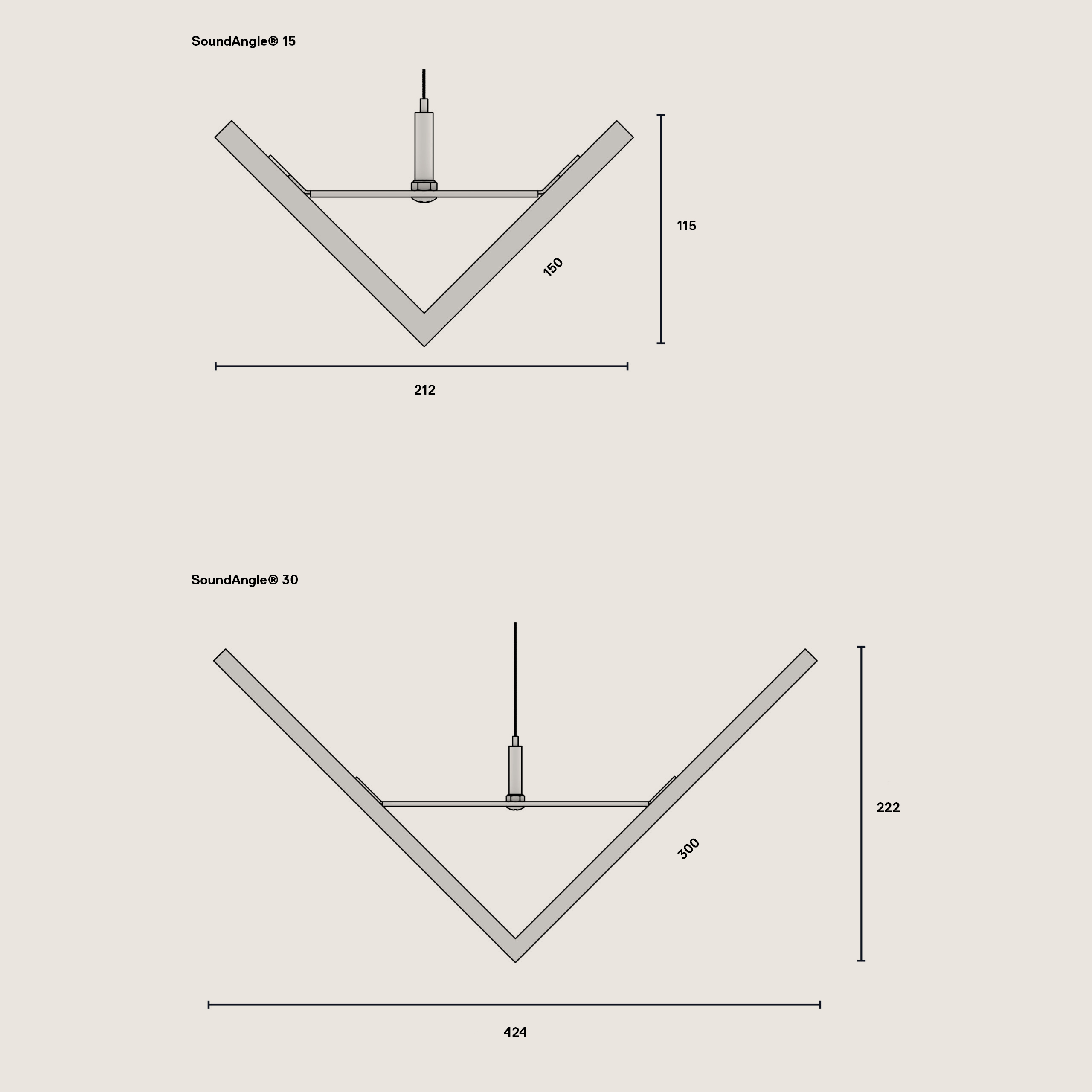

    • Sections

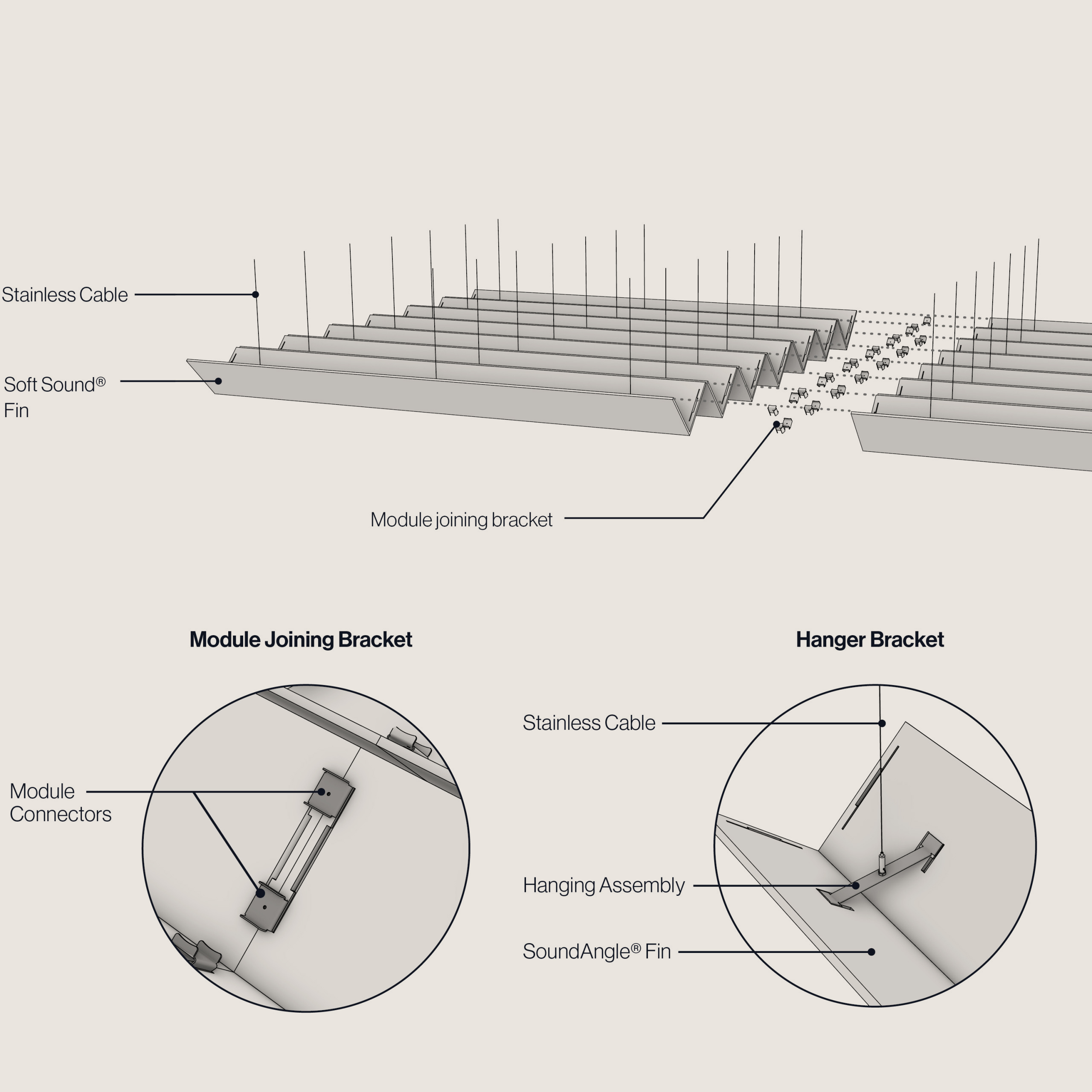

    • Attachment Details

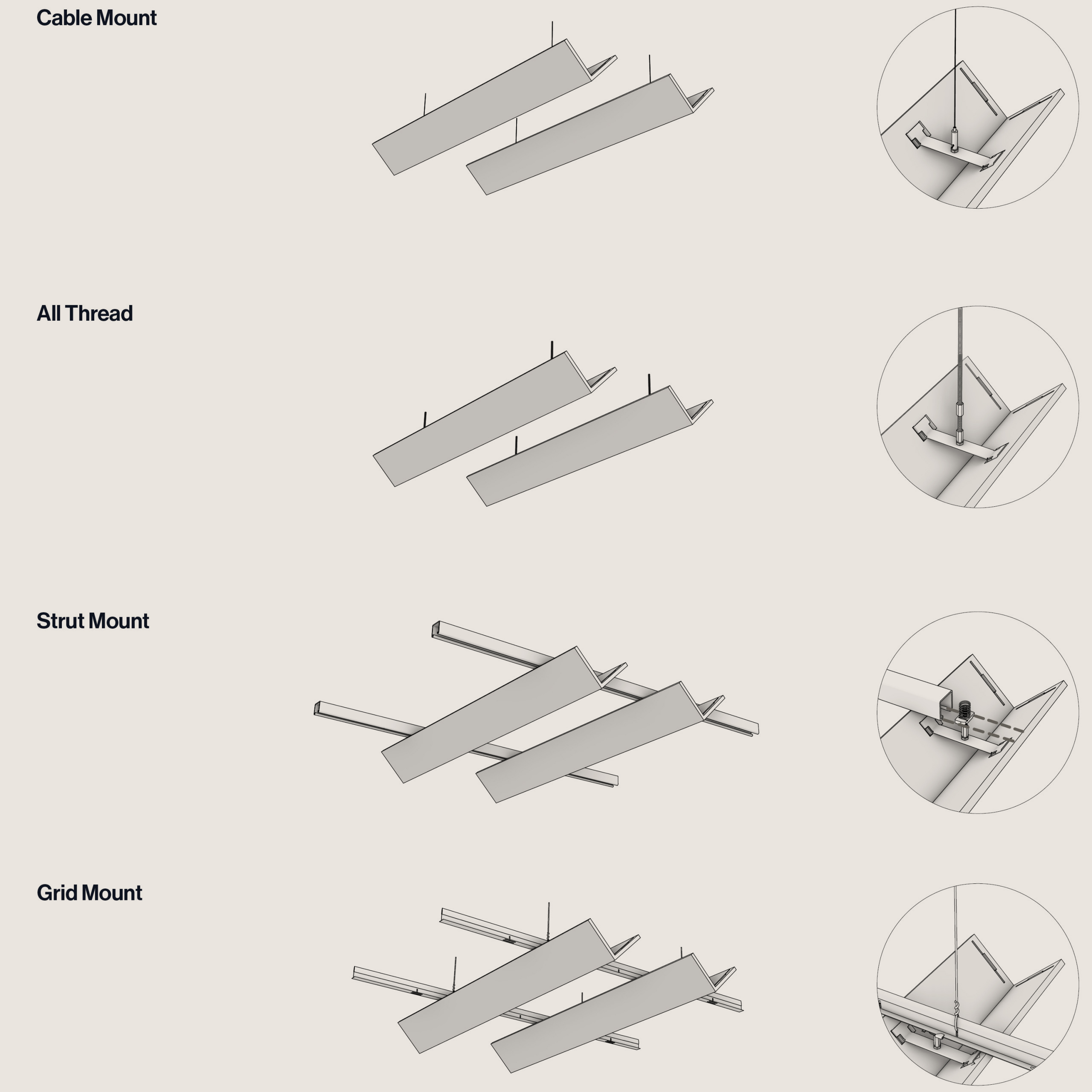

    • Multiple Attachment Options

  3. Sustainability and Certifications
    • 35-97

      Each module is made from a minimum of 35 recycled water bottles.

    • Cradle to Cradle®

      Bronze Status Pending

    • 100%

      Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)

    • Declare

      Red list free

Materials and Finishes

  1. Materials and Finishes

    Soft Sound® Color Group A

    • White

      White

    • Snow

      Snow

    • Marble

      Marble

    • Heather Gray

      Heather Gray

    • Graphite

      Graphite

    • Carbon

      Carbon

    • Onyx

      Onyx

    • Apple

      Apple

    • Tangerine

      Tangerine

    • Lemon

      Lemon

    • Taupe

      Taupe

    • Sand

      Sand

    • Kiwi

      Kiwi

    • Whisper

      Whisper

    • Sky Blue

      Sky Blue

    • Denim

      Denim

    • Absinthe

      Absinthe

    • Abyss

      Abyss

    • Azore

      Azore

    • Mars

      Mars

    • Macchiato

      Macchiato

    Soft Sound® Wood Texture

    • Gray Ash

      Gray Ash

    • White Oak

      White Oak

    • Golden Oak

      Golden Oak

    • Oak

      Oak

    • American Walnut

      American Walnut

    • Charred Oak

      Charred Oak

    • Charred Ash

      Charred Ash

    • Ebony

      Ebony
