About SoundStar®

SoundStar® ceiling system’s hexagonally shaped cellular coffers offer a scalable way to add geometric dimensionality and disrupt sound’s ability to travel across a space. Each module is comprised of angled surfaces made from our Soft Sound® acoustical material (100% PET plastic with up to 60% recycled content) with a metal substructure. Choose from 12” or 24” deep modules, to mix and match as desired. Thanks to its flexible, modular configuration, SoundStar® can adapt to a range of spaces and design visions, to create a spectacular visual effect. The design and sound capturing capabilities of this system offer a fresh effective approach to high performance sound attenuation.

—

The System

Key Features

  1. Dynamic Modules

    SoundStar®'s unique hexagonal shape allows it to work in dynamic clusters that don't confine its modules to rectilinear spaces. SoundStar® works with irregular and regular spaces, clusters well in open areas, and can be suspended individually as an acoustic cloud.

  2. Thoughtful Integration

    SoundStar® can accept integration of lights and fire suppression systems through its vertices and voids. Simply select an open void in the SoundStar® module and field cut to integrate a fixture and add even more flexibility for integration.

  3. Compatible with Hexagonal SoftGrid®

    SoundStar® is compatible with hexagonal SoftGrid® patterns Deca, Orbit, and Flux. Integrate SoftGrid® modules with SoundStar® to add balance and design variation to any space.

  4. Reduce Noise & Enhance Acoustics

    SoundStar®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoundStar®'s material works in concert with the faceted design to help reduce and control reverberations and diffuse sound leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  5. Expansive Soft Sound® Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent and complement the color scheme of your space.

  6. Seamless Connections

    Connect SoundStar® modules seamlessly into clusters, at all adjacent points, with our module joining brackets.

Product Details

  1. Specifications

    Dimensions

    • 1500 x 1750

    Depth

    • 300 or 600

    Frame Material

    • Aluminum

    Face Material

    • 12mm Soft Sound® (PET)

    Fire Rating

    • ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0

    Acoustics

    • SoundStar 24": True NRC® 0.95: Ceiling E-600 Method

    • SoundStar 24": True NRC® 0.95: Ceiling E-700 Method

    • SoundStar 12": True NRC® 0.85: Ceiling E-300 Method

    • SoundStar 12": True NRC® 0.85: Ceiling E-400 Method

    Attachment Method

    • 1/16" Cable

    Accessibility

    • Yes, quick release cables

    Trimmability

    • Yes, in specific areas that avoid the frame

  2. Product Diagrams

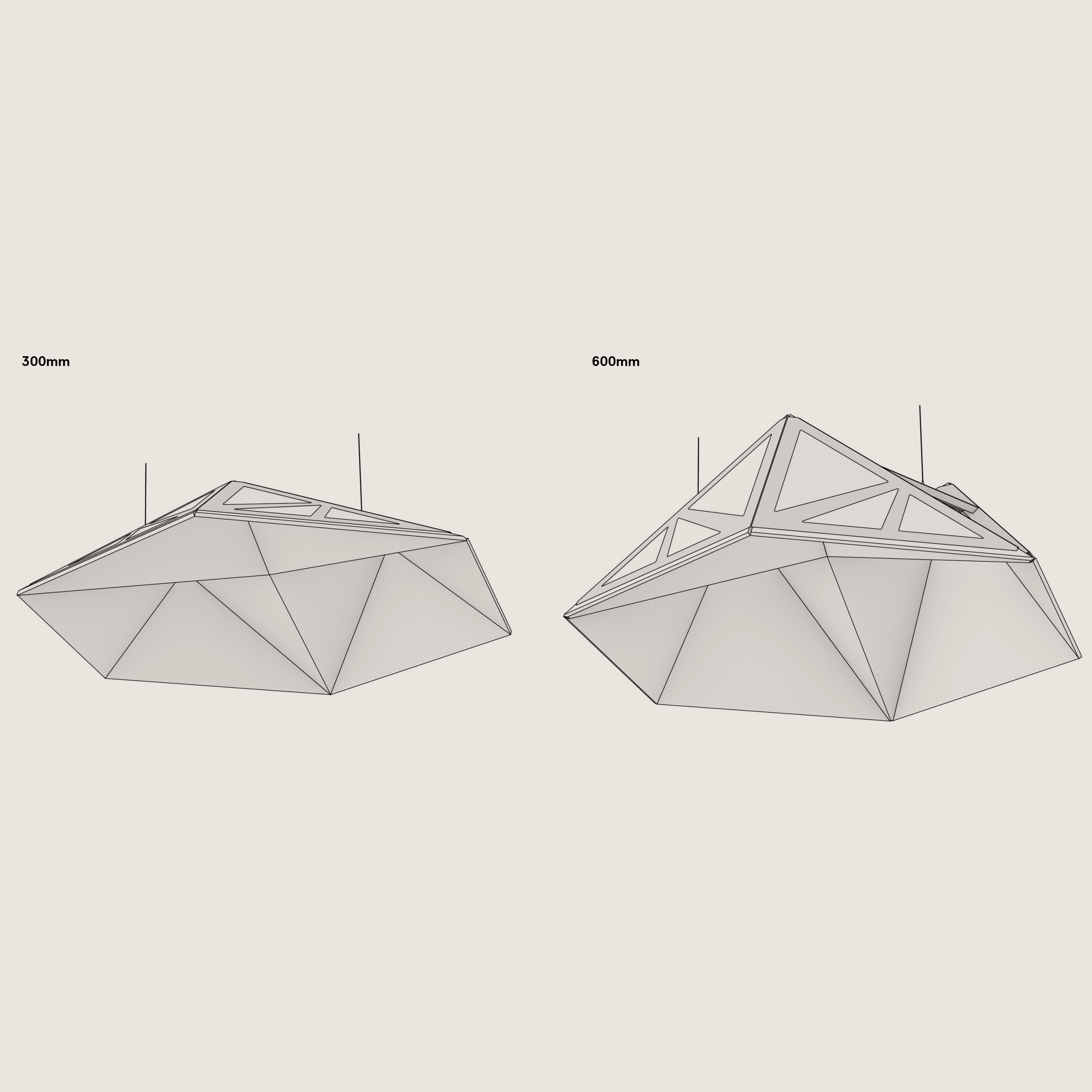

    • Standard Modules

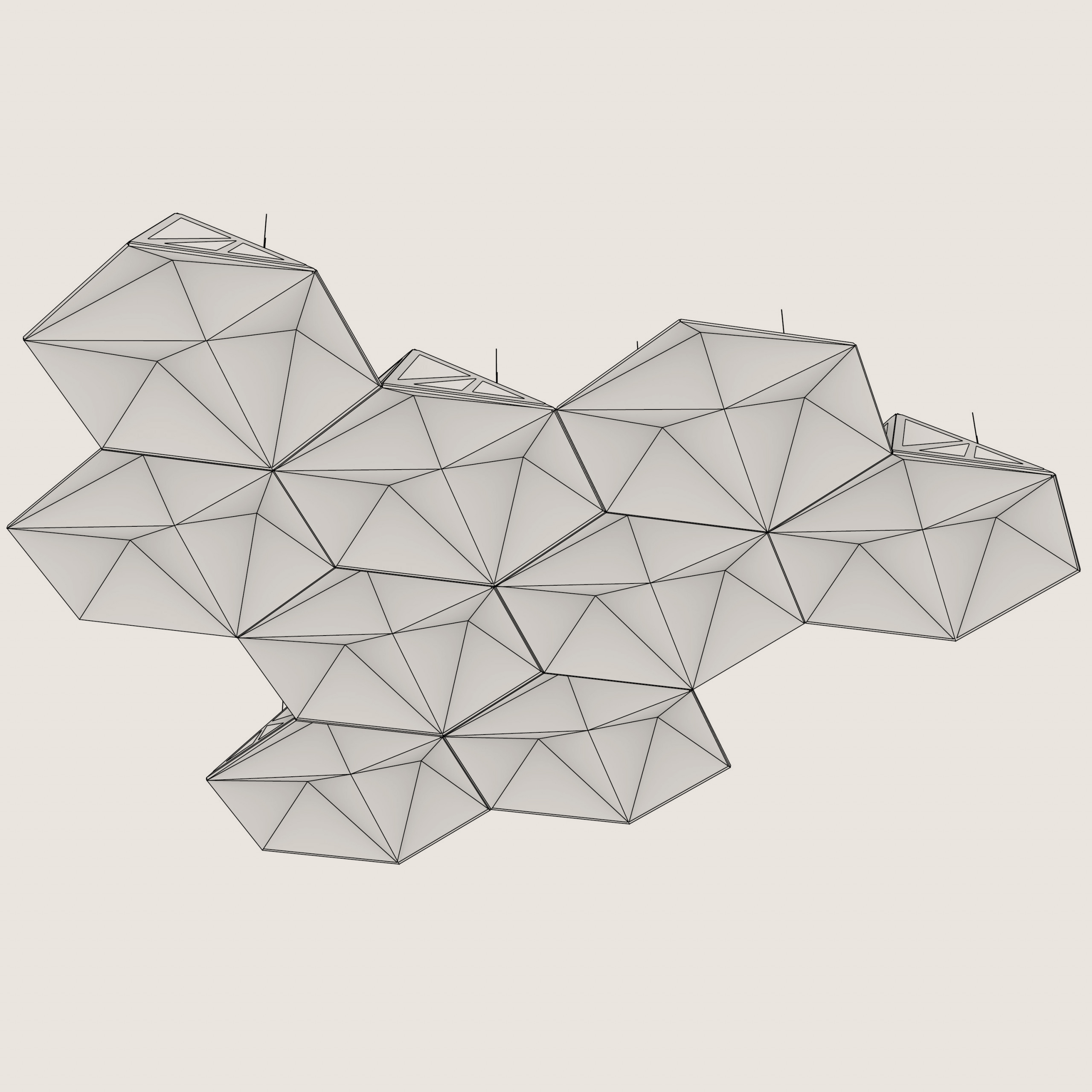

    • Multiple Modules

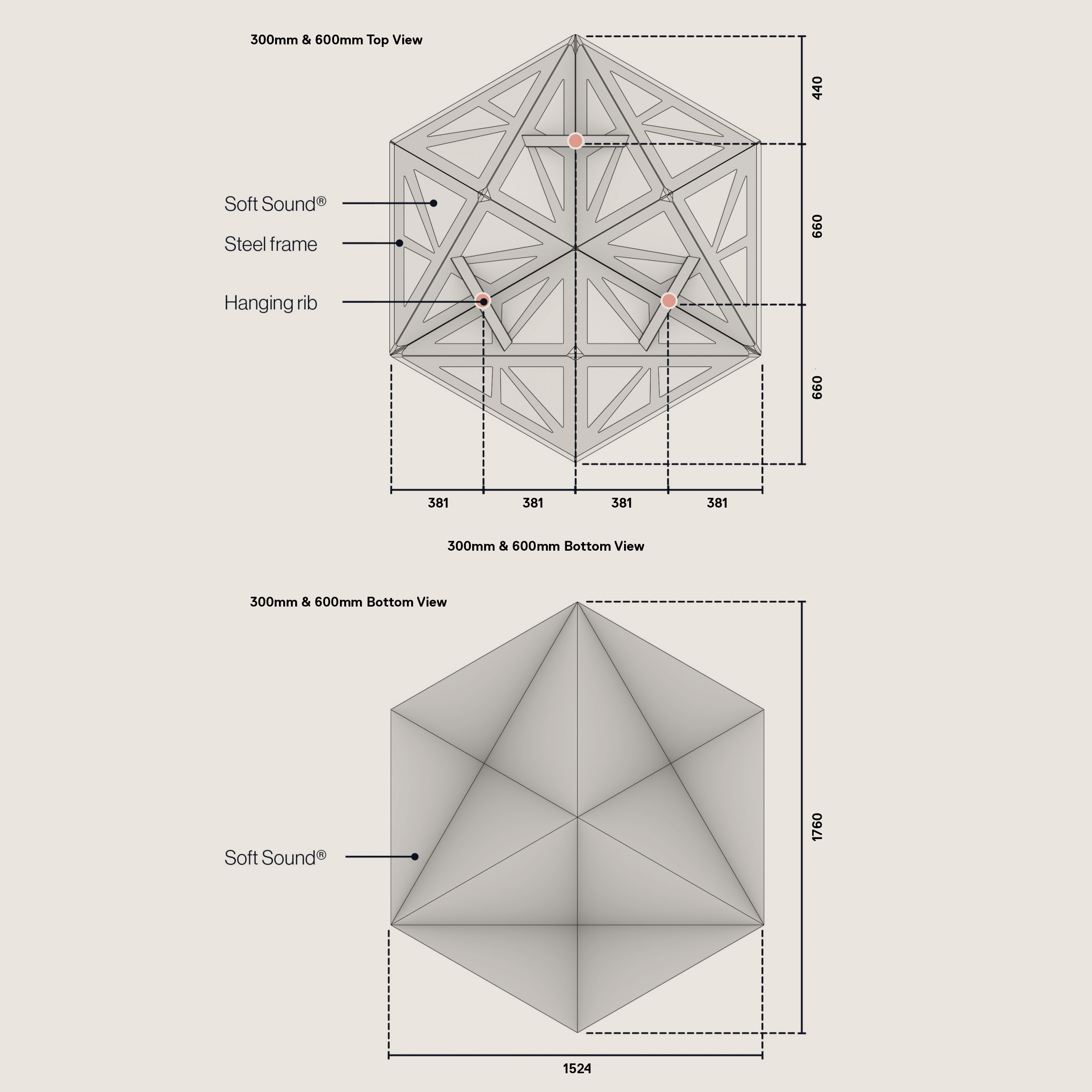

    • Understanding the Module - Plan

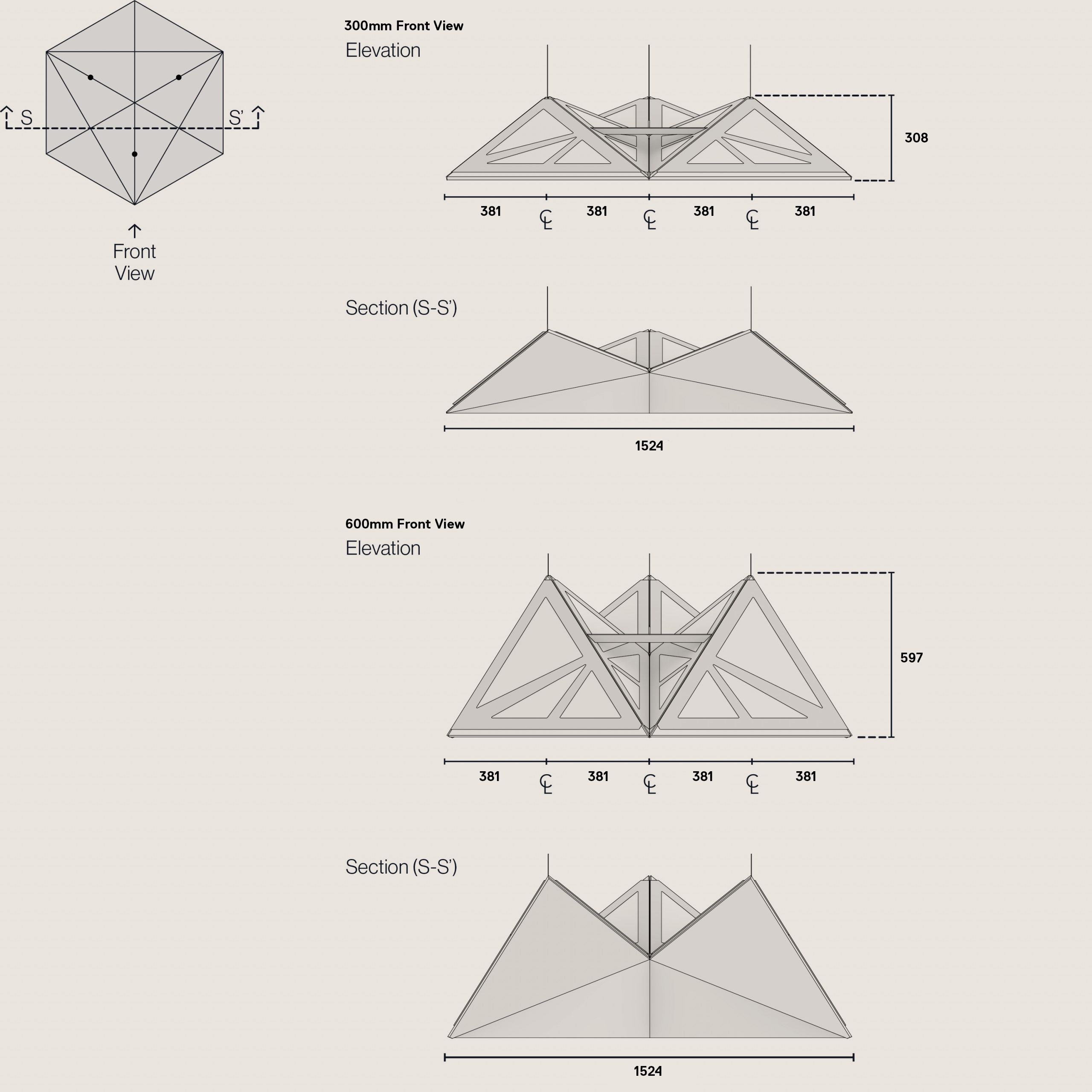

    • Understanding the Module - Sections & Elevations

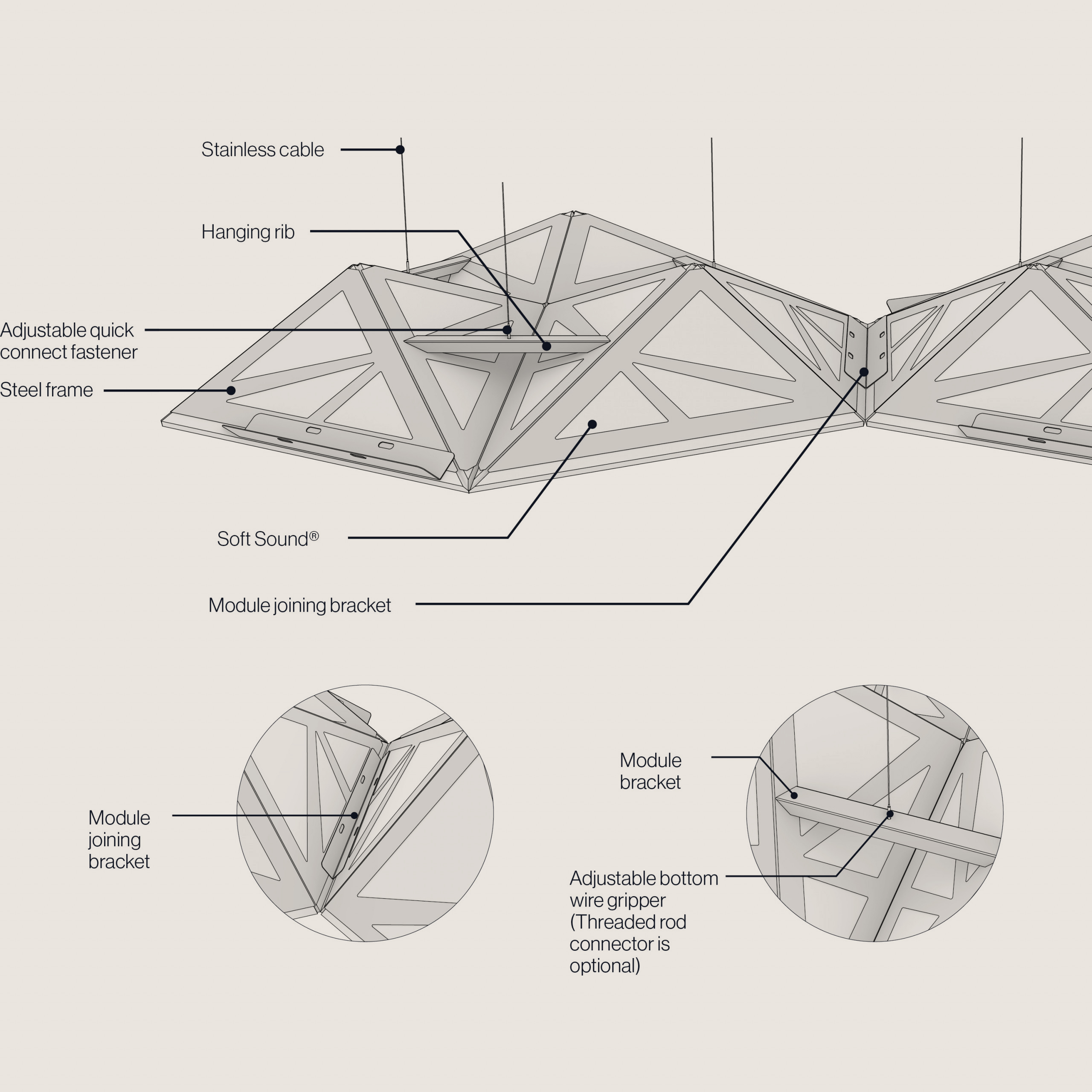

    • Attachment Details

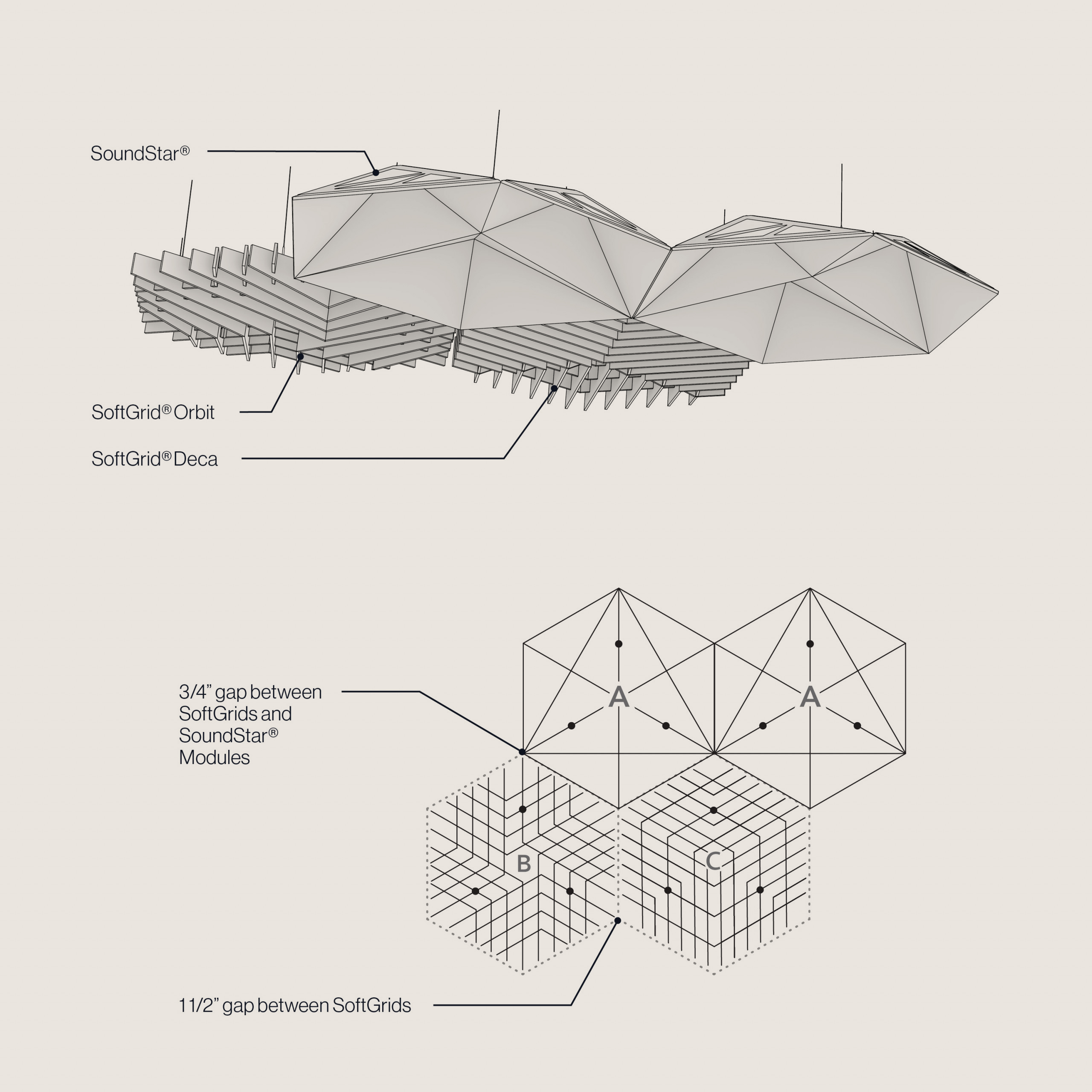

    • Combining With Other Products

  3. Sustainability and Certifications

    • 144-488

      SoundStar30: 144 recycled water bottles SoundStar60: 488 recycled water bottles

    • Cradle to Cradle®

      Bronze Status Pending

    • 100%

      Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)

    • Declare

      Red list free

Materials and Finishes

  1. Materials and Finishes

    CircuLUM™ Powder Coat Premium Metallic Finish

    • Chilled Champagne

      Chilled Champagne

    • Burnished Bronze

      Burnished Bronze

    CircuLUM™ Powder Coat Standard Finish

    • Brilliant White (Gloss) (RAL9010)

      Brilliant White (Gloss) (RAL9010)

    • NOWN White (Matte) (RAL9016)

      NOWN White (Matte) (RAL9016)

    • T-Grid White (Matte) (RAL9003)

      T-Grid White (Matte) (RAL9003)

    • Silver Metallic (Semi Gloss) (RAL9006)

      Silver Metallic (Semi Gloss) (RAL9006)

    • Jet Black (Matte) (RAL9005)

      Jet Black (Matte) (RAL9005)

    • Aviator Gray (Gloss) (RAL7035)

      Aviator Gray (Gloss) (RAL7035)

    • Aviator Gray (Matte) (RAL7035)

      Aviator Gray (Matte) (RAL7035)

    • Steel Gray (RAL7046)

      Steel Gray (RAL7046)

    • Shadow (RAL7024)

      Shadow (RAL7024)

    • Midnight (RAL7021)

      Midnight (RAL7021)

    • Coffee (RAL8014)

      Coffee (RAL8014)

    • Raw Umber (RAL8007)

      Raw Umber (RAL8007)

    • Caramel (RAL8001)

      Caramel (RAL8001)

    • Sandstone (RAL1019)

      Sandstone (RAL1019)

    • Oat (RAL1001)

      Oat (RAL1001)

    • Sunflower (RAL1003)

      Sunflower (RAL1003)

    • Torch (RAL2009)

      Torch (RAL2009)

    • Spirit Red (Matte) (RAL3001)

      Spirit Red (Matte) (RAL3001)

    • Azure (RAL5003)

      Azure (RAL5003)

    • Blue Steel (RAL5010)

      Blue Steel (RAL5010)

    • Forest Green (RAL6001)

      Forest Green (RAL6001)

    Soft Sound® Color Group A

    • White

      White

    • Snow

      Snow

    • Marble

      Marble

    • Heather Gray

      Heather Gray

    • Graphite

      Graphite

    • Carbon

      Carbon

    • Onyx

      Onyx

    • Apple

      Apple

    • Tangerine

      Tangerine

    • Lemon

      Lemon

    • Taupe

      Taupe

    • Sand

      Sand

    • Kiwi

      Kiwi

    • Whisper

      Whisper

    • Sky Blue

      Sky Blue

    • Denim

      Denim

    • Absinthe

      Absinthe

    • Abyss

      Abyss

    • Azore

      Azore

    • Mars

      Mars

    • Macchiato

      Macchiato

    Soft Sound® Wood Texture

    • Gray Ash

      Gray Ash

    • White Oak

      White Oak

    • Golden Oak

      Golden Oak

    • Oak

      Oak

    • American Walnut

      American Walnut

    • Charred Oak

      Charred Oak

    • Charred Ash

      Charred Ash

    • Ebony

      Ebony
