Trace® STRAIGHT

Acoustic
Ceiling Panels
Lighting
Wall Panels

Straight’s powder-coated aluminum torsion spring panels create a web-like pattern with plenty of places to get caught in the design, especially when our optional InLine lighting is added. Or, for additional brightness, try our backlighting option. If acoustic support is what you need, then opt for our Soft Sound® backer instead.

Trace® STRAIGHT in use

—

Key Features

Acoustic Performance

Trace®'s optional Soft Sound® backer material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. The Soft Sound® backer works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
Superior Flatness & Strength

Trace® panels are manufactured from aluminum that is on average 50% thicker than the competition, which in combination with our precision processes result in unrivaled flatness.
Integrated Lighting Options

NOWN's Trace® line makes it easy to seamlessly add illumination and lighting effects to your projects, through available integrated InLine and Backlighting options.
Easy Installation & Access

Trace® panels offer easy install, using quick torsion spring attachment across standard ceiling grid systems or simple wall attachment using our Vertika® channel system.
Preconfigured Solutions

Trace® panels are scalable, seamlessly tileable, preconfigured solutions designed with a dynamic array of criteria and effects in mind. Choose from our growing library of patterns to uniquely impact your project.
Continuous Pattern Aesthetic

Achieve uninterrupted patterning across your space. Trace® patterns have perforations that wrap around the edges of each panel, concealing where patterns start and end.

Product Details

Speficiations

Dimensions

1200 x 600 x 38 MM

Material

Aluminum

Openness in Plan

Fire Rating

ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0

Acoustics (with optional Soft Sound® backer)

True NRC® 0.90: Ceiling - E-300 Method
True NRC® 0.75: Wall - F - 70 Method

Ceiling Attachment

Torsion Grid (By Others)

Wall Attachment

Vertika® Wall (Refer to Vertika® Brochure)

Accessibility

Torsion Spring Hinge

Trimmability

Yes, per installation manual

Accessories

Acoustic Backer, Translucent Backer, Backlight, InLine Light

Product Diagrams

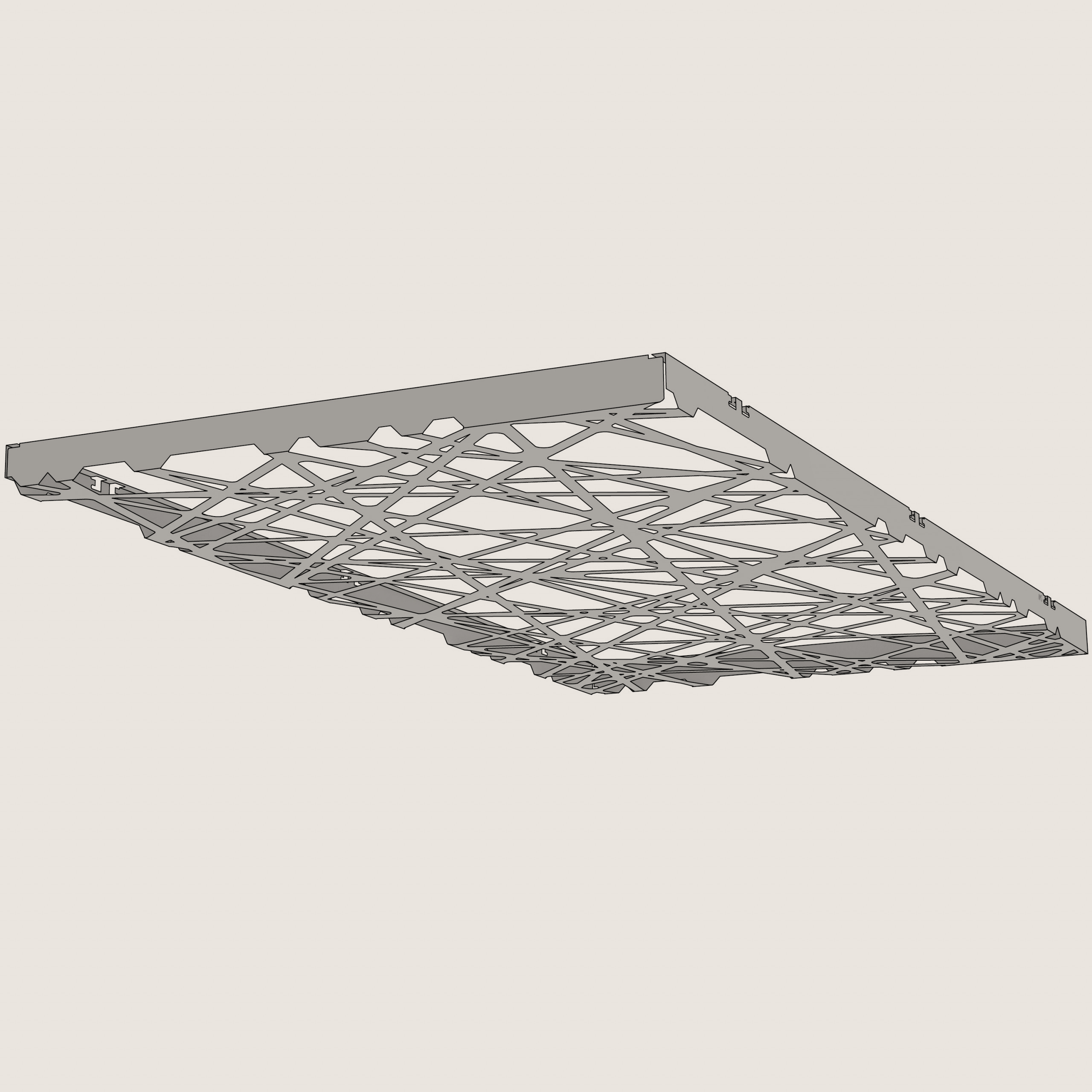

Standard Panel

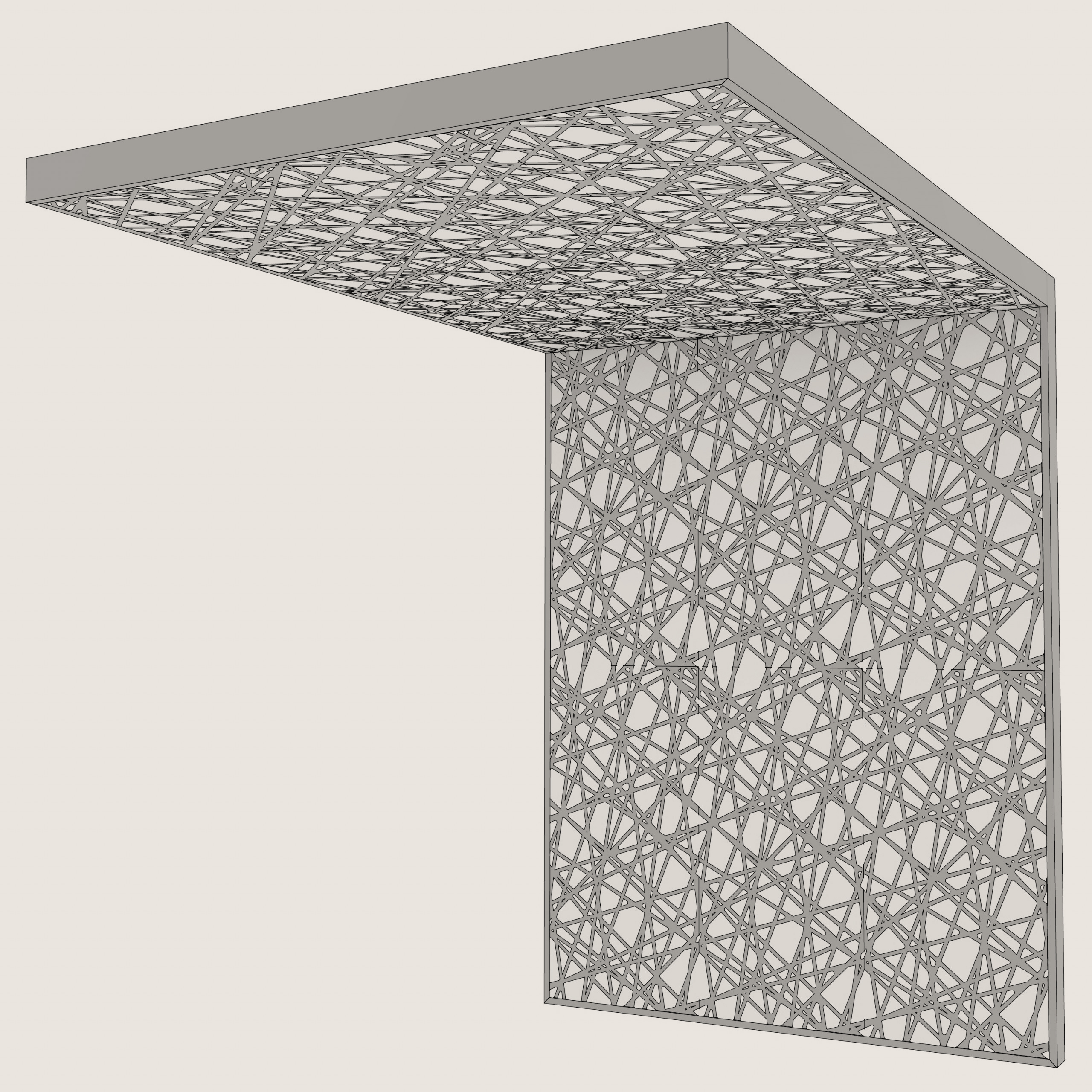

Seamlessly Join Walls & Ceilings

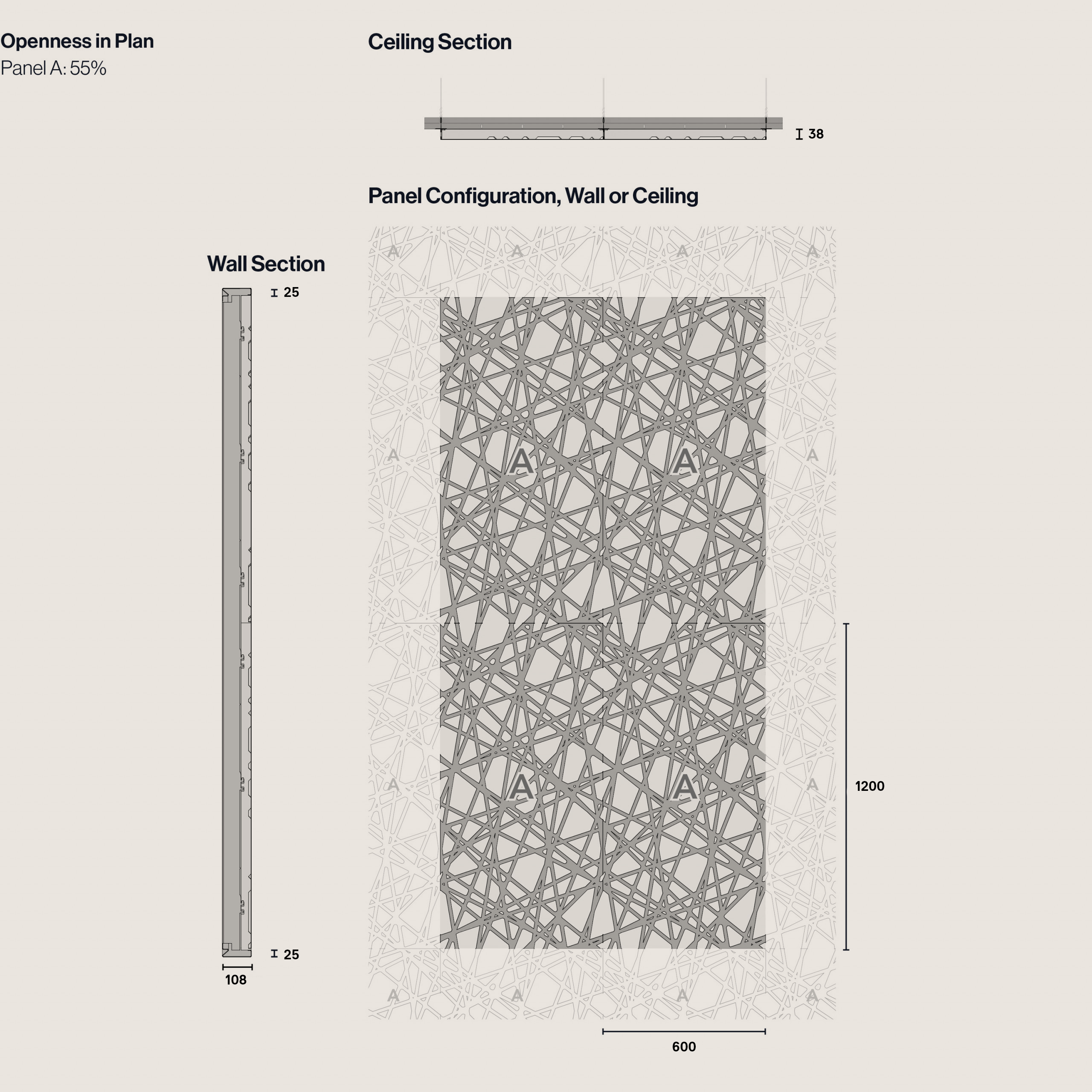

Understanding the Panel

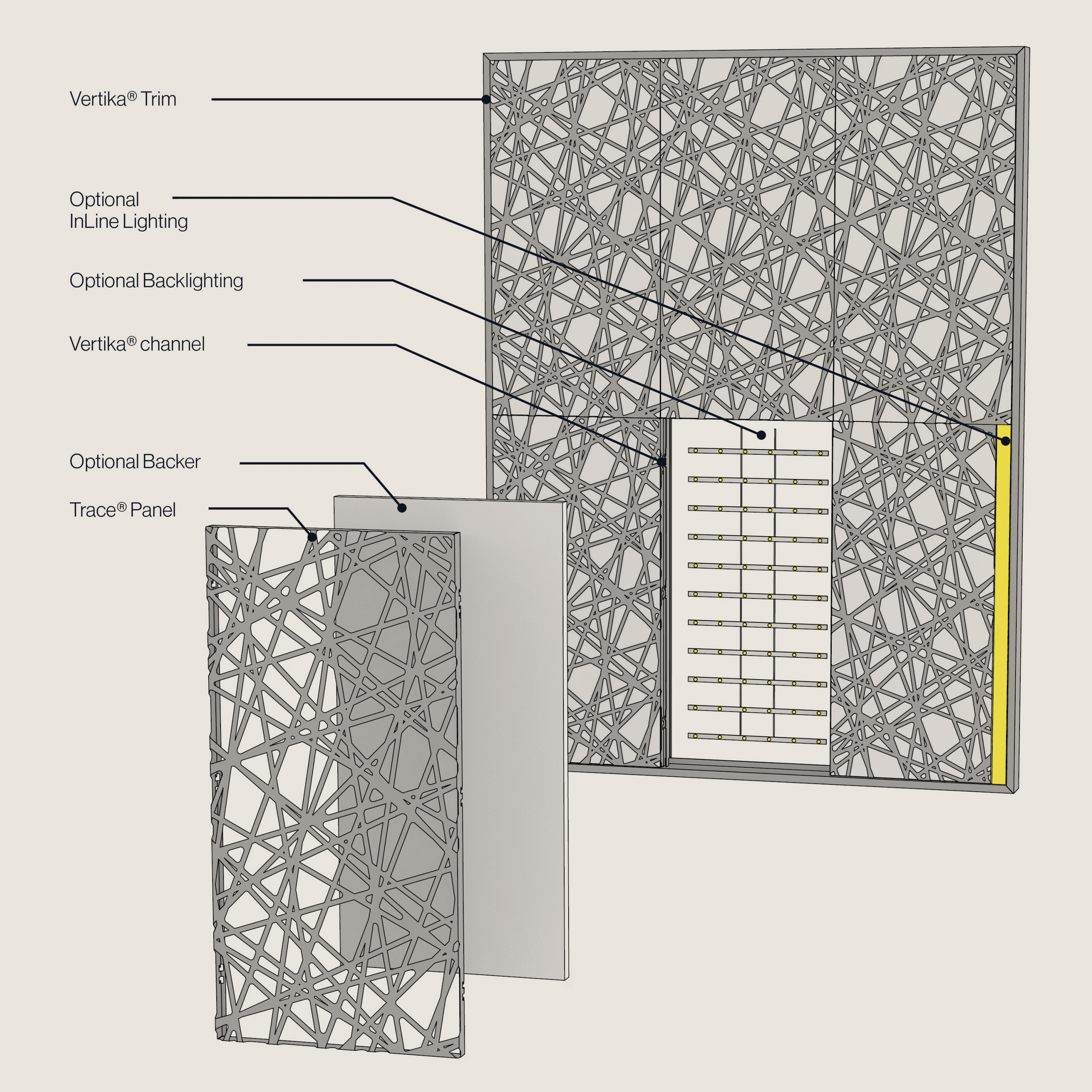

Accessory Options: Walls

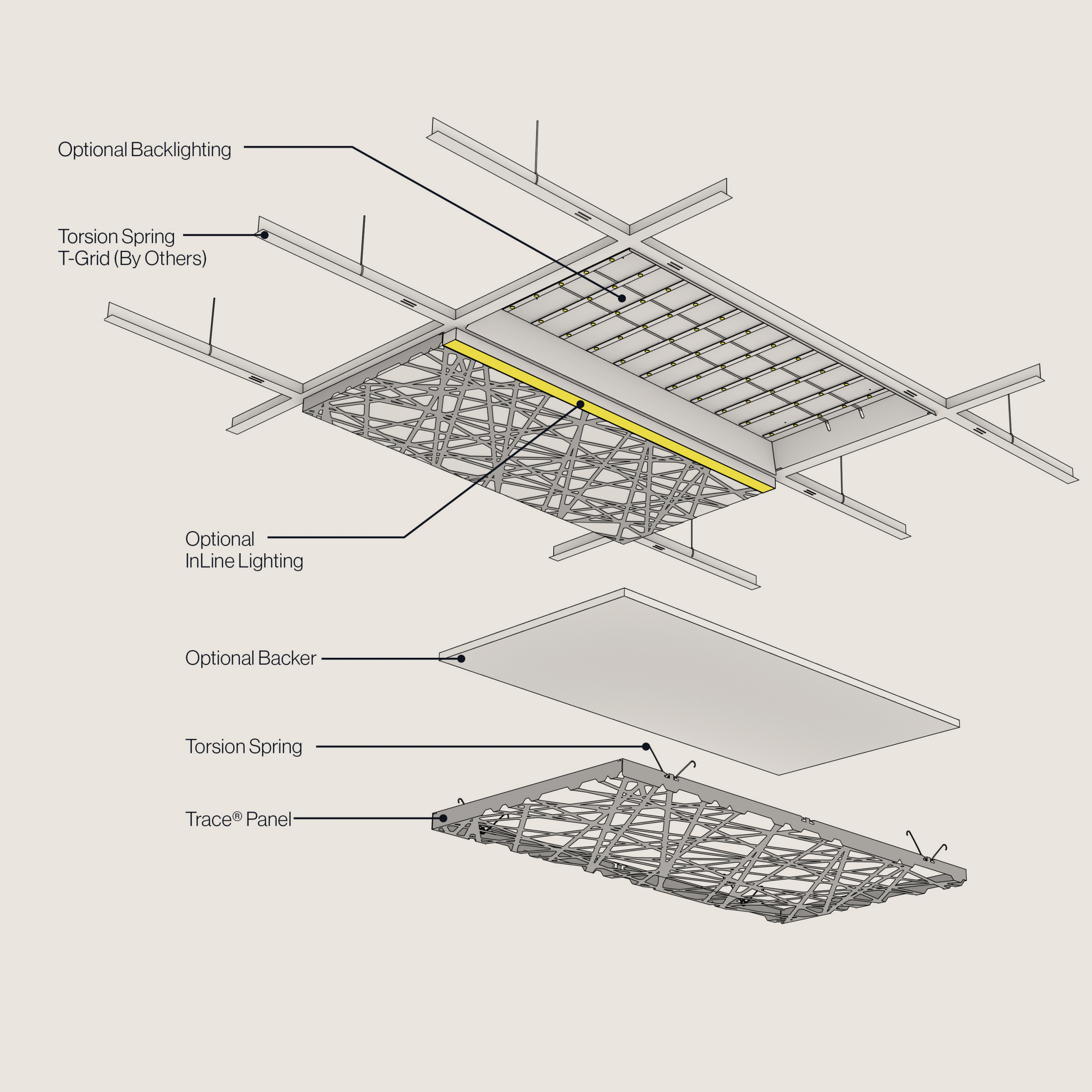

Accessory Options: Ceilings

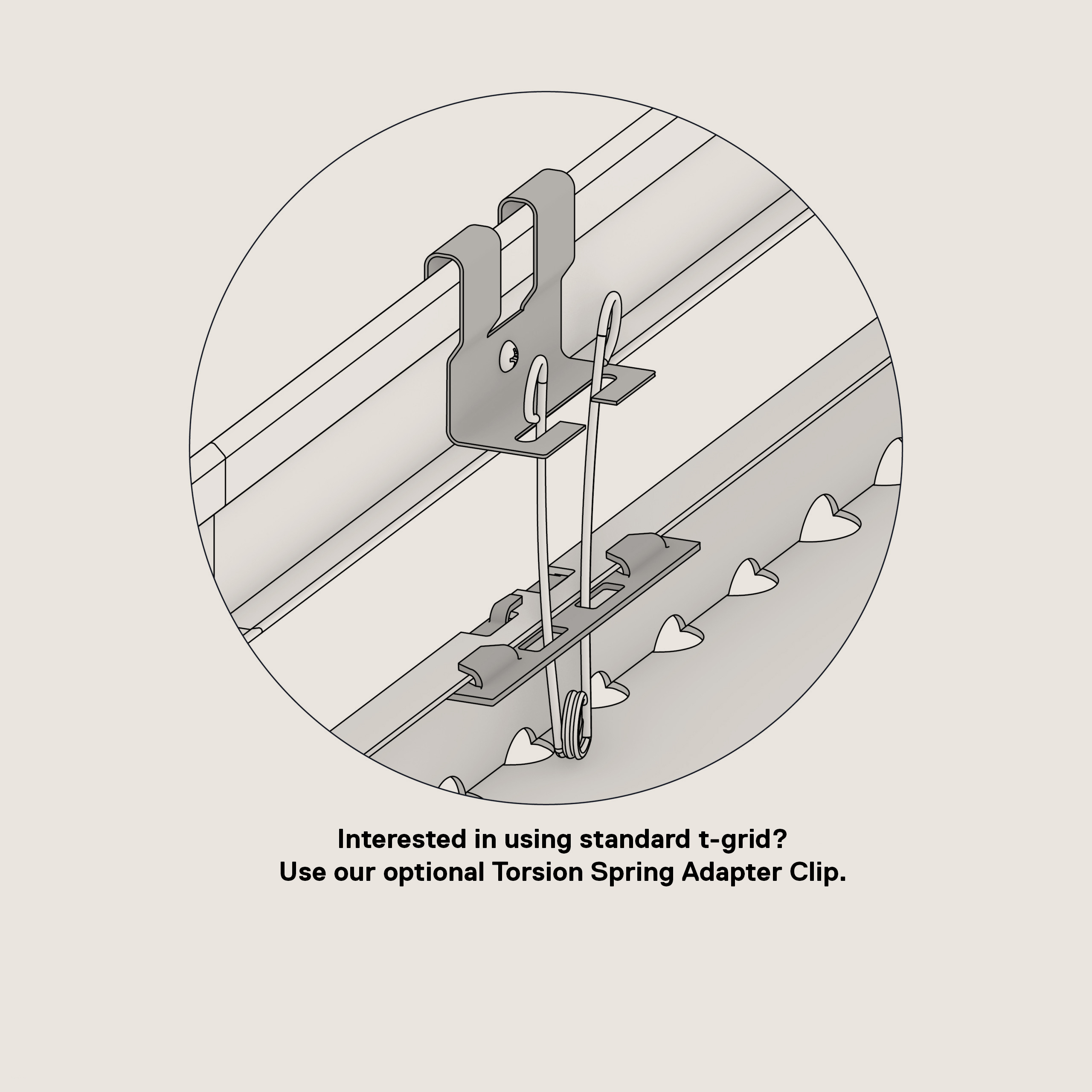

Accessory Options: Retrofit Adapter Clip Kit

Sustainability and Certifications

73 / 50

Each module is made from 73 recycled aluminum cans with an acoustic backer made of 50 recycled water bottles.
Cradle to Cradle®

Bronze Status Pending
100%

Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)
Declare

Red list free
