Frequency powder-coated aluminum torsion spring panels bring the digital world into reality. With a design that starts off intense and fades away, you can create a path for people to follow, while reducing the sound of their steps thanks to our Soft Sound® backer. Or add our integrated lighting backer to take the digital feel to another level.
Vapor® FREQUENCY in use
—
The System
Key Features
-
Acoustic Performance
Vapor®'s optional Soft Sound® backer material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. The Soft Sound® backer works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
-
Superior Flatness & Strength
Vapor® panels are manufactured from aluminum that is on average 50% thicker than the competition, which in combination with our precision processes result in unrivaled flatness.
-
Integrated Lighting Options
NOWN's Vapor® line makes it easy to seamlessly add illumination and lighting effects to your projeccts, through available integrated InLine and Backlighting options.
-
Easy Installation & Access
Vapor® panels offer easy install, using quick torsion spring attachment across s tandard ceiling grid systems or simple wall attachment using our Vertika™ channel system.
-
Preconfigured Solutions
Vapor® panels are scalable, seamlessly tileable, preconfigured solutions designed with a dynamic array of criteria and effects in mind. Choose from our growing library of patterns to uniquely impact your project.
-
Continuous Pattern Aesthetic
Achieve uninterrupted patterning across your space. Vapor® patterns have perforations that wrap around the edges of each panel, concealing where patterns start and end.
Product Details
Specifications
Panel Size (WxHxD)
-
600mm x 1200mm x 38mm
Material
-
Aluminum
Openness in Plan
-
10%
Fire Rating
-
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Ceiling Attachment
-
Torsion Grid (By Others)

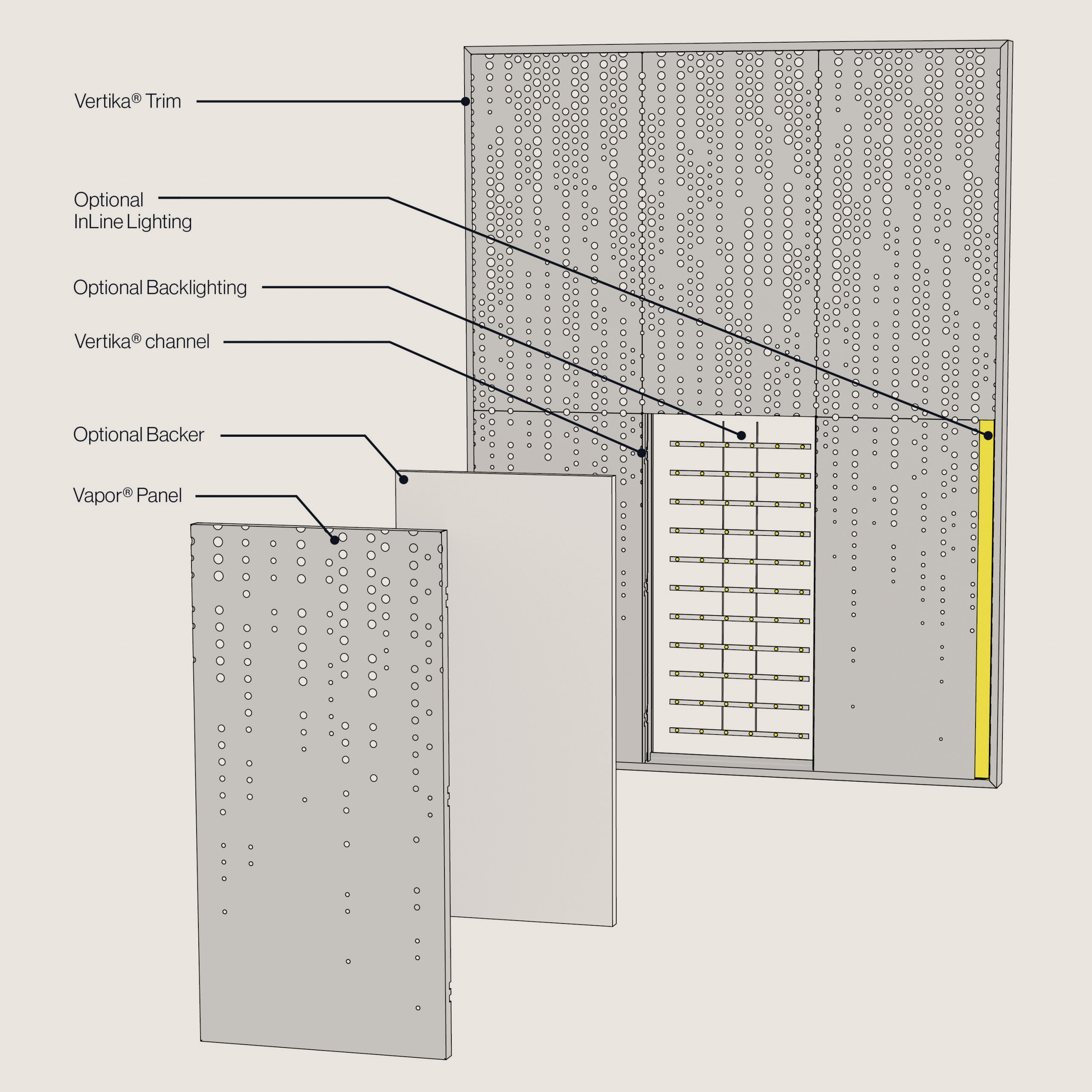

Wall Attachment
-
Vertika® Wall (Refer to Vertika® Brochure)
Accessibility
-
Torsion Spring Hinge
Trimmability
-
Yes, per installation manual
Accessories
-
Acoustic Backer, Translucent Backer, Backlight, InLine Light, Torsion Spring Adapter Clip
Acoustics (with optional Soft Sound® backer)
-
True NRC® 0.55: Ceiling E-300 Method
-
True NRC® 0.80: Wall F-70 Method
Product diagrams

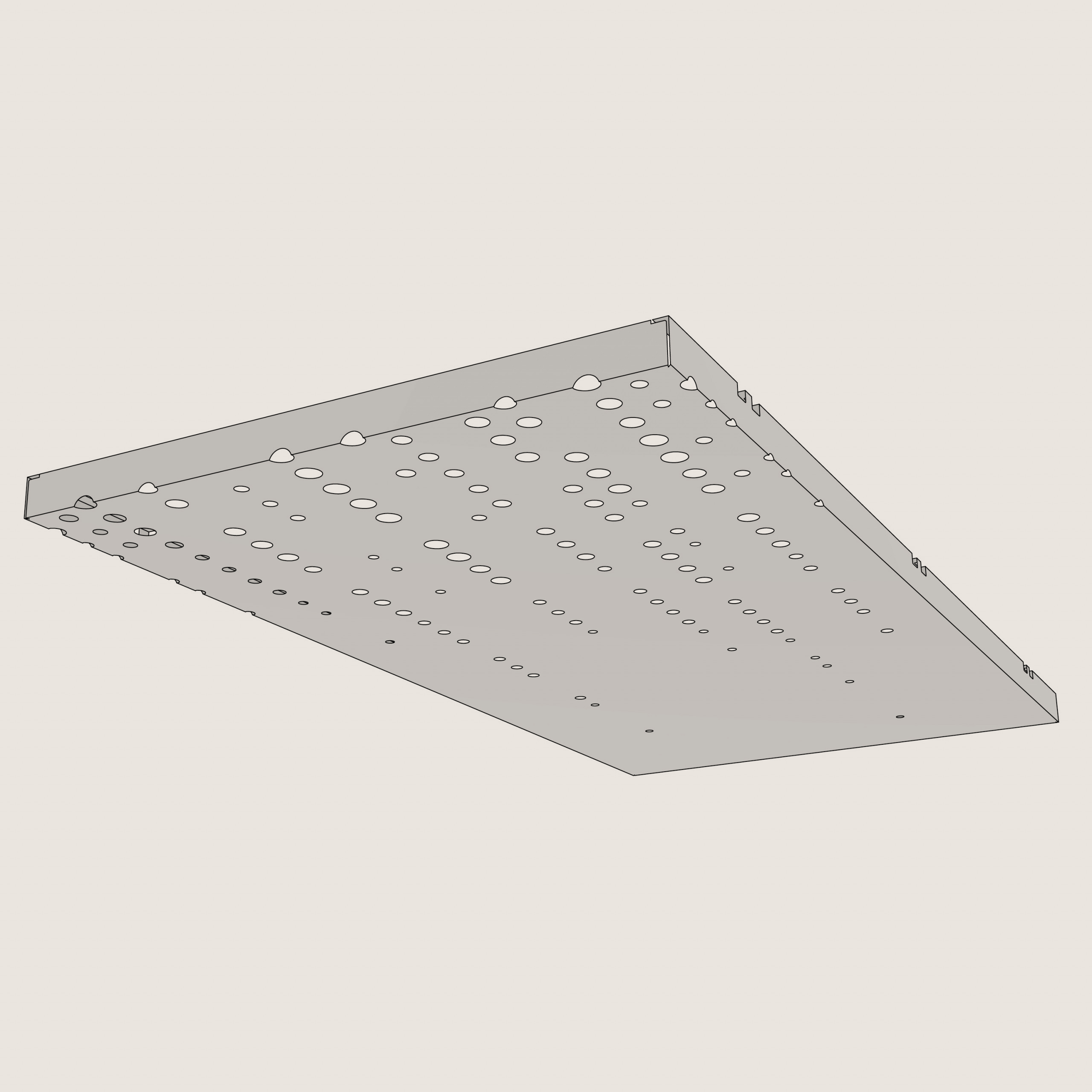

Standard Panel

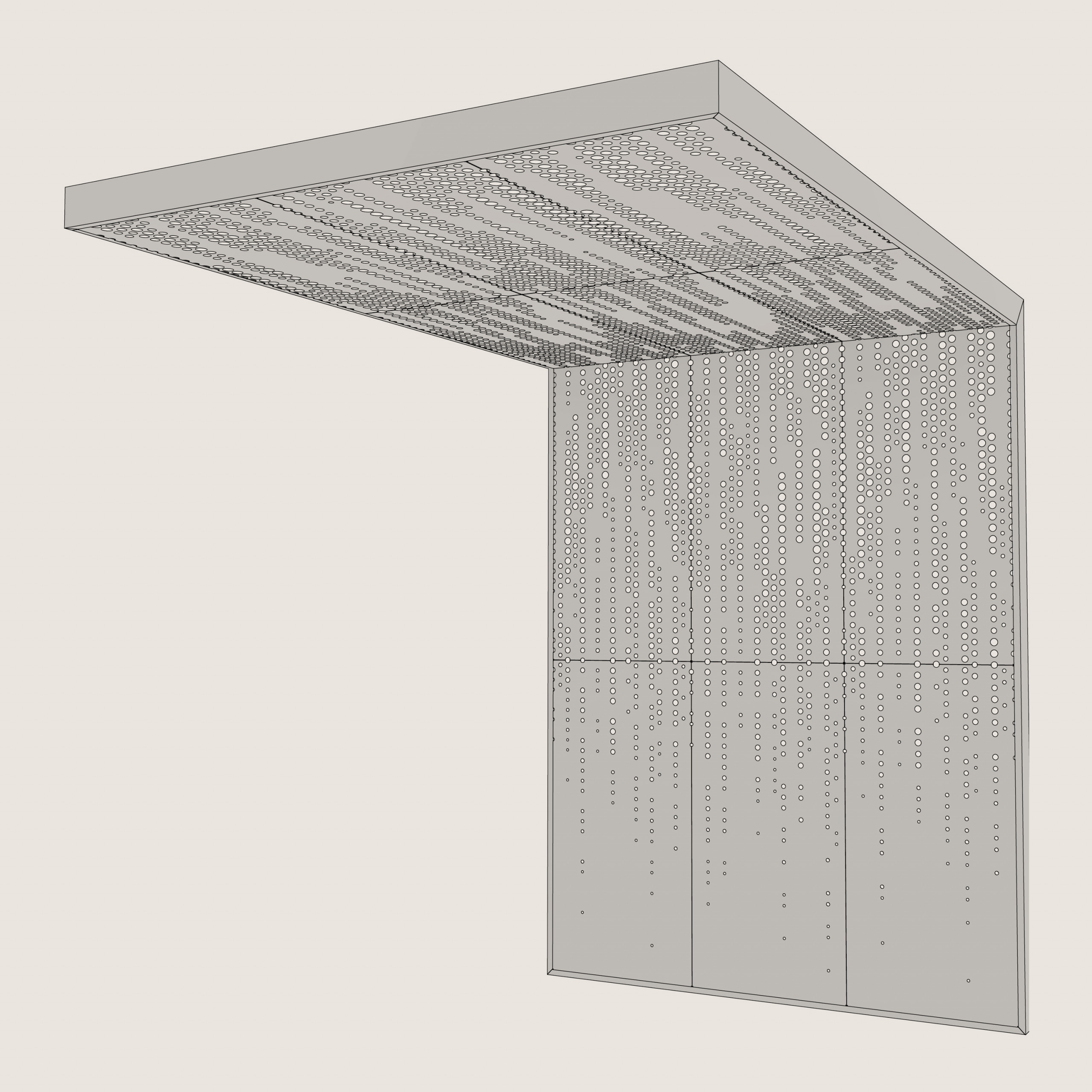

Seamlessly Join Walls & Ceilings

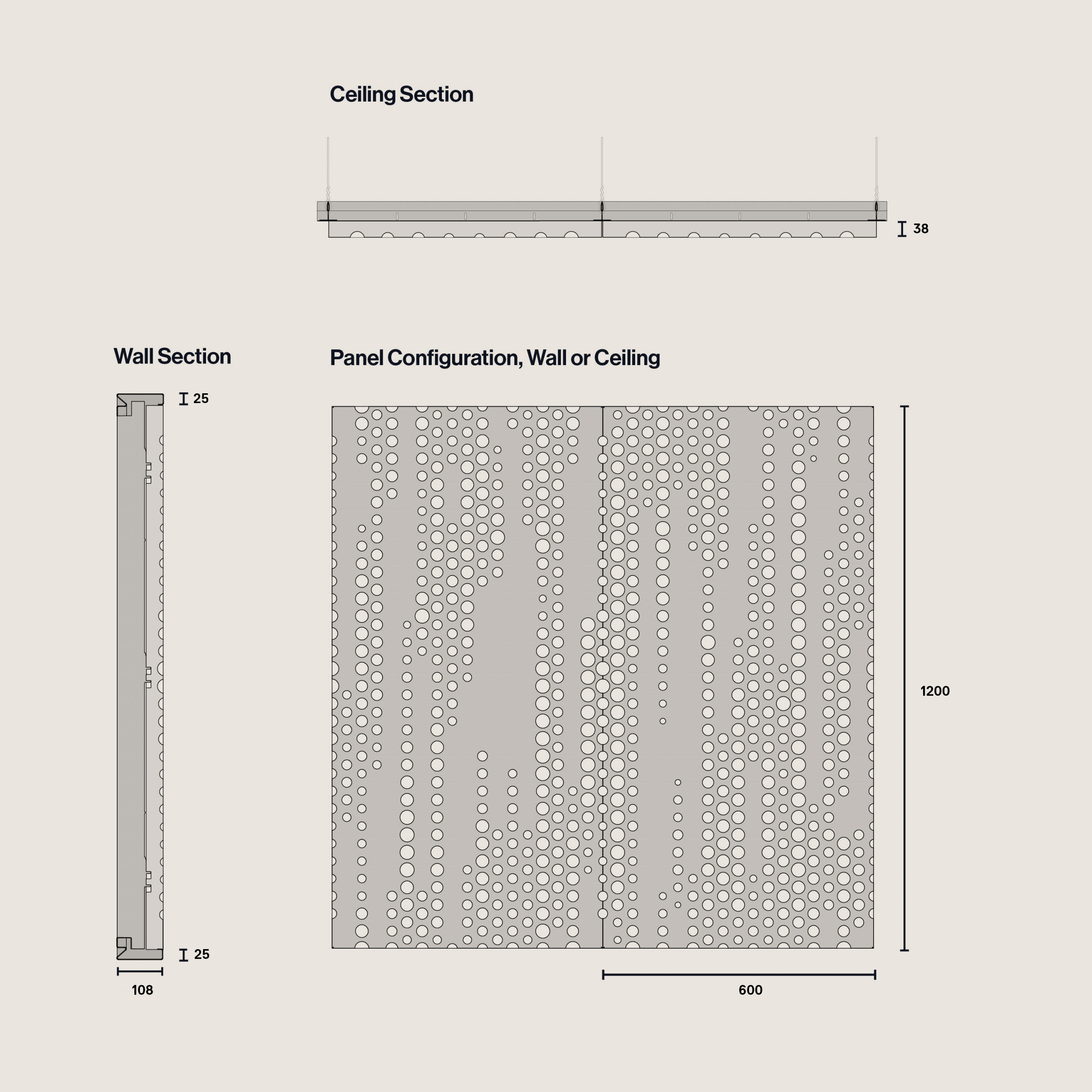

Understanding the Panel
Panel Configuration

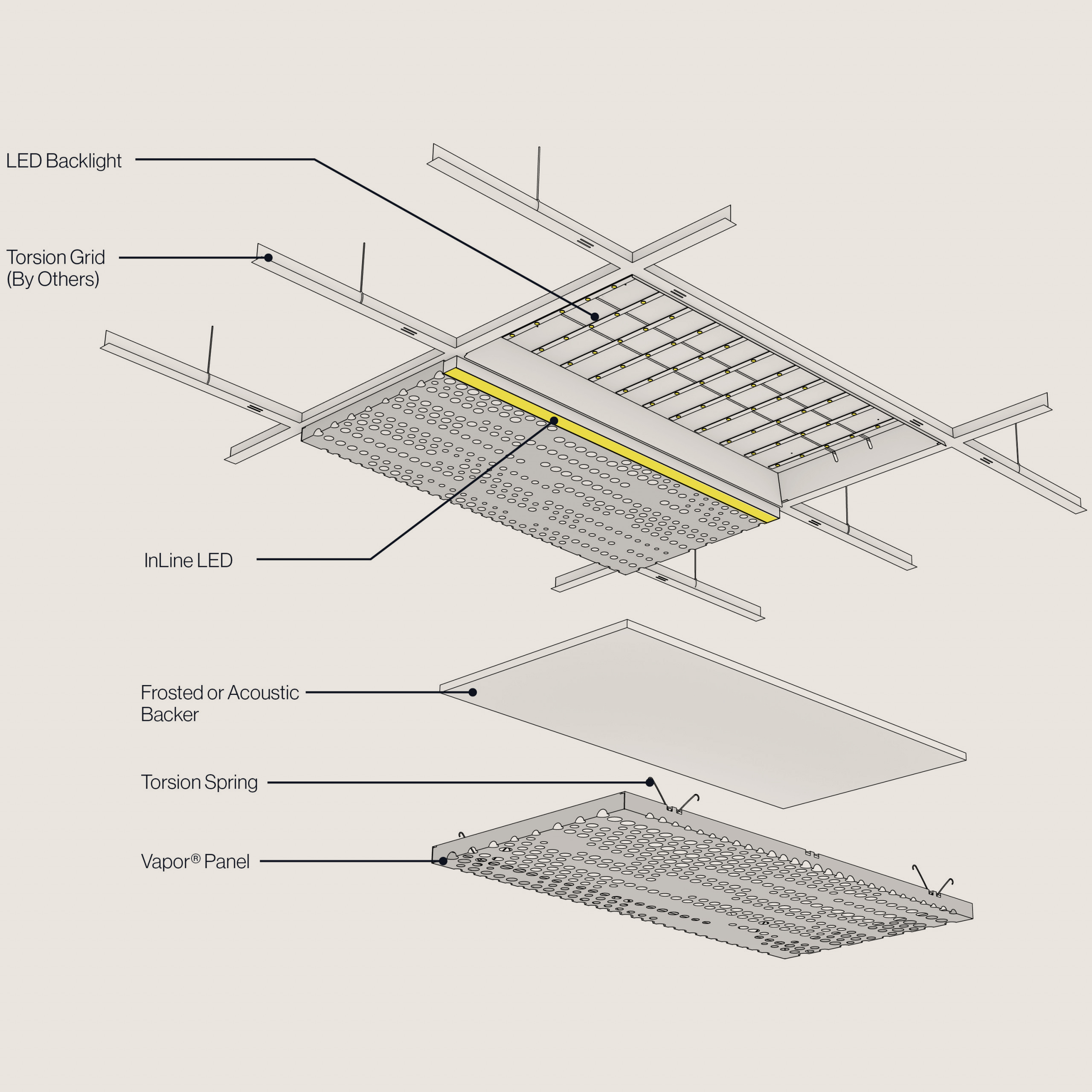

Accessory Options - Ceiling
Accessory Options - Ceiling

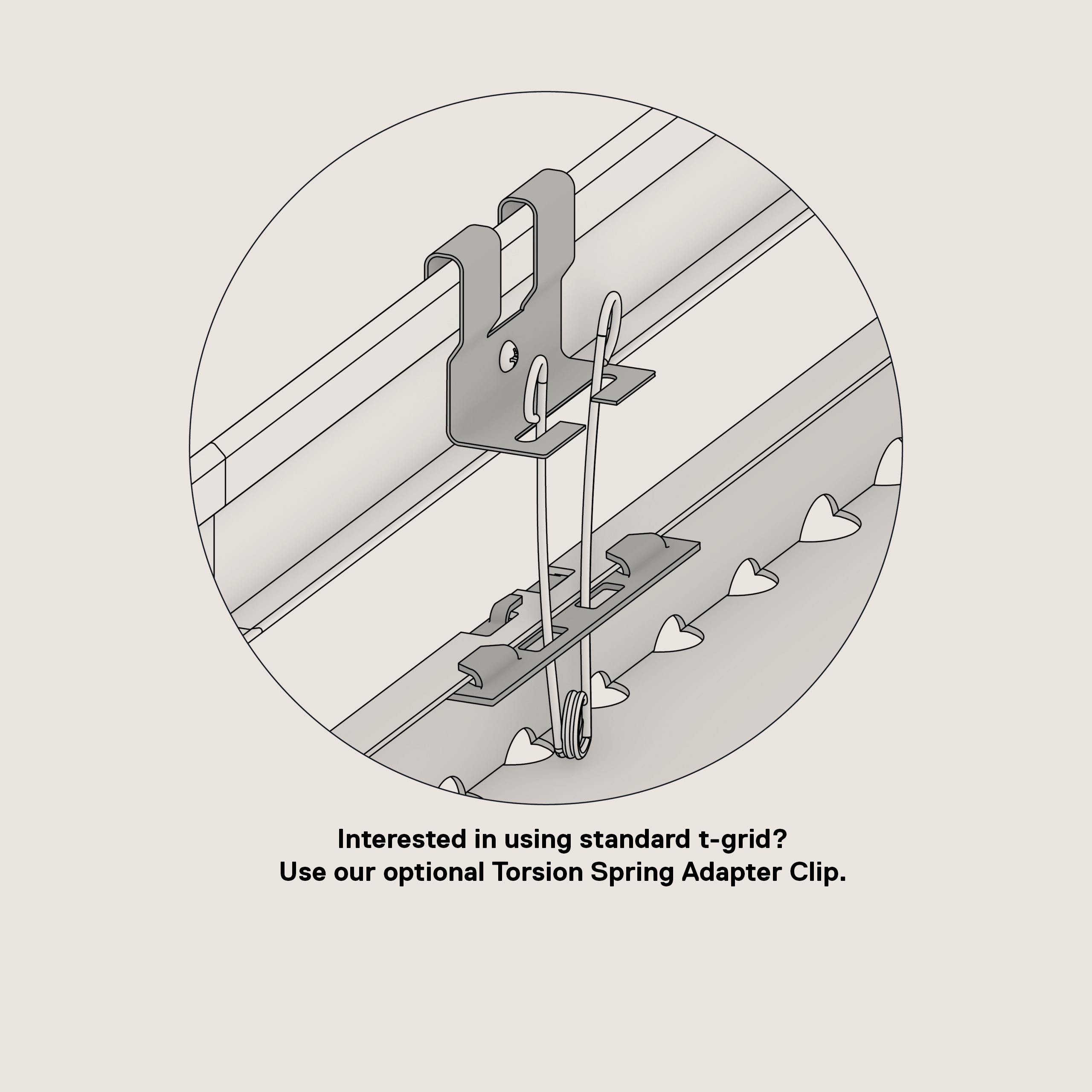

Accessory Options - Retrofit Adapter Clip Kit
Sustainability and Certification
-
107 / 50
Each module is made from 107 recycled aluminium cans with an acoustic backer made of 50 recycled water bottles.
-
Cradle to Cradle®
Bronze Status Pending
-
100%
Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)
-
Declare
Red list free
Materials and Finishes
CircuLUM™ Metallic Finish
-
-
Burnished Bronze
