Vapor® SHIFT X

About Vapor® SHIFT X

Shift X powder-coated aluminum torsion spring panels layer nature-inspired patterns giving spaces an organic quality emulates that natural growth. By layering differently sized patterns overtop of each other, you can create both depth and interest. Both our Soft Sound® acoustic backer and integrated lighting backer can be used with this design, to dramatic effect.

—

The System

Key Features

Reduce Noise & Enhance Acoustics

SoftShapes™ Soft Sound® material reduces the impact of noise from everyday sonic discomforts such as outside noise, typing, and chatter, resulting in a more pleasant and productive environment. In addition, its material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
Superior Flatness & Strength

Vapor® panels are manufactured from aluminum that is on average 50% thicker than the competition, which in combination with our precision processes result in unrivaled flatness.
Integrated Lighting Options

NOWN's Vapor® line makes it easy to seamlessly add illumination and lighting effects to your projeccts, through available integrated InLine and Backlighting options.
Easy Installation & Access

Vapor® panels offer easy install, using quick torsion spring attachment across s tandard ceiling grid systems or simple wall attachment using our Vertika™ channel system.
Preconfigured Solutions

Vapor® panels are scalable, seamlessly tileable, preconfigured solutions designed with a dynamic array of criteria and effects in mind. Choose from our growing library of patterns to uniquely impact your project.
Continuous Pattern Aesthetic

Achieve uninterrupted patterning across your space. Vapor® patterns have perforations that wrap around the edges of each panel, concealing where patterns start and end.

Product Details

Specifications
Dimensions
600mm x 1200mm x 38mm
Material
Aluminum
Openness in Plan
53%
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Ceiling Attachment
Torsion Grid (By Others)
Wall Attachment
Vertika® Wall (Refer to Vertika® Brochure)
Accessibility
Torsion Spring Hinge
Trimmability
Yes, per installation manual
Accessories
Acoustic Backer, Translucent Backer, Backlight, InLine Light
Product diagrams

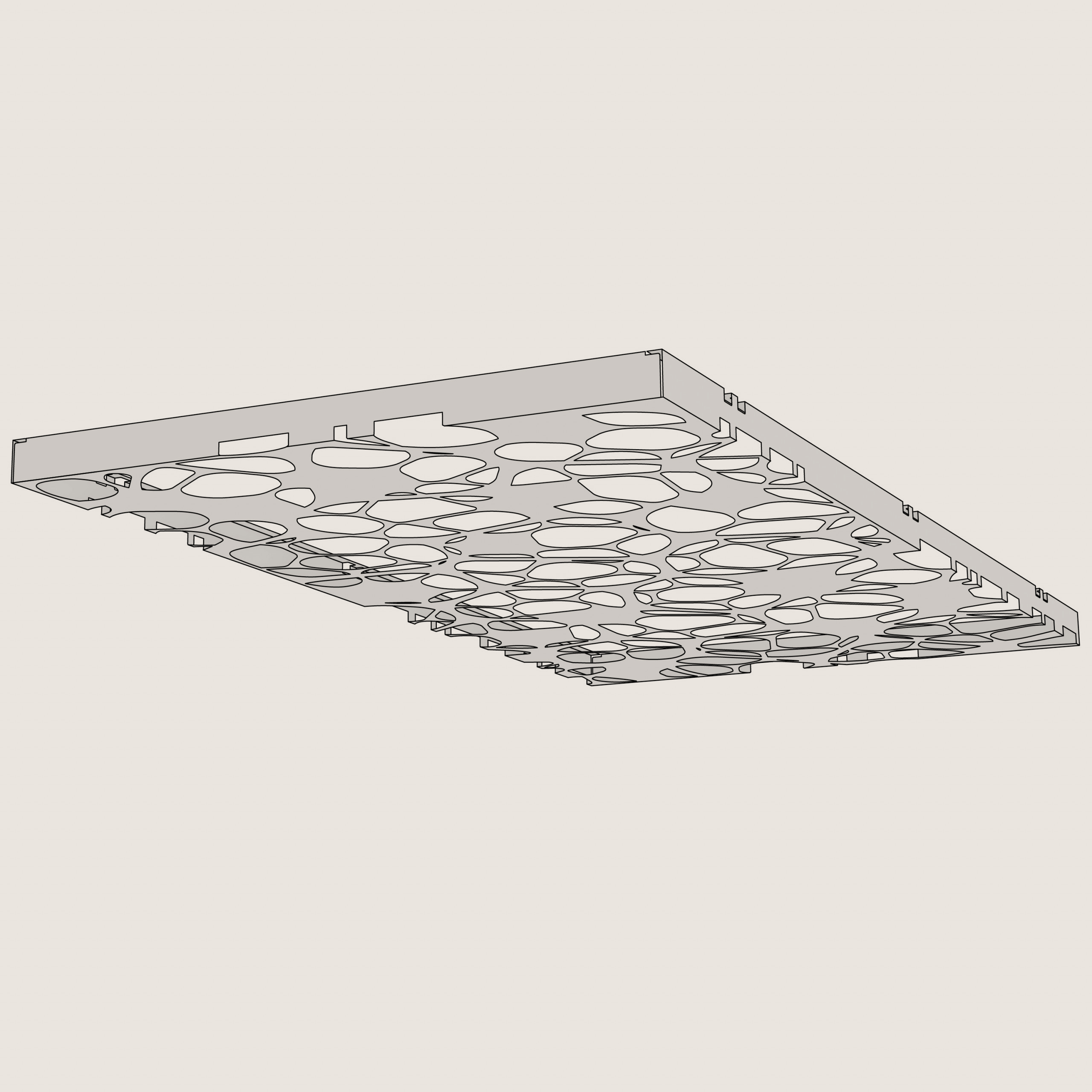

- Standard Panel

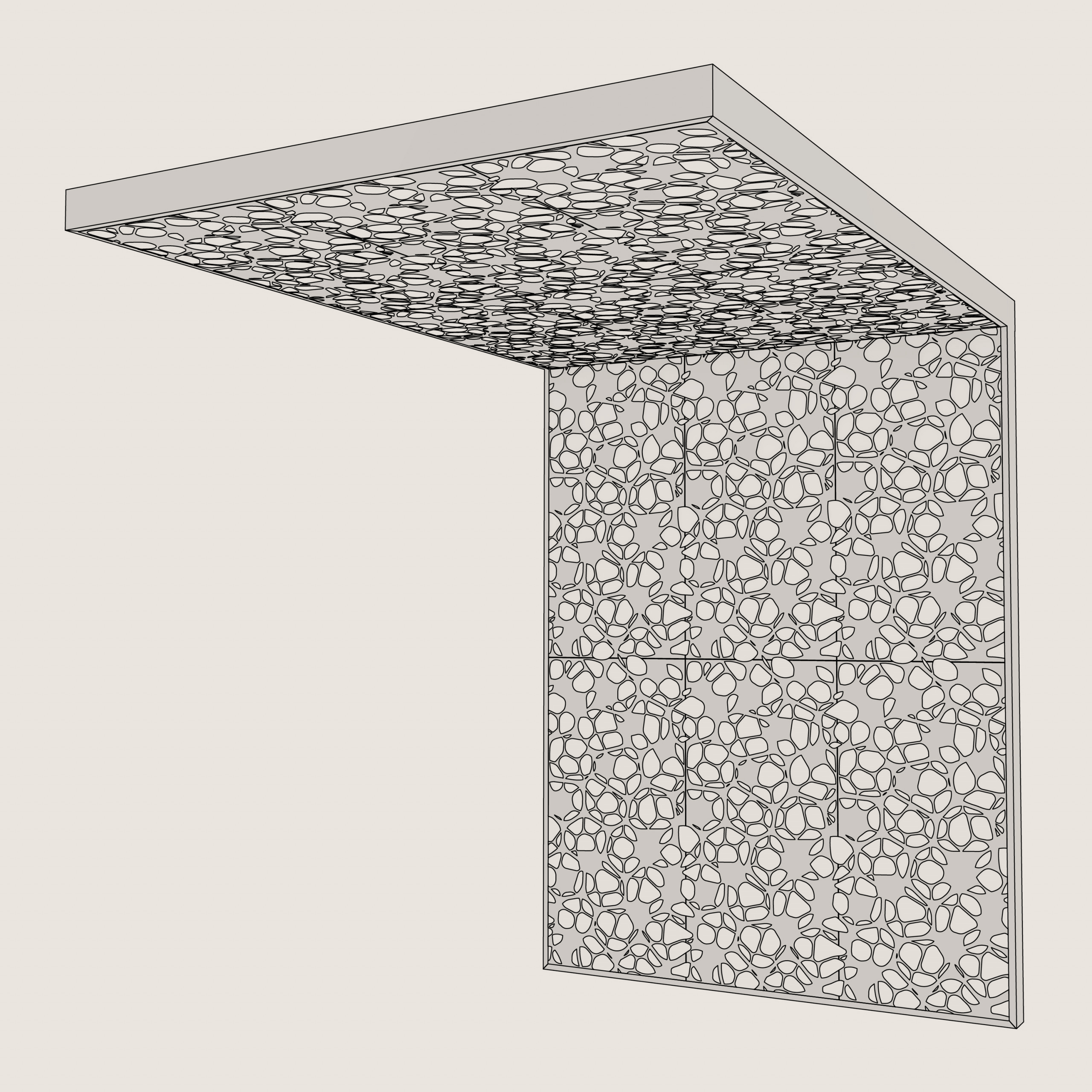

- Seamlessly Join Walls & Ceilings

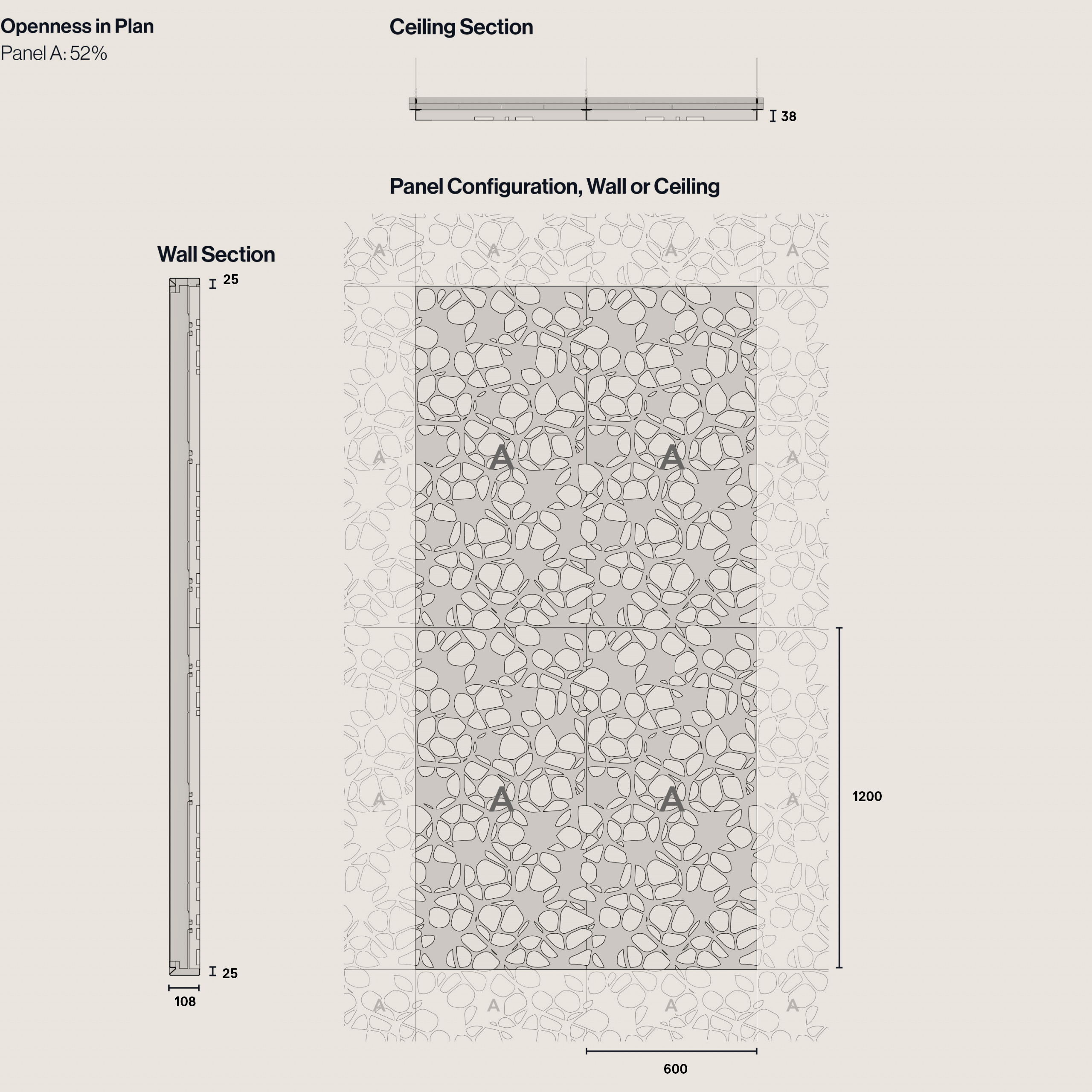

- Understanding the Panel

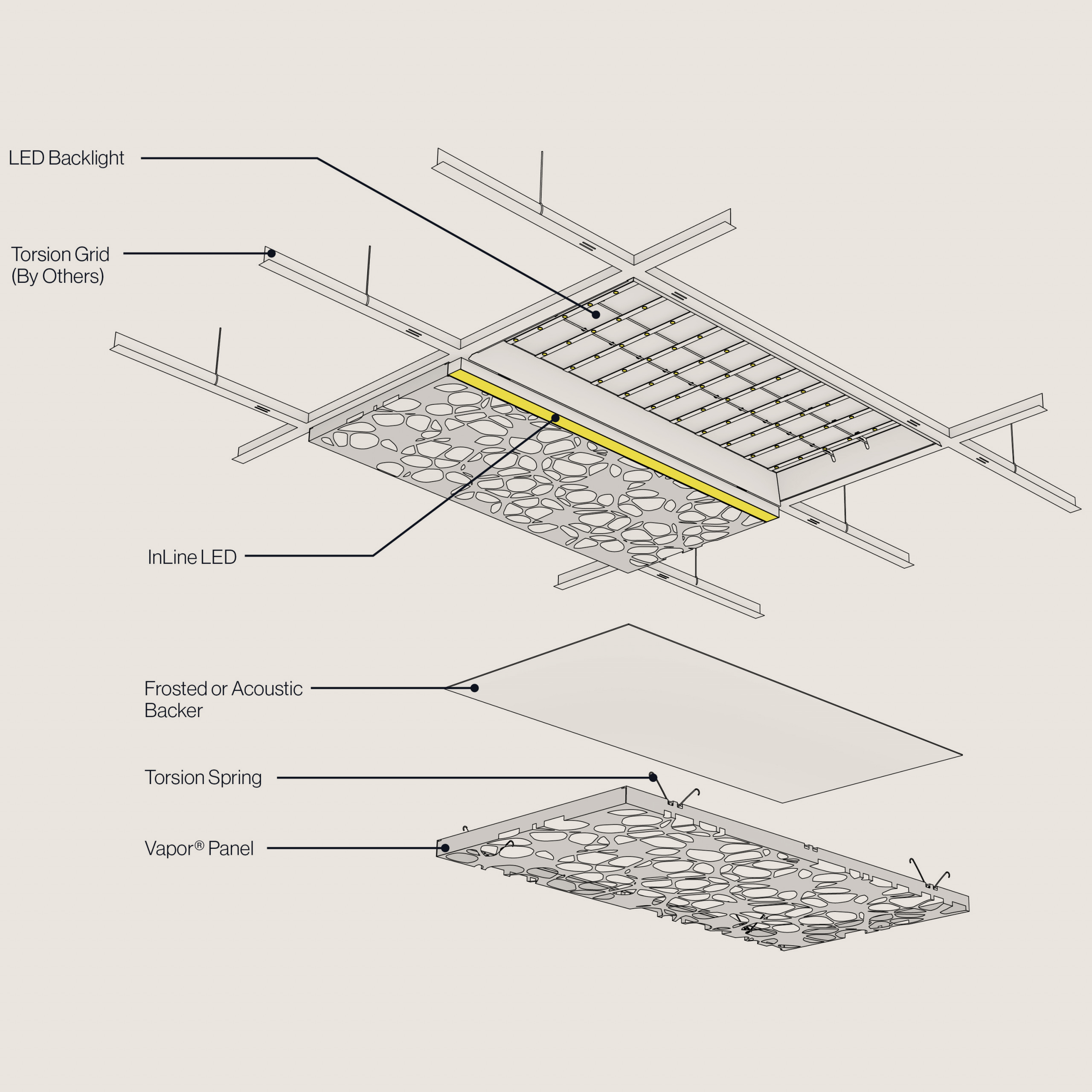

- Accessory Options - Ceiling

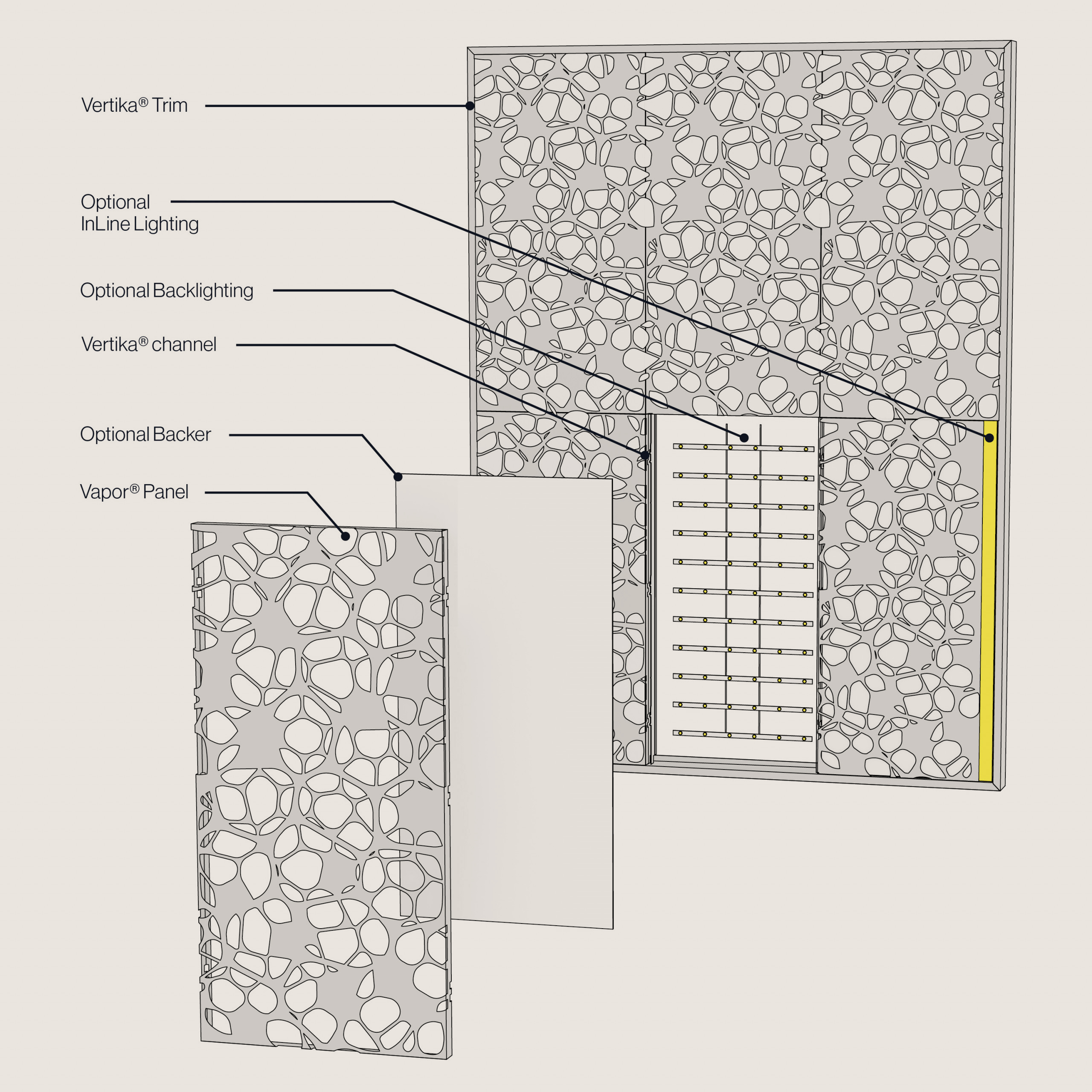

- Accessory Options - Wall

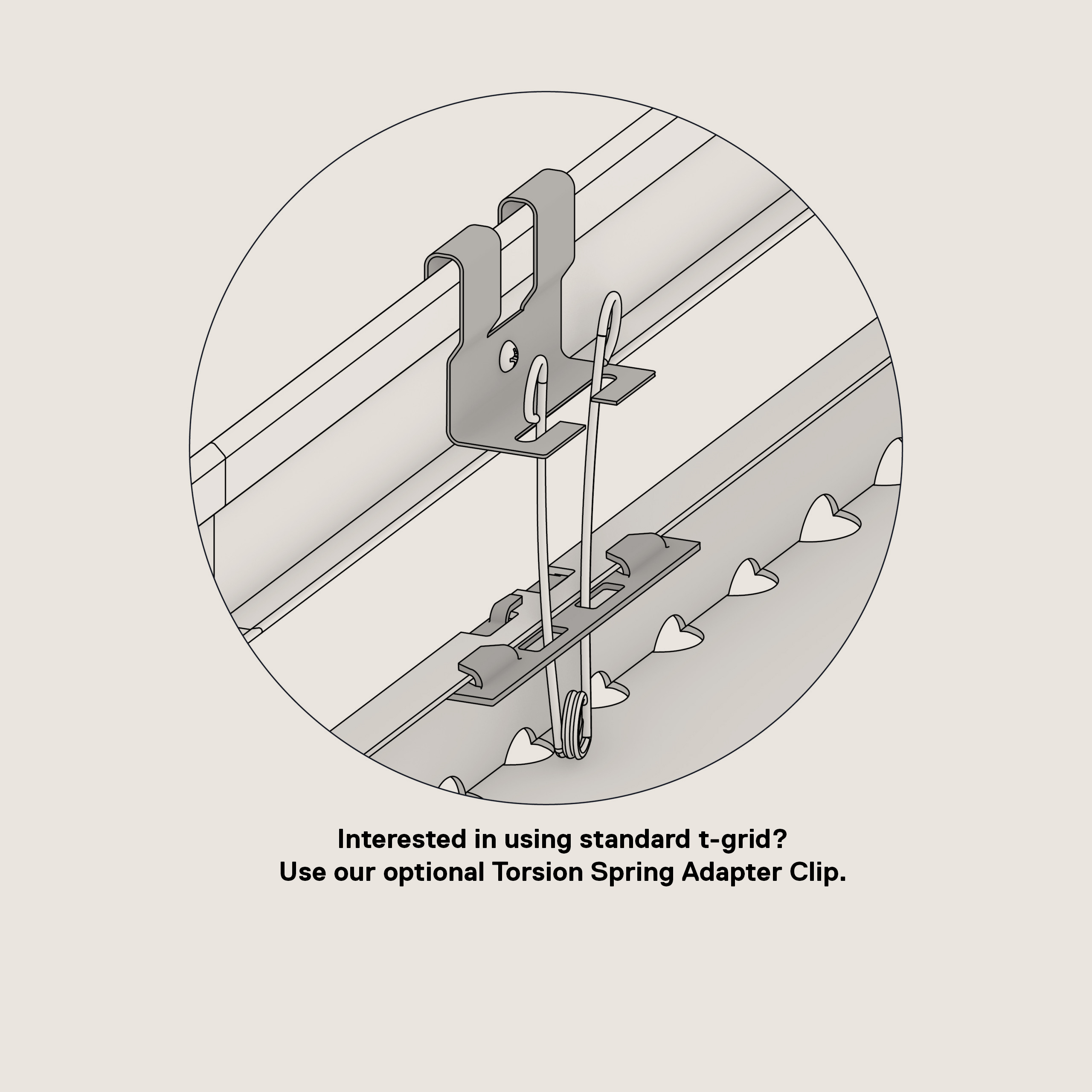

- Accessory Options - Retrofit Adapter Clip Kit
Sustainability and Certification
- 76 / 50

  Each module is made from 76 recycled aluminium cans with an acoustic backer made of 50 recycled water bottles.
- Cradle to Cradle®

  Bronze Status Pending
- 100%

  Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)
- Declare

  Red list free

Materials and Finishes

Materials and Finishes
CircuLUM™ Powder Coat Premium Metallic Finish
- Chilled Champagne
- Burnished Bronze
CircuLUM™ Powder Coat Standard Finish
- Brilliant White (Gloss) (RAL9010)
- NOWN White (Matte) (RAL9016)
- T-Grid White (Matte) (RAL9003)
- Silver Metallic (Semi Gloss) (RAL9006)
- Jet Black (Matte) (RAL9005)
- Aviator Gray (Gloss) (RAL7035)
- Aviator Gray (Matte) (RAL7035)
- Steel Gray (RAL7046)
- Shadow (RAL7024)
- Midnight (RAL7021)
- Coffee (RAL8014)
- Raw Umber (RAL8007)
- Caramel (RAL8001)
- Sandstone (RAL1019)
- Oat (RAL1001)
- Sunflower (RAL1003)
- Torch (RAL2009)
- Spirit Red (Matte) (RAL3001)
- Azure (RAL5003)
- Blue Steel (RAL5010)
- Forest Green (RAL6001)
