Vapor® CLUSTER

About Vapor® CLUSTER

With Cluster, we’ve transformed perforated torsion spring panels into an elegant ceiling-scape. By staggering the location of the holes, we’ve upgraded a standard grid into an eye-catching design that will get viewers talking. Choose from two levels of perforation density: Cluster Dense and Cluster Sparse. Cluster also works with both our optional integrated lighting and Soft Sound® acoustic backer to help you get the right aesthetic — and sound — for your design.

—

The System

Key Features

Acoustic Performance

Vapor®'s optional Soft Sound® backer material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. The Soft Sound® backer works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
Superior Flatness & Strength

Vapor® panels are manufactured from aluminum that is on average 50% thicker than the competition, which in combination with our precision processes result in unrivaled flatness.
Integrated Lighting Options

NOWN's Vapor® line makes it easy to seamlessly add illumination and lighting effects to your projeccts, through available integrated InLine and Backlighting options.
Easy Installation & Access

Vapor® panels offer easy install, using quick torsion spring attachment across s tandard ceiling grid systems or simple wall attachment using our Vertika® channel system.
Preconfigured Solutions

Vapor® panels are scalable, seamlessly tileable, preconfigured solutions designed with a dynamic array of criteria and effects in mind. Choose from our growing library of patterns to uniquely impact your project.
Continuous Pattern Aesthetic

Achieve uninterrupted patterning across your space. Vapor® patterns have perforations that wrap around the edges of each panel, concealing where patterns start and end.

Product Details

Specifications
Panel Size (WxHxD)
600mm x 1200mm x 38mm
Material
Aluminum
Openness in Plan
Dense: 40%

Sparse: 10%
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Acoustics Cluster Dense (with optional Soft Sound® backer)
True NRC® 0.85: Ceiling E-300 Method

True NRC® 0.75: Wall F-70 Method
Acoustics Cluster Sparse (with optional Soft Sound® backer)
True NRC® 0.50: Ceiling E-300 Method

True NRC® 0.60: Wall F-70 Method
Ceiling Attachment
Torsion Grid (By Others)
Wall Attachment
Vertika® Wall (Refer to Vertika® Brochure)
Accessibility
Torsion Spring Hinge
Trimmability
Yes, per installation manual
Accessories
Acoustic Backer, Translucent Backer, Backlight, InLine Light
Product diagrams

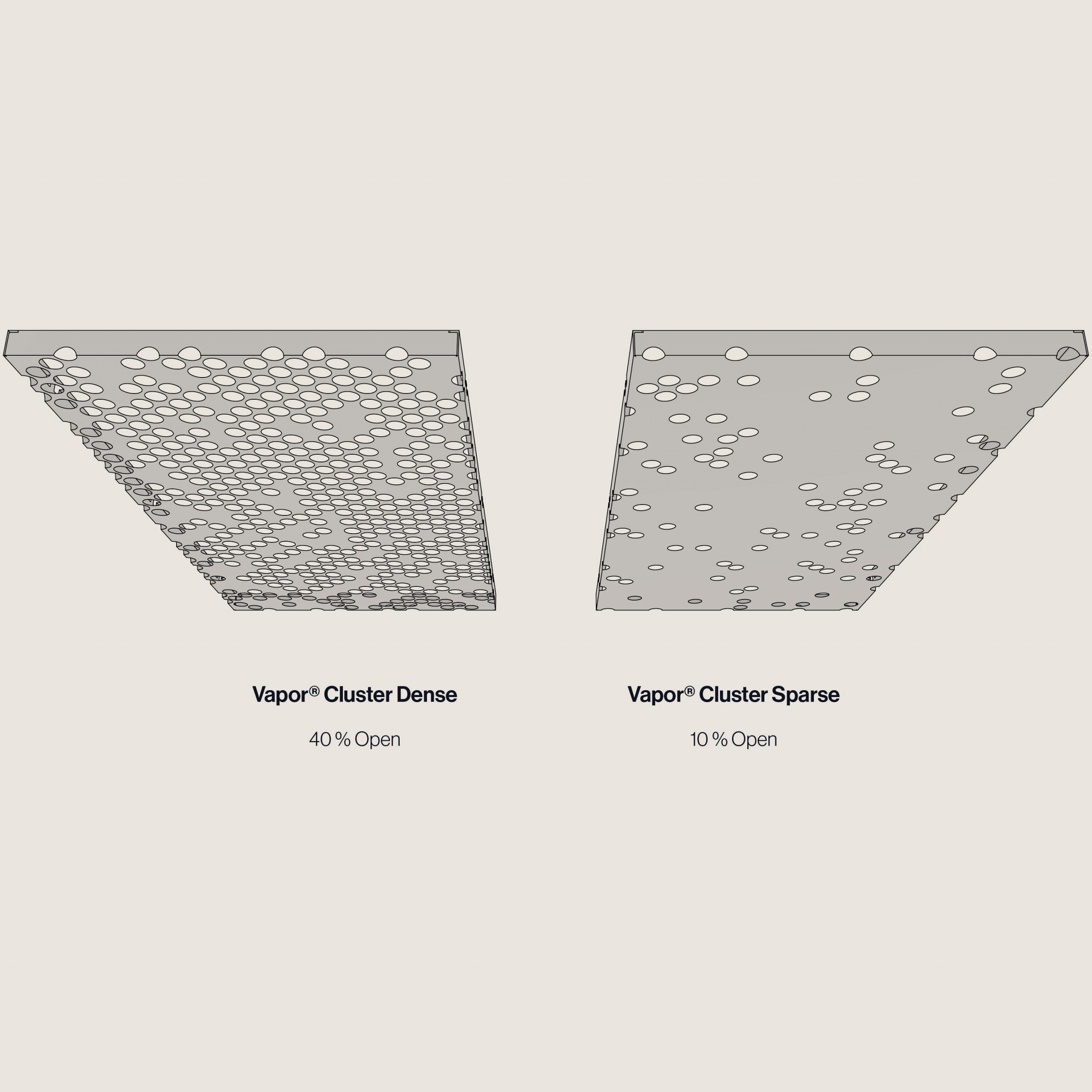

- Standard Panel

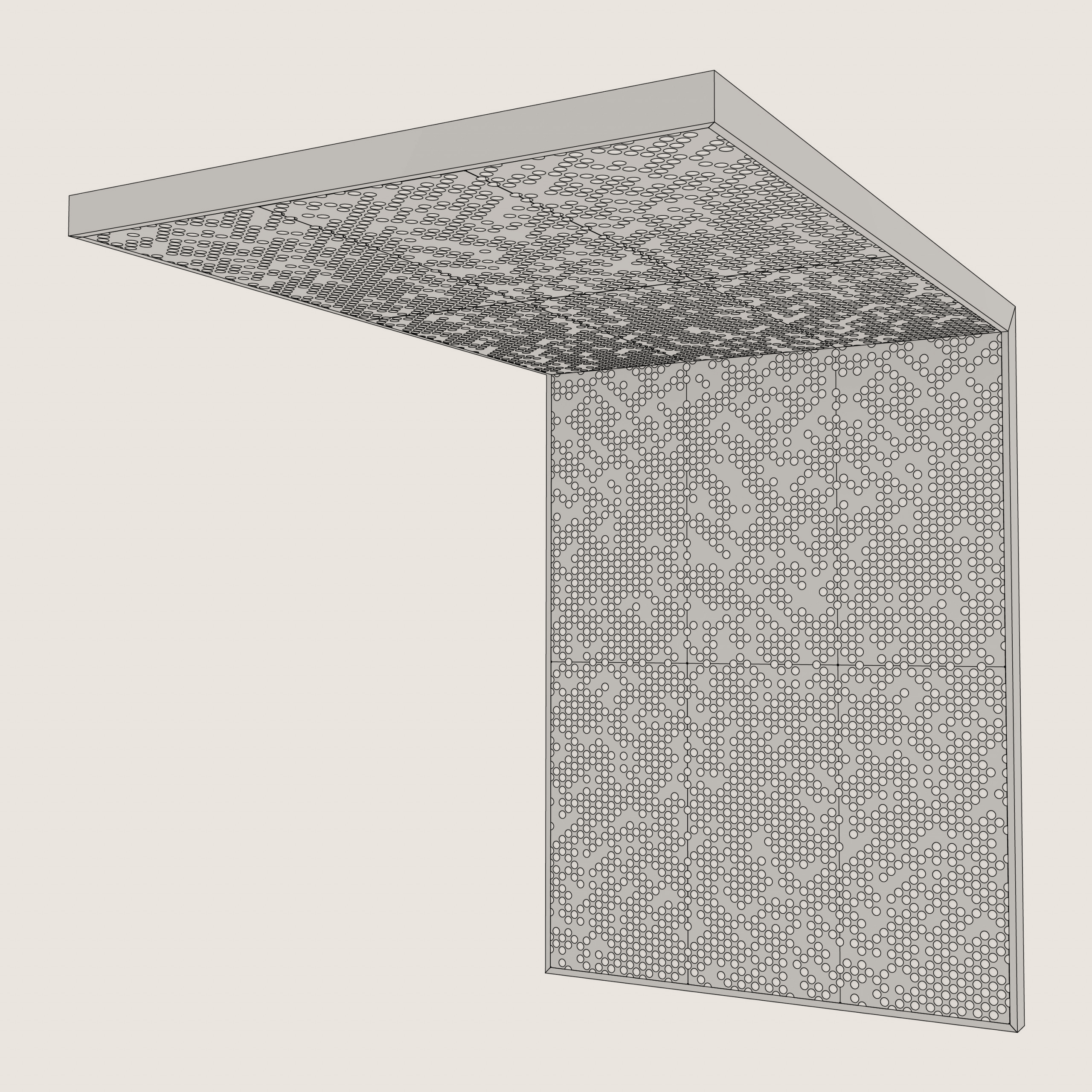

- Seamlessly Join Walls & Ceilings

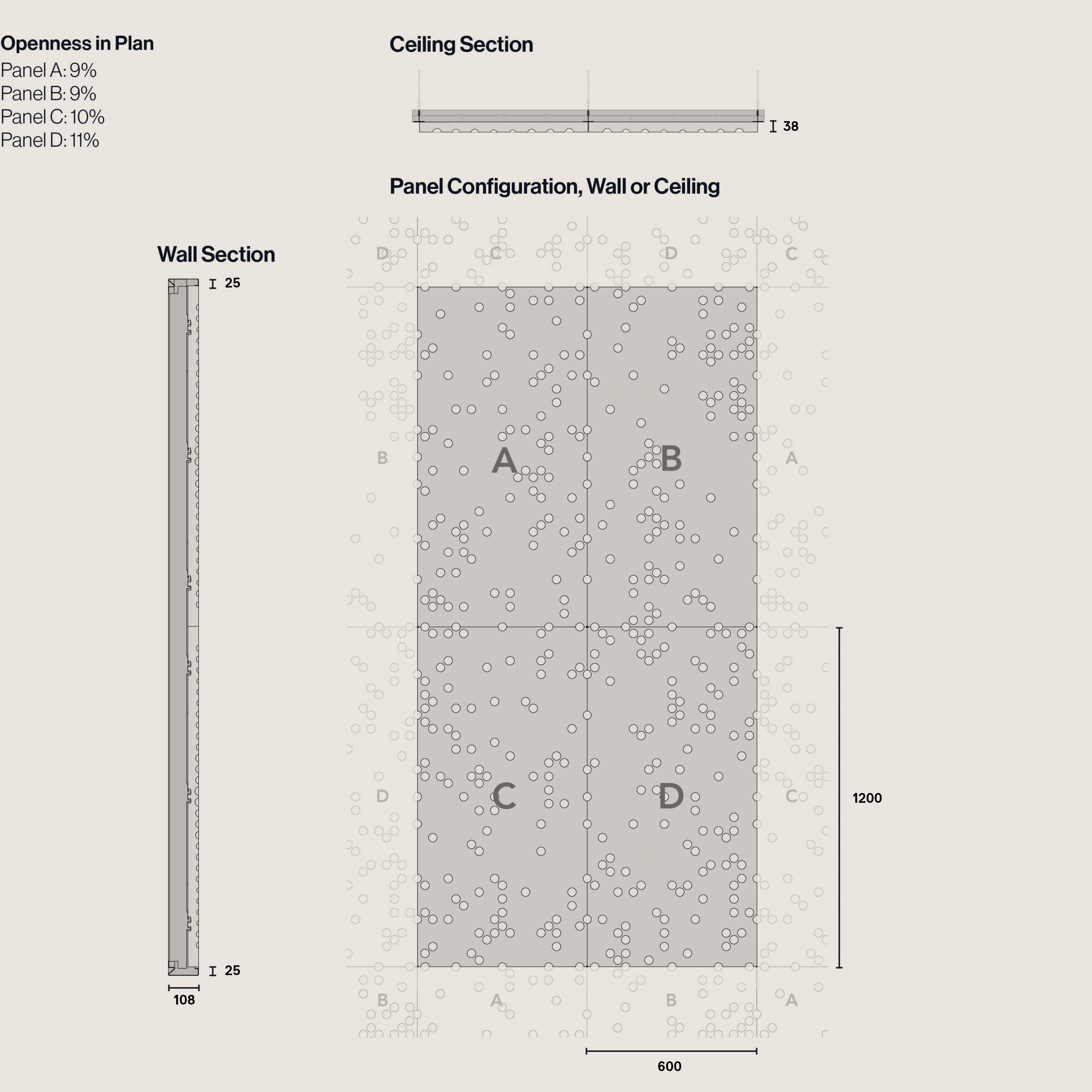

- Understanding the - Sparse

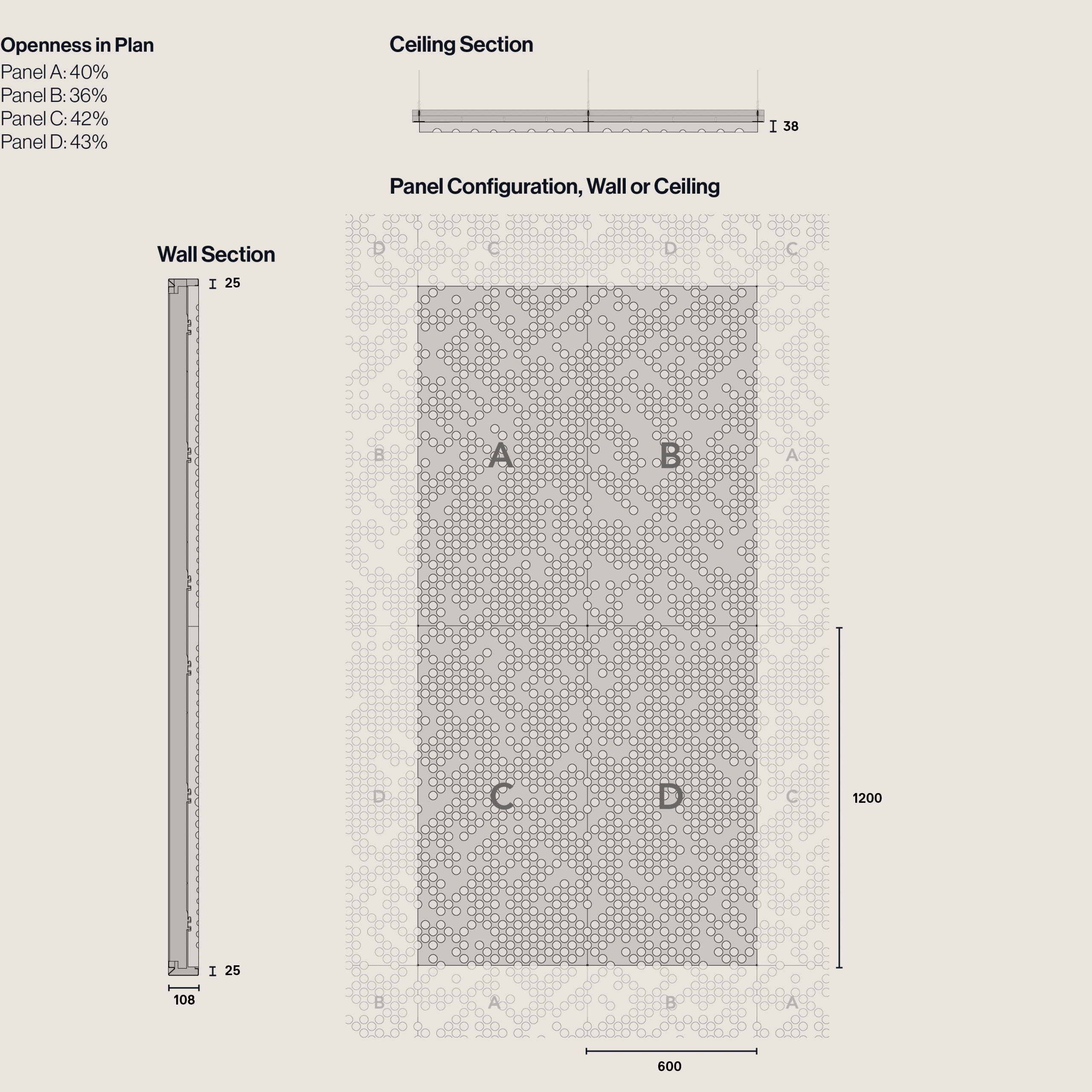

- Understanding the - Dense

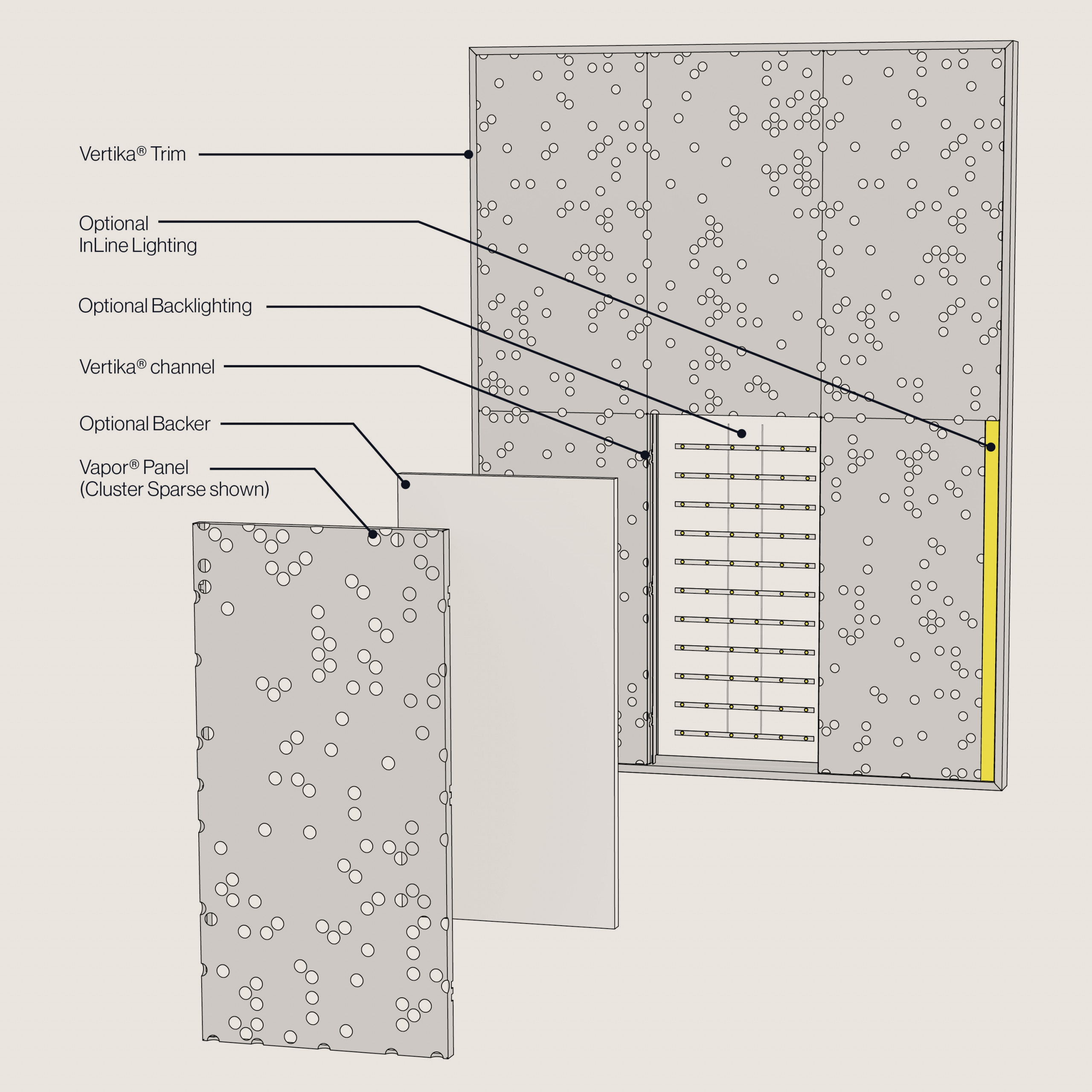

- Accessory Options - Wall

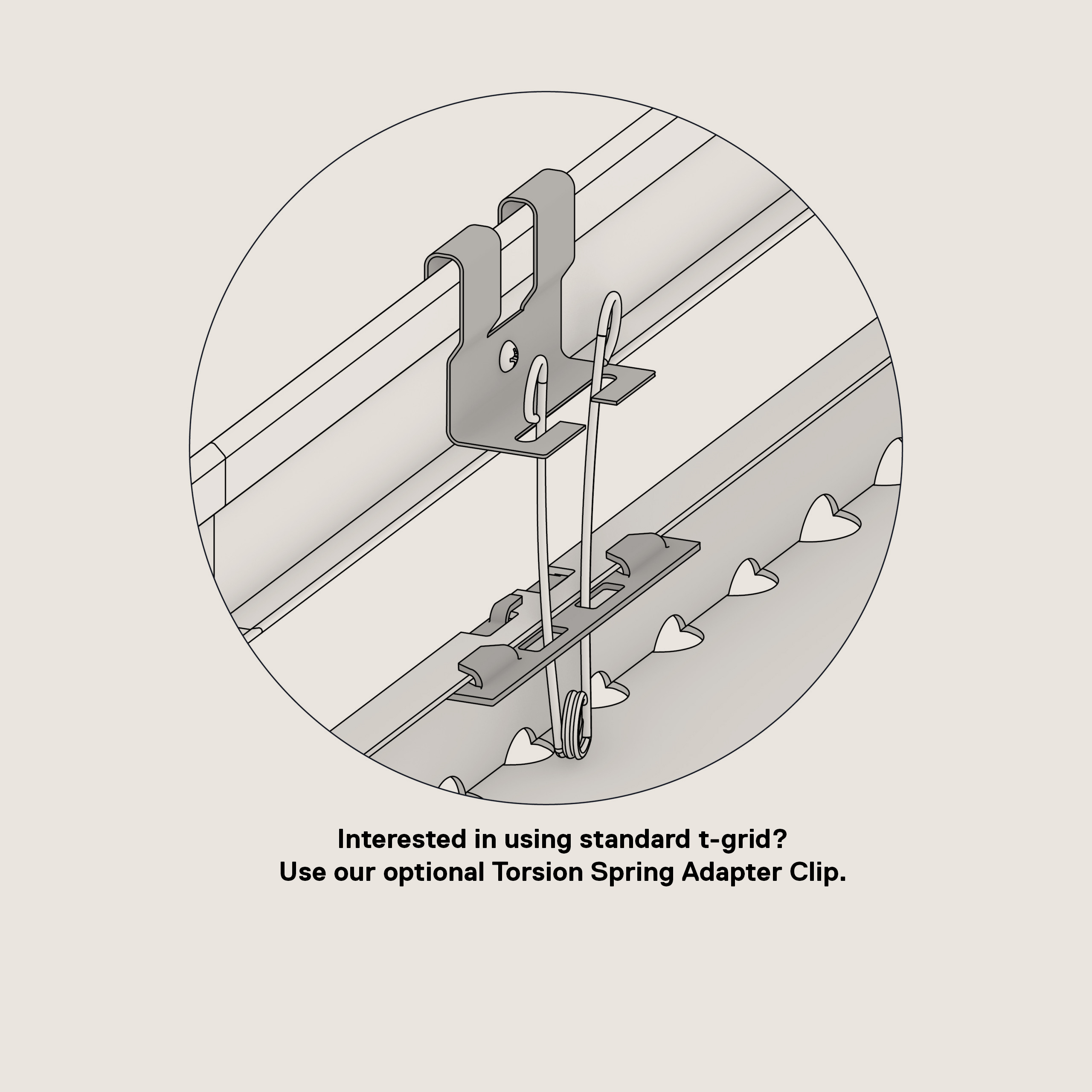

- Accessory Options - Retrofit Adapter Clip Kit

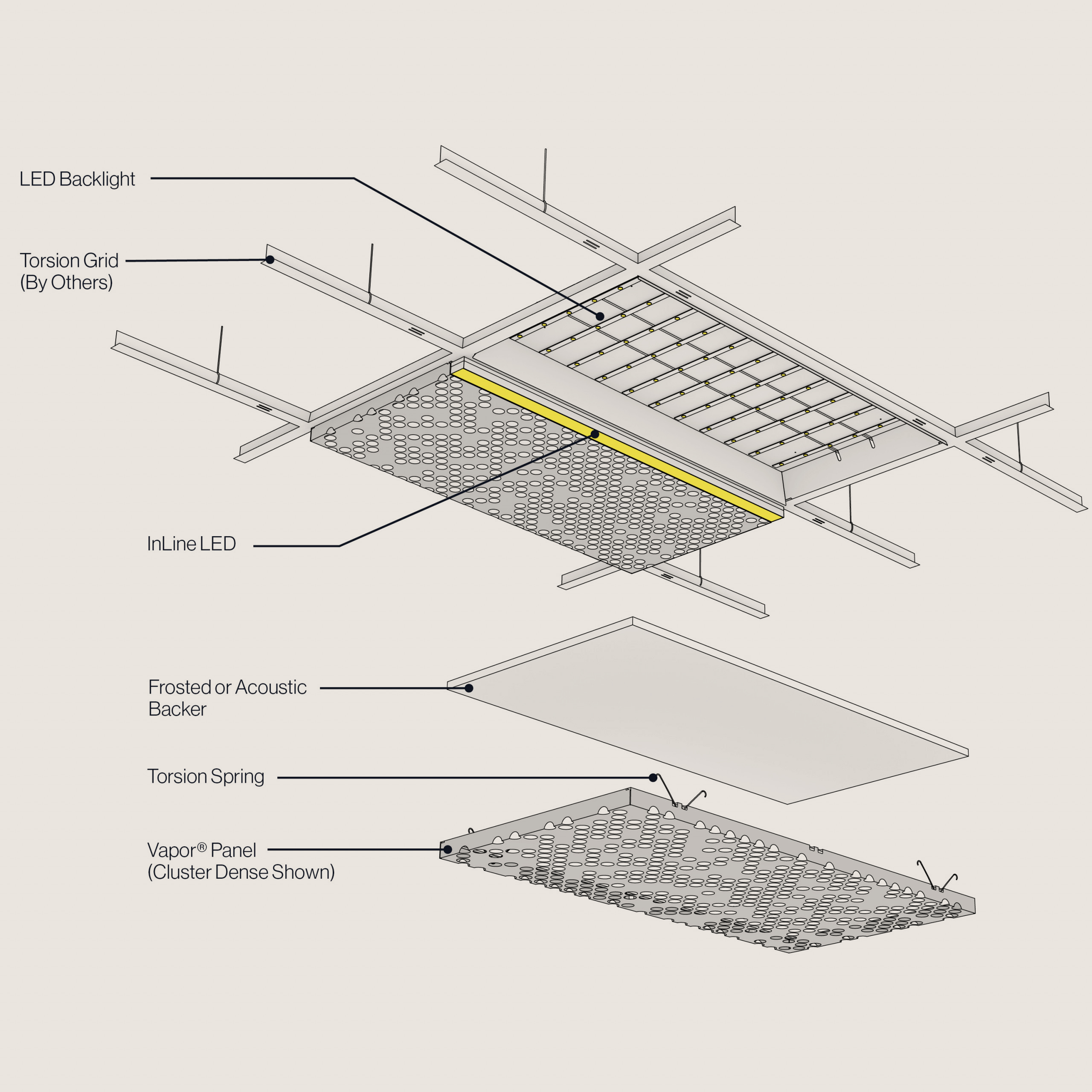

- Accessory Options - Ceiling
Sustainability and Certification
- 97 / 50

  Each module is made from 97 recycled aluminium cans with an acoustic backer made of 50 recycled water bottles.
- Cradle to Cradle®

  Bronze Status Pending
- 100%

  Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)
- Declare

  Red list free

Materials and Finishes

Materials and Finishes
CircuLUM™ Powder Coat Premium Metallic Finish
- Chilled Champagne
- Burnished Bronze
CircuLUM™ Powder Coat Standard Finish
- Brilliant White (Gloss) (RAL9010)
- NOWN White (Matte) (RAL9016)
- T-Grid White (Matte) (RAL9003)
- Silver Metallic (Semi Gloss) (RAL9006)
- Jet Black (Matte) (RAL9005)
- Aviator Gray (Gloss) (RAL7035)
- Aviator Gray (Matte) (RAL7035)
- Steel Gray (RAL7046)
- Shadow (RAL7024)
- Midnight (RAL7021)
- Coffee (RAL8014)
- Raw Umber (RAL8007)
- Caramel (RAL8001)
- Sandstone (RAL1019)
- Oat (RAL1001)
- Sunflower (RAL1003)
- Torch (RAL2009)
- Spirit Red (Matte) (RAL3001)
- Azure (RAL5003)
- Blue Steel (RAL5010)
- Forest Green (RAL6001)
