About VaporSoft® CORA

Cora’s torsion spring panels reimagine a timeless pattern. By adding scattered solid forms to the diamond grid, you get a modern take on a classic look that is sure to turn heads. Thanks to the Soft Sound material, you’ll always get acoustic support. And if you add our optional backlighting, you can also get an eye-catching radiance.

—

The System

Key Features

  1. Acoustic Performance

    VaporSoft®'s optional Soft Sound® backer material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. The Soft Sound® backer works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  2. Expansive Color Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent certain panels and complement the color scheme of your space.

  3. Achieve Acoustics & Lighting

    VaporSoft® panels offer an innovative way to tackle acoustic performance and illumination with a single product, combining integrated acoustic facing with available backlighting and InLine lighting.

  4. Easy Installation & Access

    Vapor® panels offer easy install, using quick torsion spring attachment across standard ceiling grid systems or simple wall attachment using our Vertika® channel system.

  5. Preconfigured Solutions

    VaporSoft® panels are scalable, seamlessly tileable preconfigured solutions designed with a dynamic array of criteria and effects in mind. Choose from our growing library of patterns to uniquely impact your project.

  6. Continuous Pattern Aesthetic

    Achieve uninterrupted patterning across your space. VaporSoft® patterns have perforations that wrap around the edges of each panel, concealing where patterns start and end.

Product Details

  1. Specifications

    Dimensions

    600 x 1200 x 30.8

    Panel Material

    • Aluminum

    Face Material

    • 12mm Soft Sound® (PET)

    Openness in Plan

    • 68%

    Fire Rating

    • ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0

    Acoustics

    • True NRC® 0.90: Ceiling w/ Acoustic Backer; E-300 Method

    • True NRC® 0.80: Wall w/ Acoustic Backer; F-70 Method

    • True NRC® 0.35: Ceiling w/ Translucent Backer; E-300 Method

    • True NRC® 0.30: Wall w/ Translucent Backer; F-70 Method

    Ceiling Attachment

    • Torsion Grid (By Others)

    Wall Attachment

    • Vertika® Wall (Refer to Vertika® Brochure)

    Accessibility

    • Torsion Spring Hinge

    Trimmability

    • Yes, per installation manual

    Accessories

    • Acoustic Backer, Translucent Backer, Backlight, InLine Light

  2. Product Diagrams

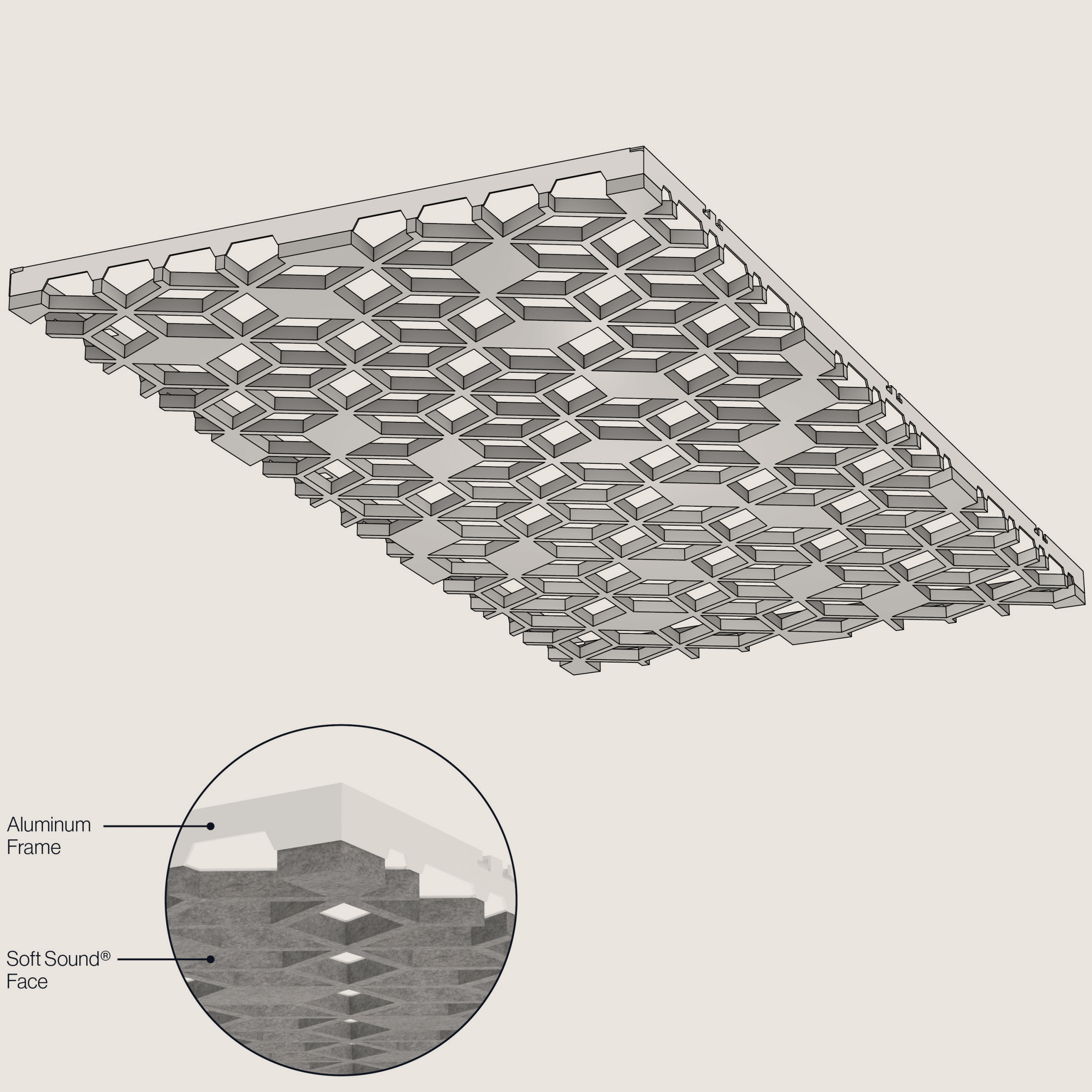

    • Standard Panel

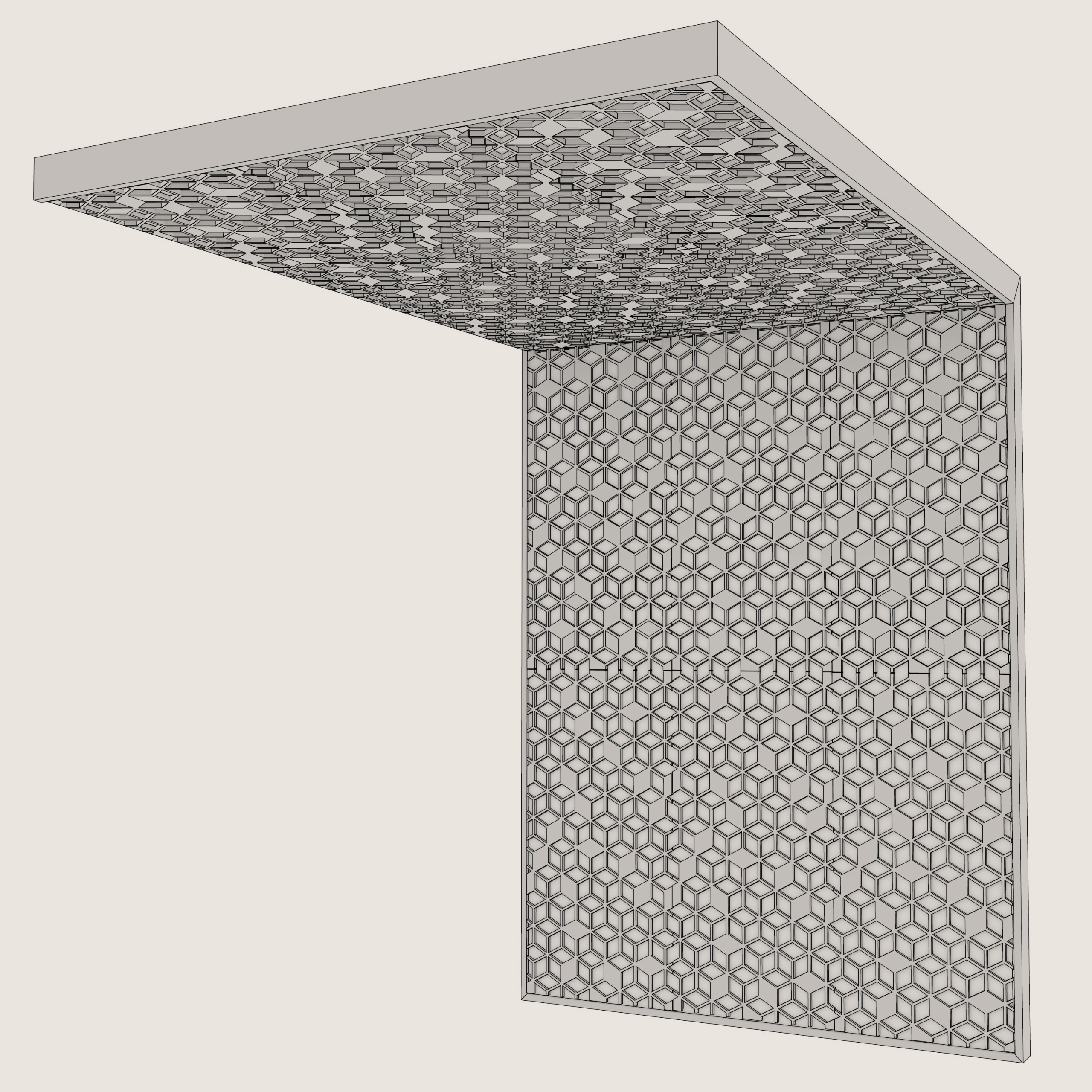

    • Seamlessly Join Walls & Ceilings

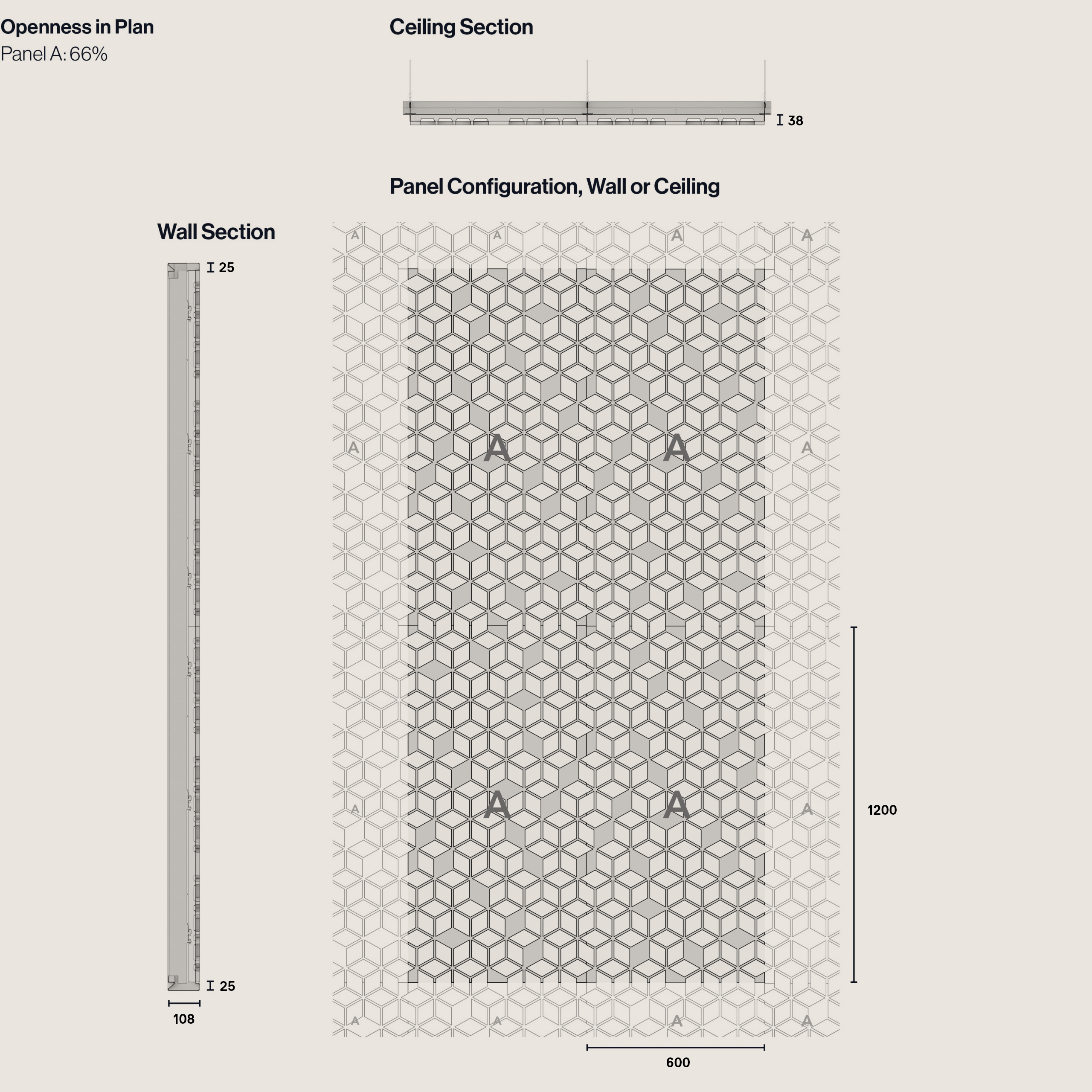

    • Understanding the Panel

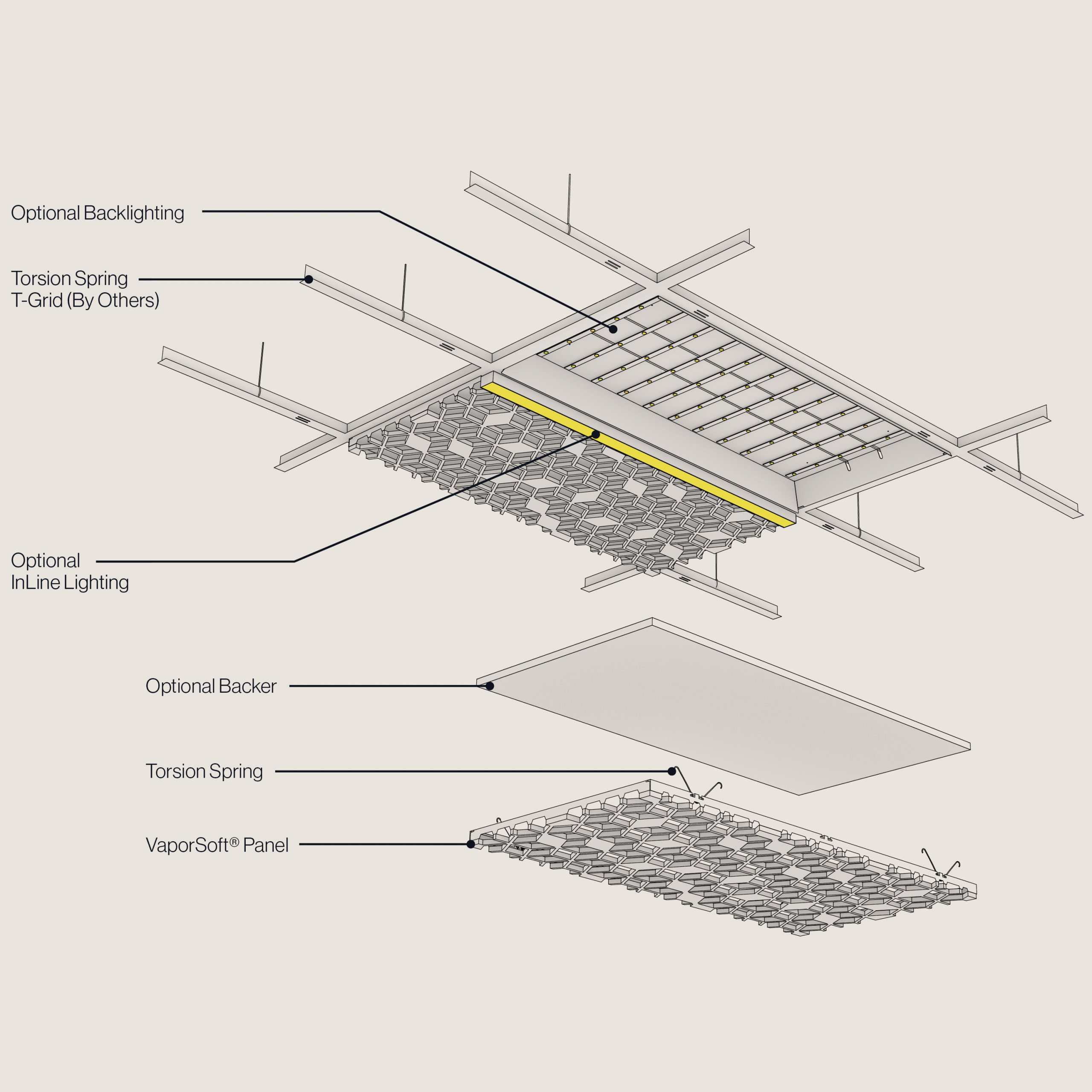

    • Accessory Options - Ceiling

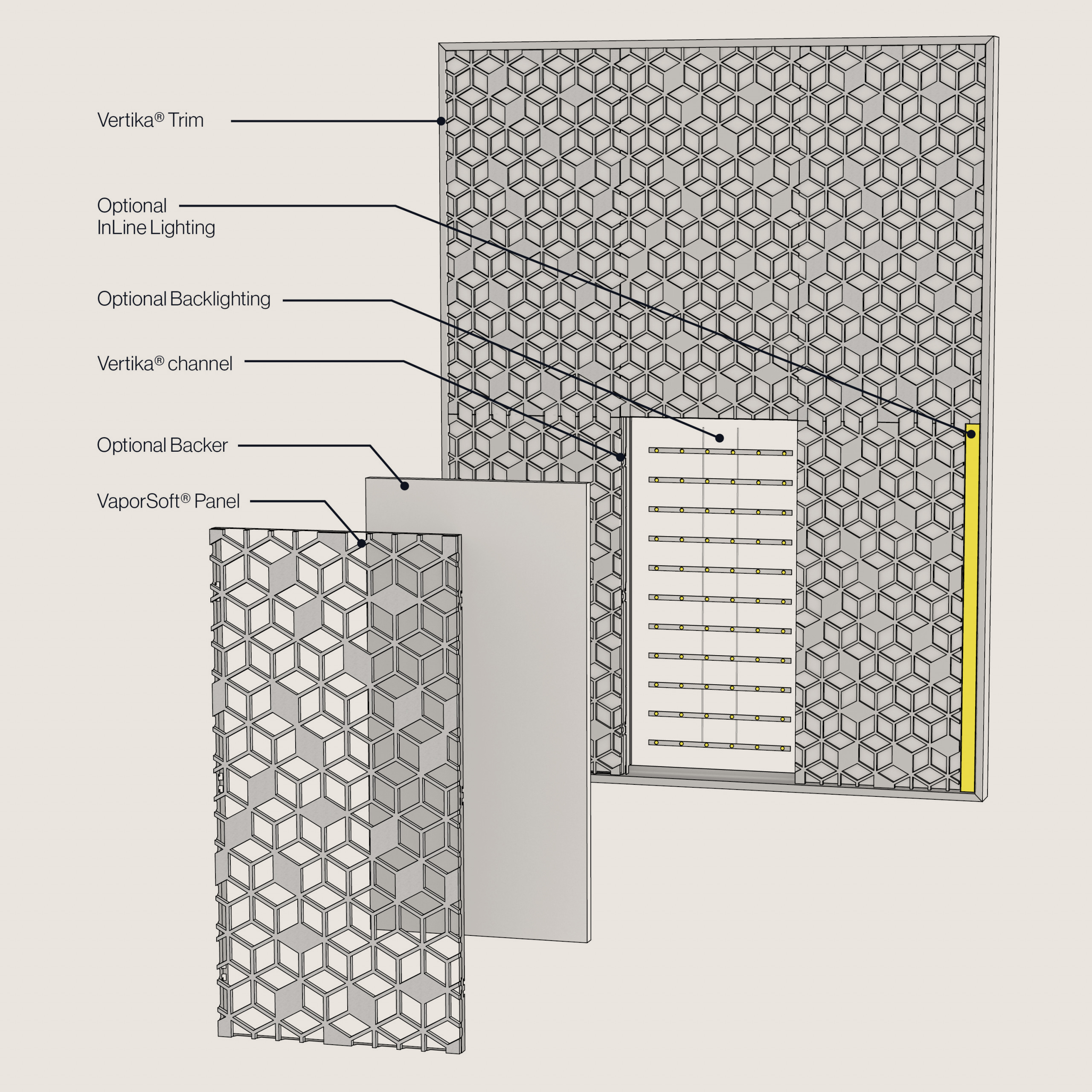

    • Accessory Options - Wall

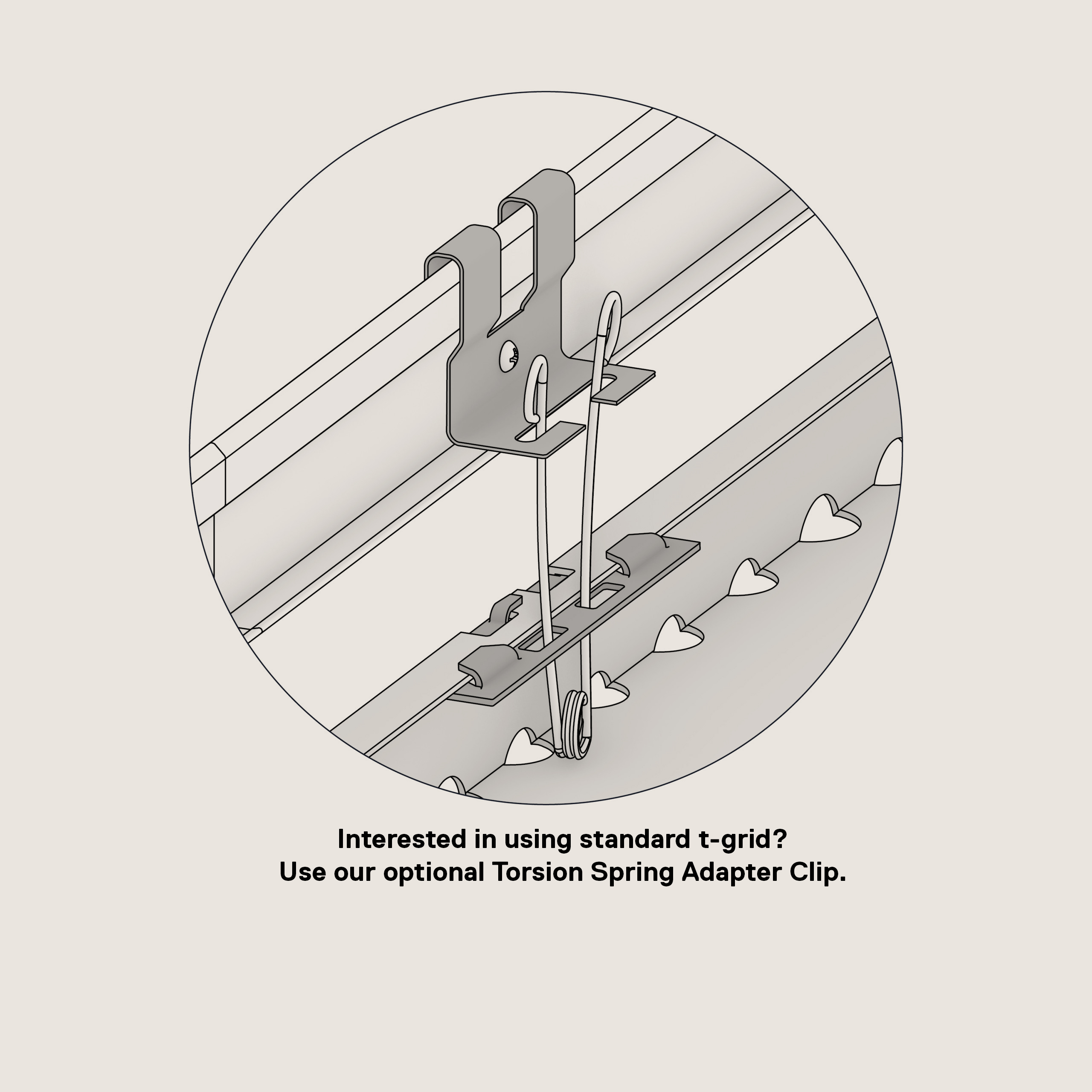

    • Accessory Options - Retrofit Adapter Clip Kit

  3. Sustainability and Certifications

    • 50 / 50

      Each module is made from 50 recycled aluminum cans with an acoustic backer made of 50 recycled water bottles.

    • Cradle to Cradle®

      Bronze Status Pending

    • 100%

      Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)

    • Declare

      Red list free

Materials and Finishes

  1. Materials and Finishes

    CircuLUM™ Powder Coat Premium Metallic Finish

    • Chilled Champagne

      Chilled Champagne

    • Burnished Bronze

      Burnished Bronze

    CircuLUM™ Powder Coat Standard Finish

    • Brilliant White (Gloss) (RAL9010)

      Brilliant White (Gloss) (RAL9010)

    • NOWN White (Matte) (RAL9016)

      NOWN White (Matte) (RAL9016)

    • T-Grid White (Matte) (RAL9003)

      T-Grid White (Matte) (RAL9003)

    • Silver Metallic (Semi Gloss) (RAL9006)

      Silver Metallic (Semi Gloss) (RAL9006)

    • Jet Black (Matte) (RAL9005)

      Jet Black (Matte) (RAL9005)

    • Aviator Gray (Gloss) (RAL7035)

      Aviator Gray (Gloss) (RAL7035)

    • Aviator Gray (Matte) (RAL7035)

      Aviator Gray (Matte) (RAL7035)

    • Steel Gray (RAL7046)

      Steel Gray (RAL7046)

    • Shadow (RAL7024)

      Shadow (RAL7024)

    • Midnight (RAL7021)

      Midnight (RAL7021)

    • Coffee (RAL8014)

      Coffee (RAL8014)

    • Raw Umber (RAL8007)

      Raw Umber (RAL8007)

    • Caramel (RAL8001)

      Caramel (RAL8001)

    • Sandstone (RAL1019)

      Sandstone (RAL1019)

    • Oat (RAL1001)

      Oat (RAL1001)

    • Sunflower (RAL1003)

      Sunflower (RAL1003)

    • Torch (RAL2009)

      Torch (RAL2009)

    • Spirit Red (Matte) (RAL3001)

      Spirit Red (Matte) (RAL3001)

    • Azure (RAL5003)

      Azure (RAL5003)

    • Blue Steel (RAL5010)

      Blue Steel (RAL5010)

    • Forest Green (RAL6001)

      Forest Green (RAL6001)

    Soft Sound® Color Group A

    • White

      White

    • Snow

      Snow

    • Marble

      Marble

    • Heather Gray

      Heather Gray

    • Graphite

      Graphite

    • Carbon

      Carbon

    • Onyx

      Onyx

    • Apple

      Apple

    • Tangerine

      Tangerine

    • Lemon

      Lemon

    • Taupe

      Taupe

    • Sand

      Sand

    • Kiwi

      Kiwi

    • Whisper

      Whisper

    • Sky Blue

      Sky Blue

    • Denim

      Denim

    • Absinthe

      Absinthe

    • Abyss

      Abyss

    • Azore

      Azore

    • Mars

      Mars

    • Macchiato

      Macchiato

    Soft Sound® Wood Texture

    • Gray Ash

      Gray Ash

    • White Oak

      White Oak

    • Golden Oak

      Golden Oak

    • Oak

      Oak

    • American Walnut

      American Walnut

    • Charred Oak

      Charred Oak

    • Charred Ash

      Charred Ash

    • Ebony

      Ebony
