VaporSoft® TRAIL in use

The System

Key Features

  1. Acoustic Performance

    VaporSoft®'s optional Soft Sound® backer material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. The Soft Sound® backer works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  2. Expansive Color Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent certain panels and complement the color scheme of your space.

  3. Achieve Acoustics & Lighting

    VaporSoft® panels offer an innovative way to tackle acoustic performance and illumination with a single product, combining integrated acoustic facing with available backlighting and InLine lighting.

  4. Easy Installation & Access

    VaporSoft® panels are scalable, seamlessly tileable preconfigured solutions designed with a dynamic array of criteria and effects in mind. Choose from our growing library of patterns to uniquely impact your project.

  5. Preconfigured Solutions

    VaporSoft® panels are scalable, seamlessly tileable preconfigured solutions designed with a dynamic array of criteria and effects in mind. Choose from our growing library of patterns to uniquely impact your project.

  6. Continuous Pattern Aesthetic

    Achieve uninterrupted patterning across your space. VaporSoft® patterns have perforations that wrap around the edges of each panel, concealing where patterns start and end.

Product Details

Specifications

Dimensions

  • 600 x 1200 x 30.8

Panel Material

  • Aluminum

Face Material

  • 12mm Soft Sound® (PET)

Openness in Plan

  • 24%

Fire Rating

  • ASTM E84 - Class A | UNE-EN 13501-1, B-s1,d0

Acoustics

  • True NRC® 0.90: Ceiling w/ Acoustic Backer ; E-300 Method

  • True NRC® 0.85: Wall w/ Acoustic Backer ; F-70 Method

  • True NRC® 0.45: Ceiling w/ Translucent Backer ; E-300 Method

  • True NRC® 0.45: Wall w/ Translucent Backer ; F-70 Method

Ceiling Attachment

  • Torsion Grid (By Others)

Wall Attachment

  • Vertika® Wall (Refer to Vertika® Brochure)

Accessibility

  • Torsion Spring Hinge

Trimmability

  • Yes, per installation manual

Accessories

  • Acoustic Backer, Translucent Backer, Backlight, InLine Light

Product Diagrams

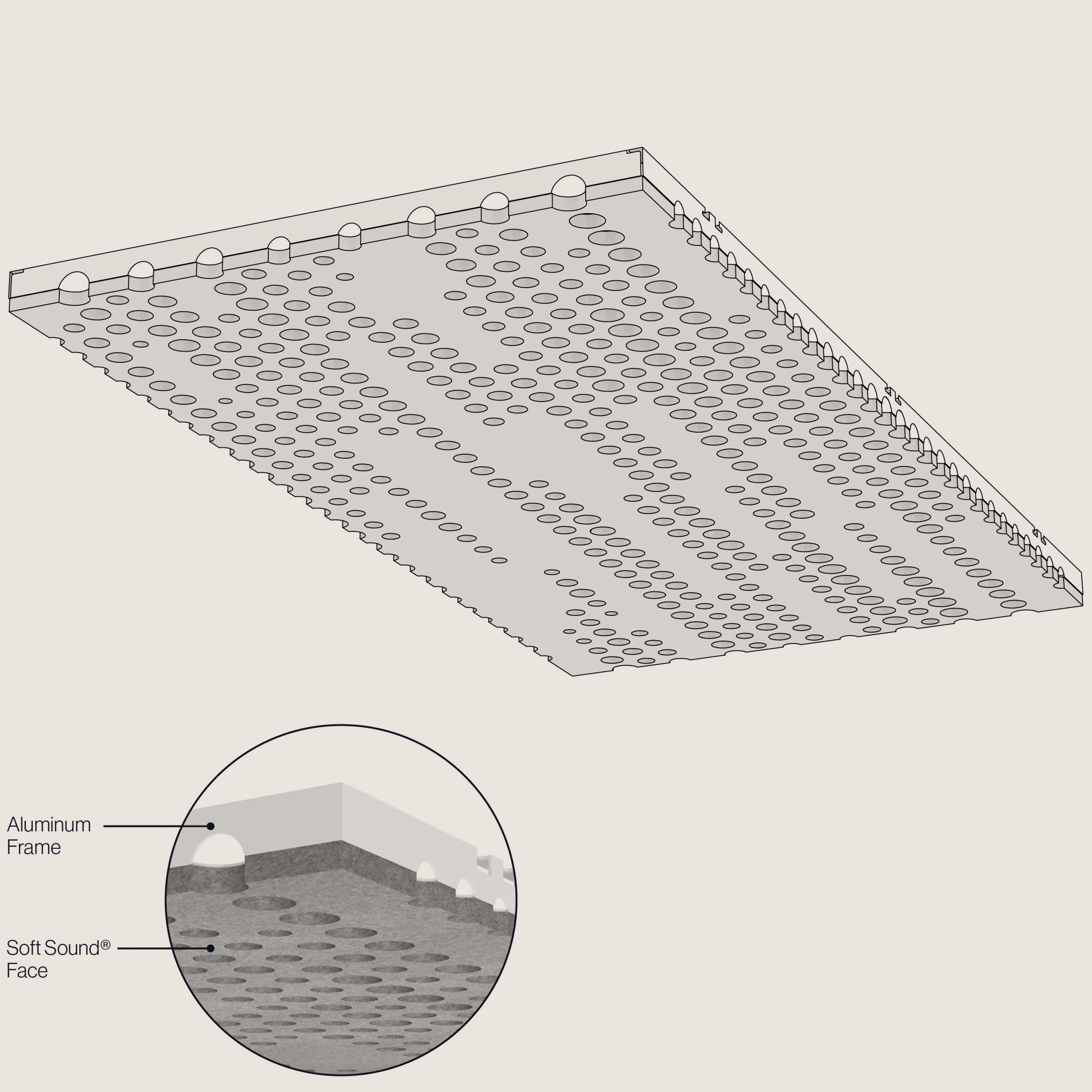

Standard Panel

Seamlessly Join Walls & Ceilings

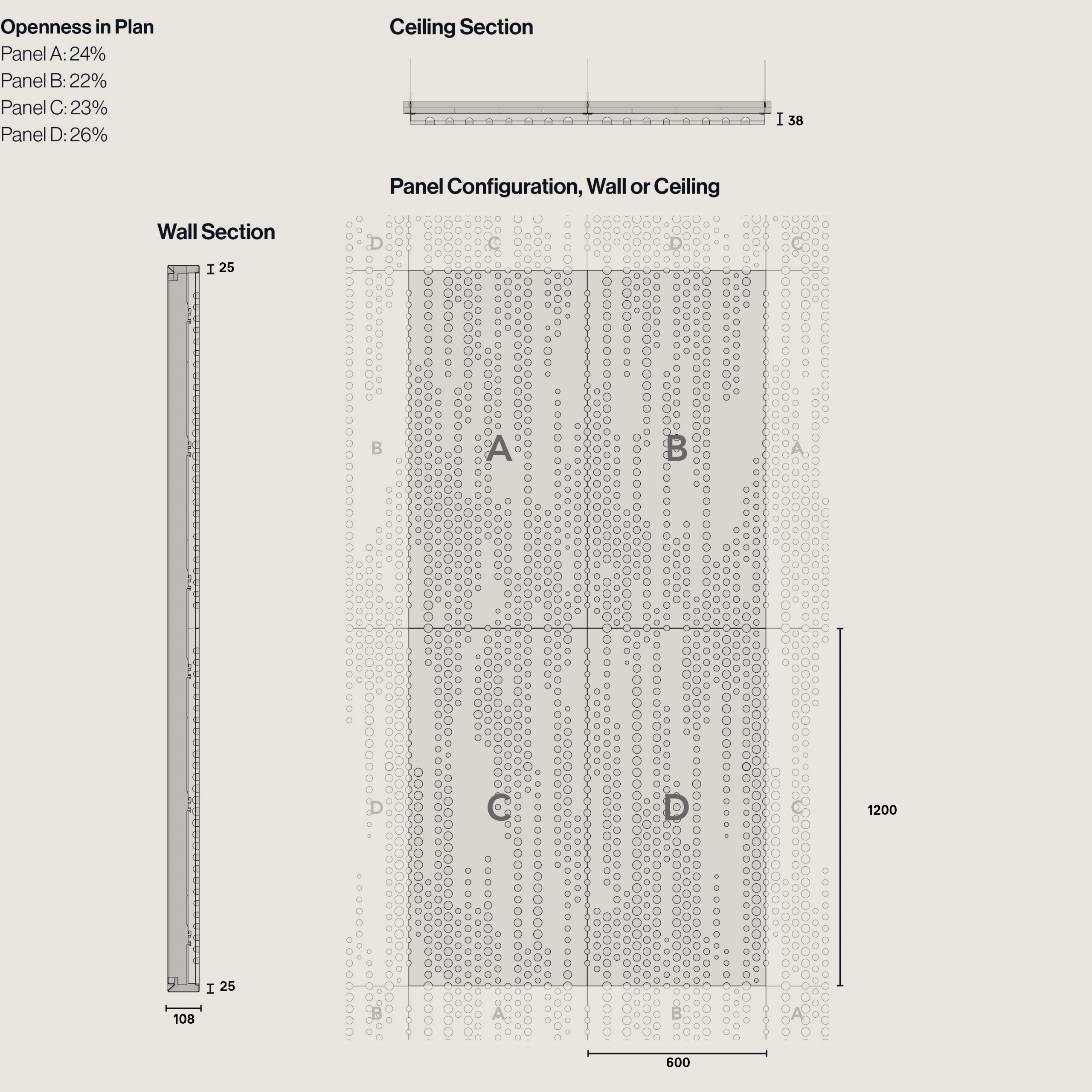

Understanding the Panel

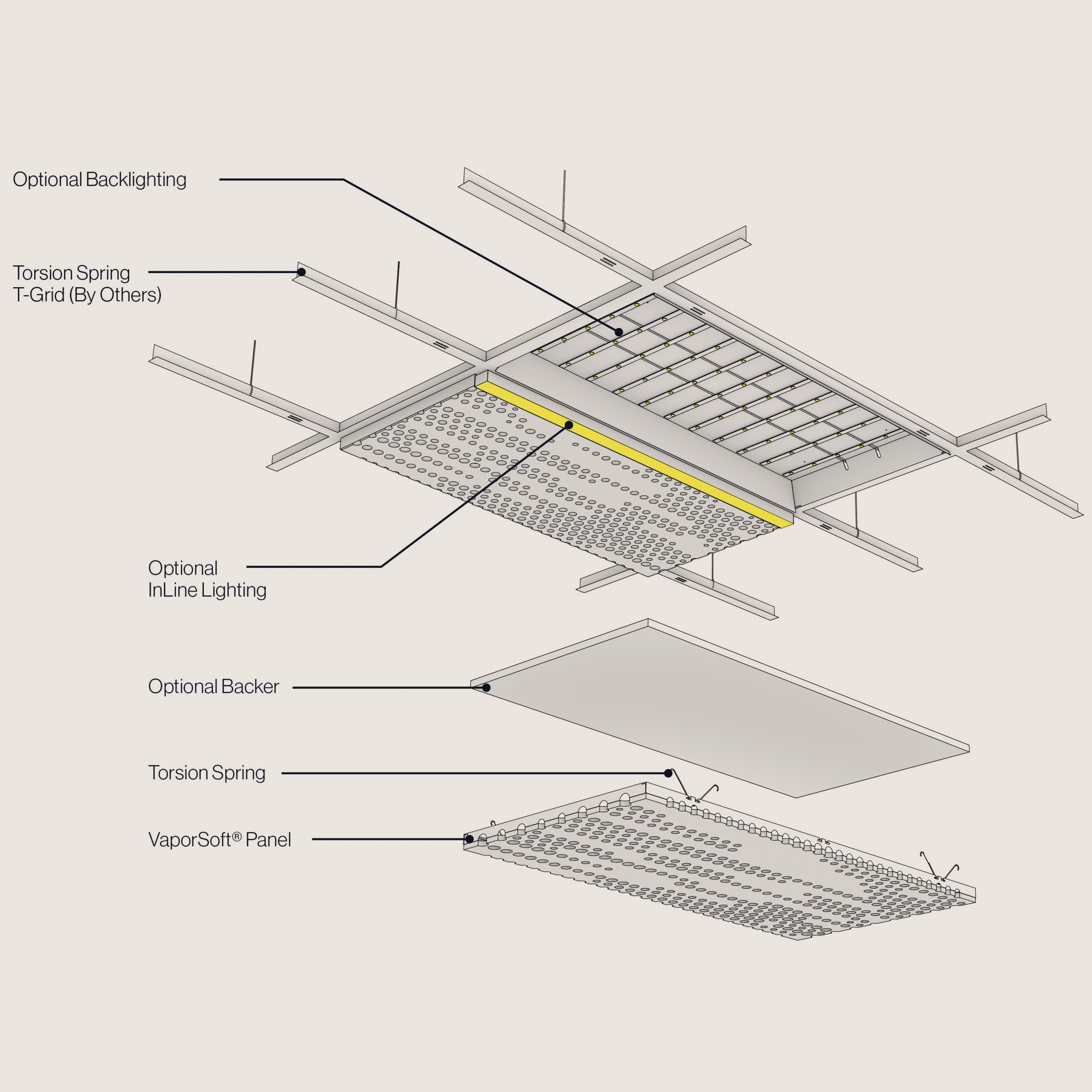

Accessory Option - Ceiling

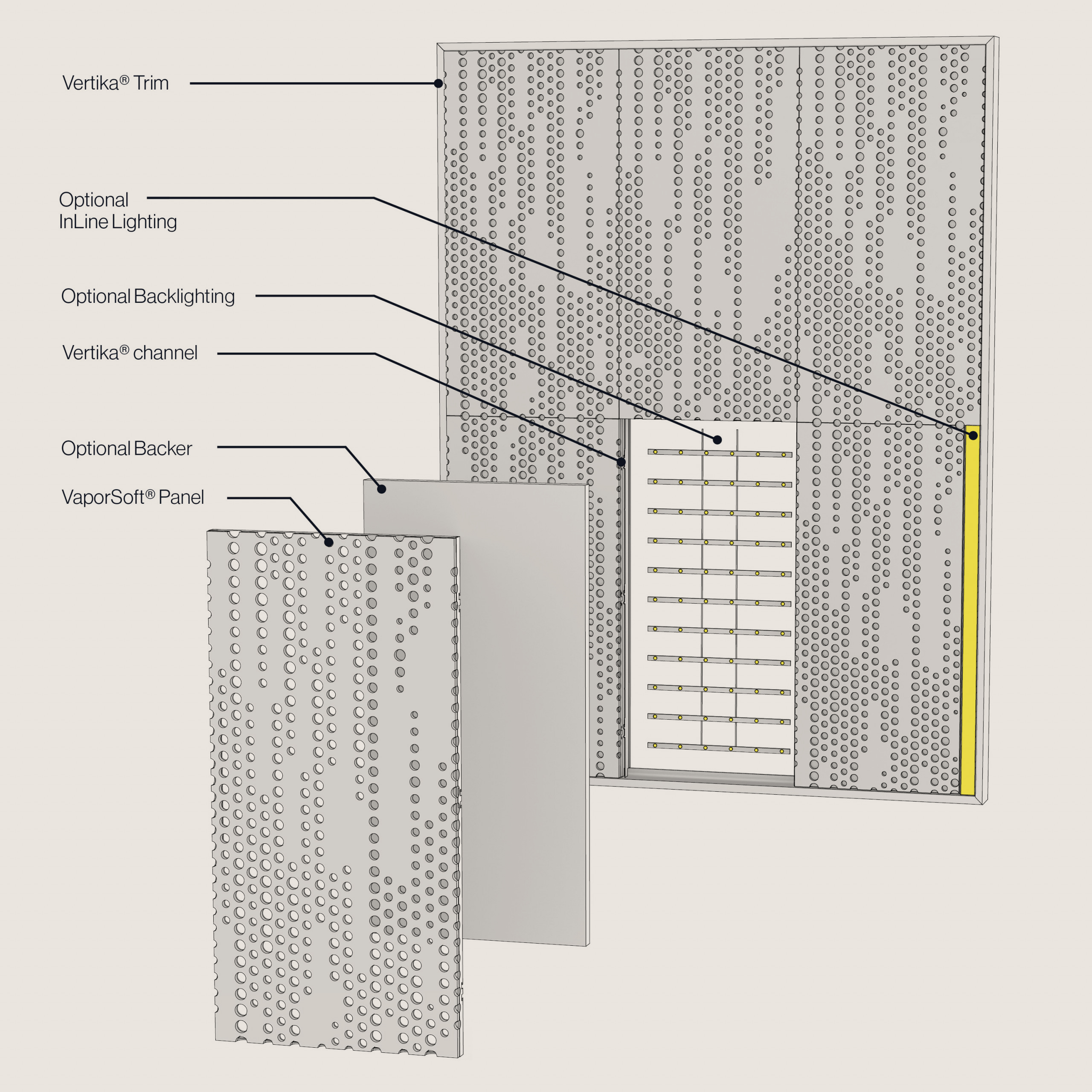

Accessory Option - Wall

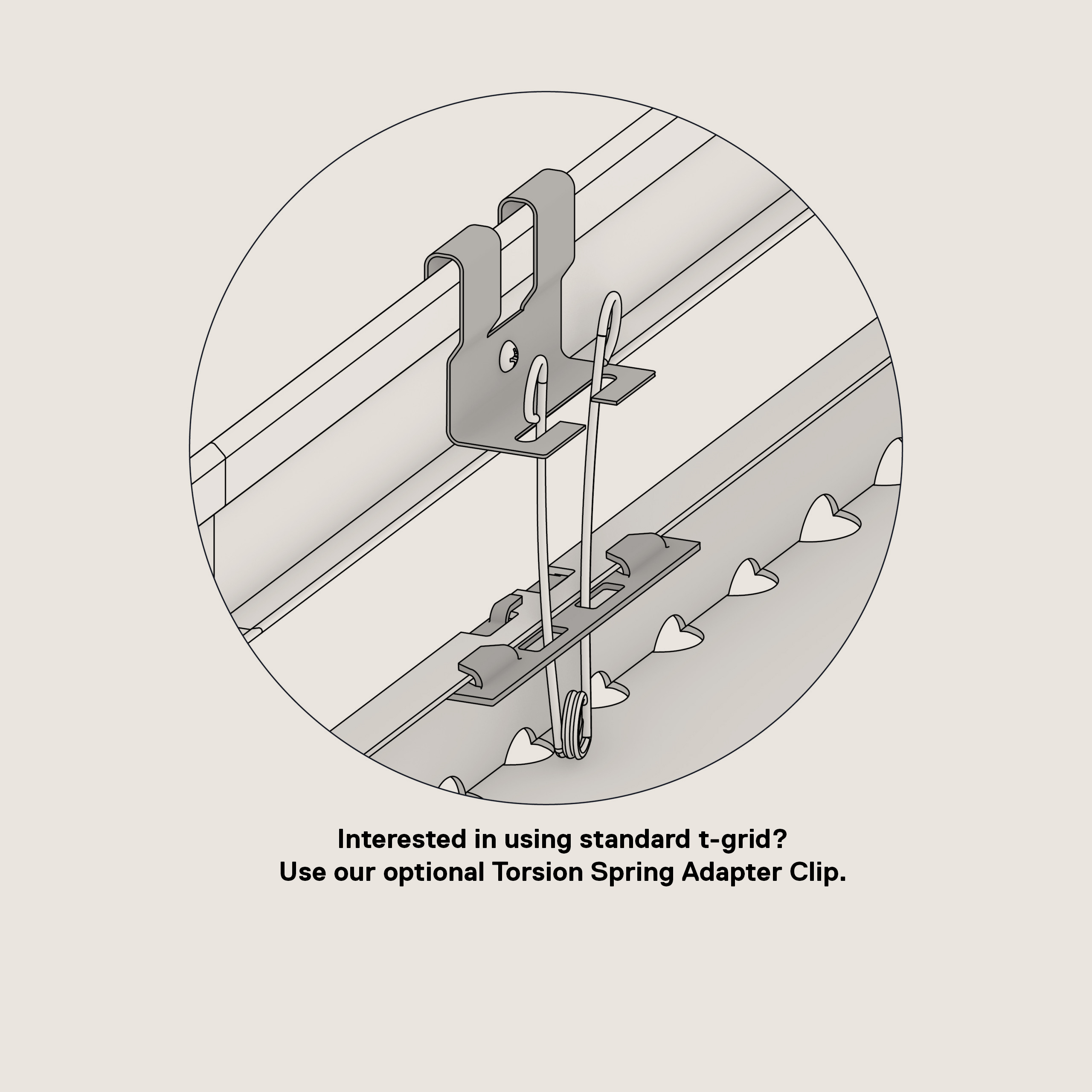

Accessory Options - Retrofit Adapter Clip Kit

Sustainability and Certifications
  • 120 / 50

    Each module is made from 120 recycled aluminum cans with an acoustic backer made of 50 recycled water bottles.

  • Cradle to Cradle®

    Bronze Status Pending

  • 100%

    Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)

  • Declare

    Red list free

Materials and Finishes

Materials and Finishes

CircuLUM™ Powder Coat Premium Metallic Finish

  • Chilled Champagne

  • Burnished Bronze

CircuLUM™ Powder Coat Standard Finish

  • Brilliant White (Gloss) (RAL9010)

  • NOWN White (Matte) (RAL9016)

  • T-Grid White (Matte) (RAL9003)

  • Silver Metallic (Semi Gloss) (RAL9006)

  • Jet Black (Matte) (RAL9005)

  • Aviator Gray (Gloss) (RAL7035)

  • Aviator Gray (Matte) (RAL7035)

  • Steel Gray (RAL7046)

  • Shadow (RAL7024)

  • Midnight (RAL7021)

  • Coffee (RAL8014)

  • Raw Umber (RAL8007)

  • Caramel (RAL8001)

  • Sandstone (RAL1019)

  • Oat (RAL1001)

  • Sunflower (RAL1003)

  • Torch (RAL2009)

  • Spirit Red (Matte) (RAL3001)

  • Azure (RAL5003)

  • Blue Steel (RAL5010)

  • Forest Green (RAL6001)

Soft Sound® Color Group A

  • White

  • Snow

  • Marble

  • Heather Gray

  • Graphite

  • Carbon

  • Onyx

  • Apple

  • Tangerine

  • Lemon

  • Taupe

  • Sand

  • Kiwi

  • Whisper

  • Sky Blue

  • Denim

  • Absinthe

  • Abyss

  • Azore

  • Mars

  • Macchiato

Soft Sound® Wood Texture

  • Gray Ash

  • White Oak

  • Golden Oak

  • Oak

  • American Walnut

  • Charred Oak

  • Charred Ash

  • Ebony

Resources

Product

Download

VaporSoft® TRAIL – DWG (Metric)

VaporSoft®TRAIL Brochure
