Atmosphera® Adaptive ANALOG

About Atmosphera® Adaptive ANALOG

Analog is the playground for linear experimentation. Customize your baffle ceiling to set the rhythm for your space by altering the fin depth, spacing, and even color. So while your design may be on the straight and narrow, it can still take viewers by surprise when you add your own, custom twist. Analog’s fins are available in powder-coated steel or our acoustic Soft Sound®.

—

Key Features

Acoustic Performance

Atmosphera®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Atmosphera®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
Expansive Soft Sound® Library

Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.
Customizable Topography

Atmosphera® offers a range of configurable options, allowing you to customize fin topography to fit your space and design vision, with the help of our project team.
No Field Trimming Necessary

All modules are built to your unique project specifications, removing the need for any field trimming and assuring easy installation.
Open Plan Accessibility

Atmosphera®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.
Continuous Frames & Fins

Utilizing a hidden fin and frame alignment system Atmosphera® provides continuity in all directions across your space. Our custom formulated material thickness and density ensures rigidity that limits deflection.

Product Details

Acoustic Fin System Specs
Fin Material
Fin Material

2720 x 3600 Frame Max

Module Dimension

130 - 400.5

Openness in Plan

86-90%
Steel Fin System Specs
Fin Material

12GA Steel

Module Dimension

3630 x 3630 Frame Max

Fin Depth

130 - 400.5

Openness in Plan

93-94%
System Specs
Frame Material

Steel

Fire Rating

ASTM E84 - Class A

Acoustics

True NRC® : Results Vary

Attachment Method

3/8" Threaded Rod (By Others)

Accessibility

Yes, removable clips at each fin
Product Diagrams

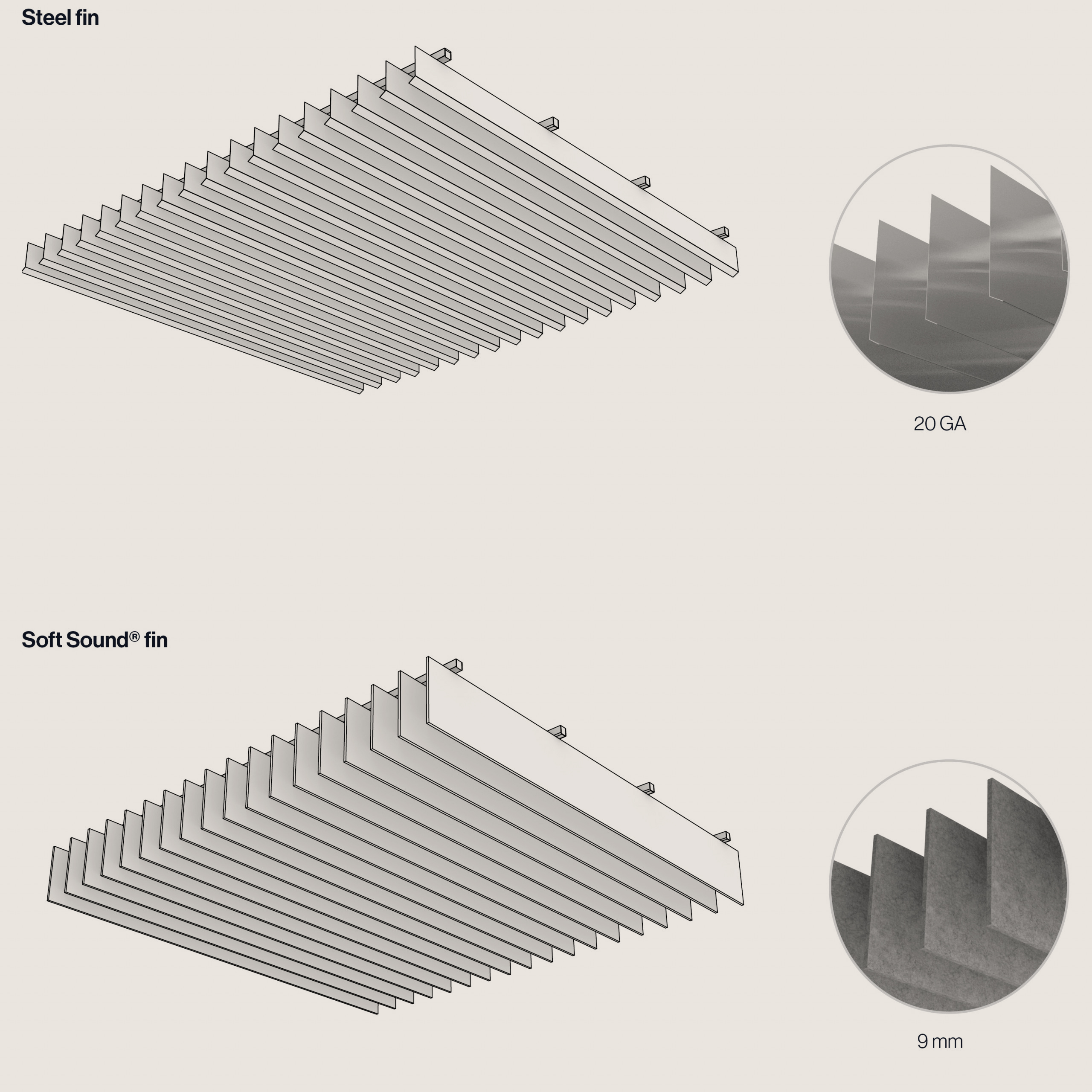

- Single Module

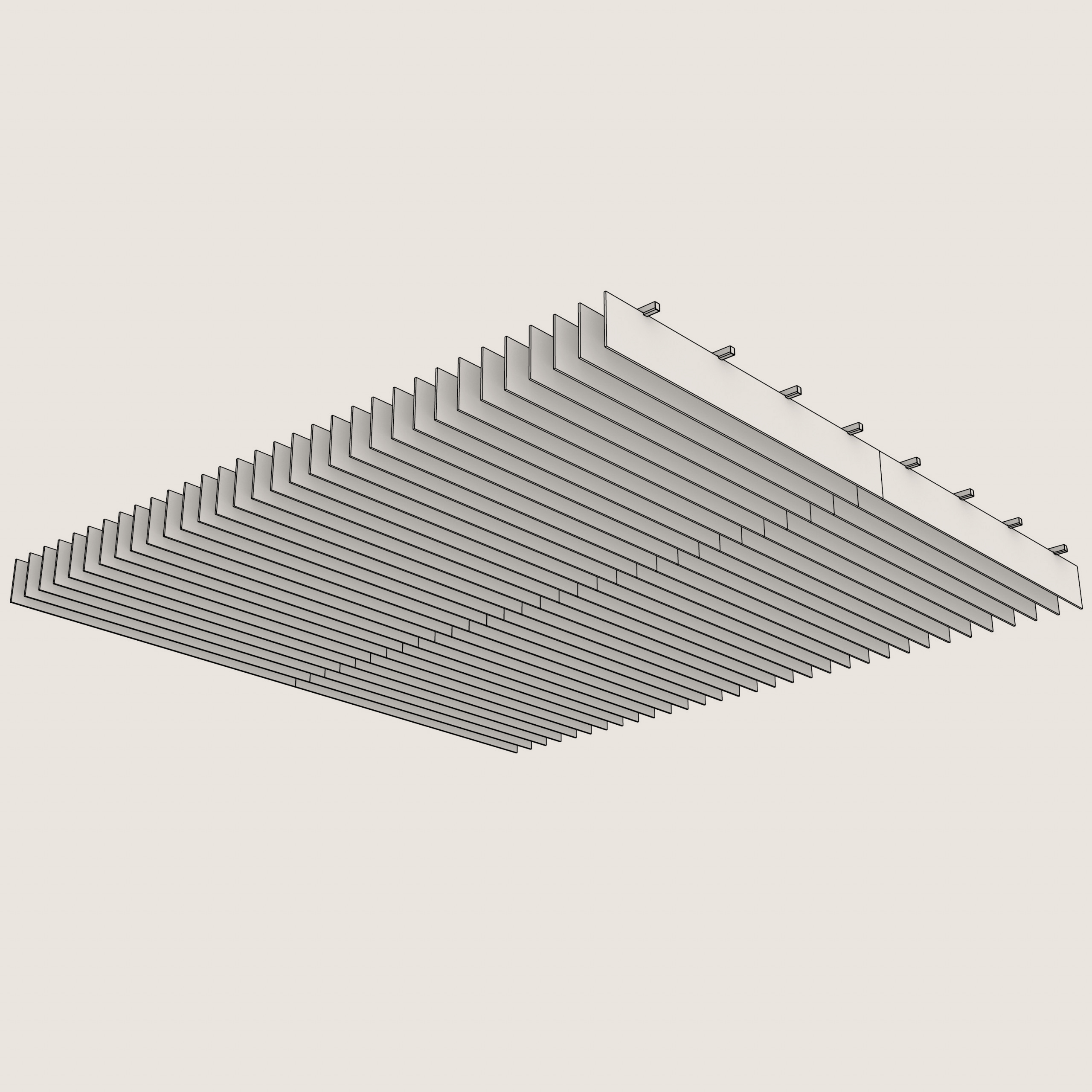

- Multiple Modules

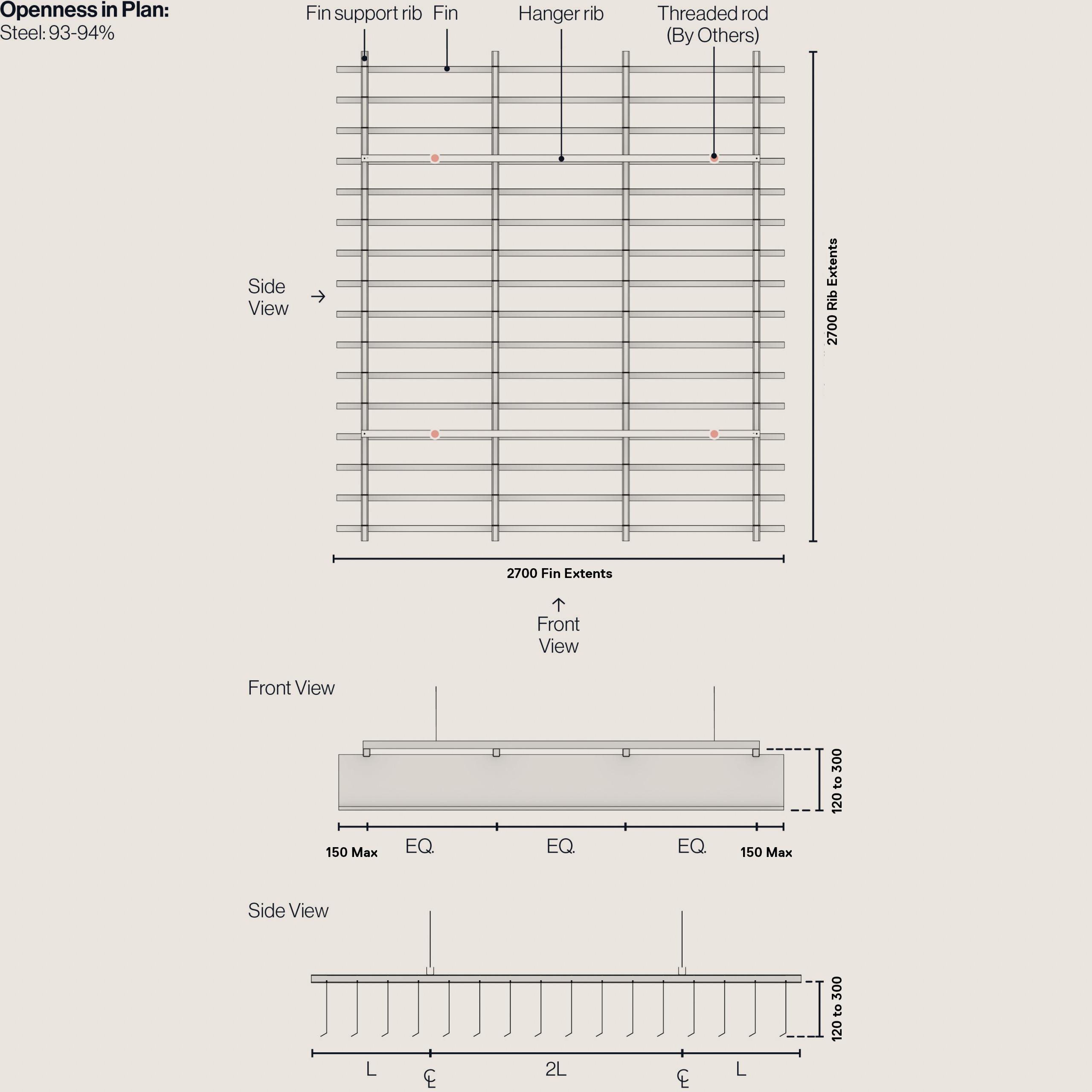

- Steel Fin - Plan & Elevations

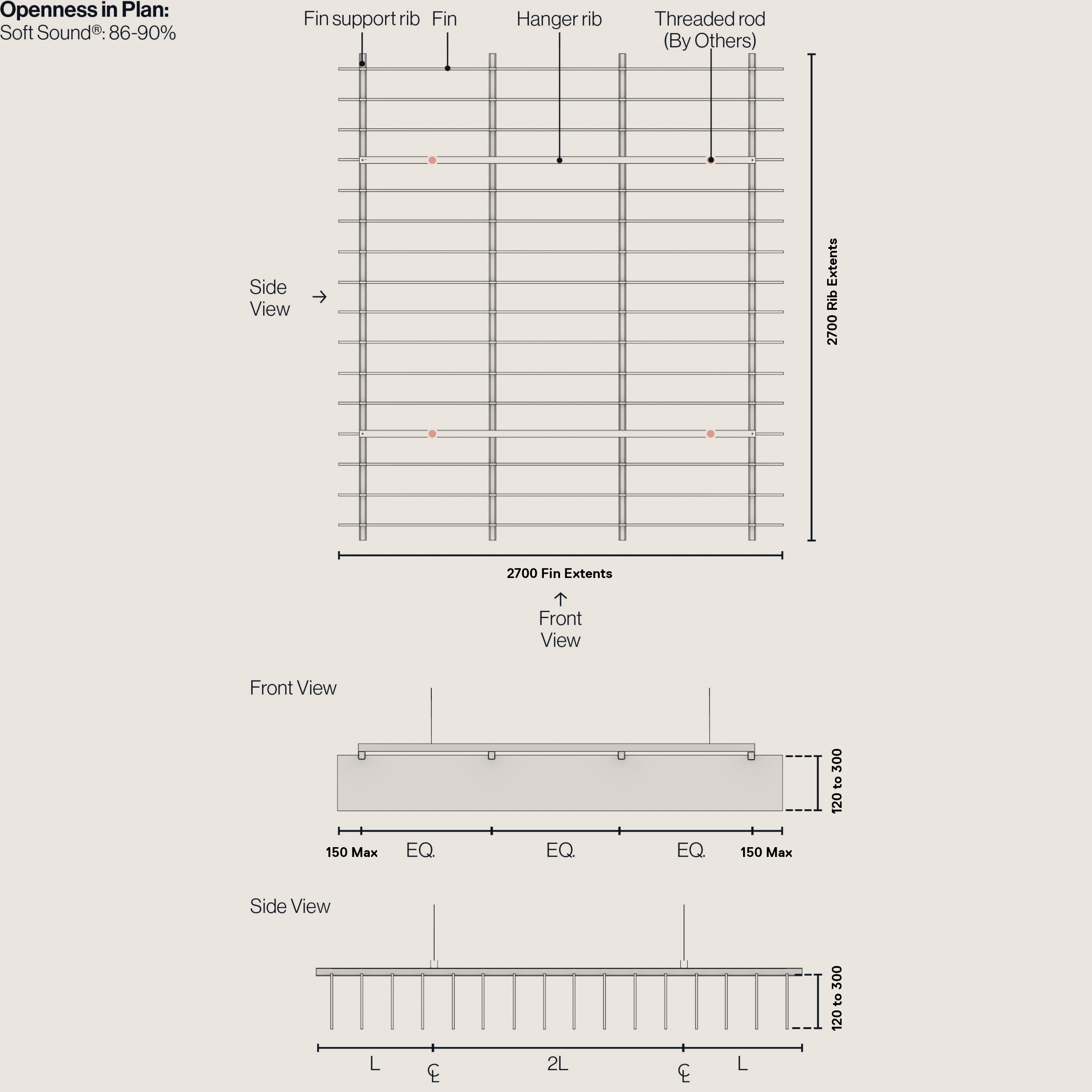

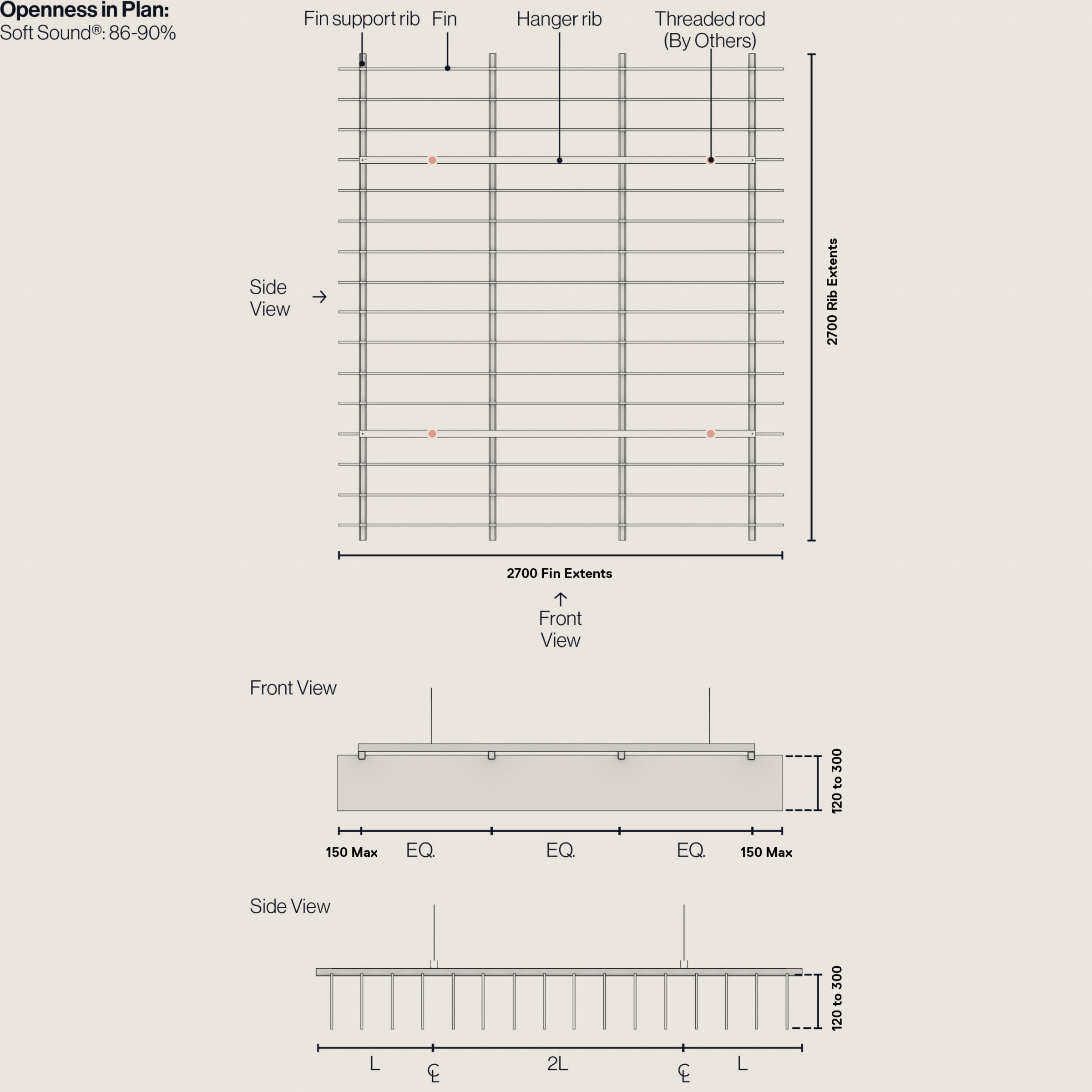

- Soft Sound® Fin - Plan & Elevations

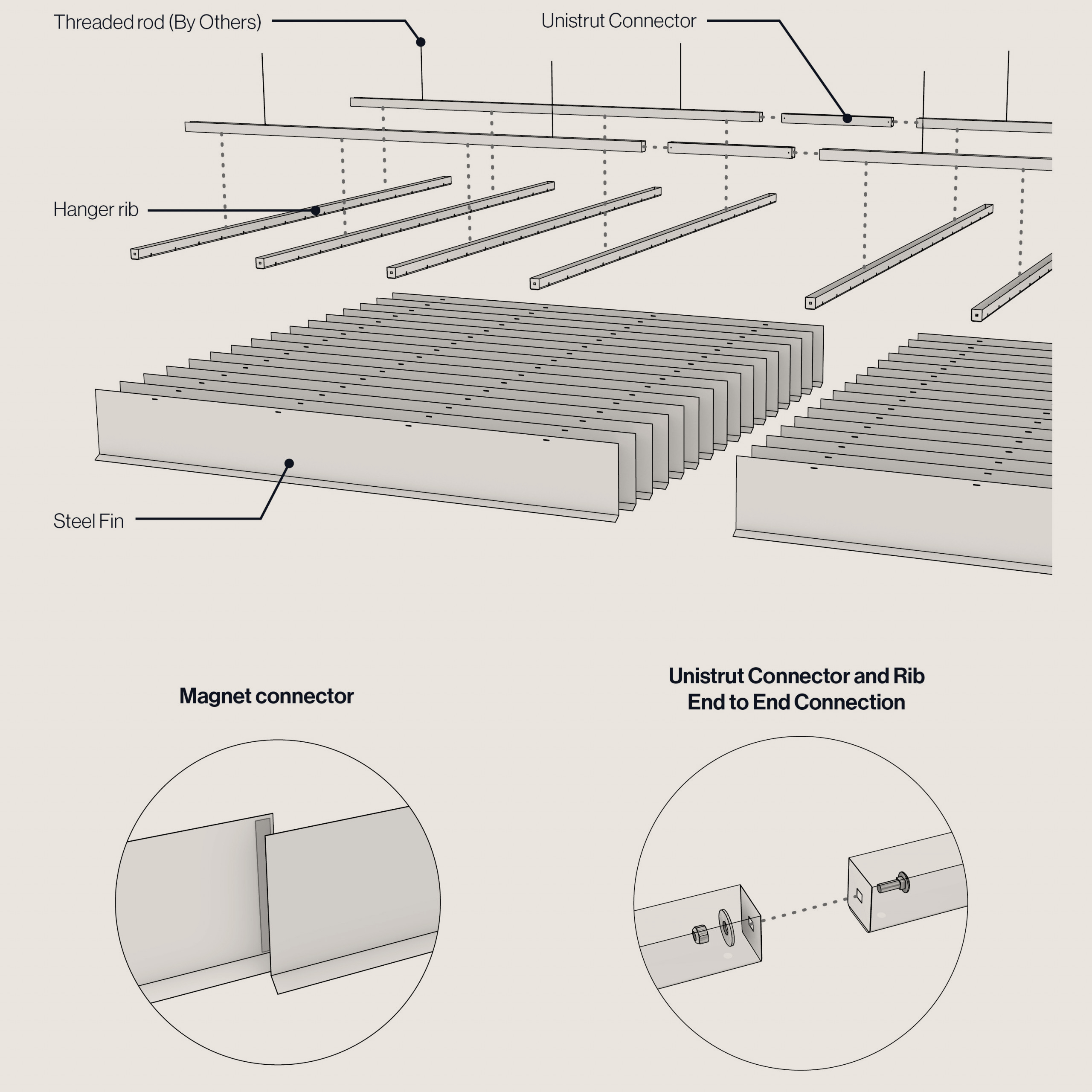

- Steel Fin - Attachment Details

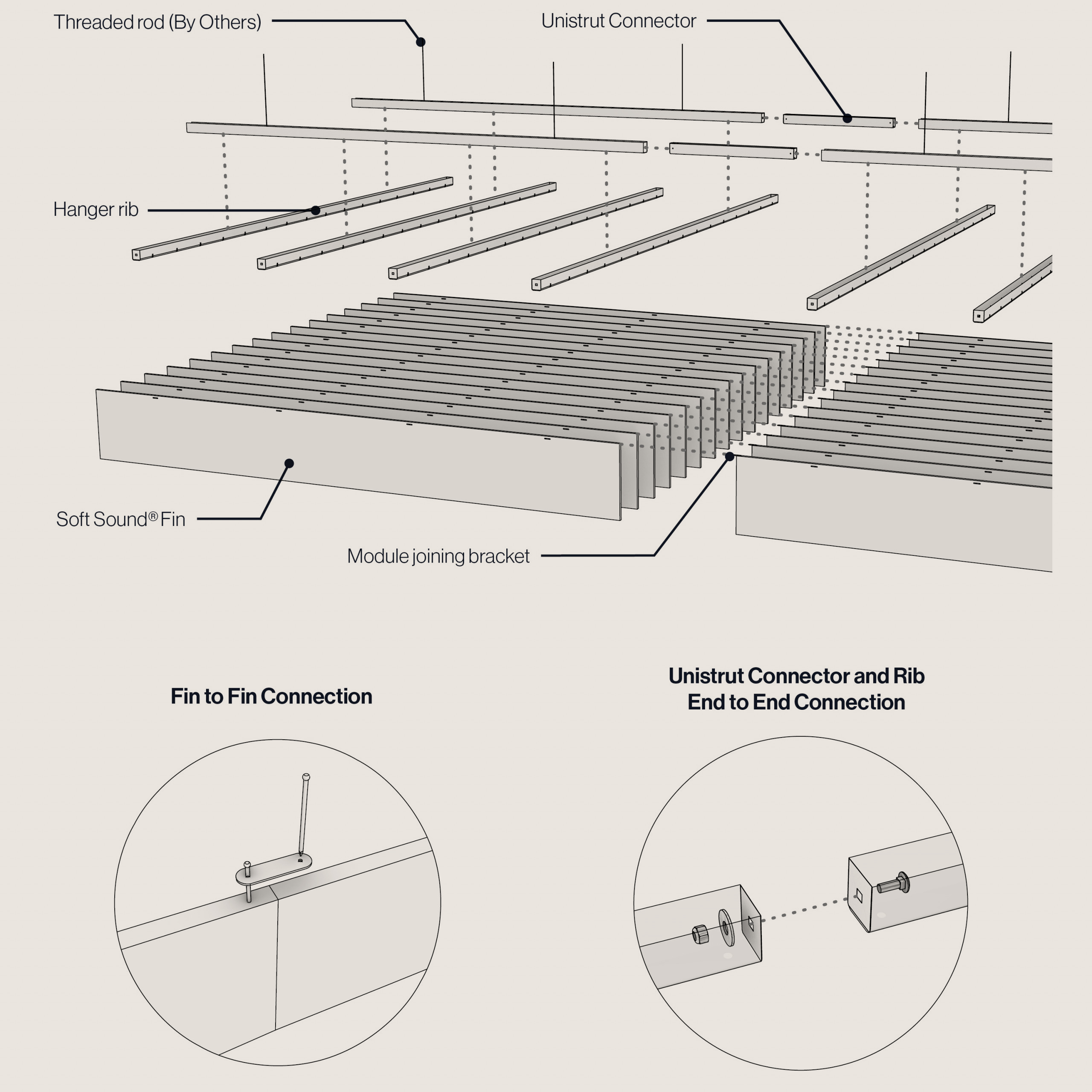

- Soft Sound® Fin - Attachment Details
Sustainability and Certification
- 488

  Each module is made from 488 recycled water bottles.
- Cradle to Cradle®

  Bronze Status Pending
- 100%

  Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)
- Declare

  Red list free

Materials and Finishes

Soft Sound Baffles
Soft Sound® Color Group A
- White
- Snow
- Marble
- Heather Gray
- Graphite
- Carbon
- Onyx
- Apple
- Tangerine
- Lemon
- Taupe
- Sand
- Kiwi
- Whisper
- Sky Blue
- Denim
- Absinthe
- Abyss
- Azore
- Mars
- Macchiato
Soft Sound® Wood Texture
- Gray Ash
- White Oak
- Golden Oak
- Oak
- American Walnut
- Charred Oak
- Charred Ash
- Ebony
Steel Baffles
Steel Powder Coat Premium Metallic Finish
- Chilled Champagne
- Burnished Bronze
Steel Powder Coat Standard Finish
- Brilliant White (Gloss) (RAL9010)
- NOWN White (Matte) (RAL9016)
- T-Grid White (Matte) (RAL9003)
- Silver Metallic (Semi Gloss) (RAL9006)
- Jet Black (Matte) (RAL9005)
- Aviator Gray (Gloss) (RAL7035)
- Aviator Gray (Matte) (RAL7035)
- Steel Gray (RAL7046)
- Shadow (RAL7024)
- Midnight (RAL7021)
- Coffee (RAL8014)
- Raw Umber (RAL8007)
- Caramel (RAL8001)
- Sandstone (RAL1019)
- Oat (RAL1001)
- Sunflower (RAL1003)
- Torch (RAL2009)
- Spirit Red (Matte) (RAL3001)
- Azure (RAL5003)
- Blue Steel (RAL5010)
- Forest Green (RAL6001)
