Atmosphera® Adaptive CONTOUR

About Atmosphera® Adaptive CONTOUR

Contour’s curving fins can really generate a beautiful visual flow through a space while offering maximum flexibility for integrating building system elements. Because the modules are custom-made, you can define the amount of movement in the fins to meet your design’s needs fitting perfectly to the envelope of your space. Contour’s panels are available in either powder-coated steel, for a bold look, or in our Soft Sound® material, for acoustic comfort.

—

Key Features

Reduce Noise & Enhance Acoustics

Atmosphera®’s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Atmosphera®’s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
Expansive Soft Sound® Library

Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.
Customizable Topography

Atmosphera® offers a range of configurable options, allowing you to customize fin topography to fit your space and design vision, with the help of our project team.
No Field Trimming Necessary

All modules are built to your unique project specifications, removing the need for any field trimming and assuring easy installation.
Open Accessibility in Plan

Atmosphera®’s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.
Continuous Frames & Fins

Utilizing a hidden fin and frame alignment system Atmosphera® provides continuity in all directions across your space. Our custom formulated material thickness and density ensures rigidity that limits deflection.

Product Details

Specifications
Module Dimension
Soft Sound®: 2250 Fin x 3600 Frame Max

Steel: 3000 Fin x 3600 Frame Max
Fin Material
9mm Soft Sound® (PET)

1mm Steel
Fin Depth
Soft Sound®: 120 - 300

Steel: 120 - 300
Openness in Plan
Soft Sound®: 89-93%

Steel: 93-94%
Fire rating
ASTM E84 - Class A | 13501-1 B-s1, d0
Frame material
Steel
Acoustics
True NRC ®: Results Vary
Attachment Method
M10 Threaded Rod (By Others)
Accessibility
Yes, Removable clips at each fin
Product Diagrams

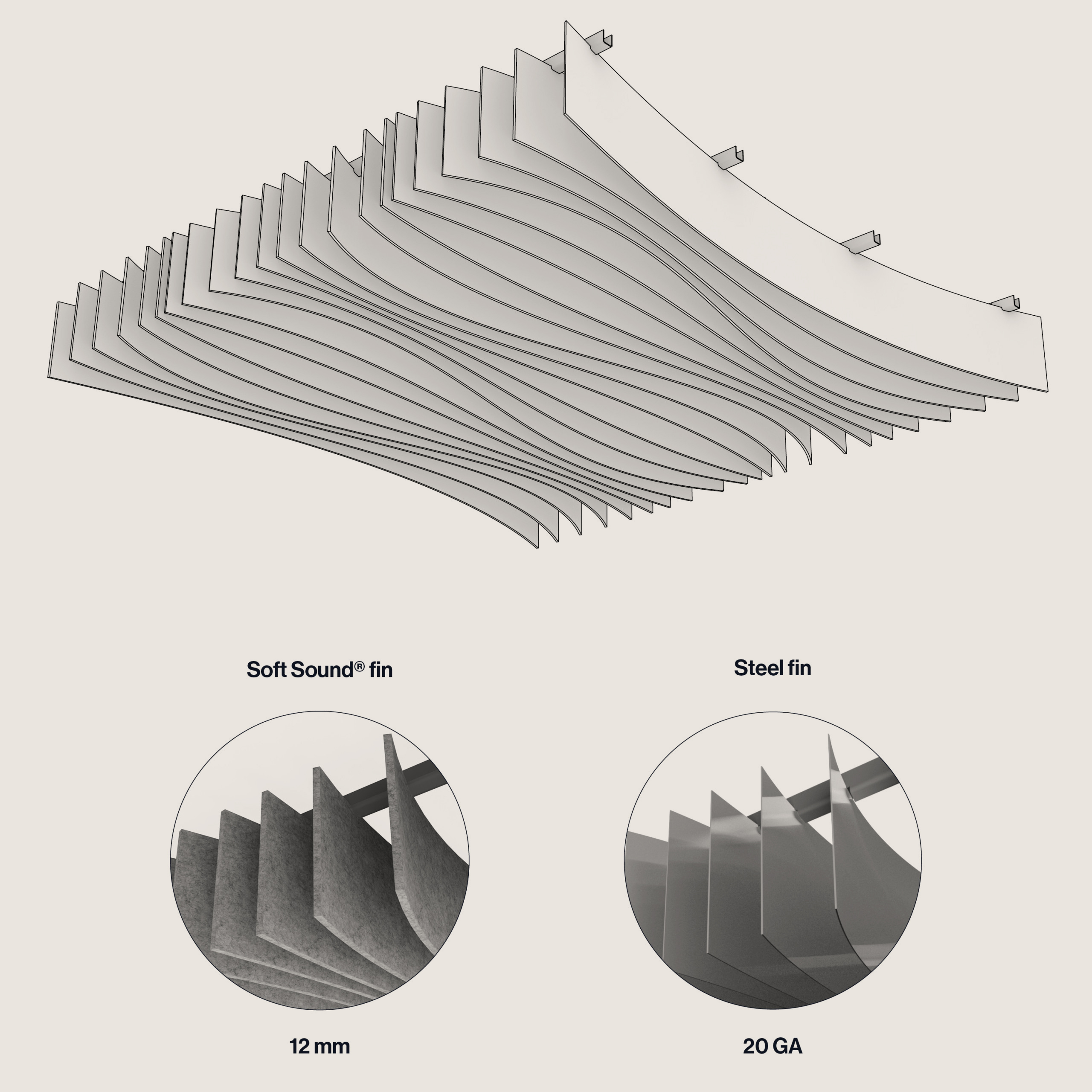

- Standard module

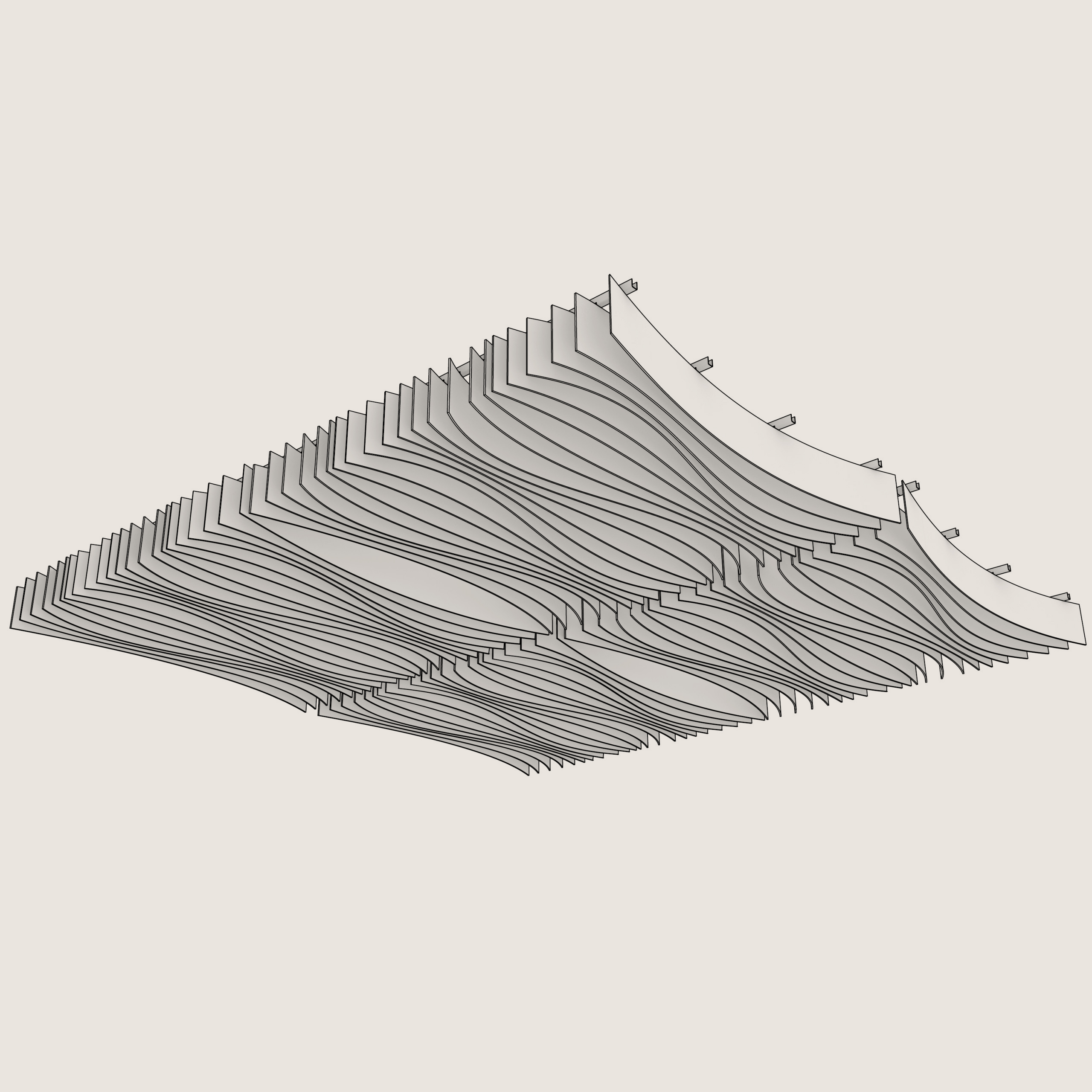

- Designing with modules

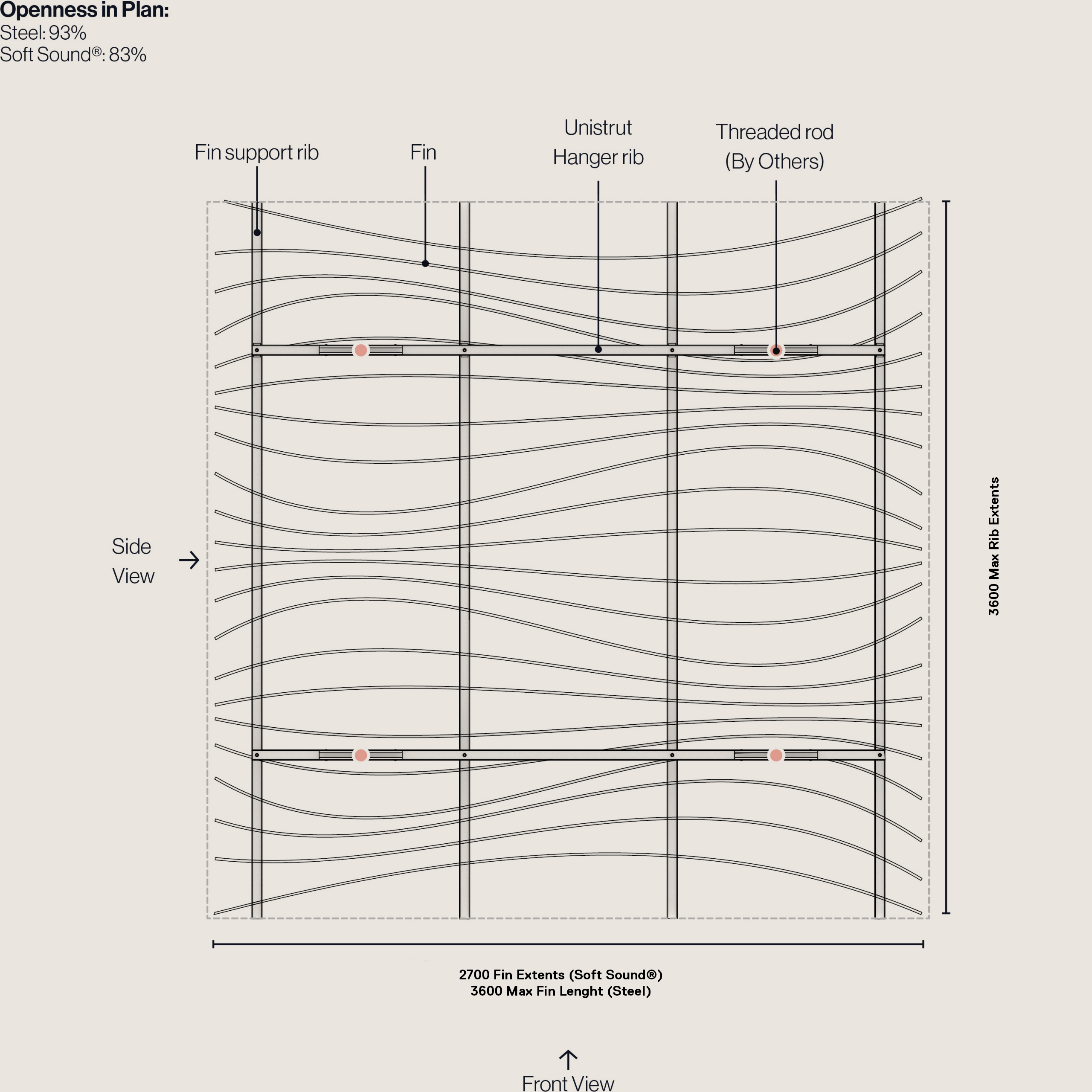

- Understanding the module (Plan)

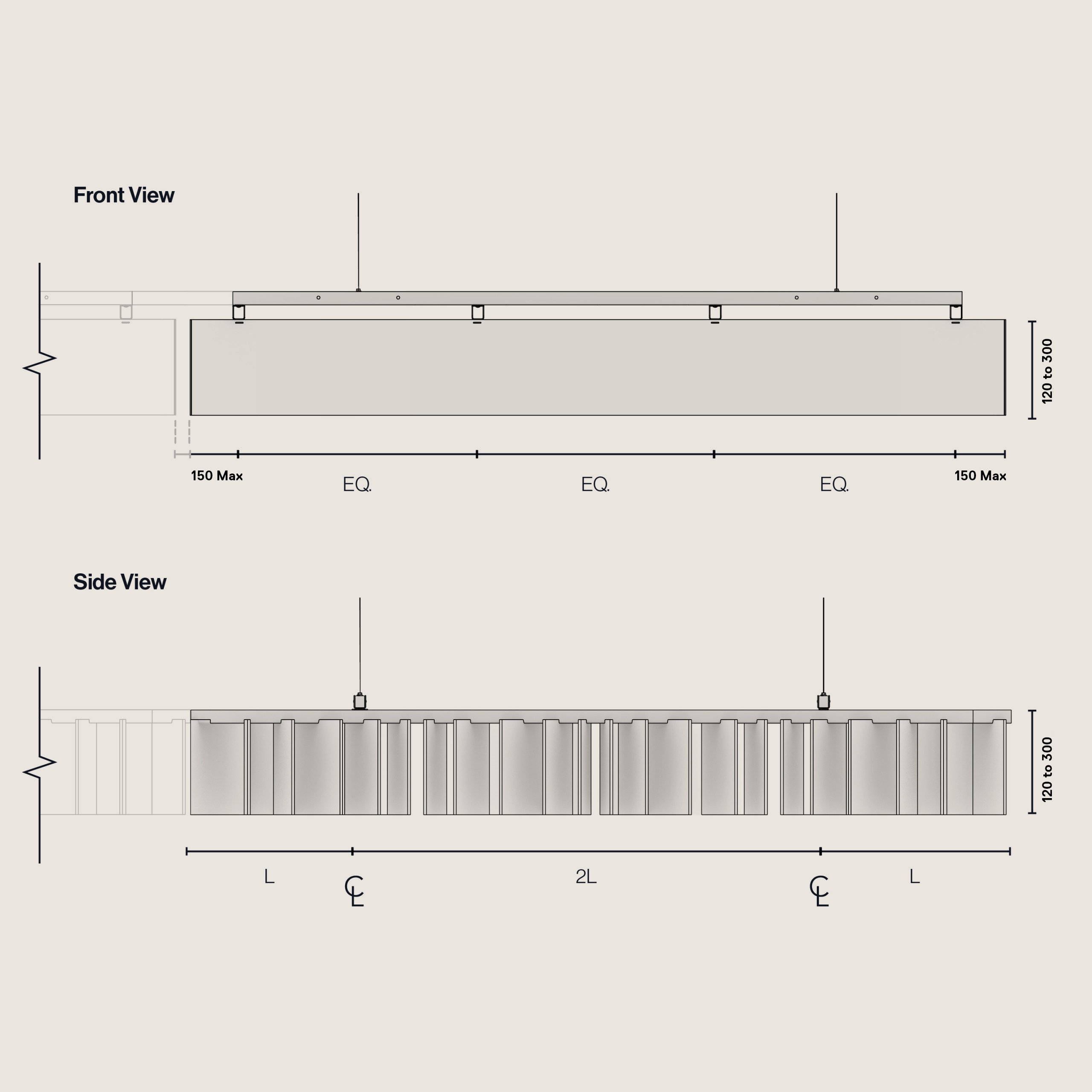

- Understanding the module (Elevations)

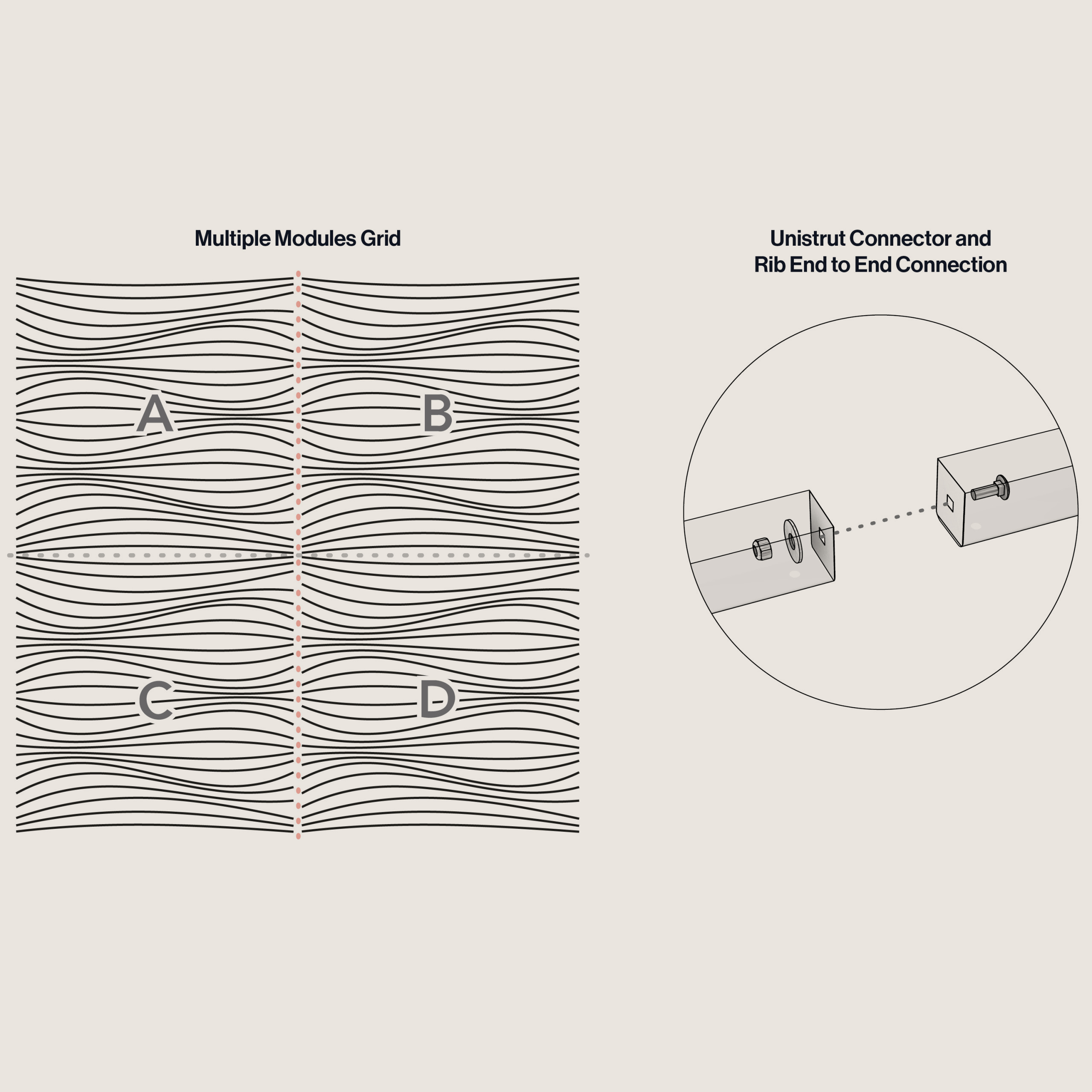

- Attachment details

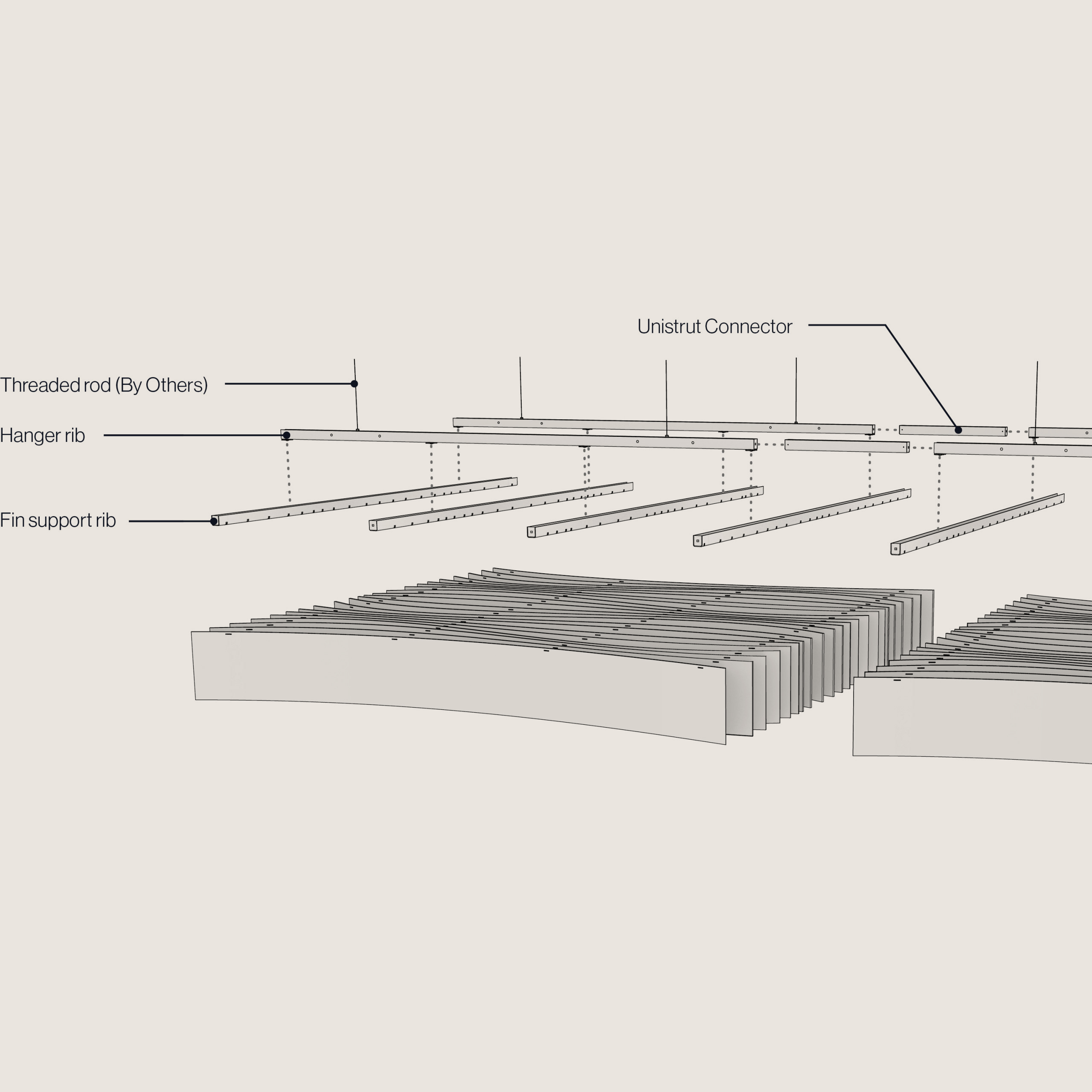

- Attachment details
Sustainability and Certification
- 488

  Each module is made from 488 recycled water bottles.
- Cradle to Cradle®

  Bronze Status Pending
- 100%

  Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)
- Declare

  Red list free

Materials and Finishes

Soft Sound Baffles
Soft Sound® Color Group A
- White
- Snow
- Marble
- Heather Gray
- Graphite
- Carbon
- Onyx
- Apple
- Tangerine
- Lemon
- Taupe
- Sand
- Kiwi
- Whisper
- Sky Blue
- Denim
- Absinthe
- Abyss
- Azore
- Mars
- Macchiato
Soft Sound® Wood Texture
- Gray Ash
- White Oak
- Golden Oak
- Oak
- American Walnut
- Charred Oak
- Charred Ash
- Ebony
Steel Baffles
Steel Powder Coat Premium Metallic Finish
- Chilled Champagne
- Burnished Bronze
Steel Powder Coat Standard Finish
- Brilliant White (Gloss) (RAL9010)
- NOWN White (Matte) (RAL9016)
- T-Grid White (Matte) (RAL9003)
- Silver Metallic (Semi Gloss) (RAL9006)
- Jet Black (Matte) (RAL9005)
- Aviator Gray (Gloss) (RAL7035)
- Aviator Gray (Matte) (RAL7035)
- Steel Gray (RAL7046)
- Shadow (RAL7024)
- Midnight (RAL7021)
- Coffee (RAL8014)
- Raw Umber (RAL8007)
- Caramel (RAL8001)
- Sandstone (RAL1019)
- Oat (RAL1001)
- Sunflower (RAL1003)
- Torch (RAL2009)
- Spirit Red (Matte) (RAL3001)
- Azure (RAL5003)
- Blue Steel (RAL5010)
- Forest Green (RAL6001)
