Atmosphera® Adaptive CONTOUR 3D

Acoustic
Ceiling Baffles

Contour 3D combines the flexibility of all the Atmosphera® systems into a limitless canvas to suit your custom needs. Your design will beautifully flow in the fin direction while capturing a layered undulating landscape in the other. The combination of the two generates a dynamic surface that is awe inspiring. Don’t limit your movement to just one direction; instead, go for bold and create a truly one-of-a-kind design that stuns. Contour 3D’s panels are available in either powder-coated steel, for a bold look, or in our Soft Sound® material, for acoustic comfort.

Atmosphera® Adaptive CONTOUR 3D in use

—

Key Features

Reduce Noise & Enhance Acoustics

Atmosphera®’s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Atmosphera®’s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
Expansive Soft Sound® Library

Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.
Open Accessibility in Plan

Atmosphera®’s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.
No Field Trimming Necessary

All modules are built to your unique project specifications, removing the need for any field trimming and assuring easy installation.
Customizable Topography

Atmosphera® offers a range of configurable options, allowing you to customize fin topography to fit your space and design vision, with the help of our project team.
Continuous Frames & Fins

Utilizing a hidden fin and frame alignment system Atmosphera® provides continuity in all directions across your space. Our custom formulated material thickness and density ensures rigidity that limits deflection.

Product Details

Specifications

Module Dimension

Soft Sound®: 2250 Fin x 3000mm Frame Max
Steel: 3000 Fin x 3450mm Frame Max

Fin Material

9mm Soft Sound® (PET)
1mm Steel

Fin Depth

Soft Sound®: 120mm - 300mm
Steel: 120mm - 300mm

Openness in Plan

Soft Sound®: 89-93%
Steel: 93-94%

Fire rating

ASTM E84 - Class A | UNE-EN 13501-1, B-s1,d0

Frame material

Steel

Acoustics

True NRC ®: Results Vary

Attachment Method

M10 Threaded Rod (By Others)

Accessibility

Yes, Removable clips at each fin

Product Diagrams

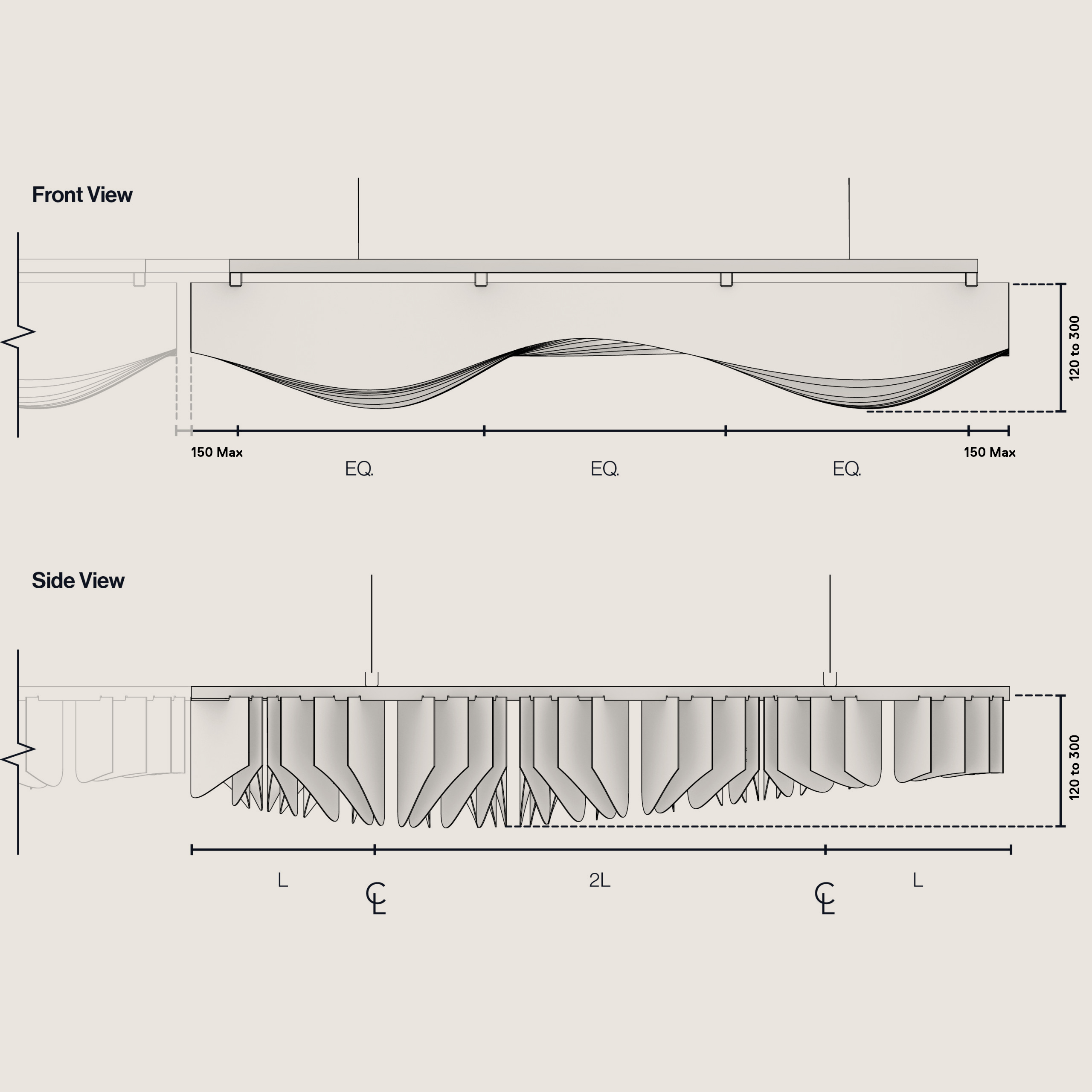

Standard Module

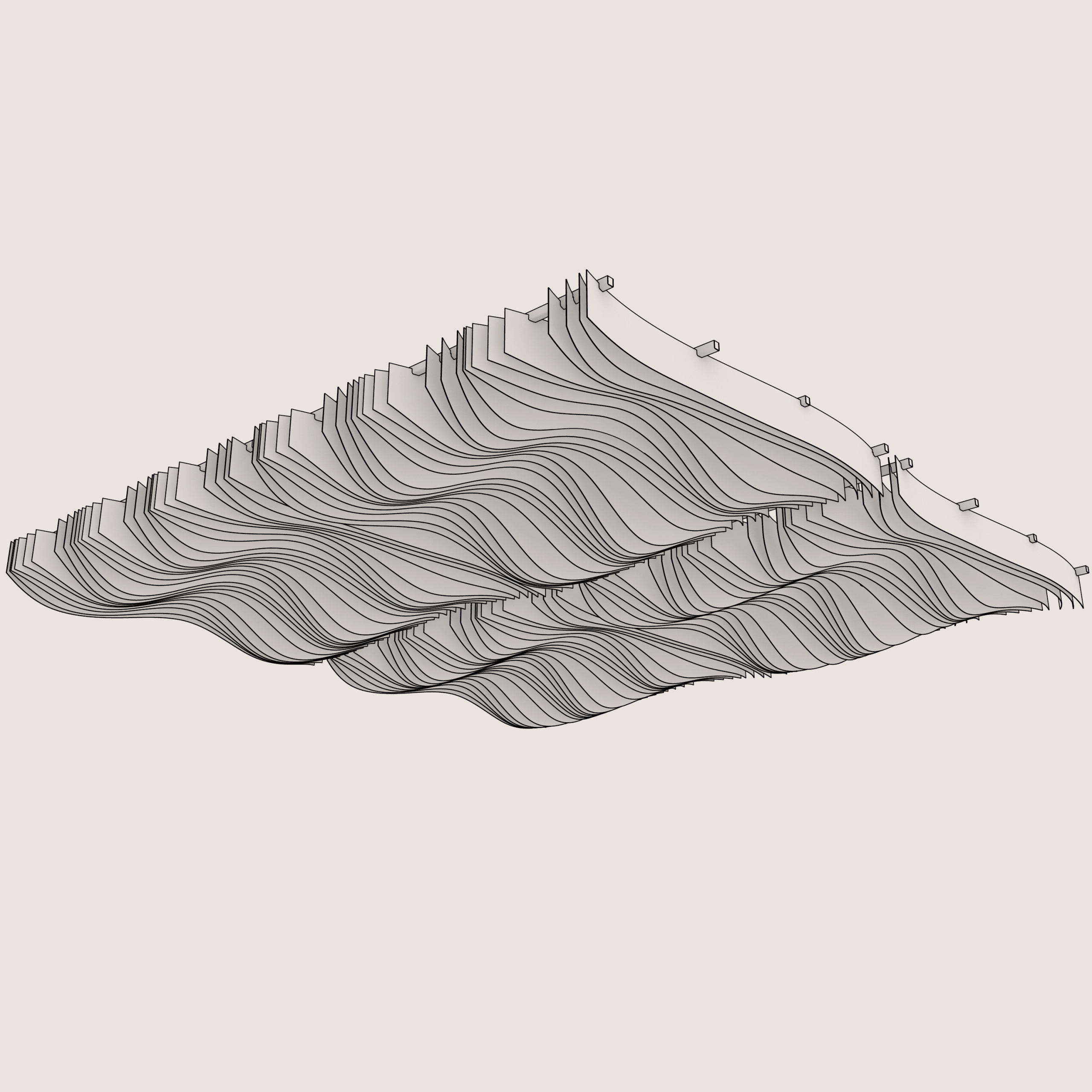

Designing with Modules

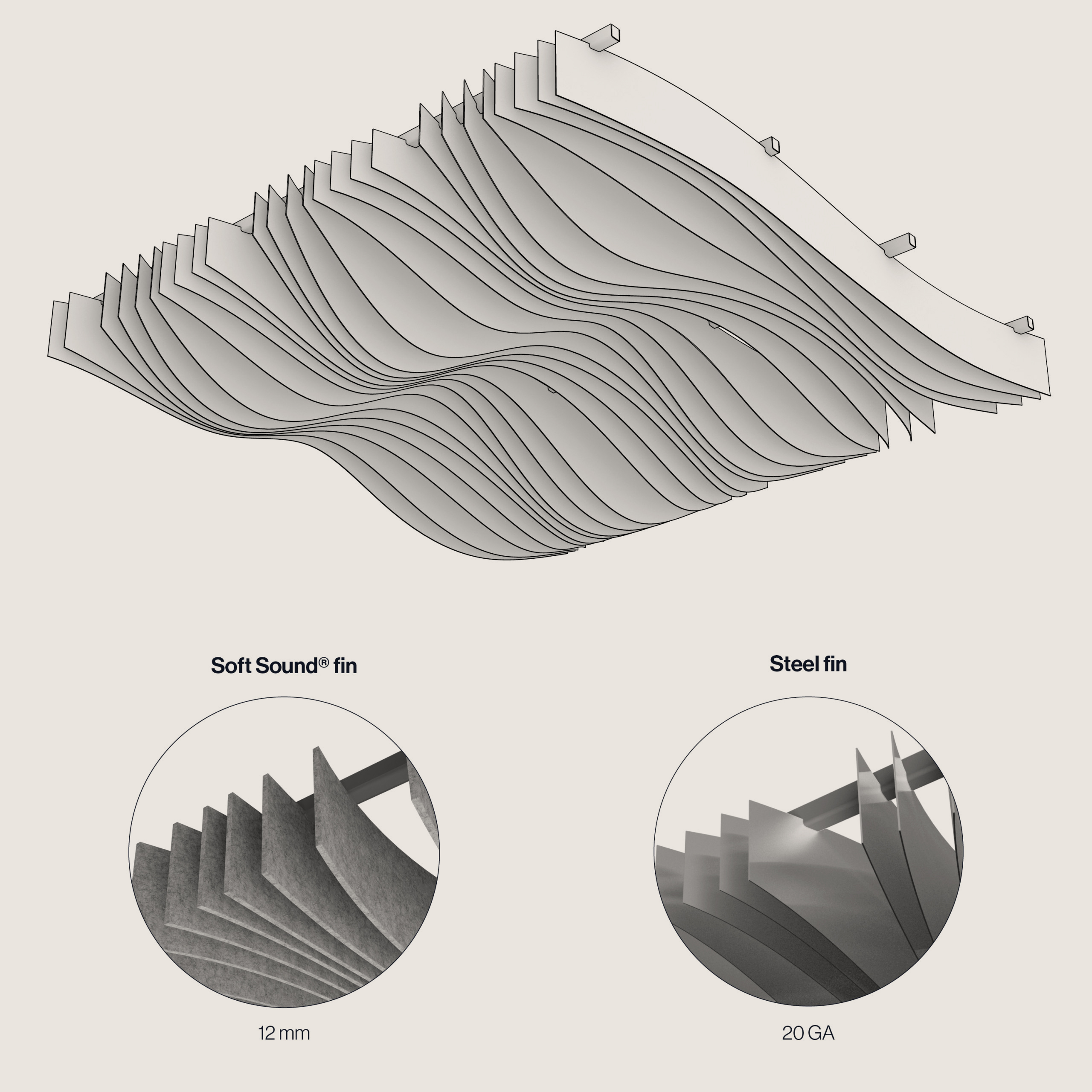

Understanding the Module

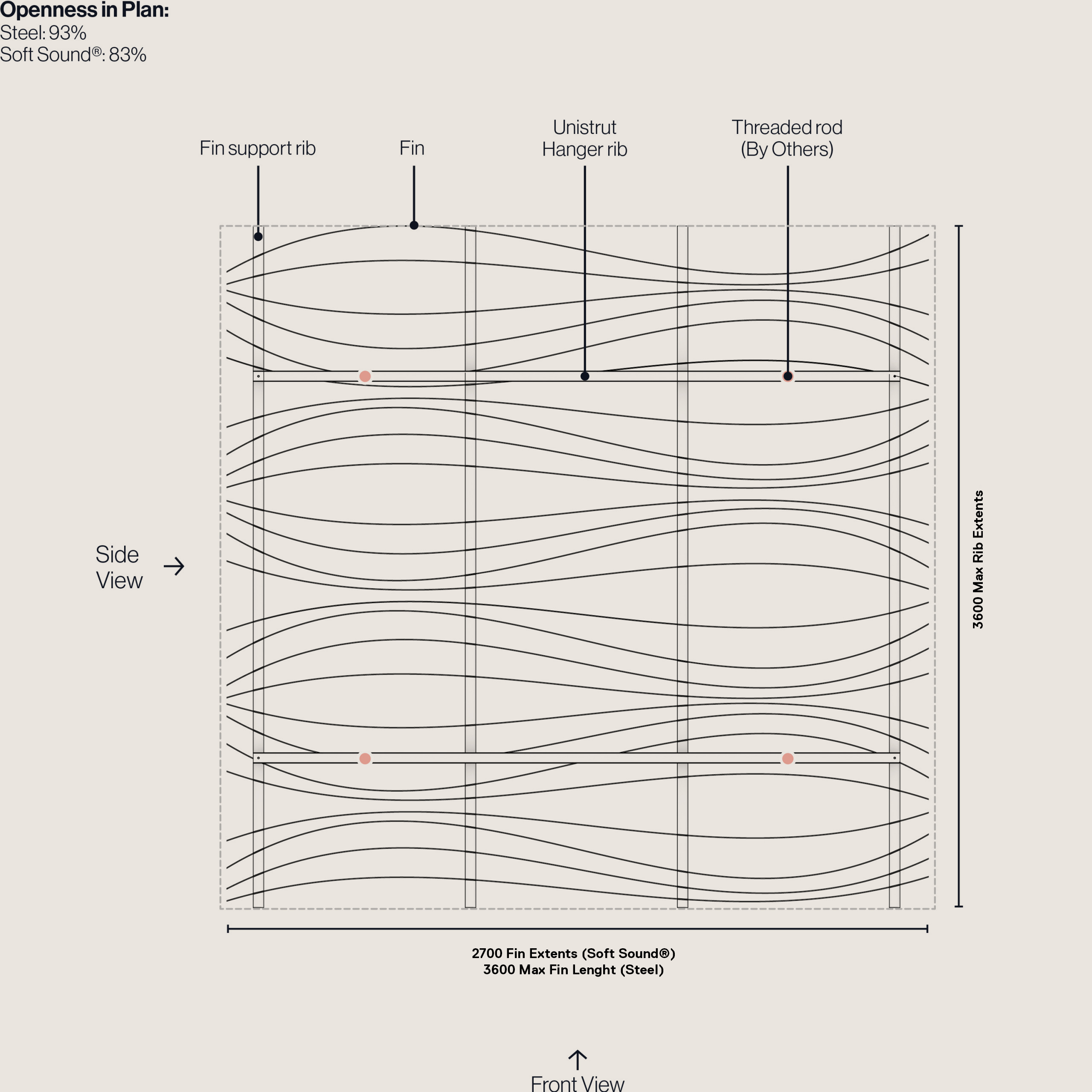

Understanding the Module

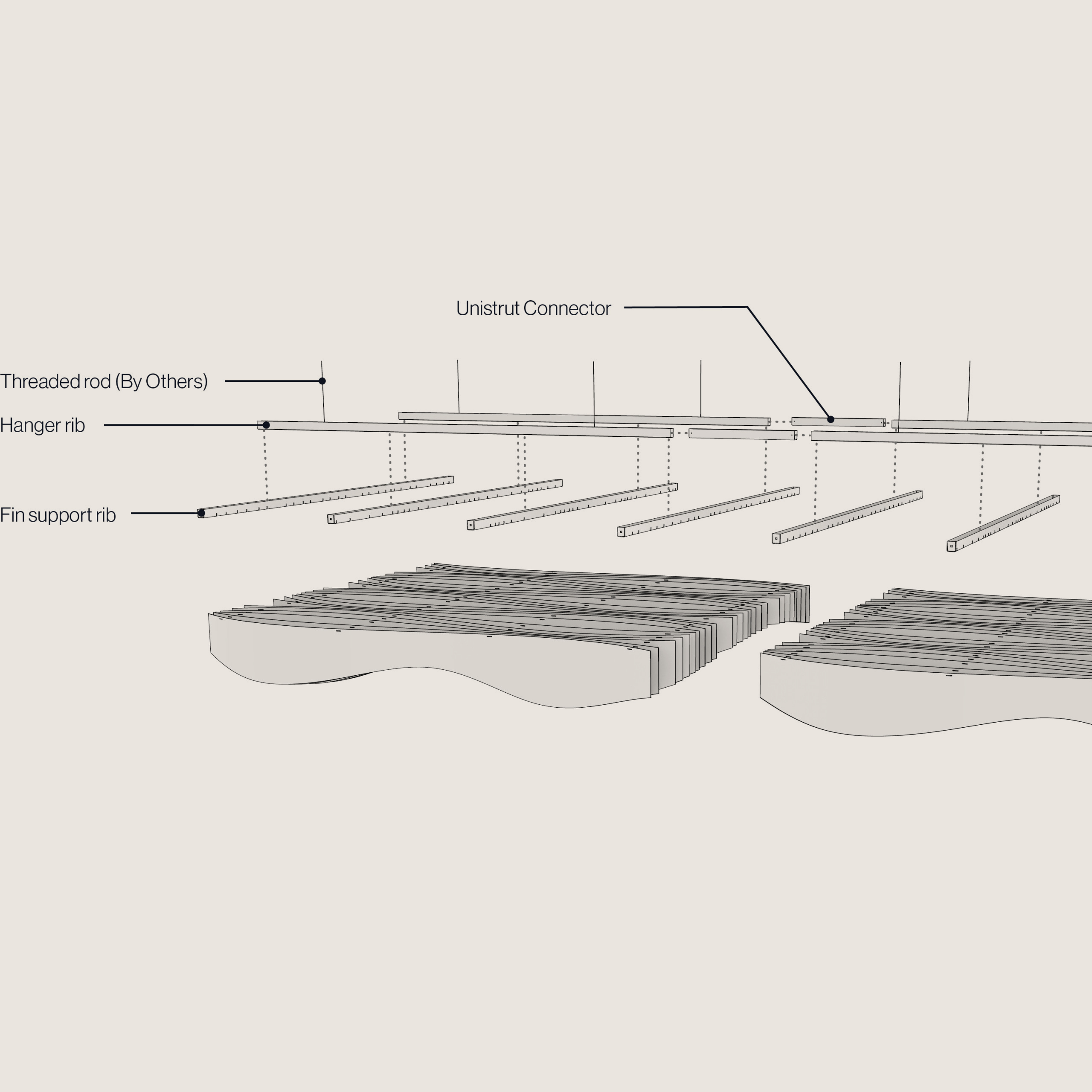

Attachment Details

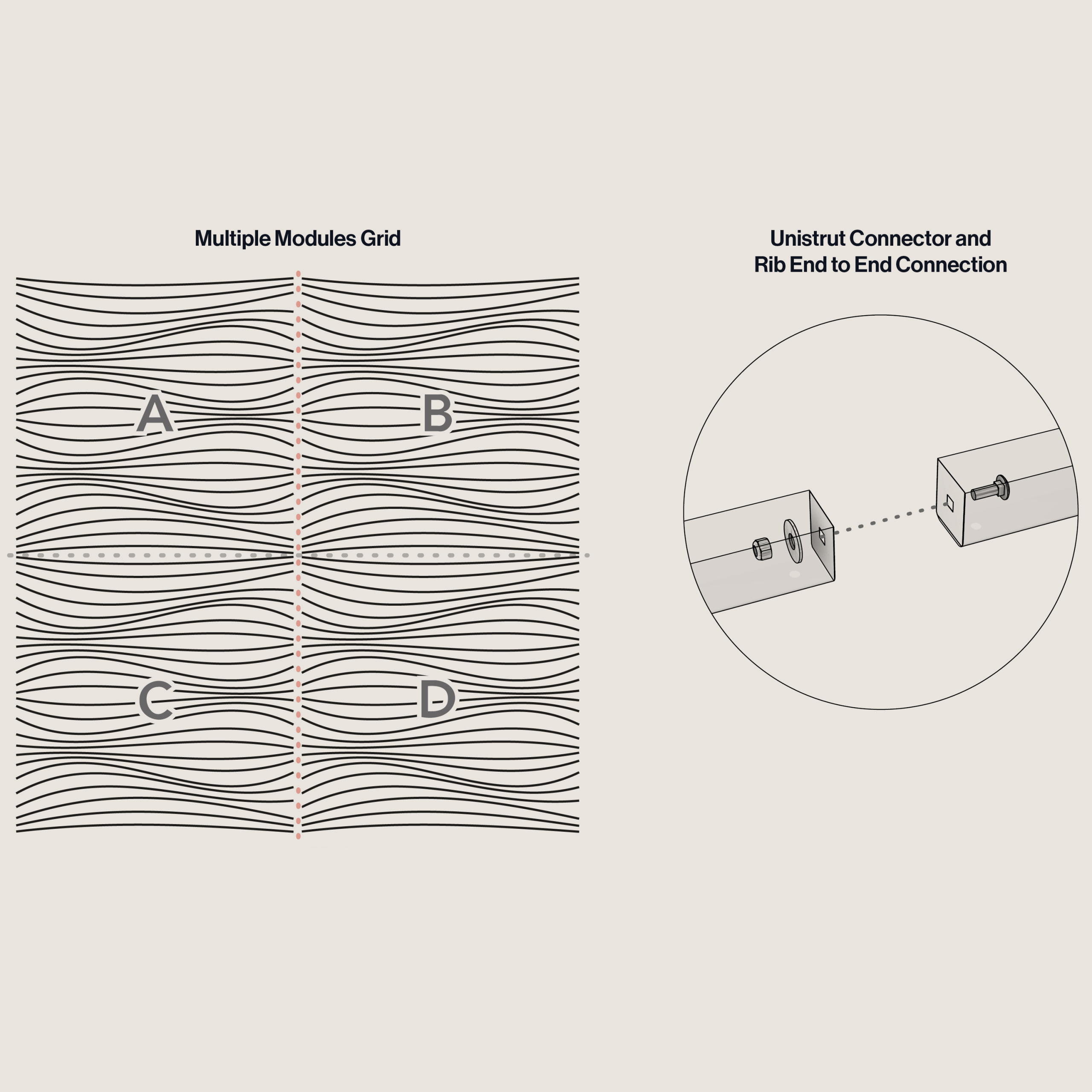

Attachment Details

Sustainability and Certifications

488

Each CONTOUR 3D module is made from 488 recycled water bottles.
Cradle to Cradle®

Bronze Status Pending
100%

Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)
Declare

Red list free
