Atmosphera® STRATA

About Atmosphera® STRATA

Strata’s ceiling baffles take Linea’s straight design to another level with tighter spacing and shallower fins to hide the plenum and building systems above. With this denser configuration, your design becomes a garden of structure: A peaceful one, thanks to Soft Sound® fins which provide steady acoustic control.

—

Key Features

Acoustic Performance

Atmosphera®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Atmosphera®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
Preconfigured Designs & Sizes

For a custom look without the custom price tag, preconfigured Atmosphera® modules offer innovative design impact with a quick and easy installation process. Achieve a cleaner design in a fraction of the time versus independently hung baffles.
Faster Shipping & Installation

Because they're preconfigured, production starts as soon as you order. Once complete, Atmosphera®'s easy-to-assemble modules are promptly shipped, helping you cut down installation times and meet your project deadlines.
Easily Field Modifiable

This system allows for some simple modifications that can allow it to adapt to your space without having to design a custom system.
Open Accessibility in Plan

Atmosphera®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.
Continuous Straight Baffles

Utilizing a hidden fin and frame alignment system, Atmosphera® provides continuity in all directions across your space. Our custom formulated material thickness and density ensures rigidity that limits deflection.

Product Details

Specifications
Dimensions
2300 x 2300 x 250
Frame Material
Steel
Fin Material
12mm Soft Sound® (PET)
Openness in Plan
84%
Fire Rating
ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0
Attachment Method
3/8" Threaded Rod (By Others)
Accessibility
Yes, removable clips at each fin
Trimmability
Yes, per installation manual
Product Diagrams

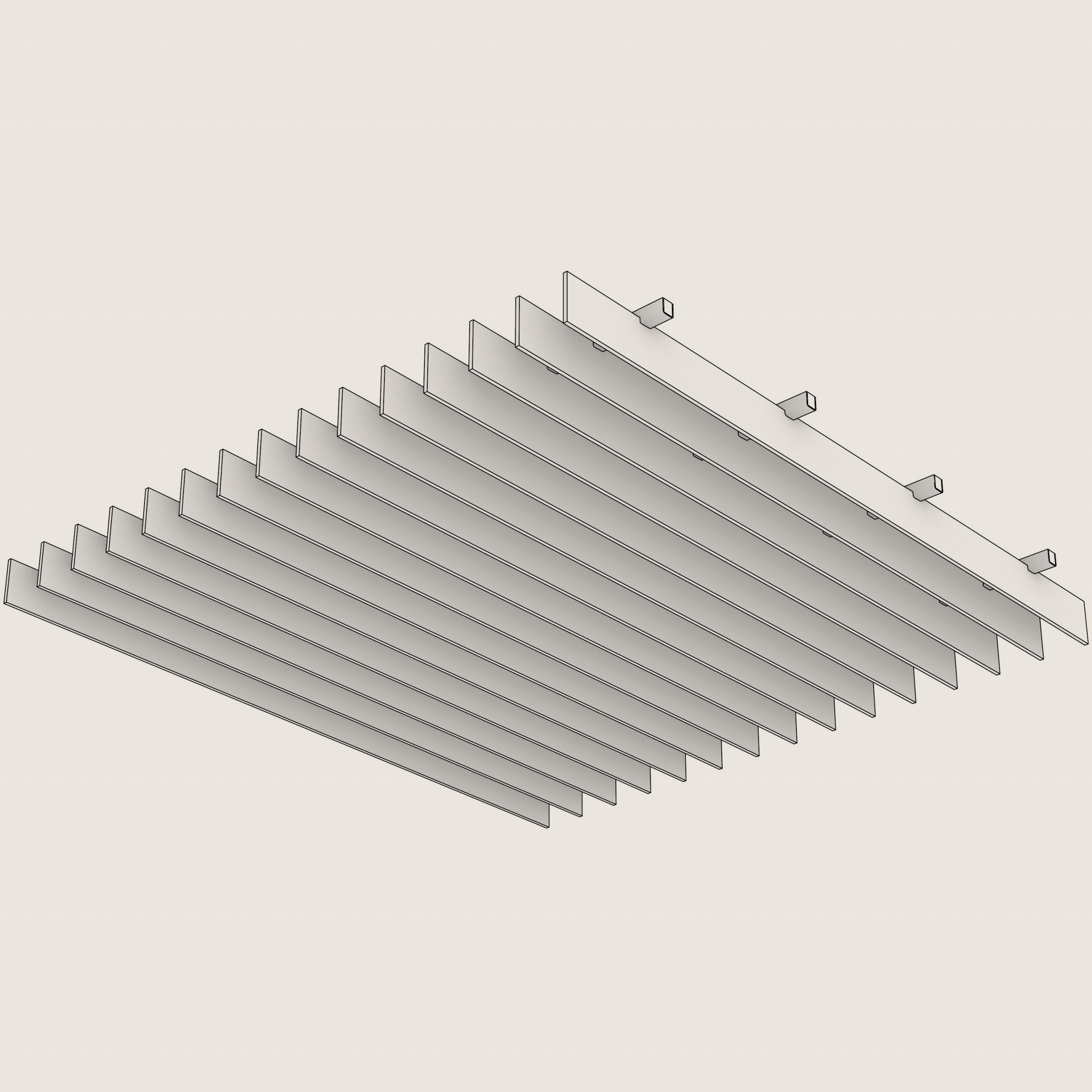

- Standard Module

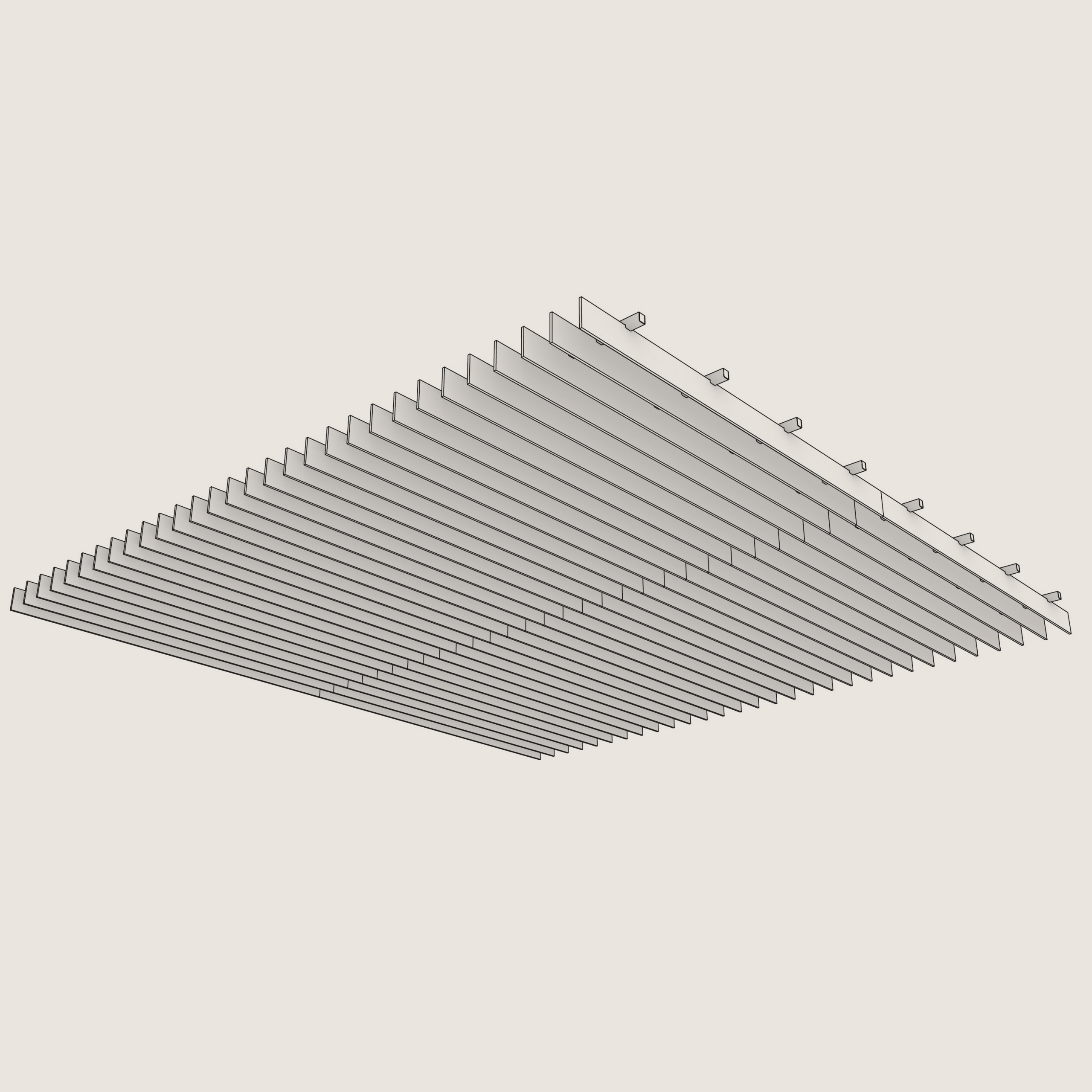

- Multiple Modules

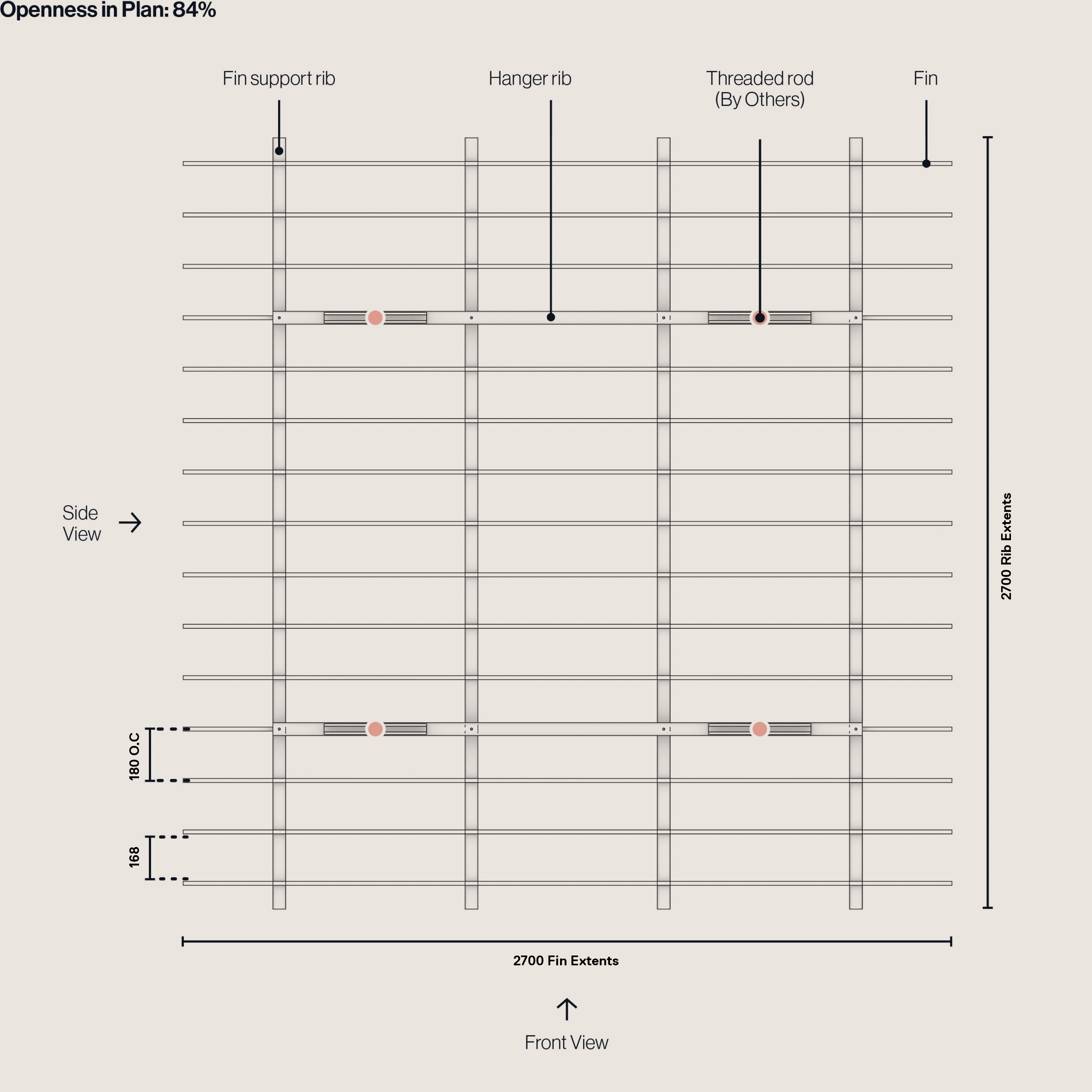

- Plan

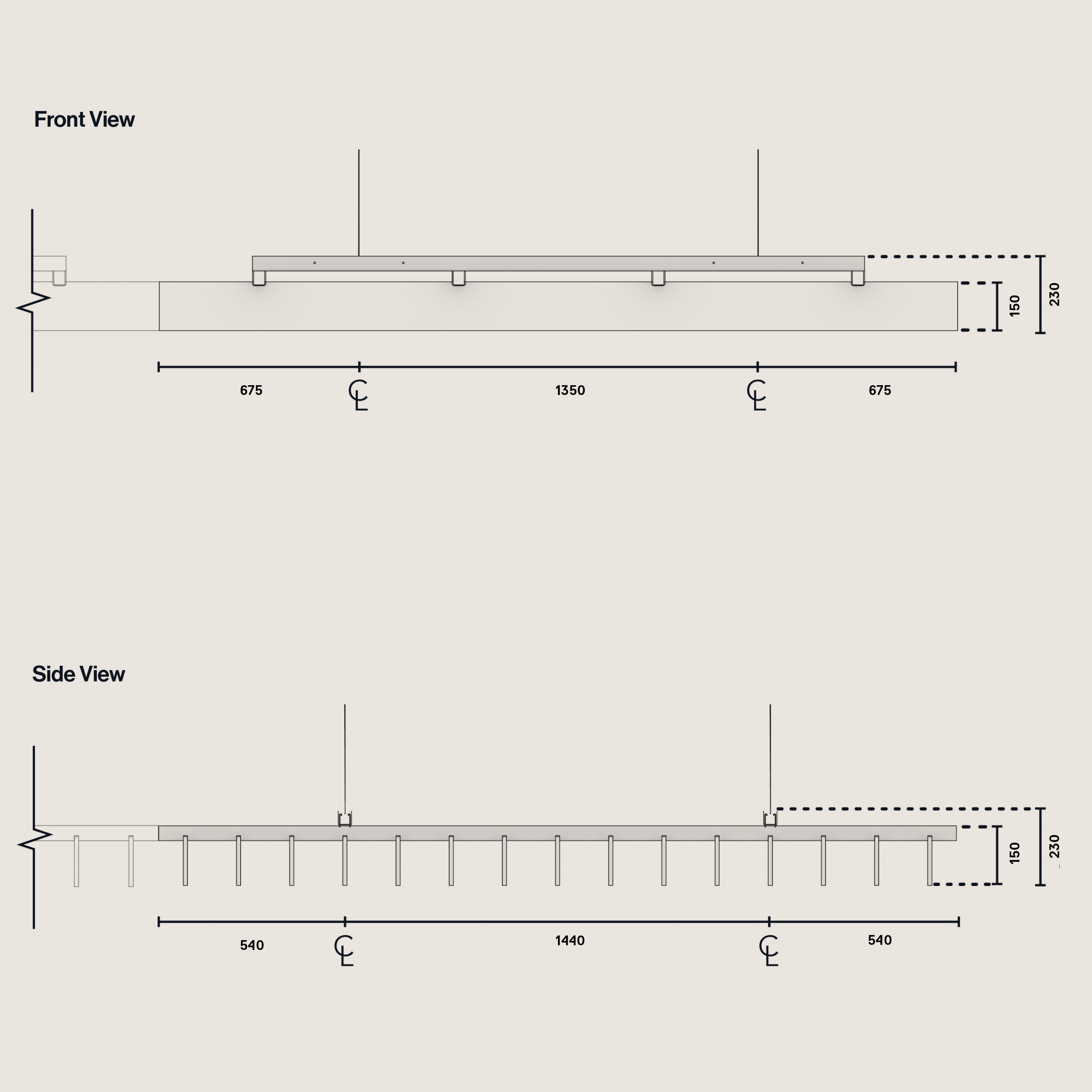

- Elevations

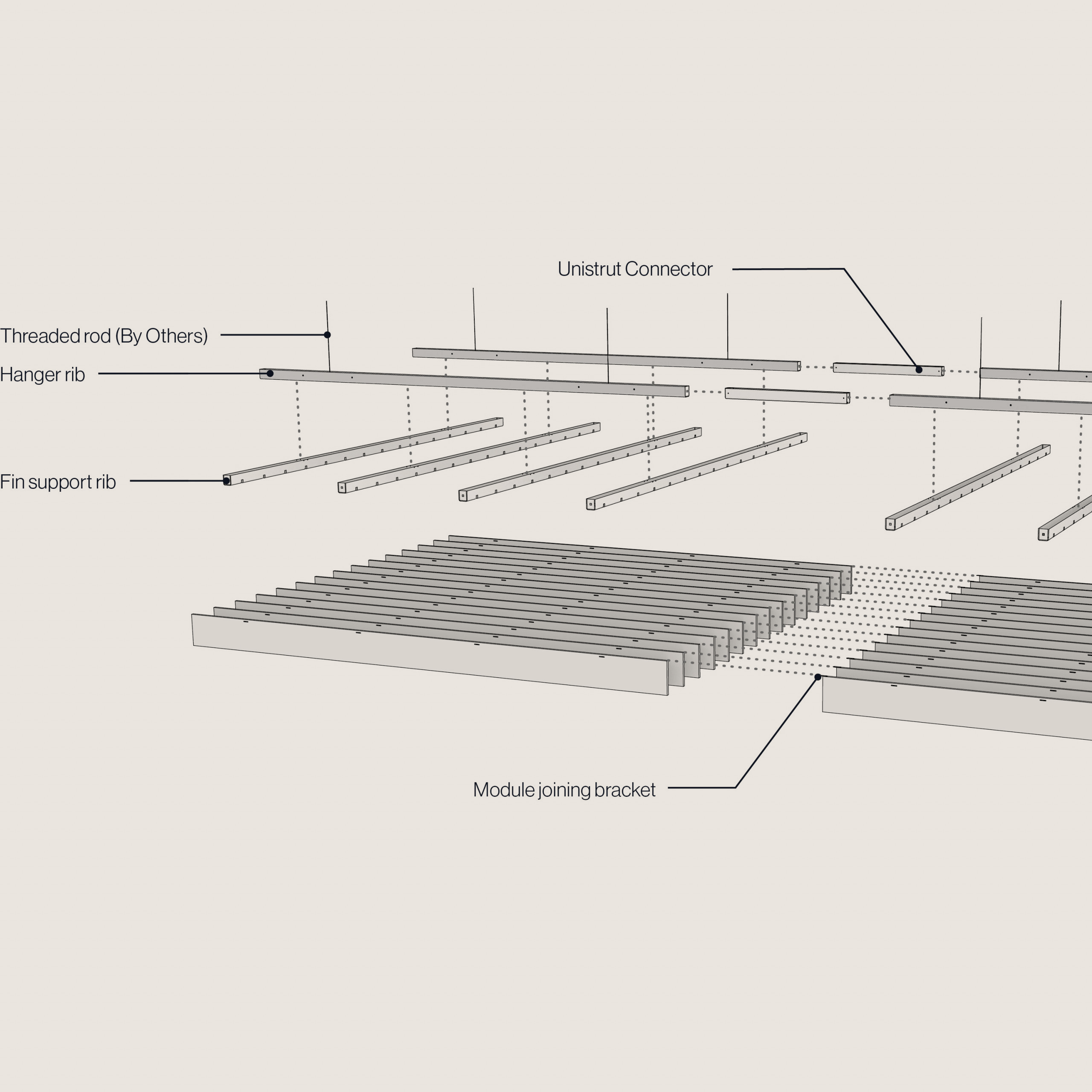

- Attachment & Install

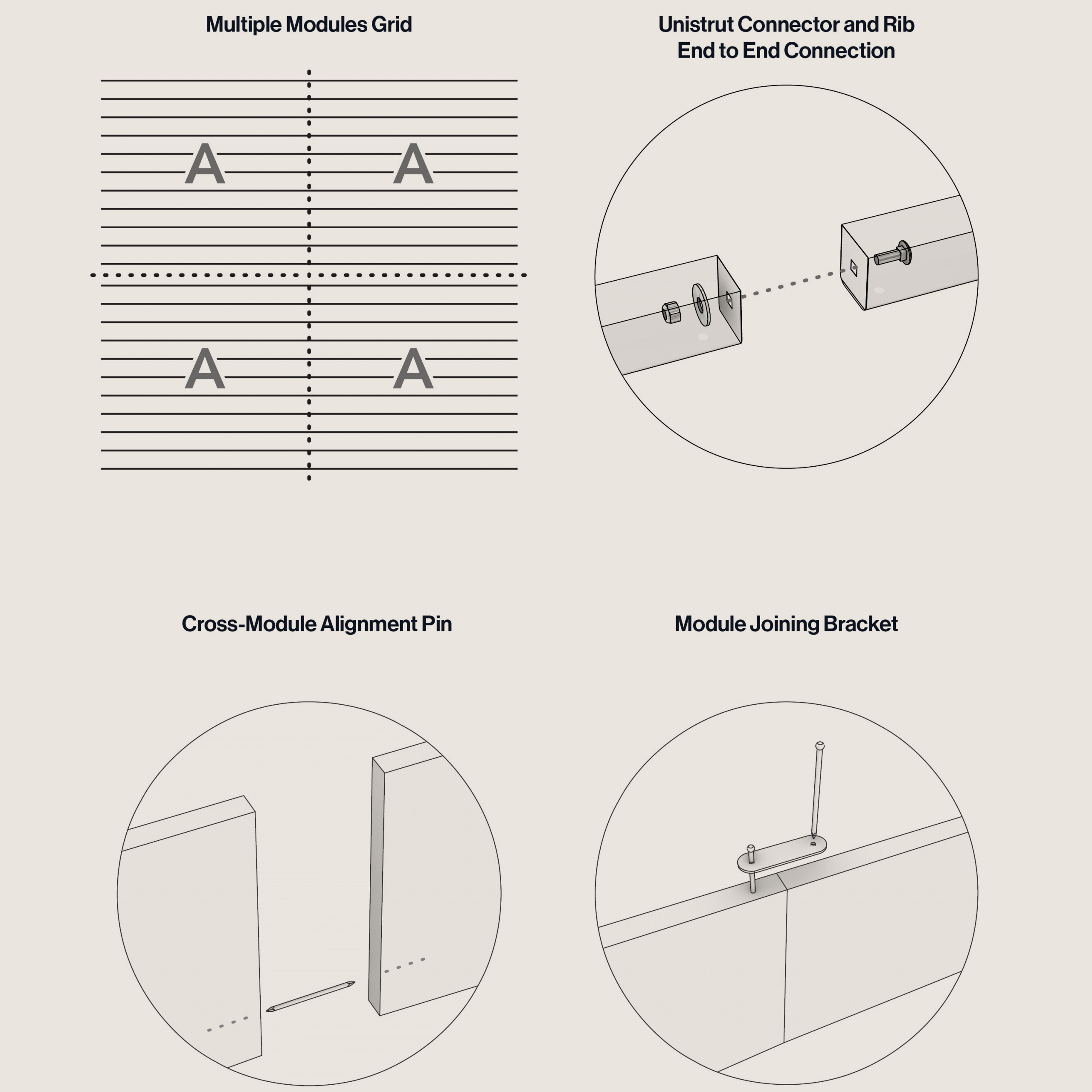

- Attachment Details
Sustainability and Certifications
- 488

  Each module is made from 488 recycled water bottles
- Cradle to Cradle®

  Bronze Status Pending
- 100%

  Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)
- Declare

  Red list free

Materials and Finishes

Materials and Finishes
Soft Sound® Color Group A
- White
- Snow
- Marble
- Heather Gray
- Graphite
- Carbon
- Onyx
- Apple
- Tangerine
- Lemon
- Taupe
- Sand
- Kiwi
- Whisper
- Sky Blue
- Denim
- Absinthe
- Abyss
- Azore
- Mars
- Macchiato
Soft Sound® Wood Texture
- Gray Ash
- White Oak
- Golden Oak
- Oak
- American Walnut
- Charred Oak
- Charred Ash
- Ebony
Steel Powder Coat Standard Finish
- Brilliant White (Gloss) (RAL9010)
- NOWN White (Matte) (RAL9016)
- T-Grid White (Matte) (RAL9003)
- Silver Metallic (Semi Gloss) (RAL9006)
- Jet Black (Matte) (RAL9005)
- Aviator Gray (Gloss) (RAL7035)
- Aviator Gray (Matte) (RAL7035)
- Steel Gray (RAL7046)
- Shadow (RAL7024)
- Midnight (RAL7021)
- Coffee (RAL8014)
- Raw Umber (RAL8007)
- Caramel (RAL8001)
- Sandstone (RAL1019)
- Oat (RAL1001)
- Sunflower (RAL1003)
- Torch (RAL2009)
- Spirit Red (Matte) (RAL3001)
- Azure (RAL5003)
- Blue Steel (RAL5010)
- Forest Green (RAL6001)
