Atmosphera® FLOW in use

Key Features

  1. Acoustic Performance

    Atmosphera®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Atmosphera®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  2. Preconfigured Designs & Sizes

    For a custom look without the custom price tag, preconfigured Atmosphera® modules offer innovative design impact with a quick and easy installation process. Achieve a cleaner design in a fraction of the time versus independently hung baffles.

  3. Faster Shipping & Installation

    Because they're preconfigured, production starts as soon as you order. Once complete, Atmosphera®'s easy-to-assemble modules are promptly shipped, helping you cut down installation times and meet your project deadlines.

  4. Easily Field Modifiable

    This system allows for some simple modifications that can allow it to adapt to your space without having to design a custom system.

  5. Open Accessibility in Plan

    Atmosphera®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.

  6. Curving Acoustic Baffles

    NOWN offers a proprietary curved baffle system with no visible hardware.

Product Details

Specifications

Dimensions

  • 2700 x 2700 x 127 mm

Frame Material

  • Steel

Fin Material

  • 12mm Soft Sound®

Openness in Plan

  • 82%

Fire Rating

  • ASTM E84 - Class A | UNE-EN 13501-1, B-s1,d0

Attachment Method

  • 3/8" Threaded Rod (By Others)

Accessibility

  • Yes, removable clips at each fin

Trimmability

  • Yes, per installation manual

Product Diagrams

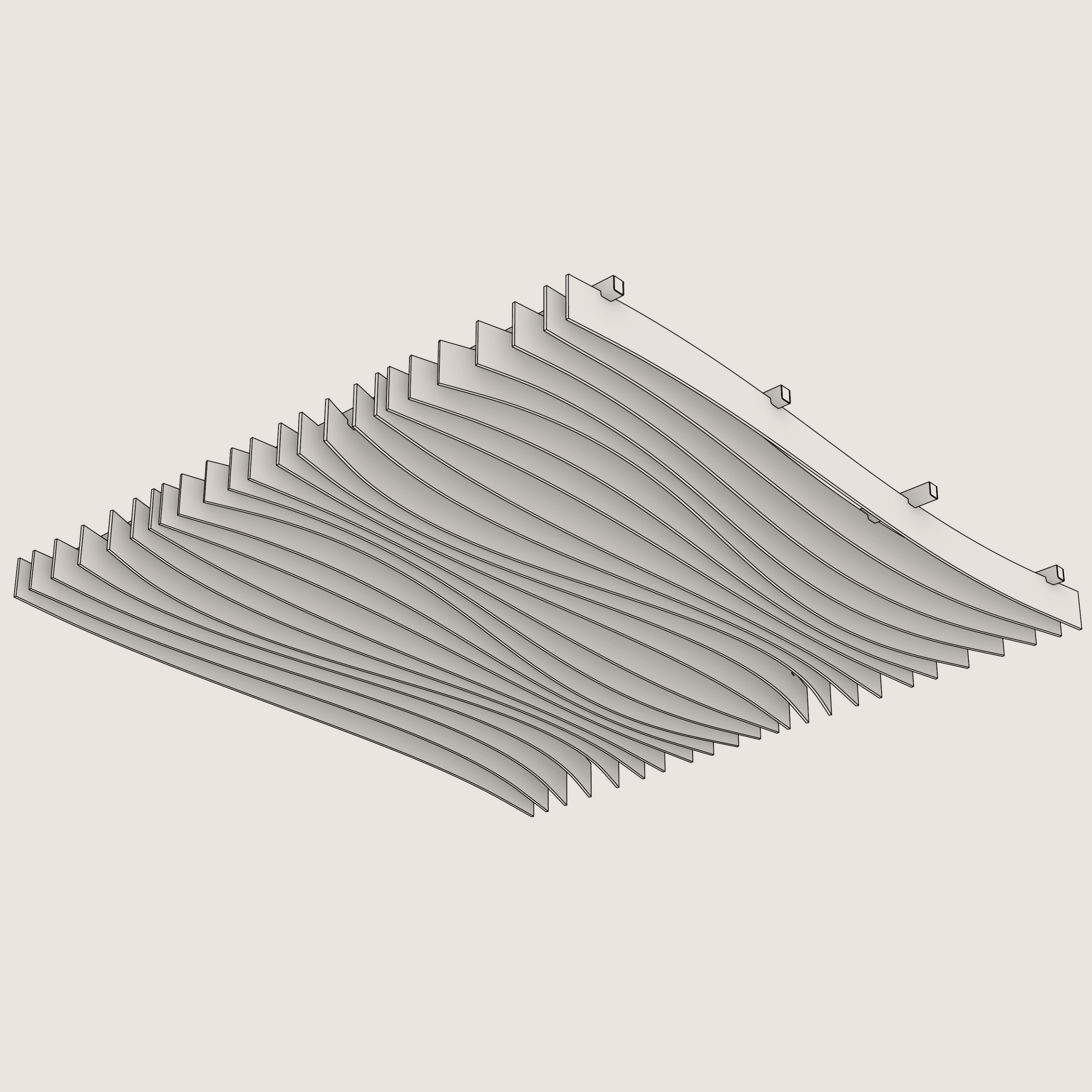

Standard Module

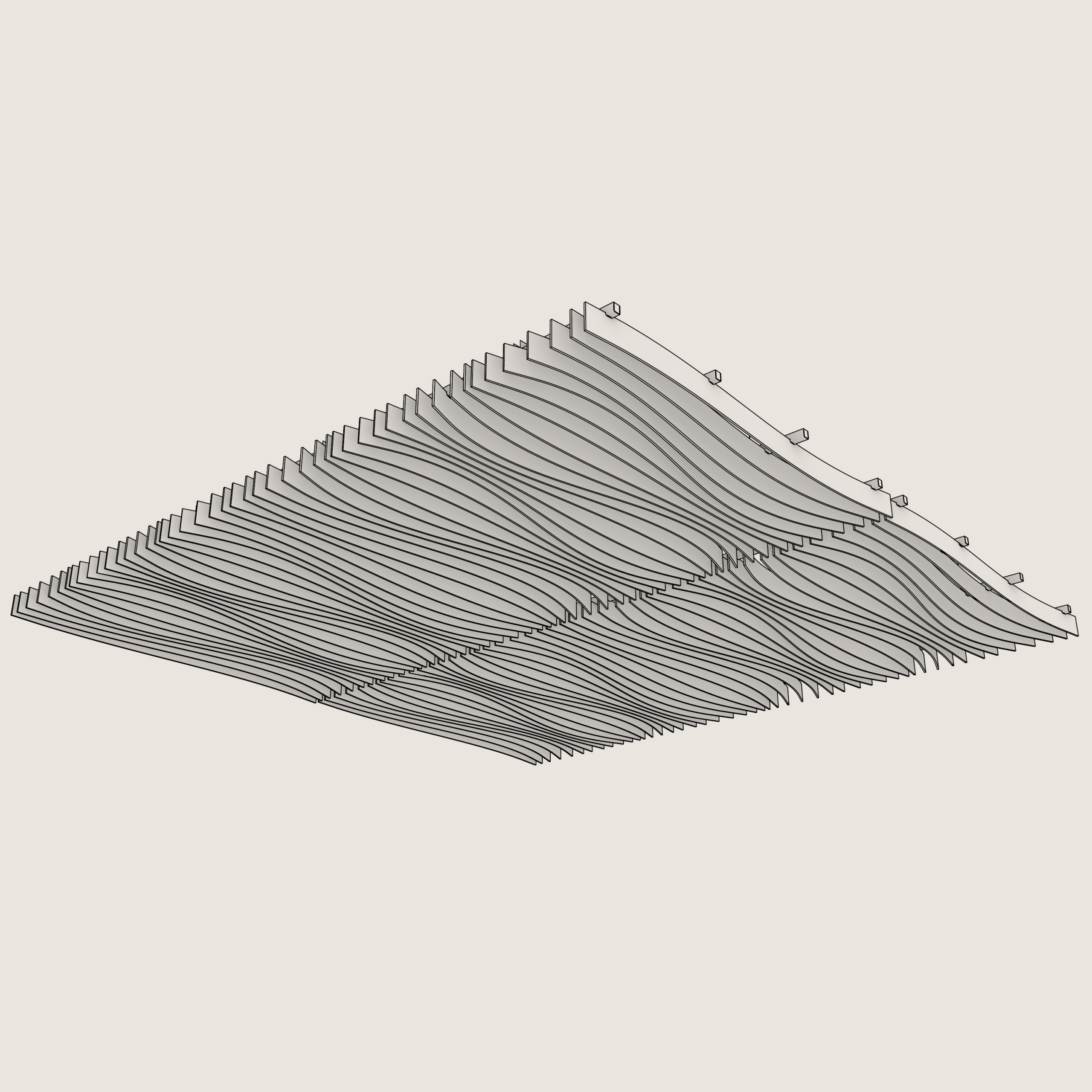

Multiple Modules

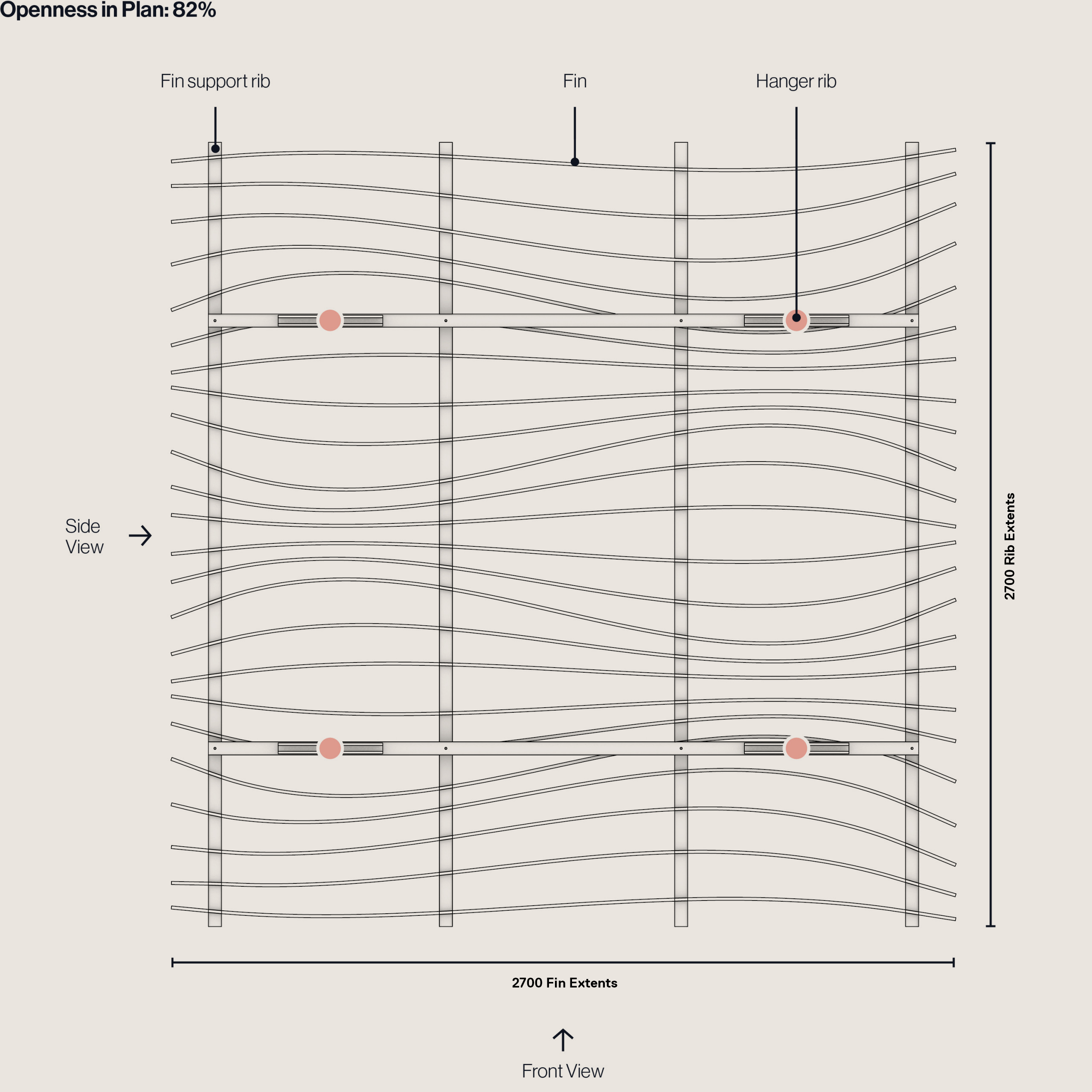

Plan

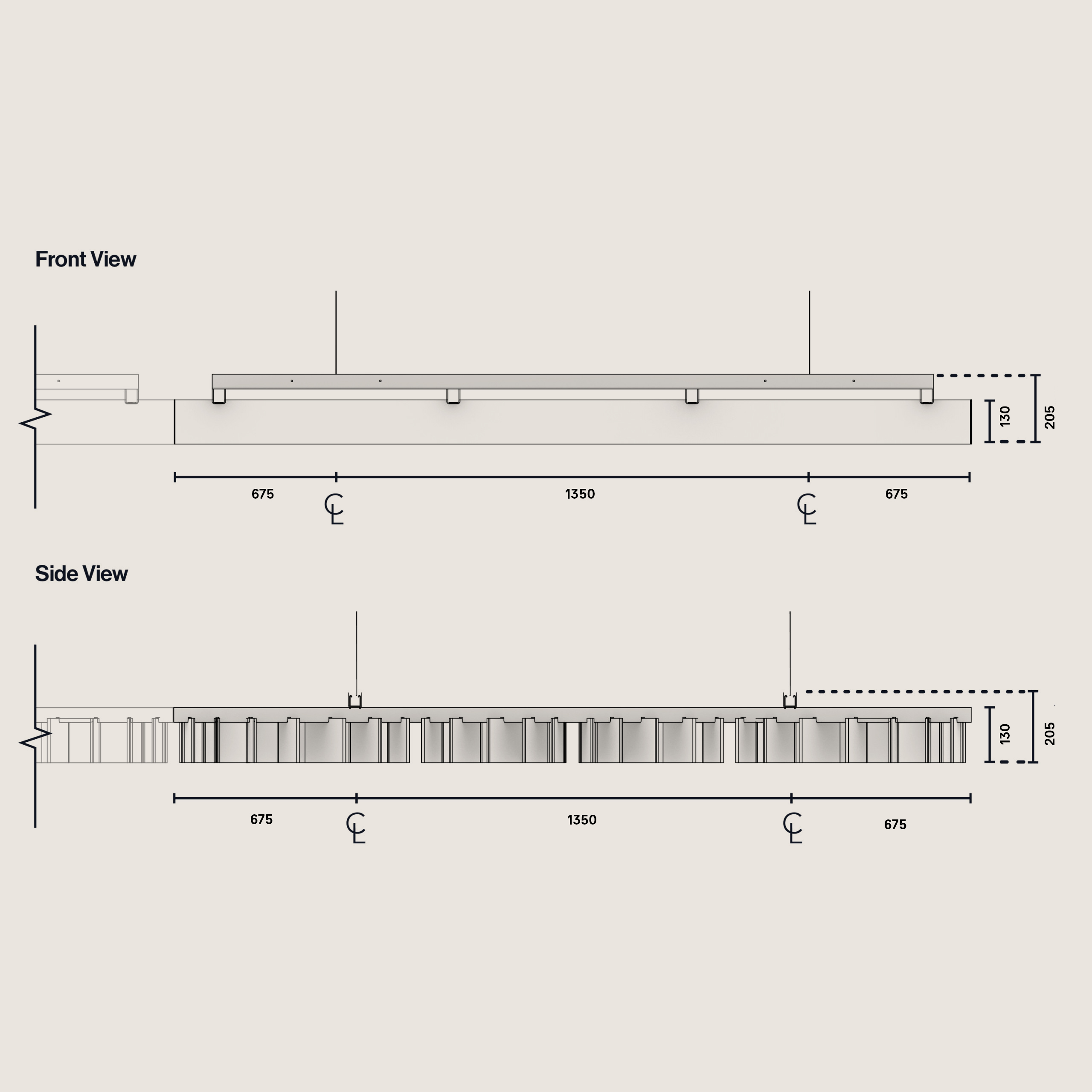

Elevations

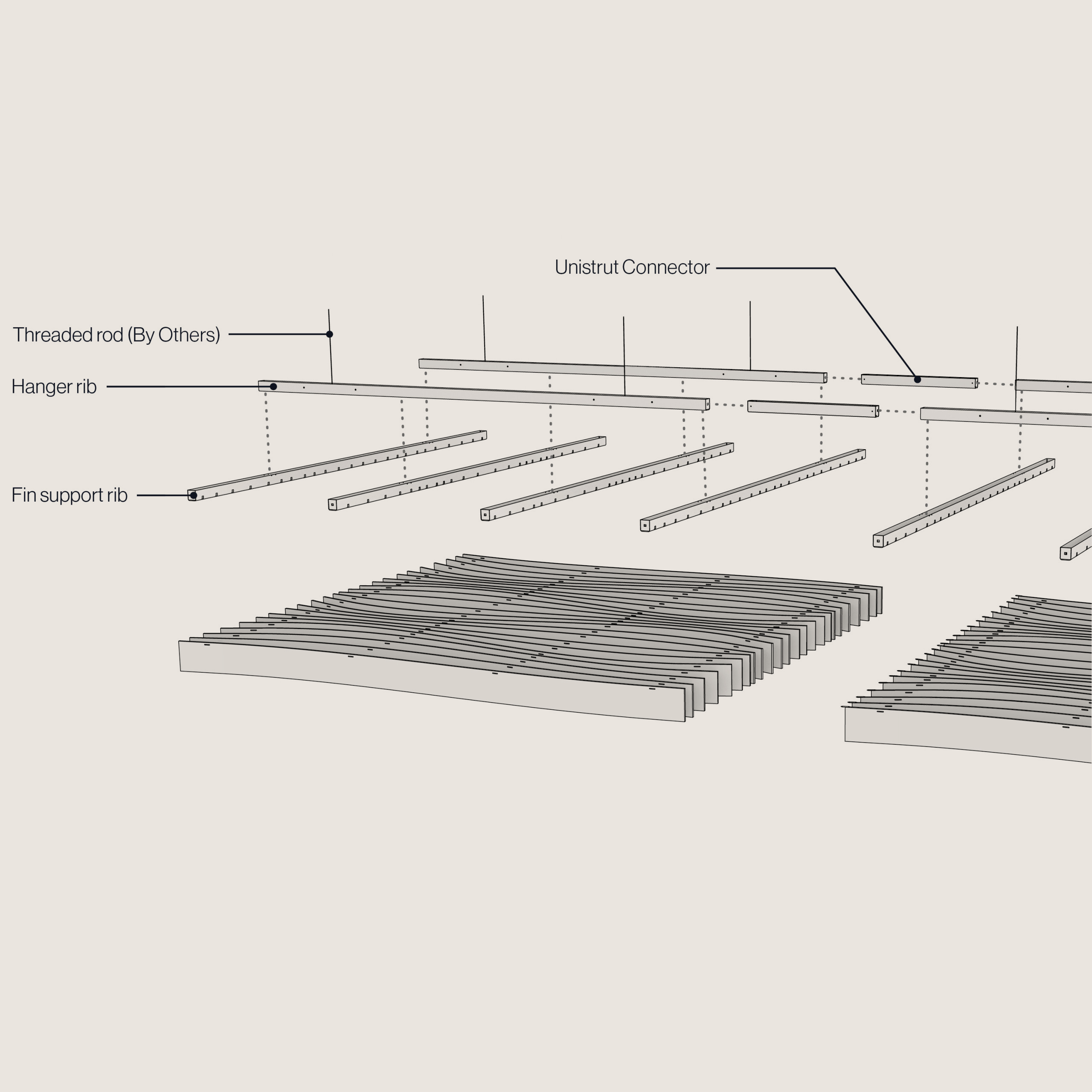

Attachment & Installs

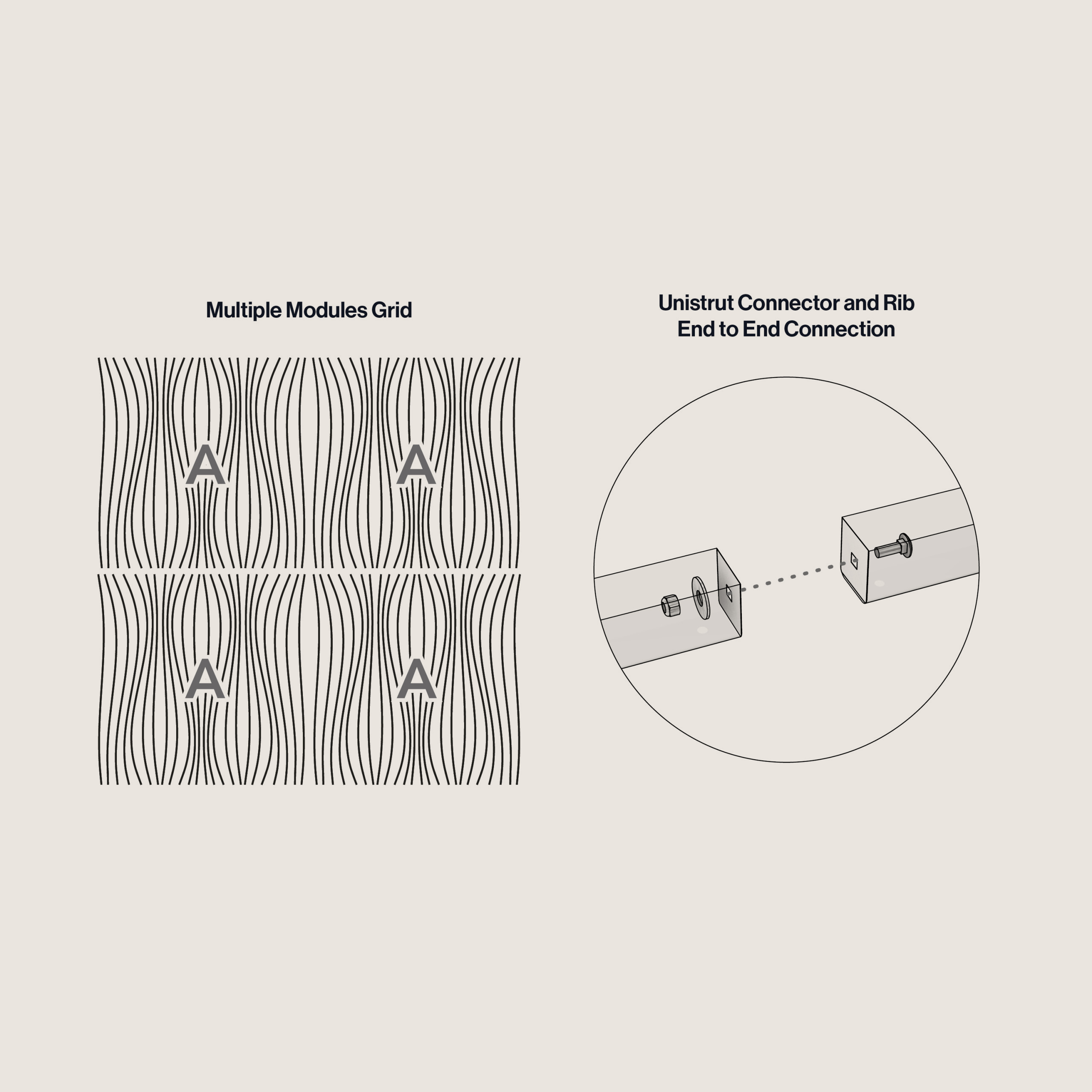

Attachment Details

Sustainability and Certifications
  • 488

    Each module is made from 488 recycled water bottles

  • Cradle to Cradle®

    Bronze Status Pending

  • 100%

    Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)

  • Declare

    Red list free

Materials and Finishes

Materials and Finishes

Soft Sound® Color Group A

  • White

  • Snow

  • Marble

  • Heather Gray

  • Graphite

  • Carbon

  • Onyx

  • Apple

  • Tangerine

  • Lemon

  • Taupe

  • Sand

  • Kiwi

  • Whisper

  • Sky Blue

  • Denim

  • Absinthe

  • Abyss

  • Azore

  • Mars

  • Macchiato

Soft Sound® Wood Texture

  • Gray Ash

  • White Oak

  • Golden Oak

  • Oak

  • American Walnut

  • Charred Oak

  • Charred Ash

  • Ebony

Steel Powder Coat Standard Finish

  • Brilliant White (Gloss) (RAL9010)

  • NOWN White (Matte) (RAL9016)

  • T-Grid White (Matte) (RAL9003)

  • Silver Metallic (Semi Gloss) (RAL9006)

  • Jet Black (Matte) (RAL9005)

  • Aviator Gray (Gloss) (RAL7035)

  • Aviator Gray (Matte) (RAL7035)

  • Steel Gray (RAL7046)

  • Shadow (RAL7024)

  • Midnight (RAL7021)

  • Coffee (RAL8014)

  • Raw Umber (RAL8007)

  • Caramel (RAL8001)

  • Sandstone (RAL1019)

  • Oat (RAL1001)

  • Sunflower (RAL1003)

  • Torch (RAL2009)

  • Spirit Red (Matte) (RAL3001)

  • Azure (RAL5003)

  • Blue Steel (RAL5010)

  • Forest Green (RAL6001)

Resources

Product

Download

Atmosphera® FLOW Brochure

Atmosphera® FLOW – DWG (Metric)
