Atmosphera® SURF

Acoustic
Ceiling Baffles

Surf’s ceiling baffles bring the active undulation of waves into your design activating your space and its occupants. Visitors might feel as if they were ready to head out for an afternoon surfing adventure. And because of their Soft Sound® fins, standing under the panels is tranquil, as their acoustic sound control limits excess noise.

Atmosphera® SURF in use

—

Key Features

Acoustic Performance

Atmosphera®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Atmosphera®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
Preconfigured Designs & Sizes

For a custom look without the custom price tag, preconfigured Atmosphera® modules offer innovative design impact with a quick and easy installation process. Achieve a cleaner design in a fraction of the time versus independently hung baffles.
Faster Shipping & Installation

Because they're preconfigured, production starts as soon as you order. Once complete, Atmosphera®'s easy-to-assemble modules are promptly shipped, helping you cut down installation times and meet your project deadlines.
Easily Field Modifiable

This system allows for some simple modifications that can allow it to adapt to your space without having to design a custom system.
Open Accessibility in Plan

Atmosphera®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.
Continuous Straight Baffles

Utilizing a hidden fin and frame alignment system, Atmosphera® provides continuity in all directions across your space. Our custom formulated material thickness and density ensures rigidity that limits deflection.

Product Details

Specifications

Dimensions

2700 x 2700 x 260 mm

Frame Material

Steel

Fin Material

12mm Soft Sound® (PET)

Openness in Plan

Fire Rating

ASTM E84 - Class A | UNE-EN 13501-1, B-s1,d0

Attachment Method

3/8" Threaded Rod (By Others)

Accessibility

Yes, removable clips at each fin

Trimmability

Yes, per installation manual

Product Diagrams

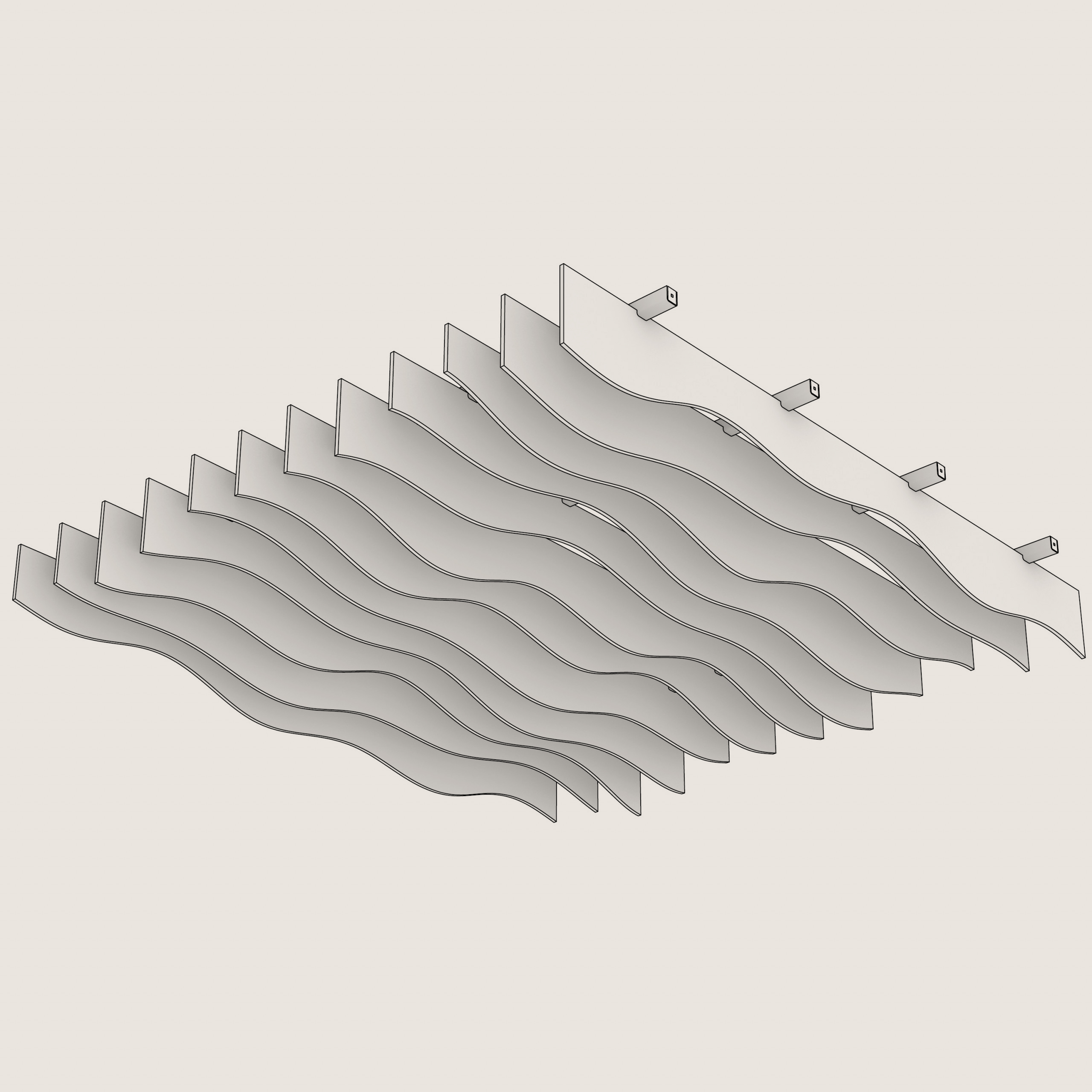

Standard Module

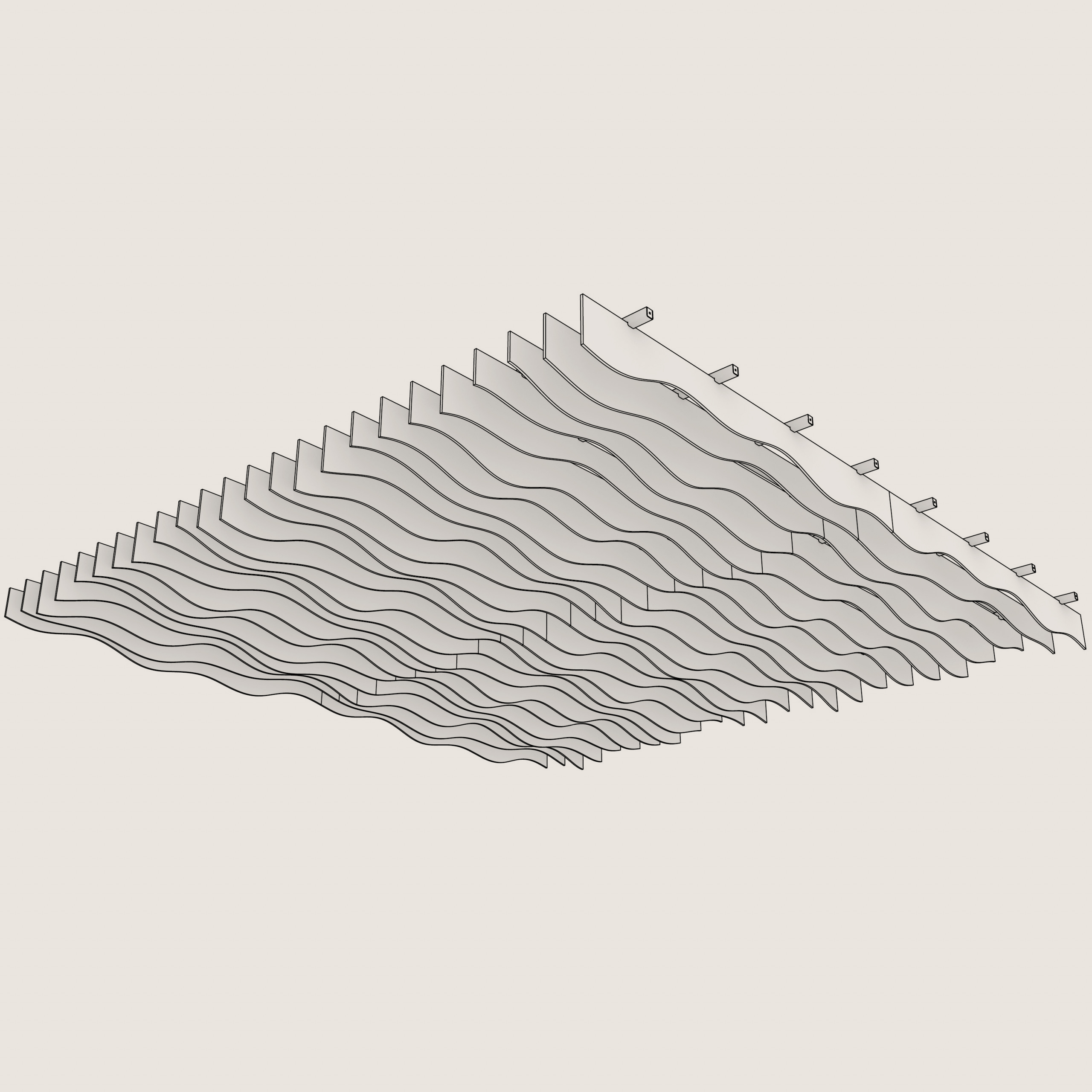

Multiple Modules

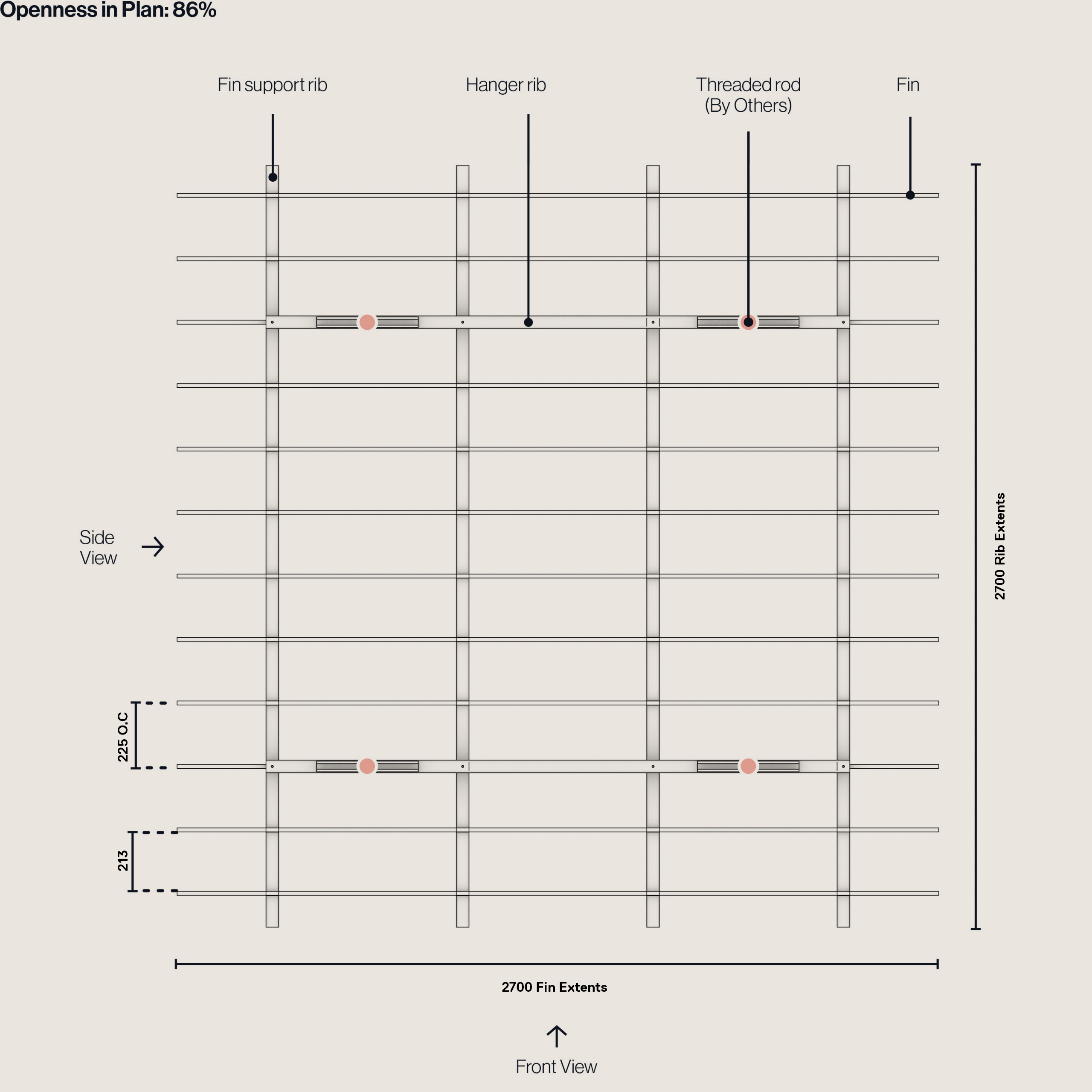

Plan

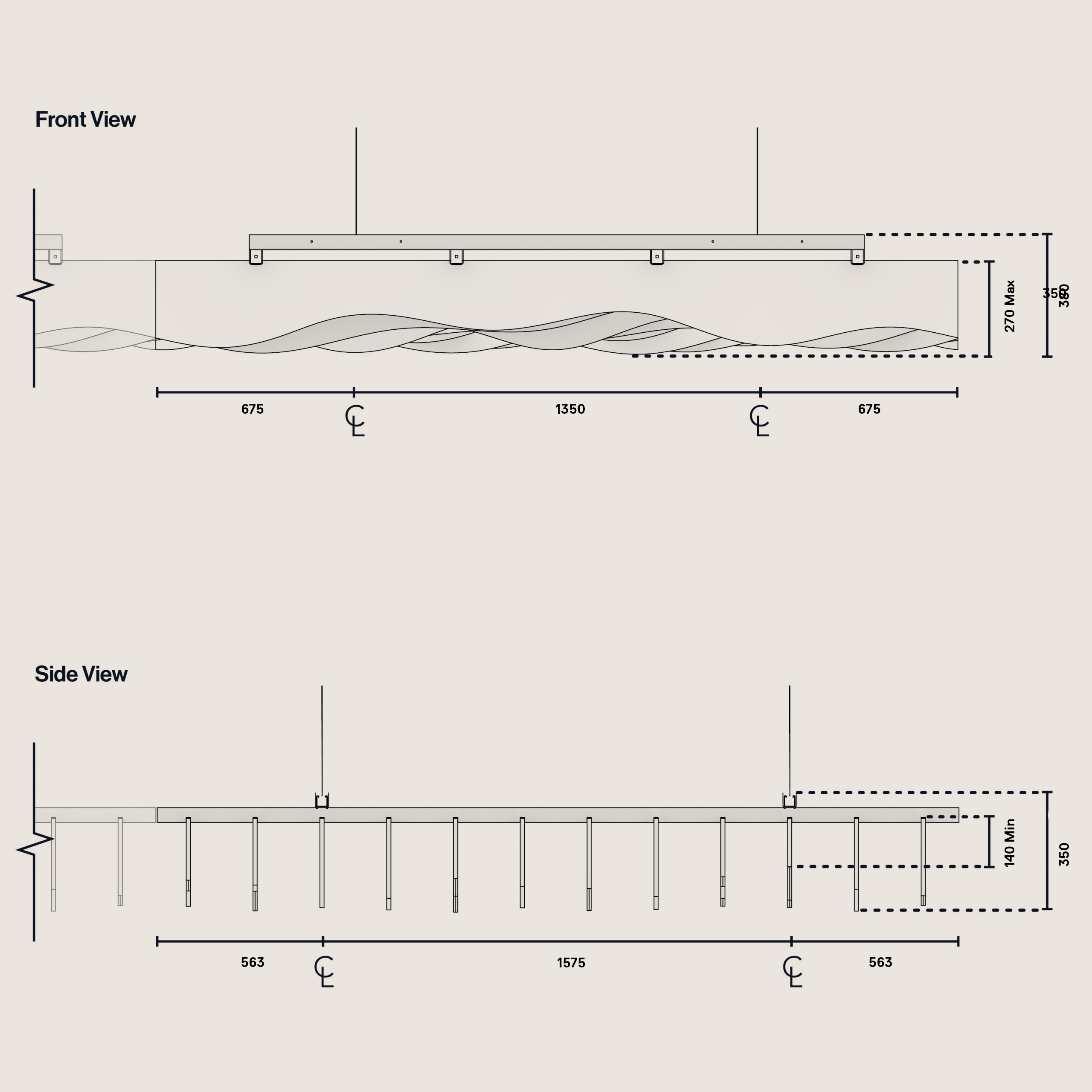

Elevations

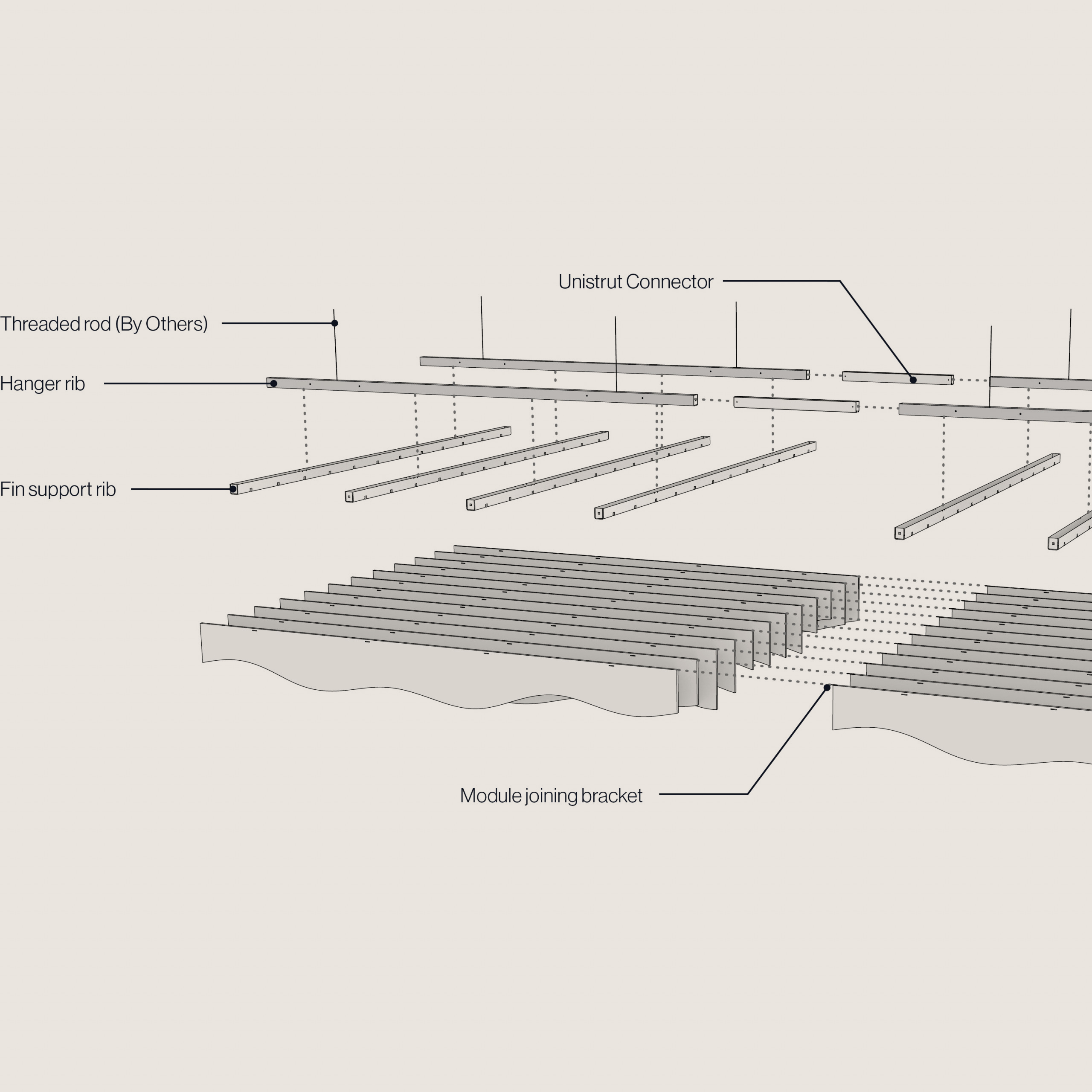

Attachment & Install

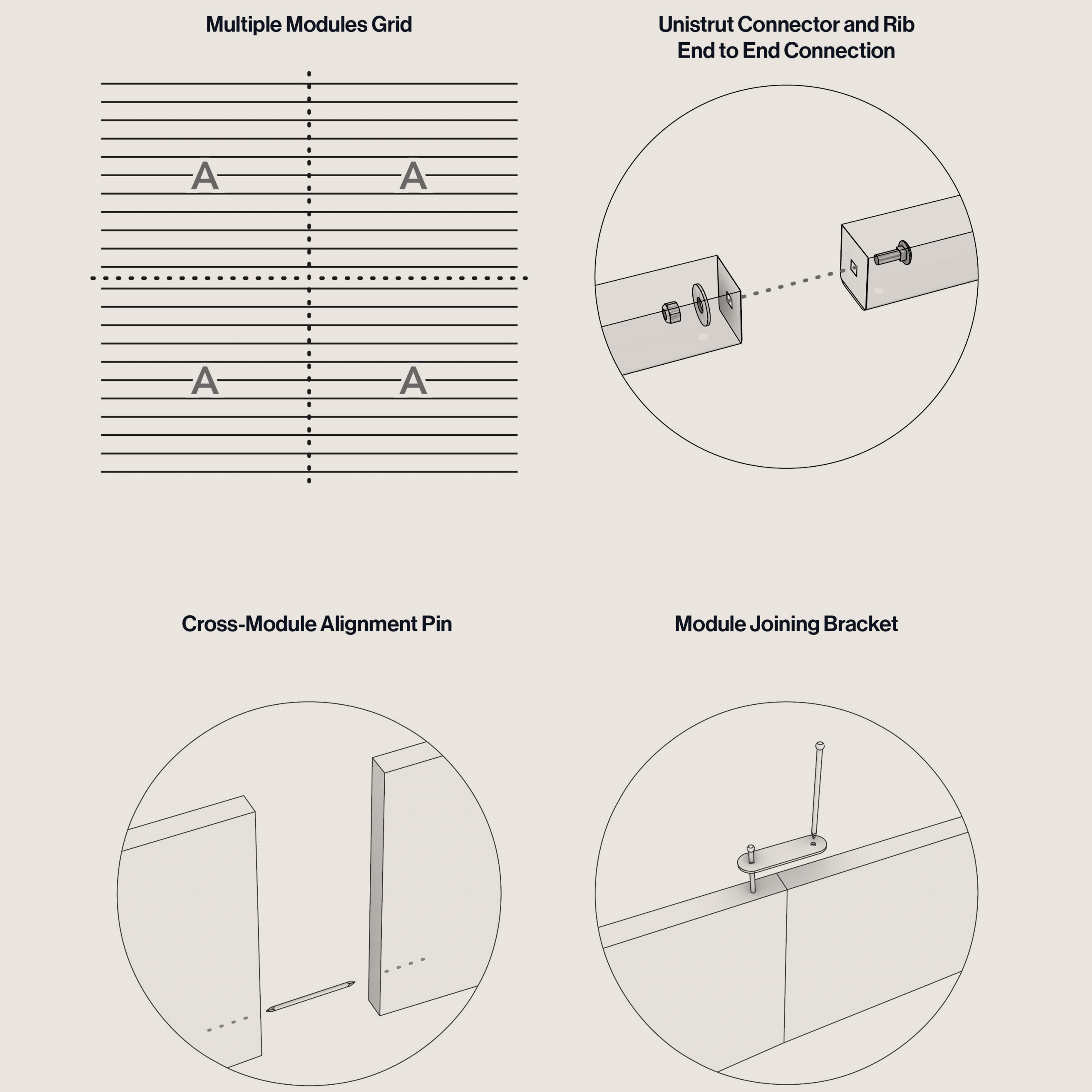

Attachment Details

Sustainability and Certifications

488

Each module is made from 488 recycled water bottles
Cradle to Cradle®

Bronze Status Pending
100%

Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)
Declare

Red list free
