SoftSpan® 24 in use

The System

Key Features

  1. Reduce Noise & Enhance Acoustics

    SoftSpan®’s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftSpan®’s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  2. Timber Trellis without the Weight

    SoftSpan® in Soft Sound® Wood Texture brings the aesthetics of a timber trellis into your space without the weight while also adding acoustic performance.

  3. Open Accessibility in Plan

    SoftSpan®’s open grid design makes integrating systems above or below the modules simple and feasible. Easily accessible open trellis beam structure makes accessing lighting, HVAC, rig points, plumbing, and life safety systems simple.

  4. Accessories.

    Enhance the acoustic performance of SoftSpan® with Soft Sound® Coffer Panels. Enclose modules with optional perimeter beam and corner modules to expand design possibilities.

  5. Preconfigured Field Trimmable Solution

    SoftSpan® modules can be trimmed in the fi eld. By rearranging our adjustable hangers; we make it easy for you to specify standard modules that can be easily field-modified around anticipated and unforeseen site conditions during install.

  6. Compatible with SoundBar®

    SoftSpan® 24 offers connectivity with SoundBar® acoustic baffles, to create a multitude of unique layouts with visual continuity across as space, incorporating linear lighting as desired.

Product Details



  • 2440 x 2440 x 100

Module Material

  • 12mm Soft Sound® (PET)

End Cap Material

  • Powder Coated Aluminum

Openness in Plan

  • 77% (Trellis Version)

Fire Rating

  • ASTM E84 - Class A | UNE-EN 13501-1, B-s1,d0


  • True NRC™ 0.4: Trellis - True NRC™ 0.85: Coffer ; F-100 Method

Attachment Method

  • 1/16" Stainless Cable and Hardware


  • Yes, quick release cables


  • Yes, per installation manual


  • Coffer Panels (Product Design Consultant Gensler), Perimeter Beams & Corners

Product Diagrams

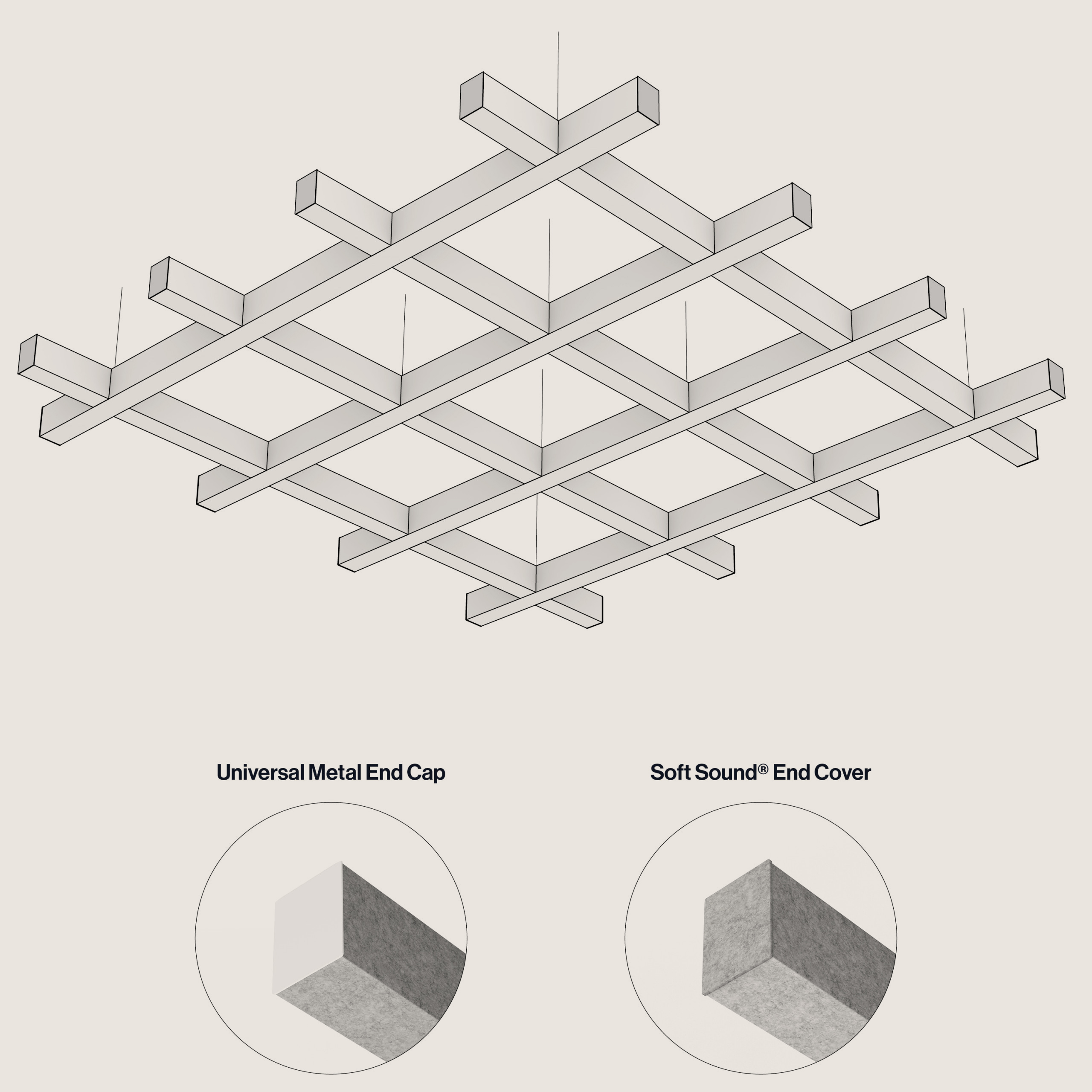

Trellis Module

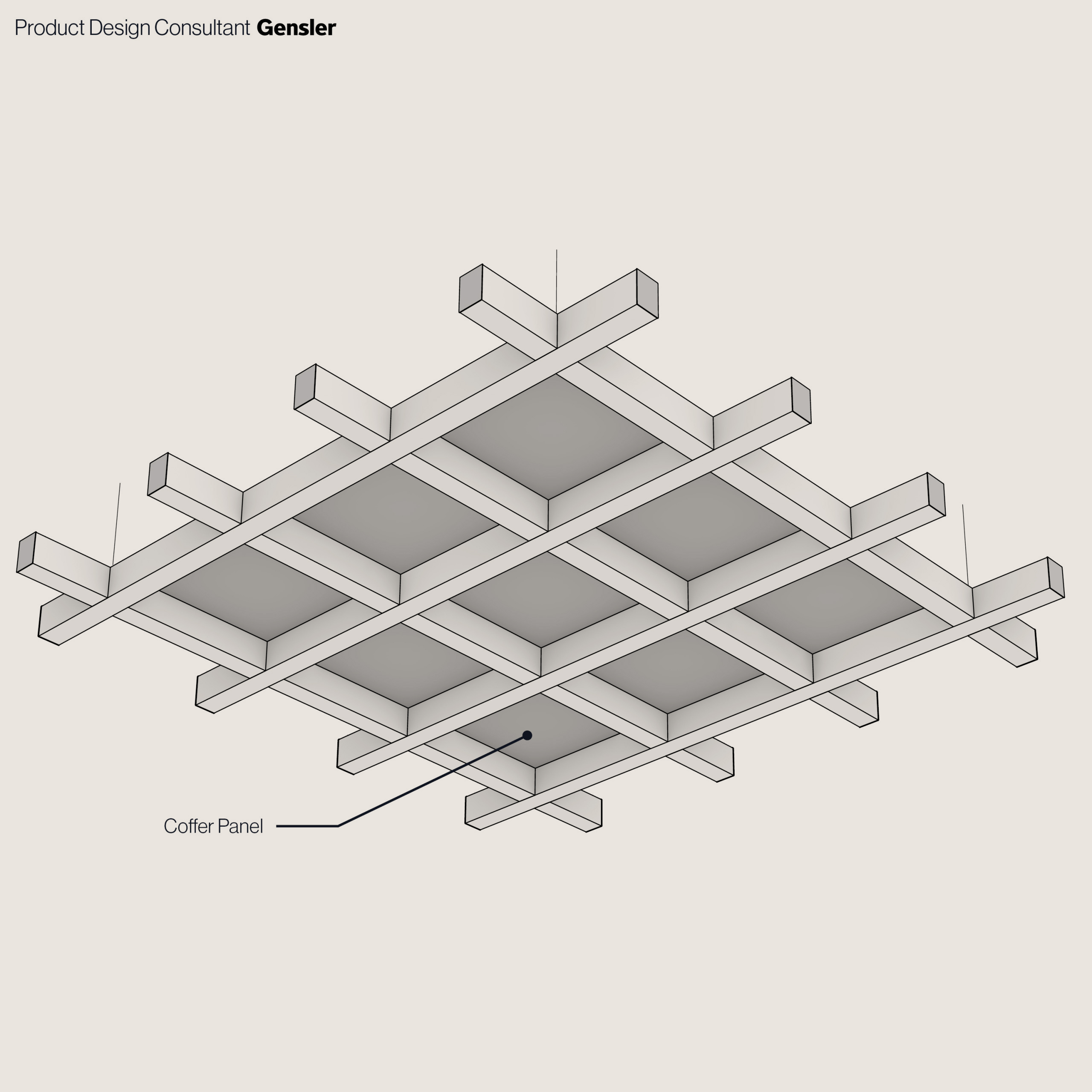

Coffer Module

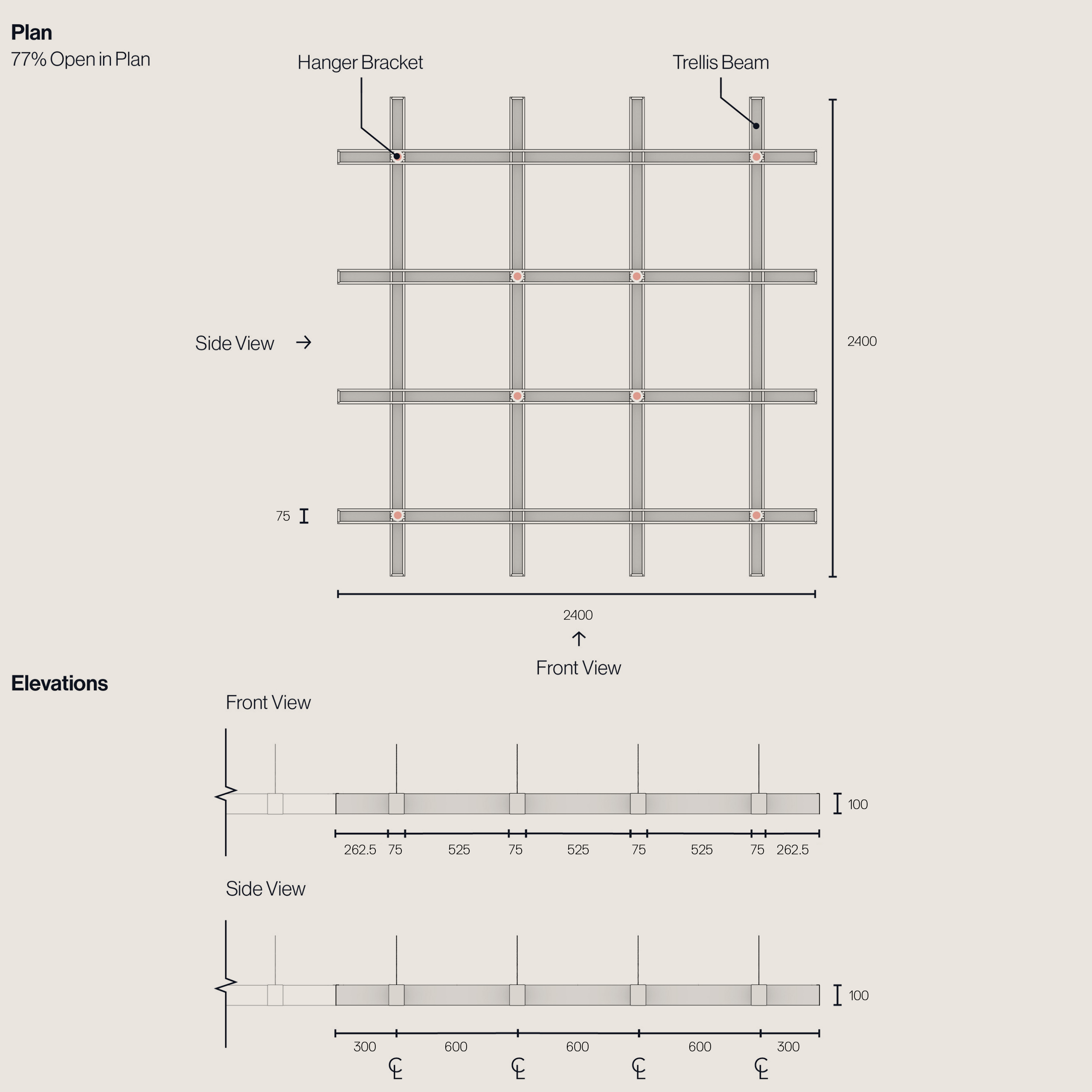

Trellis Module - Plan & Elevations

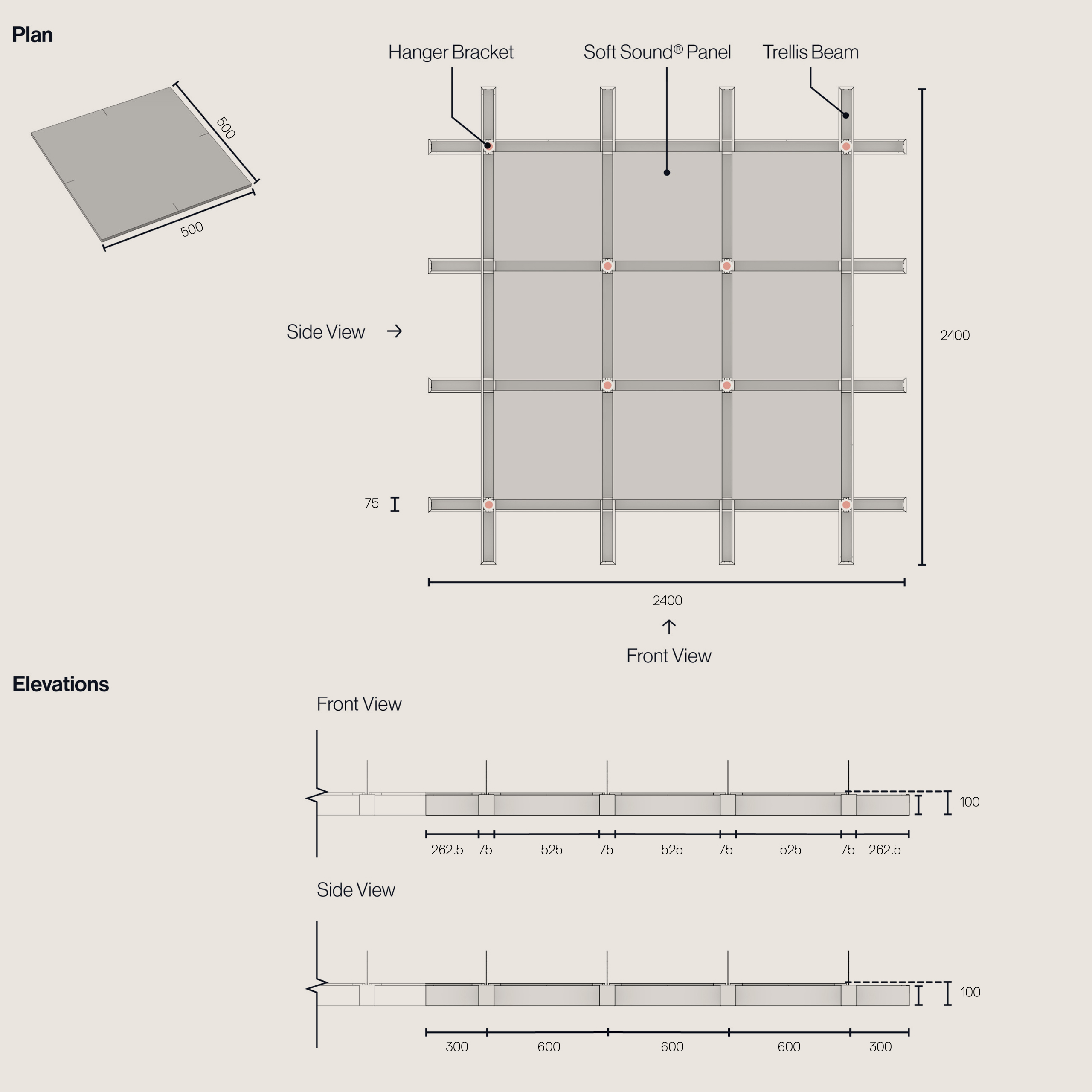

Coffer Module - Plan & Elevations

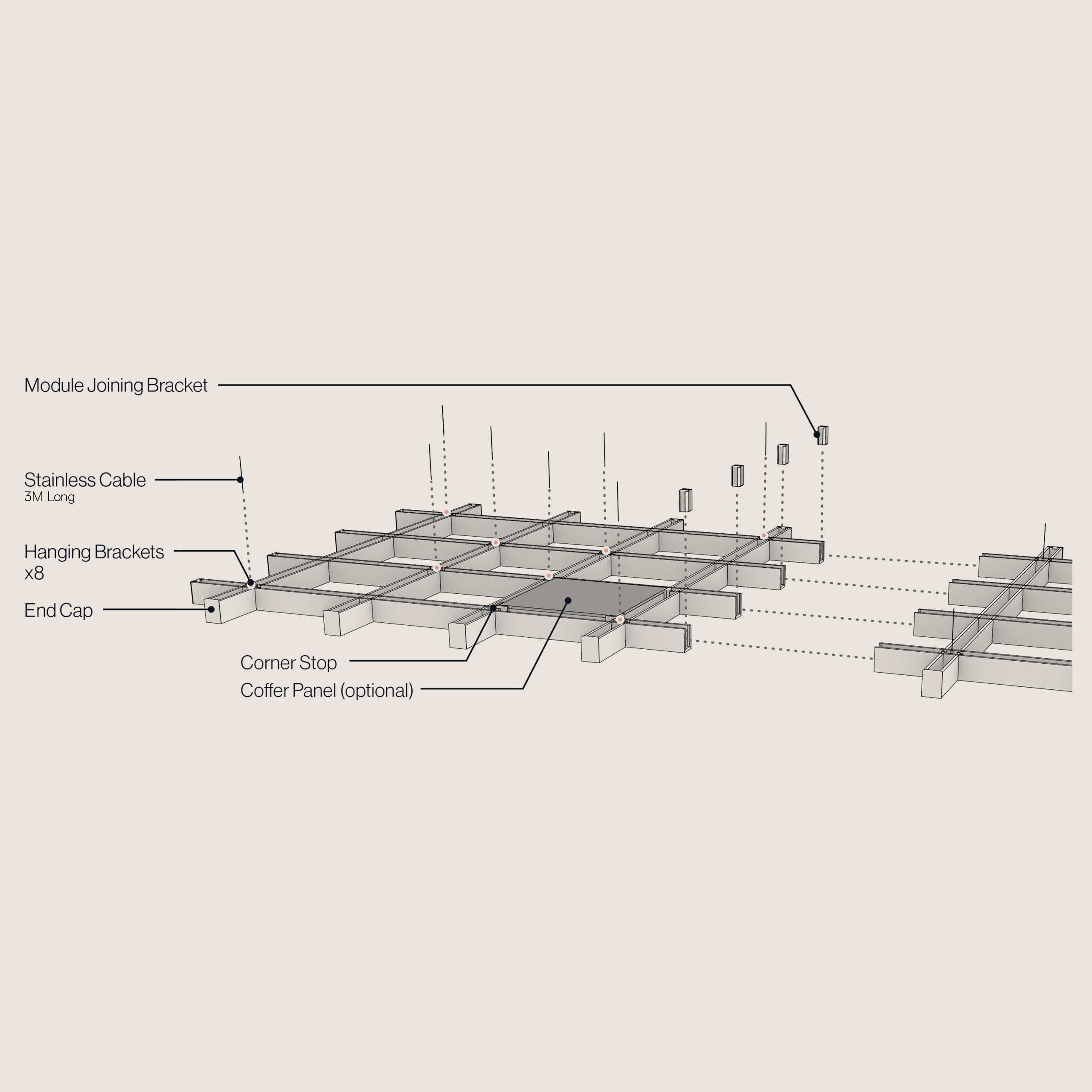

Attachment & Install

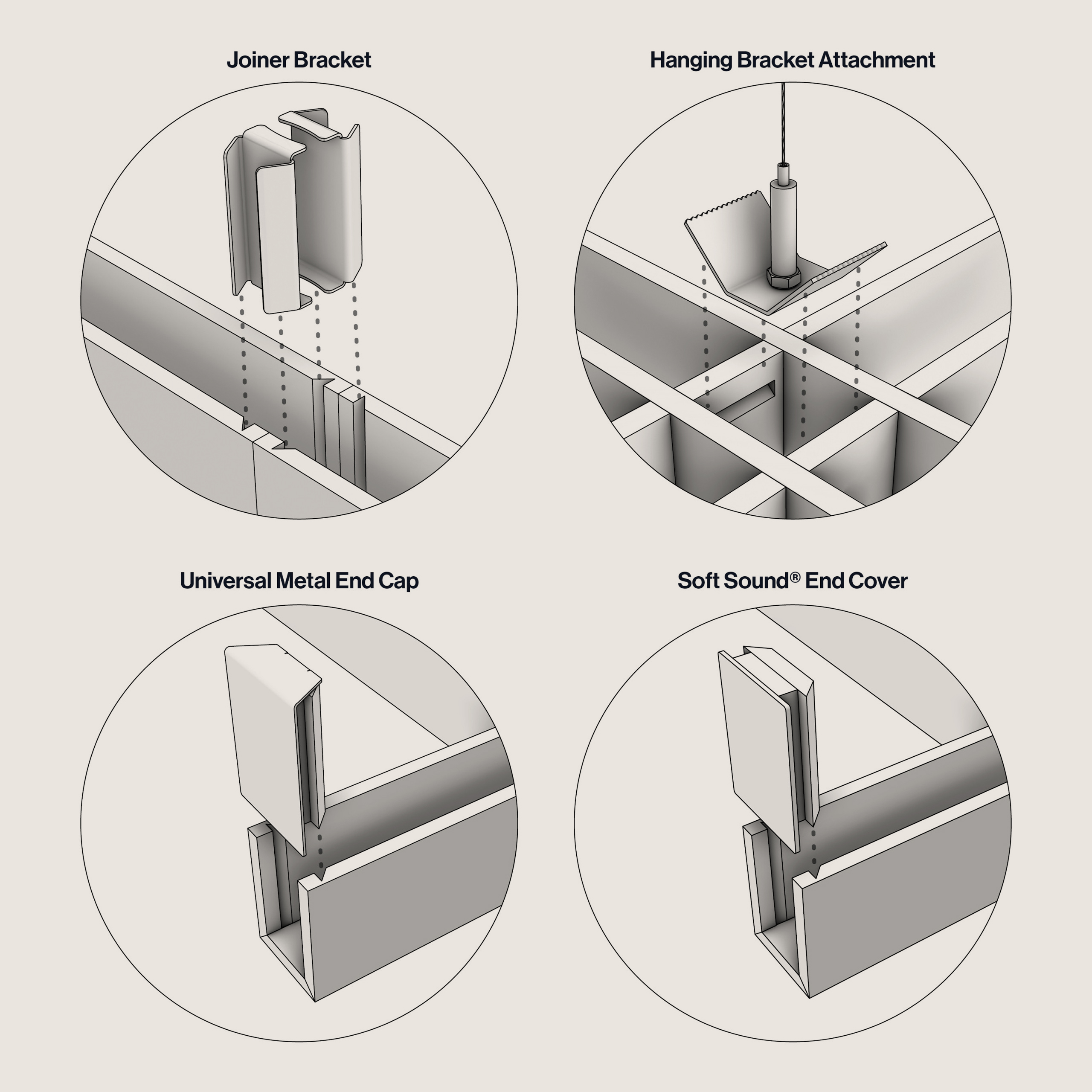

Edge & Attachment Details

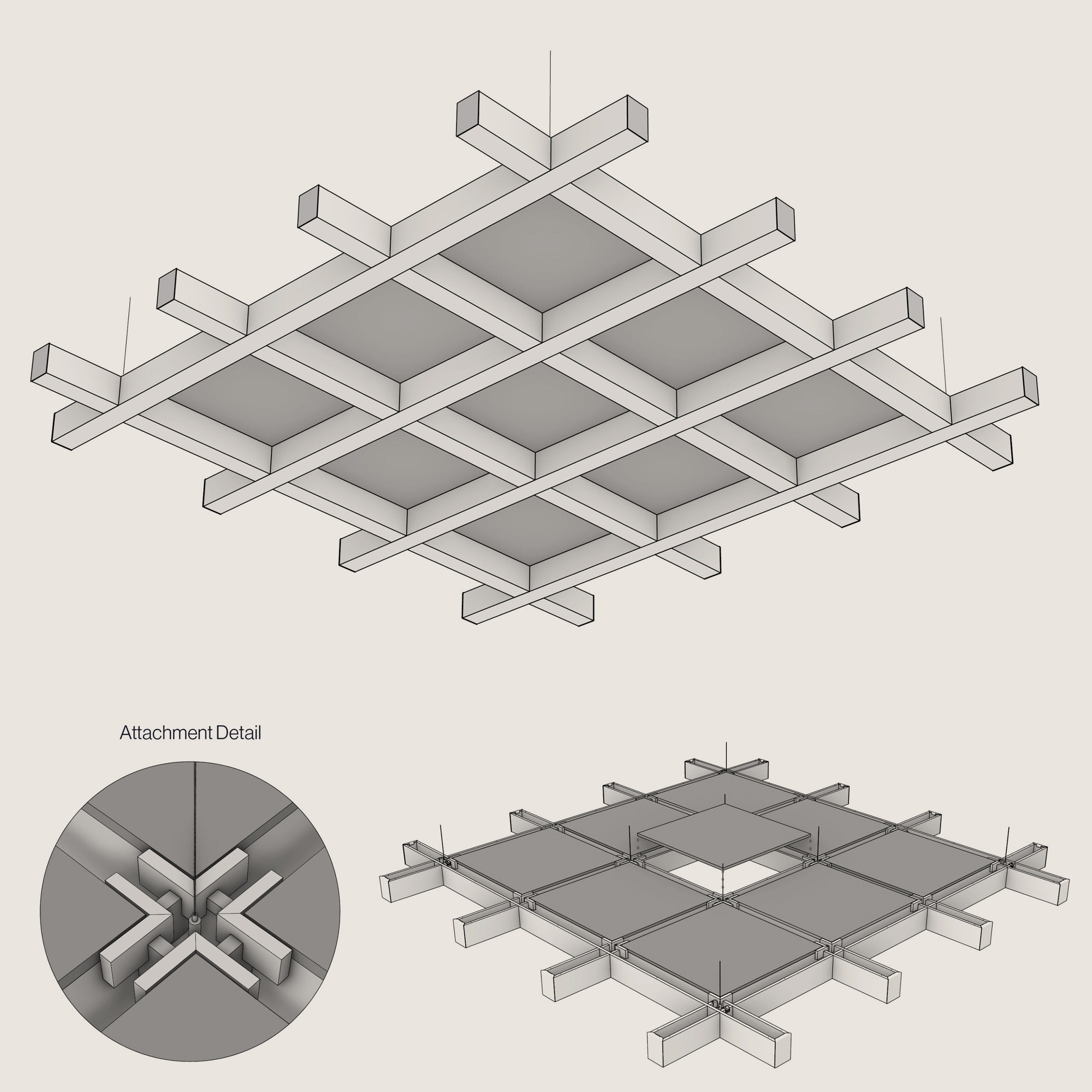

Accessory Options - Coffer Panels

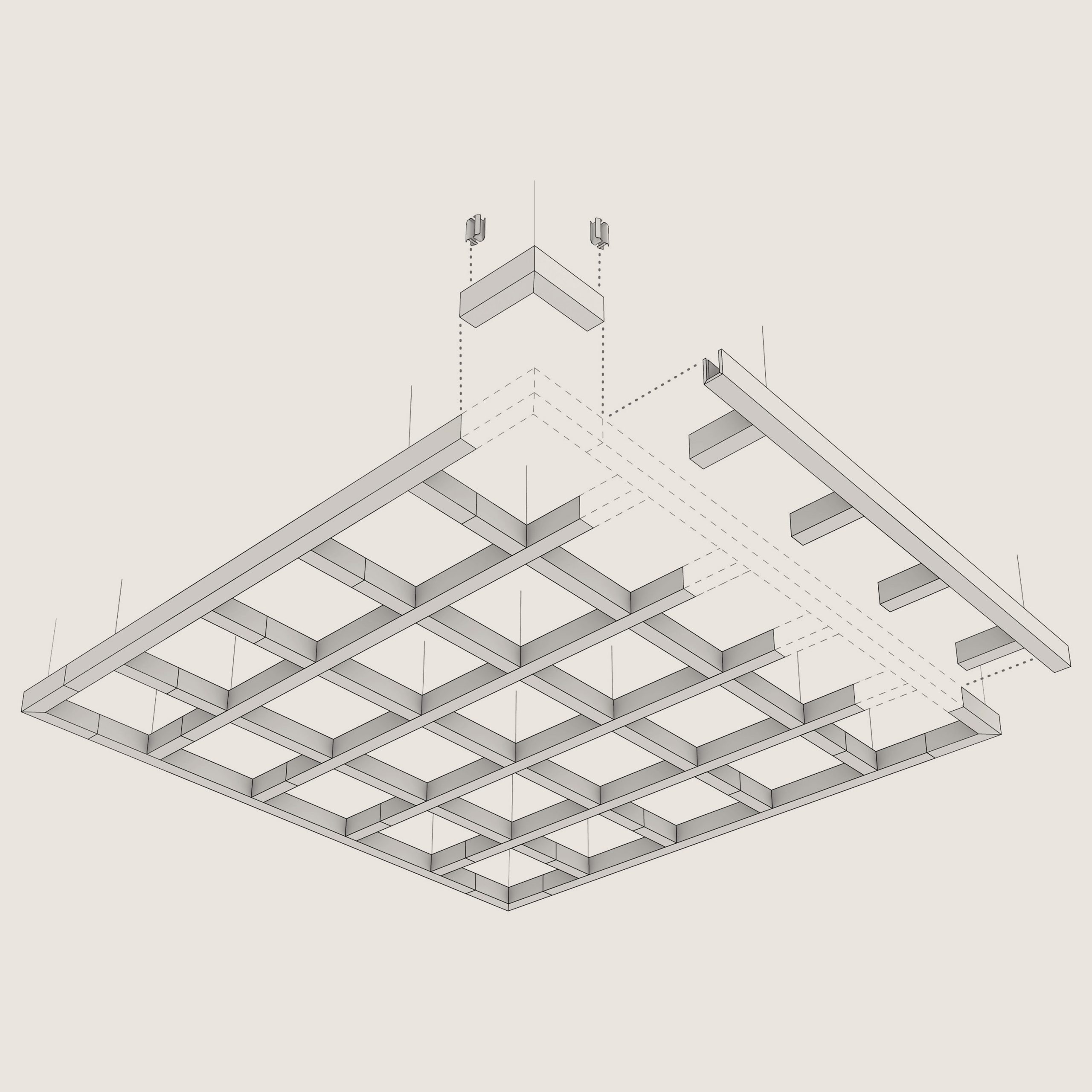

Accessory Options - Closure Beams

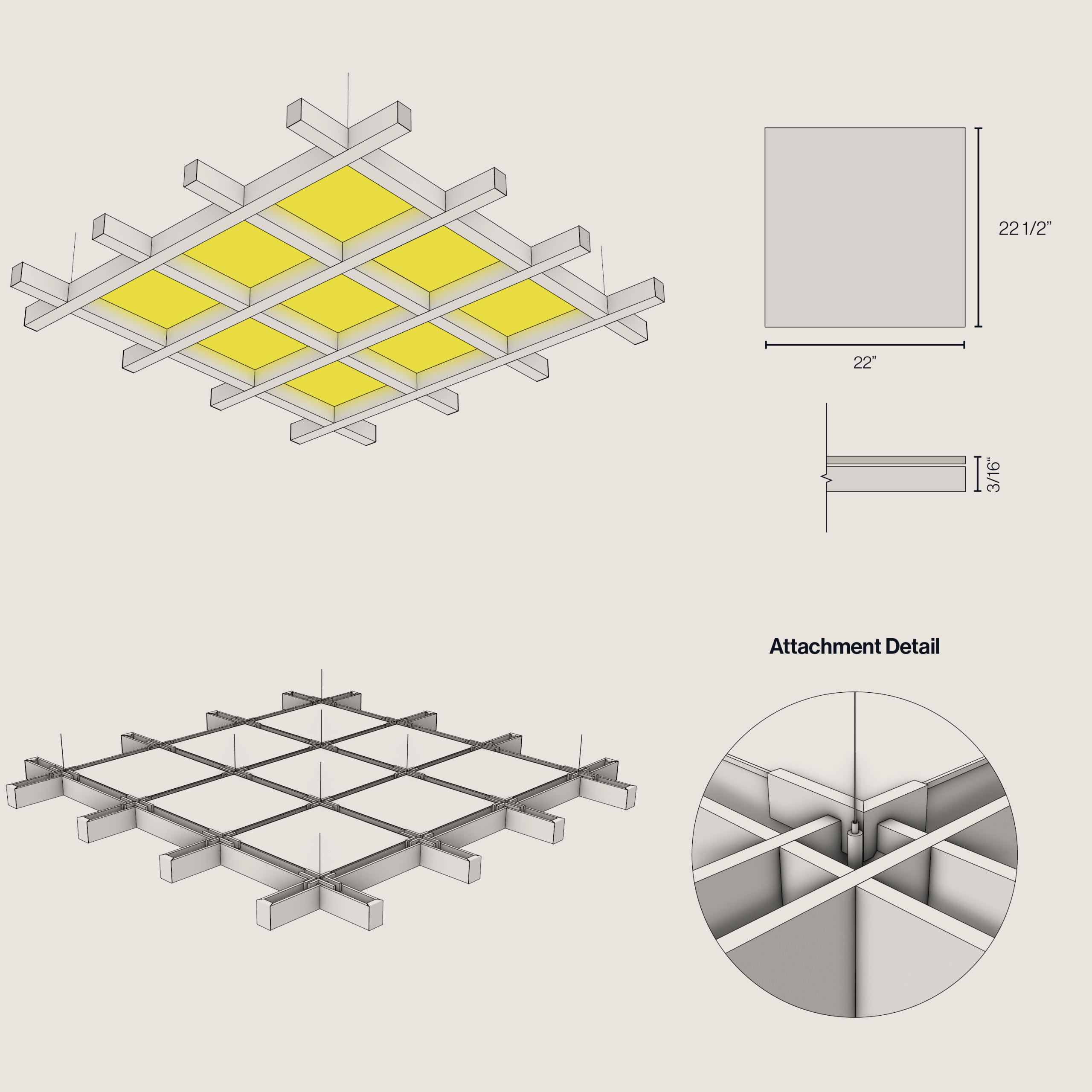

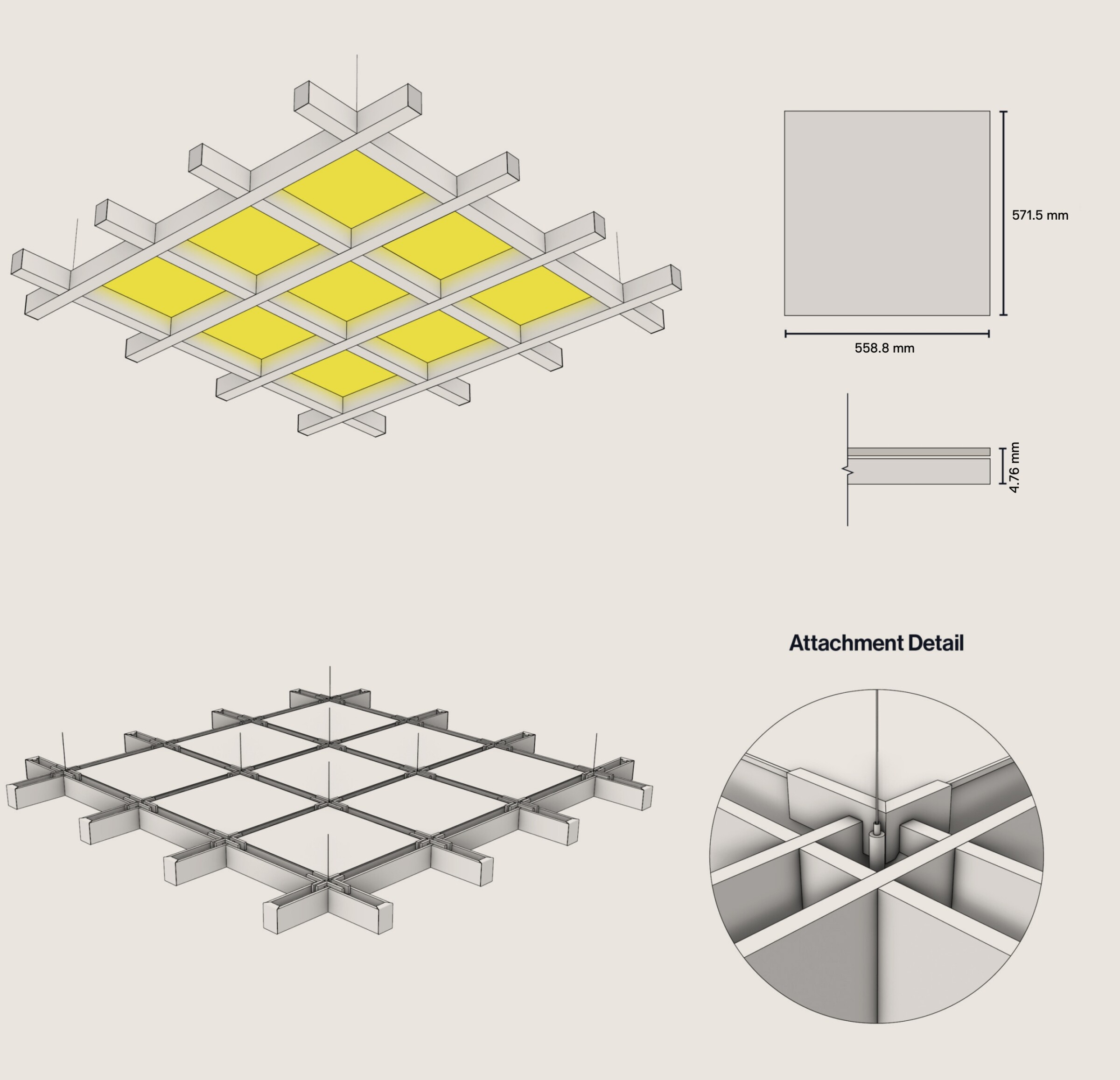

Accessory Options - Panel Lights

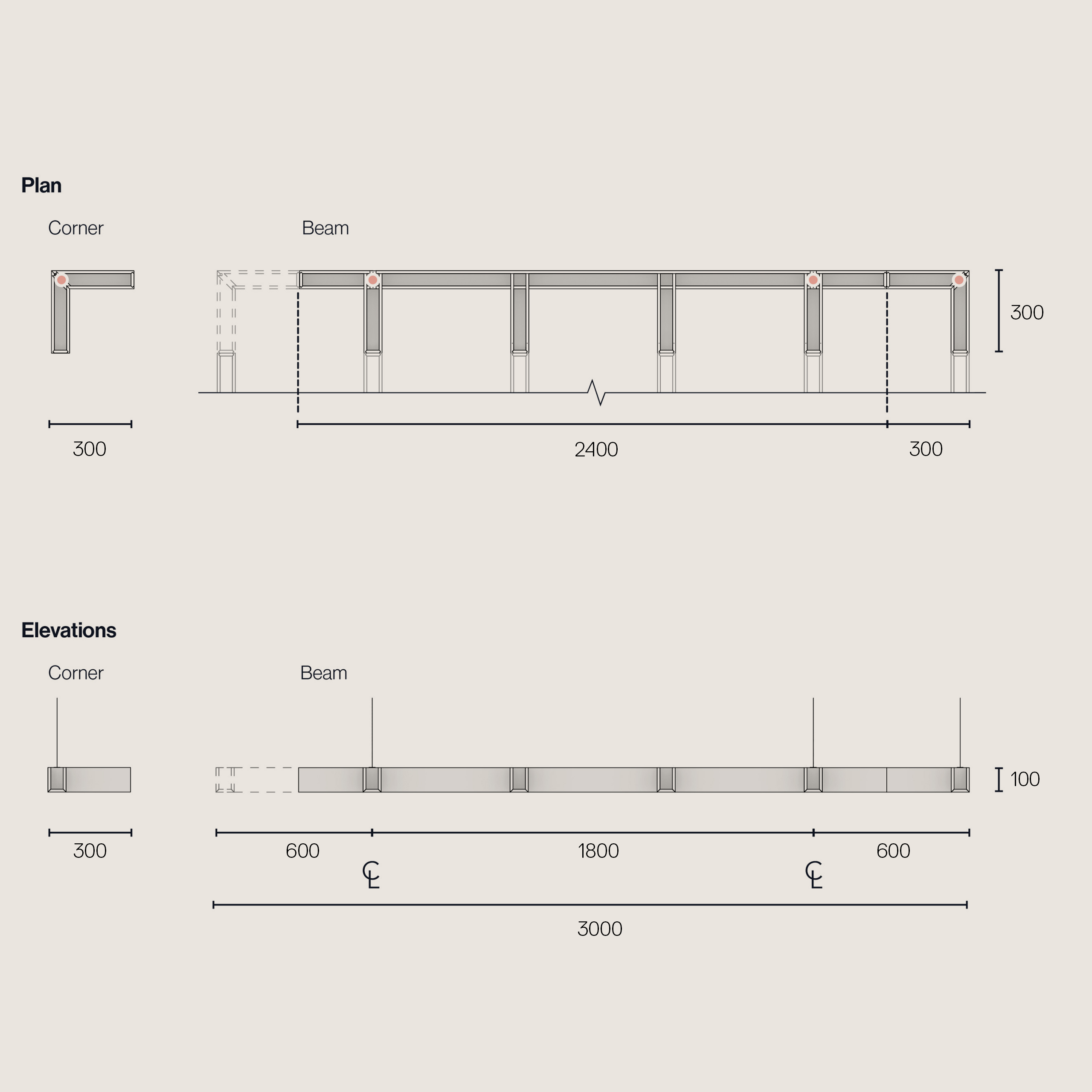

Closure Beams - Plan & Elevations

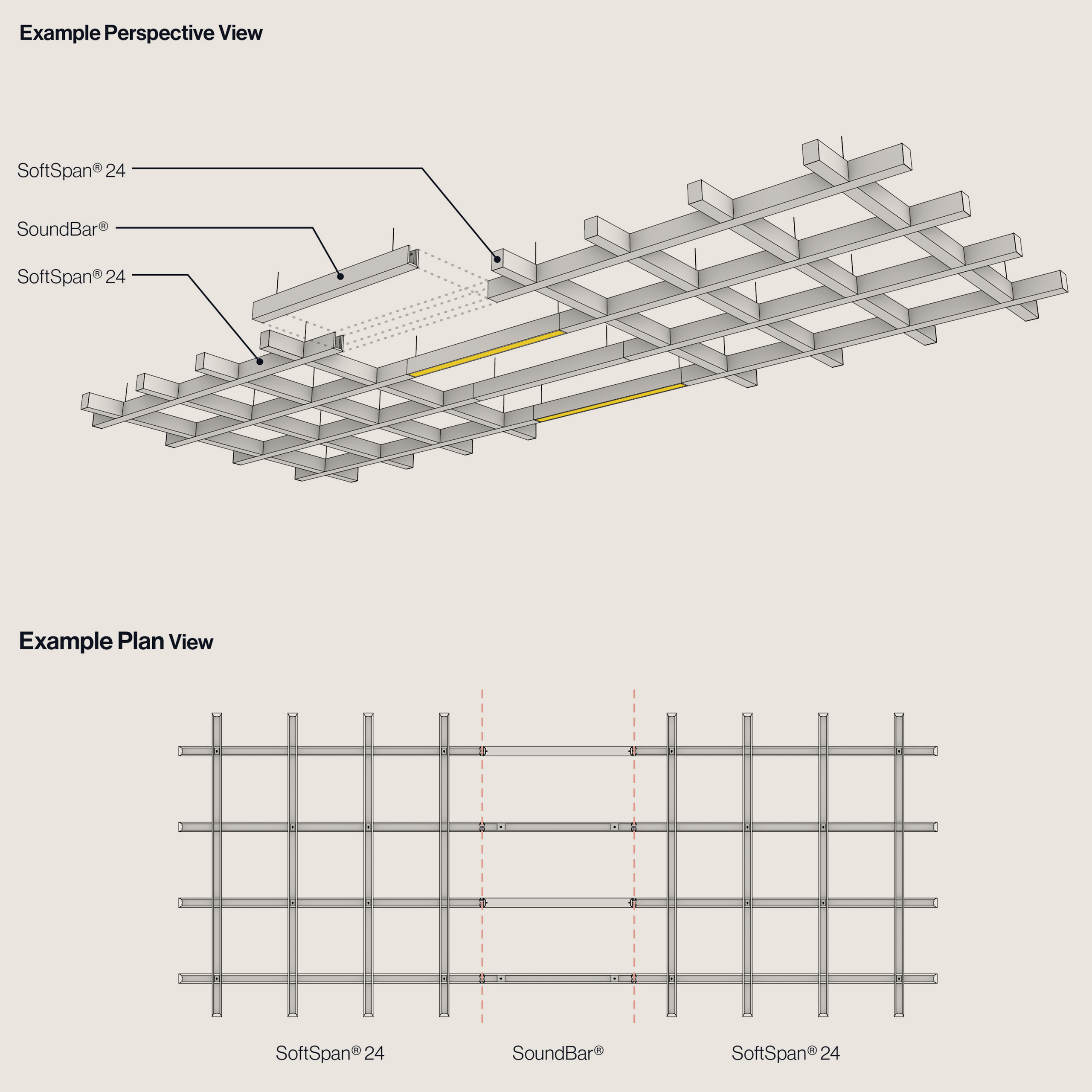

Connectivity with SoundBar®

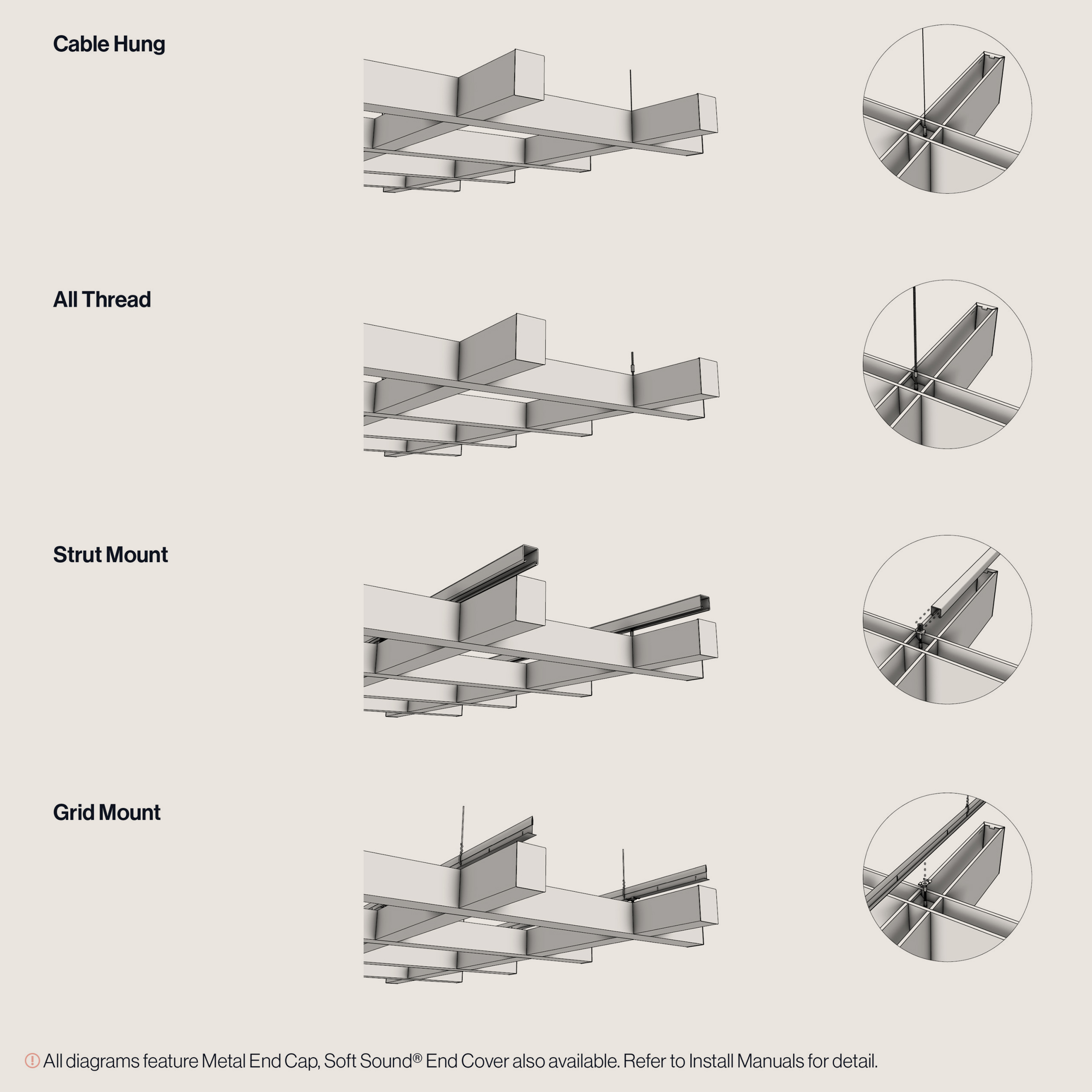

Multiple Attachment Options

Sustainability and Certifications
  • 488-780

    Each module is made from a minimum of 488 recycled water bottles, depends on size and configuration.

  • Cradle to Cradle®

    Bronze Status Pending

  • 100%

    Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)

  • Declare

    Red list free

Materials and Finishes

Materials and Finishes

CircuLUM™ Powder Coat Premium Metallic Finish

  • Chilled Champagne

  • Burnished Bronze

CircuLUM™ Powder Coat Standard Finish

  • Brilliant White (Gloss) (RAL9010)

  • NOWN White (Matte) (RAL9016)

  • T-Grid White (Matte) (RAL9003)

  • Silver Metallic (Semi Gloss) (RAL9006)

  • Jet Black (Matte) (RAL9005)

  • Aviator Gray (Gloss) (RAL7035)

  • Aviator Gray (Matte) (RAL7035)

  • Steel Gray (RAL7046)

  • Shadow (RAL7024)

  • Midnight (RAL7021)

  • Coffee (RAL8014)

  • Raw Umber (RAL8007)

  • Caramel (RAL8001)

  • Sandstone (RAL1019)

  • Oat (RAL1001)

  • Sunflower (RAL1003)

  • Torch (RAL2009)

  • Spirit Red (Matte) (RAL3001)

  • Azure (RAL5003)

  • Blue Steel (RAL5010)

  • Forest Green (RAL6001)

Soft Sound® Color Group A

  • White

  • Snow

  • Marble

  • Heather Gray

  • Graphite

  • Carbon

  • Onyx

  • Apple

  • Tangerine

  • Lemon

  • Taupe

  • Sand

  • Kiwi

  • Whisper

  • Sky Blue

  • Denim

  • Absinthe

  • Abyss

  • Azore

  • Mars

  • Macchiato

Soft Sound® Wood Texture

  • Gray Ash

  • White Oak

  • Golden Oak

  • Oak

  • American Walnut

  • Charred Oak

  • Charred Ash

  • Ebony
