About SoftSpan® 96

SoftSpan® 96 creates a sense of magnitude with its large trellis beams that are still scalable across spaces big and small. It is a versatile ceiling baffle system that brings the look of coffered ceilings or timber trellises to spaces without the weight, while enhancing acoustics and reducing the impact of noise.

The System

Key Feateures

  1. Reduce Noise & Enhance Acoustics

    SoftSpan®’s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftSpan®’s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  2. Timber Trellis without the Weight

    SoftSpan® in Soft Sound® Wood Texture brings the aesthetics of a timber trellis into your space without the weight while also adding acoustic performance.

  3. Open Accessibility in Plan

    SoftSpan®’s open grid design makes integrating systems above or below the modules simple and feasible. Easily accessible open trellis beam structure makes accessing lighting, HVAC, rig points, plumbing, and life safety systems simple.

  4. Preconfigured Field Trimmable Solution

    SoftSpan® modules can be trimmed in the field. By rearranging our adjustable hangers; we make it easy for you to specify standard modules that can be easily field-modified around anticipated and unforeseen site conditions during install.

  5. Accessories

    Enclose modules with optional perimeter beam and corner modules to expand design possibilities.

Product Details

  1. Specifications

    Dimensions

    • 2440 x 2440 x 100

    Module Material

    • 12mm Soft Sound® (PET)

    End Cap Material

    • Powder Coated Aluminum

    Openness in Plan

    • 84% (Trellis Version)

    Fire Rating

    • ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0

    Acoustics

    • True NRC™ 0.55: Trellis ; F-100 Method

    Attachment Method

    • 1/16" Stainless Cable and Hardware

    Accessibility

    • Yes, quick release cables

    Trimmability

    • Yes, per installation manual

    Accessories

    • Perimeter Beams & Corners

  2. Product Diagrams

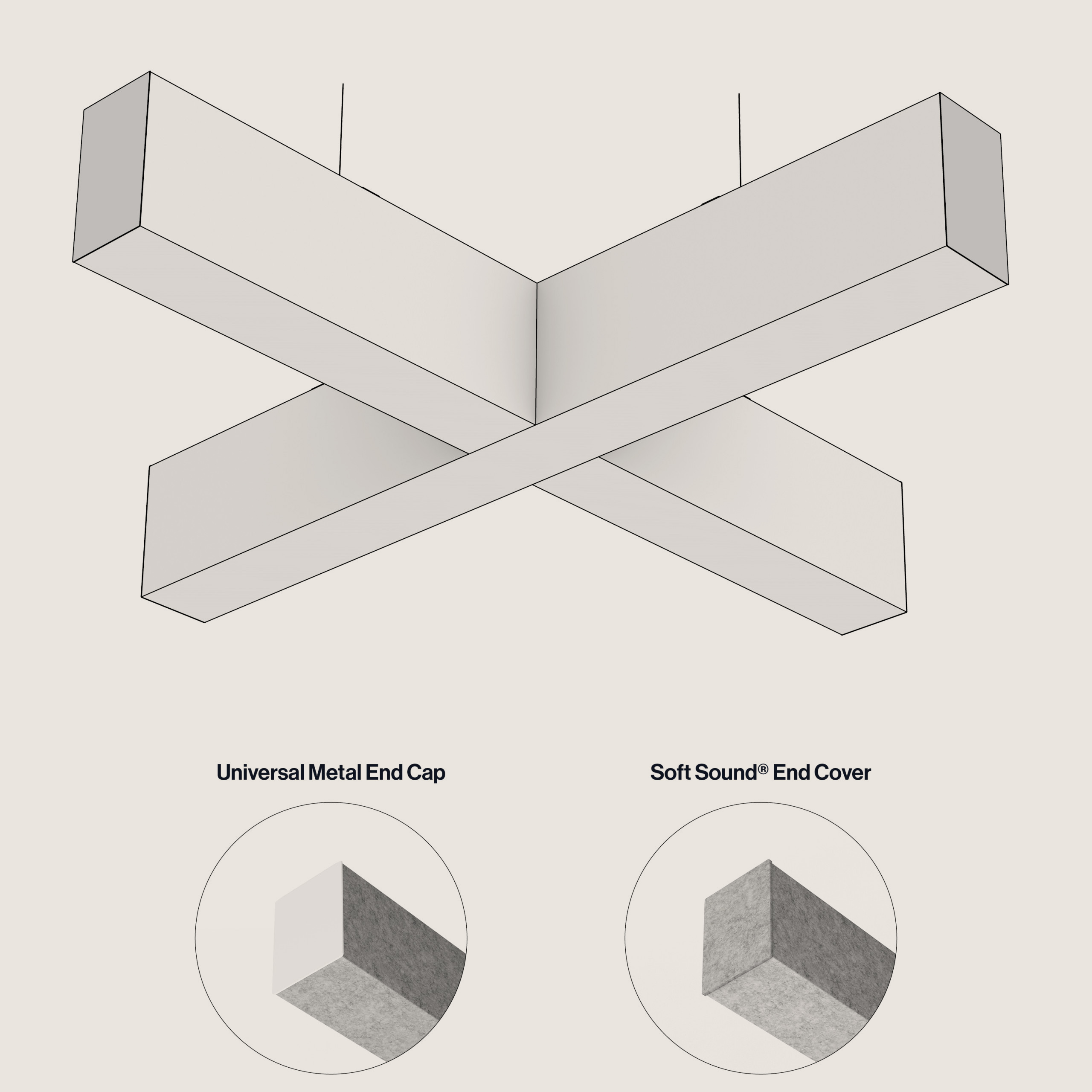

    • Standard Module

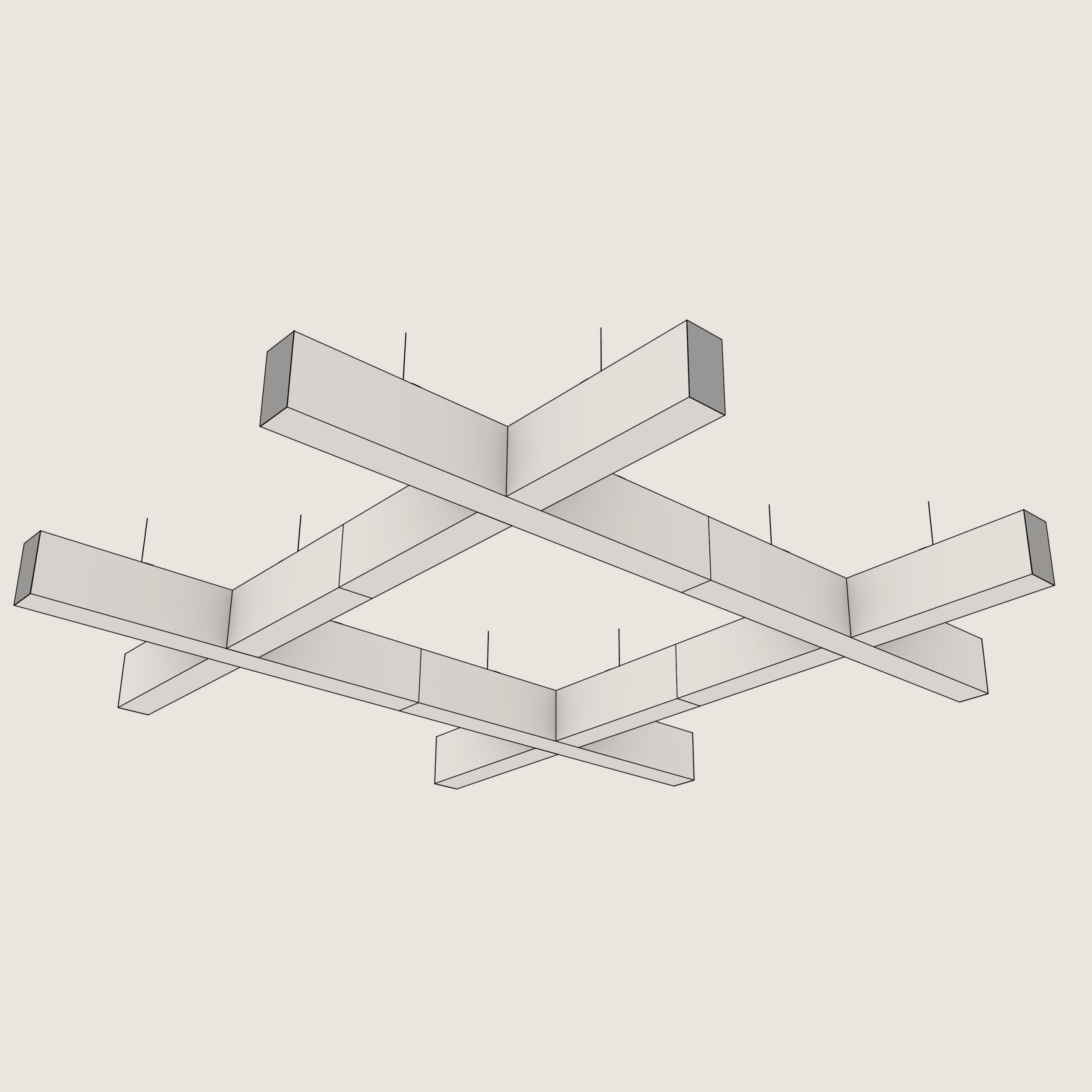

    • Multiple Modules

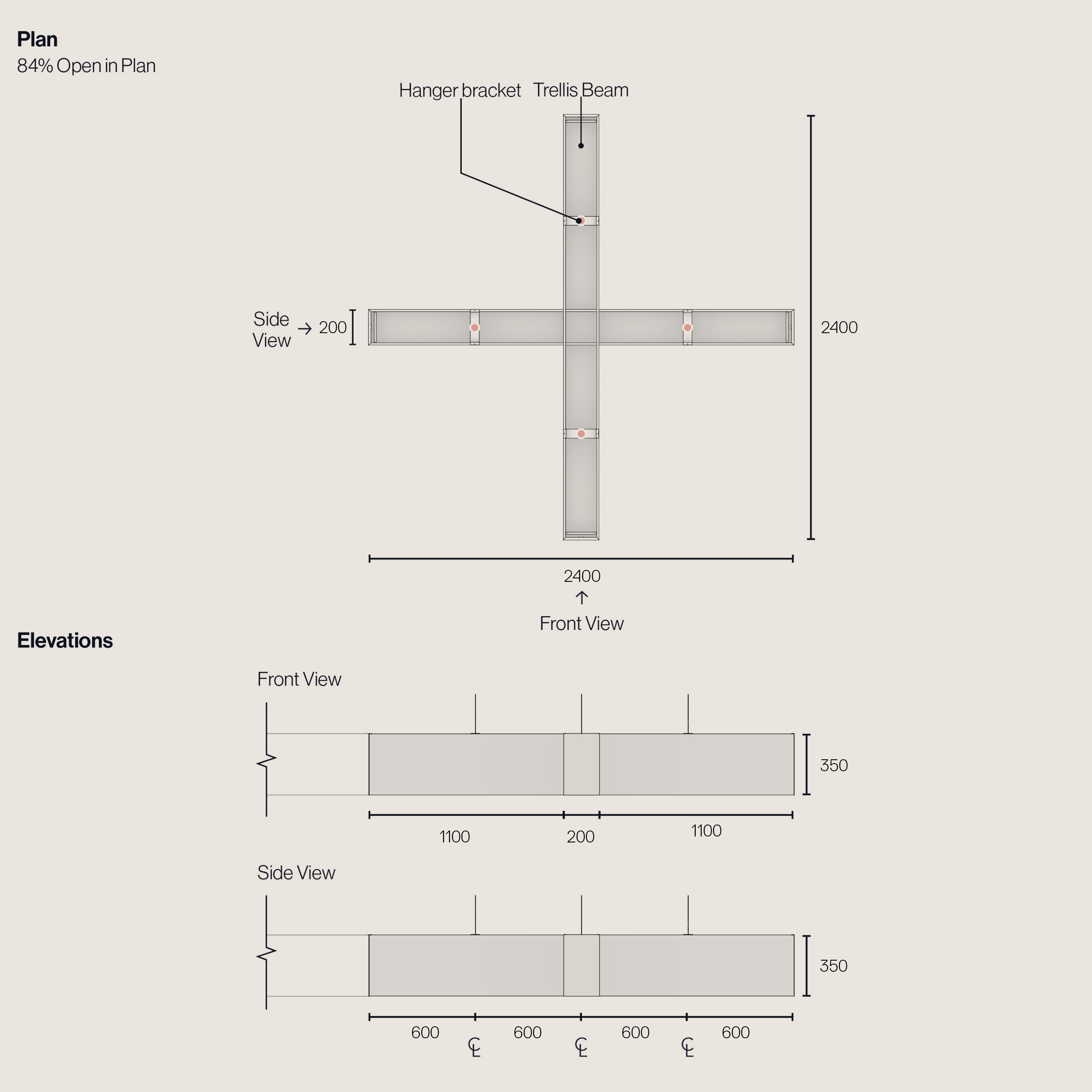

    • Understanding the Module

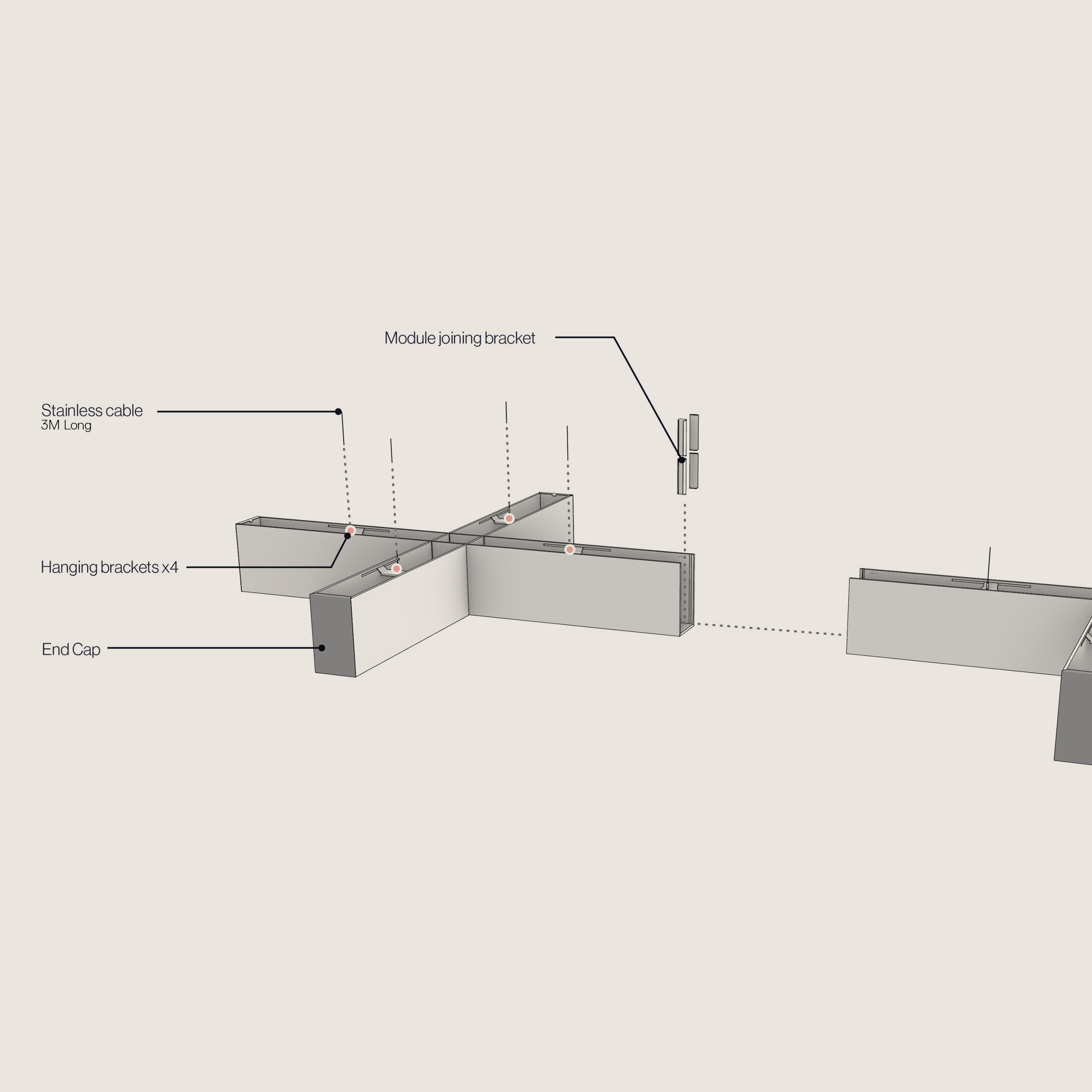

    • Attachment & Install

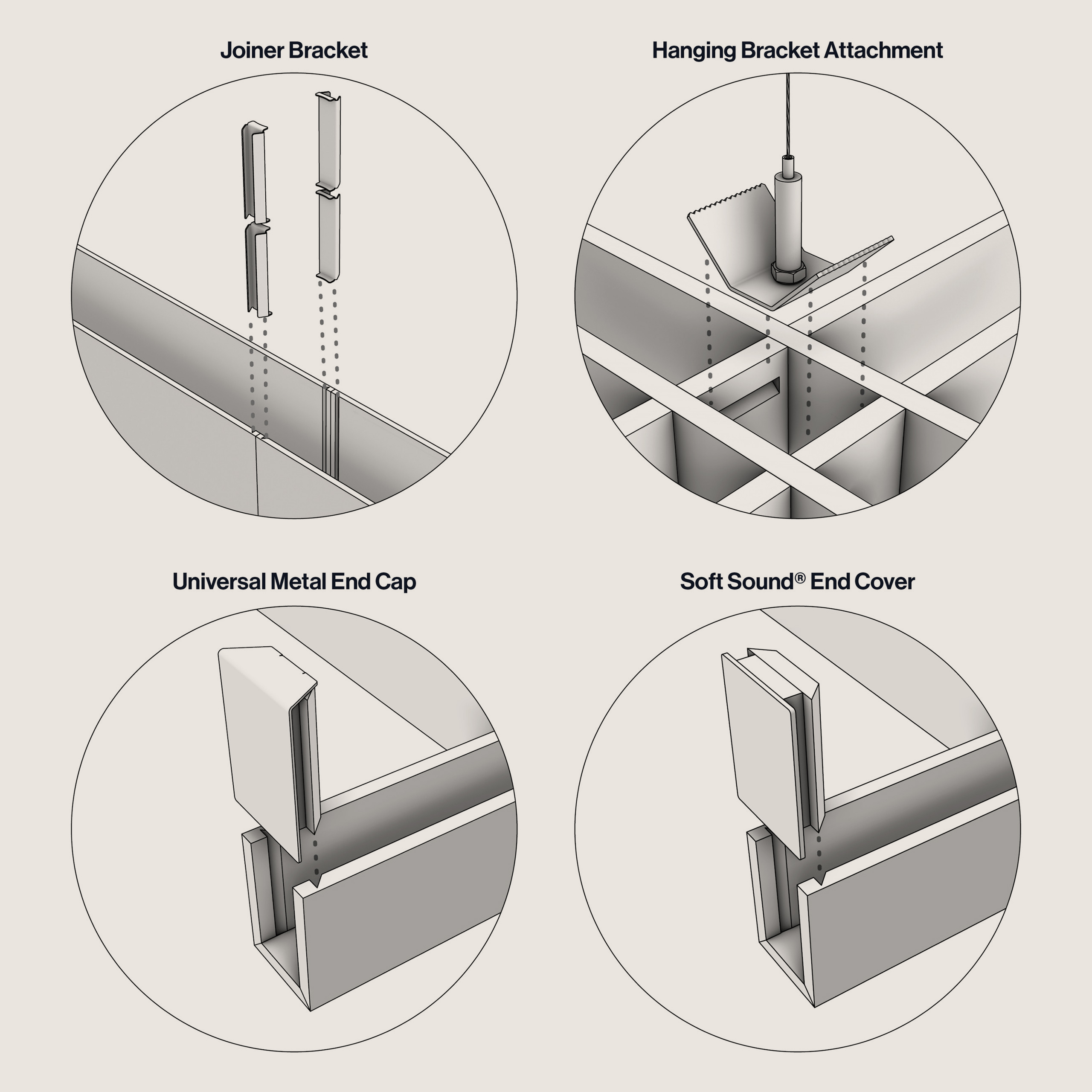

    • Edge & Attachment Details

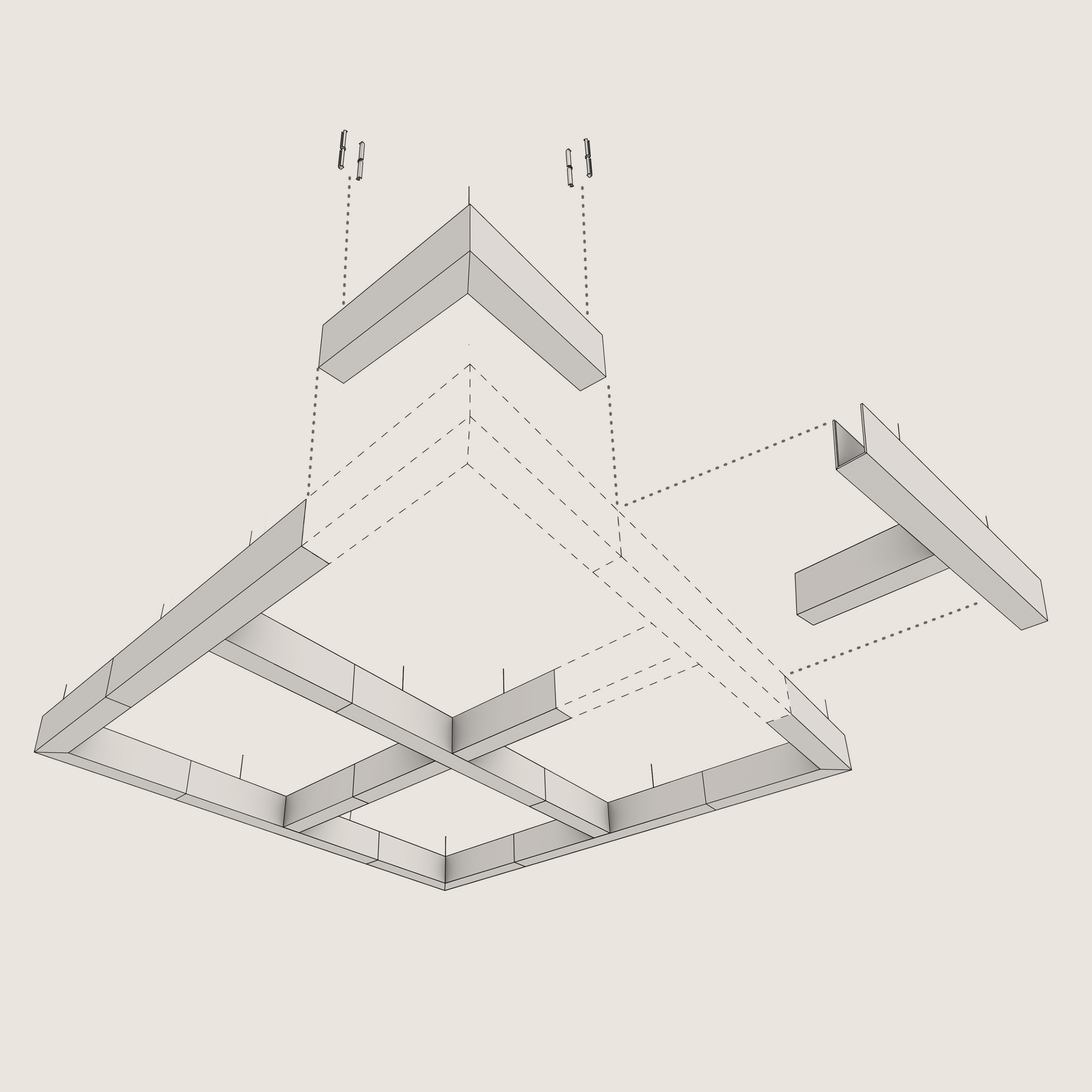

    • Accessory Option - Closure Beams

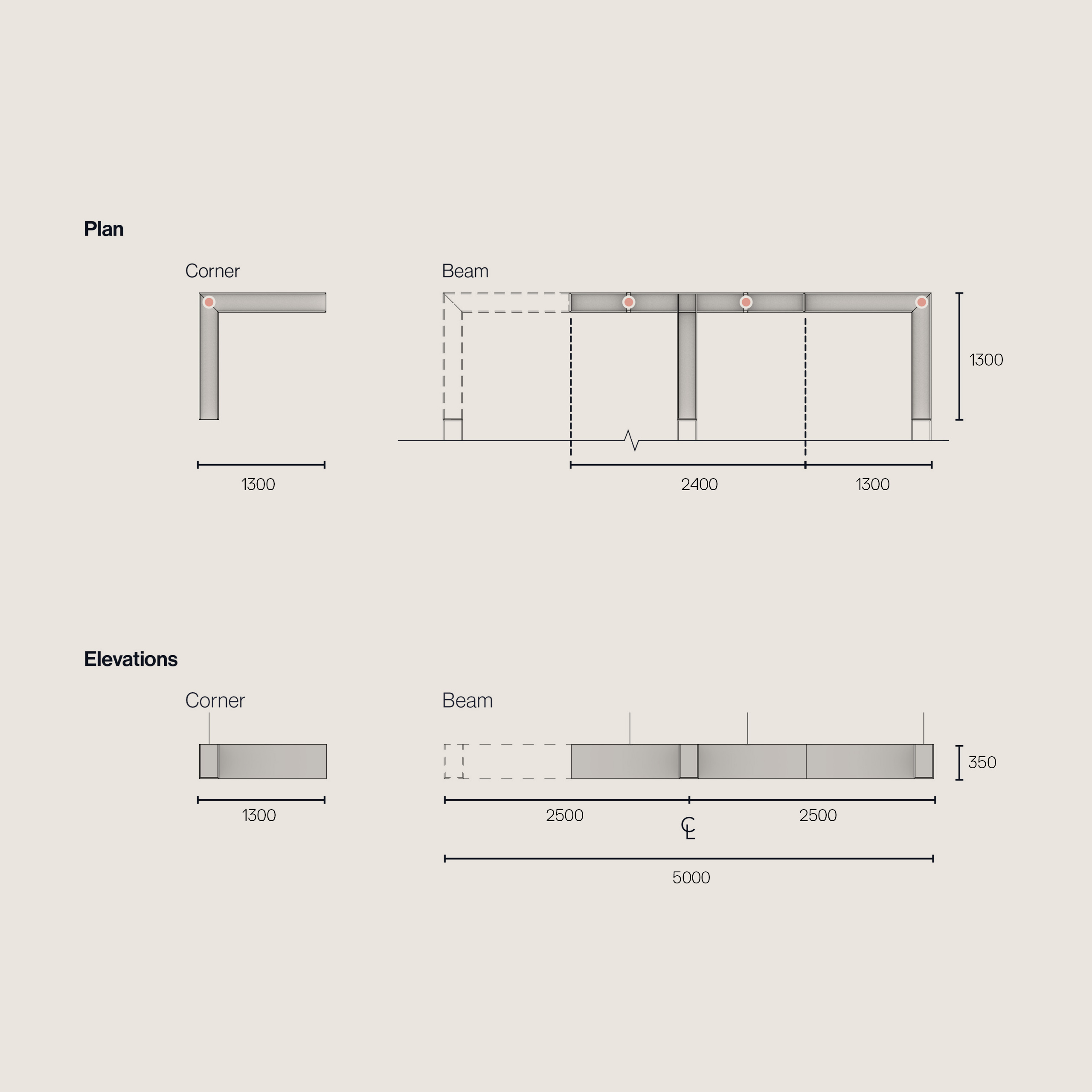

    • Closure Beams - Plan & Elevations

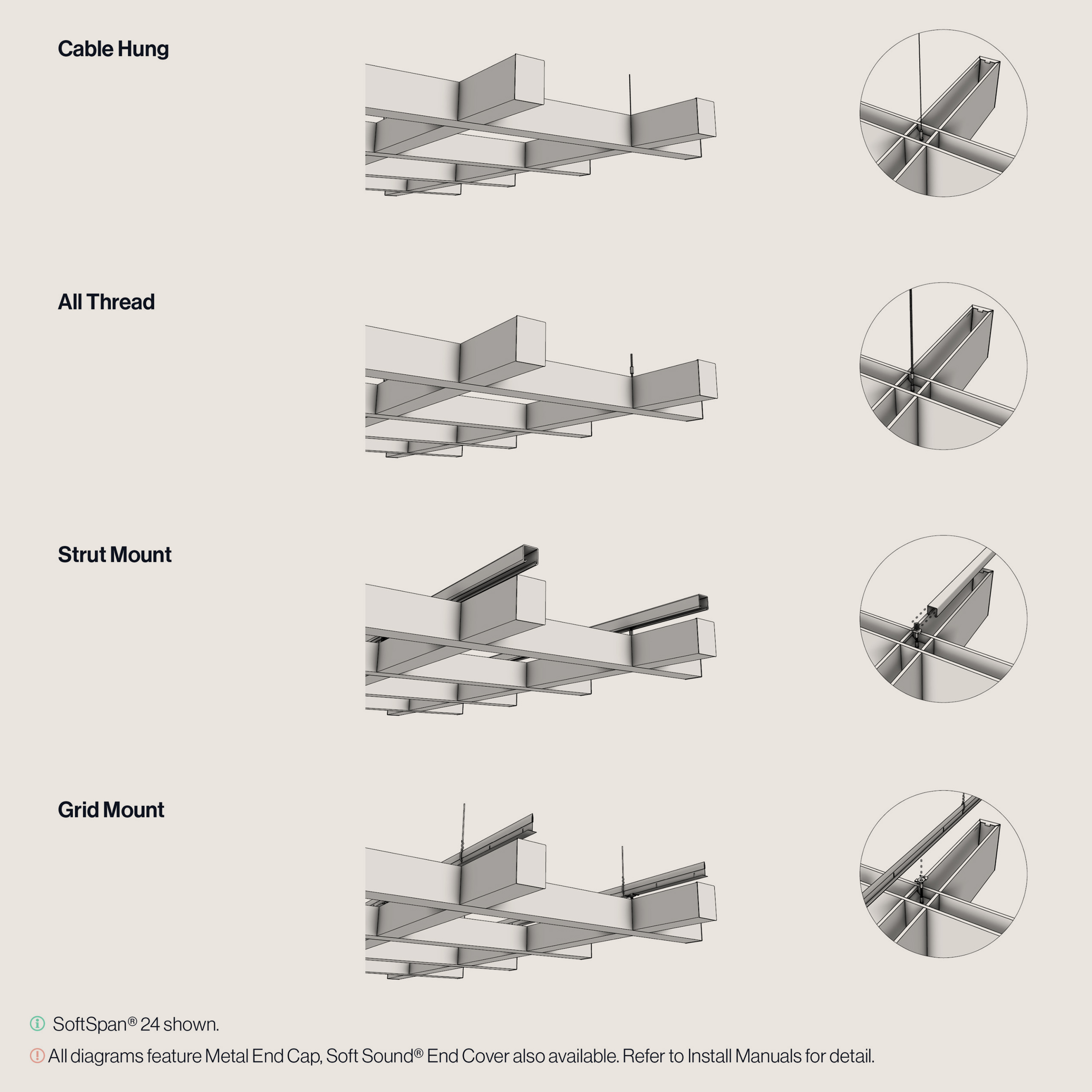

    • Multiple Attachment Options

  3. Sustainability and Certification
    • 488-2928

      Each module is made from a minimum of 488 recycled water bottles, depends on size and configuration.

    • Cradle to Cradle®

      Bronze Status Pending

    • 100%

      Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)

    • Declare

      Red list free

Materials and Finishes

  1. Materials and Finishes

    CircuLUM™ Powder Coat Premium Metallic Finish

    • Chilled Champagne

      Chilled Champagne

    • Burnished Bronze

      Burnished Bronze

    CircuLUM™ Powder Coat Standard Finish

    • Brilliant White (Gloss) (RAL9010)

      Brilliant White (Gloss) (RAL9010)

    • NOWN White (Matte) (RAL9016)

      NOWN White (Matte) (RAL9016)

    • T-Grid White (Matte) (RAL9003)

      T-Grid White (Matte) (RAL9003)

    • Silver Metallic (Semi Gloss) (RAL9006)

      Silver Metallic (Semi Gloss) (RAL9006)

    • Jet Black (Matte) (RAL9005)

      Jet Black (Matte) (RAL9005)

    • Aviator Gray (Gloss) (RAL7035)

      Aviator Gray (Gloss) (RAL7035)

    • Aviator Gray (Matte) (RAL7035)

      Aviator Gray (Matte) (RAL7035)

    • Steel Gray (RAL7046)

      Steel Gray (RAL7046)

    • Shadow (RAL7024)

      Shadow (RAL7024)

    • Midnight (RAL7021)

      Midnight (RAL7021)

    • Coffee (RAL8014)

      Coffee (RAL8014)

    • Raw Umber (RAL8007)

      Raw Umber (RAL8007)

    • Caramel (RAL8001)

      Caramel (RAL8001)

    • Sandstone (RAL1019)

      Sandstone (RAL1019)

    • Oat (RAL1001)

      Oat (RAL1001)

    • Sunflower (RAL1003)

      Sunflower (RAL1003)

    • Torch (RAL2009)

      Torch (RAL2009)

    • Spirit Red (Matte) (RAL3001)

      Spirit Red (Matte) (RAL3001)

    • Azure (RAL5003)

      Azure (RAL5003)

    • Blue Steel (RAL5010)

      Blue Steel (RAL5010)

    • Forest Green (RAL6001)

      Forest Green (RAL6001)

    Soft Sound® Color Group A

    • White

      White

    • Snow

      Snow

    • Marble

      Marble

    • Heather Gray

      Heather Gray

    • Graphite

      Graphite

    • Carbon

      Carbon

    • Onyx

      Onyx

    • Apple

      Apple

    • Tangerine

      Tangerine

    • Lemon

      Lemon

    • Taupe

      Taupe

    • Sand

      Sand

    • Kiwi

      Kiwi

    • Whisper

      Whisper

    • Sky Blue

      Sky Blue

    • Denim

      Denim

    • Absinthe

      Absinthe

    • Abyss

      Abyss

    • Azore

      Azore

    • Mars

      Mars

    • Macchiato

      Macchiato

    Soft Sound® Wood Texture

    • Gray Ash

      Gray Ash

    • White Oak

      White Oak

    • Golden Oak

      Golden Oak

    • Oak

      Oak

    • American Walnut

      American Walnut

    • Charred Oak

      Charred Oak

    • Charred Ash

      Charred Ash

    • Ebony

      Ebony
