About SoundBar®

SoundBar® acoustical baffle & lighting system delivers high performance noise reduction and sleek integrated illumination in a single cost-effective, versatile product. Choose from an assortment of lengths, widths, and depths, in Up or Down lighting configurations, with power integrated into its suspension cable, simplifying install and removing the unsightly clutter of cords. Its NOWN Soft Sound® acoustical material construction makes SoundBar® capable of achieving NRC ratings of up to 1.15. Units are available in a wide range of colors, including wood textures, and can be easily mixed and arranged as desired to achieve an endless array of dynamic layouts. SoundBar® now also offers interconnectivity with SoftSpan® 24, 48, and 48A, to create unique configurations that utilize both acoustic and illuminated solutions, bringing an impactful combination of style & function to your next project.

Key Features

  1. Reduce Noise & Enhance Acoustics

    SoundBar®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Its material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  2. Integrated Lighting Options

    SoundBar® offers 2 lighting options, Up and Down, allowing you to illuminate spaces in a variety of functional and decorative ways.

  3. Versatile Endcaps & Universal Joiner Bracket

    Choose end caps that blend with your color choice or choose a color scheme that works with the branding of the space. Combine SoundBars with joiner brackets, resulting in a seamless acoustic beam.

  4. Range of Profiles & Expanding Soft Sound® Library

    SoundBar® is available in a range of lengths, widths, and configurable options, giving you complete design flexibility in any space.

  5. Minimal Hanging & Power Hardware

    SoundBar® reduces the visual clutter of hanging and lighting cables with one powered cable on each end.

  6. Compatible with SoftSpan®

    SoundBar® offers connectivity with SoftSpan® 24, 48, and 48A modules and perimeter and corner beams to create a multitude of unique layouts with visual continuity across as space.

Product Details

  1. Specifications

    Dimensions

    3" Width
    • Heights: 100, 150, & 250.5

    • Lengths: 600, 900, 1200, 1500, 1800, 2100, 2400

    4" Width
    • Heights: 150 & 250.5

    • Lengths: 600, 900, 1200, 1500, 1800, 2100, 2400

    System Specs

    Material
    • 12mm Soft Sound® (PET)

    Fire Rating
    • ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0

    Acoustics
    • True NRC® 1.15: SoundBar® (4"x10"x96") 6" O.C ; F-100 Method

    • True NRC® 0.90: SoundBar® (4"x10"x96") 12" O.C ; F-100 Method

    • True NRC® 0.55: SoundBar® (3"x4"x96") 6" O.C ; F-100 Method

    • True NRC® 0.40: SoundBar® (3"x4"x96") 12" O.C ; F-100 Method

    • True NRC® 0.60: SoundBar® (4"x10"x108") 12" O.C ; E300 Method

    • True NRC® 0.50: SoundBar® (3"x6"x108") 12" O.C ; E300 Method

    Attachment Method
    • 1/16" Stainless Cable and Hardware

    Accessibility
    • Yes, quick release cables

  2. Product Diagrams

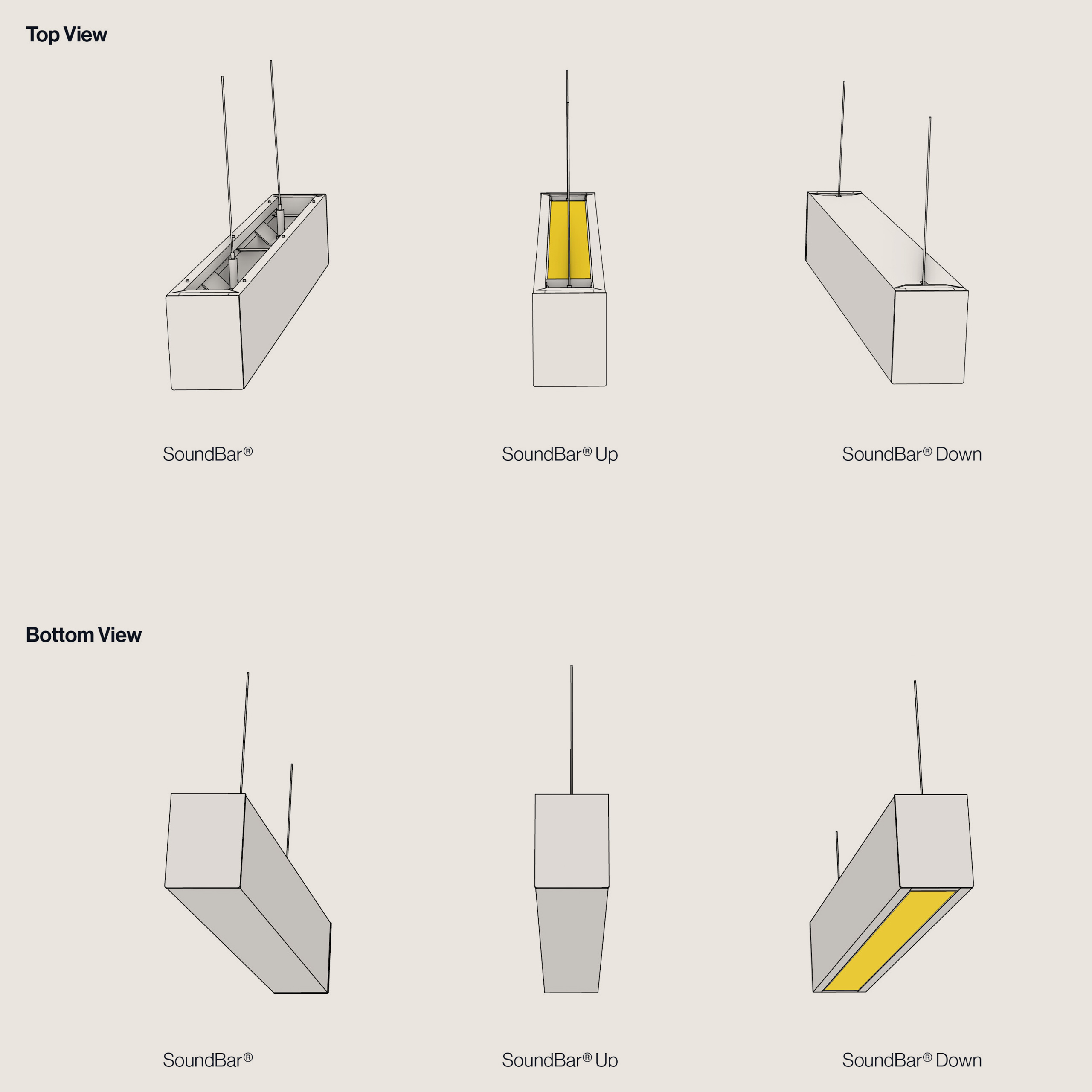

    • Standard Configurations

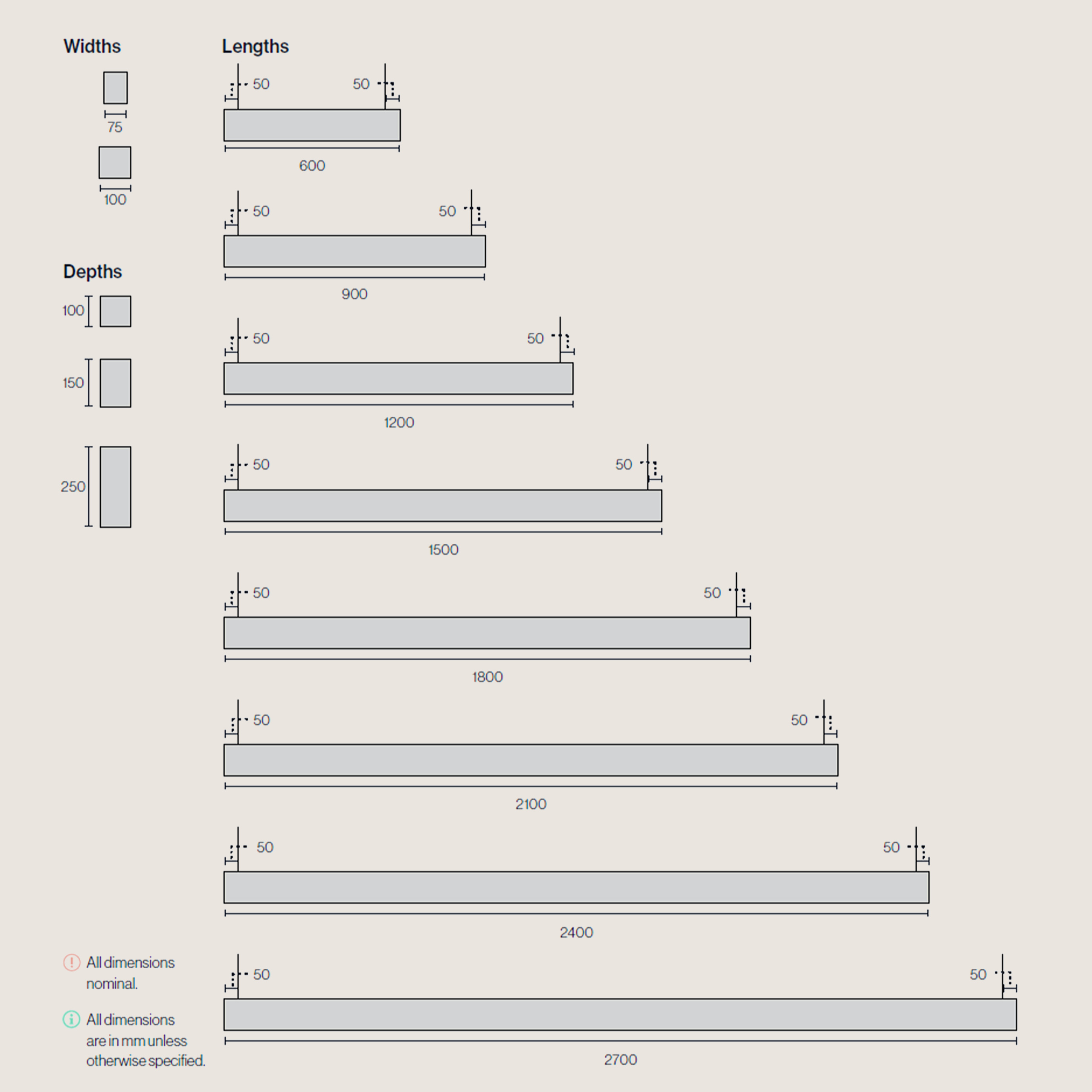

    • Dimensions

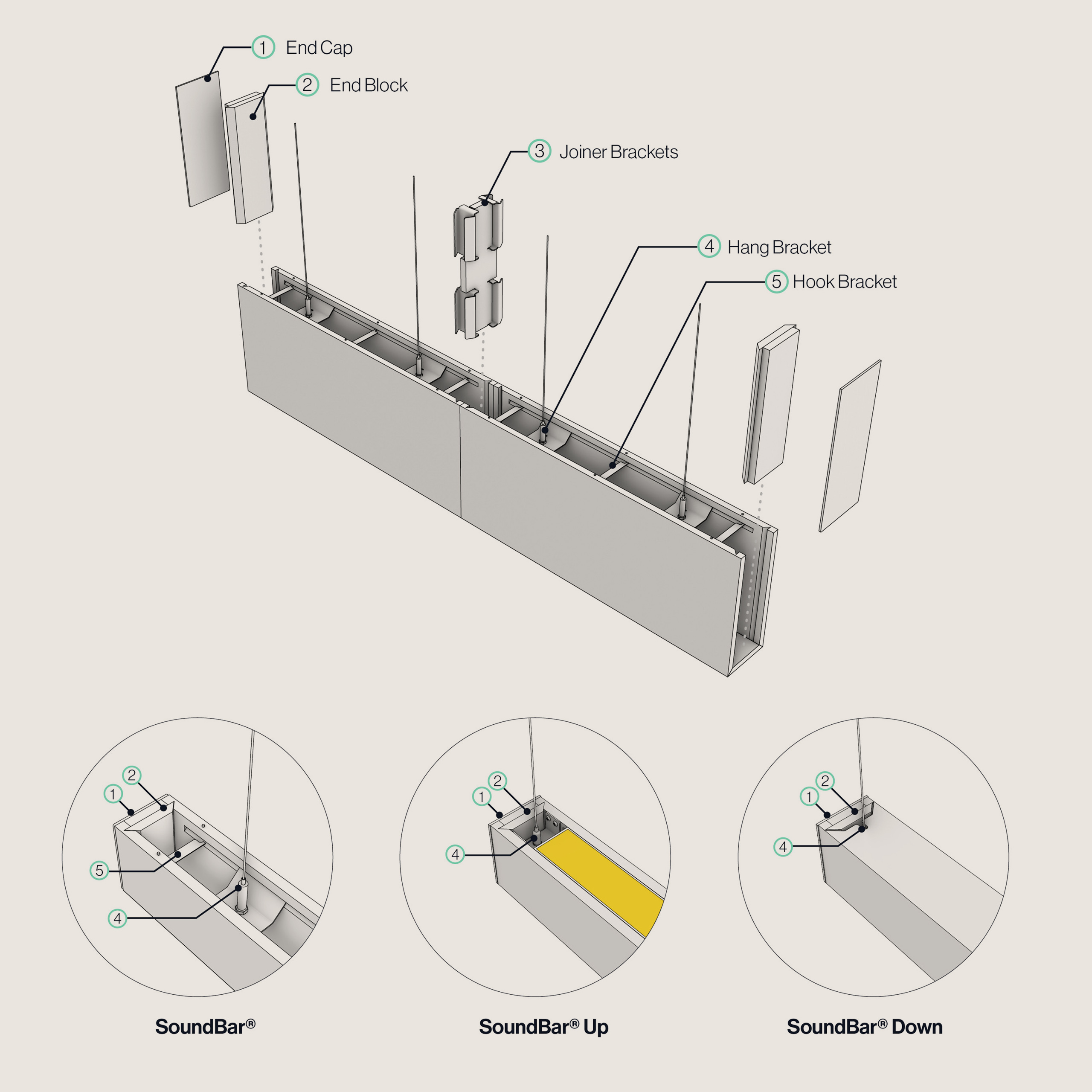

    • Attachment Details

    • Attachment Details - With Lights

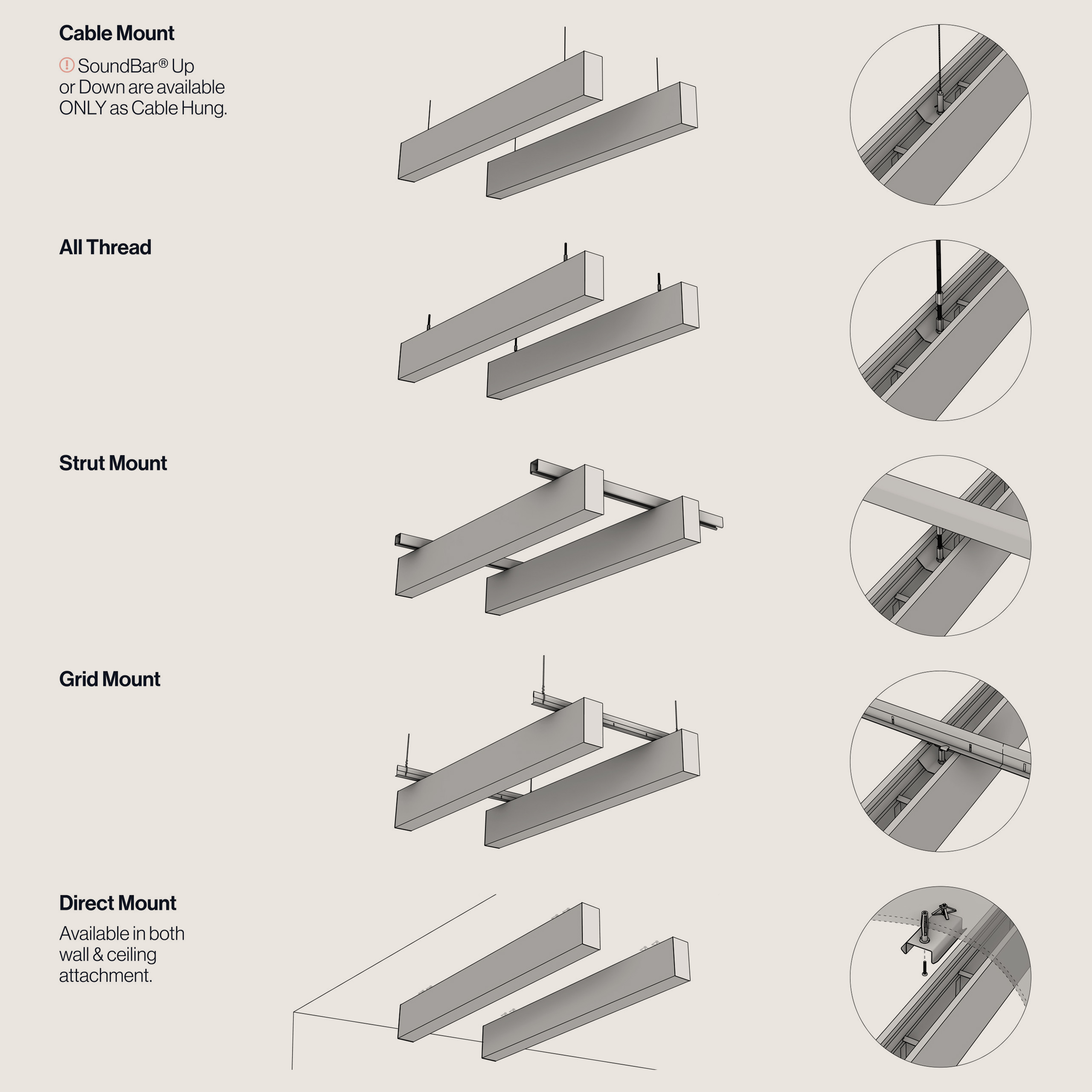

    • Multiple Attachment Options

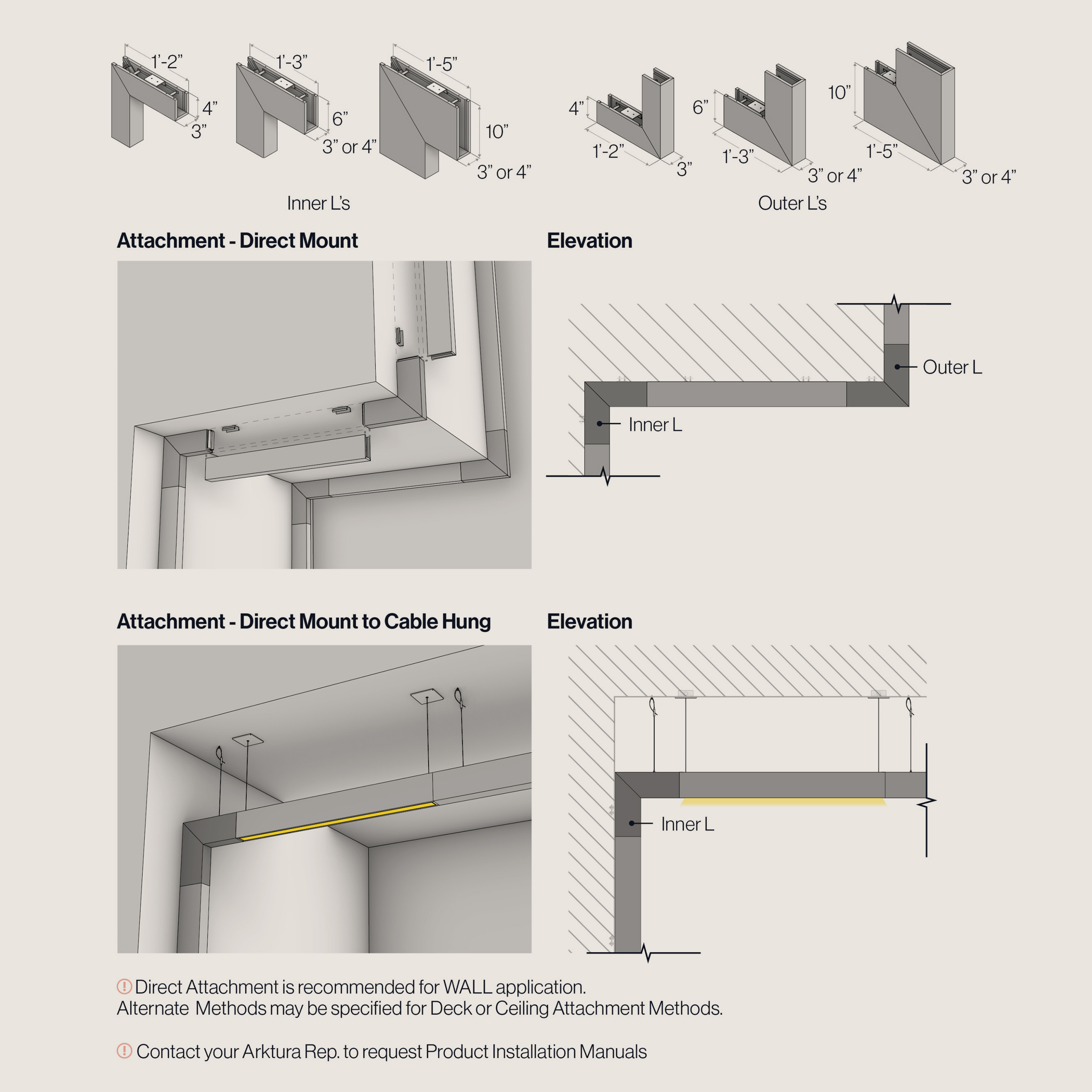

    • Inner L and Outer L

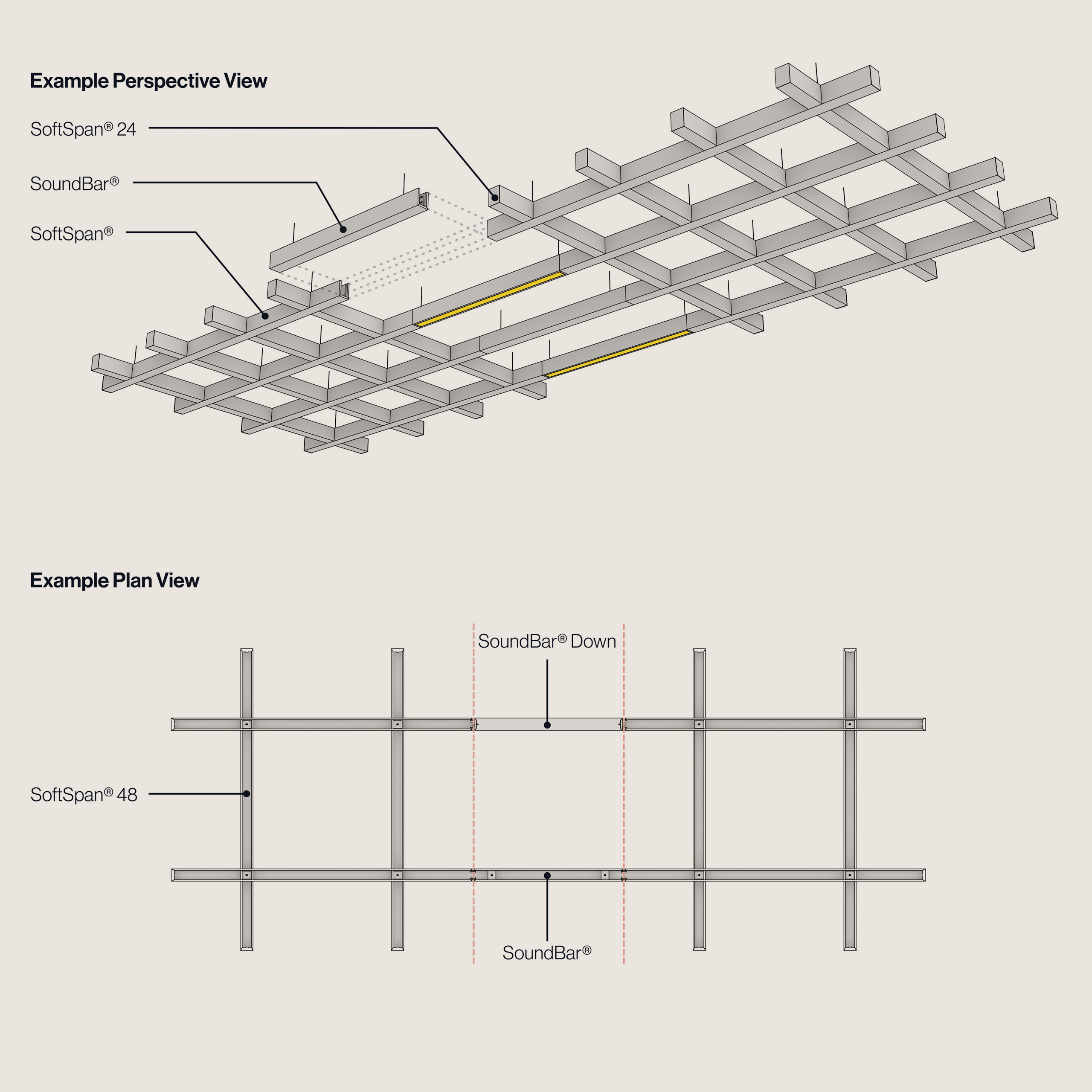

    • Connectivity with SoftSpan®

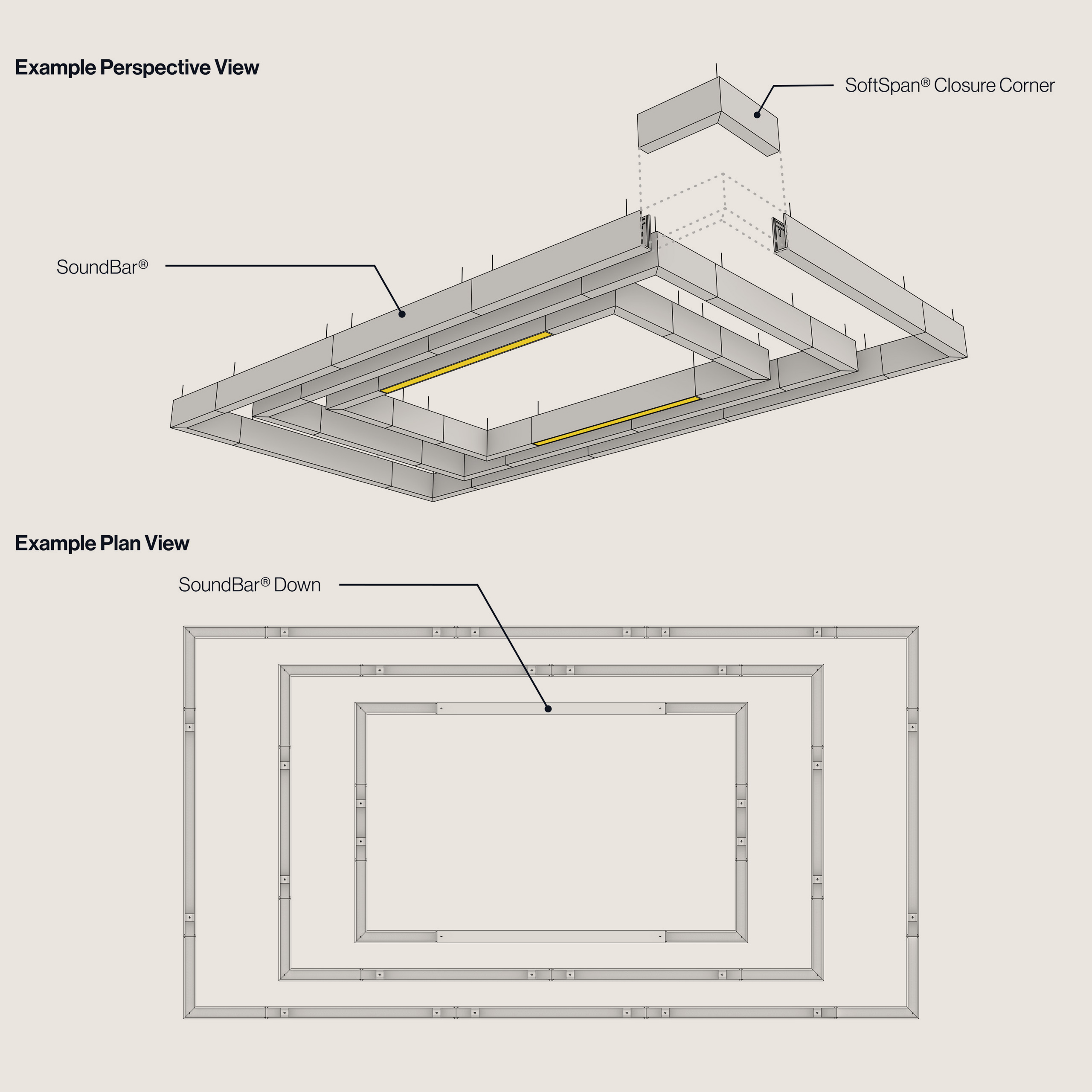

    • SoftSpan® Closure Corner

  3. Sustainability and Certifications
    • 88 / 50

      Each module is made from 88 recycled water bottles with an acoustic backer made of 50 recycled water bottles.

    • Cradle to Cradle®

      Bronze Status Pending

    • 100%

      Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)

    • Declare

      Red list free

Materials and Finishes

  1. Materials and Finishes

    Soft Sound® Color Group A

    • White

      White

    • Snow

      Snow

    • Marble

      Marble

    • Heather Gray

      Heather Gray

    • Graphite

      Graphite

    • Carbon

      Carbon

    • Onyx

      Onyx

    • Apple

      Apple

    • Tangerine

      Tangerine

    • Lemon

      Lemon

    • Taupe

      Taupe

    • Sand

      Sand

    • Kiwi

      Kiwi

    • Whisper

      Whisper

    • Sky Blue

      Sky Blue

    • Denim

      Denim

    • Absinthe

      Absinthe

    • Abyss

      Abyss

    • Azore

      Azore

    • Mars

      Mars

    • Macchiato

      Macchiato

    Soft Sound® Wood Texture

    • Gray Ash

      Gray Ash

    • White Oak

      White Oak

    • Golden Oak

      Golden Oak

    • Oak

      Oak

    • American Walnut

      American Walnut

    • Charred Oak

      Charred Oak

    • Charred Ash

      Charred Ash

    • Ebony

      Ebony
