Atmosphera® SWELL

Technical documents Get models Find an agent

Acoustic
Ceiling Baffles

SWELL’s smooth geometric forms transform your thoughts and space into a tranquil oceanside paradise. Swell’s gentle pattern adds excitement while capturing the aura of billowing clouds and the gentle swell of an active ocean. Perfect for a dramatic yet elegant design, Swell incorporates our Soft Sound® fins to a good job of quieting the noise of the waves lapping against the shore.

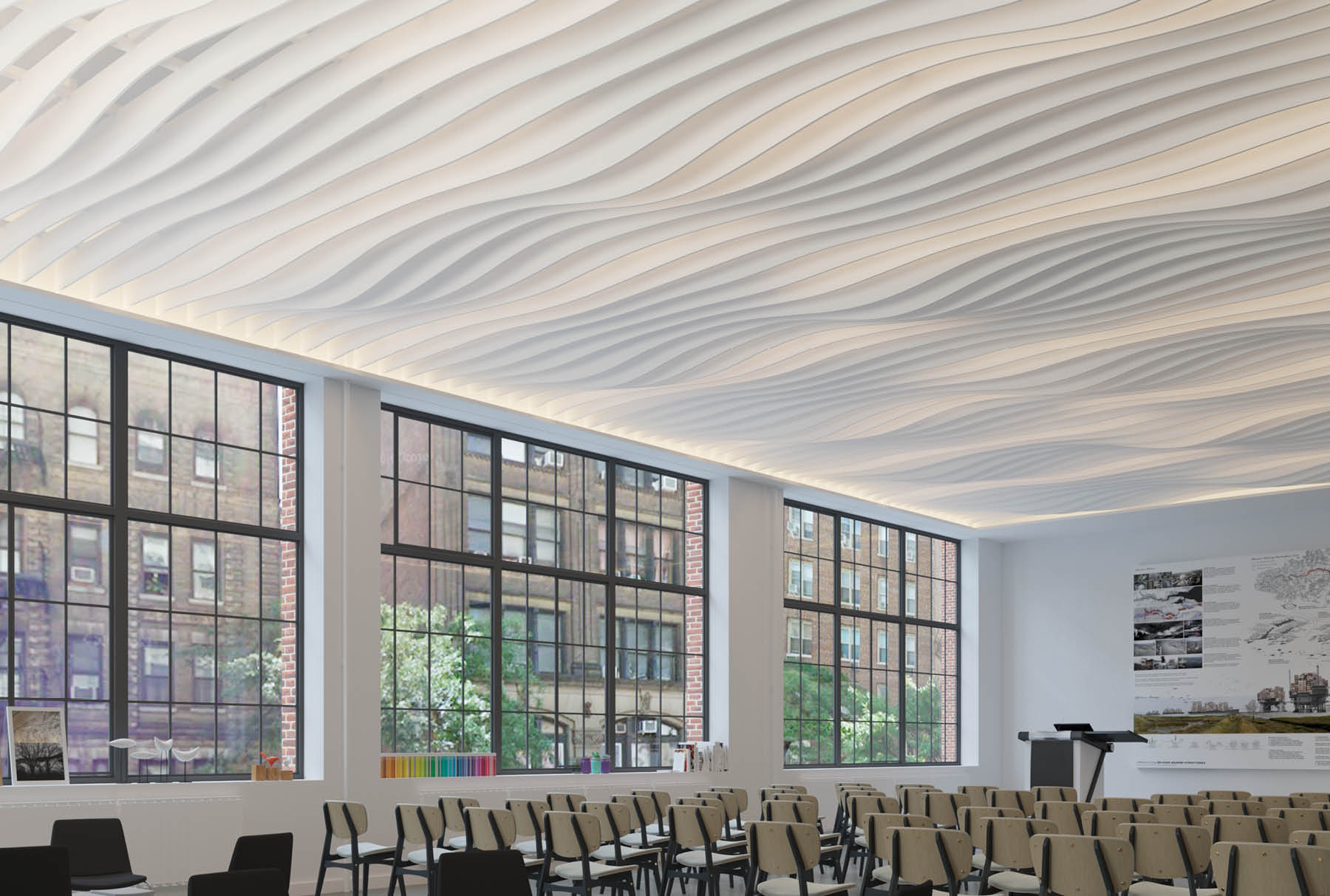

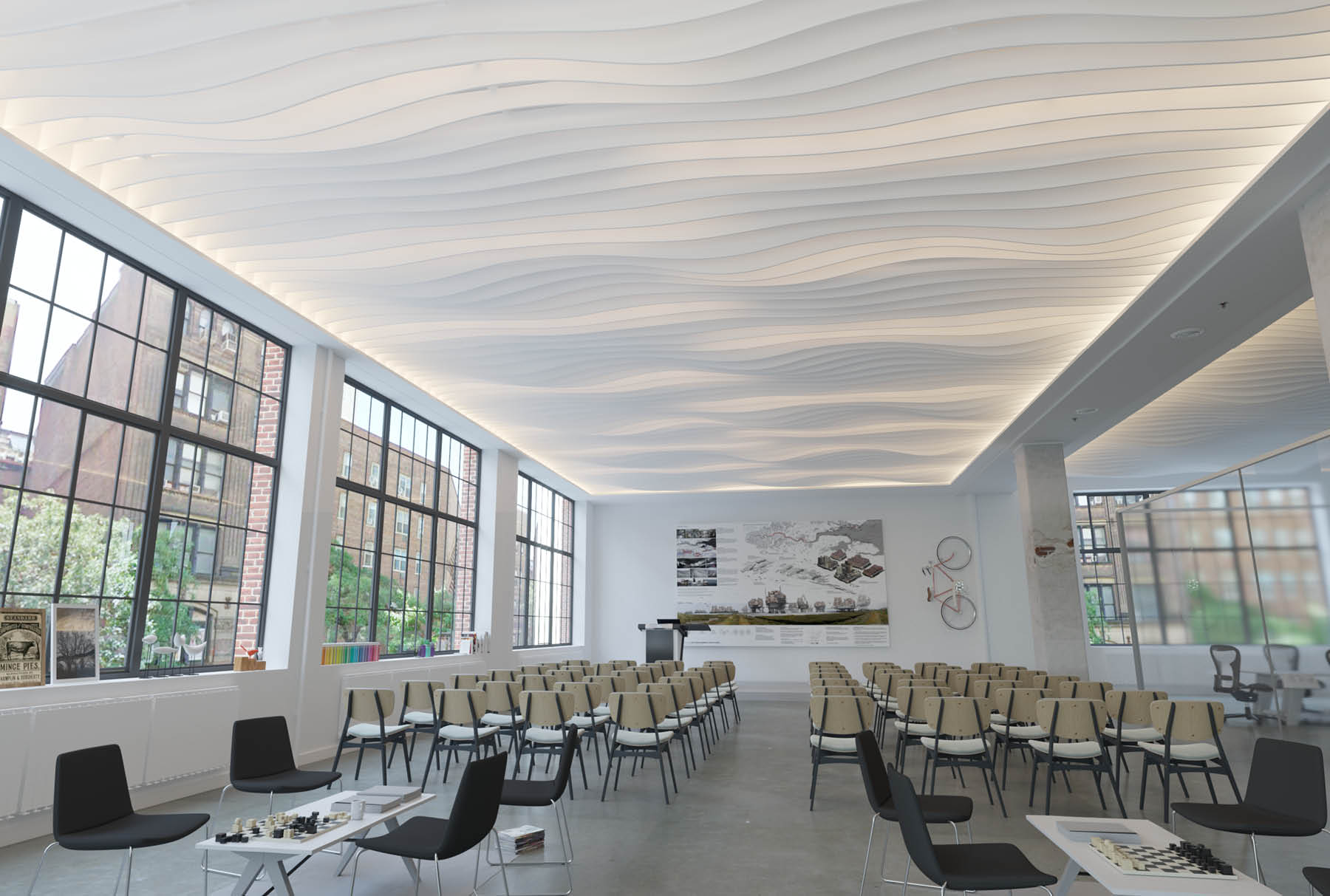

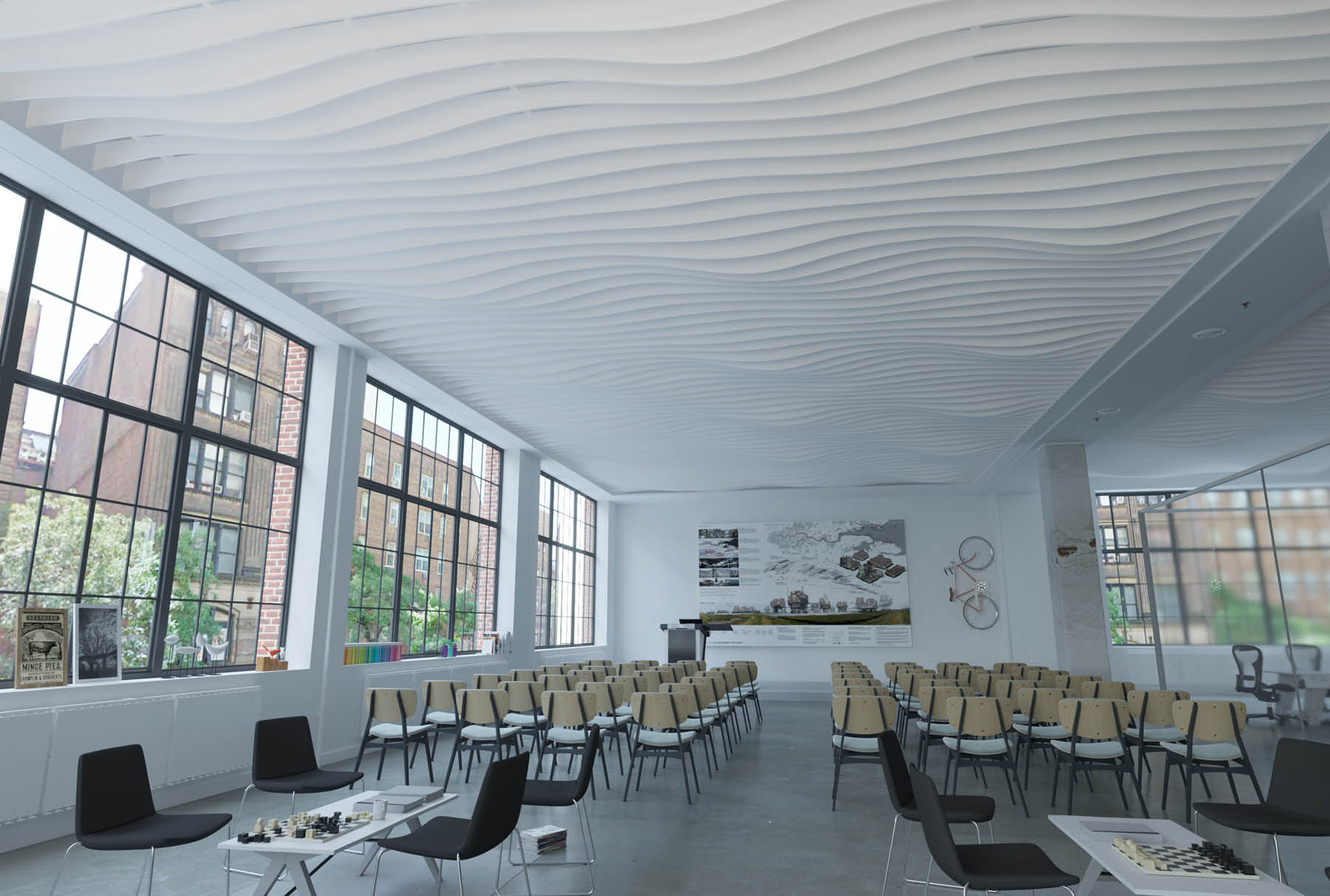

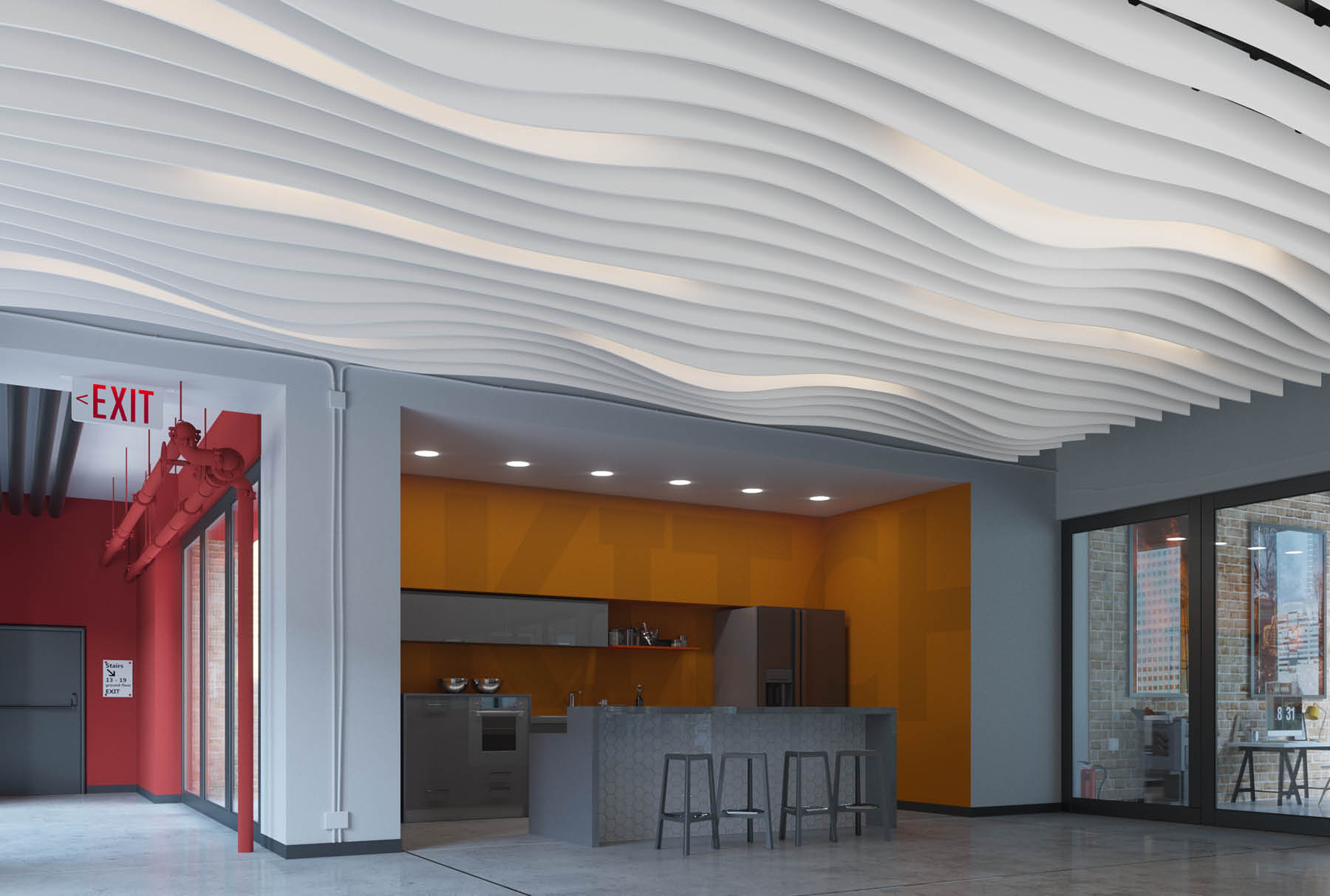

Atmosphera® SWELL in use

—

Key Features

Faster Shipping & Installation

Because they’re preconfigured, production starts as soon as you order. Once complete Atmosphera®’s easy-to-assemble modules are promptly shipped, helping you cut down installation times and meet your project deadlines.
Preconfigured Designs & Sizes

For a custom look without the custom price tag, pre-configured Atmosphera® modules offer innovative design impact with a quick and easy installation process. Achieve a cleaner design in a fraction of the time versus independently hung baffles.
Open Accessibility in Plan

Atmosphera®’s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.
Reduce Noise & Enhance Acoustics

Atmosphera®’s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. Atmosphera®’s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
Easily Field Modifiable

This system allows for some simple modification that can allow it to adapt to your space without having to design a custom system.
Continuous Straight Baffles

Utilizing a hidden fin and frame alignment system Atmosphera provides continuity in all directions across your space. Our custom formulated material thickness and density ensures rigidity that limits deflection.

Product Details

Specifications

Dimensions (WxLxD)

2120 x 2140 x 300 mm

Material

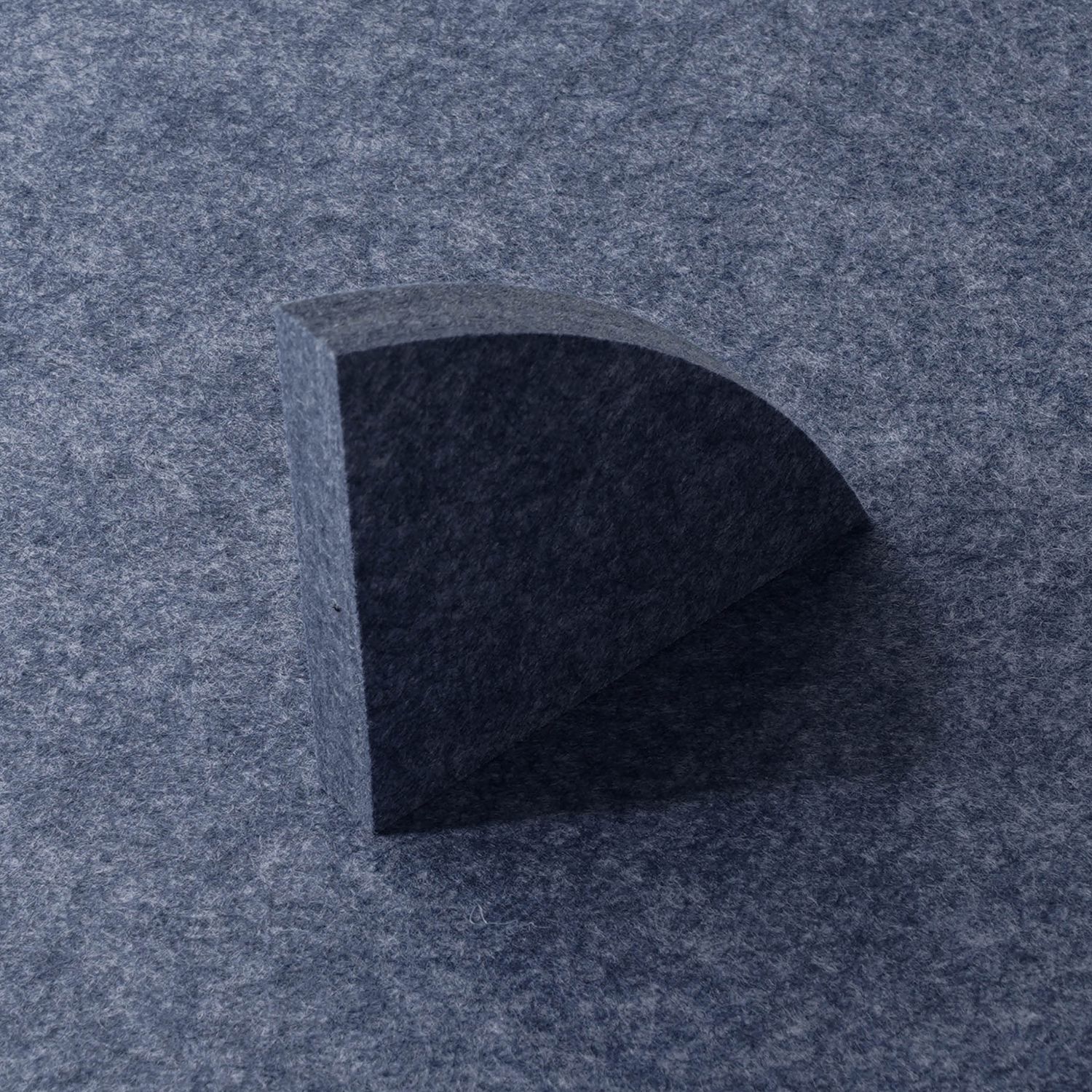

12mm Soft Sound® (PET)

Frame Material

Steel

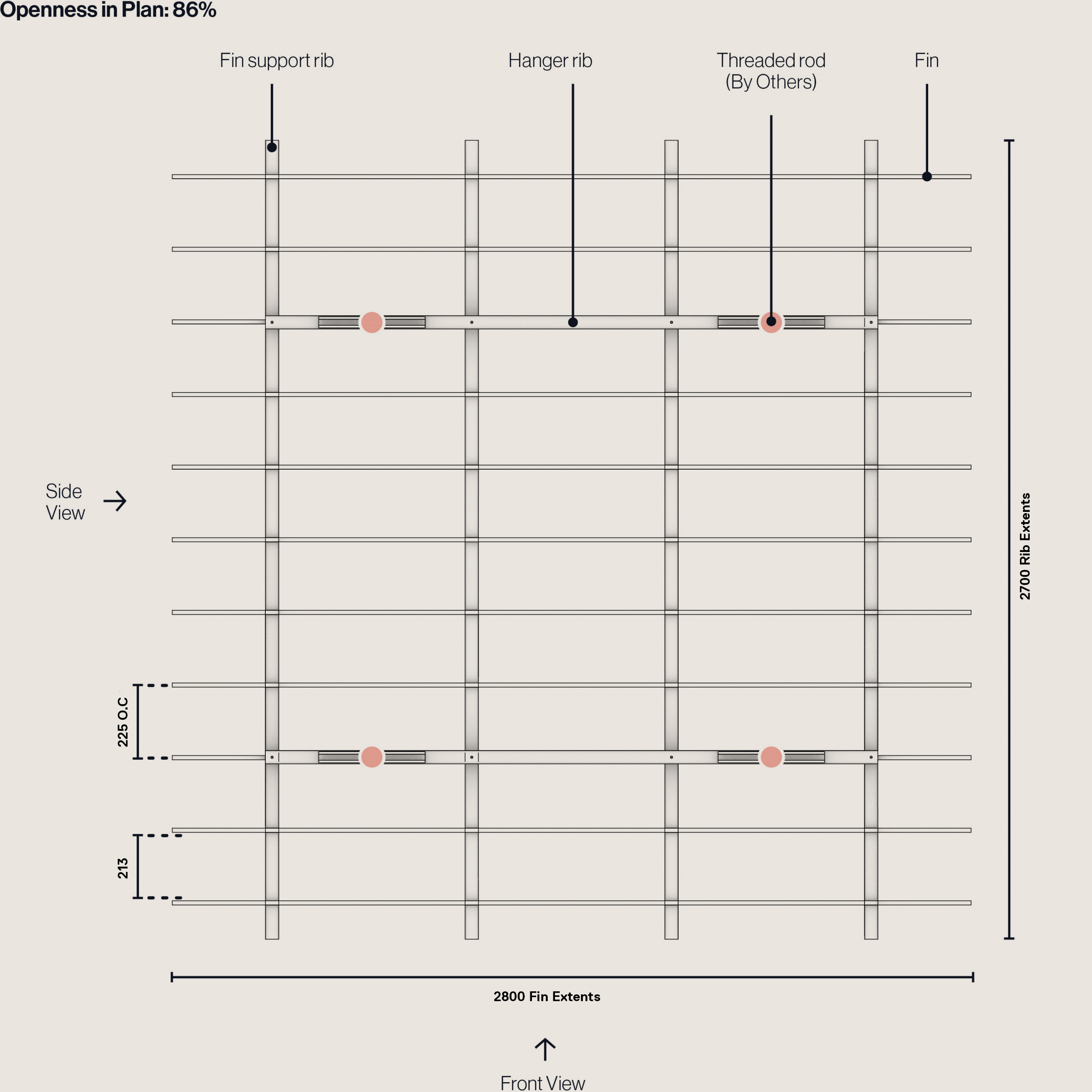

Openness in Plan

Fire Rating

ASTM E84 - Class A | UNE-EN 13501-1, B-s1,d0

Attachment Method

M10 Threaded Rod

Accessibility

Yes, removable Clips at Each Fin

Trimmability

Yes, per installation manual

Product Diagrams

Standard Module

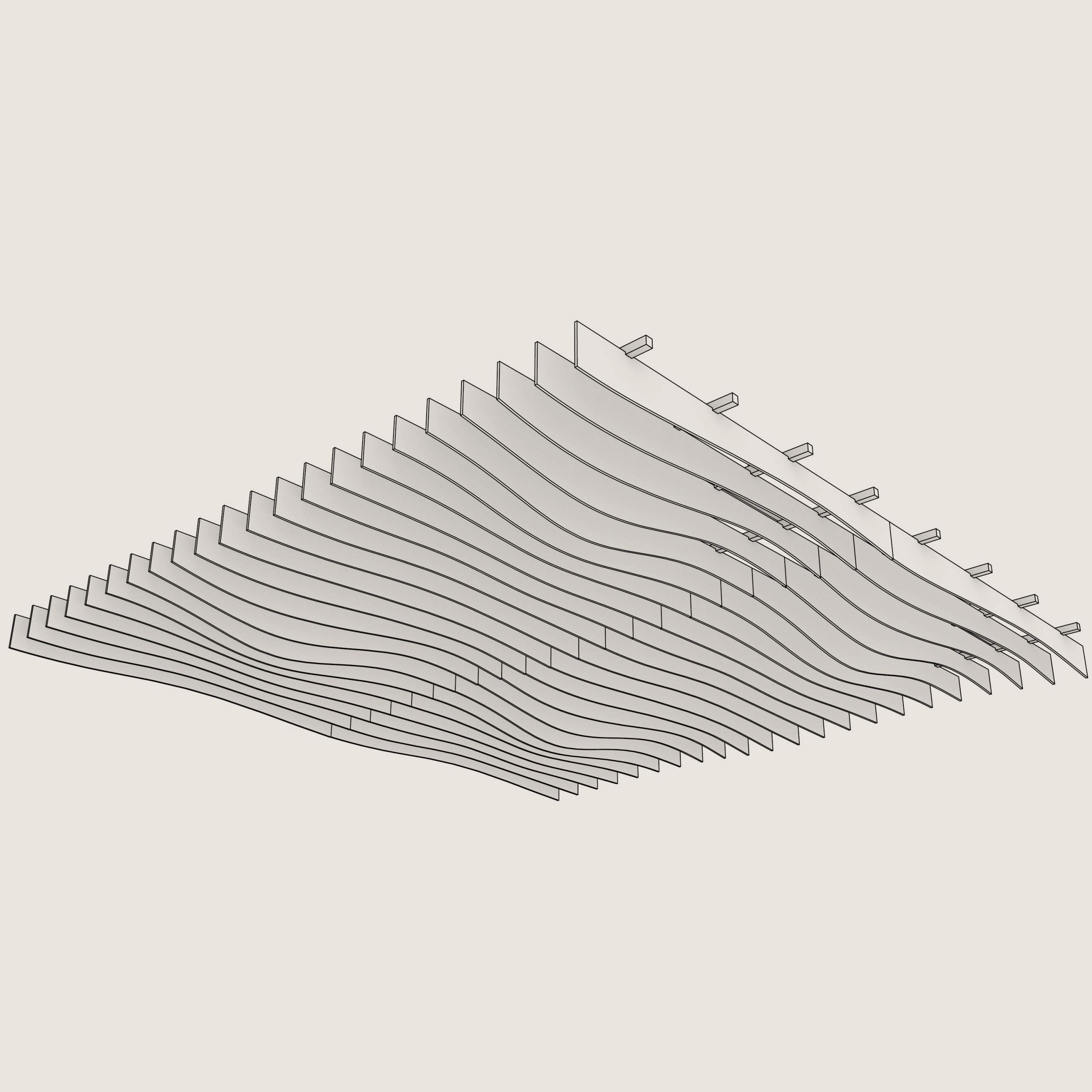

Designing with Modules

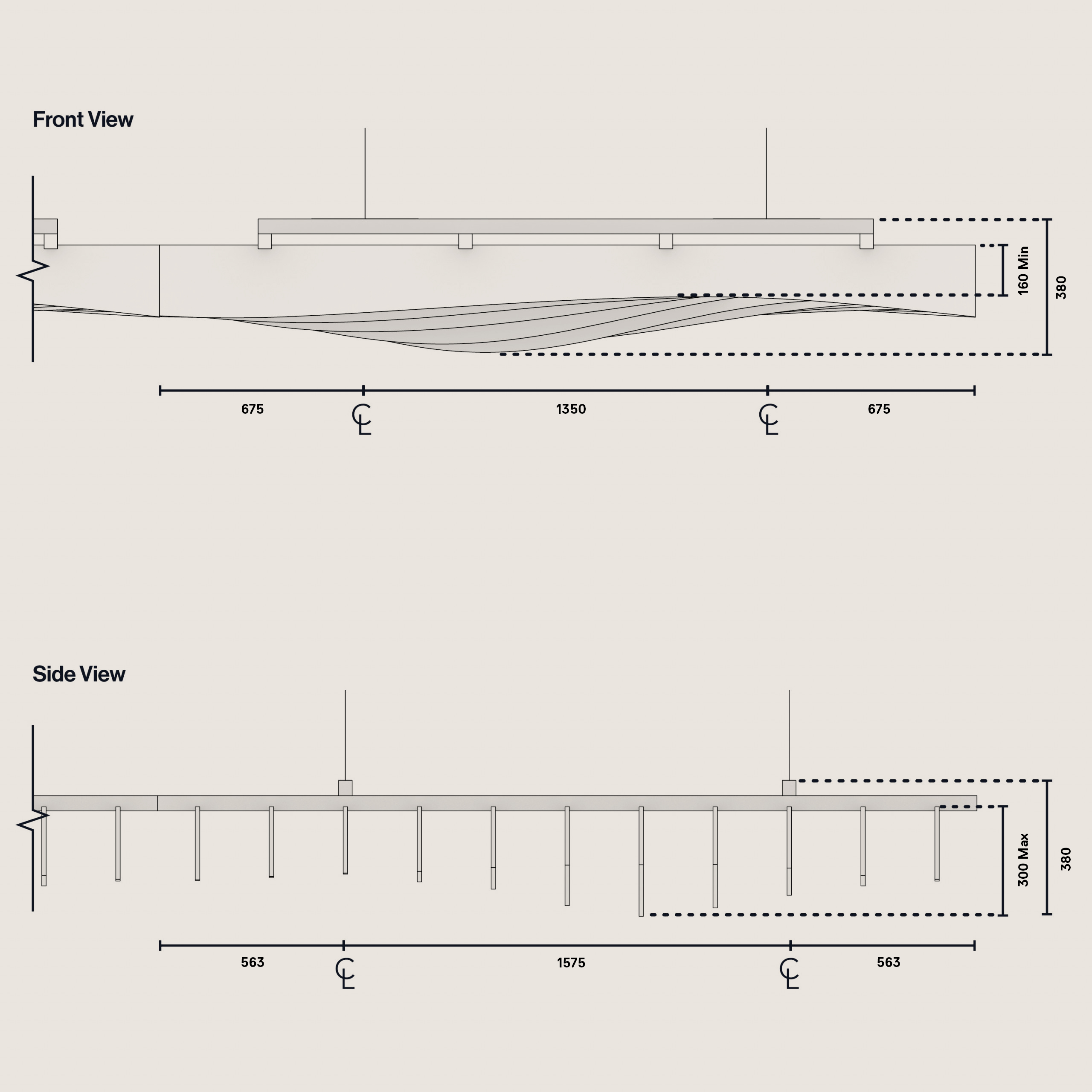

Understanding the Module

Understanding the Module 2

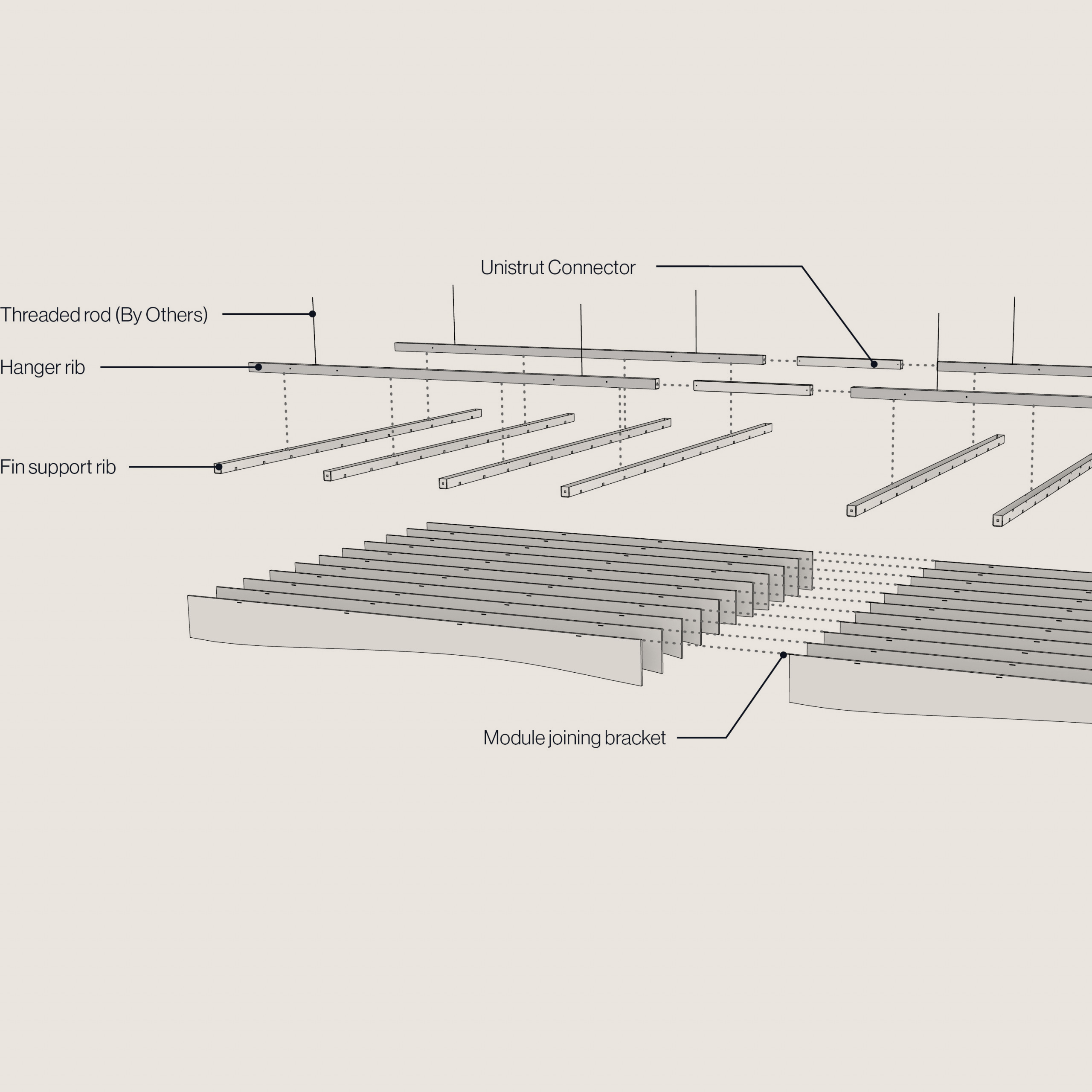

Attachment Details

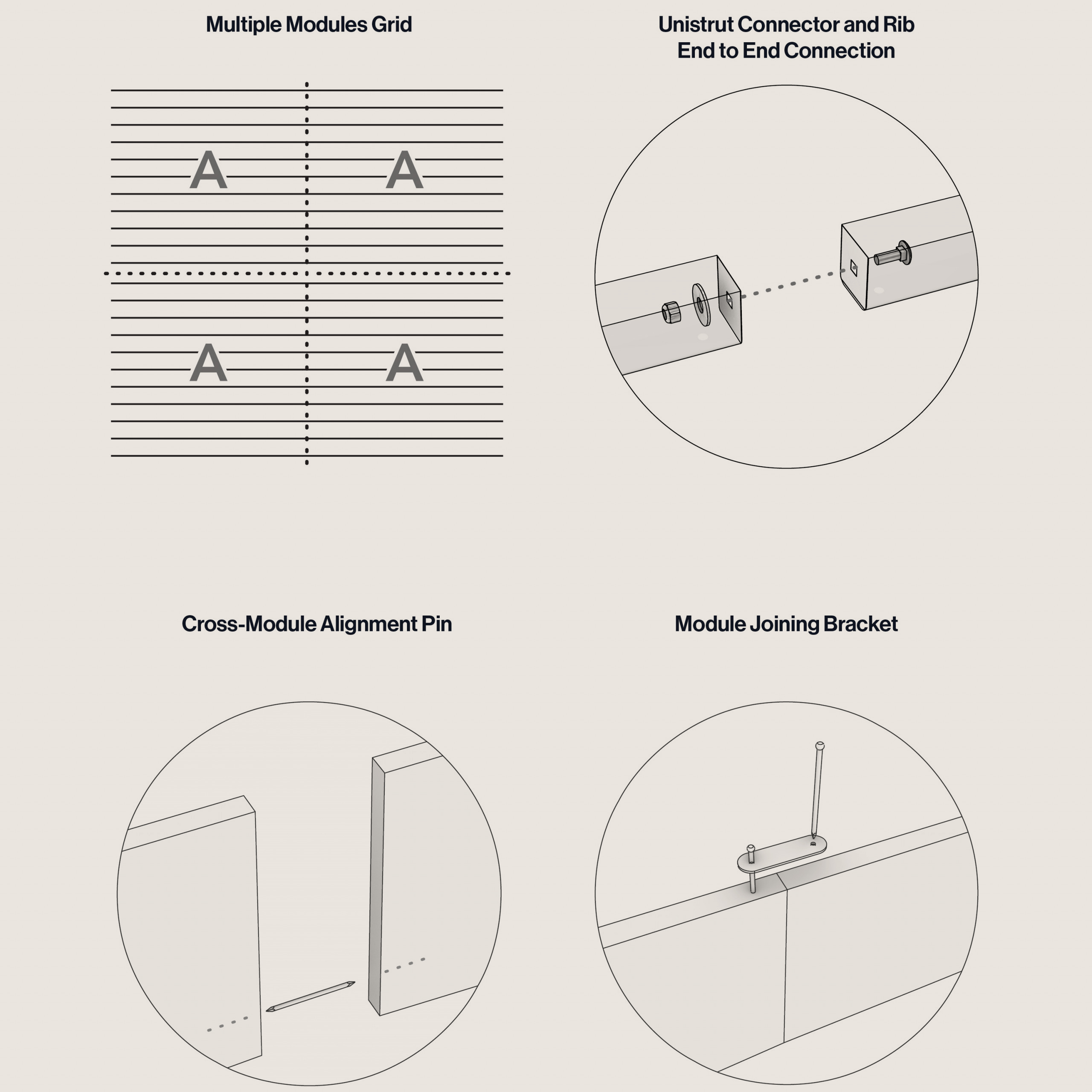

Attachment Details 2

Sustainability and Certifications

488

Each SWELL module is made from 488 recycled water bottles
Cradle to Cradle®

Bronze Status Pending
100%

Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)
Declare

Red list free
