SoftFold® in use

The System

Key Features

  1. Reduce & Diffuse Noise

    SoftFold®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftFold®'s material works in concert with the faceted design to help reduce and control reverberations and diffuse sound leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  2. Expansive Soft Sound® Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.

  3. Dynamic Faceted Aesthetics

    Bring striking texture to your space with SoftFold®'s geometric, faceted design, and add complexity to your ceilings with the origami of sound attenuation.

  4. Easy Accessibility

    SoftFold® modules offer easy accessibility across ceilings through a hinged attachment, allowing SoftFold® to swing down for access to building systems.

  5. Preconfigured Solutions

    SoftFold® is available in full and half-sized modules that seamlessly connect for further flexibility in your space.

  6. Thoughtful Integration

    SoftFold®'s design allows for a straightforward integration of systems such as lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems, above or below the modules.

Product Details

Specifications

System Specs

Dimensions
  • Full: 2133 x 1508 x 146 MM

  • Half: 2133 x 756 x 146 MM

Material
  • 12mm Soft Sound® (PET) and Steel Frame

Openness in Plan
  • Full 24%; Half 22%

Fire Rating
  • ASTM E84 - Class A | UNE-EN 13501-1, B-s1,d0

Acoustics
  • True NRC® 0.75; E-300 Method

Attachment Method
  • Threaded Rod

Accessibility
  • Optional, hinged hanging bracket (uses 3/8" threaded rod vs wires)

Product Diagrams

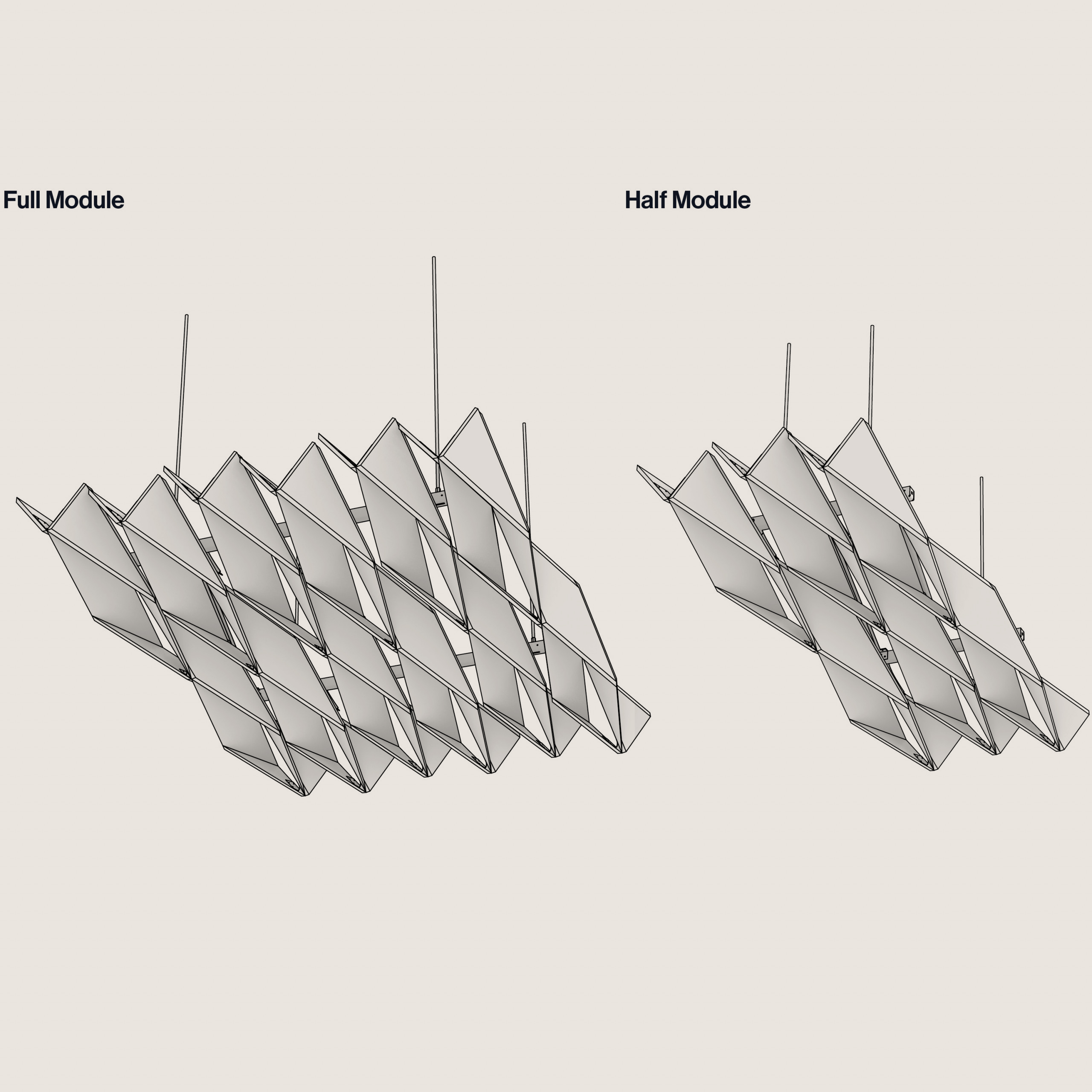

Standard Module

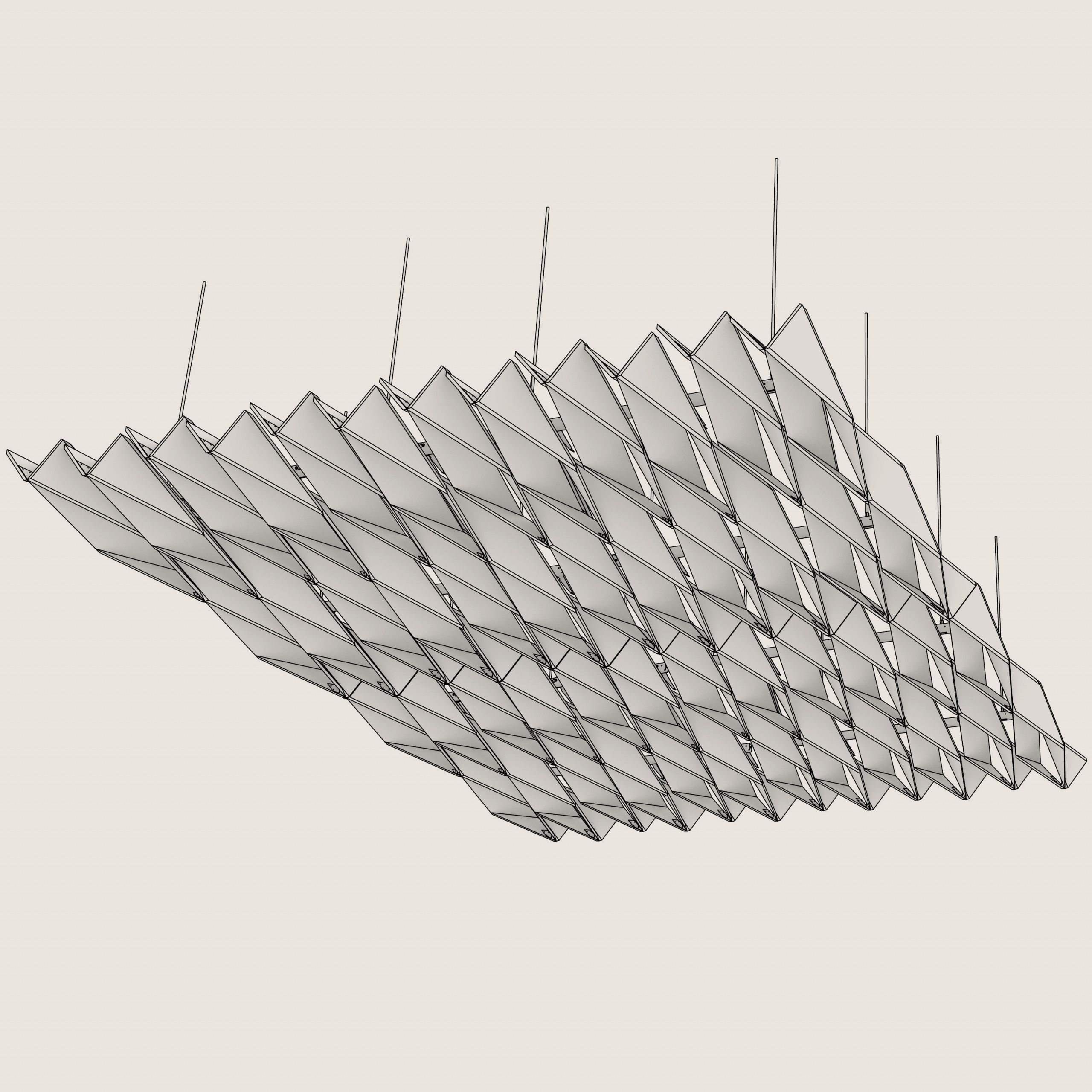

Multiple Modules

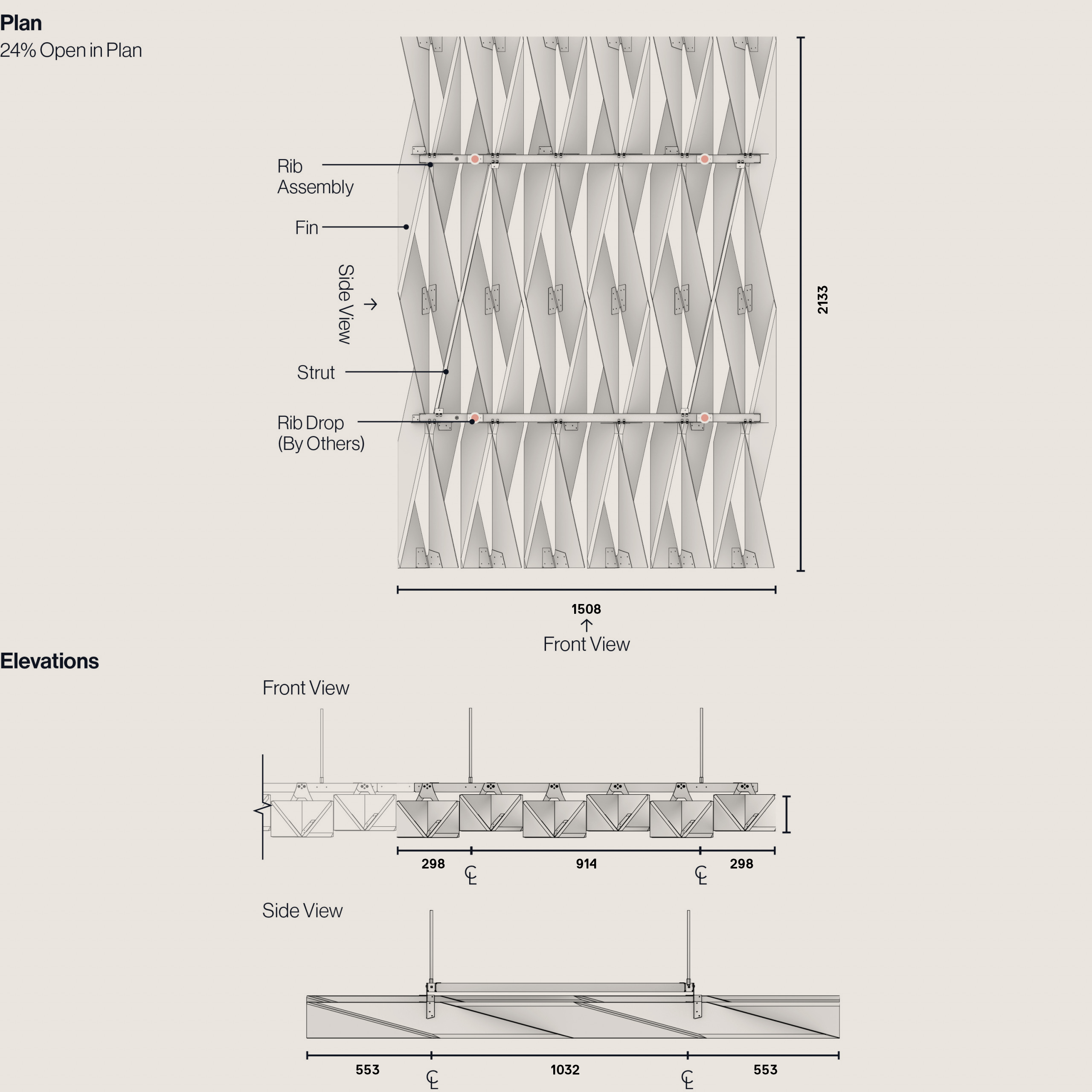

Full Module - Plan & Elevations

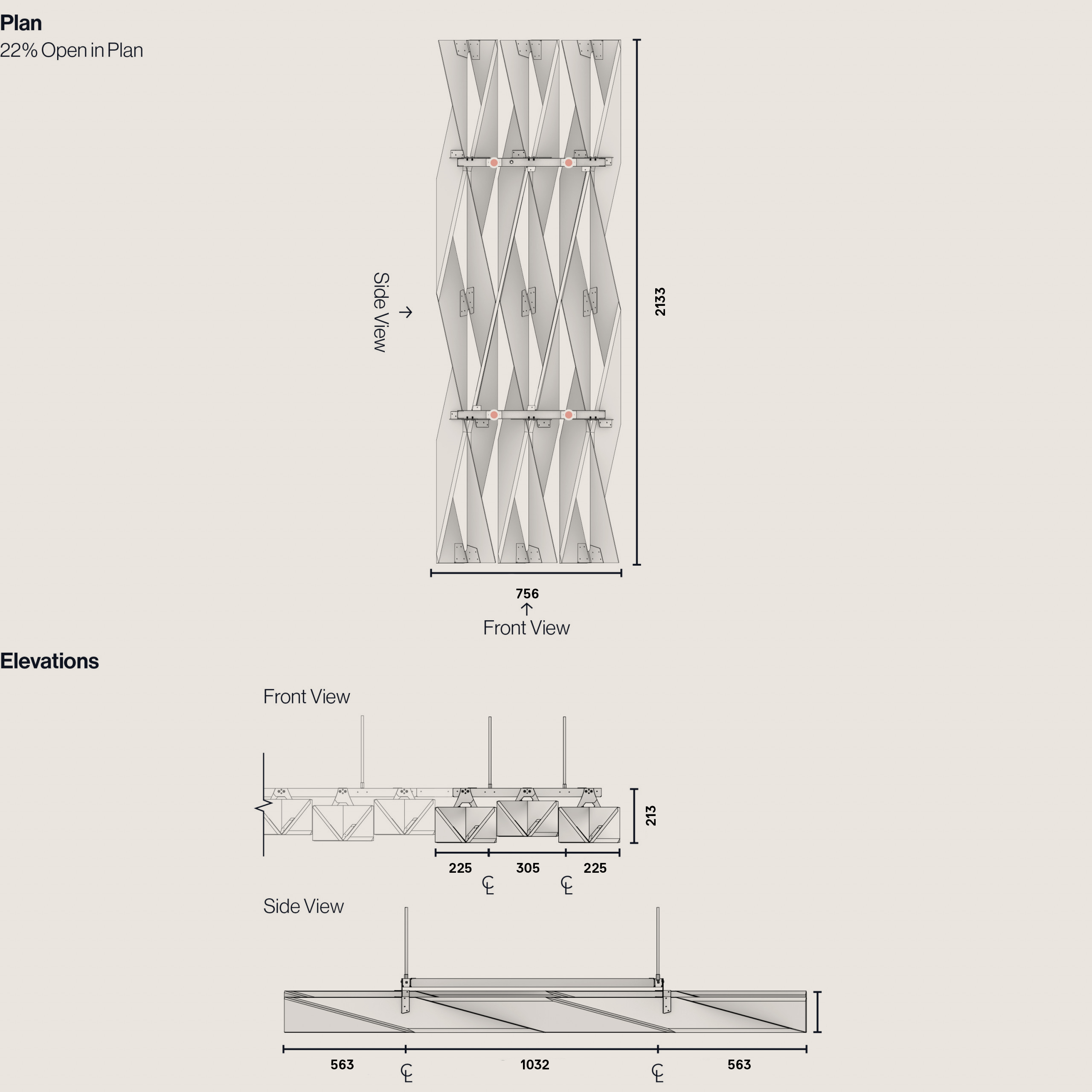

Half Module - Plan & Elevations

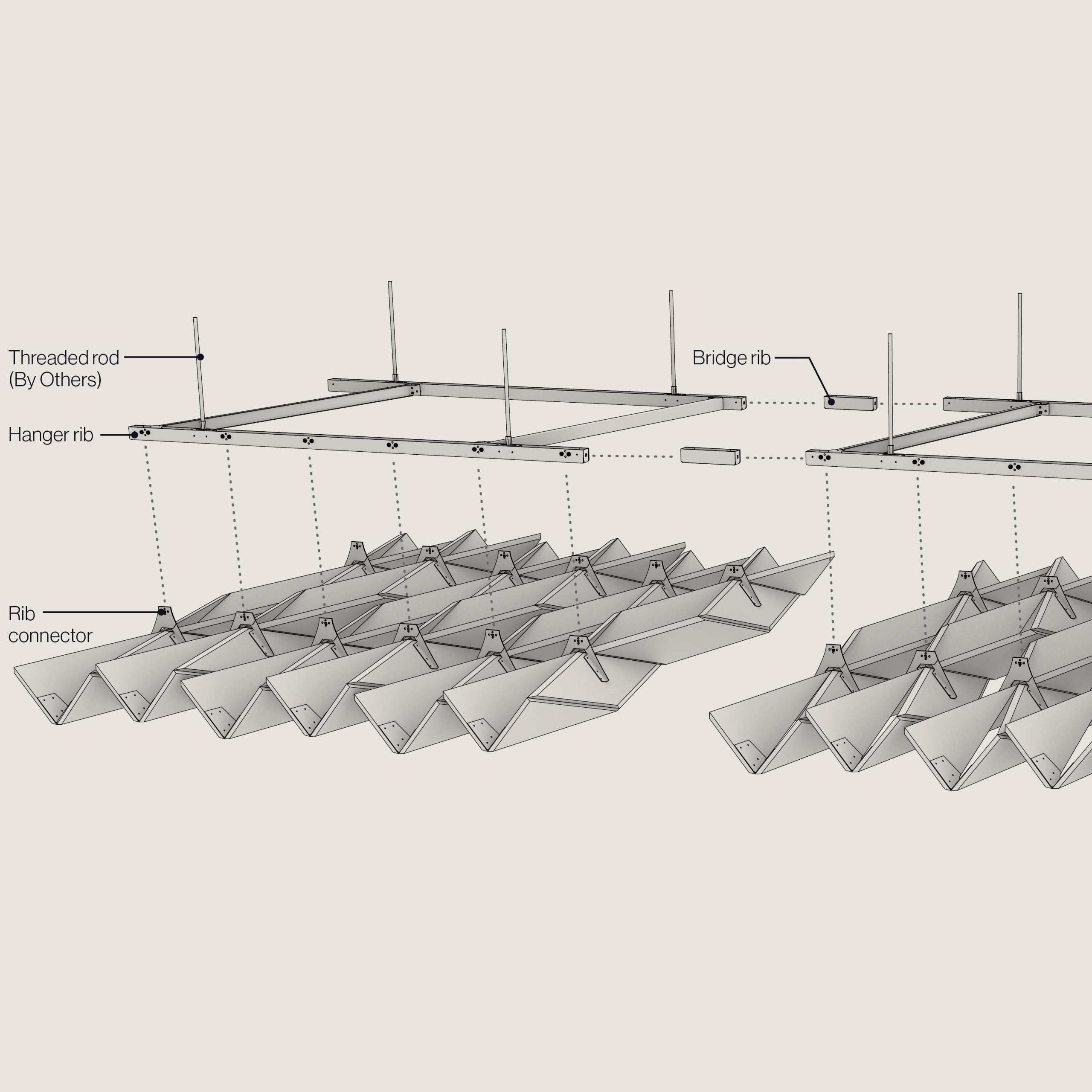

Attachment & Install

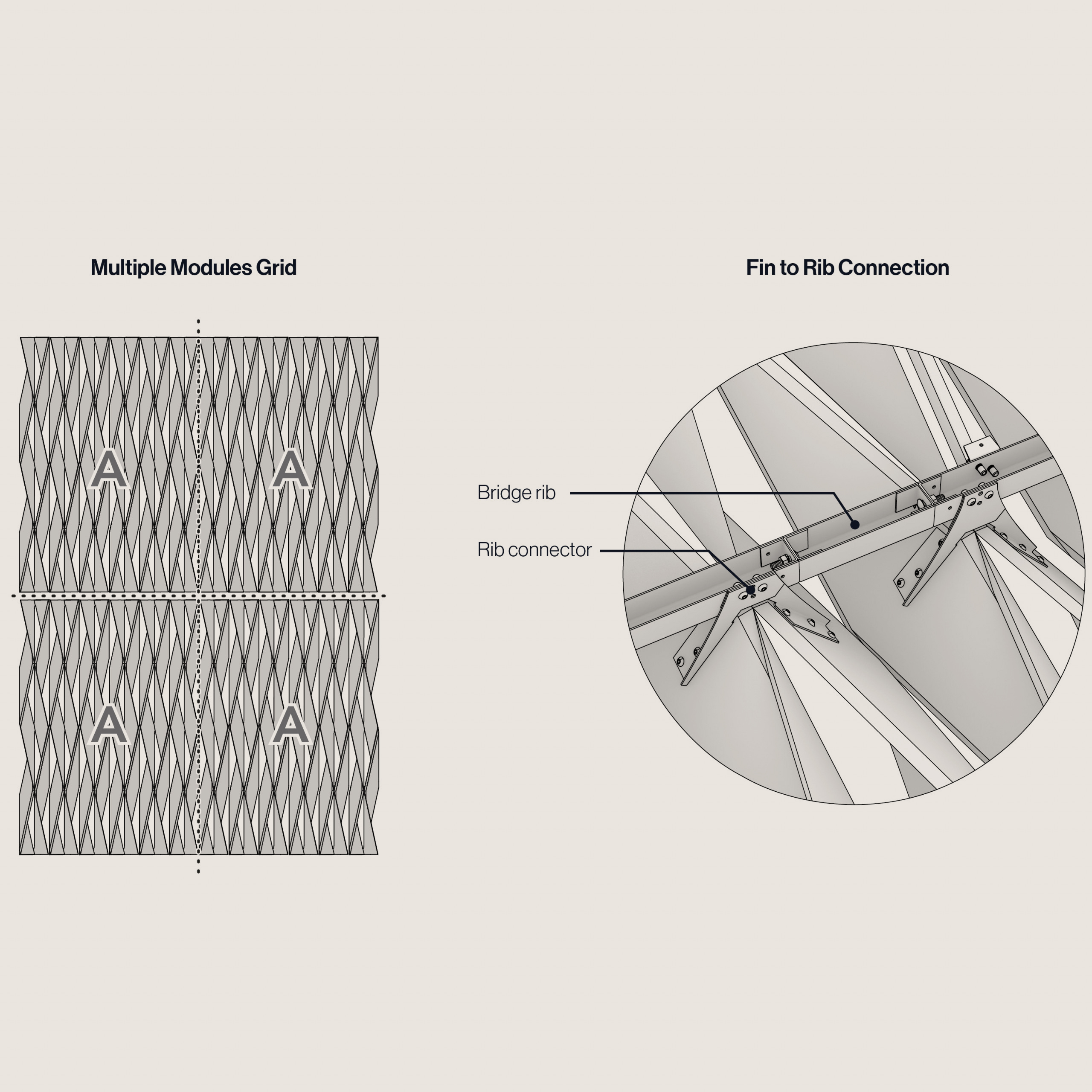

Attachment Details

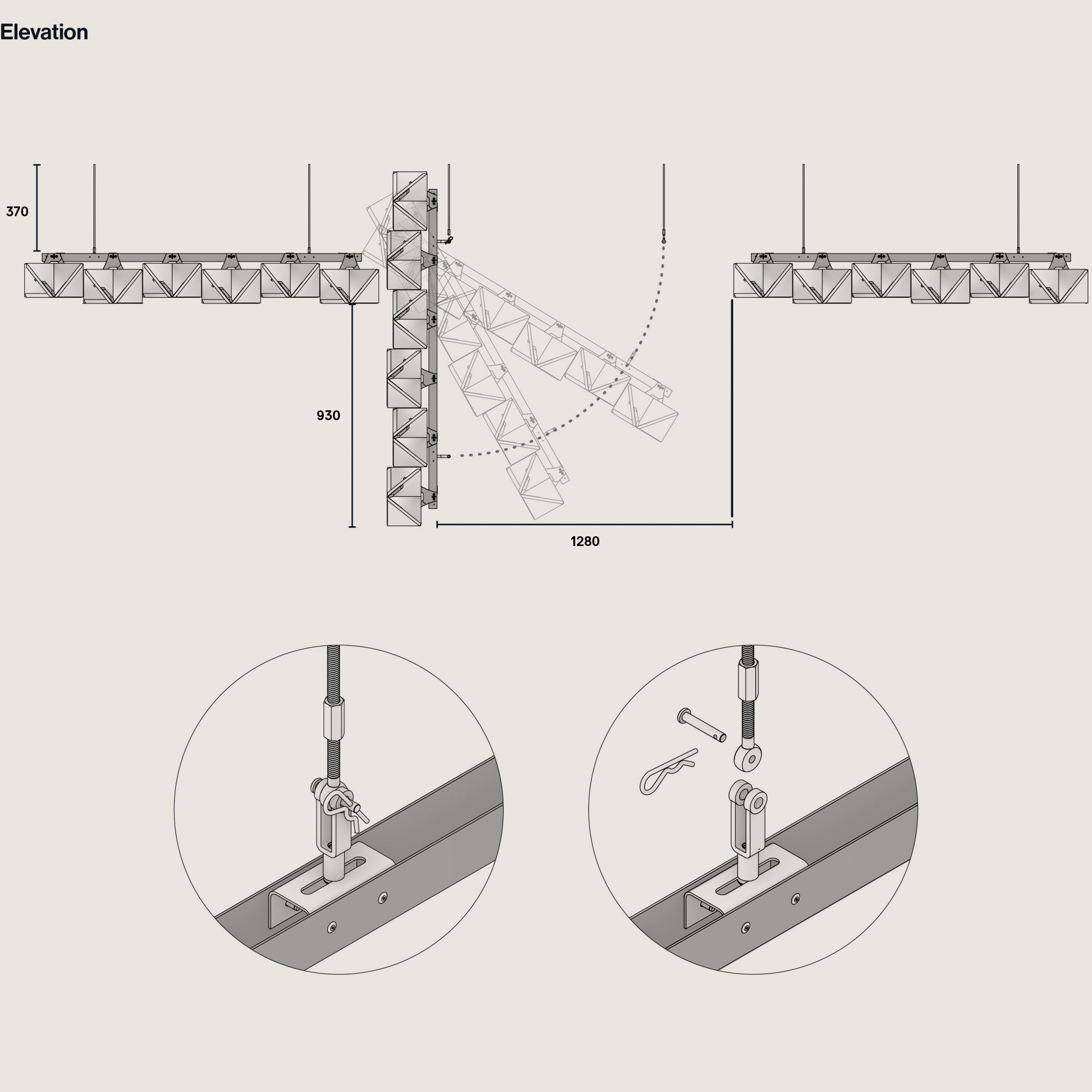

Optional Swing-Down Hardware

Sustainability and Certification
  • 488, 144

    Full module: 488 recycled water bottles. Half module: 144 recycled water bottles.

  • Cradle to Cradle®

    Bronze Status Pending

  • 100%

    Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)

  • Declare

    Red list free

Materials and Finishes

Soft Sound® Color Group A

  • White

  • Snow

  • Marble

  • Heather Gray

  • Graphite

  • Carbon

  • Onyx

  • Apple

  • Tangerine

  • Lemon

  • Taupe

  • Sand

  • Kiwi

  • Whisper

  • Sky Blue

  • Denim

  • Absinthe

  • Abyss

  • Azore

  • Mars

  • Macchiato

Soft Sound® Wood Texture

  • Gray Ash

  • White Oak

  • Golden Oak

  • Oak

  • American Walnut

  • Charred Oak

  • Charred Ash

  • Ebony

Resources

Product

Download

SoftFold® Half – All Reference Models (Metric)

SoftFold® Full – All Reference Models (Metric)

SoftFold® Brochure
