Atmosphera® Adaptive RIPPLE
-
Acoustic
-
Ceiling Baffles
Ripple’s panels create an undulating effect on your ceiling design, adding movement and flow. Customisable, you can ensure that the amount of curve fits your vision exactly. Ripple’s panels are available in steel only and can be powder coated in one of our five standard colors.
Atmosphera® Adaptive RIPPLE in use
—
Product Details
Specifications
Specifications
-
3350 x 3630 x 120 MM
Fin Material
-
20GA Steel
Openness in Plan
-
93%
Fire Rating
-
ASTM E84 - Class A
Attachment Method
-
3/8" Threaded Rod (By Others)
Accessibility
-
Yes, removable clips at each fin
Product Diagrams

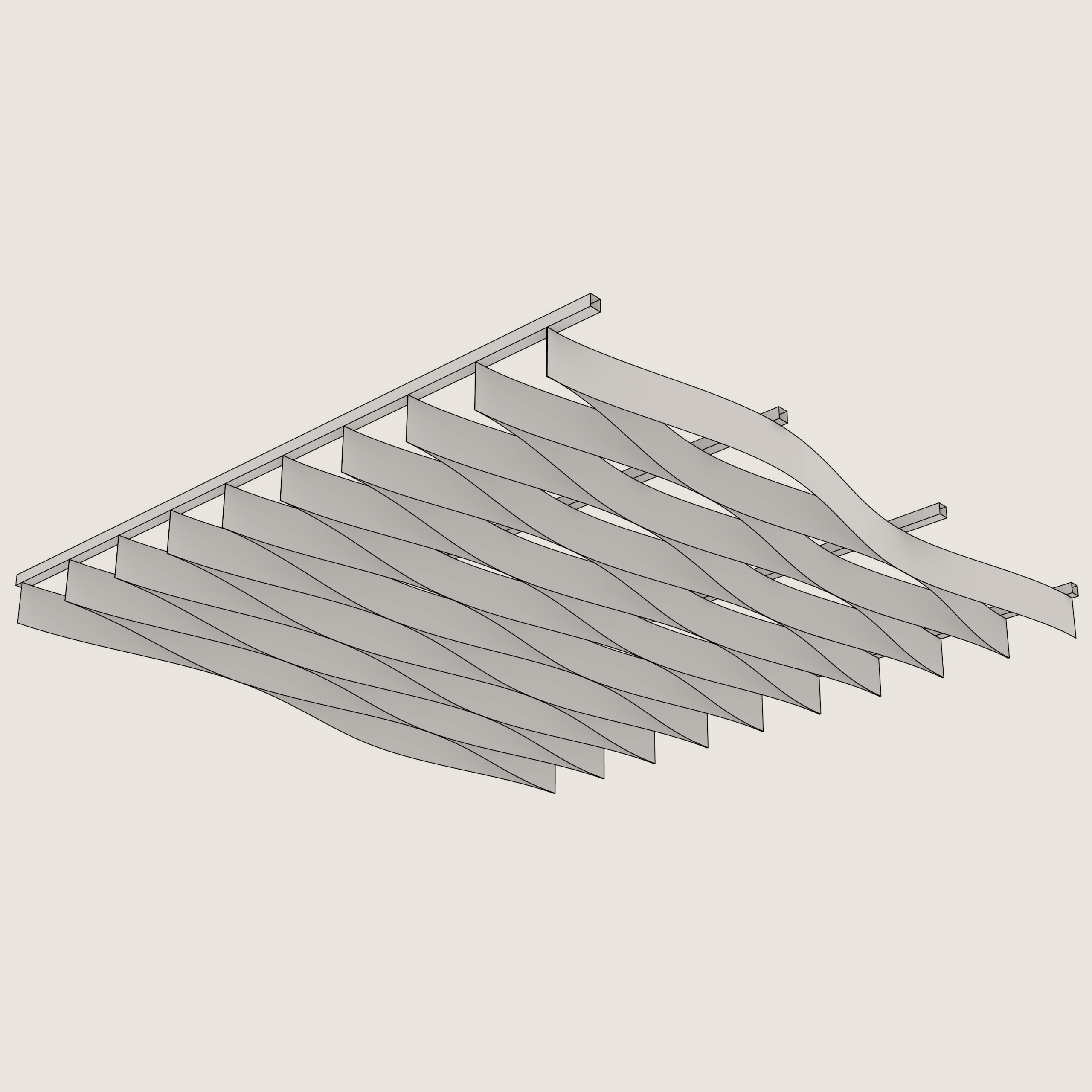

Single Module

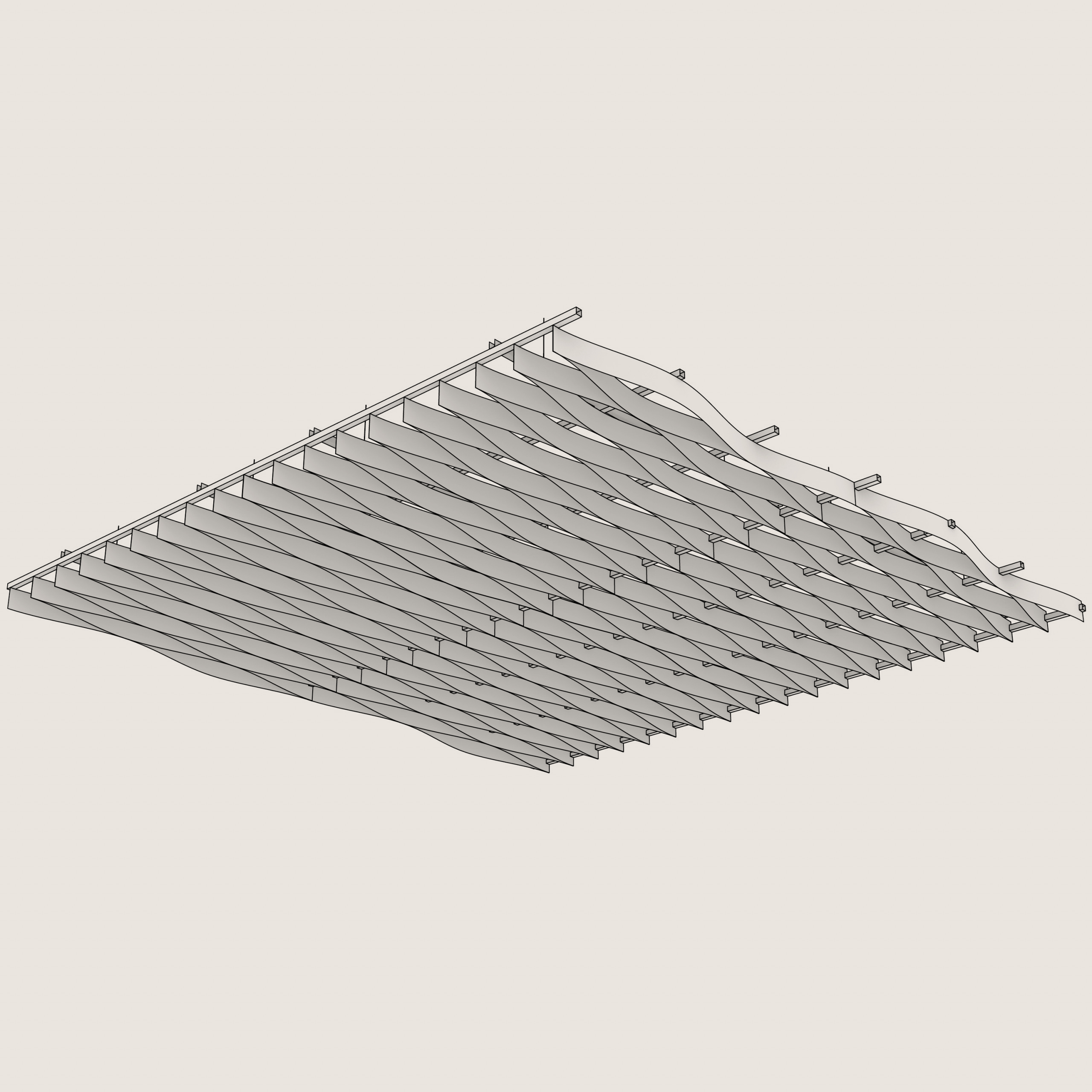

Multiple Modules

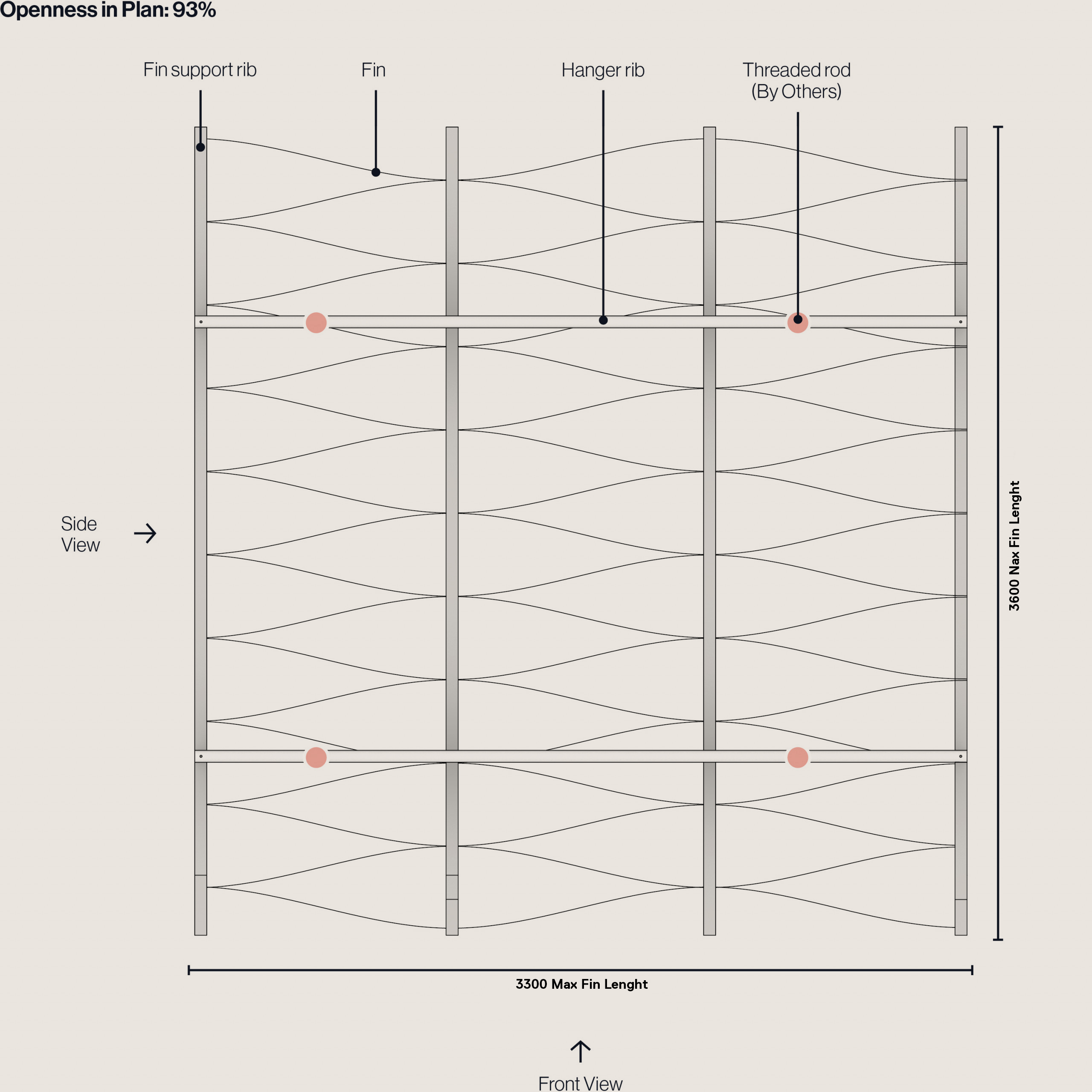

Understanding the Module - Plan

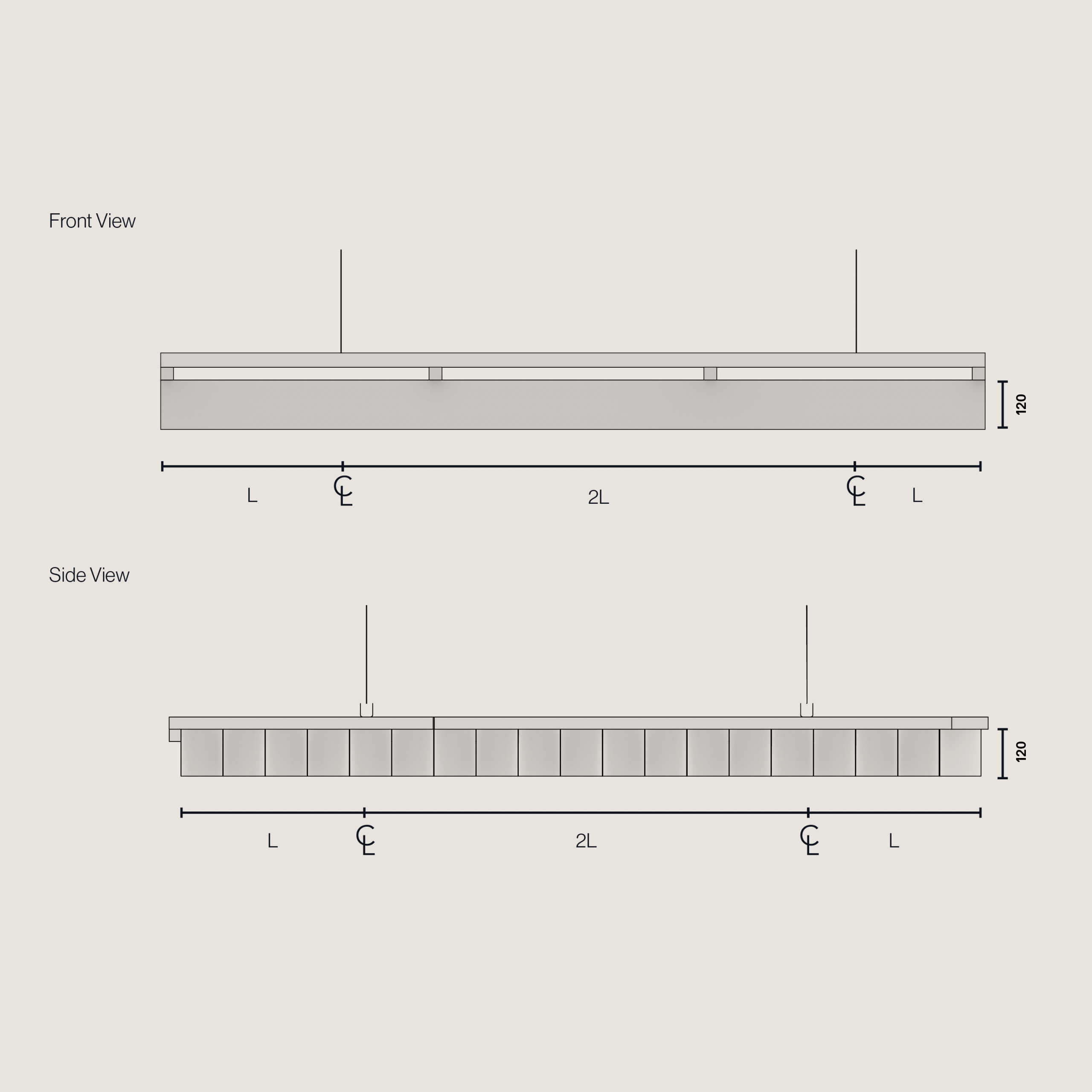

Understanding the Module - Elevations

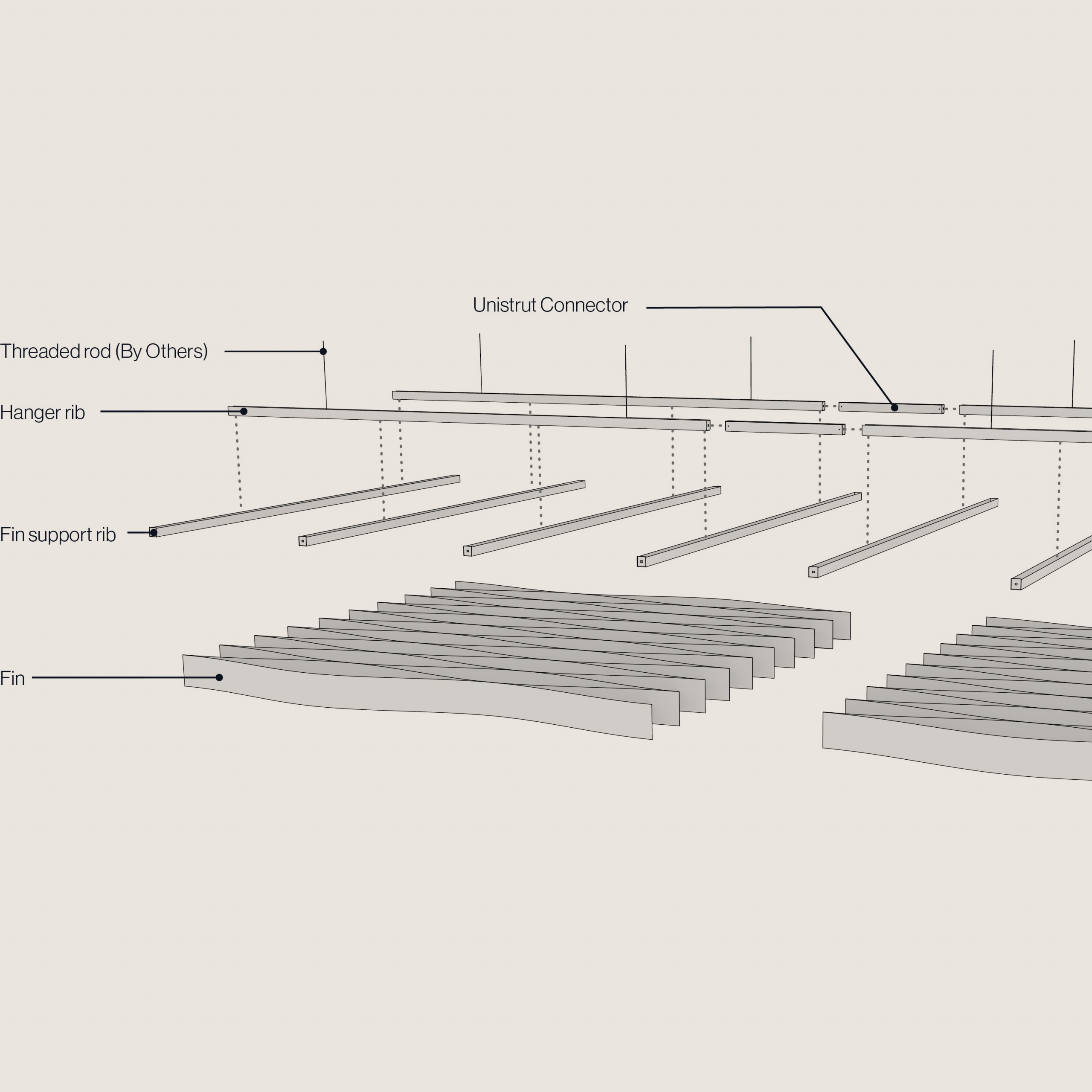

Attachment & Install

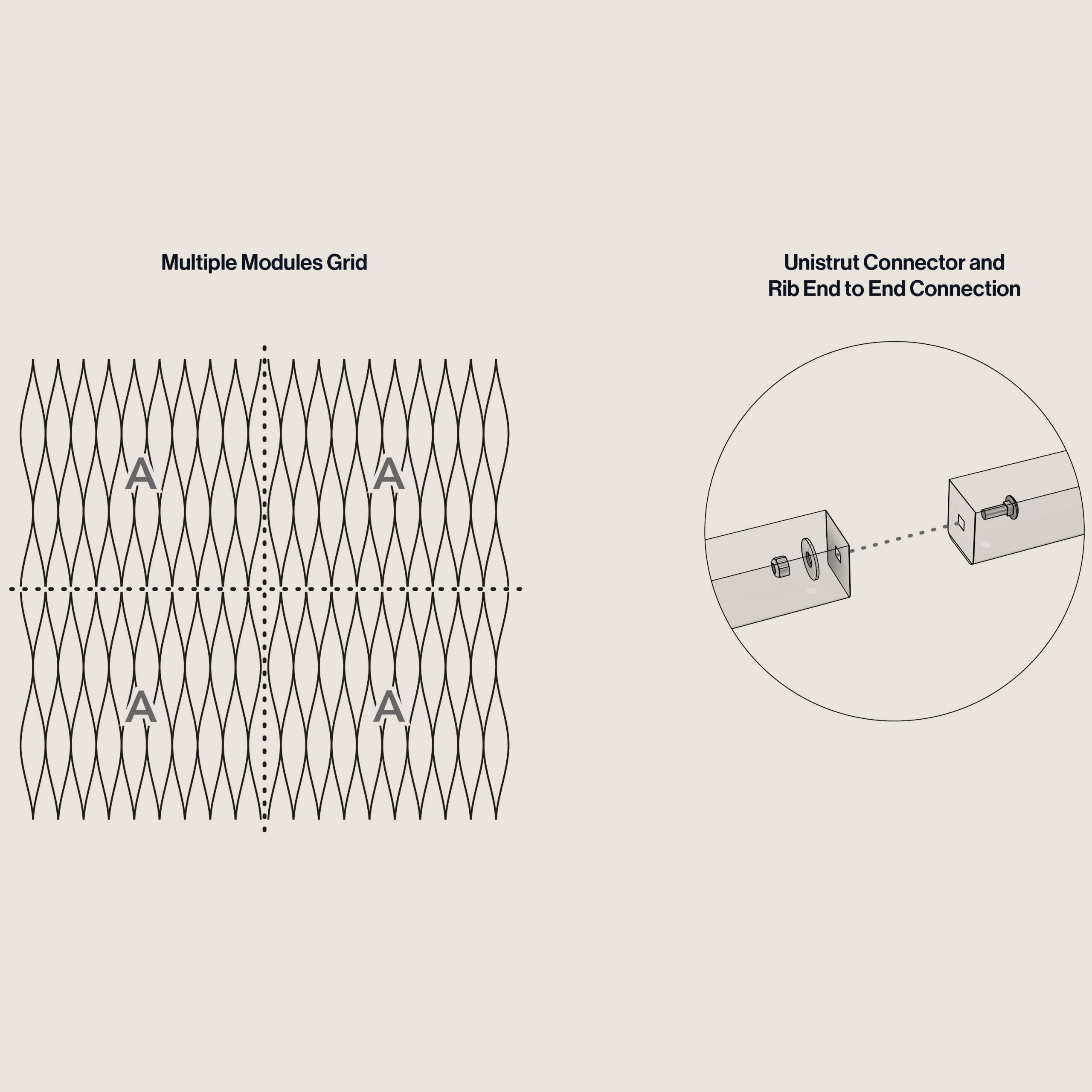

Attachment Details
Sustainability and Certifications
-
366
Each module is made from 366 recycled water bottles.
-
Cradle to Cradle®
Bronze Status Pending
-
100%
Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)
-
Declare
Red list free
Materials and Finishes
Steel Powder Coat Premium Metallic Finish
-
-
Burnished Bronze
Steel Powder Coat Standard Finish
-
Brilliant White (Gloss) (RAL9010)
-
NOWN White (Matte) (RAL9016)
-
T-Grid White (Matte) (RAL9003)
-
Silver Metallic (Semi Gloss) (RAL9006)
-
Jet Black (Matte) (RAL9005)
-
Aviator Gray (Gloss) (RAL7035)
-
Aviator Gray (Matte) (RAL7035)
-
Steel Gray (RAL7046)
-
Shadow (RAL7024)
-
Midnight (RAL7021)
-
Coffee (RAL8014)
-
Raw Umber (RAL8007)
-
Caramel (RAL8001)
-
Sandstone (RAL1019)
-
Oat (RAL1001)
-
Sunflower (RAL1003)
-
Torch (RAL2009)
-
Spirit Red (Matte) (RAL3001)
-
Azure (RAL5003)
-
Blue Steel (RAL5010)
-
Forest Green (RAL6001)
