Vapor® BOND

Technical documents Get models Find an agent

Acoustic
Ceiling Panels
Lighting
Wall Panels

Formulate a unique pattern for your next project with Vapor® Bond, or mix and match with its family friend VaporHue® Link. Featuring hexagonal shapes invoking motion that is anything but static. This design flows freely throughout wall or ceiling installations based on its patterns of connectivity and interaction. Continuous patterns allow you to scale this design to any space without interruption. Pair with optional accessories such as acoustic backers or lighting options to elevate your custom layout.

Vapor® BOND in use

—

The System

Key Features

Acoustic Performance

Vapor®'s optional Soft Sound® backer material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. The Soft Sound® backer works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
Superior Flatness & Strength

Vapor® panels are manufactured from aluminum that is on average 50% thicker than the competition, which in combination with our precision processes result in unrivaled flatness.
Integrated Lighting Options

NOWN's Vapor® line makes it easy to seamlessly add illumination and lighting effects to your projeccts, through available integrated InLine and Backlighting options.
Easy Installation & Access

Vapor® panels offer easy install, using quick torsion spring attachment across s tandard ceiling grid systems or simple wall attachment using our Vertika® channel system.
Preconfigured Solutions

Vapor® panels are scalable, seamlessly tileable, preconfigured solutions designed with a dynamic array of criteria and effects in mind. Choose from our growing library of patterns to uniquely impact your project.
Continuous Pattern Aesthetic

Achieve uninterrupted patterning across your space. Vapor® patterns have perforations that wrap around the edges of each panel, concealing where patterns start and end.

Product Details

Specifications

Panel Size (WxHxD)

600mm x 1200mm x 38mm

Material

Aluminum

Openness in Plan

Fire Rating

ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0

Acoustics (with optional Soft Sound® backer)

True NRC® 0.80: Ceiling E-300 Method
True NRC® 0.75: Wall F-70 Method

Ceiling Attachment

Torsion Grid (By Others)

Wall Attachment

Vertika® Wall (Refer to Vertika® Brochure)

Accessibility

Torsion Spring Hinge

Trimmability

Yes, per installation manual

Accessories

Acoustic Backer, Translucent Backer, Backlight, InLine Light, Torsion Spring Adapter Clip

Product diagrams

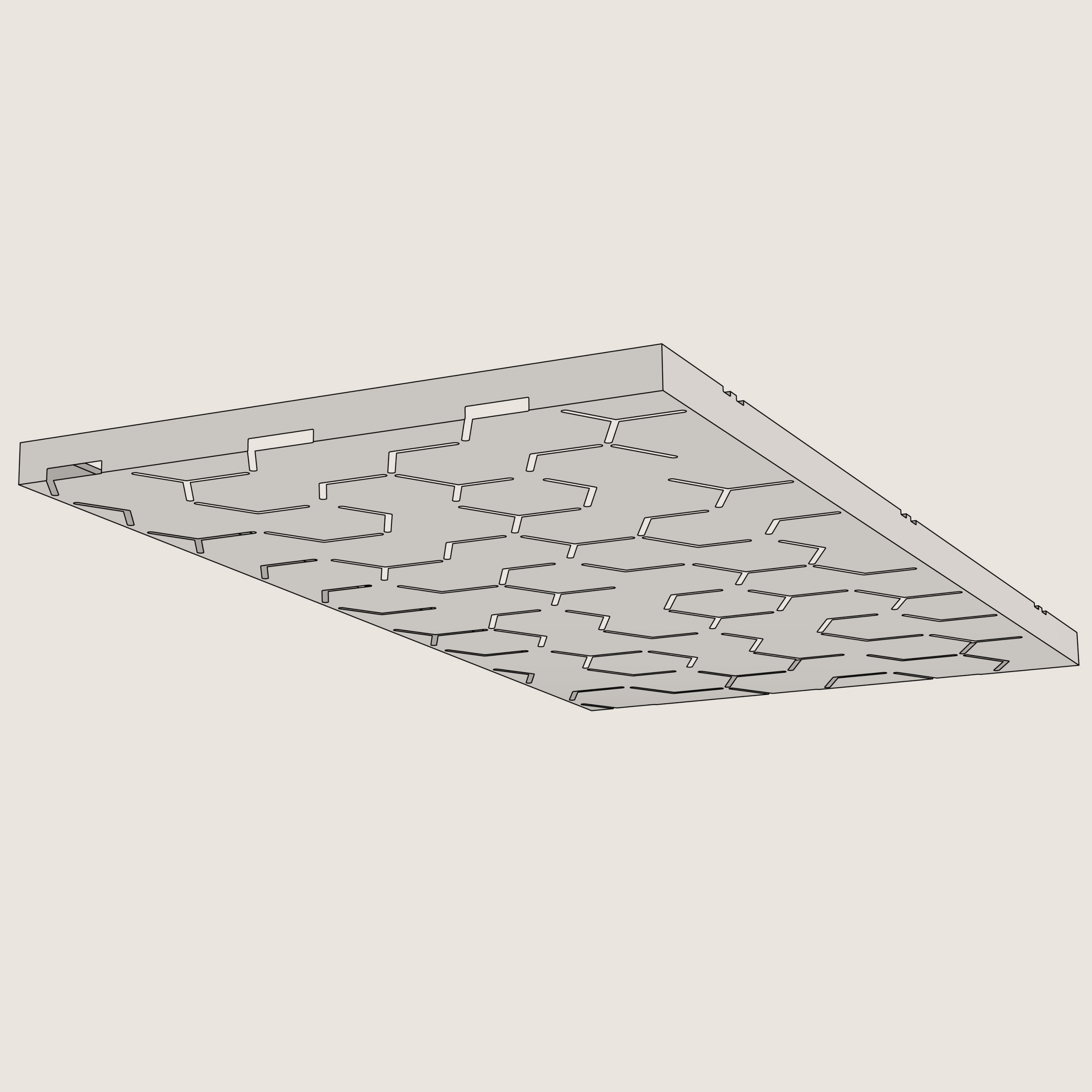

Standard Panel

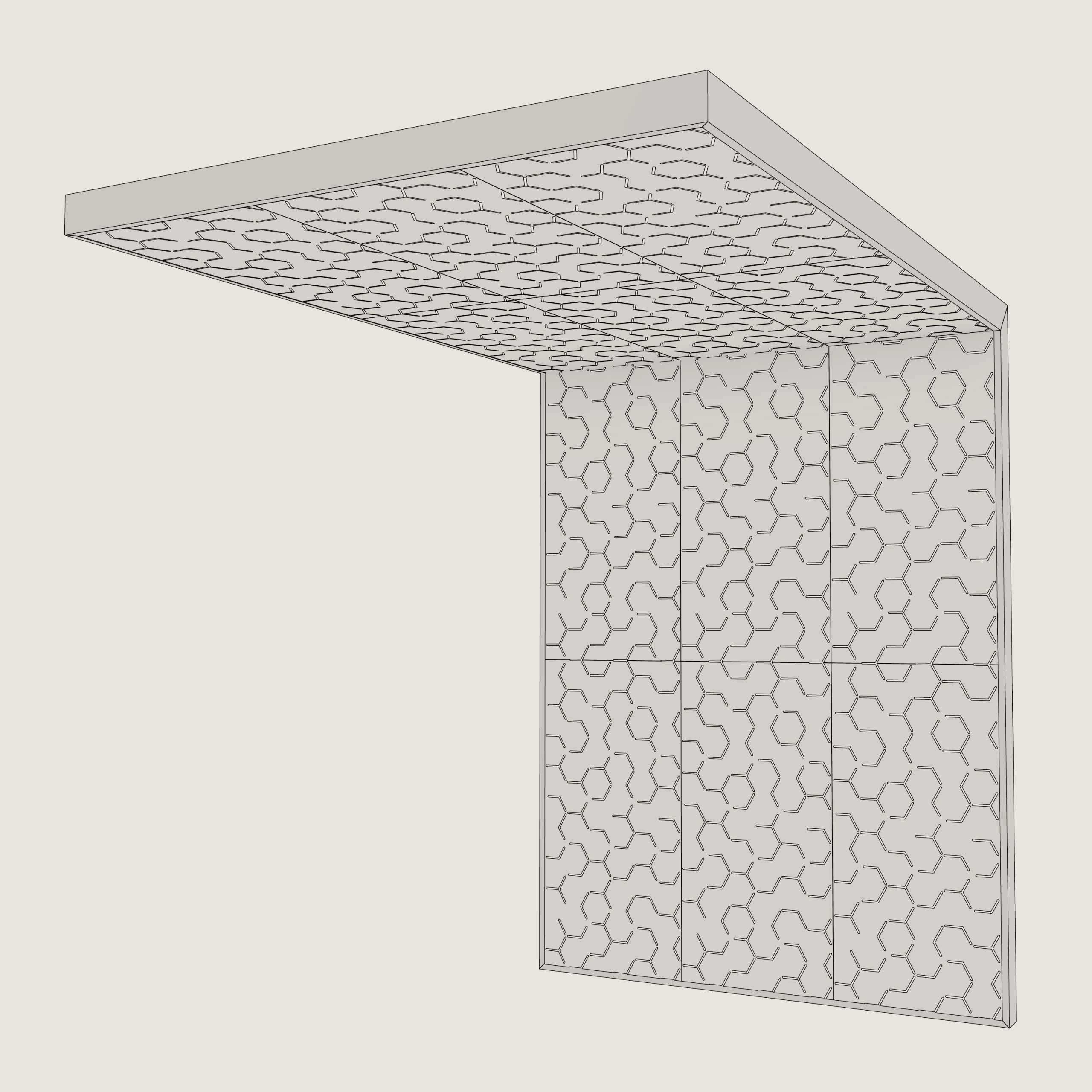

Seamlessly Join Walls & Ceilings

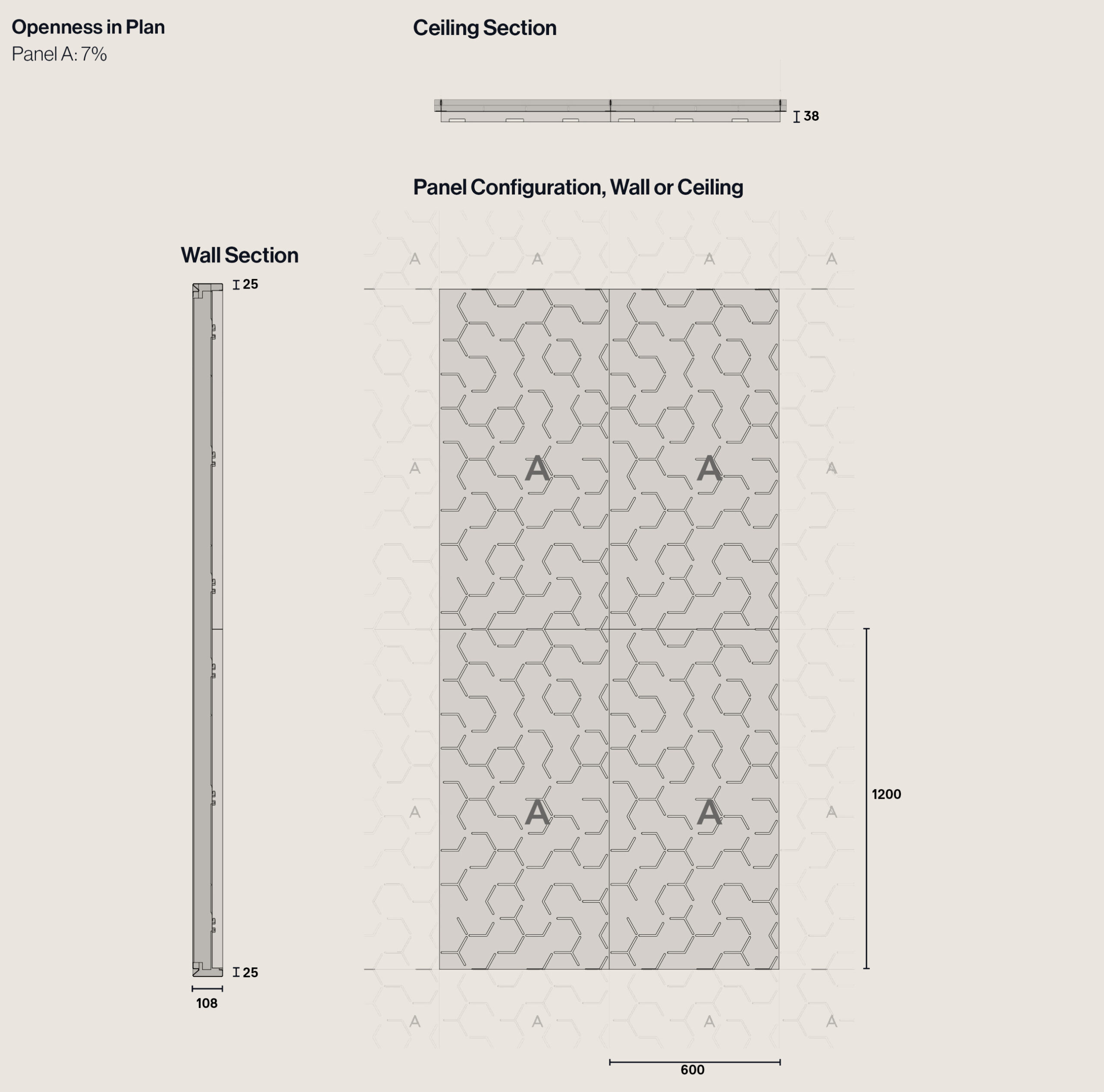

Understanding the Panel

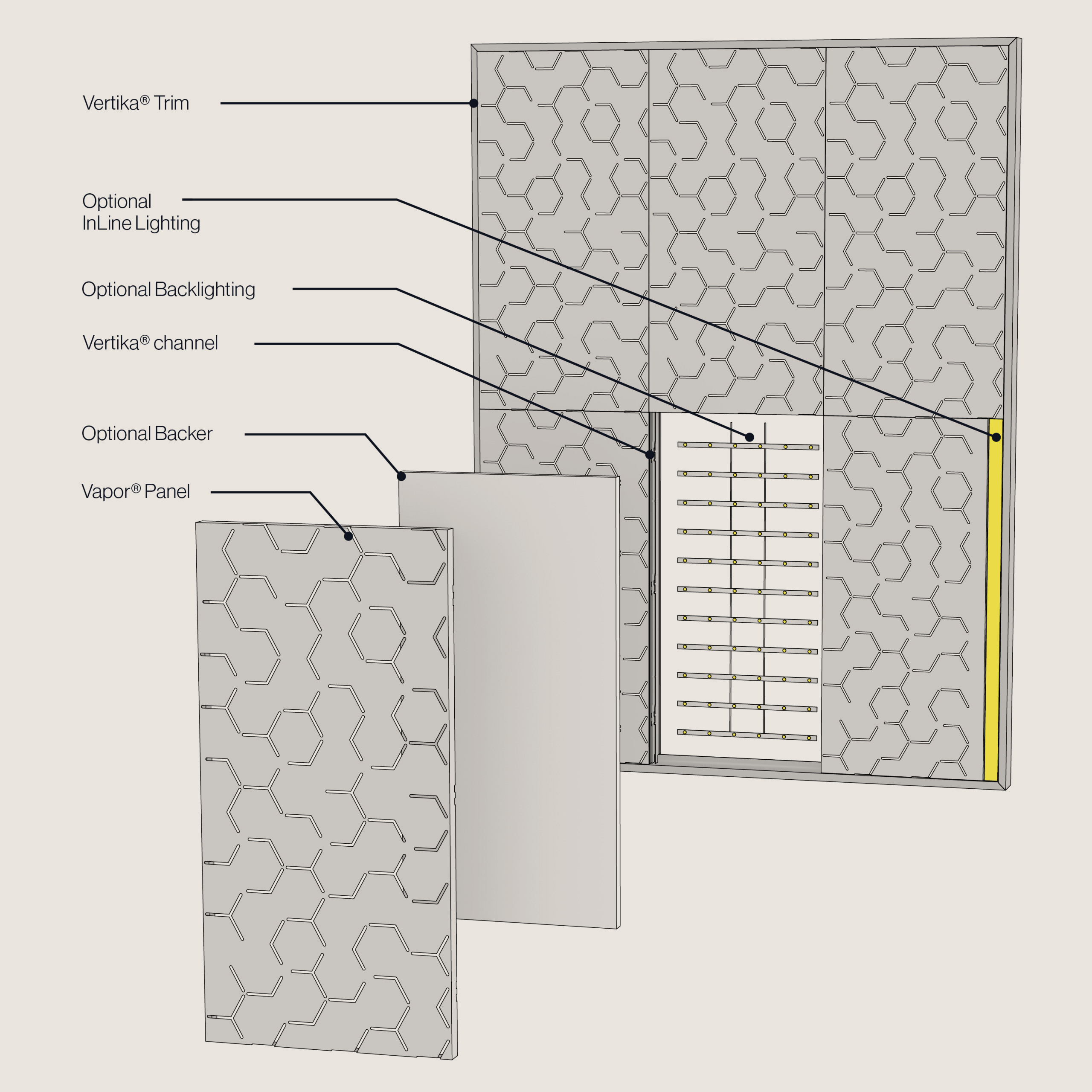

Accessory Options - Wall

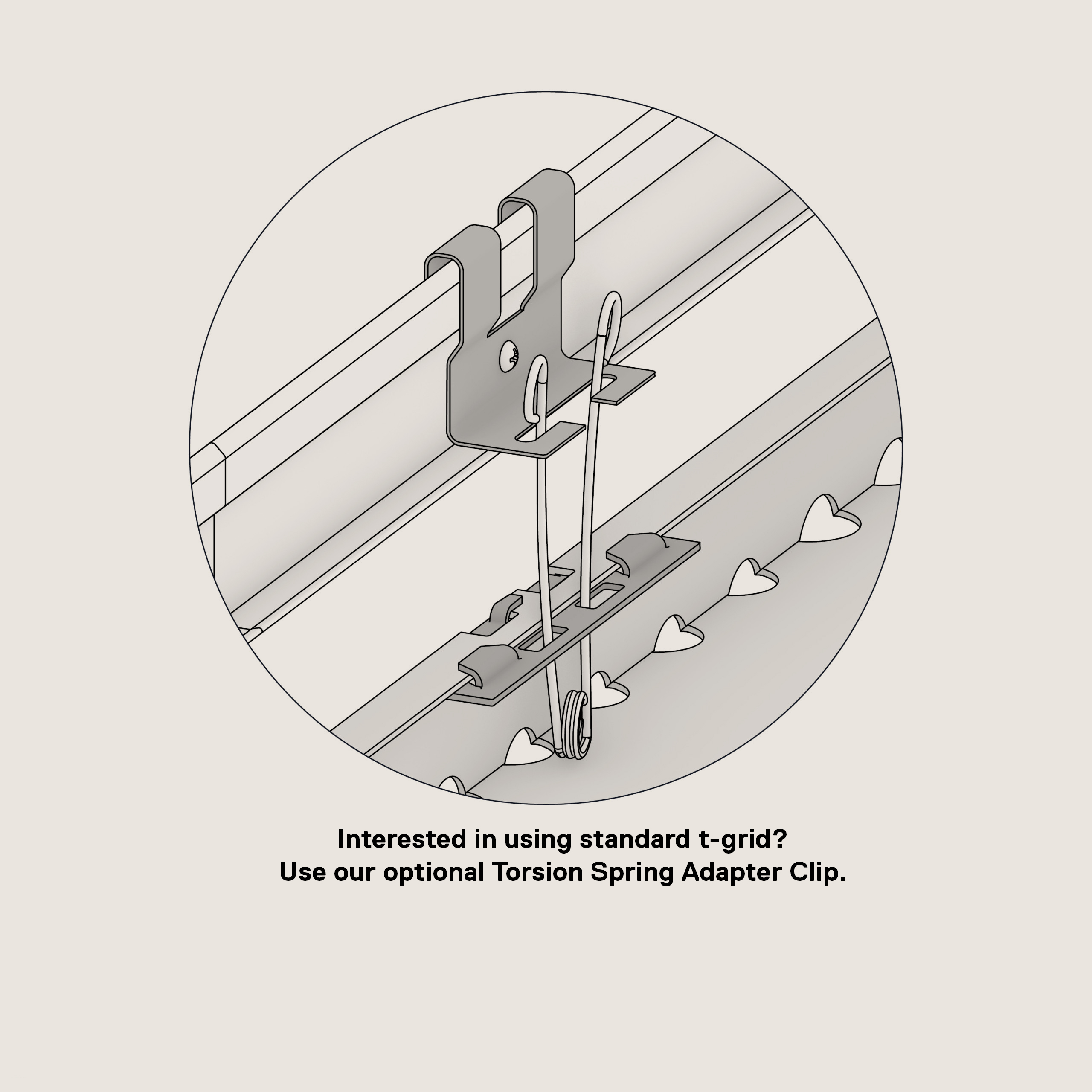

Accessory Options - Retrofit Adapter Clip Kit

Sustainability and Certification

147 / 50

Each module is made from 147 recycled aluminium cans with an acoustic backer made of 50 recycled water bottles.
Cradle to Cradle®

Bronze Status Pending
100%

Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)
Declare

Red list free
