About Vapor® VERVE

Staggered linear perforations of various dimensions make up the in-motion pattern of Vapor® Verve. Able to be perfectly paired with VaporHue® Astra, this design can be viewed continuously with a seamless transition from wall to ceiling panels thanks to fully scalable and tileable configurations. Add optional accessories such as Soft Sound®, or NOWN’s integrated lighting accessories, to illuminate and attenuate in any space.

The System

Key Features

  1. Acoustic Performance

    Vapor®'s optional Soft Sound® backer material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. The Soft Sound® backer works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  2. Superior Flatness & Strength

    Vapor® panels are manufactured from aluminum that is on average 50% thicker than the competition, which in combination with our precision processes result in unrivaled flatness.

  3. Integrated Lighting Options

    NOWN's Vapor® line makes it easy to seamlessly add illumination and lighting effects to your projeccts, through available integrated InLine and Backlighting options.

  4. Easy Installation & Access

    Vapor® panels offer easy install, using quick torsion spring attachment across s tandard ceiling grid systems or simple wall attachment using our Vertika® channel system.

  5. Preconfigured Solutions

    Vapor® panels are scalable, seamlessly tileable, preconfigured solutions designed with a dynamic array of criteria and effects in mind. Choose from our growing library of patterns to uniquely impact your project.

  6. Continuous Pattern Aesthetic

    Achieve uninterrupted patterning across your space. Vapor® patterns have perforations that wrap around the edges of each panel, concealing where patterns start and end.

Product Details

  1. Specifications

    Panel Size (WxHxD)

    • 600mm x 1200mm x 38mm

    Material

    • Aluminum

    Openness in Plan

    • 14%

    Fire Rating

    • ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0

    Ceiling Attachment

    • Torsion Grid (By Others)

    Wall Attachment

    • Vertika® Wall (Refer to Vertika® Brochure)

    Accessibility

    • Torsion Spring Hinge

    Trimmability

    • Yes, per installation manual

    Accessories

    • Acoustic Backer, Translucent Backer, Backlight, InLine Light, Torsion Spring Adapter Clip

  2. Product diagrams

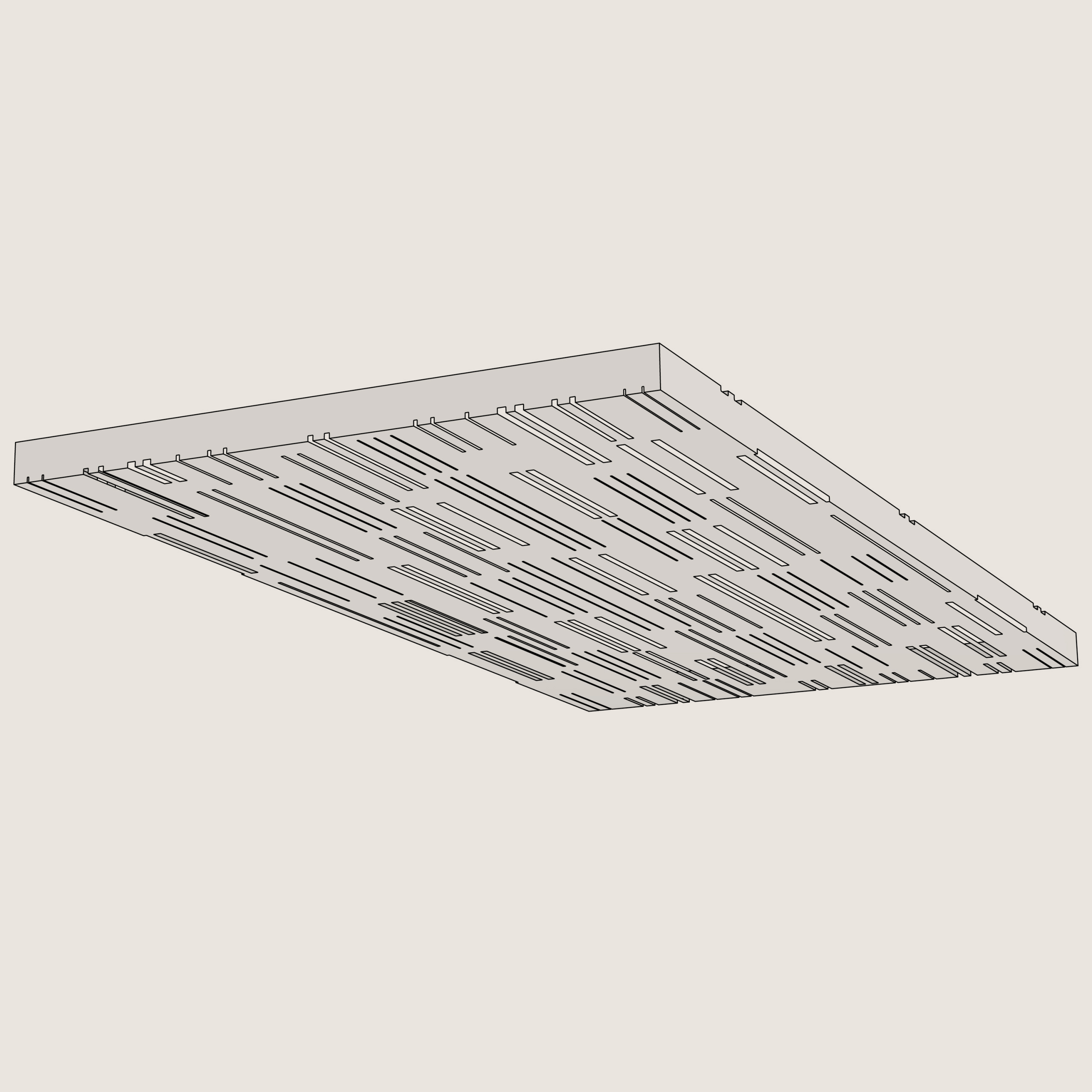

    • Product diagrams

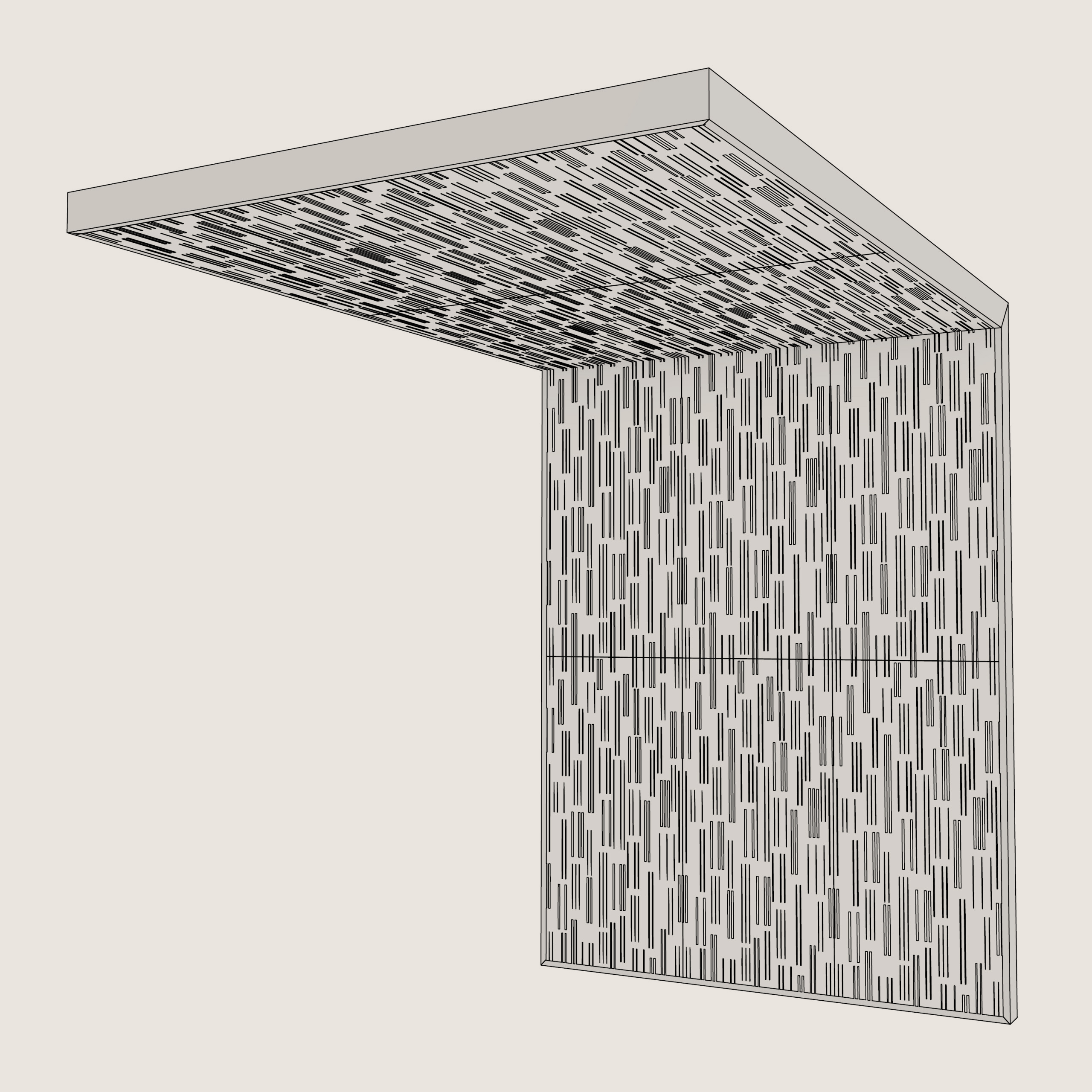

    • Seamlessly Join Walls & Ceilings

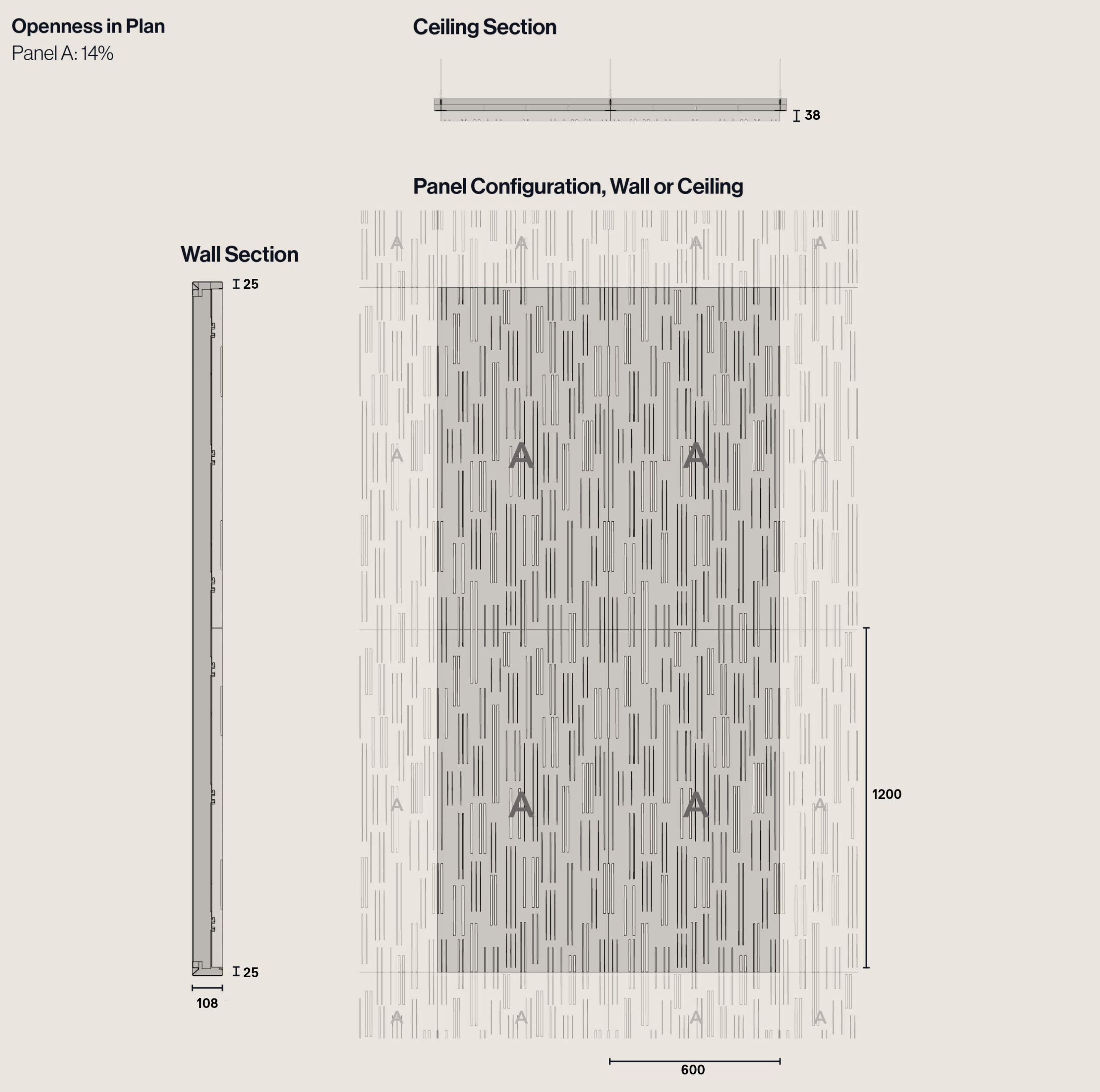

    • Understanding the Panel

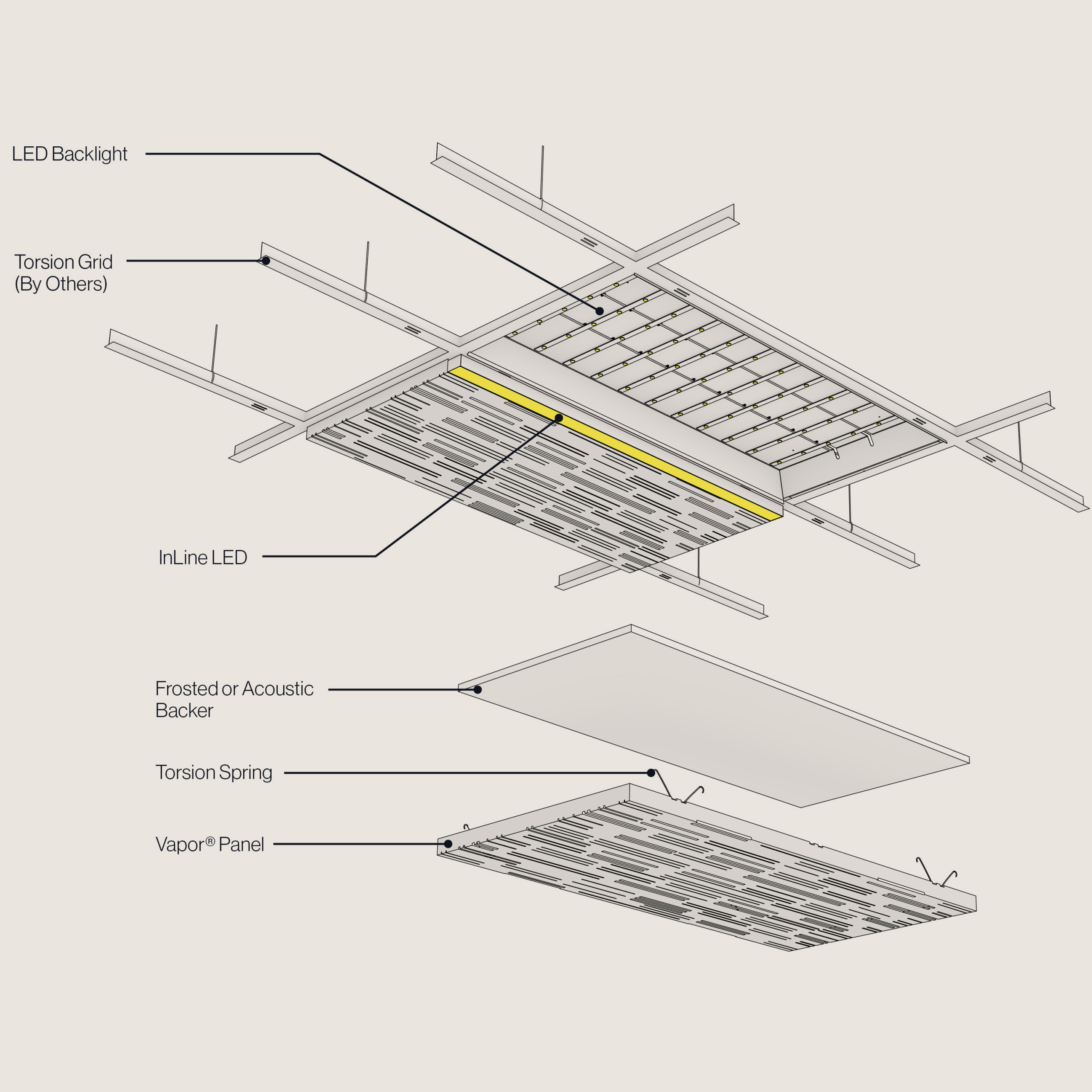

    • Accessory Options - Ceiling

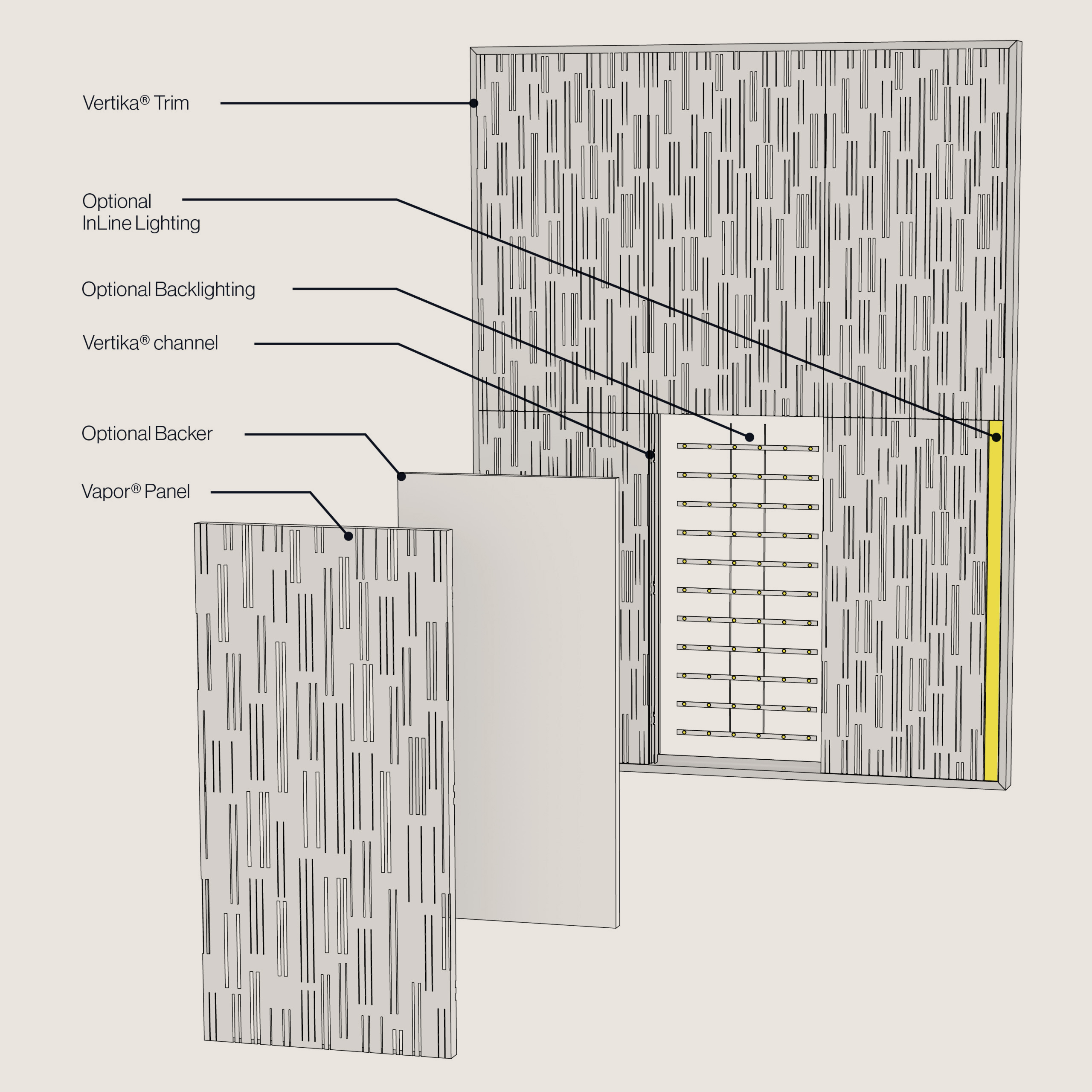

    • Accessory Options - Wall

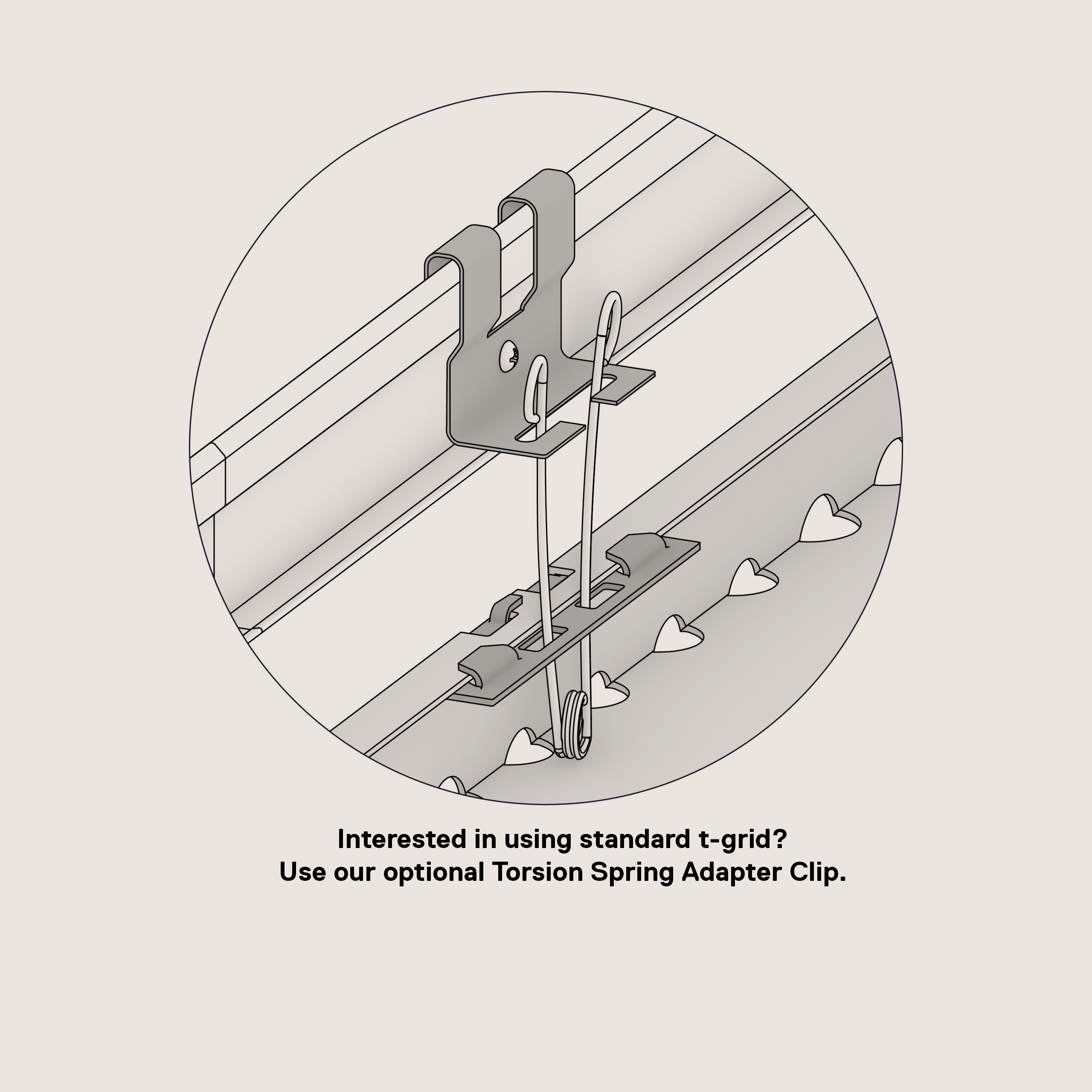

    • Accessory Options - Retrofit Adapter Clip Kit

  3. Sustainability and Certification
    • 136 / 50

      Each module is made from 136 recycled aluminium cans with an acoustic backer made of 50 recycled water bottles.

    • Cradle to Cradle®

      Bronze Status Pending

    • 100%

      Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)

    • Declare

      Red list free

Materials and Finishes

  1. Materials and Finishes

    CircuLUM™ Powder Coat Premium Metallic Finish

    • Chilled Champagne

      Chilled Champagne

    • Burnished Bronze

      Burnished Bronze

    CircuLUM™ Powder Coat Standard Finish

    • Brilliant White (Gloss) (RAL9010)

      Brilliant White (Gloss) (RAL9010)

    • NOWN White (Matte) (RAL9016)

      NOWN White (Matte) (RAL9016)

    • T-Grid White (Matte) (RAL9003)

      T-Grid White (Matte) (RAL9003)

    • Silver Metallic (Semi Gloss) (RAL9006)

      Silver Metallic (Semi Gloss) (RAL9006)

    • Jet Black (Matte) (RAL9005)

      Jet Black (Matte) (RAL9005)

    • Aviator Gray (Gloss) (RAL7035)

      Aviator Gray (Gloss) (RAL7035)

    • Aviator Gray (Matte) (RAL7035)

      Aviator Gray (Matte) (RAL7035)

    • Steel Gray (RAL7046)

      Steel Gray (RAL7046)

    • Shadow (RAL7024)

      Shadow (RAL7024)

    • Midnight (RAL7021)

      Midnight (RAL7021)

    • Coffee (RAL8014)

      Coffee (RAL8014)

    • Raw Umber (RAL8007)

      Raw Umber (RAL8007)

    • Caramel (RAL8001)

      Caramel (RAL8001)

    • Sandstone (RAL1019)

      Sandstone (RAL1019)

    • Oat (RAL1001)

      Oat (RAL1001)

    • Sunflower (RAL1003)

      Sunflower (RAL1003)

    • Torch (RAL2009)

      Torch (RAL2009)

    • Spirit Red (Matte) (RAL3001)

      Spirit Red (Matte) (RAL3001)

    • Azure (RAL5003)

      Azure (RAL5003)

    • Blue Steel (RAL5010)

      Blue Steel (RAL5010)

    • Forest Green (RAL6001)

      Forest Green (RAL6001)

Materials and Finishes

  1. Materials and Finishes

    CircuLUM™
