Vapor® ELEMENT in use

The System

Key Features

  1. Acoustic Performance

    Vapor®'s optional Soft Sound® backer material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. The Soft Sound® backer works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  2. Superior Flatness & Strength

    Vapor® panels are manufactured from aluminum that is on average 50% thicker than the competition, which in combination with our precision processes result in unrivaled flatness.

  3. Integrated Lighting Options

    NOWN's Vapor® line makes it easy to seamlessly add illumination and lighting effects to your projeccts, through available integrated InLine and Backlighting options.

  4. Easy Installation & Access

    Vapor® panels offer easy install, using quick torsion spring attachment across s tandard ceiling grid systems or simple wall attachment using our Vertika™ channel system.

  5. Preconfigured Solutions

    Vapor® panels are scalable, seamlessly tileable, preconfigured solutions designed with a dynamic array of criteria and effects in mind. Choose from our growing library of patterns to uniquely impact your project.

  6. Achieve uninterrupted patterning across your space. Vapor® patterns have perforations that wrap around the edges of each panel, concealing where patterns start and end.

Product Details

Specifications

Panel Size (WxHxD)

  • 600mm x 1200mm x 38mm

Material

  • Aluminum

Openness in Plan

  • 605: 6%

  • 3212: 32%

  • 3428: 34%

Fire Rating

  • ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0

Acoustics (with optional Soft Sound® backer)

  • Element 3212- True NRC® 0.85: Ceiling E-300 Method

  • Element 3212 -True NRC® 0.85: Wall F-70 Method

  • Element 605 -True NRC® 0.65: Ceiling E-300 Method

  • Element 605 -True NRC® 0.70: Wall F-70 Method

Ceiling Attachment

  • Torsion Grid (By Others)

Wall Attachment

  • Vertika® Wall (Refer to Vertika® Brochure)

Accessibility

  • Torsion Spring Hinge

Trimmability

  • Yes, per installation manual

Accessories

  • Acoustic Backer, Translucent Backer, Backlight, InLine Light

Product diagrams

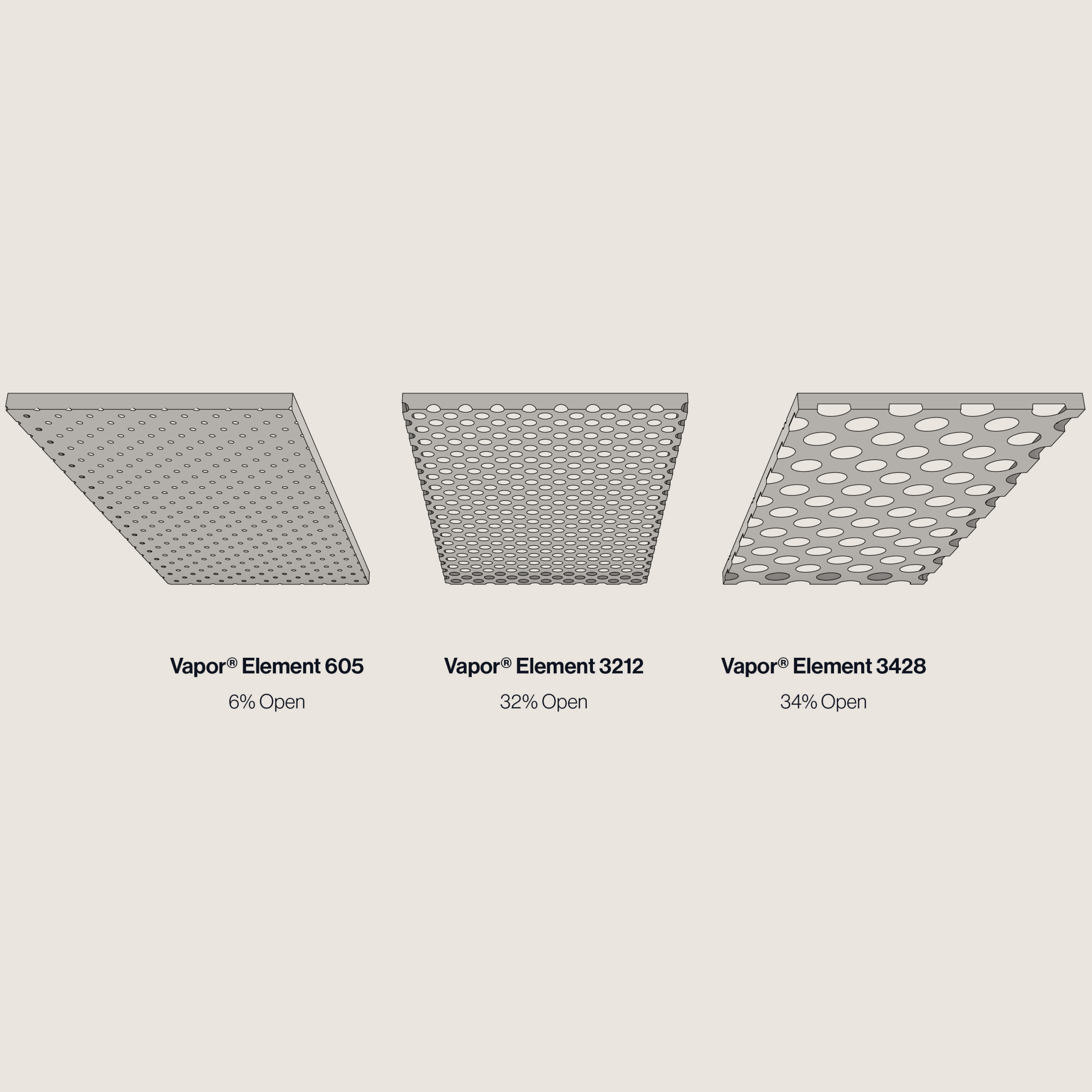

Standard Panel

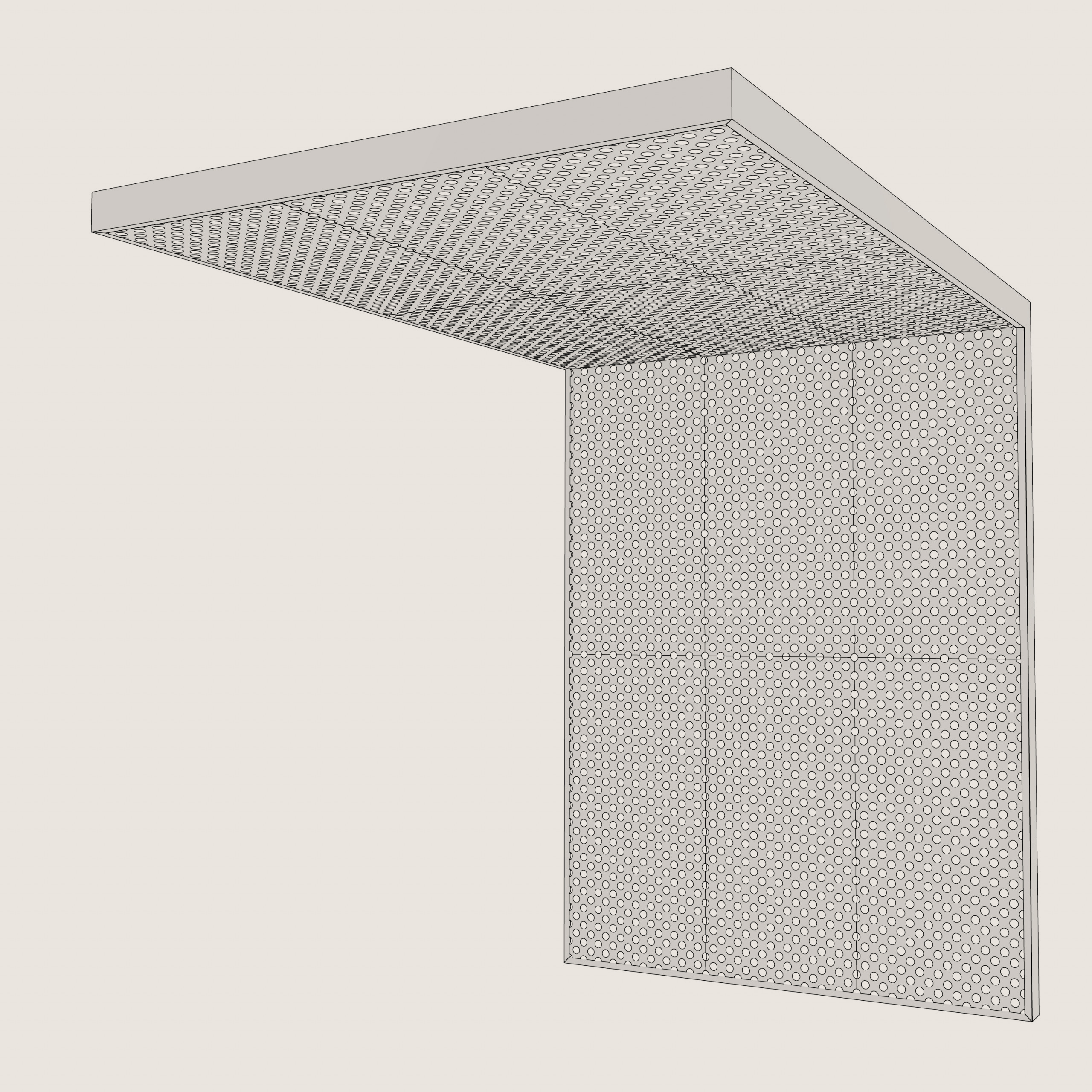

Seamlessly Join Walls & Ceilings

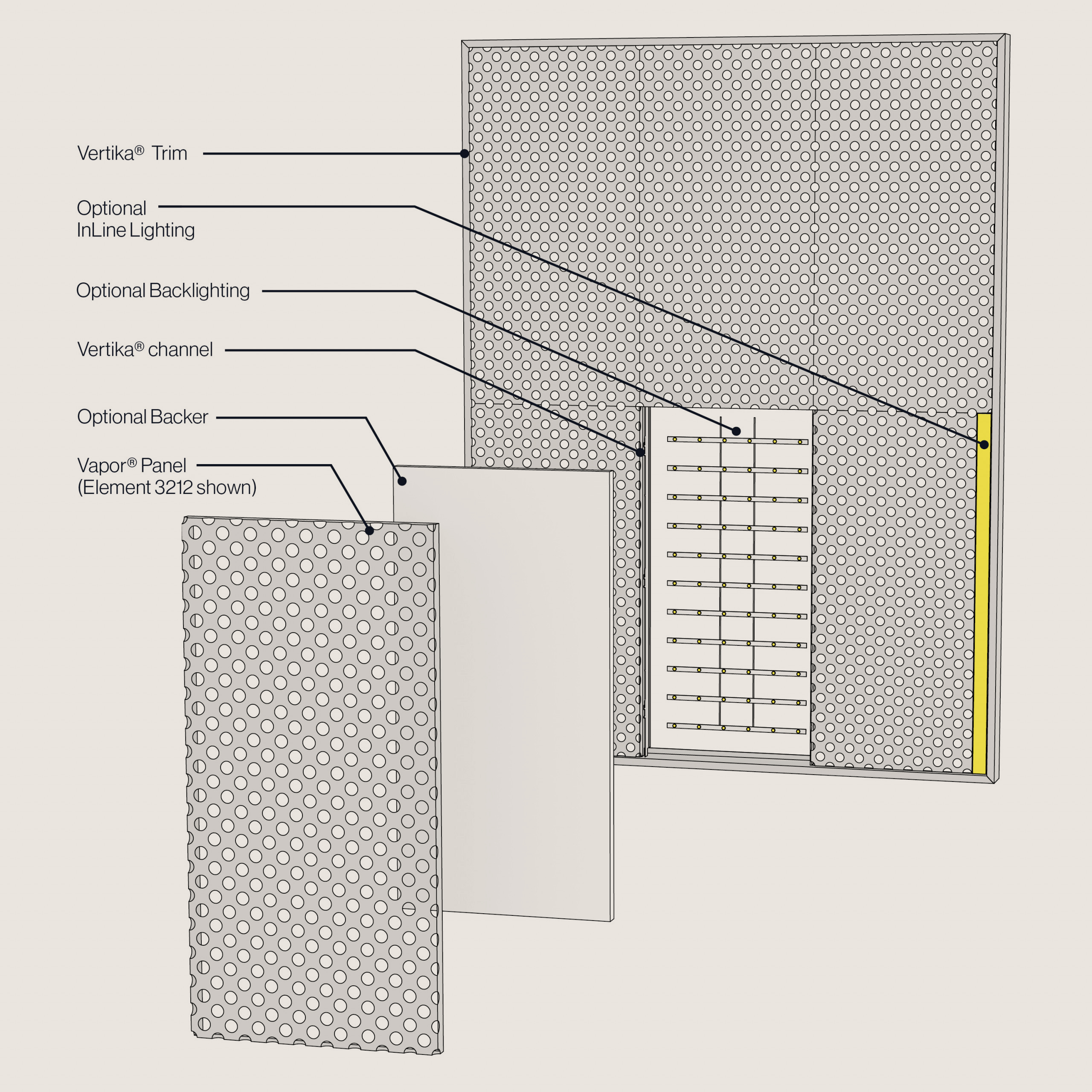

Accessory Options - Wall

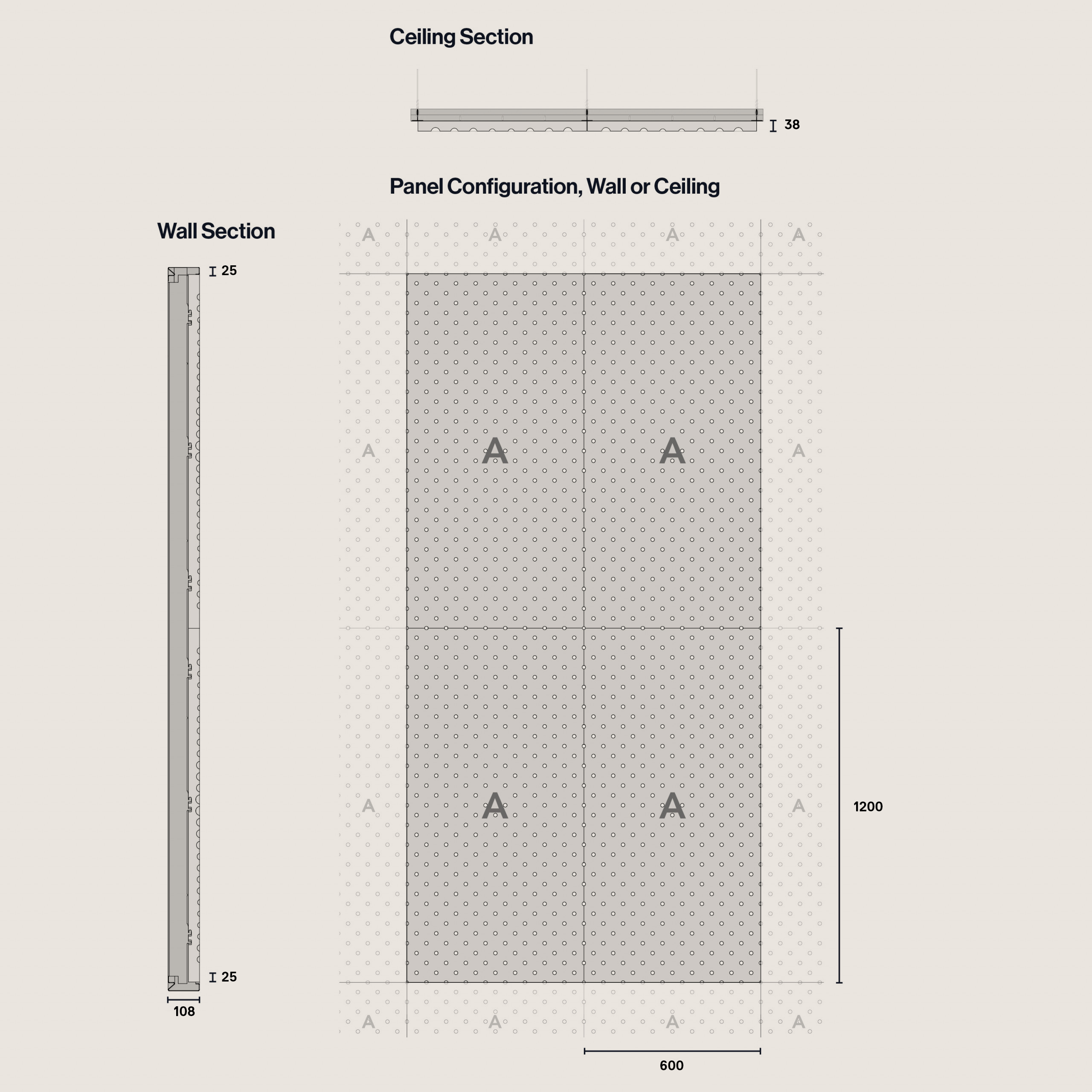

Understanding the Panel - Element 3212

Understanding the Panel - Element 605

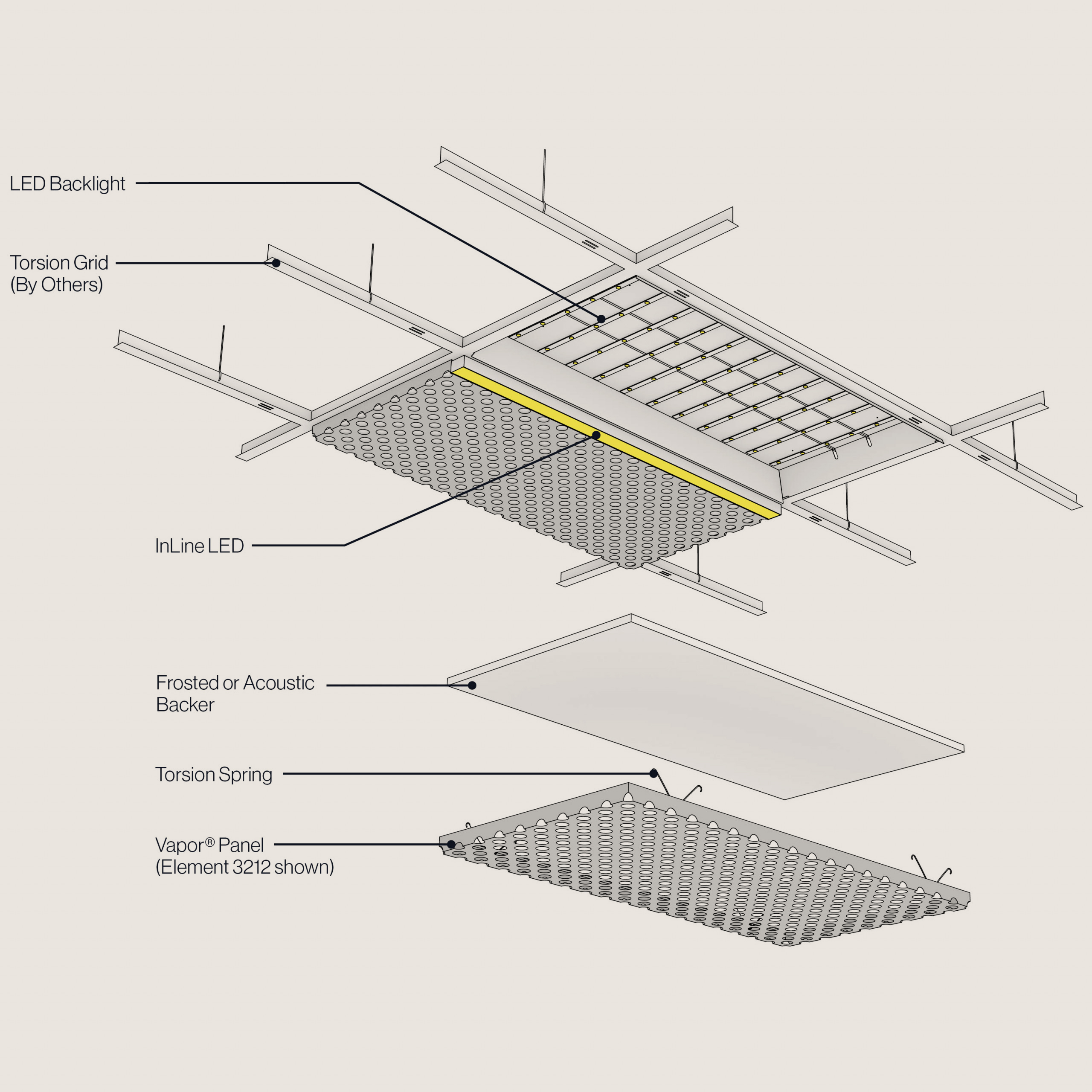

Accessory Options - Ceiling

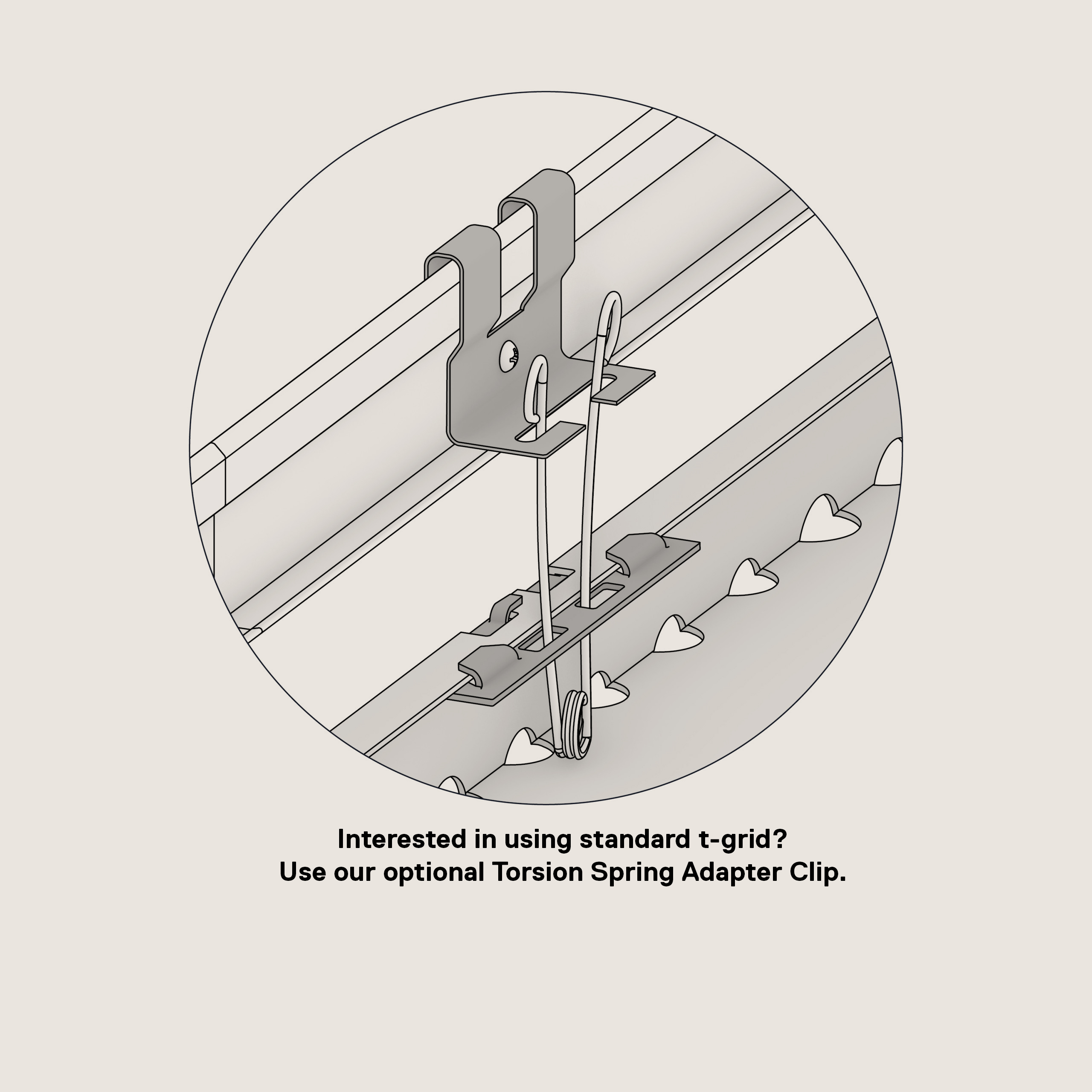

Accessory Options - Retrofit Adapter Clip Kit

Sustainability and Certification
  • 149 / 50

    Each module is made from 149 recycled aluminium cans with an acoustic backer made of 50 recycled water bottles.

  • Cradle to Cradle®

    Bronze Status Pending

  • 100%

    Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)

  • Declare

    Red list free

Materials and Finishes

Materials and Finishes

CircuLUM™ Powder Coat Premium Metallic Finish

  • Chilled Champagne

  • Burnished Bronze

CircuLUM™ Powder Coat Standard Finish

  • Brilliant White (Gloss) (RAL9010)

  • NOWN White (Matte) (RAL9016)

  • T-Grid White (Matte) (RAL9003)

  • Silver Metallic (Semi Gloss) (RAL9006)

  • Jet Black (Matte) (RAL9005)

  • Aviator Gray (Gloss) (RAL7035)

  • Aviator Gray (Matte) (RAL7035)

  • Steel Gray (RAL7046)

  • Shadow (RAL7024)

  • Midnight (RAL7021)

  • Coffee (RAL8014)

  • Raw Umber (RAL8007)

  • Caramel (RAL8001)

  • Sandstone (RAL1019)

  • Oat (RAL1001)

  • Sunflower (RAL1003)

  • Torch (RAL2009)

  • Spirit Red (Matte) (RAL3001)

  • Azure (RAL5003)

  • Blue Steel (RAL5010)

  • Forest Green (RAL6001)

Resources

Product

Download

Vapor® ELEMENT Brochure

Vapor® ELEMENT 47 – All Reference Models (Metric)
