Vapor® TRAIL

Technical documents Get models Find an agent

Acoustic
Ceiling Panels
Lighting
Wall Panels

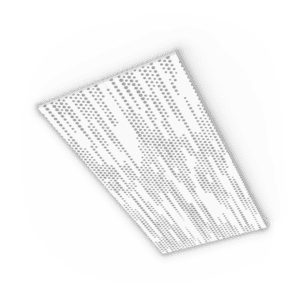

Trail powder-coated aluminum torsion spring panels feature a linear design of multi-sized circles, creating a flowing effect designed to evoke emotion. Each line of larger circles tapers off with smaller circles to create a trail you’ll want to follow, especially when paired with our integrated lighting backer. But if you don’t want to hear people following the trail, add our Soft Sound® backer and reduce excess noise.

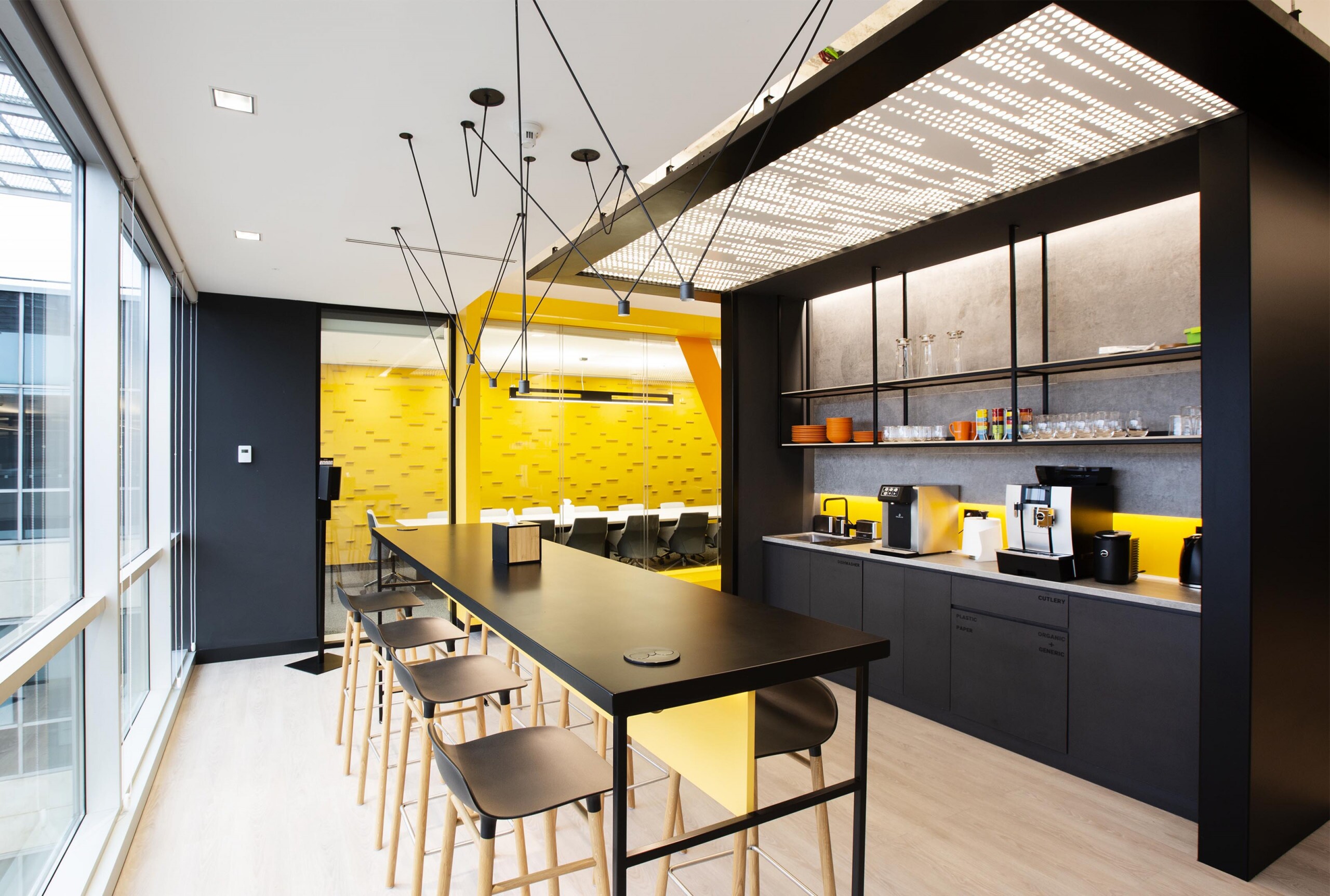

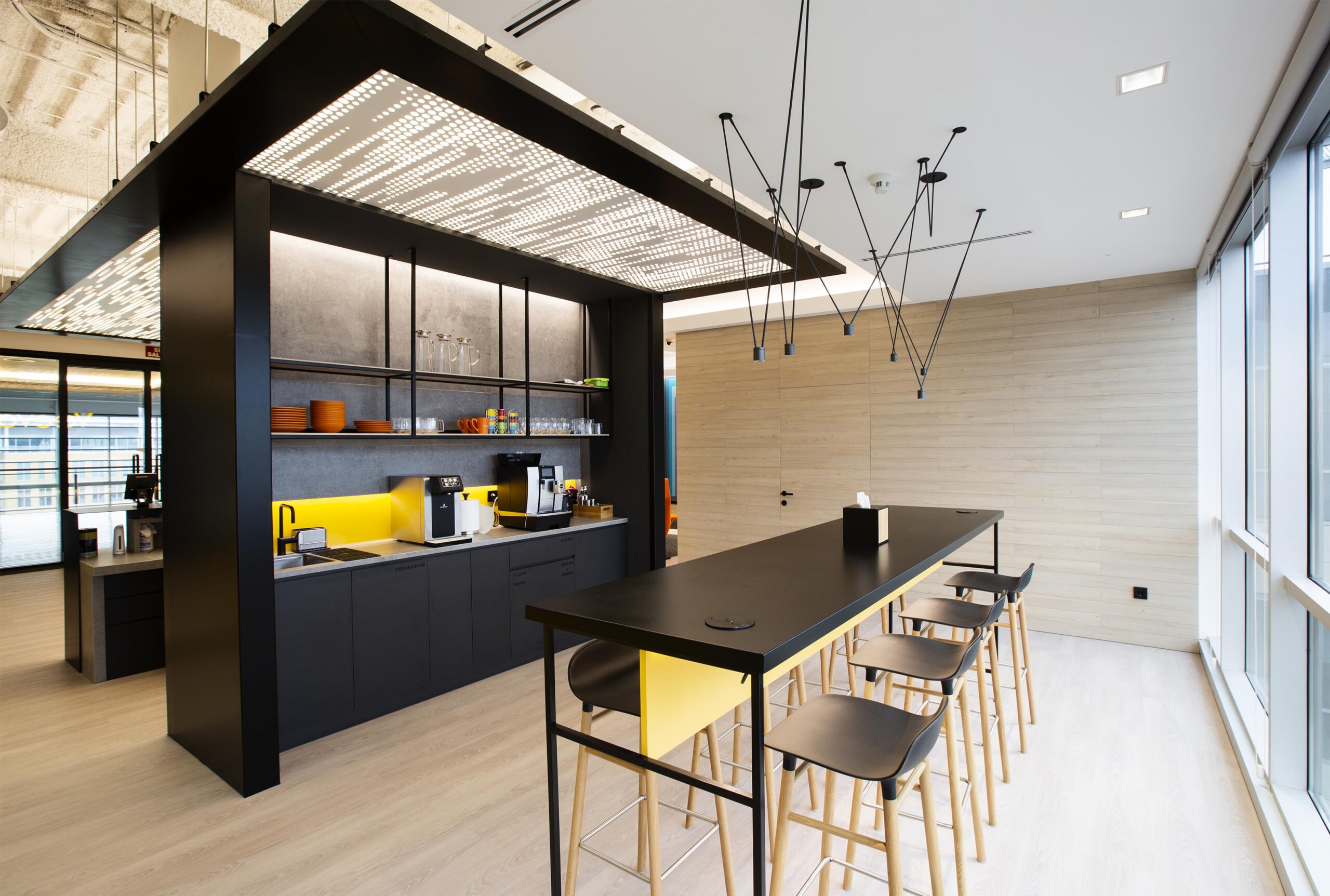

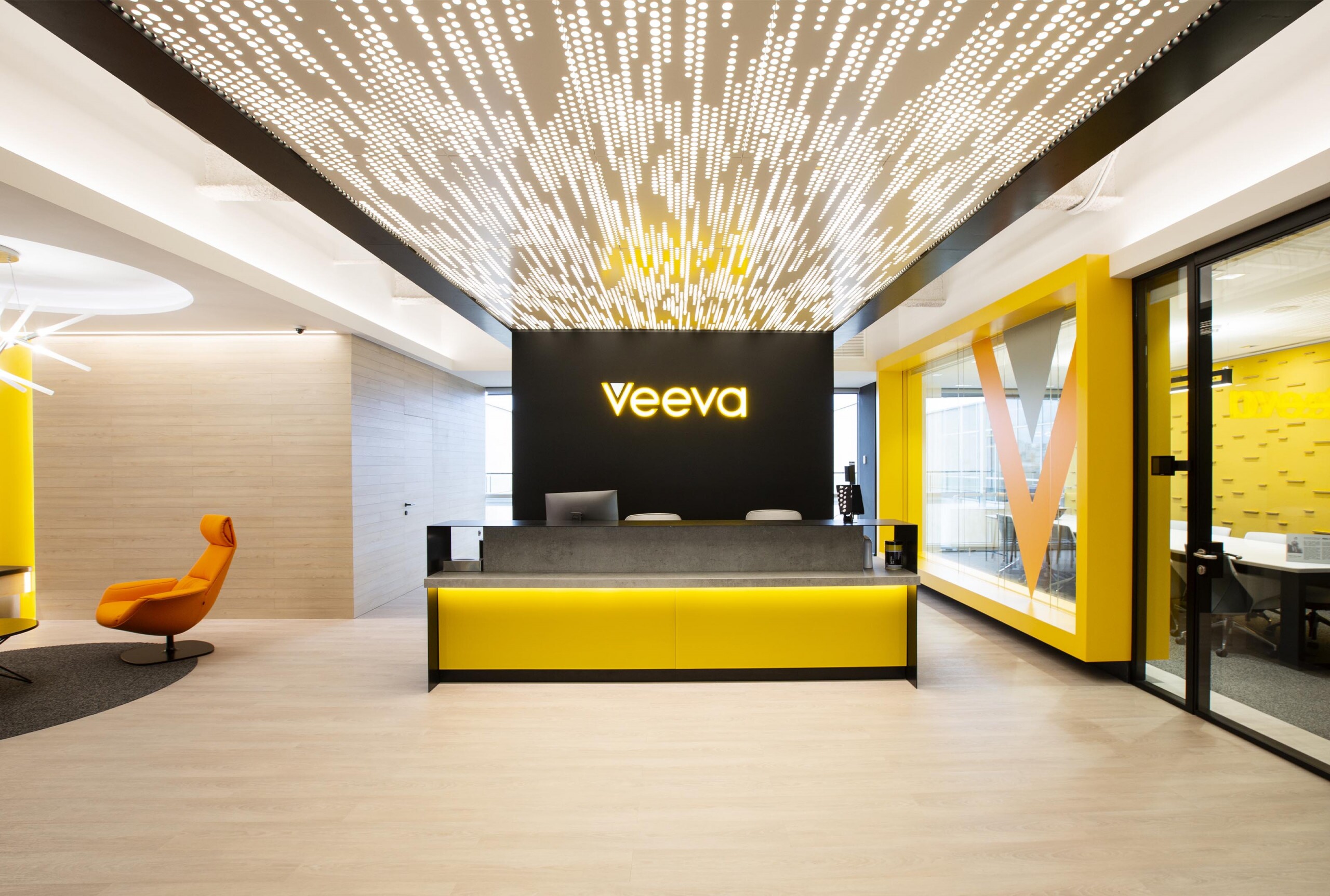

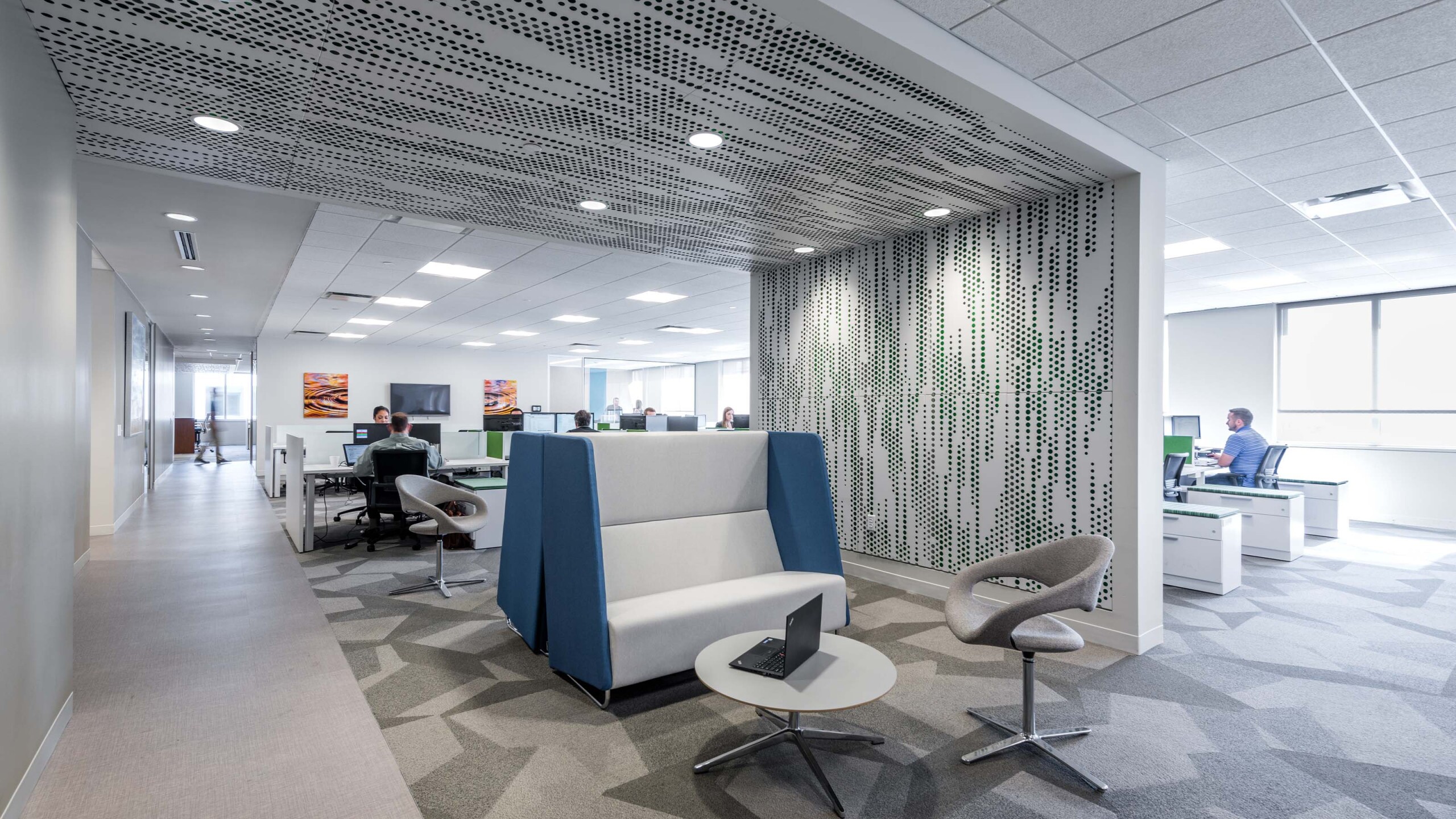

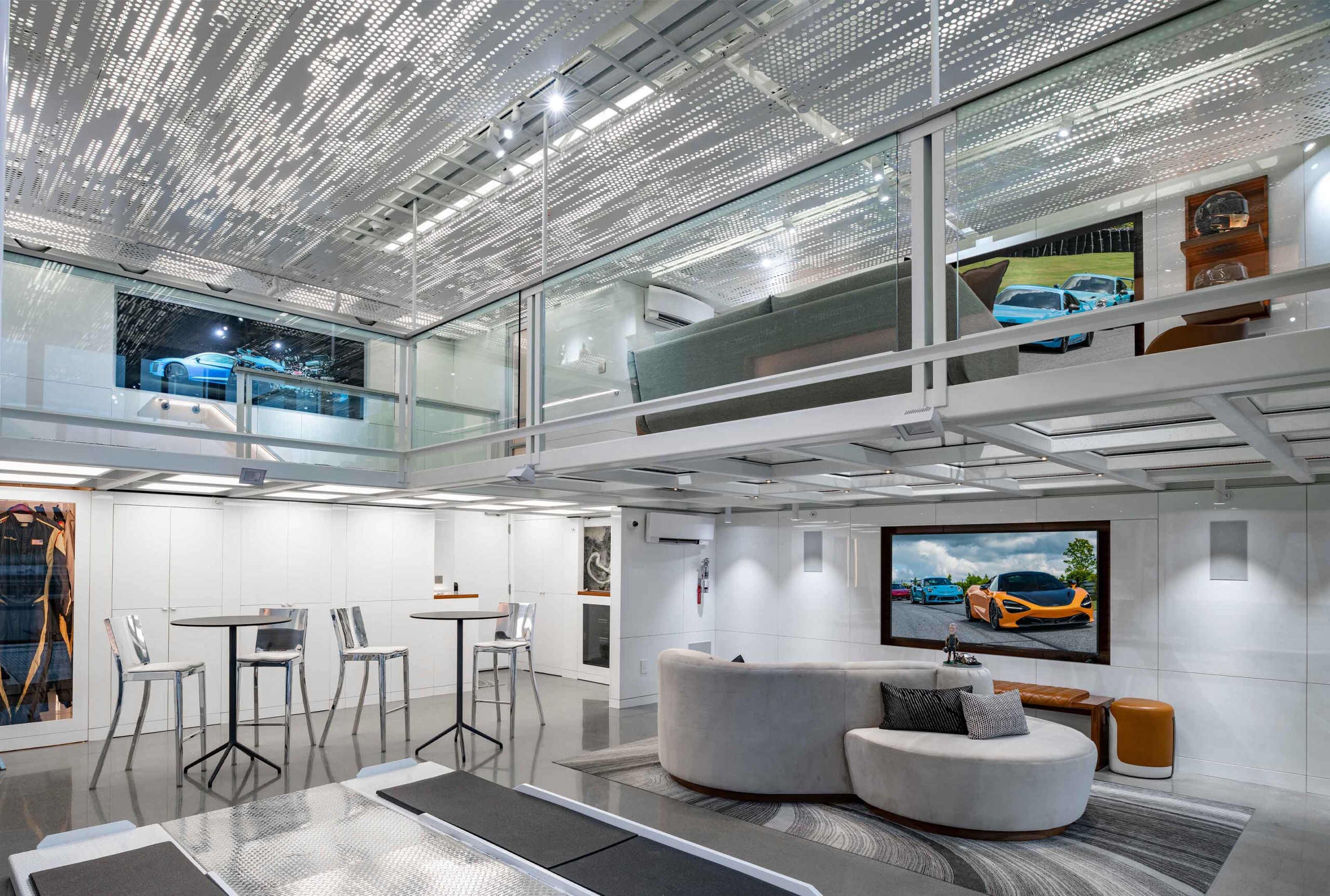

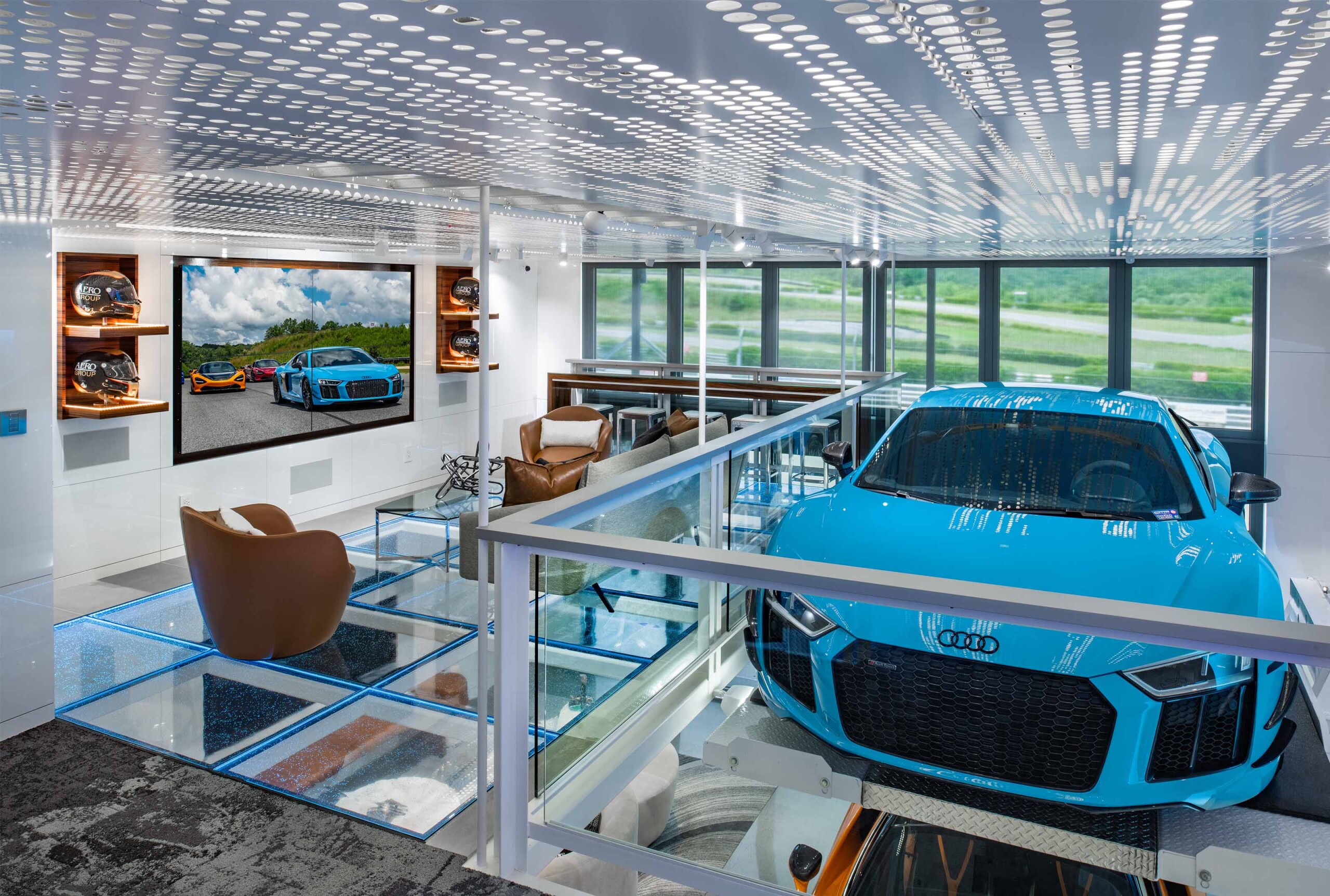

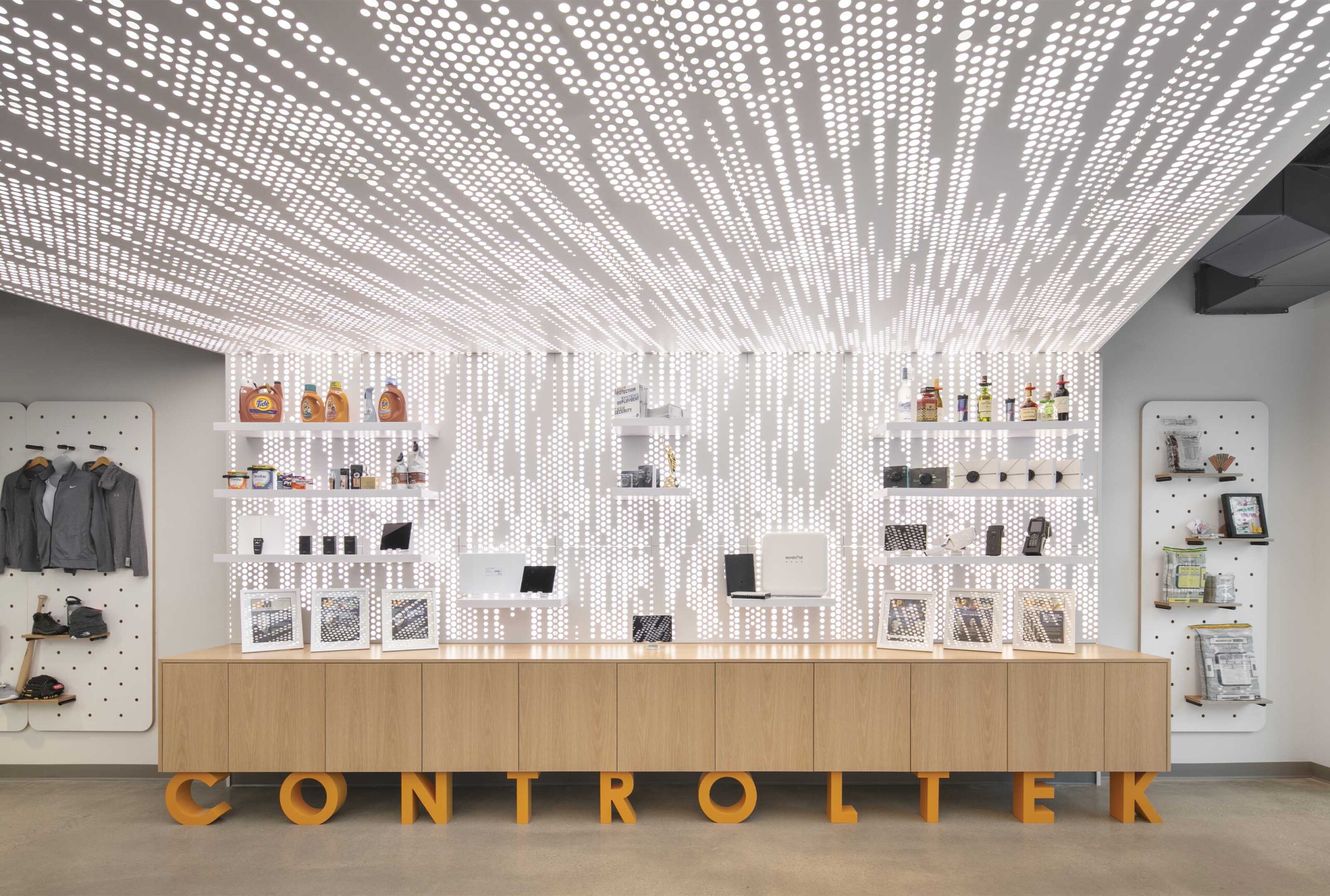

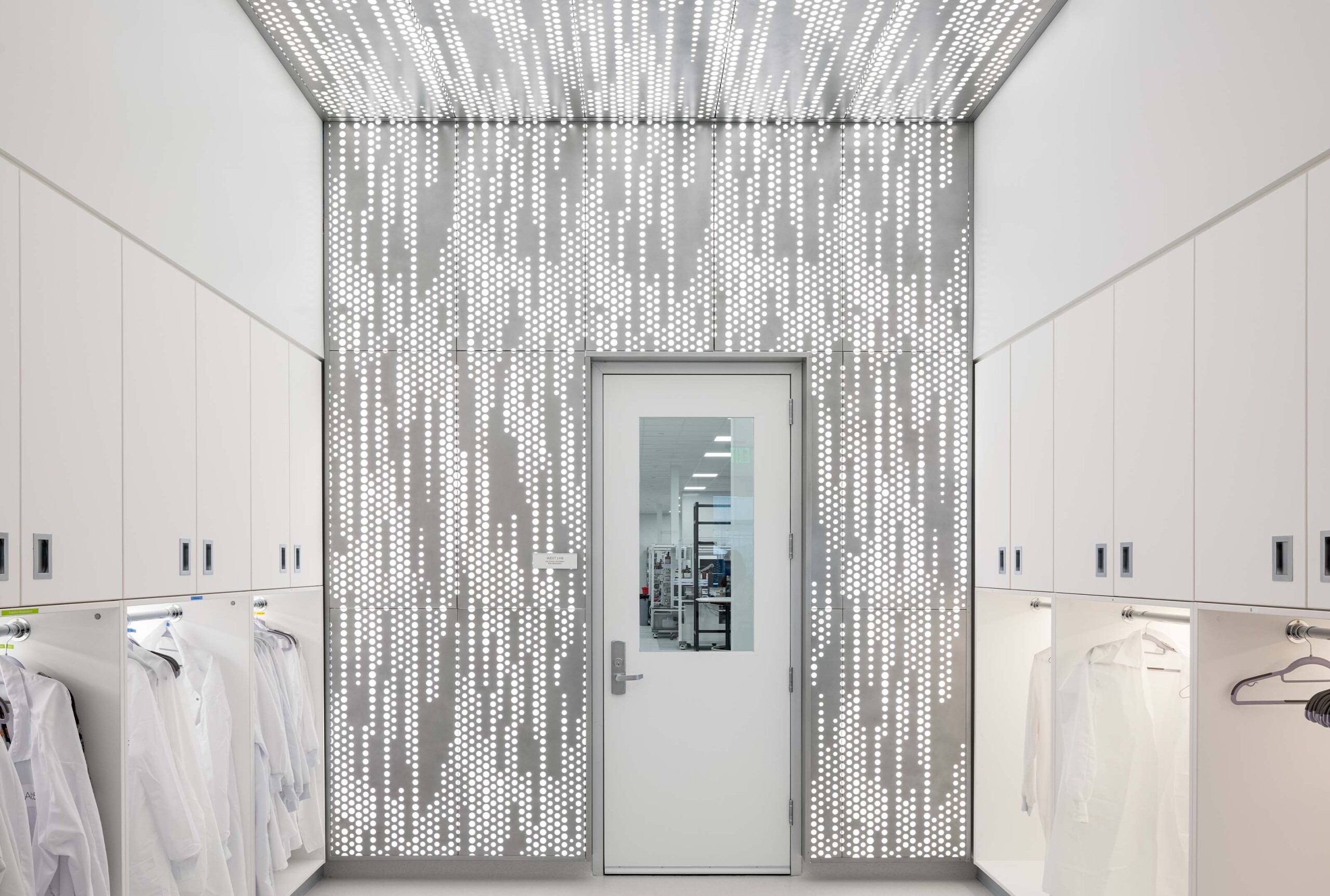

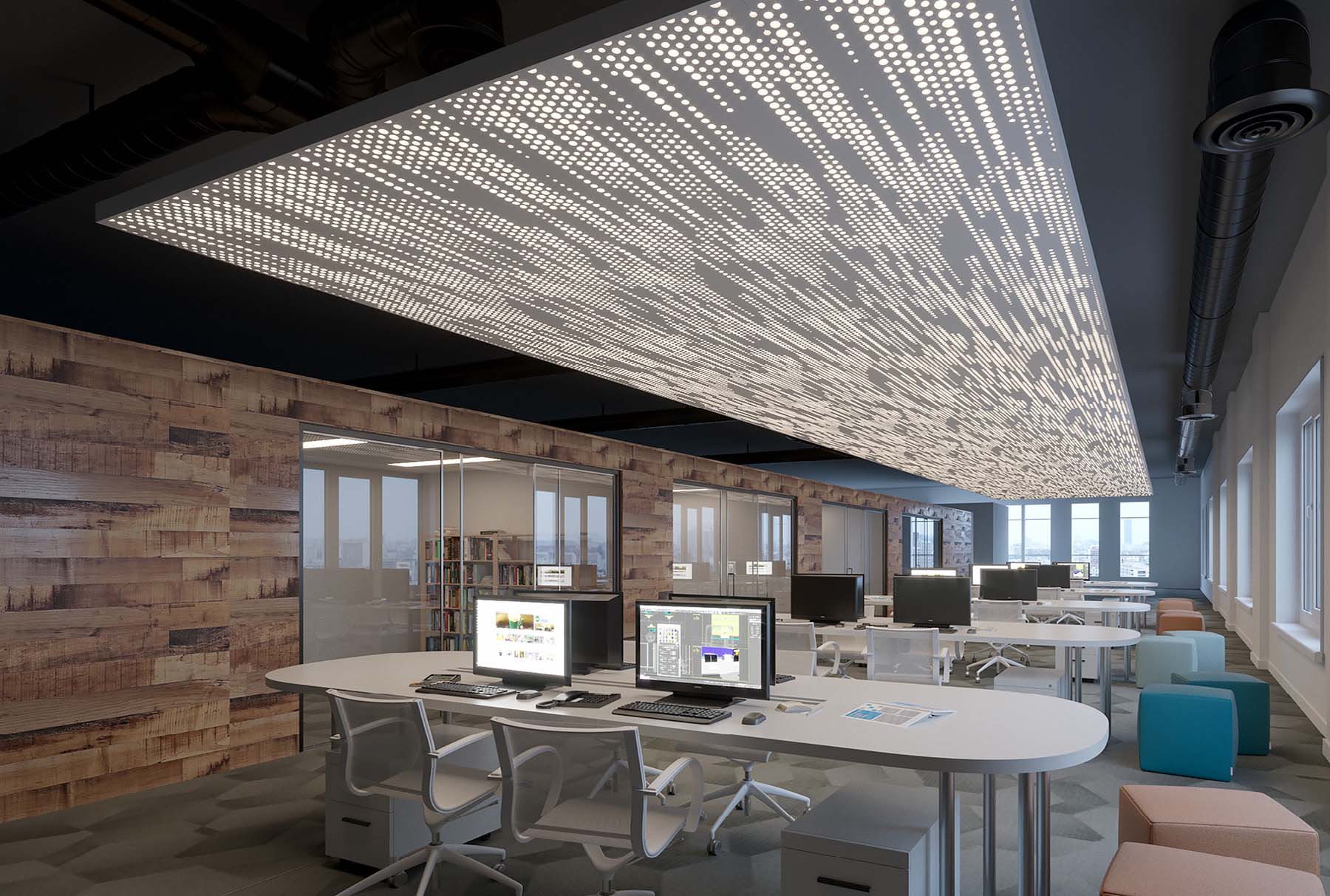

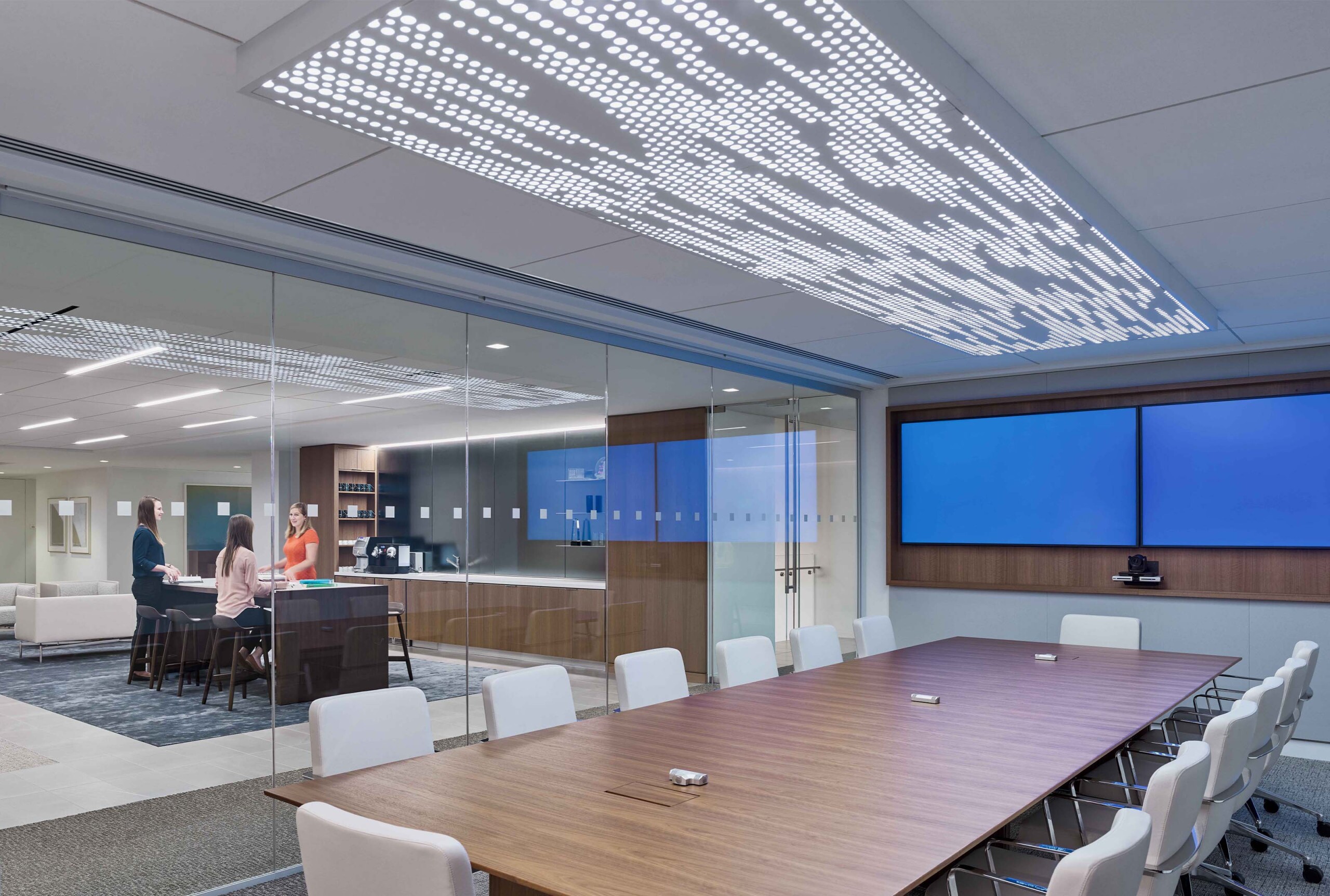

Vapor® TRAIL in use

—

The System

Key Features

Acoustic Performance

Vapor®'s optional Soft Sound® backer material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. The Soft Sound® backer works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

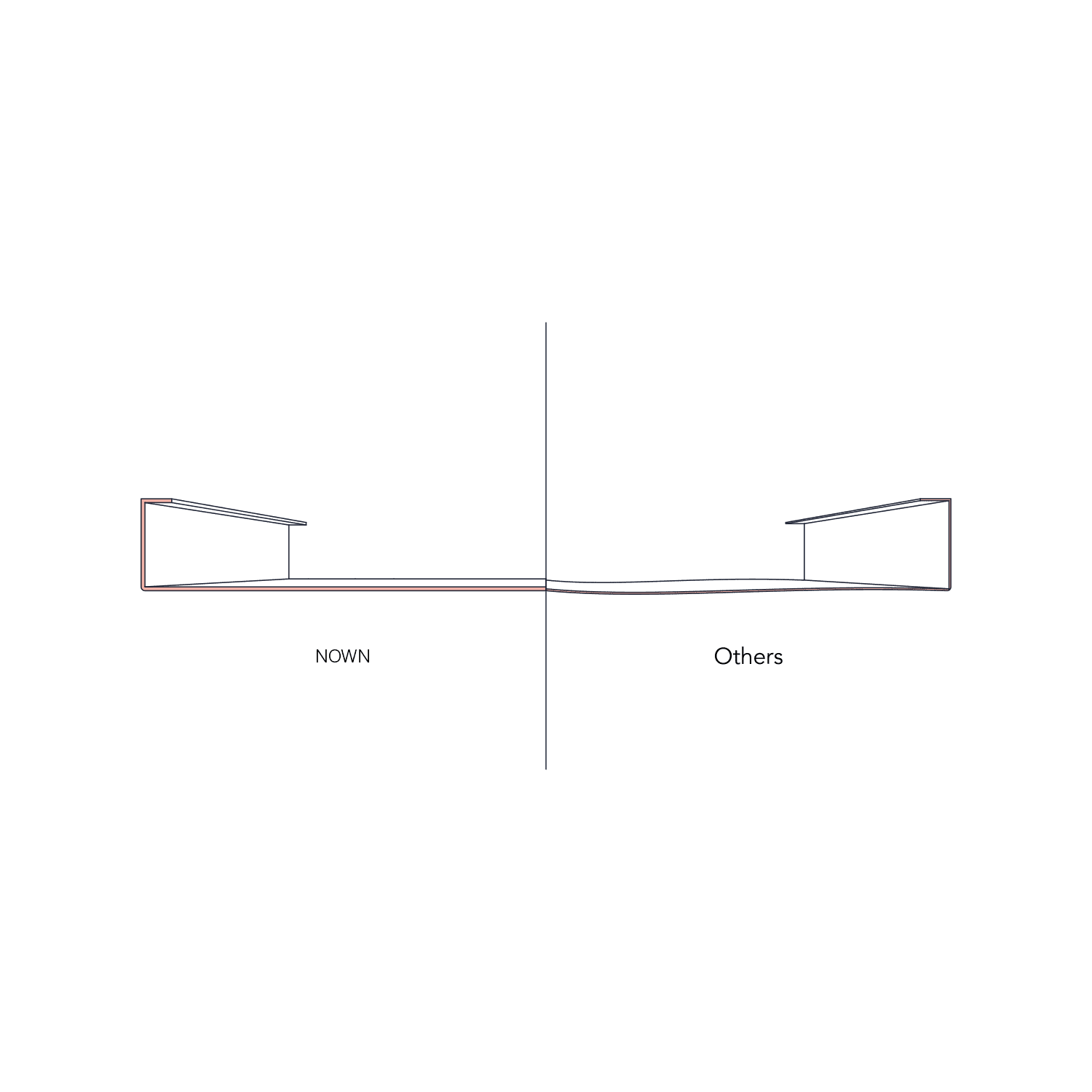

Superior Flatness & Strength

Vapor® panels are manufactured from aluminum that is on average 50% thicker than the competition, which in combination with our precision processes result in unrivaled flatness.
Integrated Lighting Options

NOWN's Vapor® line makes it easy to seamlessly add illumination and lighting effects to your projects, through available integrated InLine and Backlighting options.

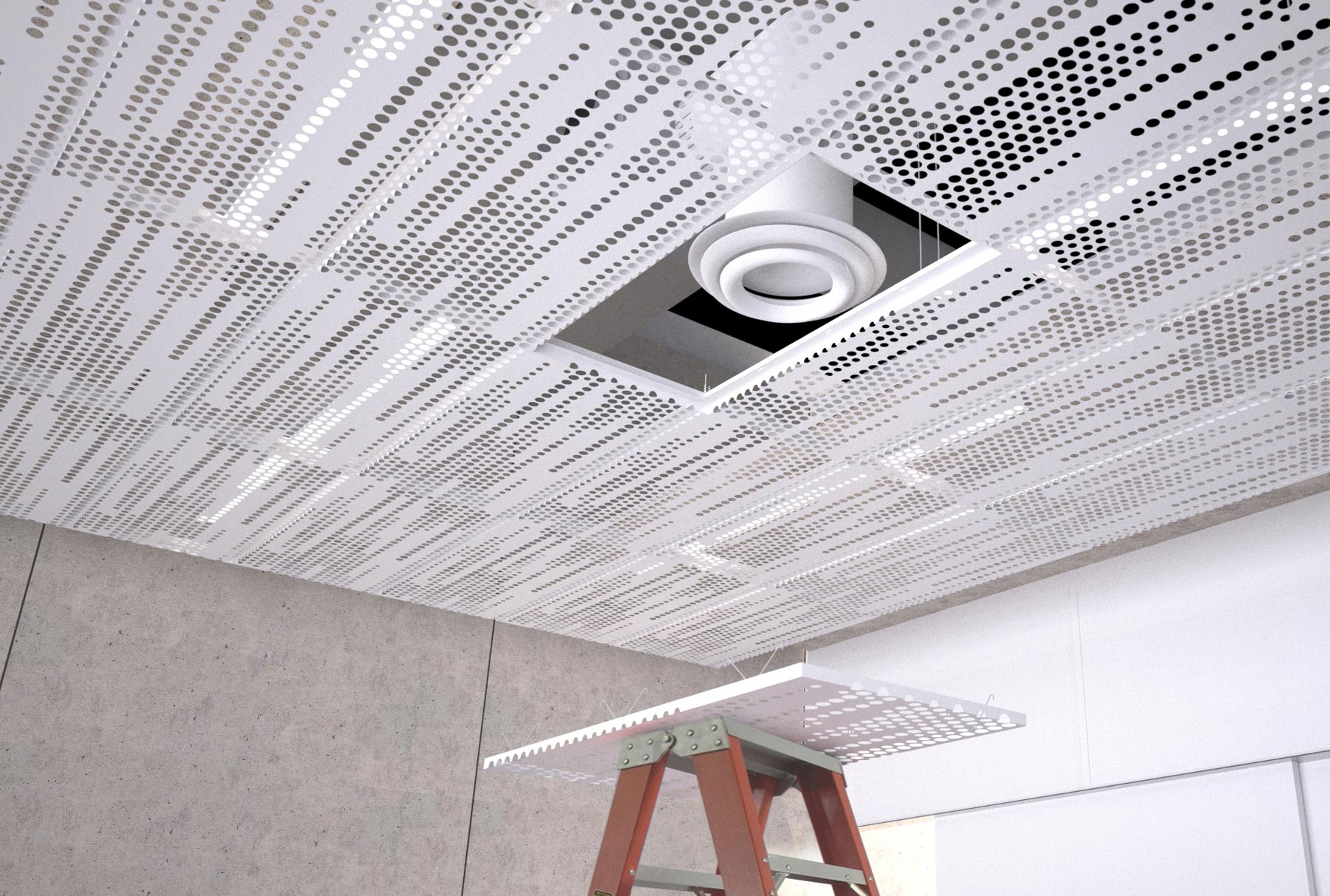

Easy Installation & Access

Vapor® panels offer easy install, using quick torsion spring attachment across s tandard ceiling grid systems or simple wall attachment using our Vertika™ channel system.
Preconfigured Solutions

Vapor® panels are scalable, seamlessly tileable, preconfigured solutions designed with a dynamic array of criteria and effects in mind. Choose from our growing library of patterns to uniquely impact your project.

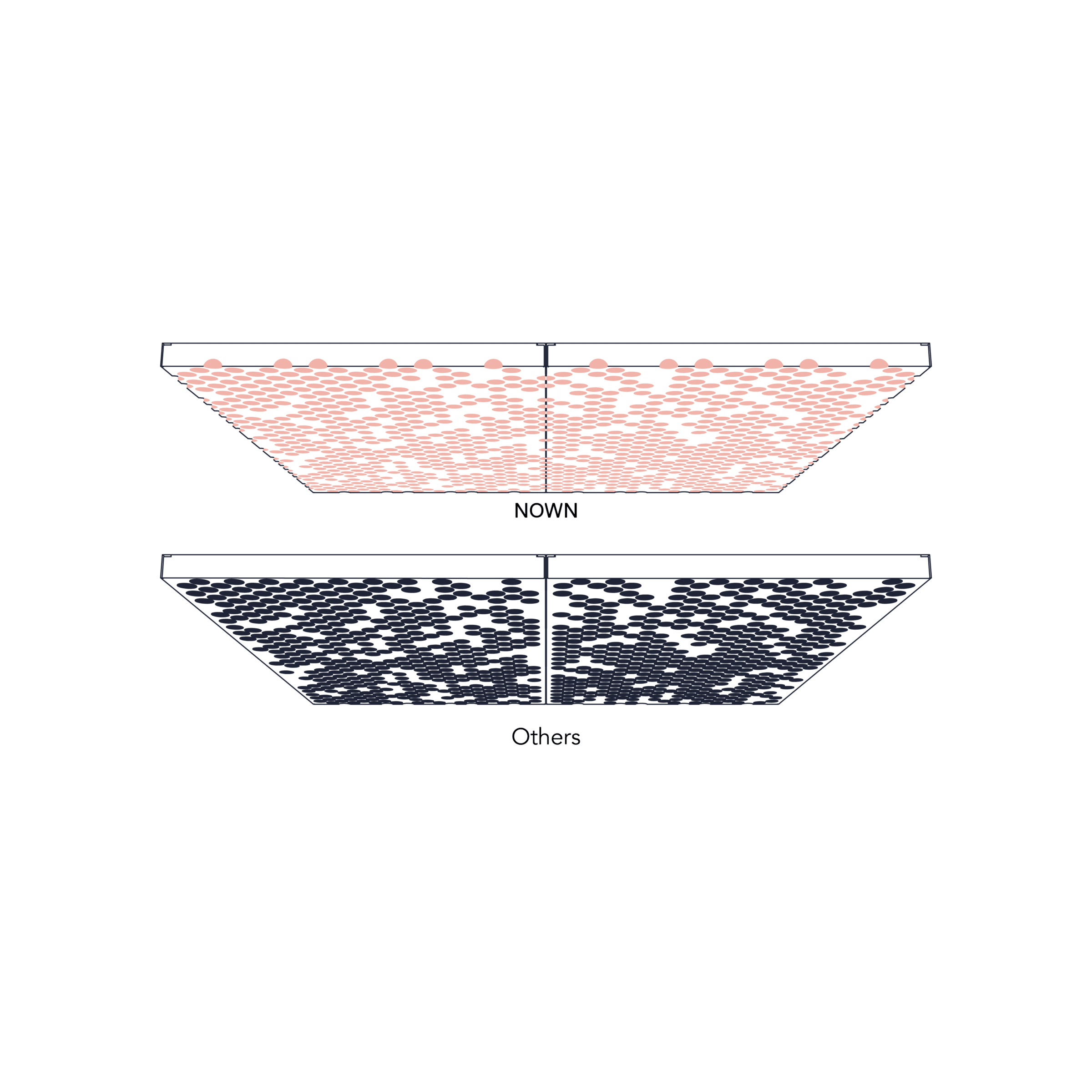

Continuous Pattern Aesthetic

Achieve uninterrupted patterning across your space. Vapor® patterns have perforations that wrap around the edges of each panel, concealing where patterns start and end.

Product Details

Specifications

Panel Size (WxHxD)

600mm x 1200mm x 38mm

Material

Aluminum

Openness in Plan

Fire Rating

ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0

Acoustics (with optional Soft Sound® backer)

True NRC® 0.80: Ceiling E-300 Method
True NRC® 0.75: Wall F-70 Method

Ceiling Attachment

Torsion Grid (By Others)

Wall Attachment

Vertika® Wall (Refer to Vertika® Brochure)

Accessibility

Torsion Spring Hinge

Trimmability

Yes, per installation manual

Accessories

Acoustic Backer, Translucent Backer, Backlight, InLine Light

Product diagrams

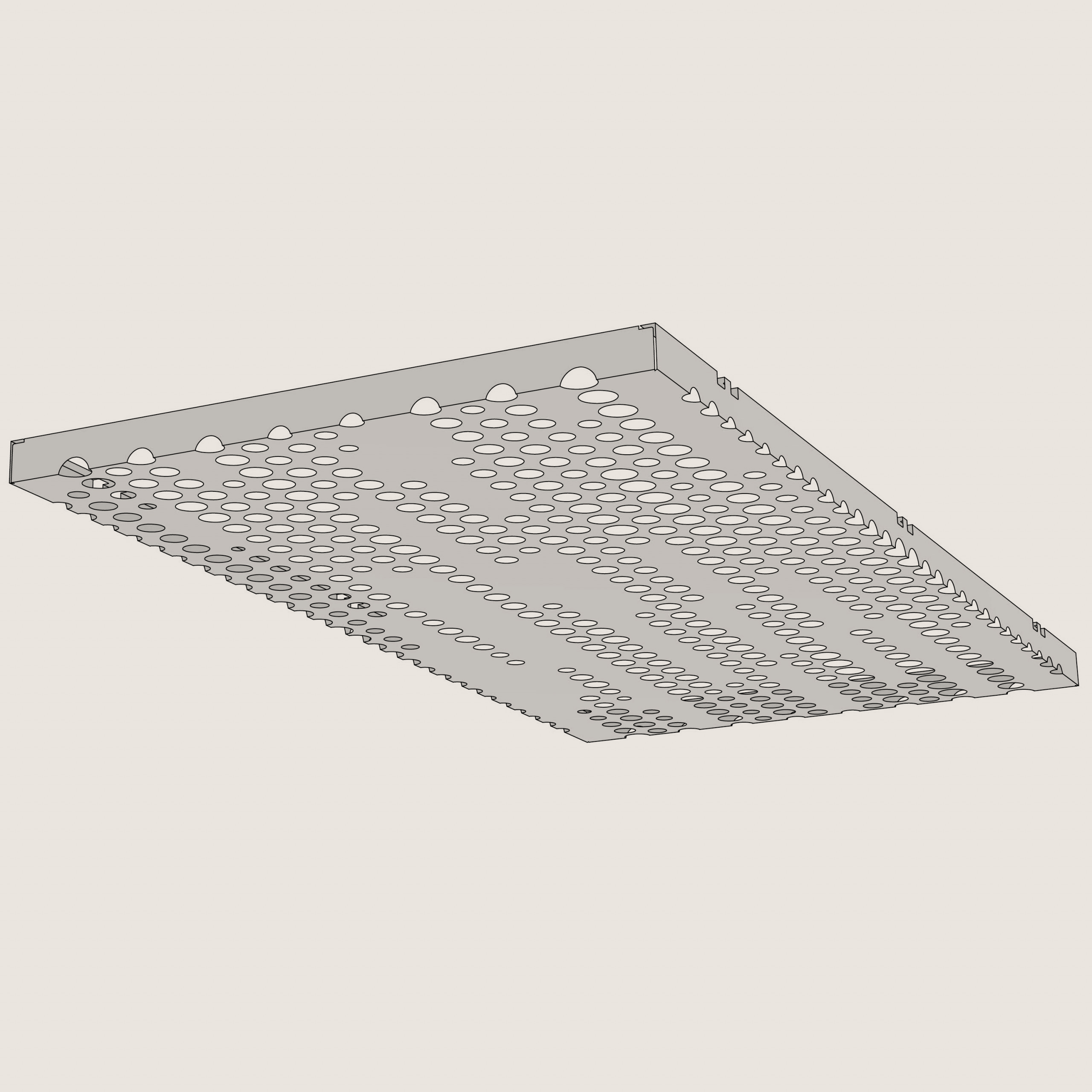

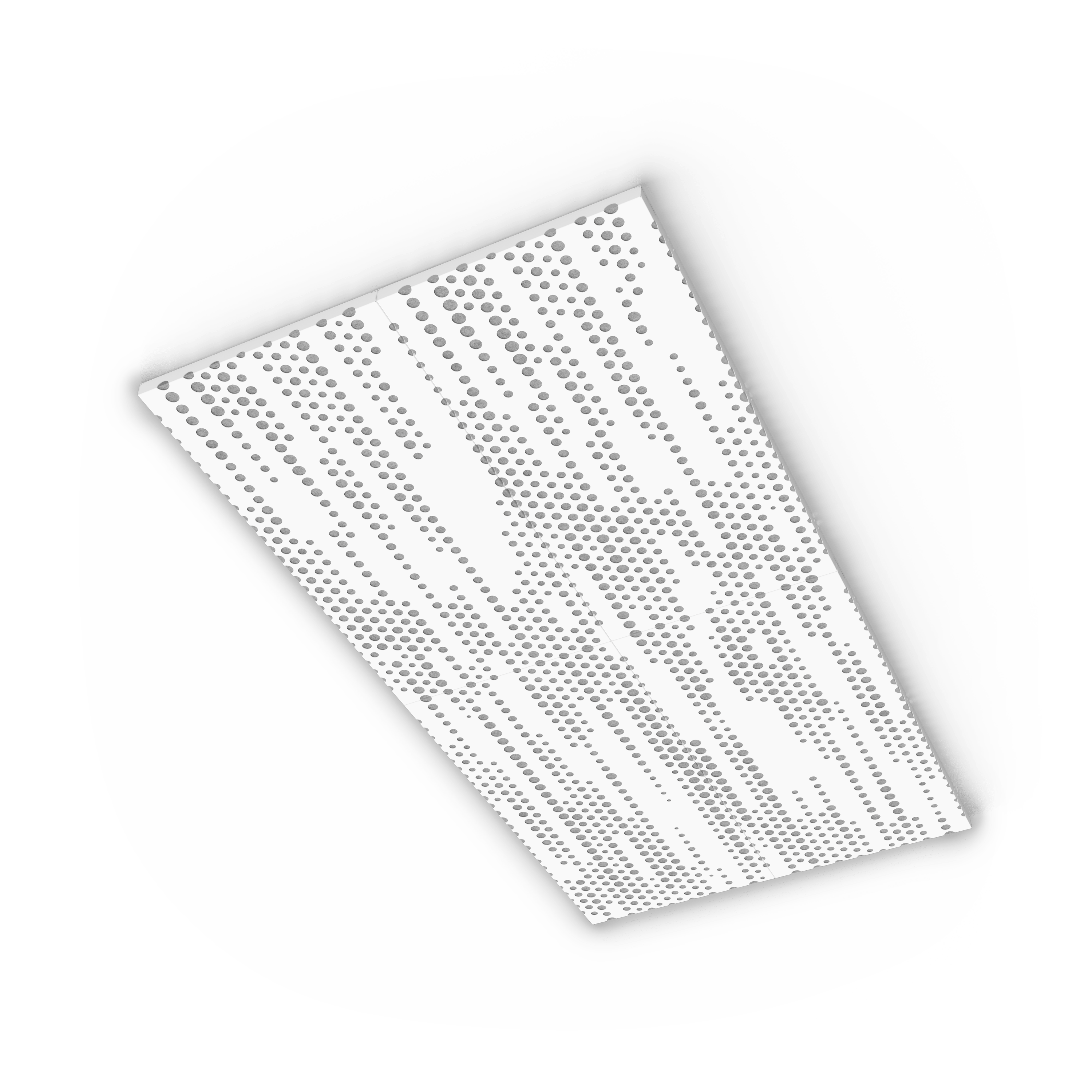

Standard Panel

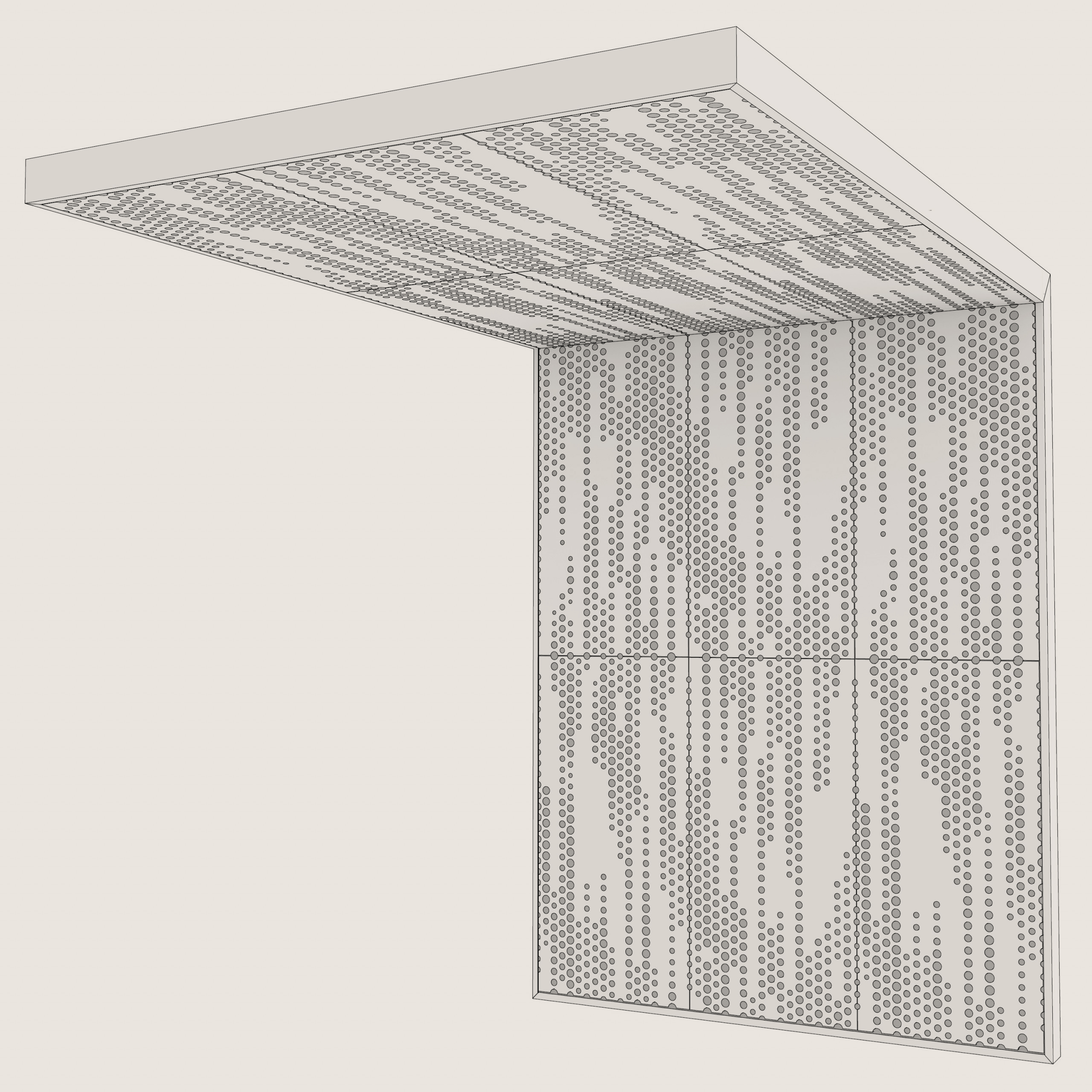

Seamlessly Join Walls & Ceilings

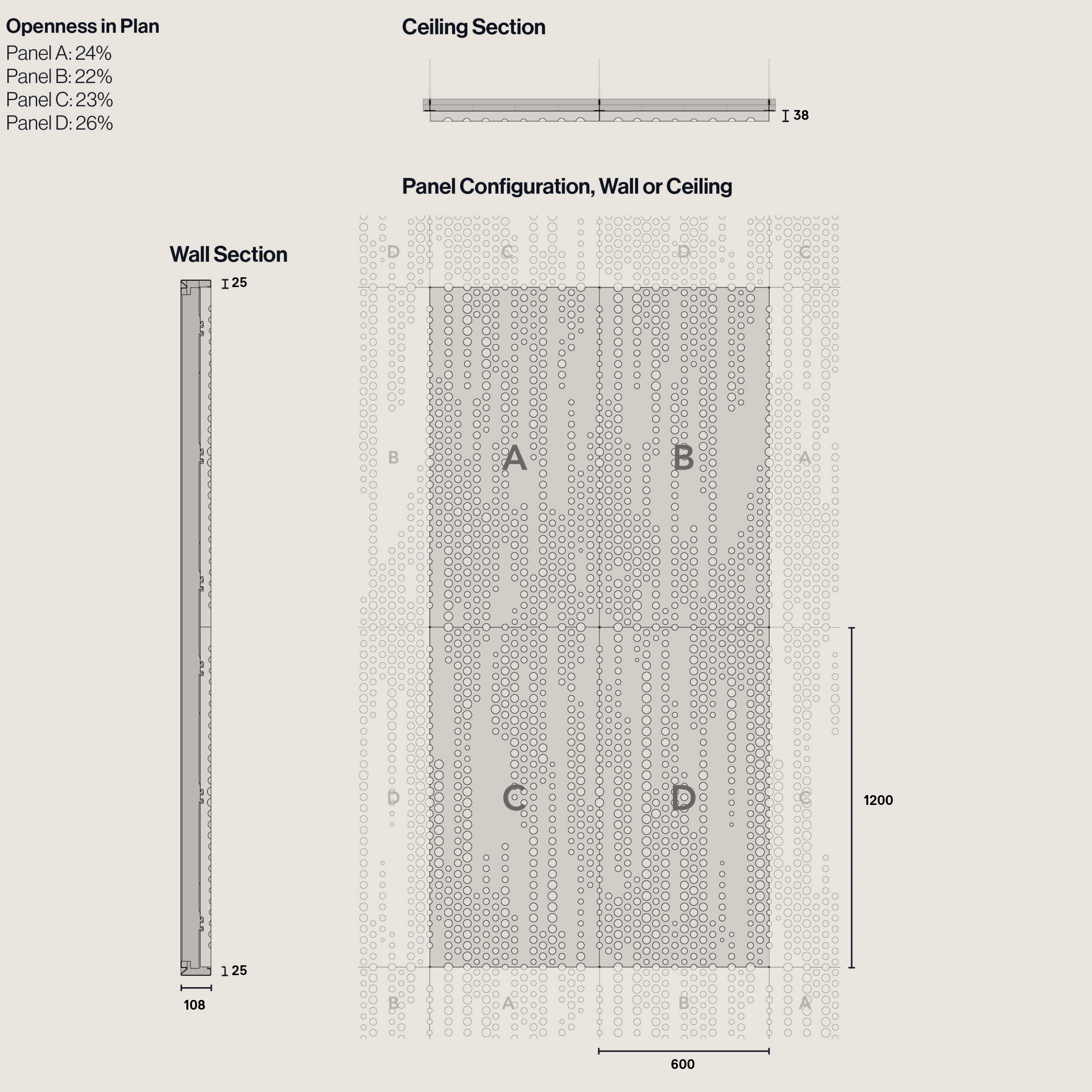

Understanding the Panel

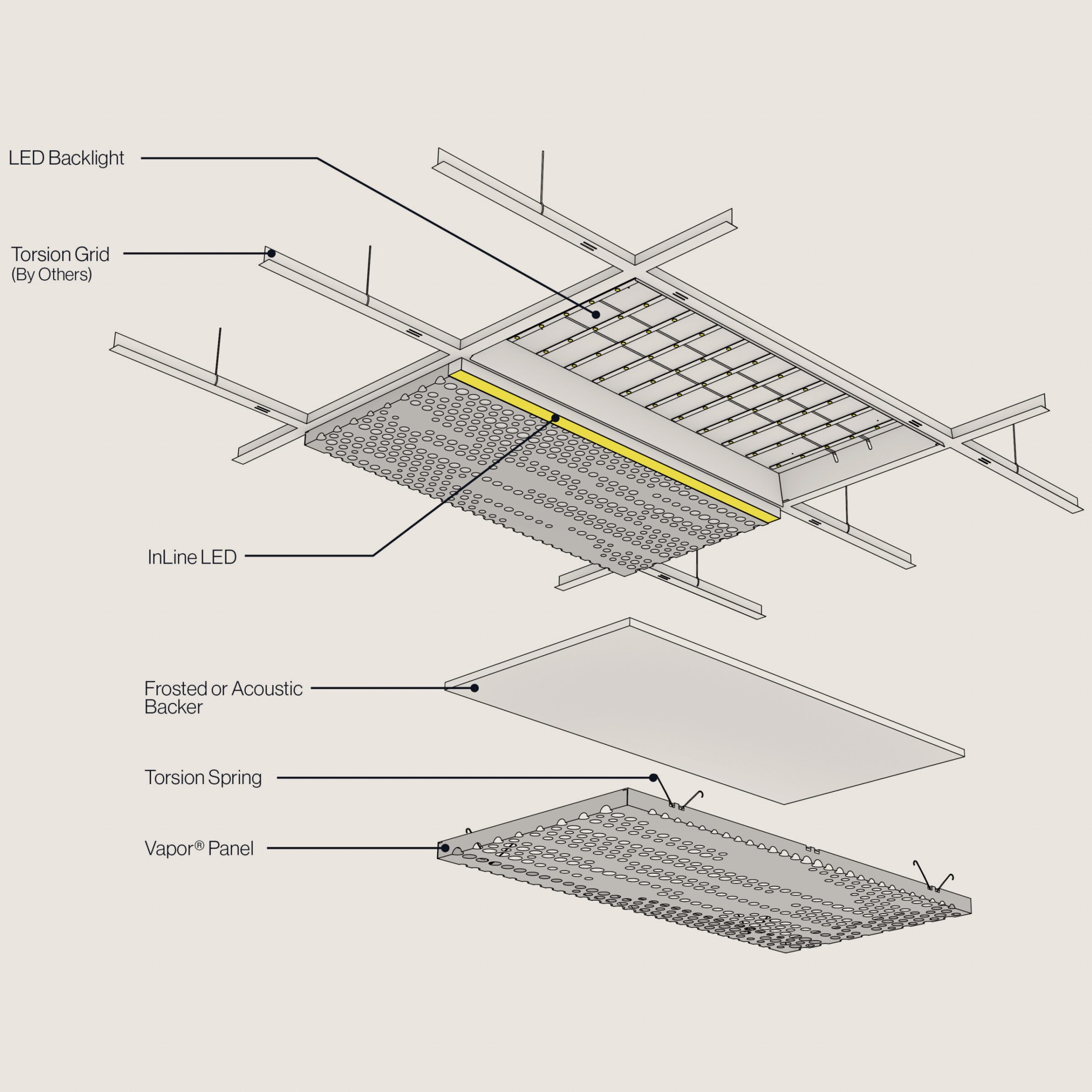

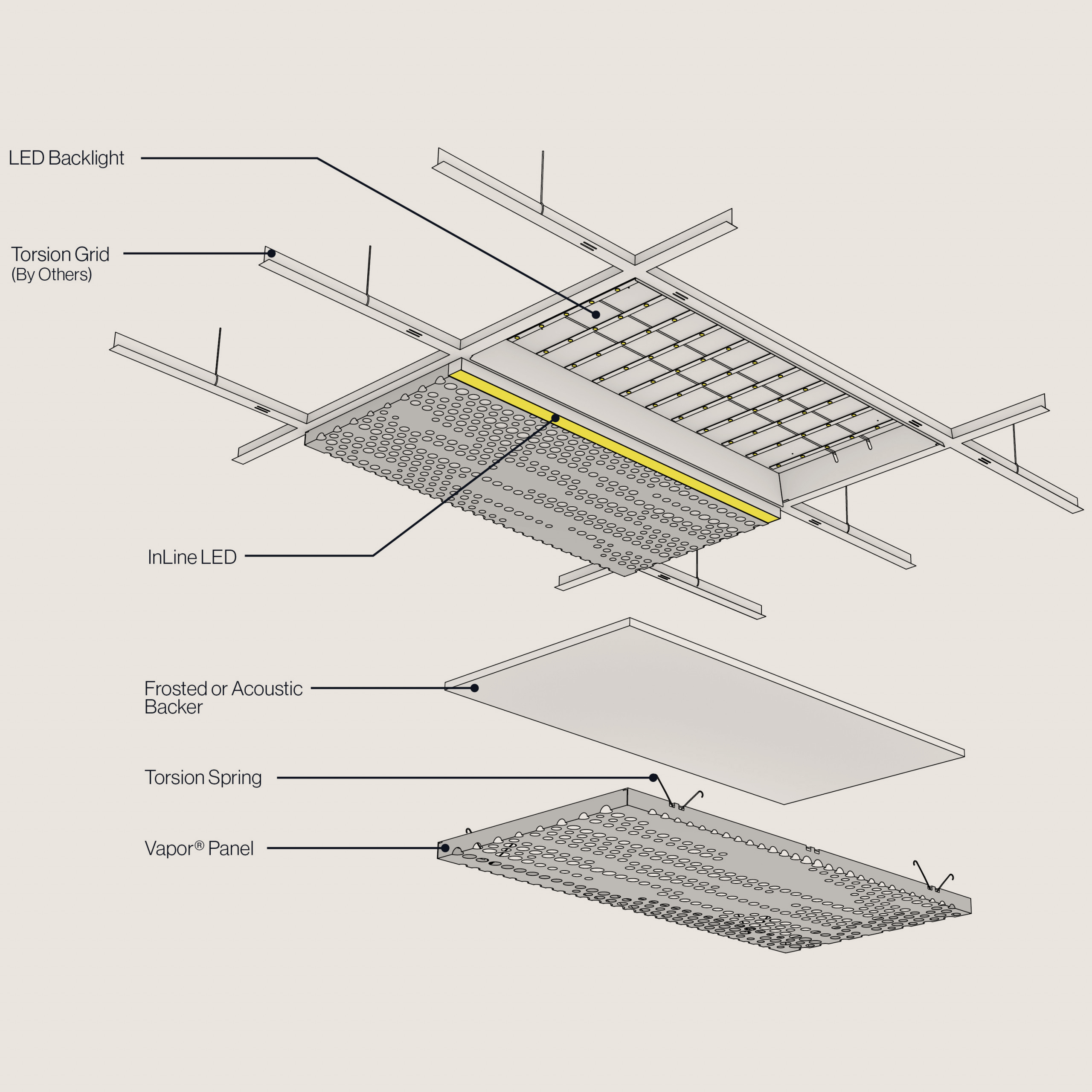

Accessory Options - Ceiling

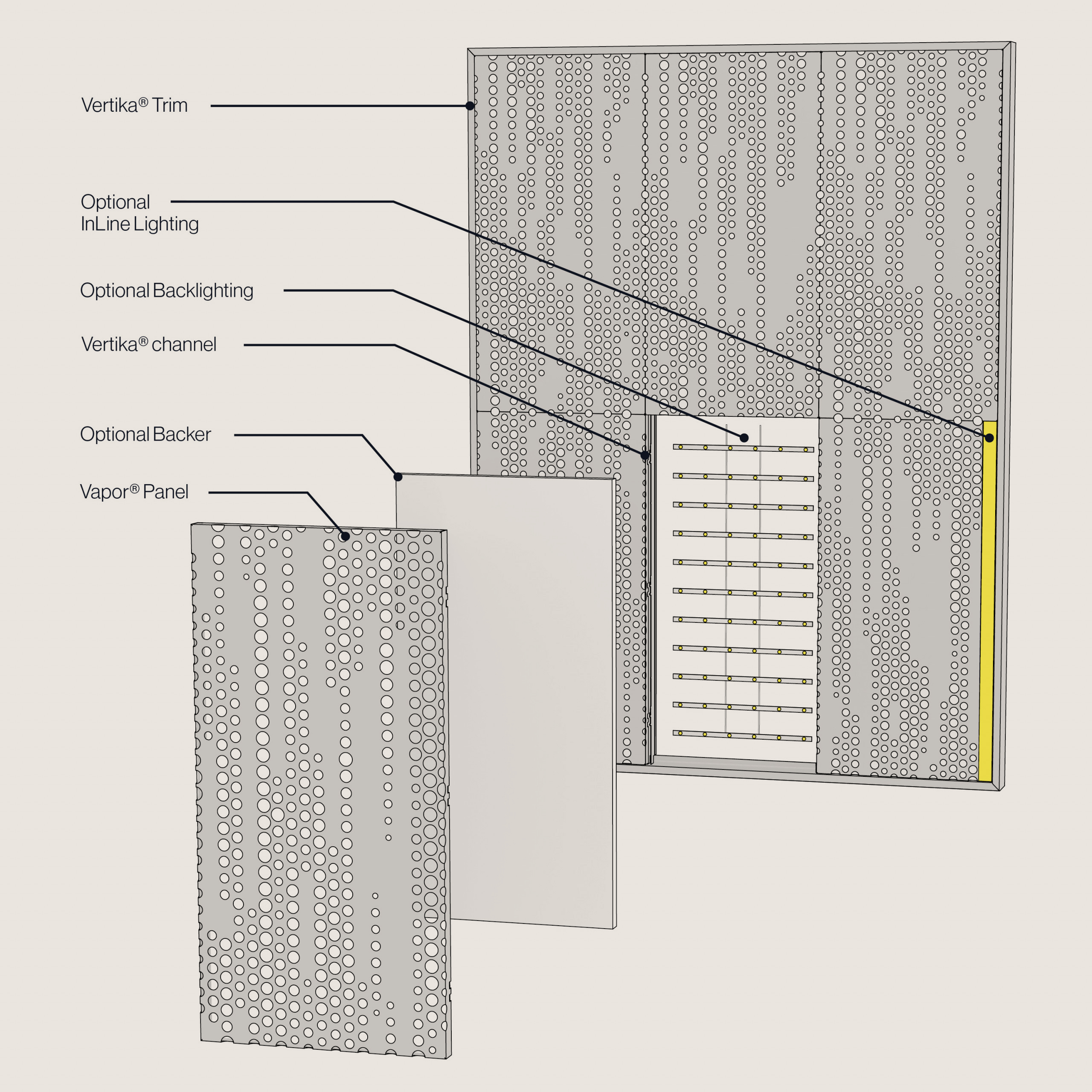

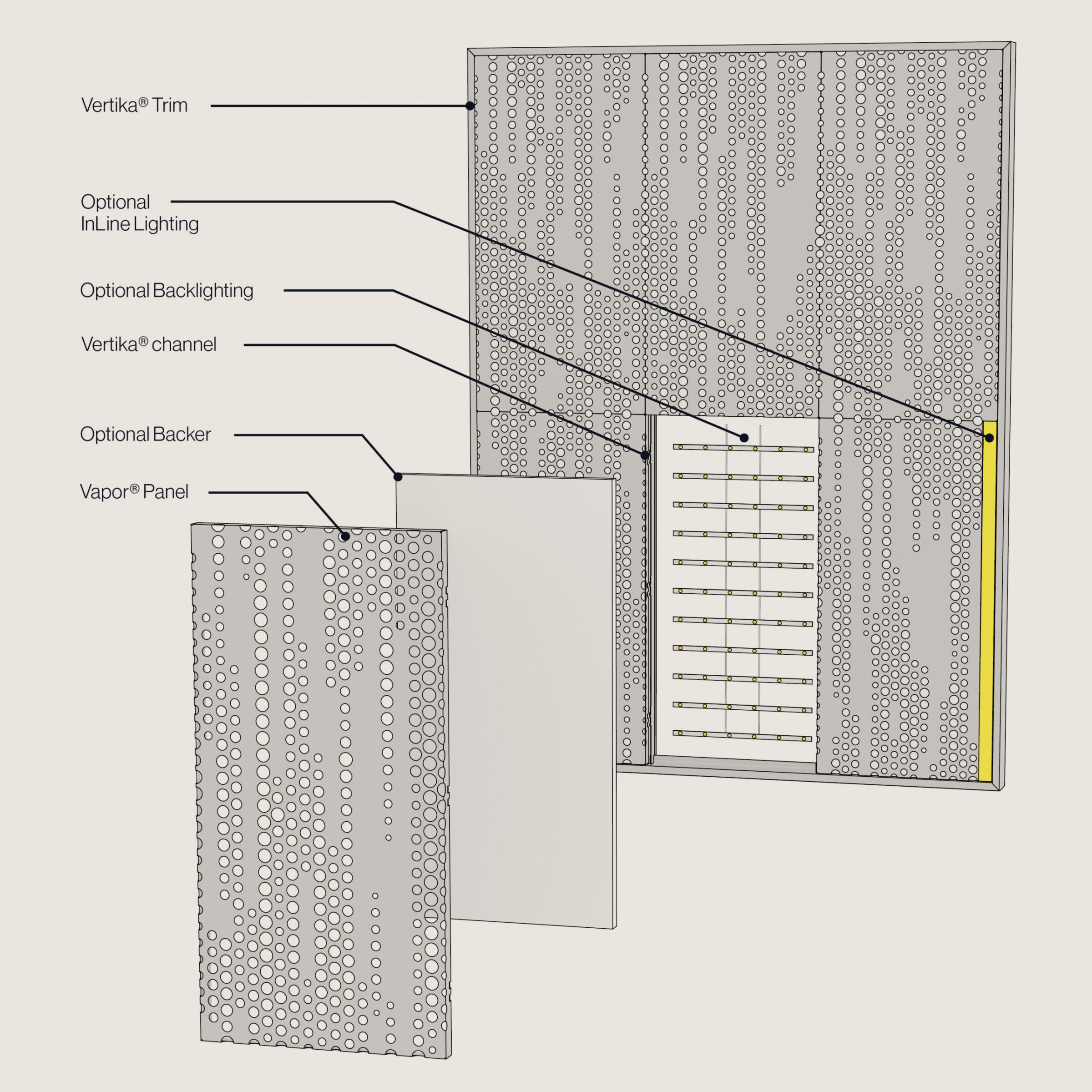

Accessory Options - Wall

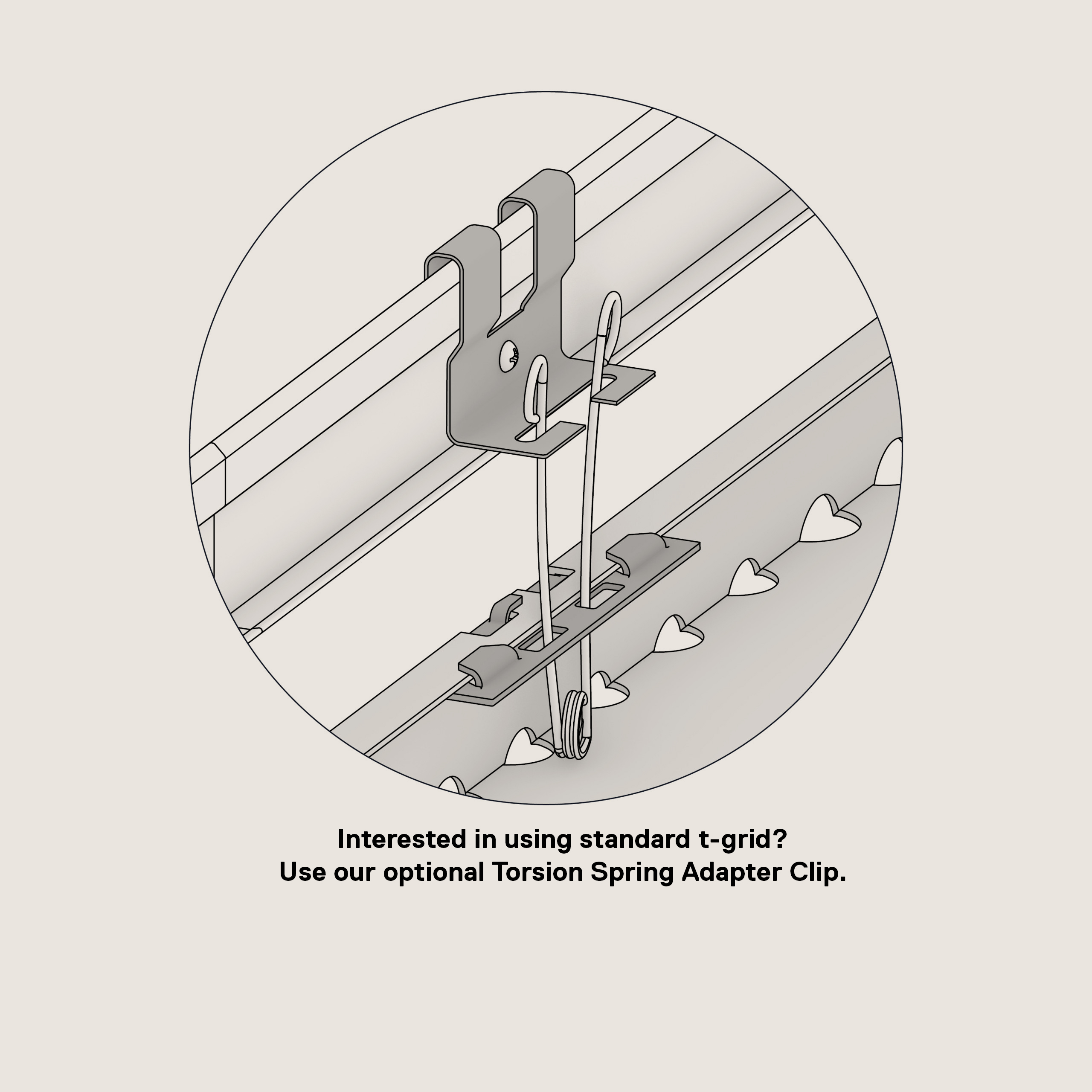

Accessory Options - Retrofit Adapter Clip Kit

Sustainability and Certification

149 / 50

Each module is made from 149 recycled aluminium cans with an acoustic backer made of 50 recycled water bottles.
Cradle to Cradle®

Bronze Status Pending
100%

Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)
Declare

Red list free
