SoftGrid® DOME

Technical documents Get models Find an agent

Acoustic
Ceiling Clouds

Dome’s acoustic ceiling modules create a curve effect on your ceiling, calling to mind gentle rolling hills. These hills can follow the length of the room or pull focus to a specific area, depending on your design’s needs. Plus, Dome’s modules are made of Soft Sound® material for acoustic comfort wherever you need it. And now, for larger jobs, with the addition of SoftGrid® Max options, you can do it all while maximizing value and minimizing the impact on the environment.

SoftGrid® DOME in use

—

The System

Product Details

Specifications

Dimensions

2290 x 2290 x 320 mm

Fin Material

12mm Soft Sound® (PET)

Openness in Plan

Fire Rating

ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0

Acoustics

Dome - True NRC® 0.55: Ceiling F-100 Method
Dome - True NRC® 0.55: Wall A Method
Dome Max - True NRC® 0.35: Ceiling F-100 Method

Attachment Method

1/32" Stainless Cable

Accessibility

Yes, quick release cables

Trimmability

Yes, per installation manual

Product Diagrams

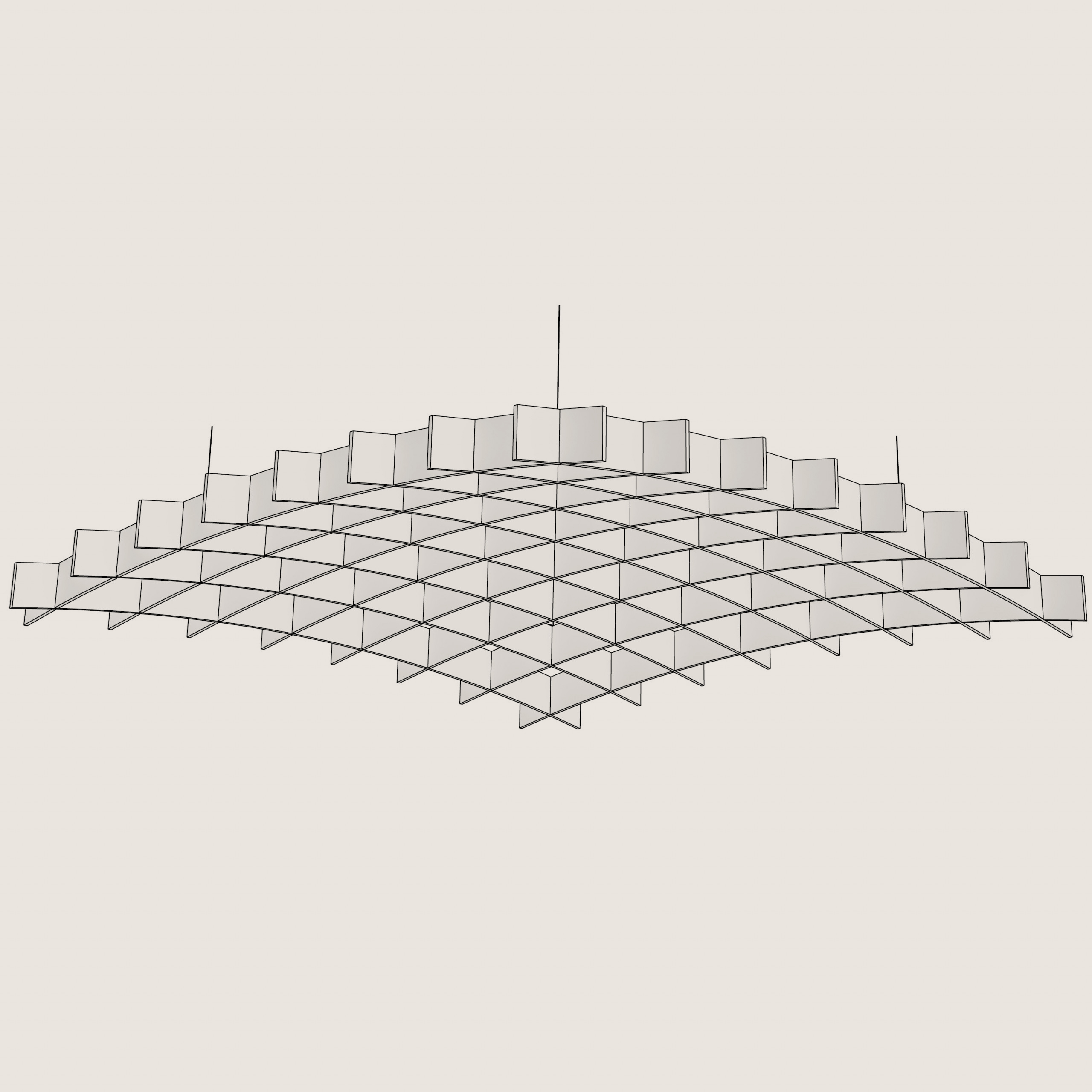

Standard Module

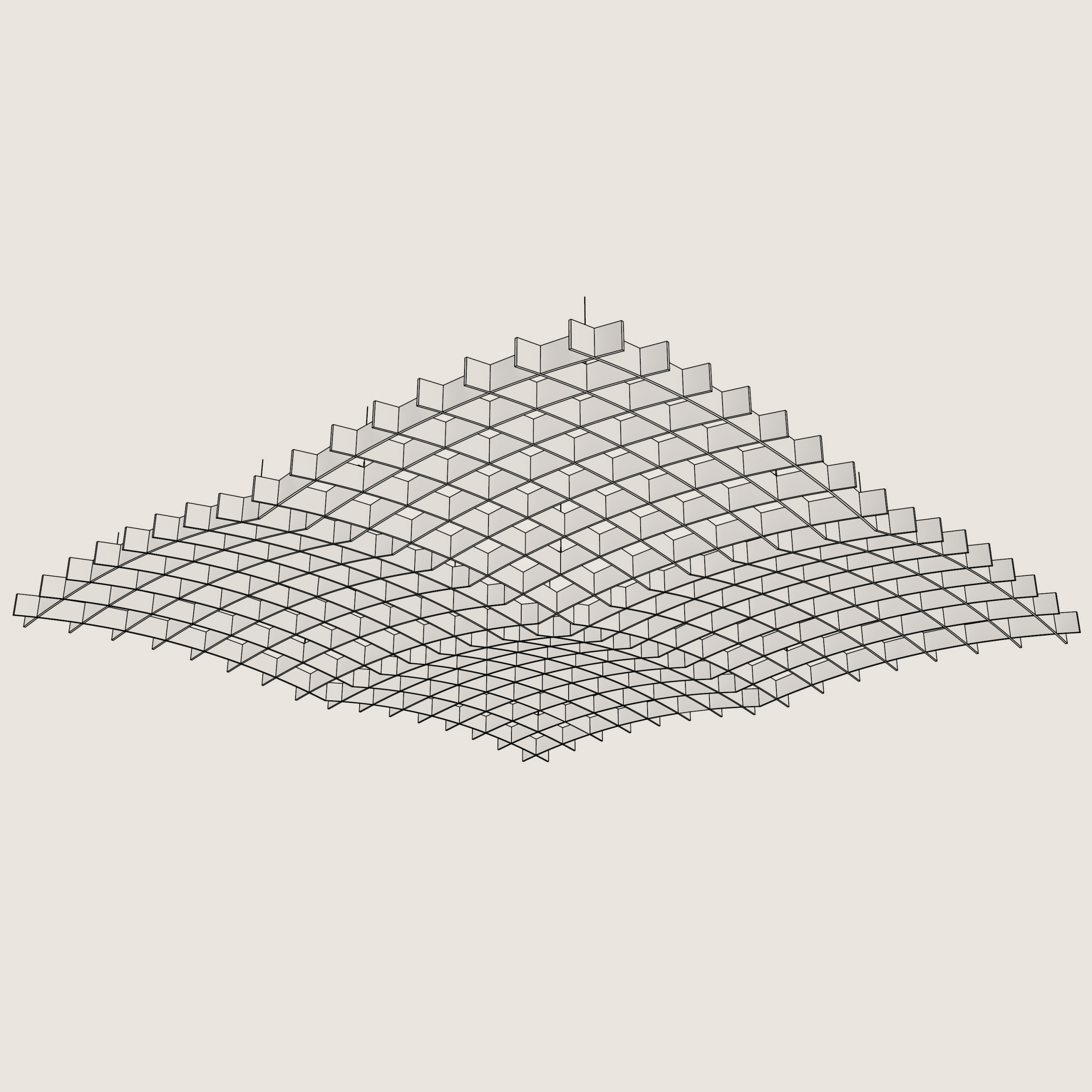

Multiple Modules

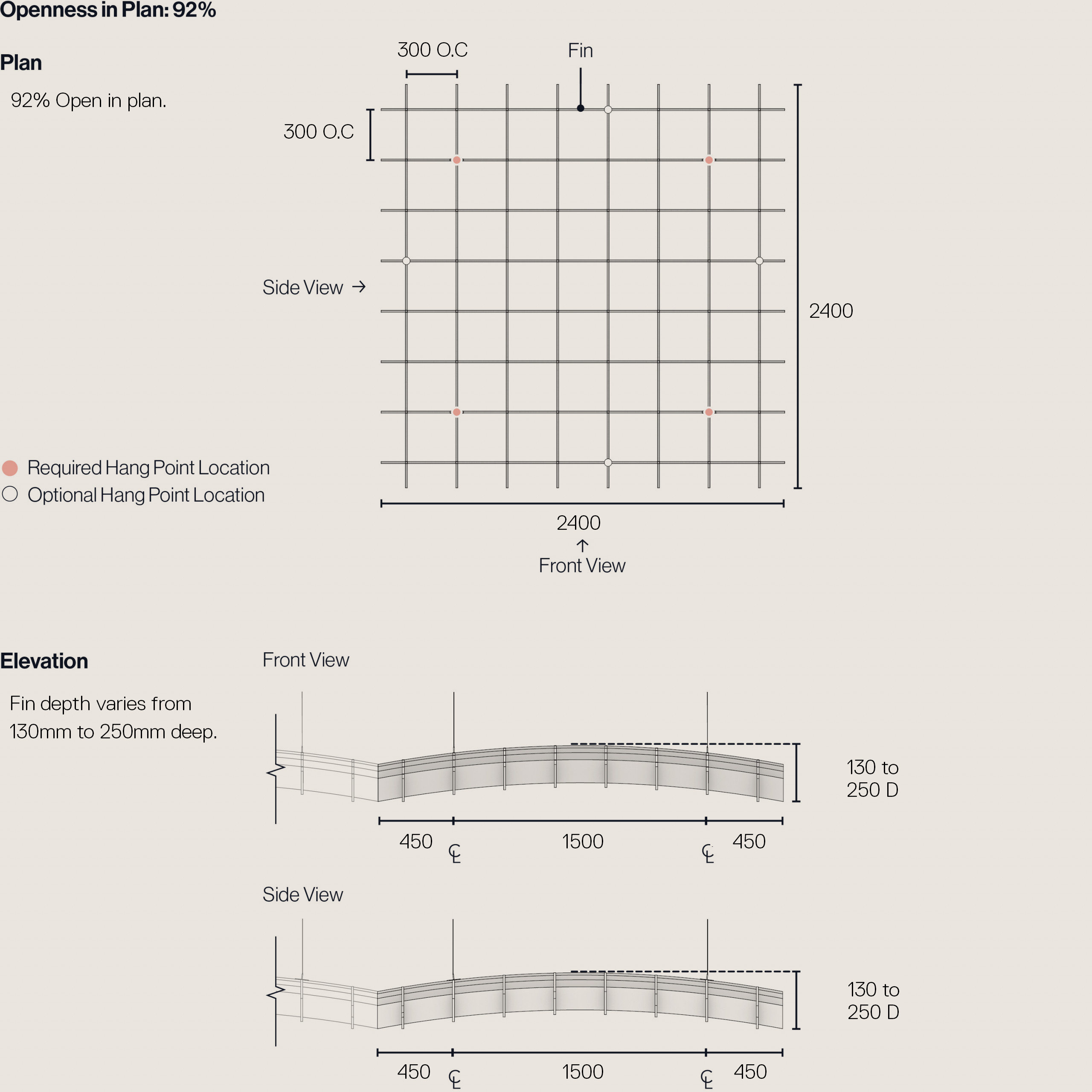

Understanding the Module - Dome

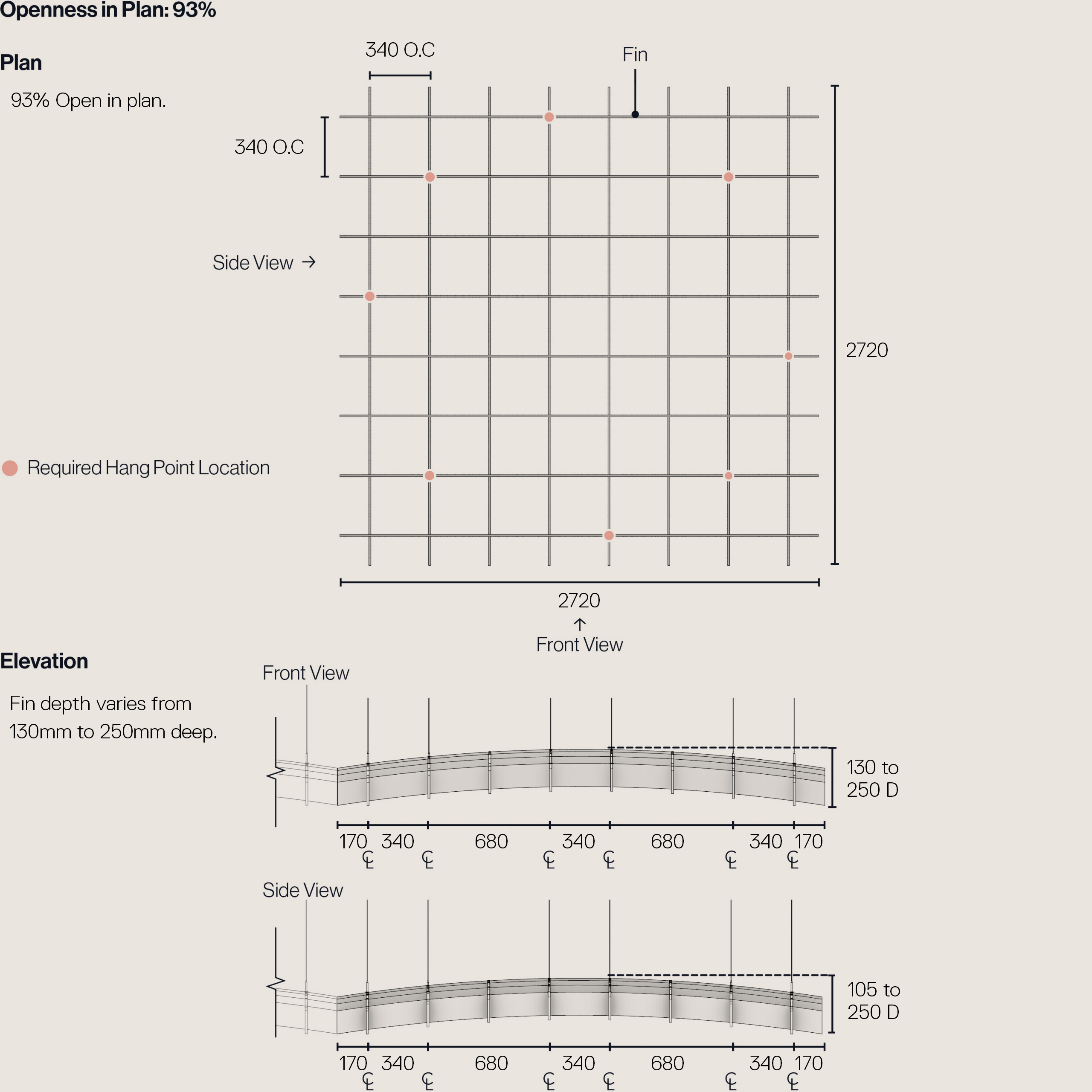

Understanding the Module - Dome Max

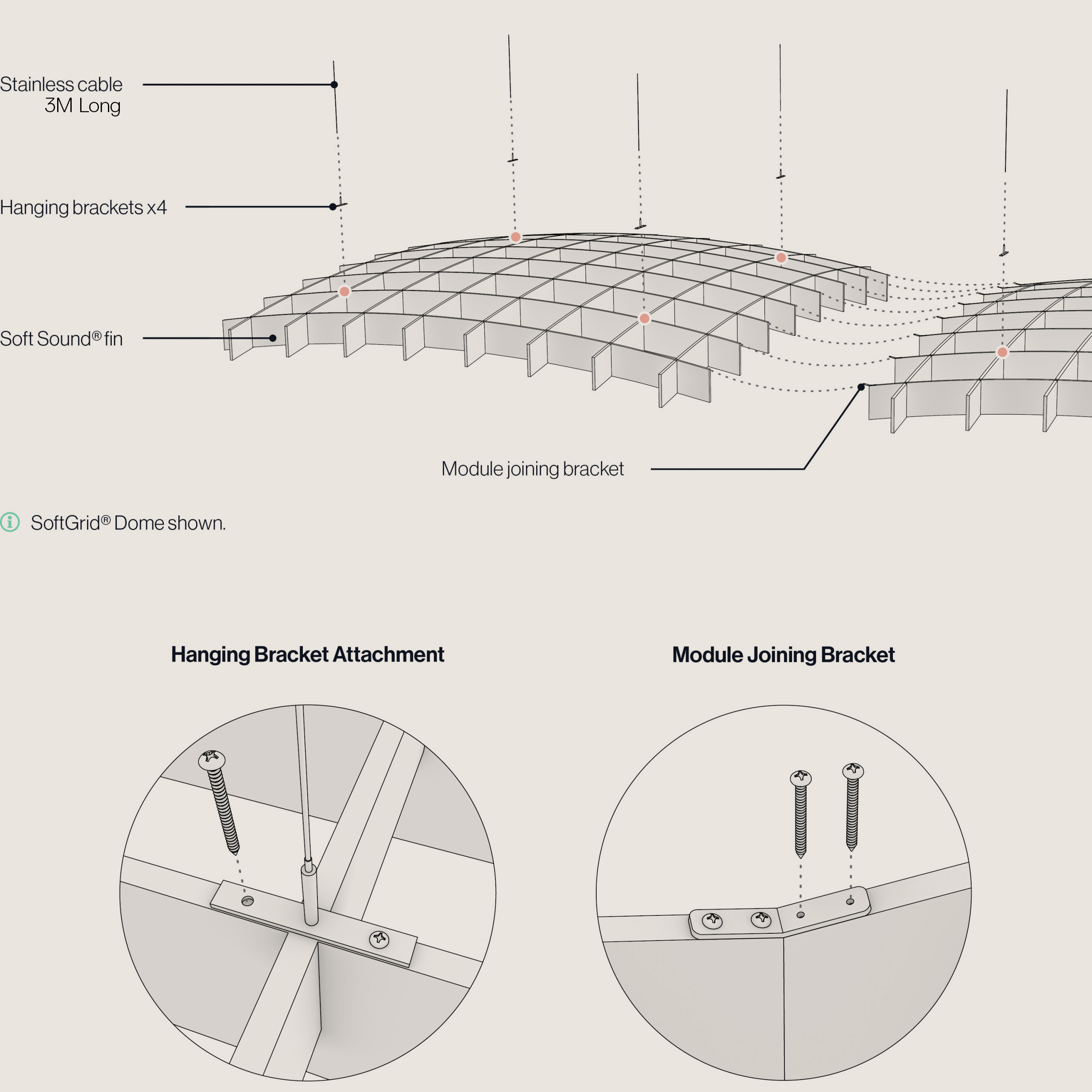

Attachment Details

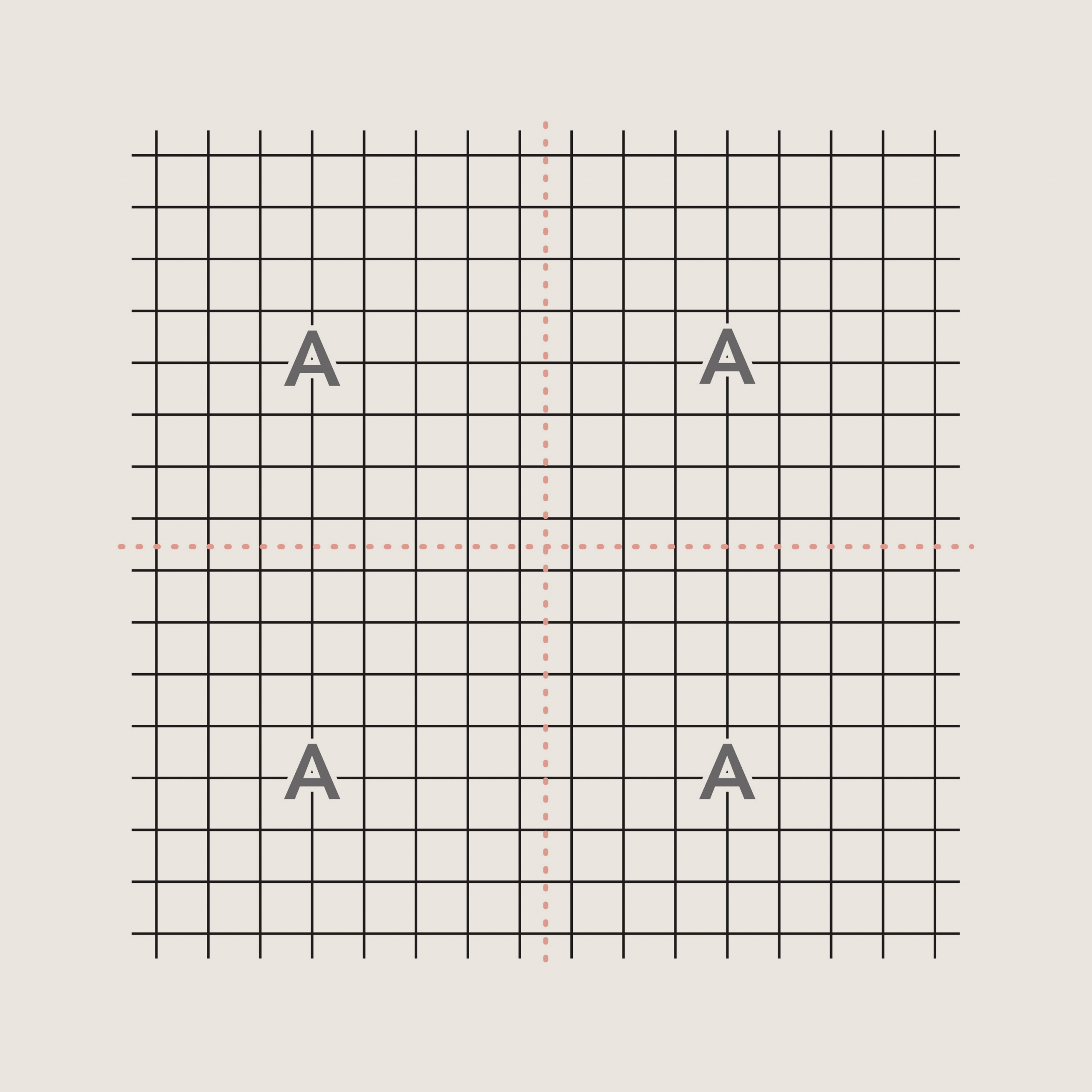

Module Configuration

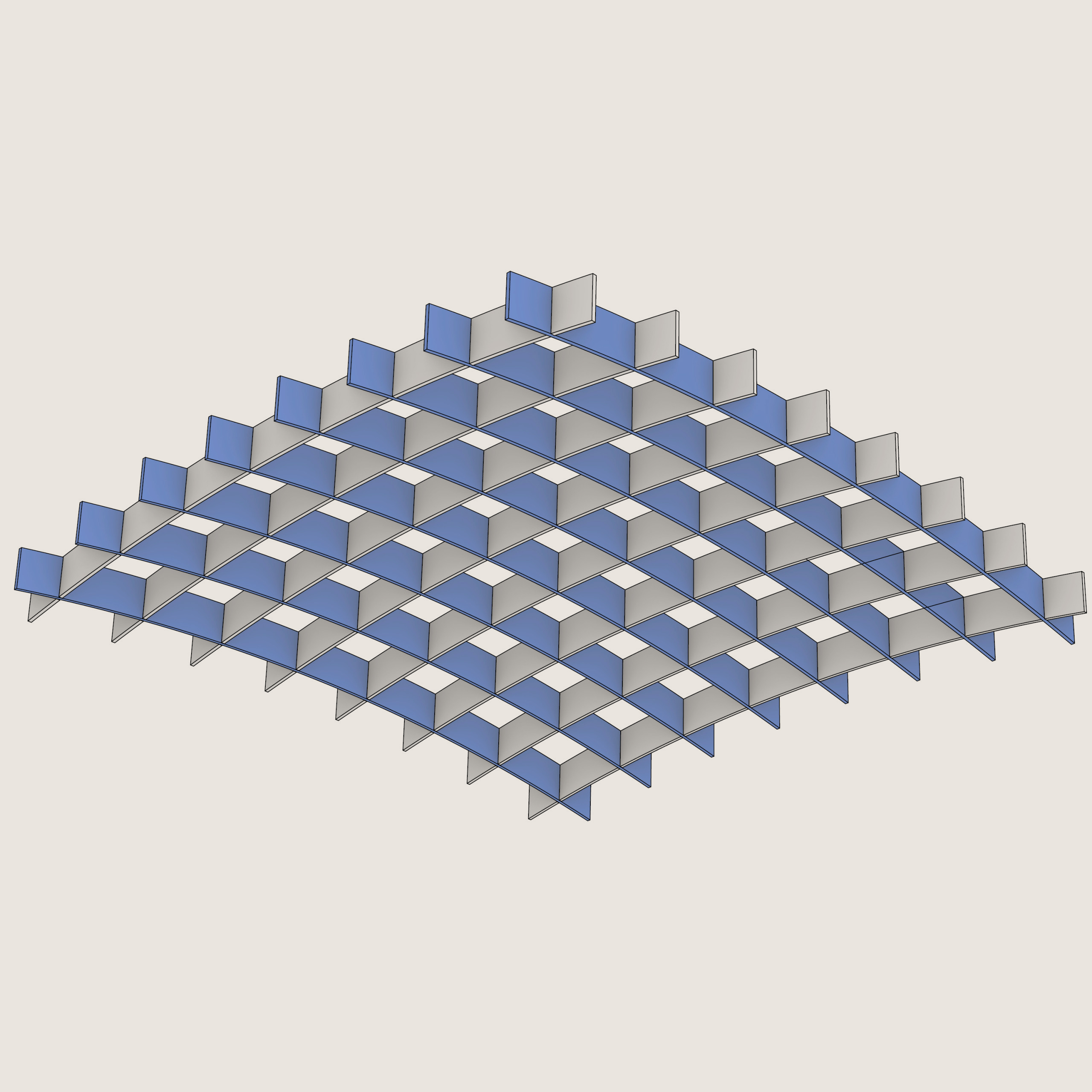

Optional SoftGrid® Dome Duo Tone

Sustainability and Certifications

488

Each module is made from 488 recycled water bottles
Cradle to Cradle®

Bronze Status Pending
100%

Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)
Declare

Red list free
