About SoftGrid® WAVE

Wave’s acoustic ceiling modules follow their namesake and create a wave pattern that flows easily across your ceiling. You can have a wave that encompasses a whole room or just a small area, thanks to the easy connection of the modules. And with our Soft Sound® material, you can get acoustic support right where you want it. And now, for larger jobs, with the addition of SoftGrid® Max options, you can do it all while maximizing value and minimizing the impact on the environment.

The System

Key Features

  1. Acoustic Performance

    SoftGrid®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftGrid®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  2. Expansive Color Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.

  3. Preconfigured Solutions

    SoftGrid® modules can be trimmed down to a minimum of four fin intersections. By rearranging our adjustable hangers, we make it easy for you to specify standard modules that can be easily field-modified around anticipated and unforeseen site conditions during install.

  4. Continuous Baffles

    Utilizing a hidden fin-to-fin alignment system, SoftGrid® provides continuity in all directions across your space. In addition, our optional hanging points offer a fine-tuning capability for installers. Our custom formulated material thickness and density ensures rigidity that limits deflection.

  5. Open Accessibility in Plan

    SoftGrid®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.

Product Details

  1. Specifications

    Dimensions

    • 2290 x 2290 x 290

    Fin Material

    • 12mm Soft Sound® (PET)

    Openness in Plan

    • 73%

    Fire Rating

    • ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0

    Fire Rating ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0 Acoustics

    • Wave - True NRC® 0.50: Ceiling F-100 Method

    • Wave - True NRC® 0.50: Wall A Method

    • Wave Max - True NRC® 0.45: Ceiling F-100 Method

    Attachment Method

    • 1/32" Stainless Cable

    Accessibility

    • Yes, quick release cables

    Trimmability

    • Yes, per installation manual

  2. Product Diagrams

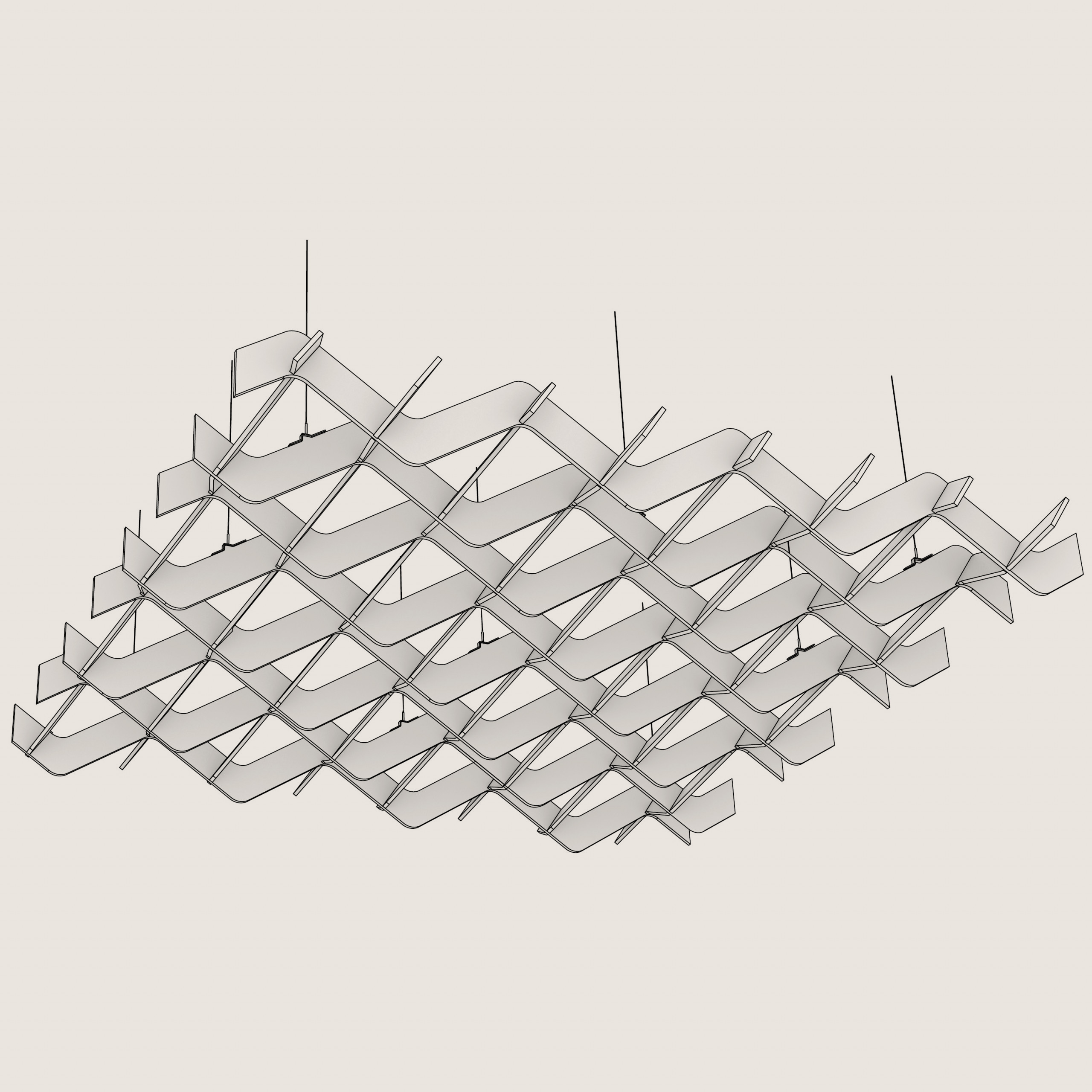

    • Standard Module

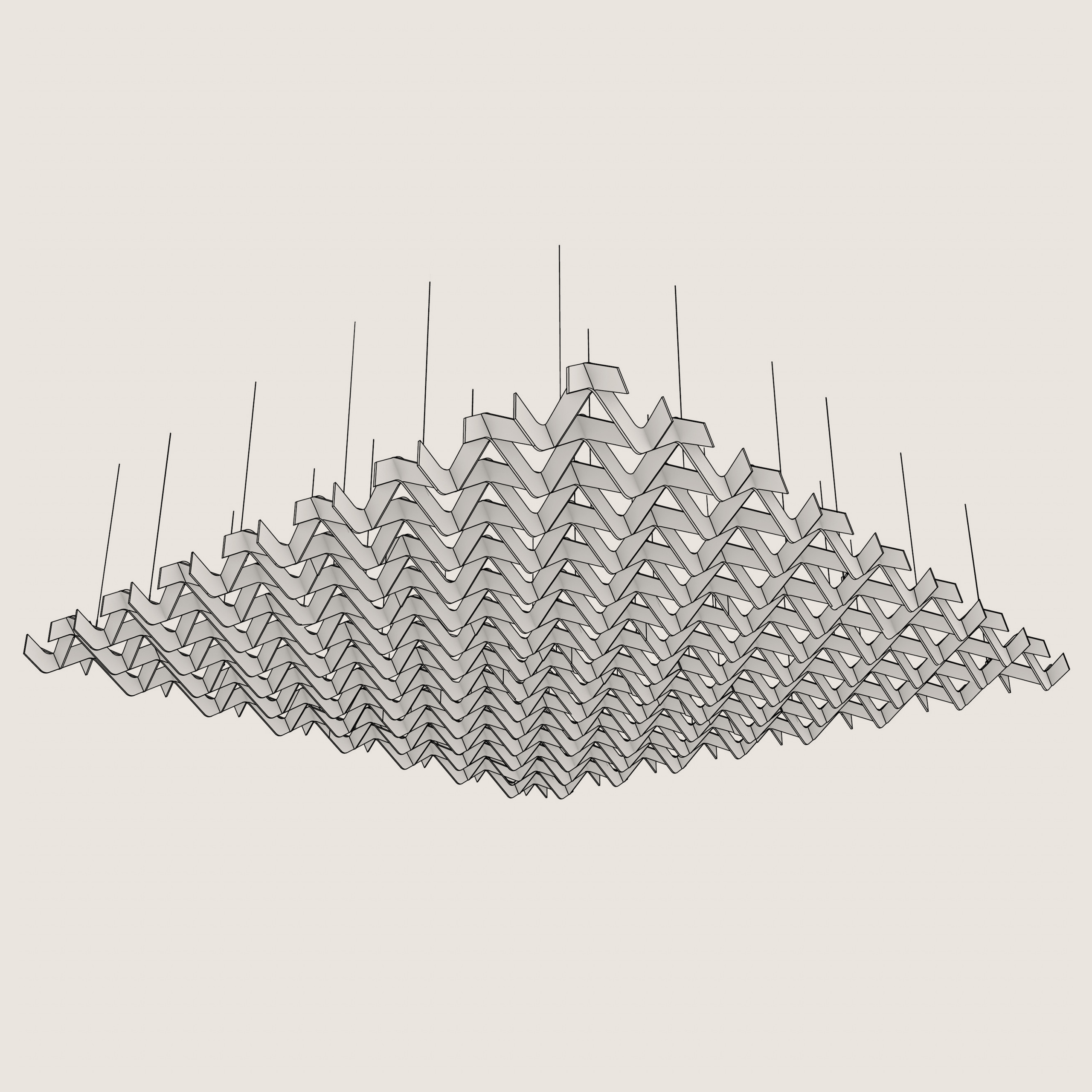

    • Multiple Modules

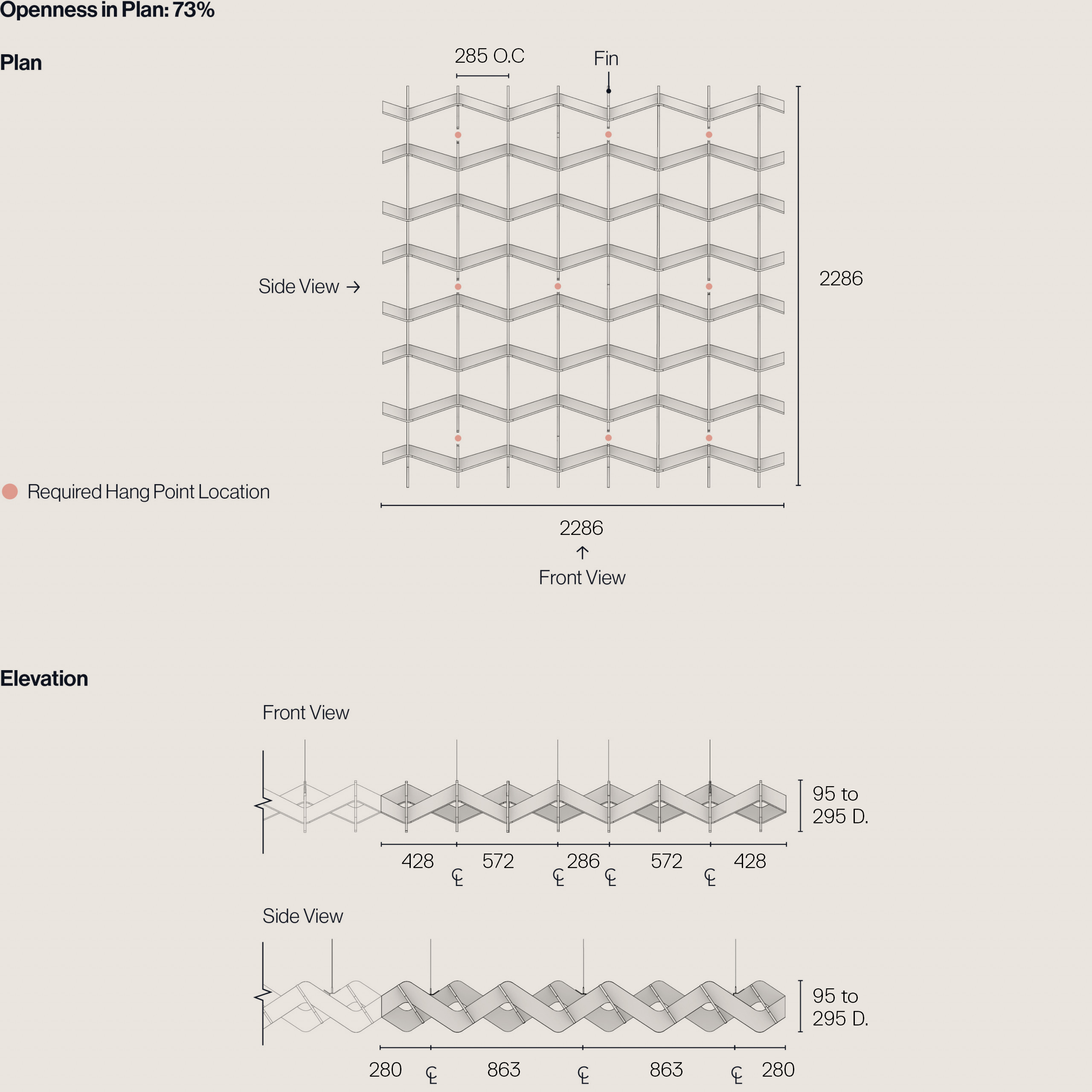

    • Understanding the Module - Wave

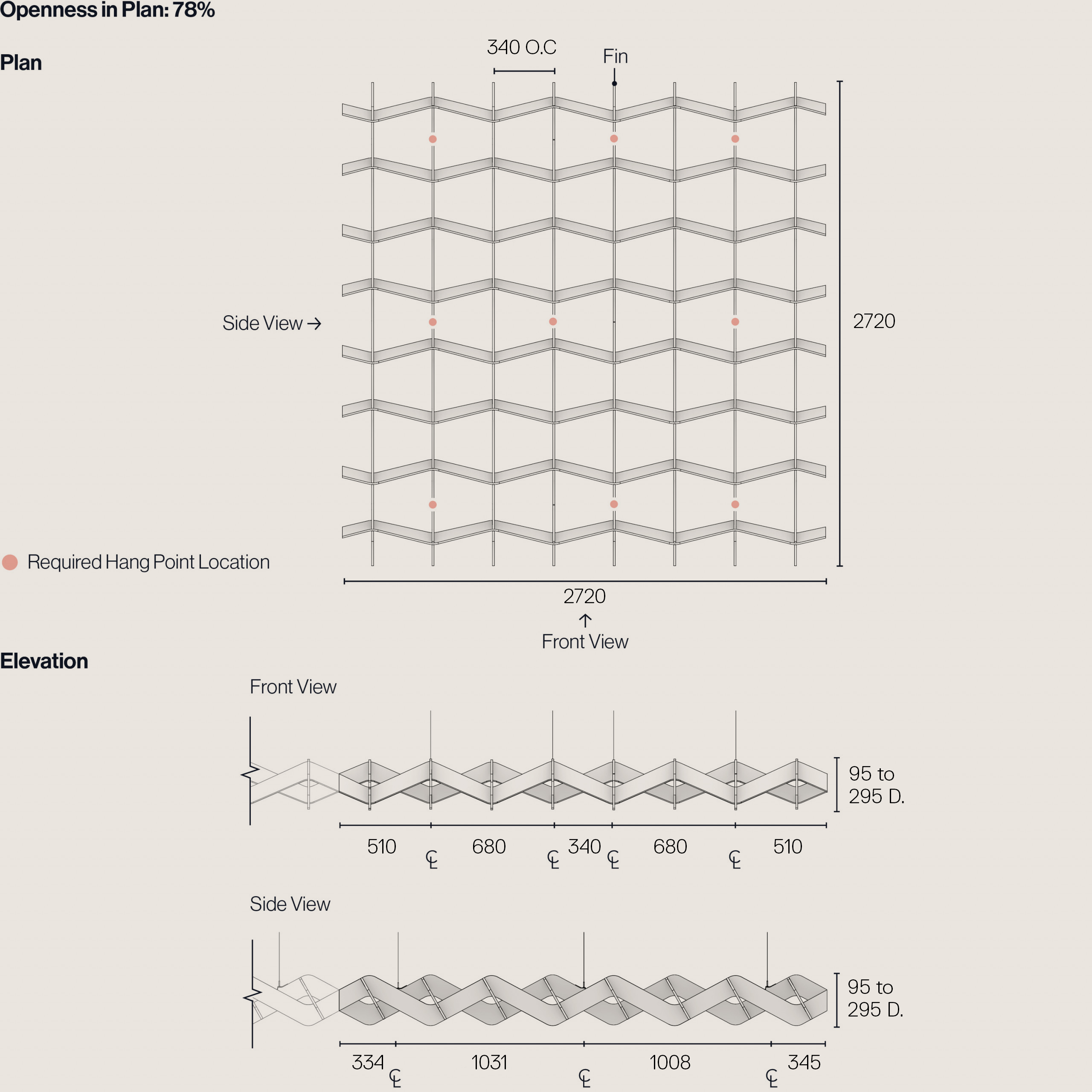

    • Understanding the Module - Wave Max

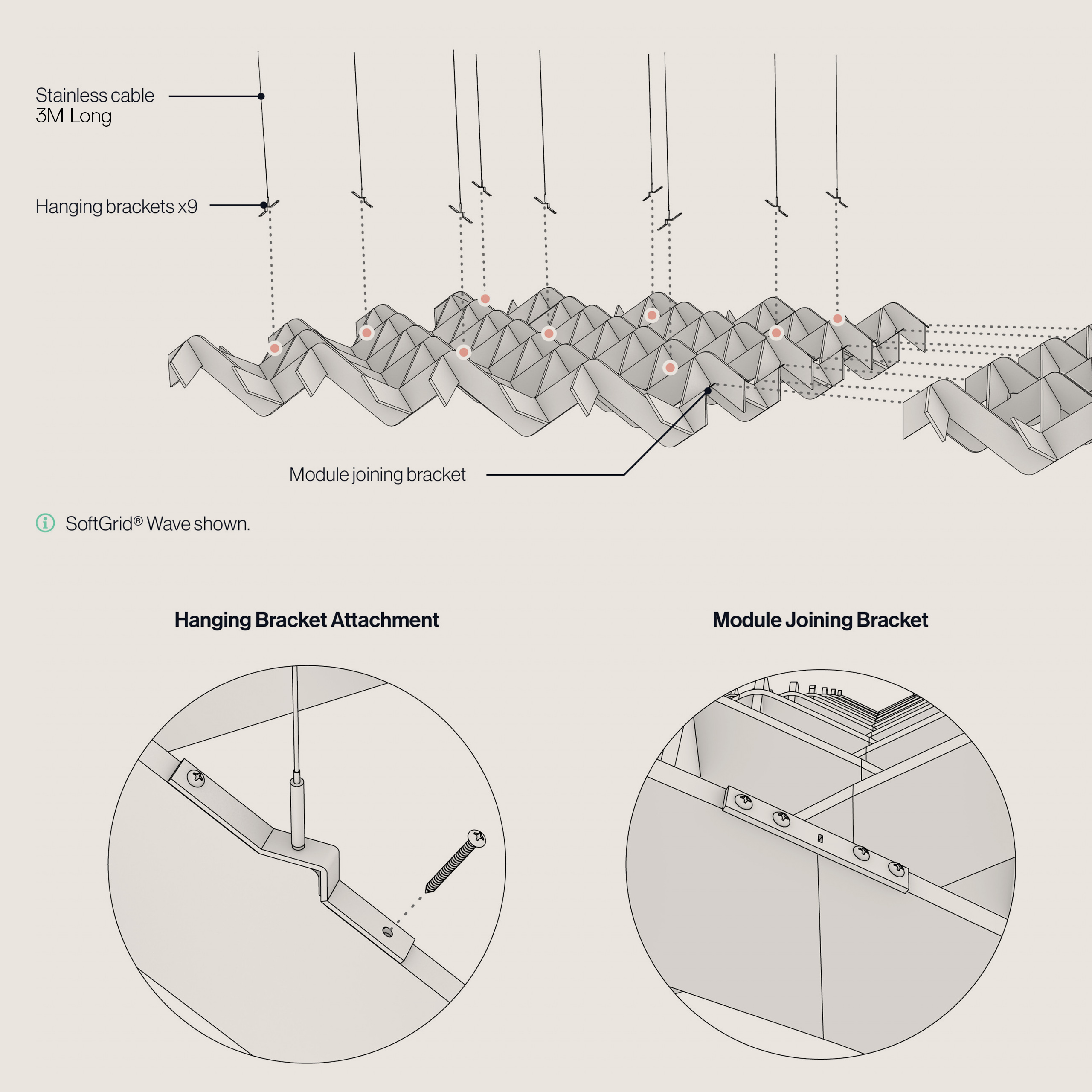

    • Attachment Details

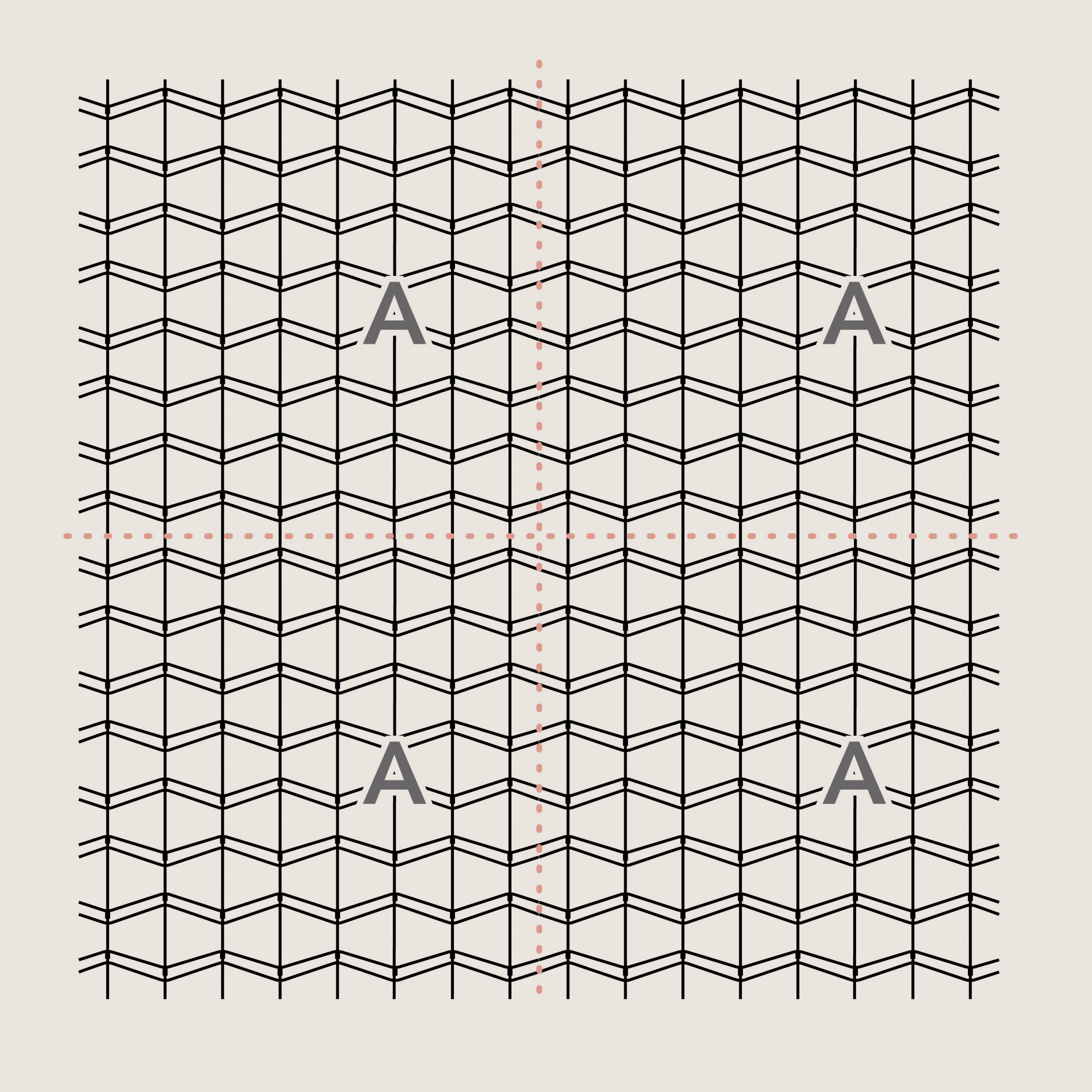

    • Module Configuration

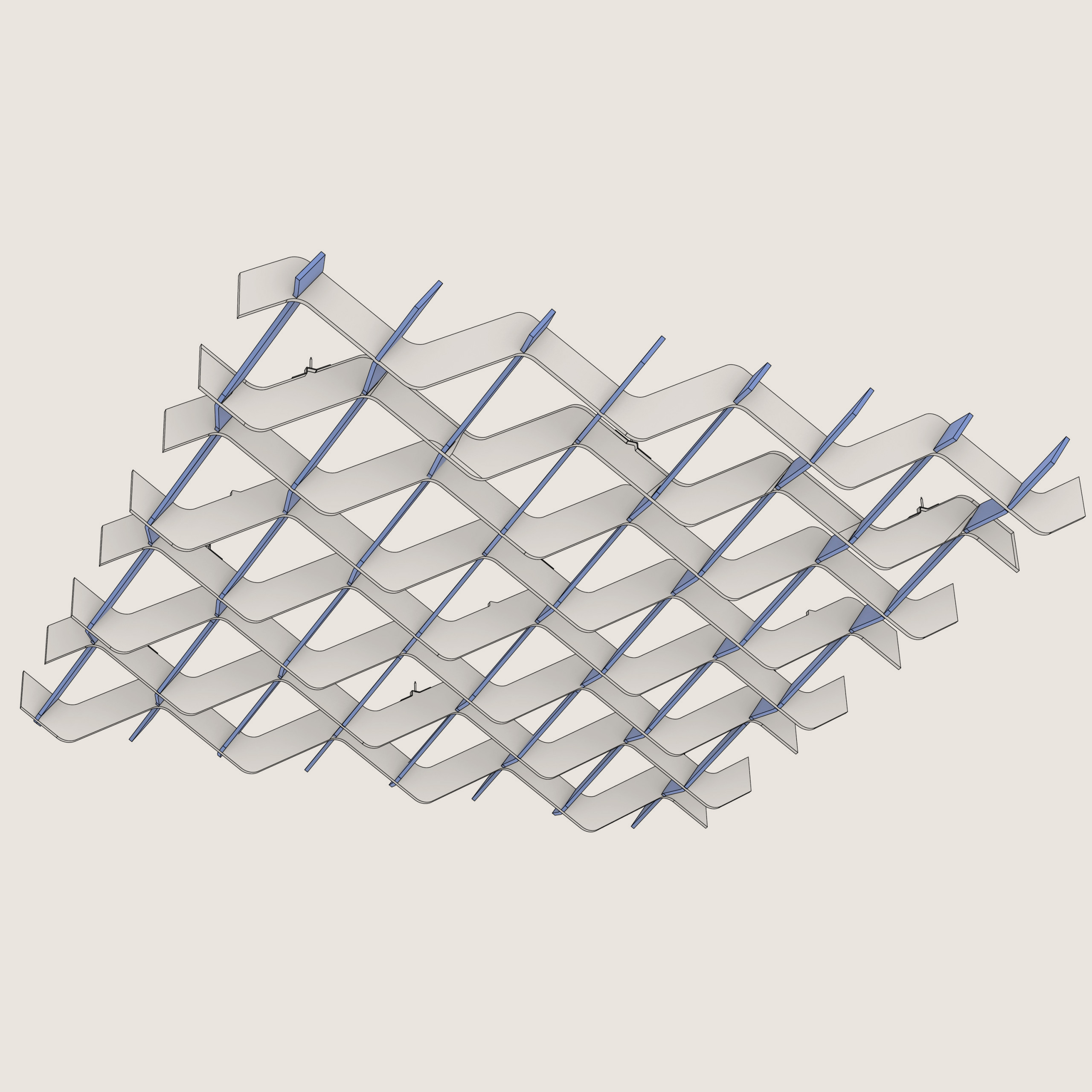

    • Optional SoftGrid® Wave Duo Tone

  3. Sustainability and Certifications
    • 488

      Each module is made from 488 recycled water bottles

    • Cradle to Cradle®

      Bronze Status Pending

    • 100%

      Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)

    • Declare

      Red list free

Materials and Finishes

  1. Materials and Finishes

    Soft Sound® Color Group A

    • White

      White

    • Snow

      Snow

    • Marble

      Marble

    • Heather Gray

      Heather Gray

    • Graphite

      Graphite

    • Carbon

      Carbon

    • Onyx

      Onyx

    • Apple

      Apple

    • Tangerine

      Tangerine

    • Lemon

      Lemon

    • Taupe

      Taupe

    • Sand

      Sand

    • Kiwi

      Kiwi

    • Whisper

      Whisper

    • Sky Blue

      Sky Blue

    • Denim

      Denim

    • Absinthe

      Absinthe

    • Abyss

      Abyss

    • Azore

      Azore

    • Mars

      Mars

    • Macchiato

      Macchiato

    Soft Sound® Wood Texture

    • Gray Ash

      Gray Ash

    • White Oak

      White Oak

    • Golden Oak

      Golden Oak

    • Oak

      Oak

    • American Walnut

      American Walnut

    • Charred Oak

      Charred Oak

    • Charred Ash

      Charred Ash

    • Ebony

      Ebony
