About SoftGrid® ROUND

Round’s acoustic ceiling modules create a circular shape using consistently spaced panels at different lengths, for a structural design that’s sure to impress while also providing acoustic support due to the Soft Sound® material. Round’s baffles create a continuous series of rings that can connect together for an intricate design that emcompasses the whole ceiling or can be focused over a singular area for focused acoustic support. And now, for larger jobs, with the addition of SoftGrid® Max options, you can do it all while maximizing value and minimizing the impact on the environment.

The System

Key Features

  1. Acoustic Performance

    SoftGrid®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftGrid®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  2. Expansive Color Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.

  3. Preconfigured Solutions

    SoftGrid® modules can be trimmed down to a minimum of four fin intersections. By rearranging our adjustable hangers, we make it easy for you to specify standard modules that can be easily field-modified around anticipated and unforeseen site conditions during install.

  4. Open Accessibility in Plan

    SoftGrid®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.

Product Details

  1. Specifications


    • 2380 x 2250 x 190 mm

    Fin Material

    • 12mm Soft Sound® (PET)

    Openness in Plan

    • 94%

    Fire Rating

    • ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0


    • Round - True NRC® 0.60: Ceiling F-100 Method

    • Round - True NRC® 0.70: Wall A Method

    • Round Max - True NRC® 0.35: Ceiling F-100 Method

    Attachment Method

    • 1/32" Stainless Cable


    • Yes, quick release cables


    • Yes, per installation manual

  2. Product Diagrams

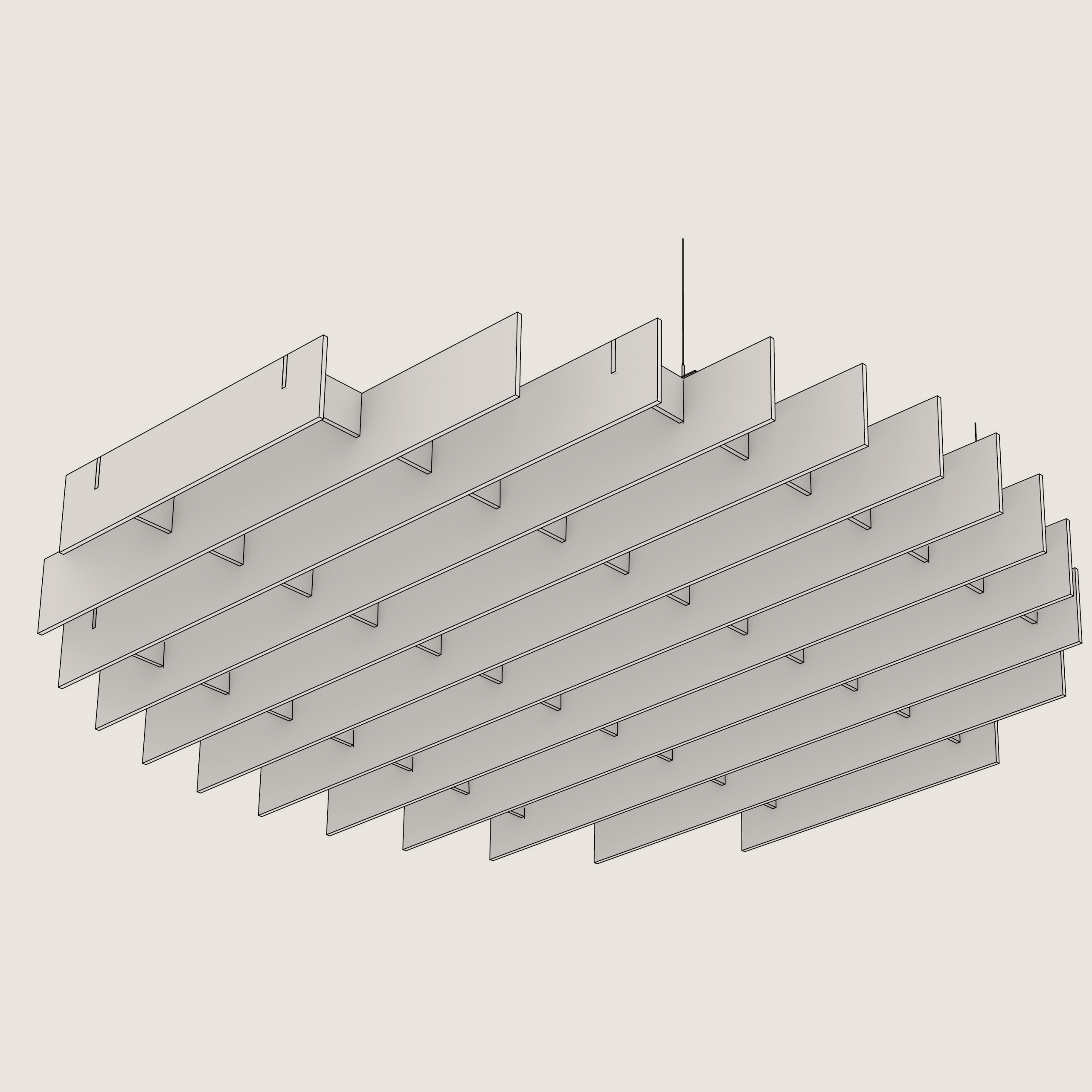

    • Standard Module

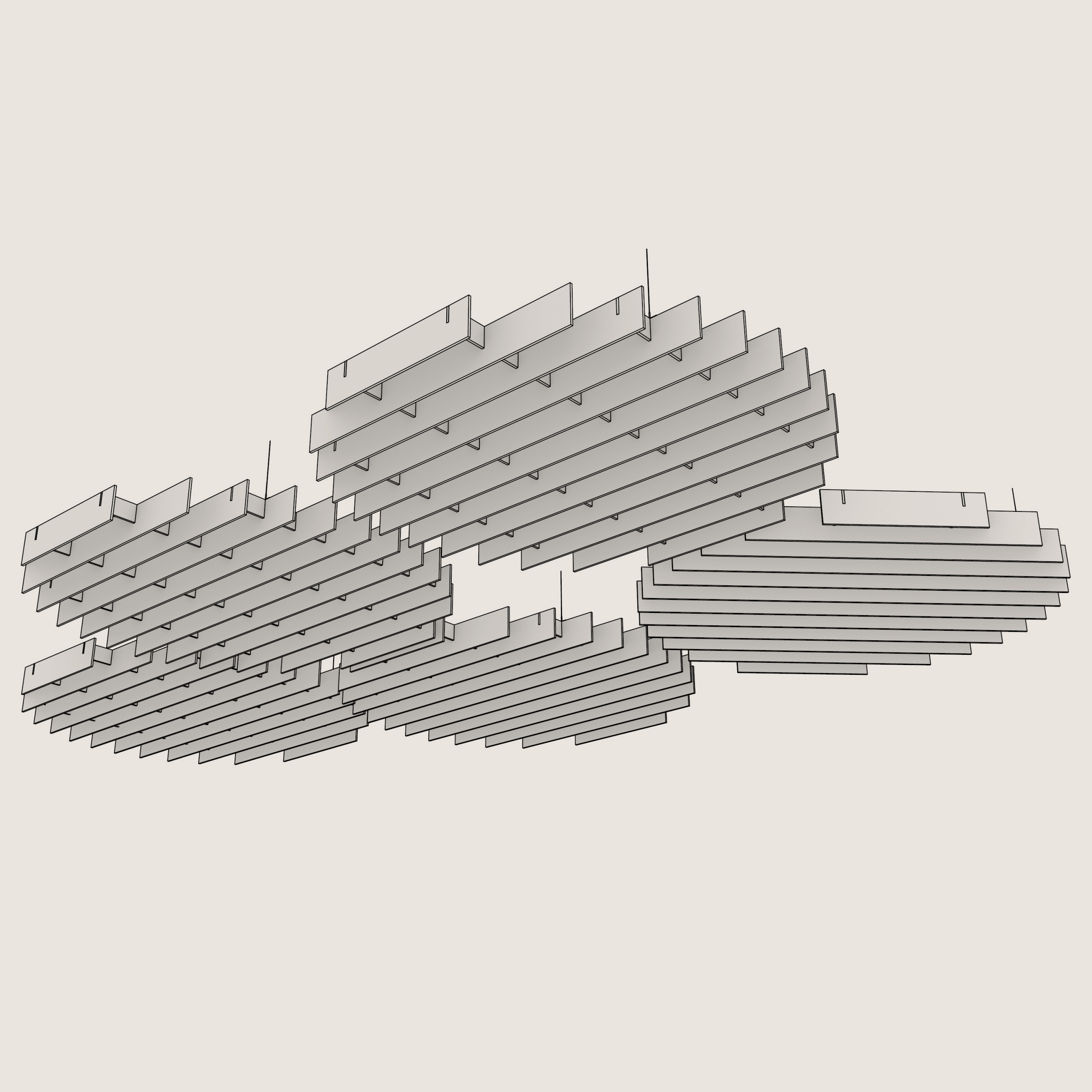

    • Multiple Modules

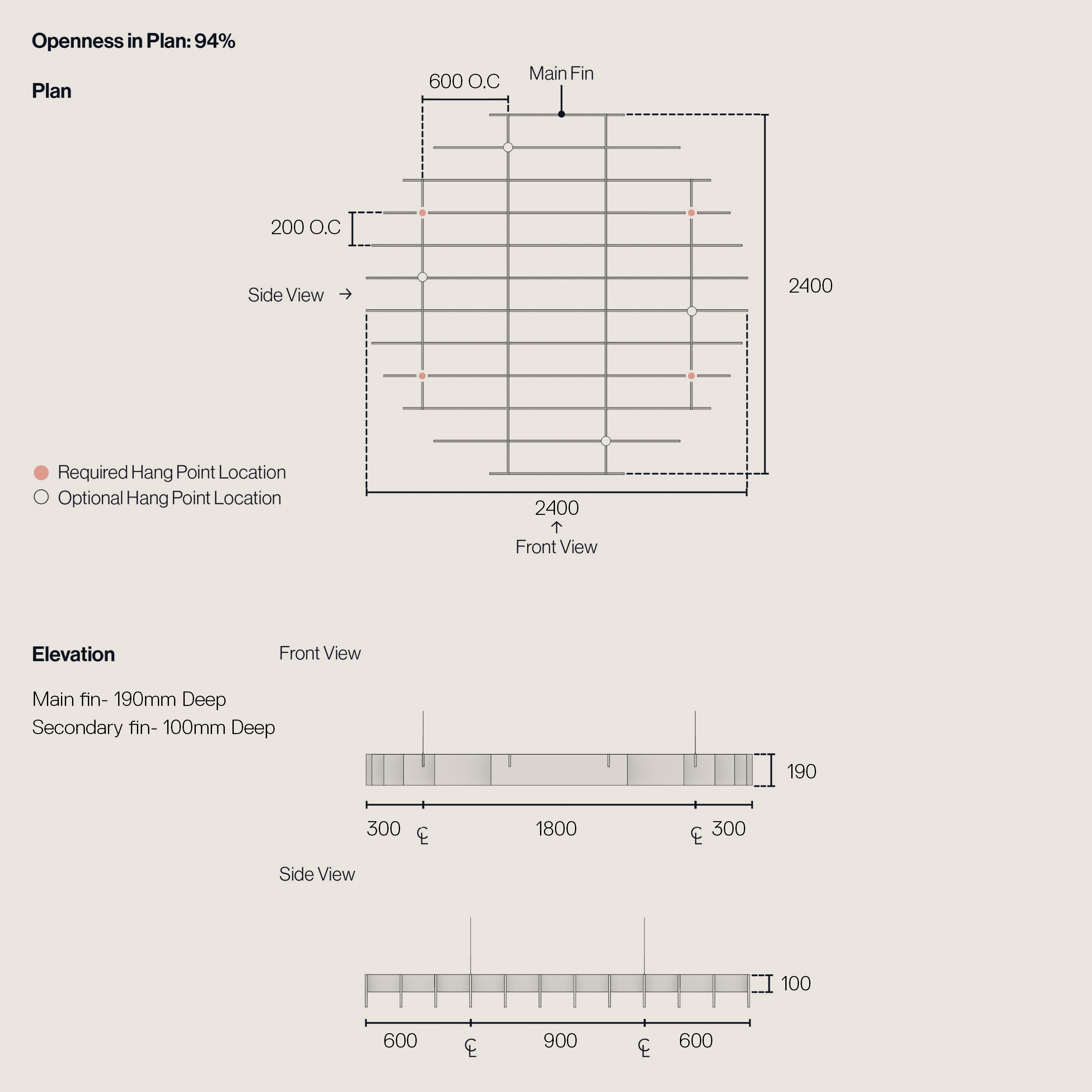

    • Understanding the Module - Round

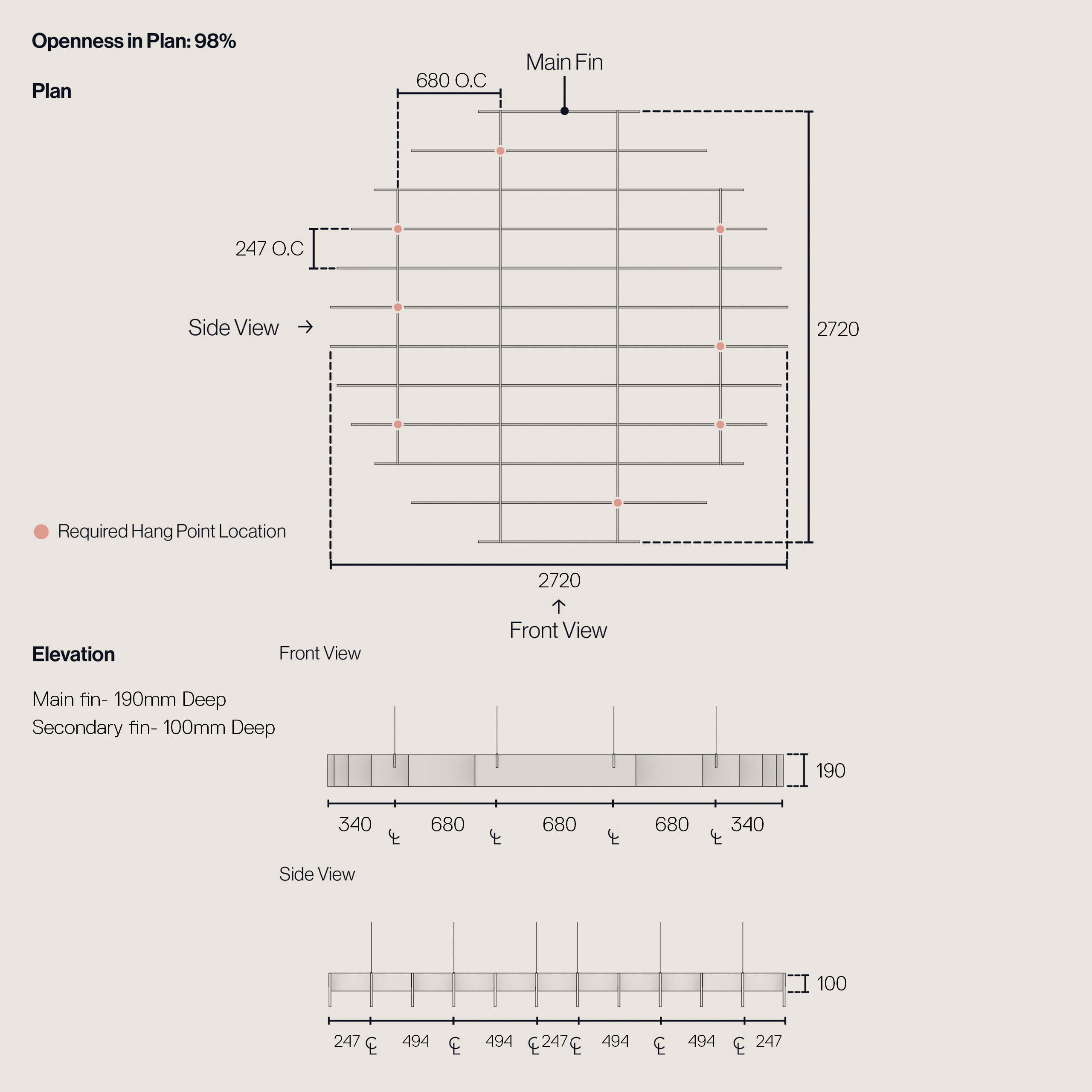

    • Understanding the Module - Round Max

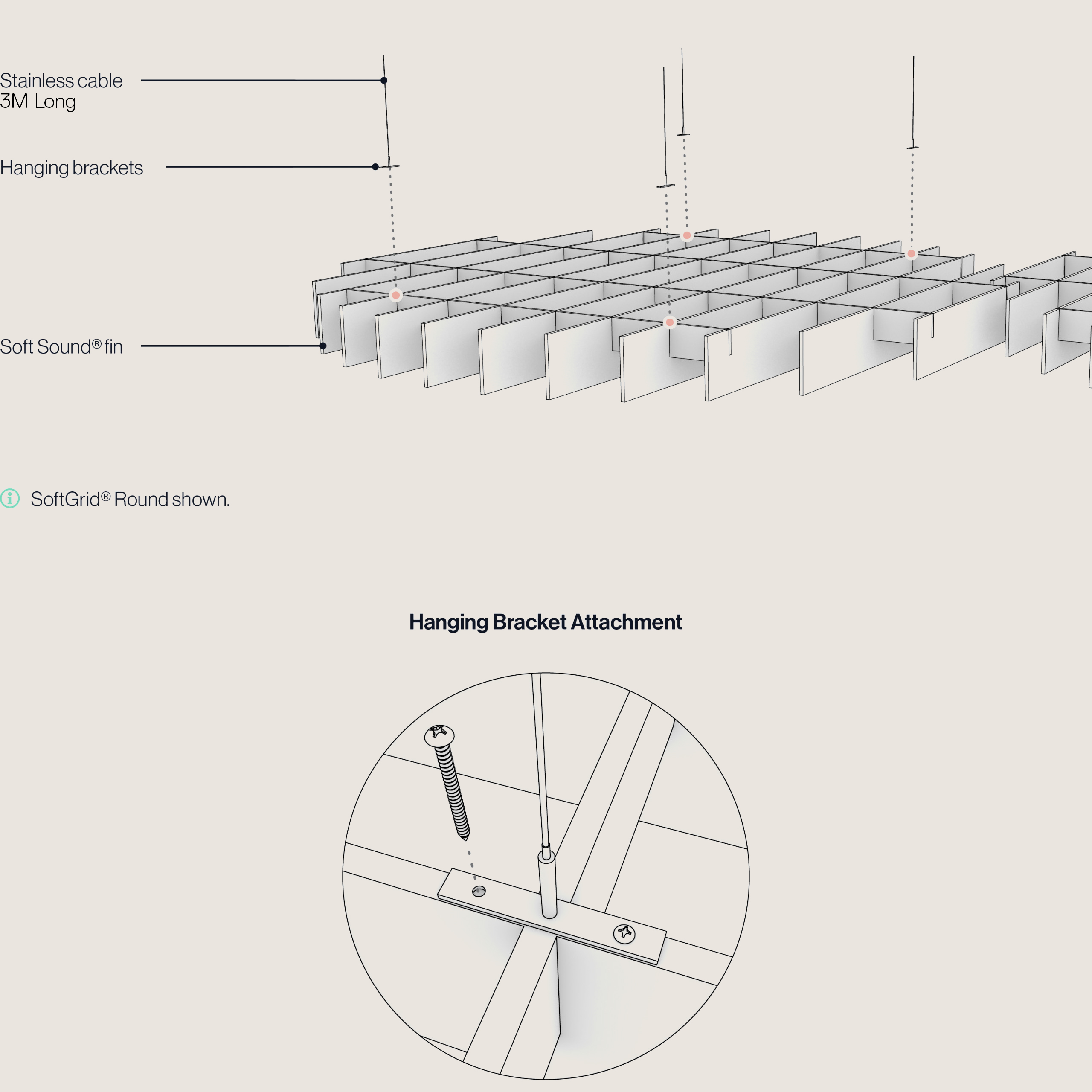

    • Attachment Details

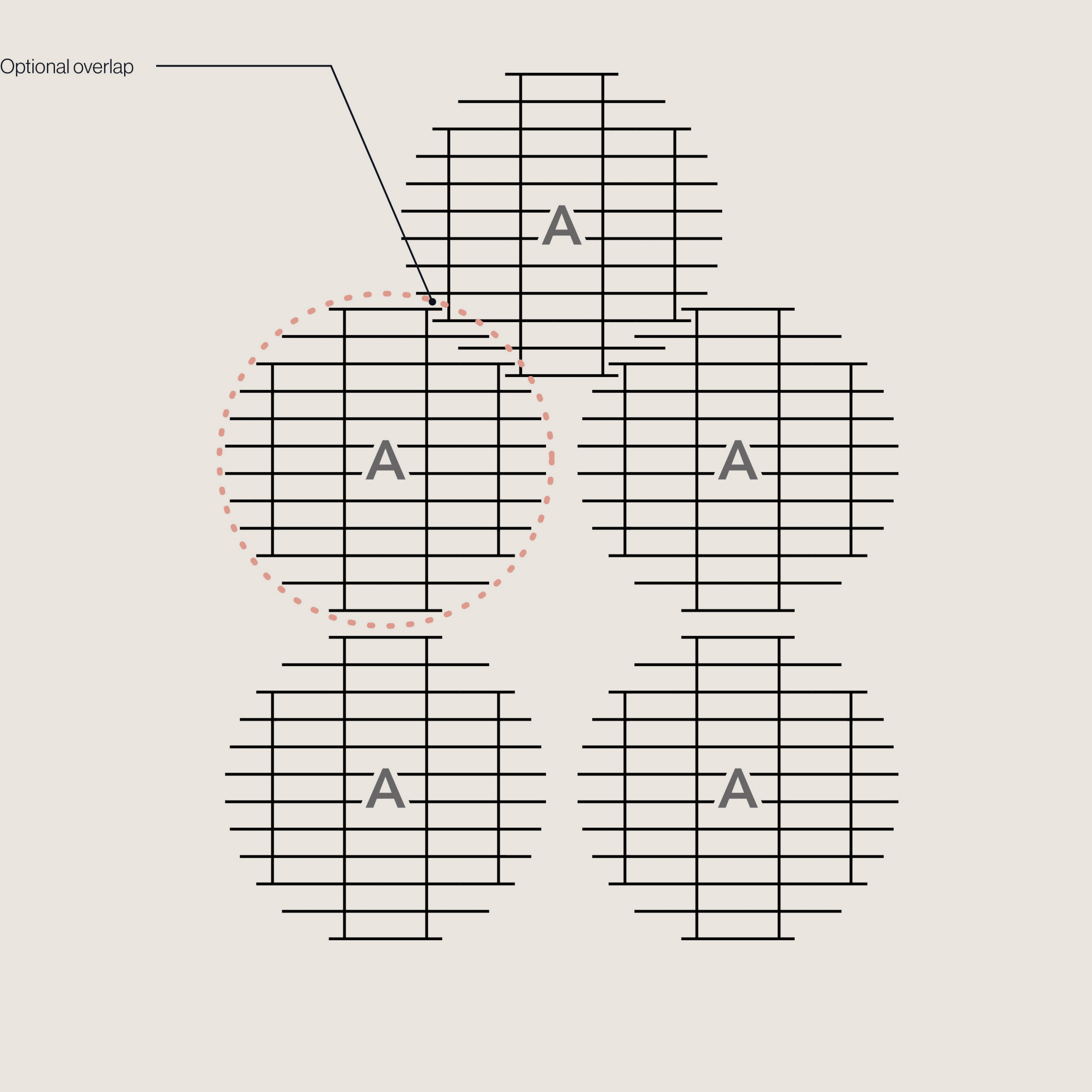

    • Module Configuration

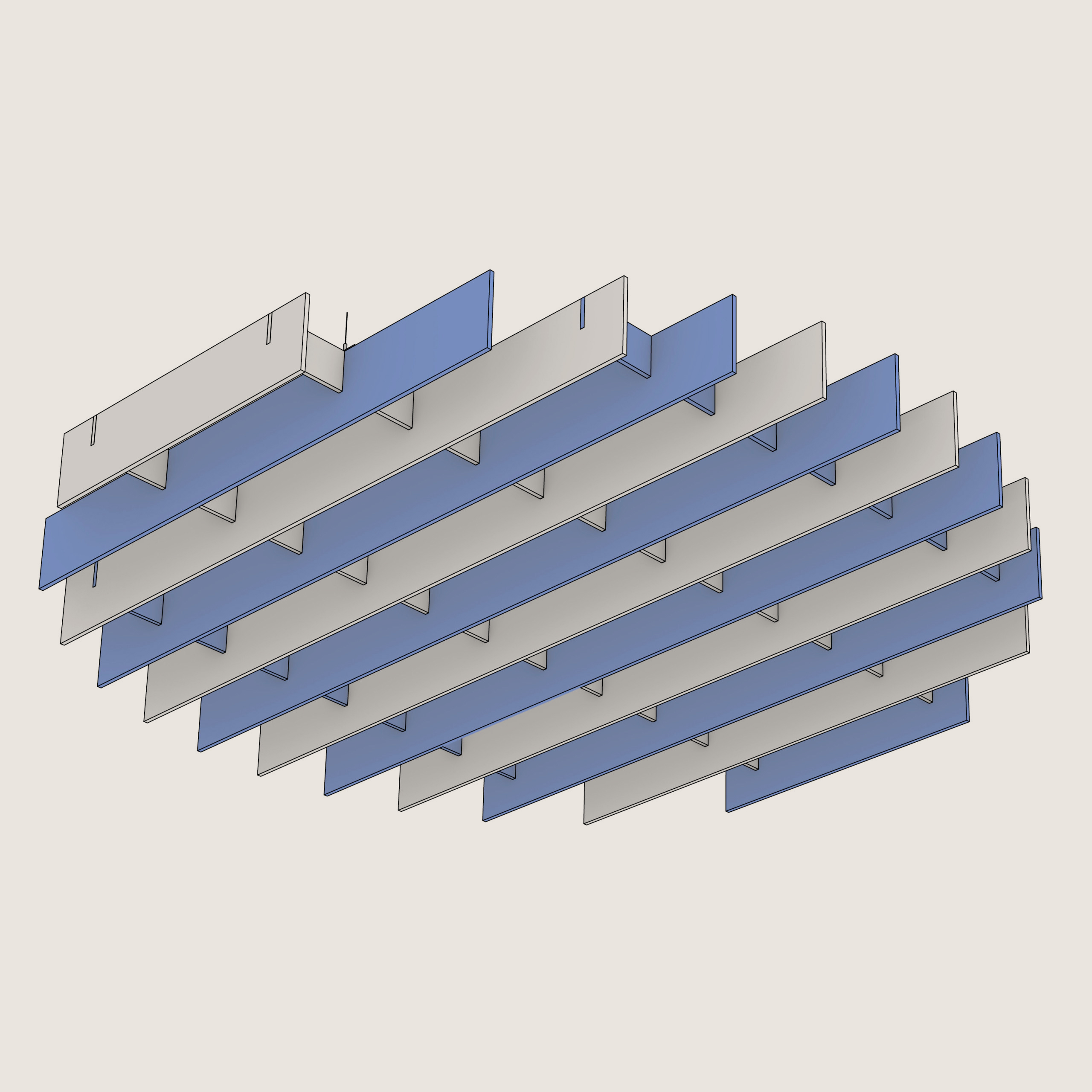

    • Optional SoftGrid® Round Duo Tone

  3. Sustainability and Certifications
    • 488

      Each module is made from 488 recycled water bottles

    • Cradle to Cradle®

      Bronze Status Pending

    • 100%

      Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)

    • Declare

      Red list free

Materials and Finishes

  1. Materials and Finishes

    Soft Sound® Color Group A

    • White


    • Snow


    • Marble


    • Heather Gray

      Heather Gray

    • Graphite


    • Carbon


    • Onyx


    • Apple


    • Tangerine


    • Lemon


    • Taupe


    • Sand


    • Kiwi


    • Whisper


    • Sky Blue

      Sky Blue

    • Denim


    • Absinthe


    • Abyss


    • Azore


    • Mars


    • Macchiato


    Soft Sound® Wood Texture

    • Gray Ash

      Gray Ash

    • White Oak

      White Oak

    • Golden Oak

      Golden Oak

    • Oak


    • American Walnut

      American Walnut

    • Charred Oak

      Charred Oak

    • Charred Ash

      Charred Ash

    • Ebony


Projects with SoftGrid® ROUND

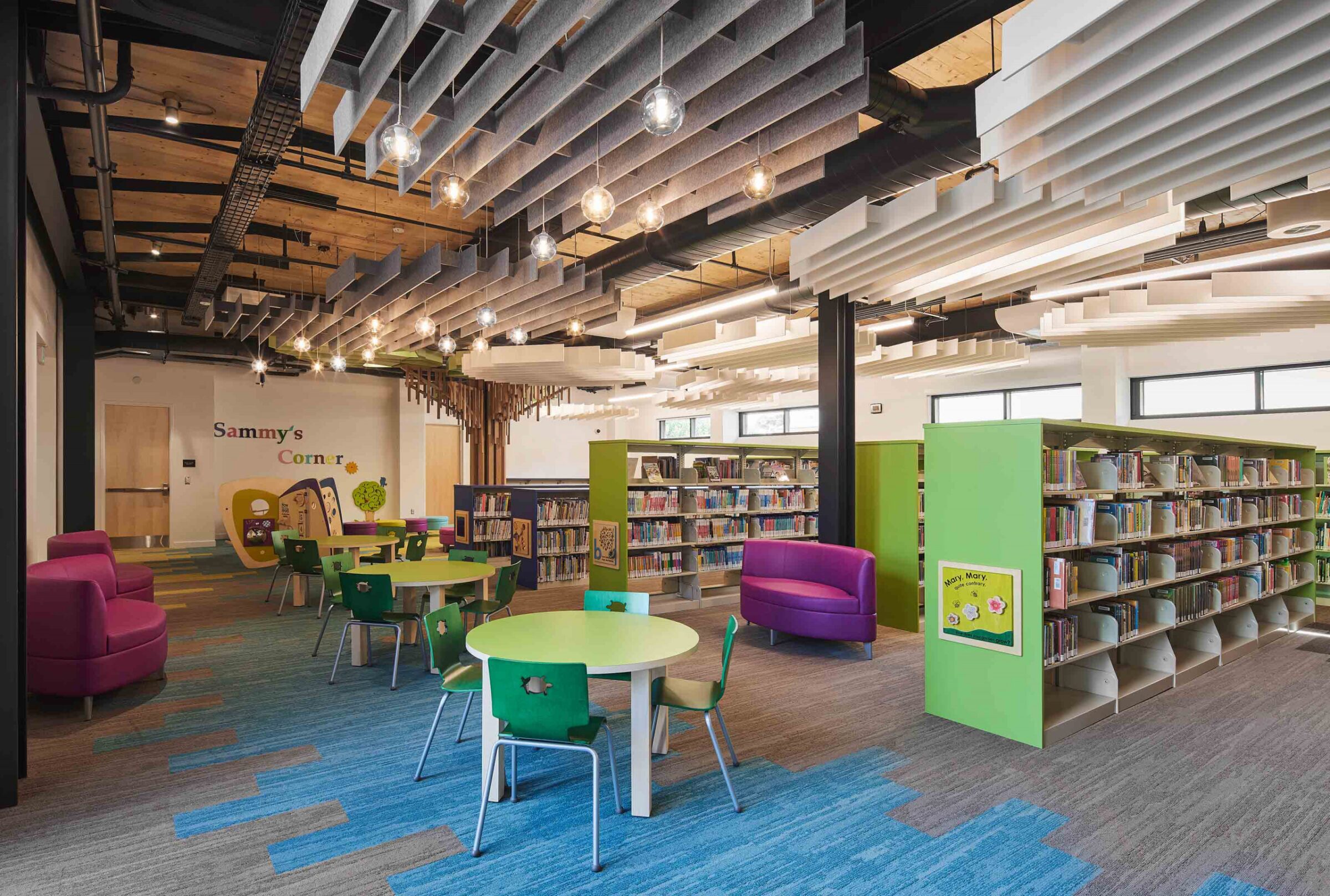

Brentwood Library
Cooley – NY
