About SoftGrid® FLUX

Flux’s acoustic ceiling modules create a geometric abstract shape, thanks to its interweaving network of panels made of Soft Sound® material that provides acoustic support where you need it. These intricate modules can connect together to provide acoustic comfort to an entire room or be used separately for a more focused design.

The System

Key Features

  1. Acoustic Performance

    SoftGrid®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftGrid®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  2. Expansive Color Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.

  3. Field Modifiable

    SoftGrid® modules can be trimmed down to a minimum of four fin intersections. By rearranging our adjustable hangers, we make it easy for you to specify standard modules that can be easily field-modified around anticipated and unforeseen site conditions during install.

  4. Compatible with SoundStar®

    SoftGrid®'s hexagonal modules - Deca, Orbit, and Flux - are compatible with SoundStar®. Create dynamic and transformative design variation in any space.

  5. Open Accessibility in Plan

    SoftGrid®'s open grid design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.

Product Details

  1. Specifications

    Dimensions

    • 1760 x 1520 x 150 mm

    Fin Material

    • 12mm Soft Sound® (PET)

    Openness in Plan

    • 87%

    Fire Rating

    • ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0

    Acoustics

    • True NRC® 0.60: Ceiling F-100 Method

    • True NRC® 0.65: Wall A Method

    Attachment Method

    • 1/32" Stainless Cable

    Accessibility

    • Yes, quick release cables

    Trimmability

    • Yes, per installation manual

  2. Product Diagrams

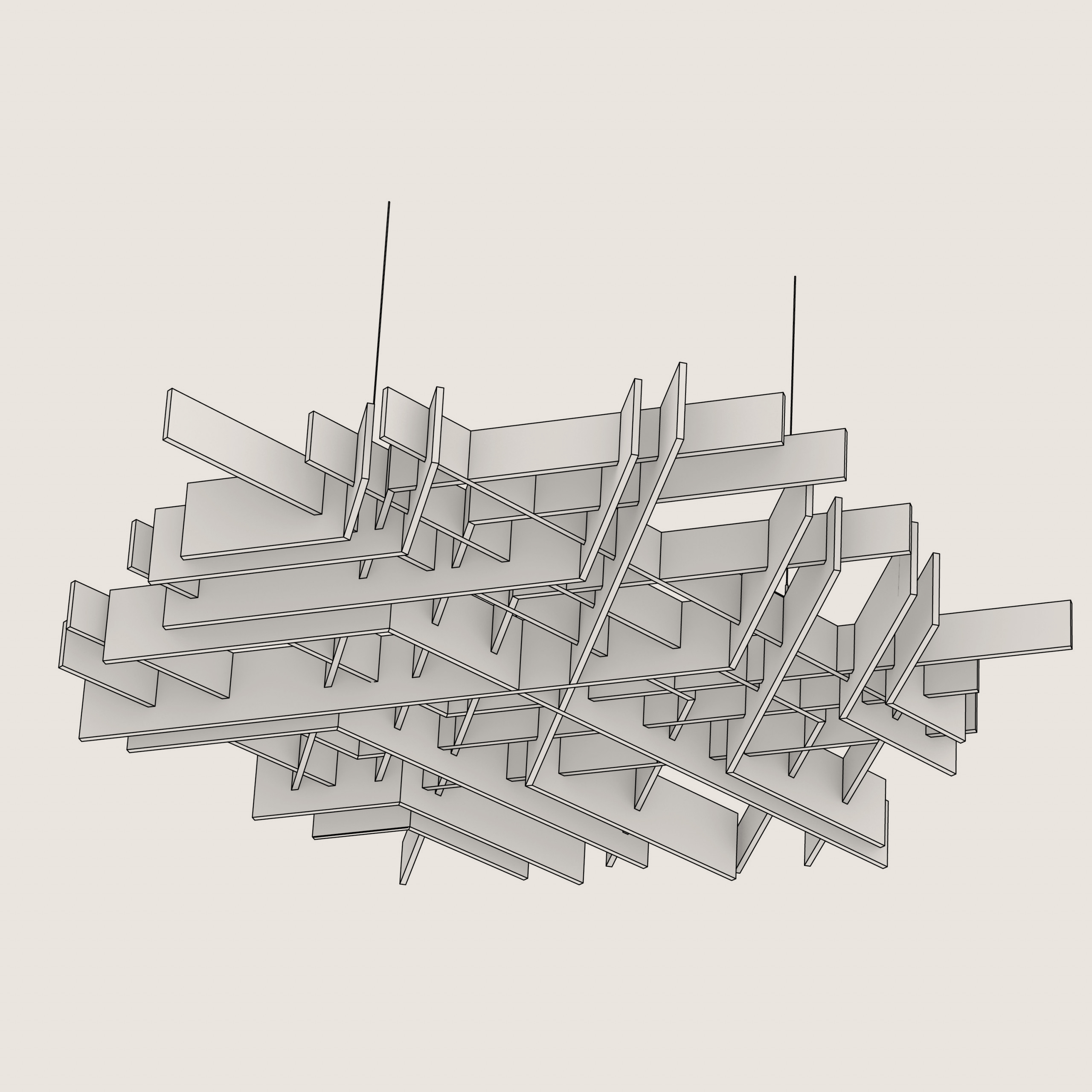

    • Standard Module

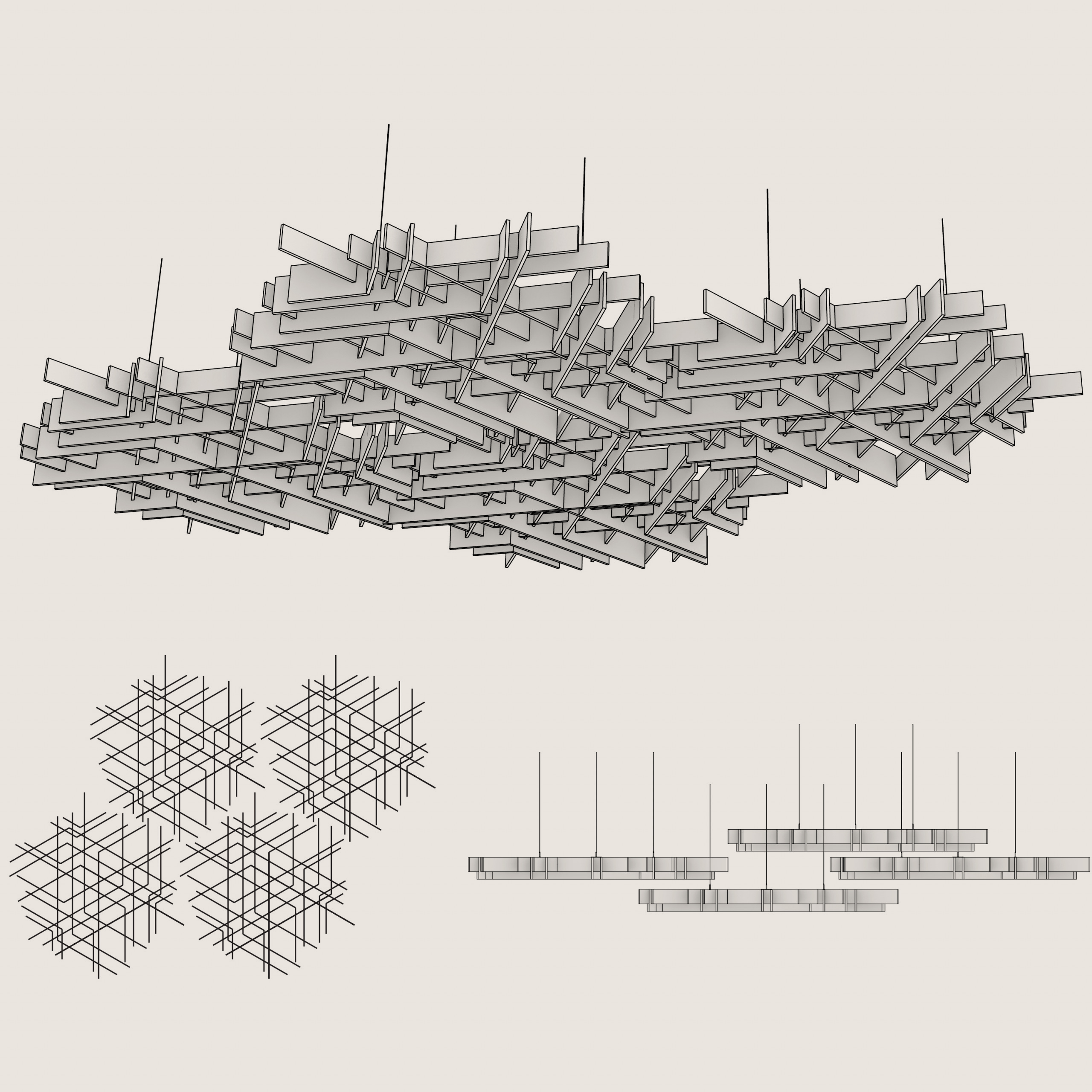

    • Designing with Modules

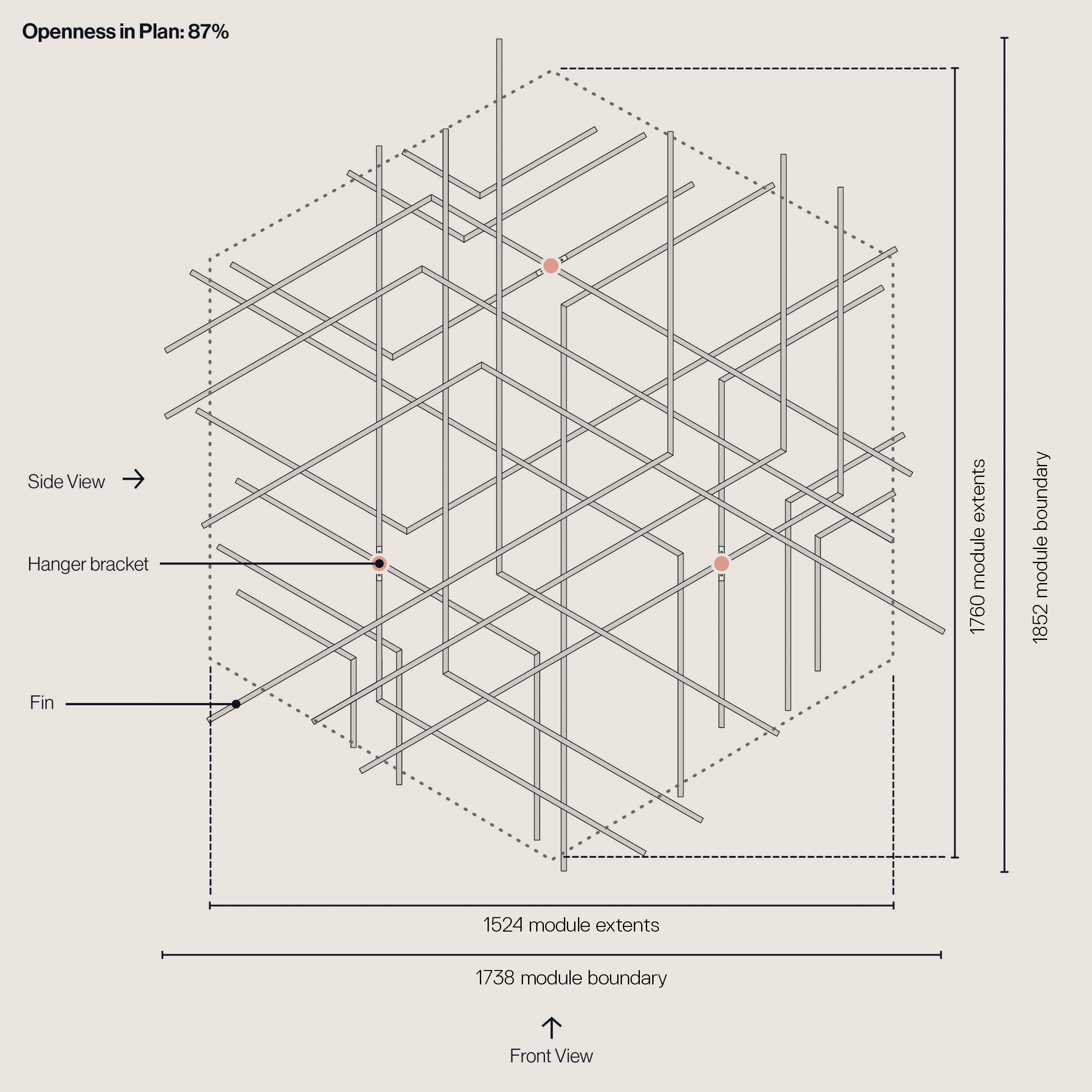

    • Understanding the Module - Plan

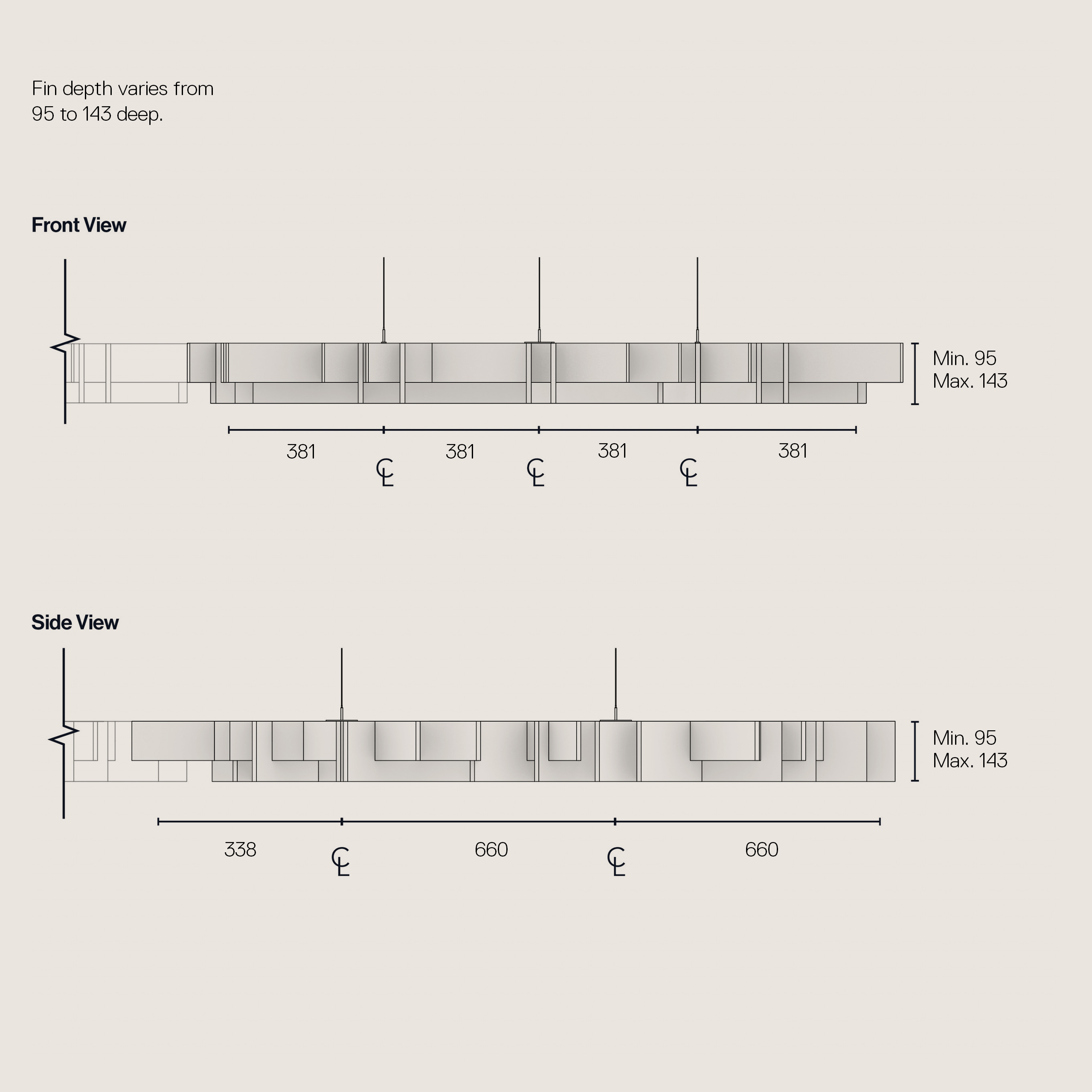

    • Understanding the Module - Elevations

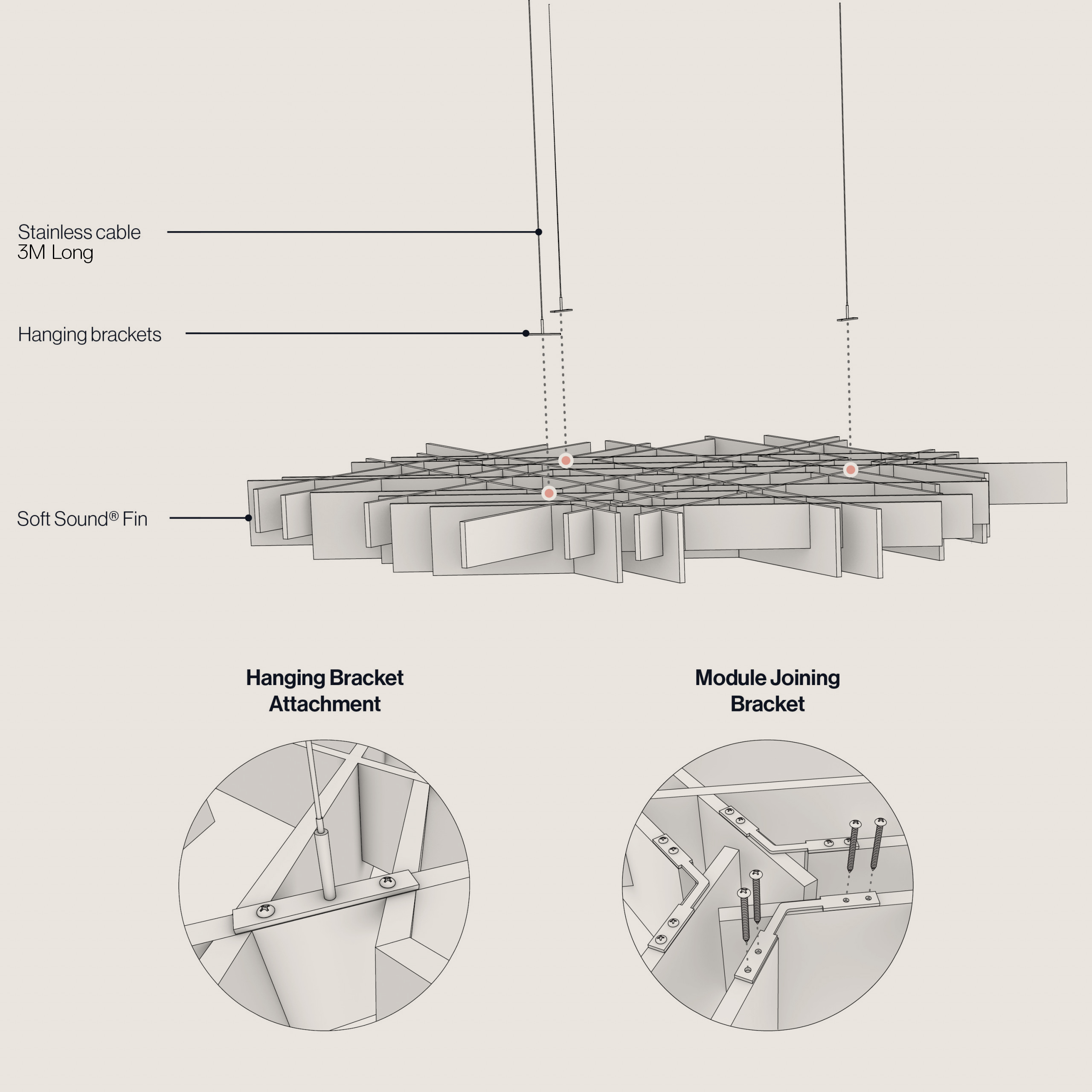

    • Attachment Details

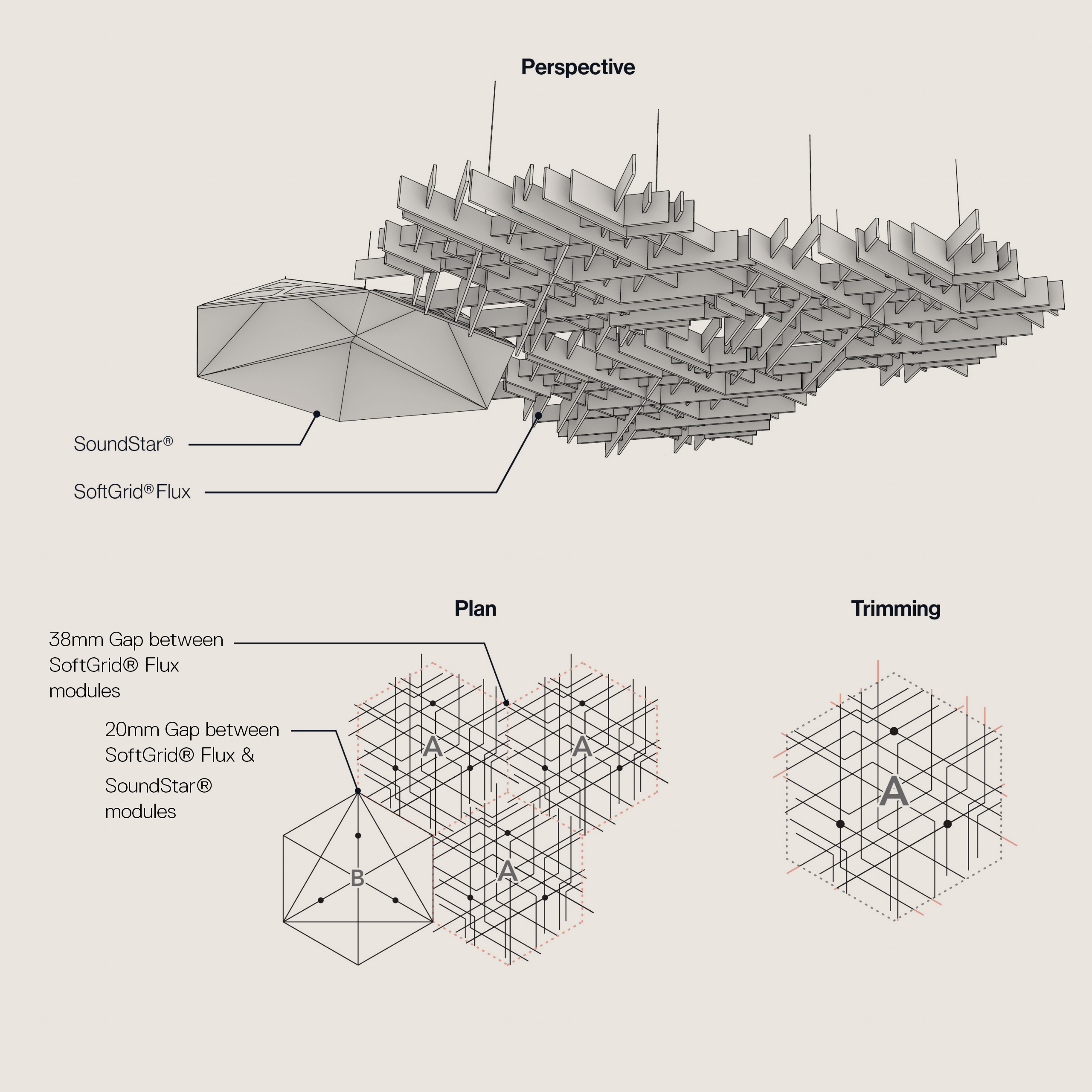

    • Combining with Other Products

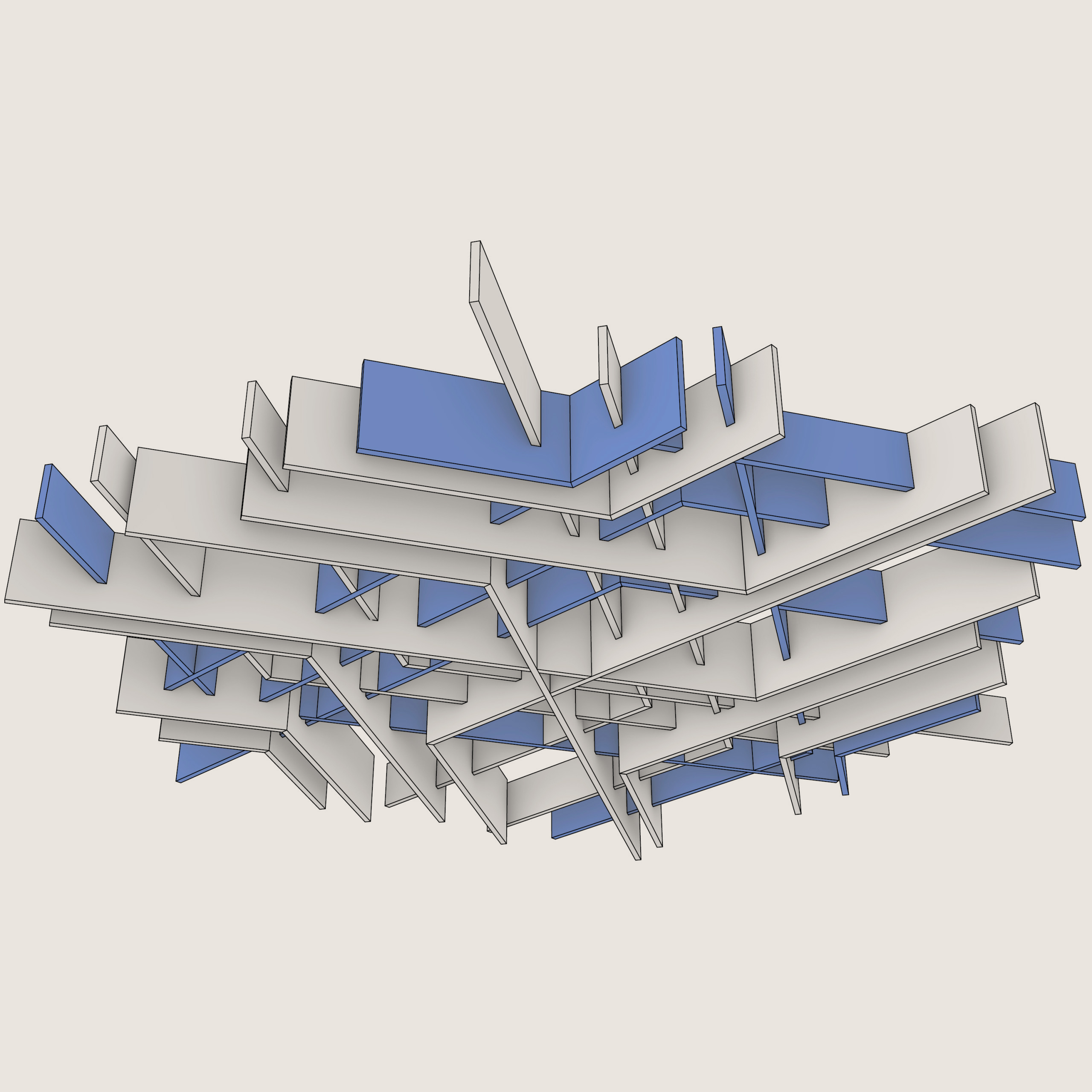

    • Optional SoftGrid® Flux Duo Tone

  3. Sustainability and Certifications
    • 488

      Each module is made from 488 recycled water bottles

    • Cradle to Cradle®

      Bronze Status Pending

    • 100%

      Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)

    • Declare

      Red list free

Materials and Finishes

  1. Materials and Finishes

    Soft Sound® Color Group A

    • White

      White

    • Snow

      Snow

    • Marble

      Marble

    • Heather Gray

      Heather Gray

    • Graphite

      Graphite

    • Carbon

      Carbon

    • Onyx

      Onyx

    • Apple

      Apple

    • Tangerine

      Tangerine

    • Lemon

      Lemon

    • Taupe

      Taupe

    • Sand

      Sand

    • Kiwi

      Kiwi

    • Whisper

      Whisper

    • Sky Blue

      Sky Blue

    • Denim

      Denim

    • Absinthe

      Absinthe

    • Abyss

      Abyss

    • Azore

      Azore

    • Mars

      Mars

    • Macchiato

      Macchiato

    Soft Sound® Wood Texture

    • Gray Ash

      Gray Ash

    • White Oak

      White Oak

    • Golden Oak

      Golden Oak

    • Oak

      Oak

    • American Walnut

      American Walnut

    • Charred Oak

      Charred Oak

    • Charred Ash

      Charred Ash

    • Ebony

      Ebony
