SoftGrid® SWITCH

Technical documents Get models Find an agent

Acoustic
Ceiling Clouds

Switch’s acoustic ceiling modules may look like a random pattern of panels but they have been perfectly designed to create an intricate web on your ceiling. With seamless connection, you can make your web as large or as small as you want. Either way, you’ll still get acoustic support thanks to the Soft Sound® material it’s designed from. And now, for larger jobs, with the addition of SoftGrid® Max options, you can do it all while maximizing value and minimizing the impact on the environment.

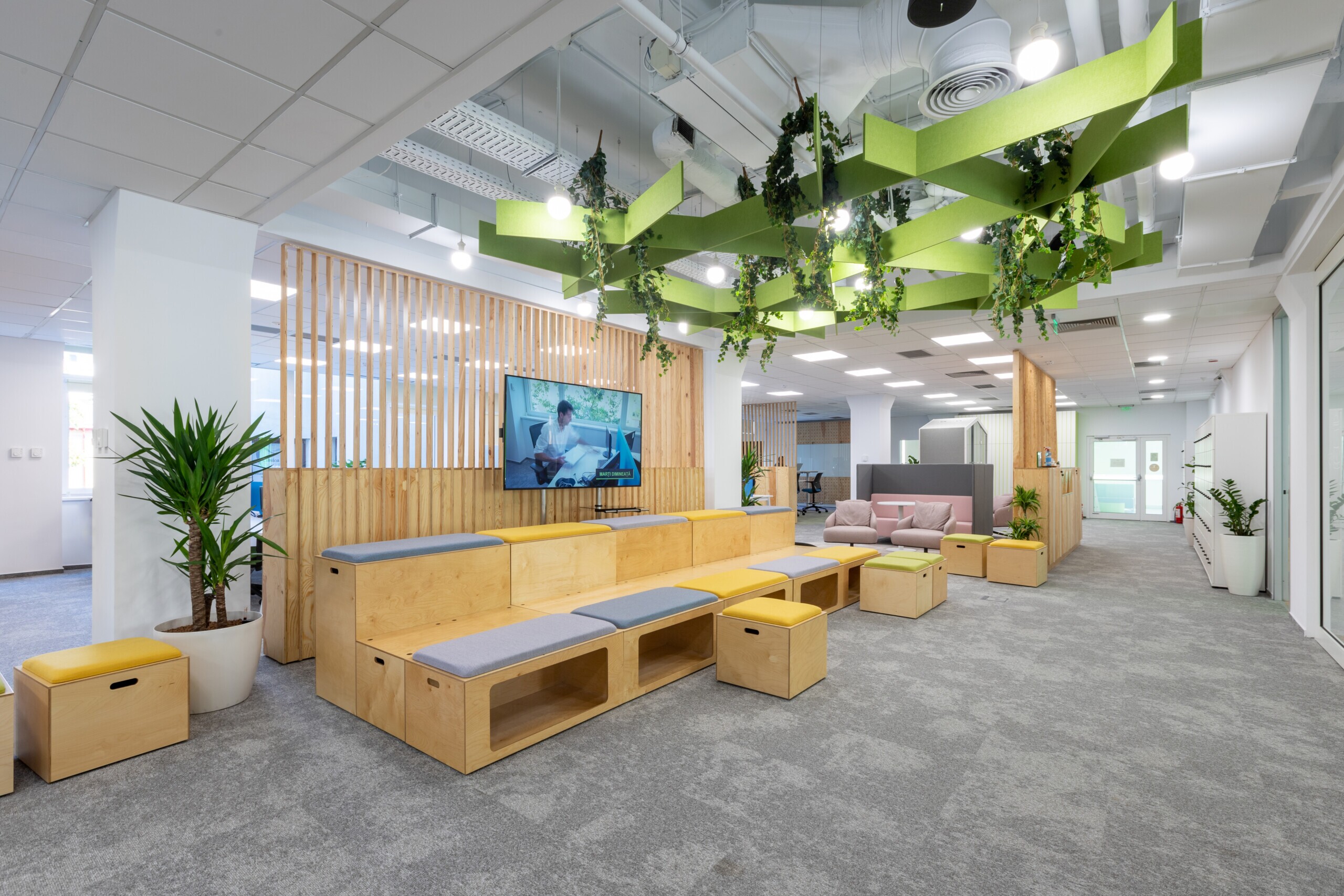

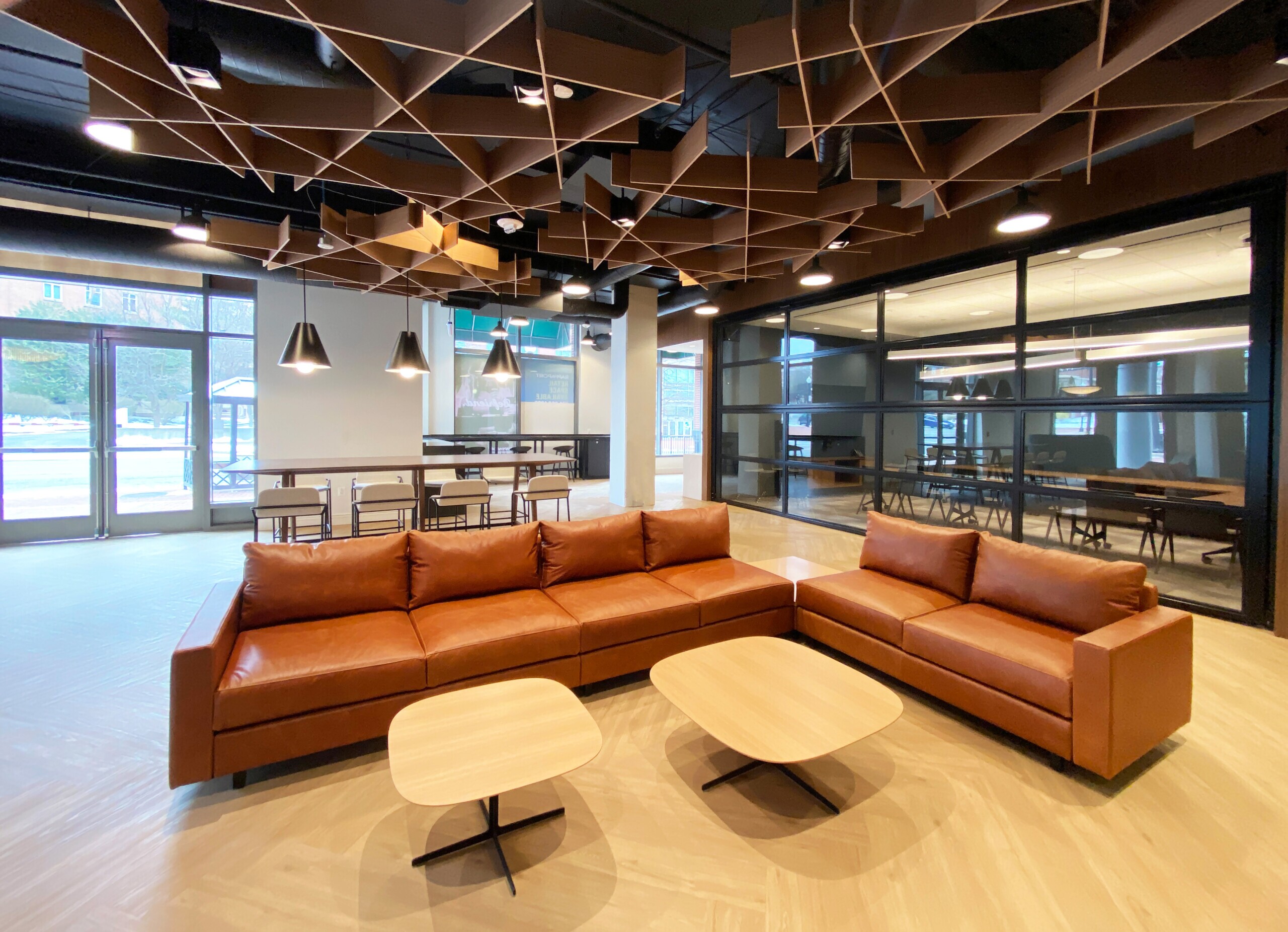

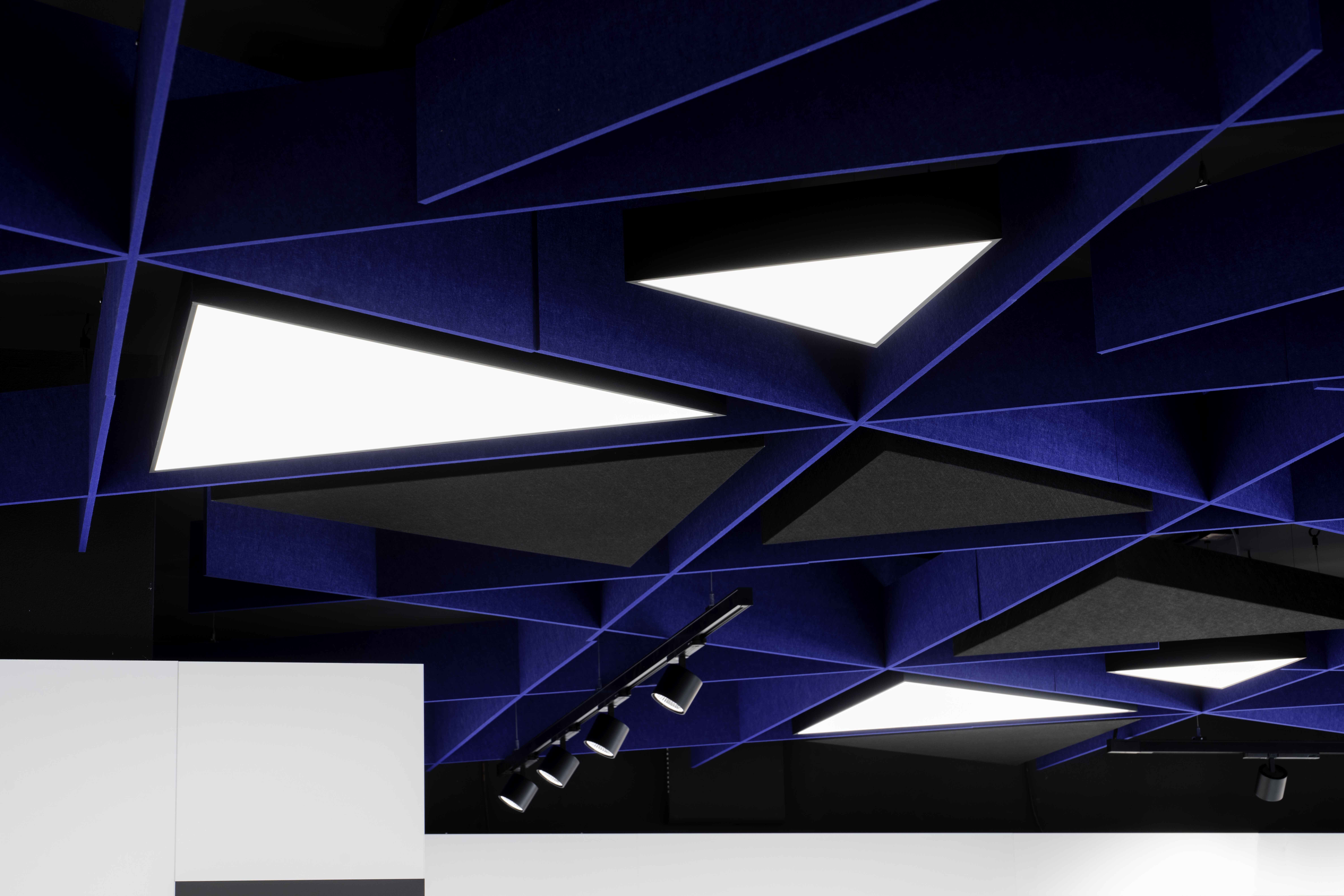

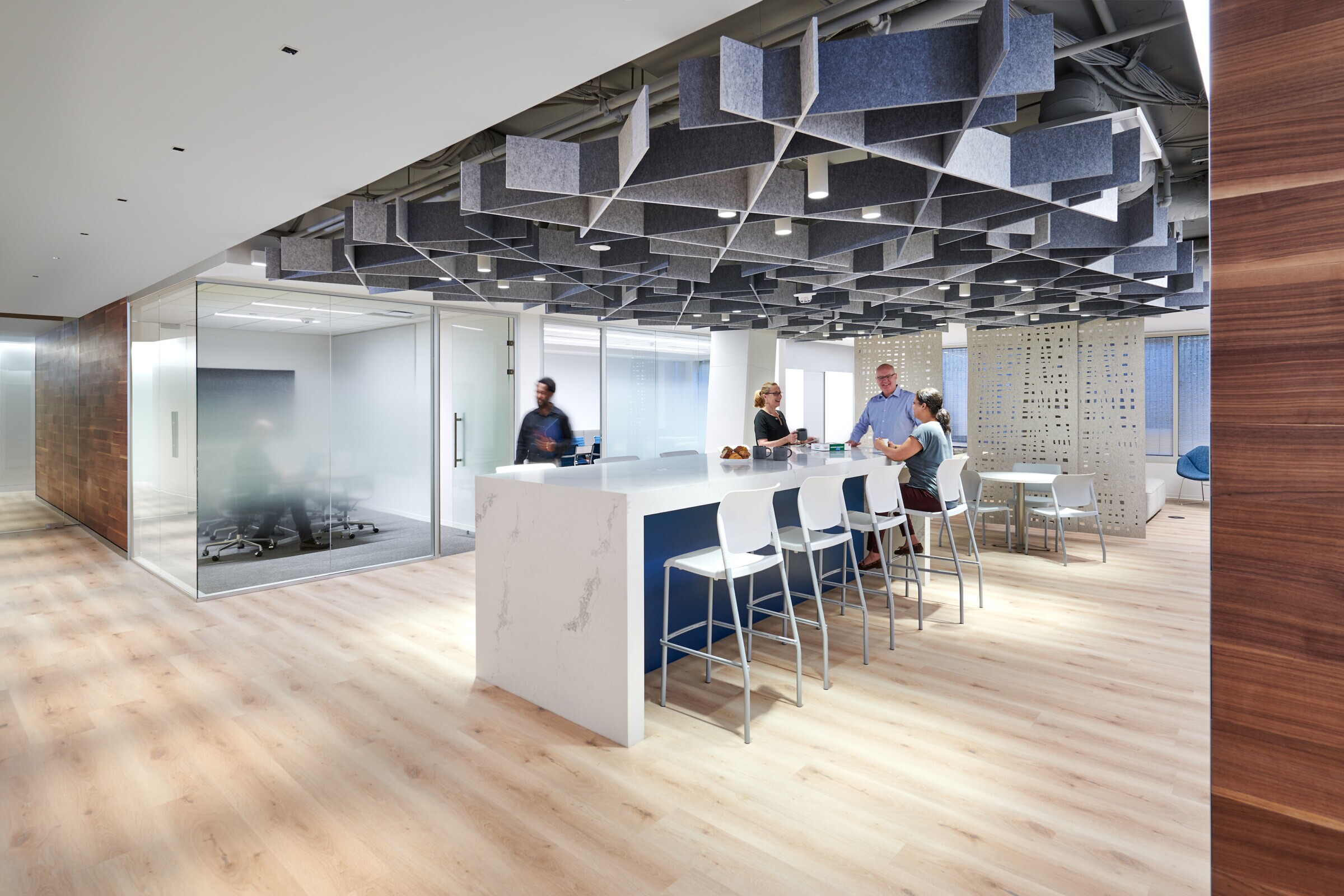

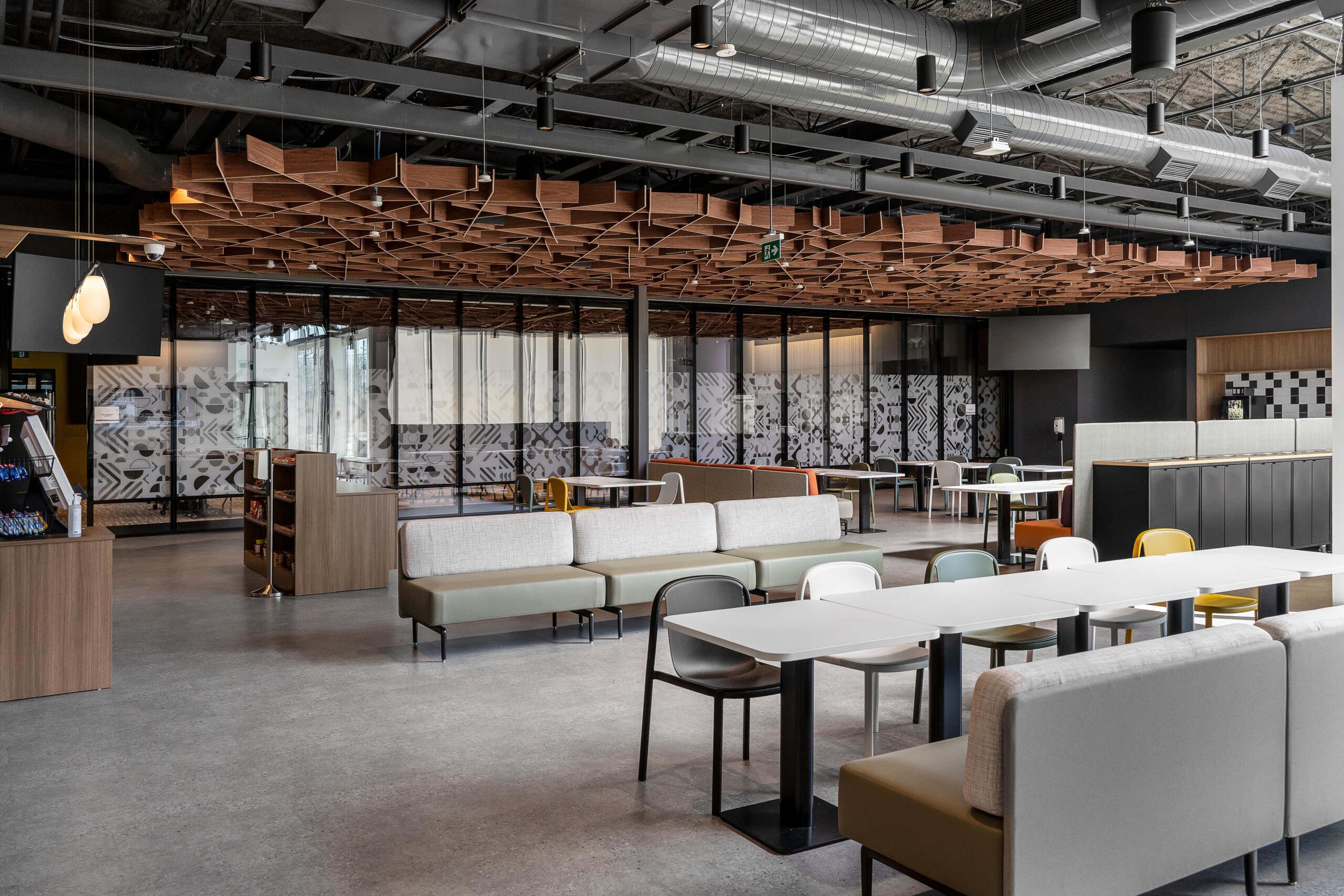

SoftGrid® SWITCH in use

—

The System

Key Features

Acoustic Performance

SoftGrid®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftGrid®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
Expansive Color Library

Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.
Preconfigured Solutions

SoftGrid® modules can be trimmed down to a minimum of four fin intersections. By rearranging our adjustable hangers, we make it easy for you to specify standard modules that can be easily field-modified around anticipated and unforeseen site conditions during install.
Open Accessibility in Plan

SoftGrid®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.

Product Details

Specifications

Dimensions

2300 x 2300 x 200

Fin Material

12mm Soft Sound® (PET)

Openness in Plan

Fire Rating

ASTM E84 - Class A | UNE-EN 13501-1, B-s1,d0

Acoustics

Switch - True NRC® 0.55: Ceiling F-100 Method
Switch - True NRC® 0.60: Wall A Method
Switch Max - True NRC® 0.40: Ceiling F-100 Method

Attachment Method

1/32" Stainless Cable

Accessibility

Yes, quick release cables

Trimmability

Yes, per installation manual

Product Diagrams

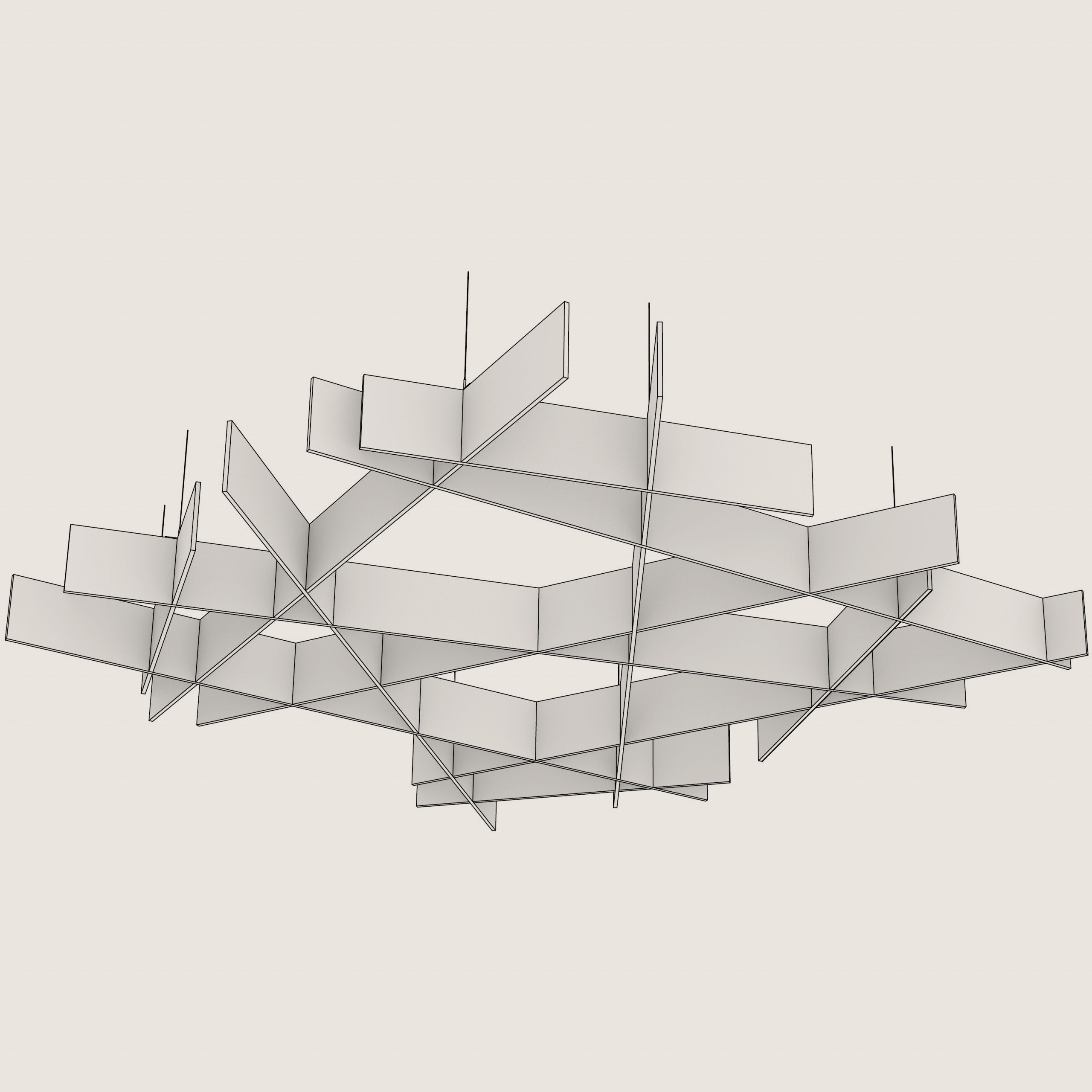

Standard Module

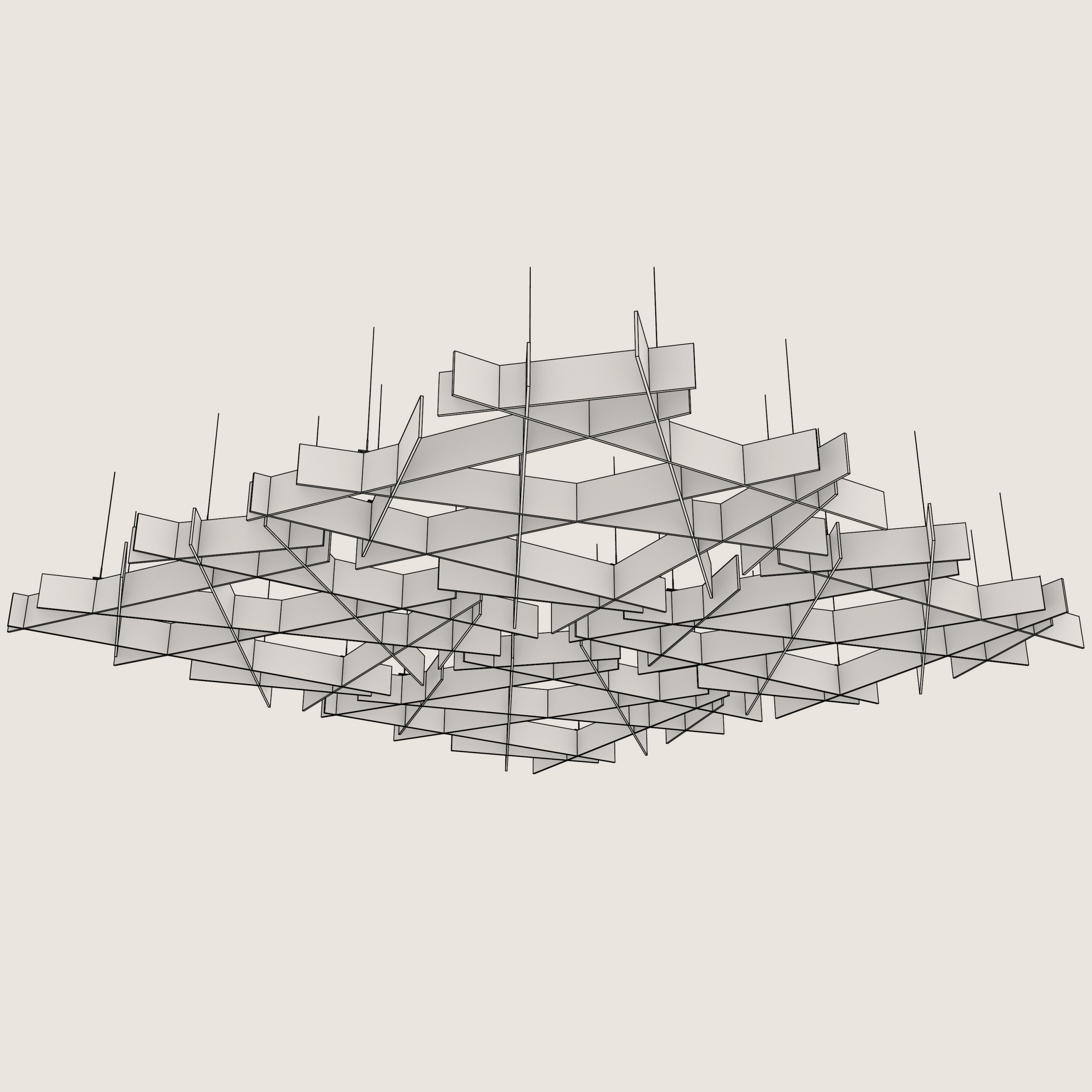

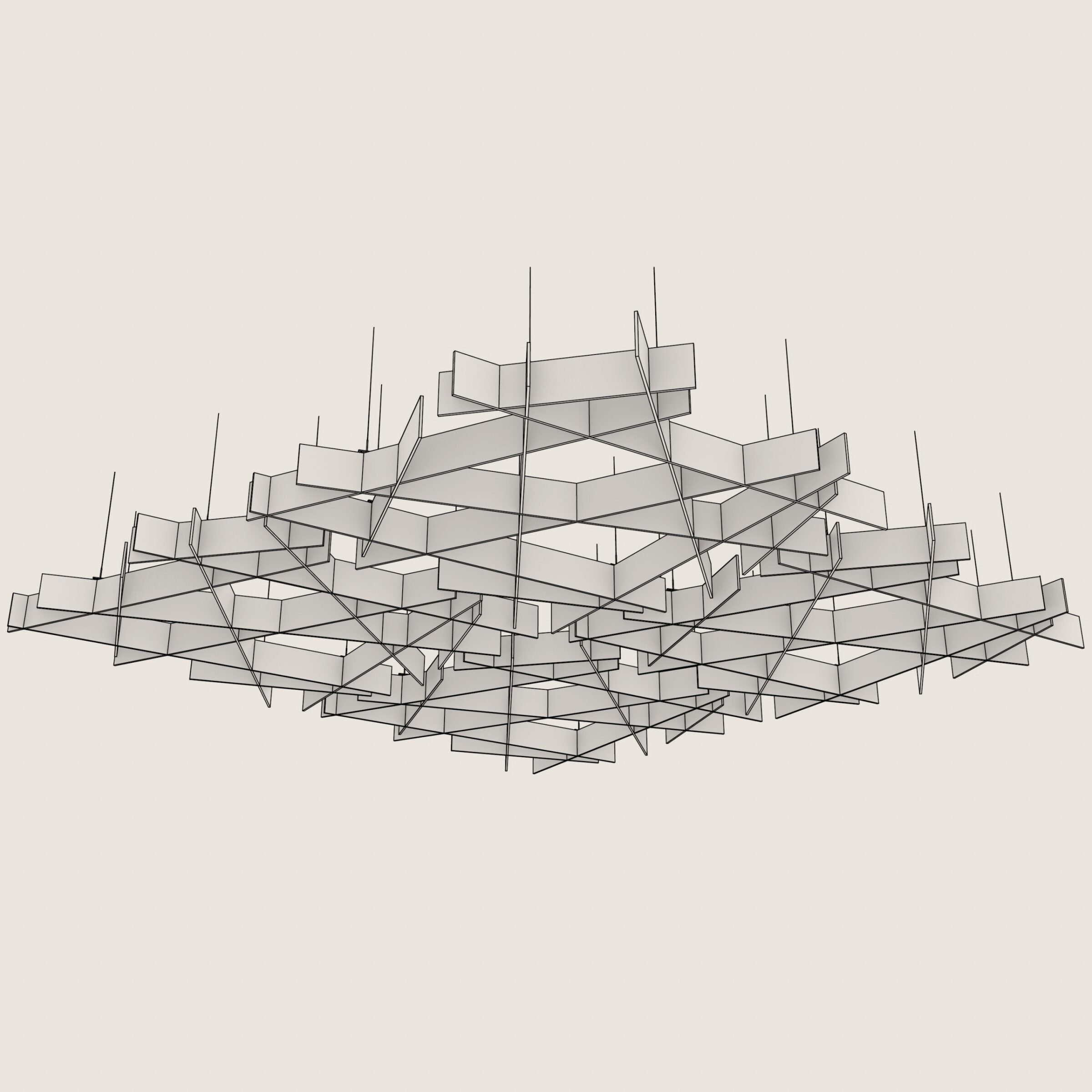

Multiple Modules

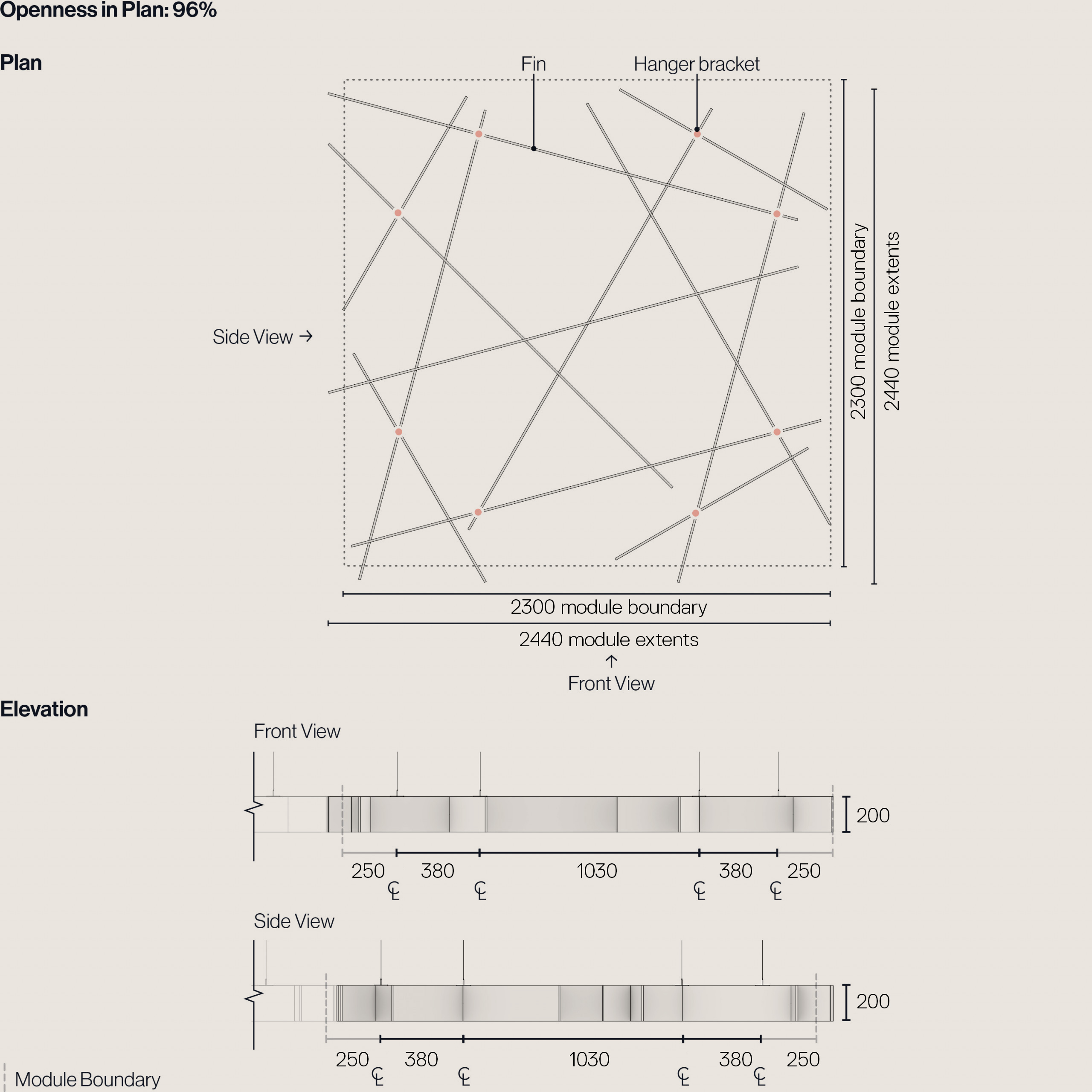

Understanding the Module - Switch Max

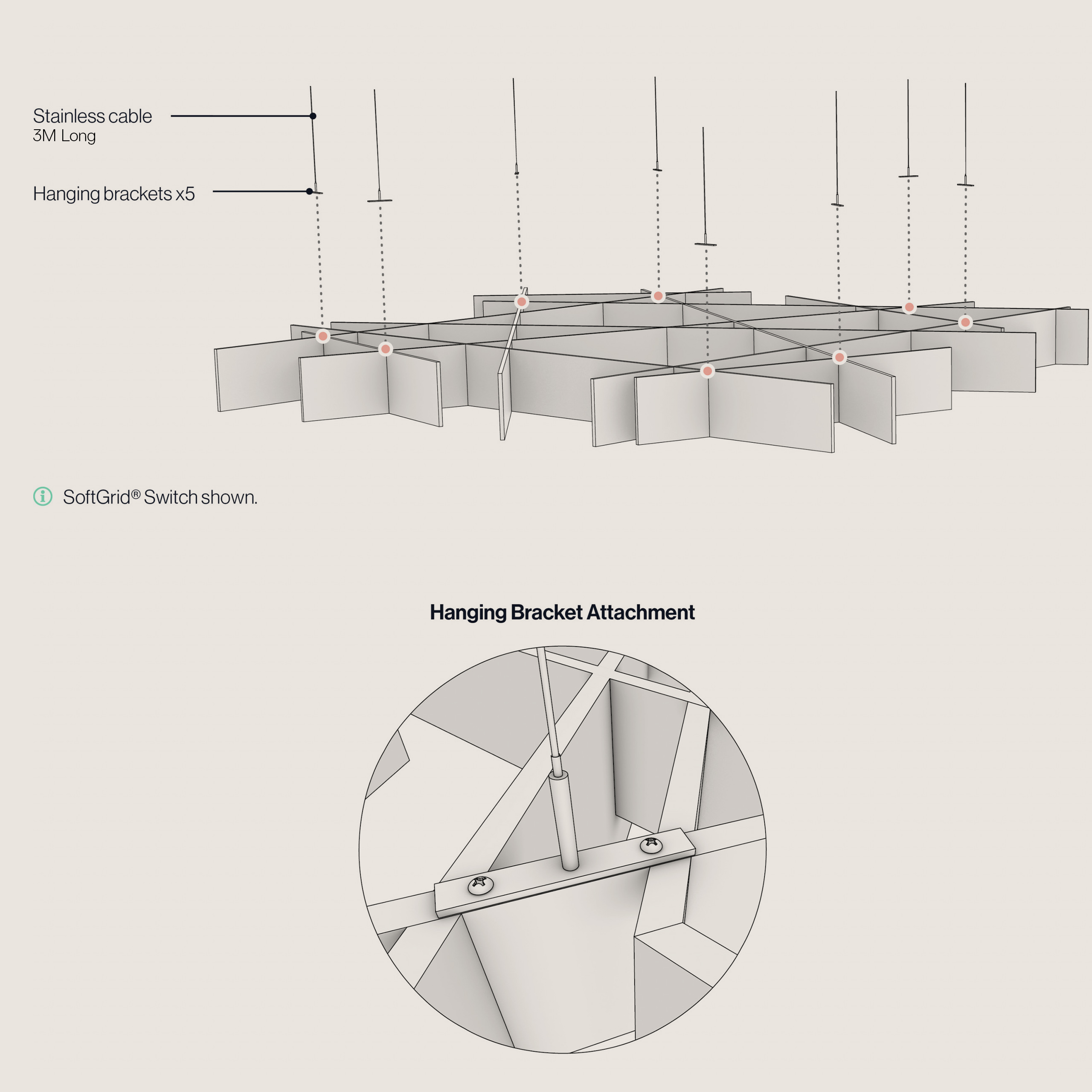

Attachment Details

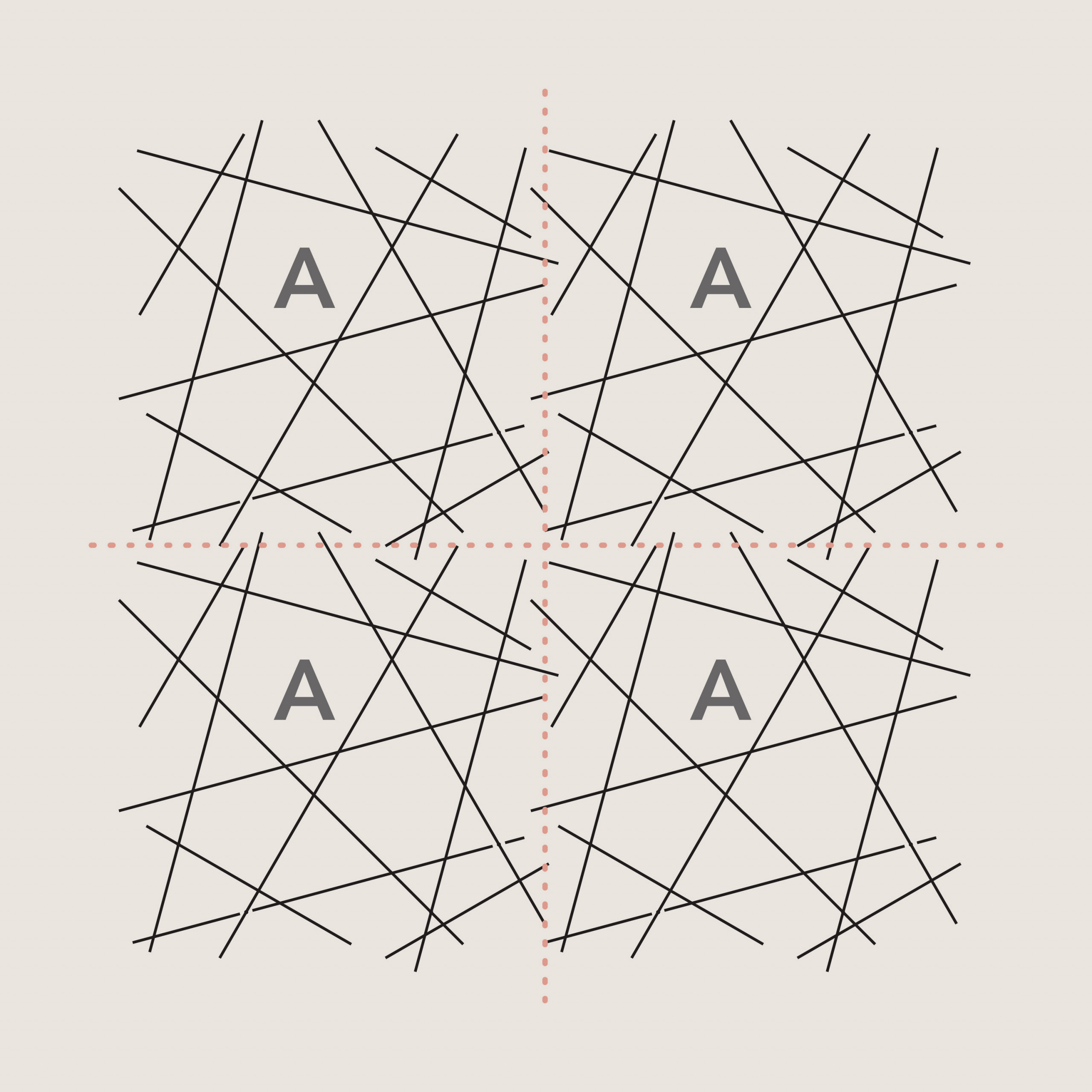

Module Configuration

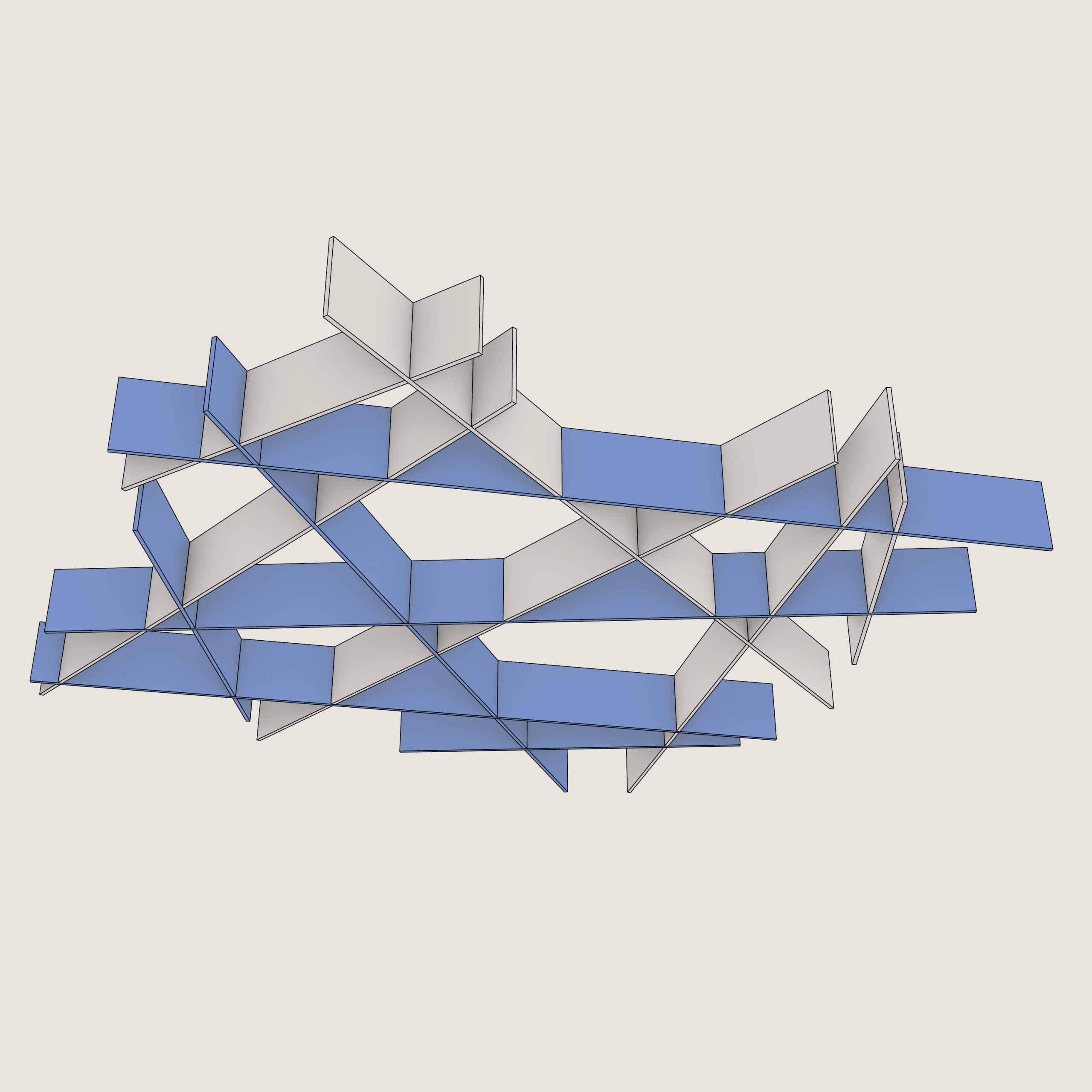

Optional SoftGrid® Switch Duo Tone

Sustainability and Certifications

488

Each module is made from 488 recycled water bottles
Cradle to Cradle®

Bronze Status Pending
100%

Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)
Declare

Red list free
