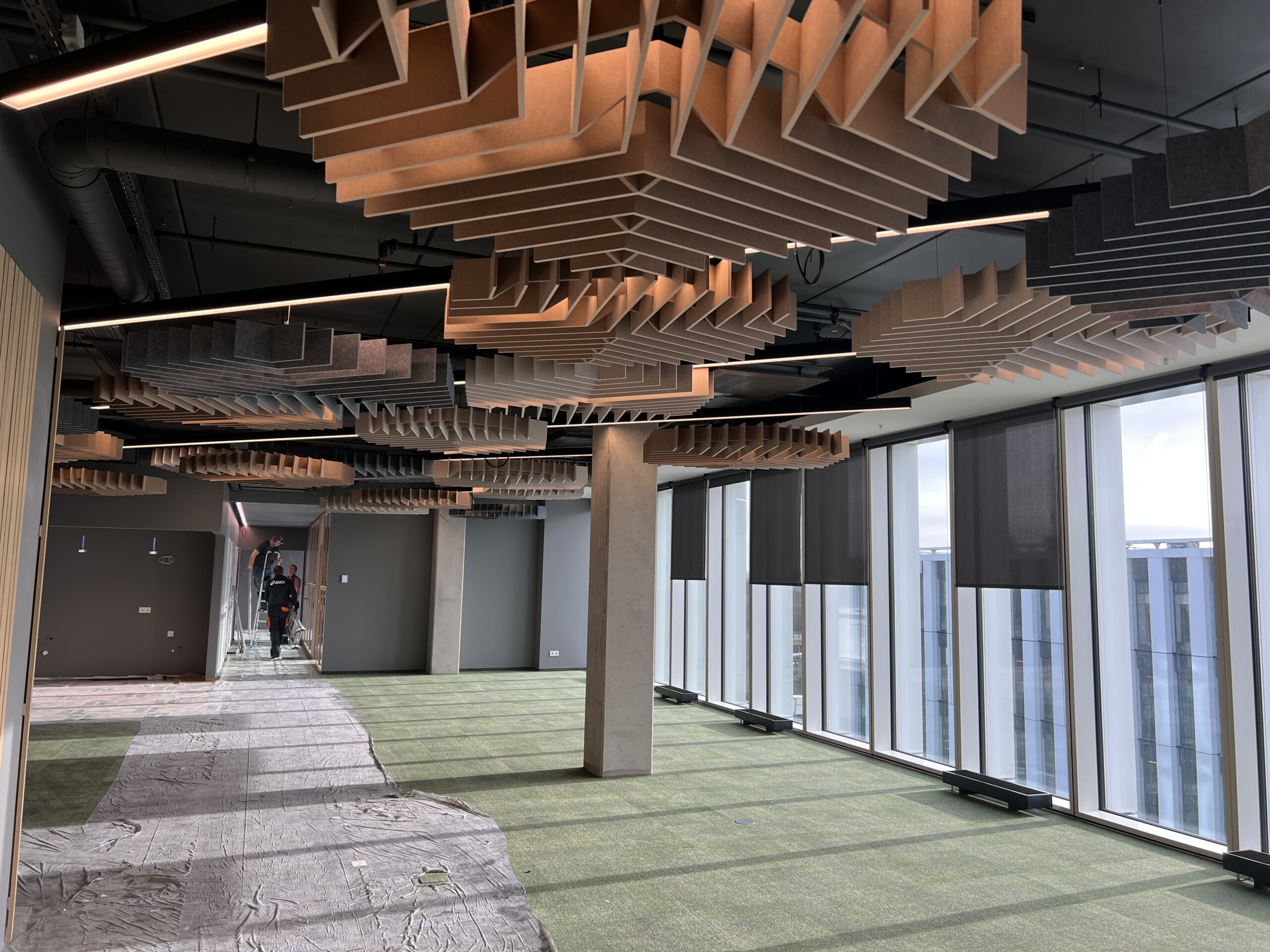

SoftGrid® DECA in use

The System

Key Features

  1. Acoustic Performance

    SoftGrid®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftGrid®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.

  2. Expansive Color Library

    Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.

  3. Field Modifiable

    SoftGrid® modules can be trimmed down to a minimum of four fin intersections. By rearranging our adjustable hangers, we make it easy for you to specify standard modules that can be easily field-modified around anticipated and unforeseen site conditions during install.

  4. Compatible with SoundStar®

    SoftGrid®'s hexagonal modules - Deca, Orbit, and Flux - are compatible with SoundStar®. Create dynamic and transformative design variation in any space.

  5. Open Accessibility in Plan

    SoftGrid®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.

Product Details

Specifications

Dimensions

  • 1760 x 1520 x 170

Fin Material

  • 12mm Soft Sound® (PET)

Openness in Plan

  • 87%

Fire Rating

  • ASTM E84 - Class A, UNE-EN 13501-1, B-s1,d0

Acoustics

  • True NRC® 0.65: Ceiling F-100 Method

  • True NRC® 0.65: Wall A Method

Attachment Method

  • 1/32" Stainless Cable

Accesibility

  • Yes, quick release cables

Trimmability

  • Yes, per installation manual

Product Diagrams

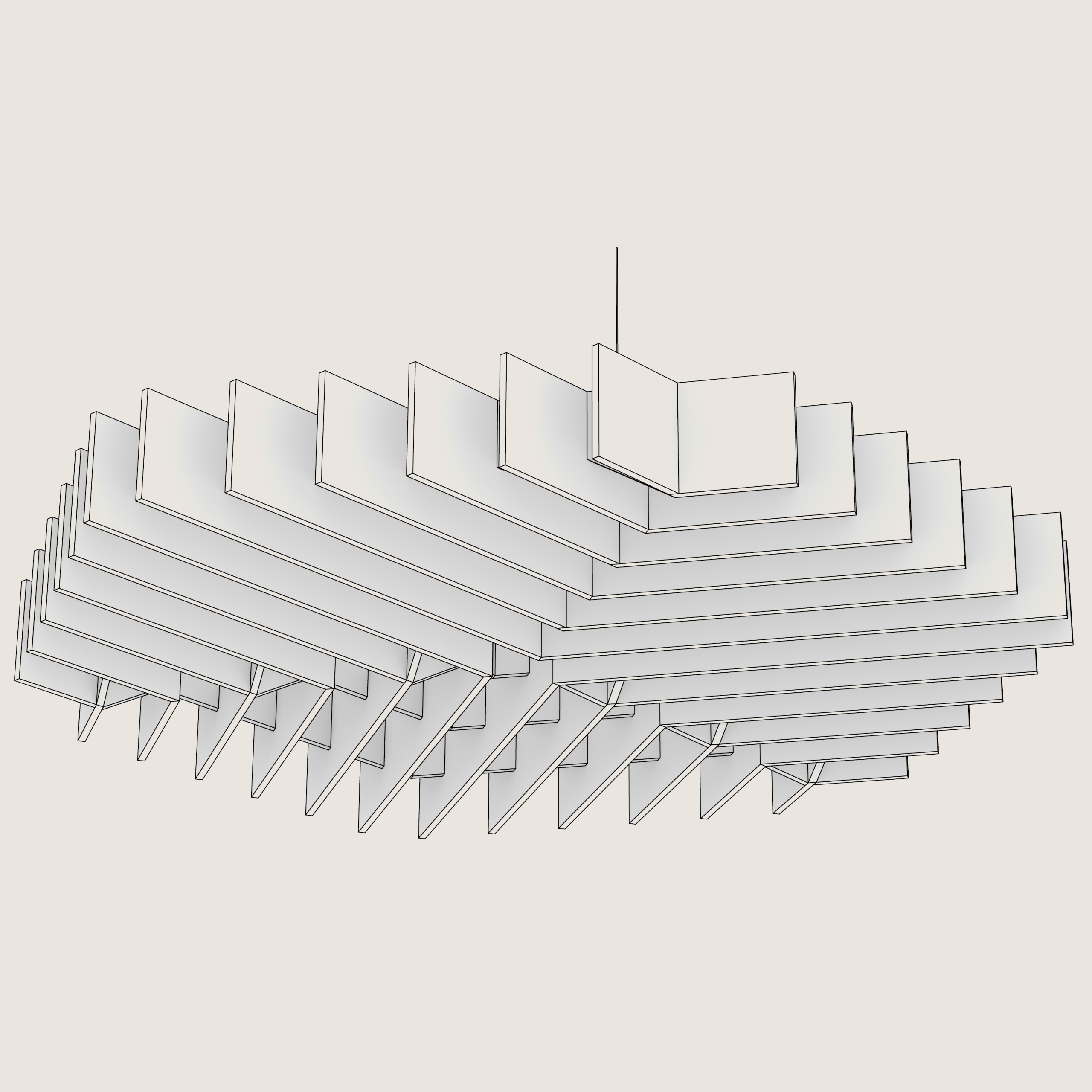

Standard Module

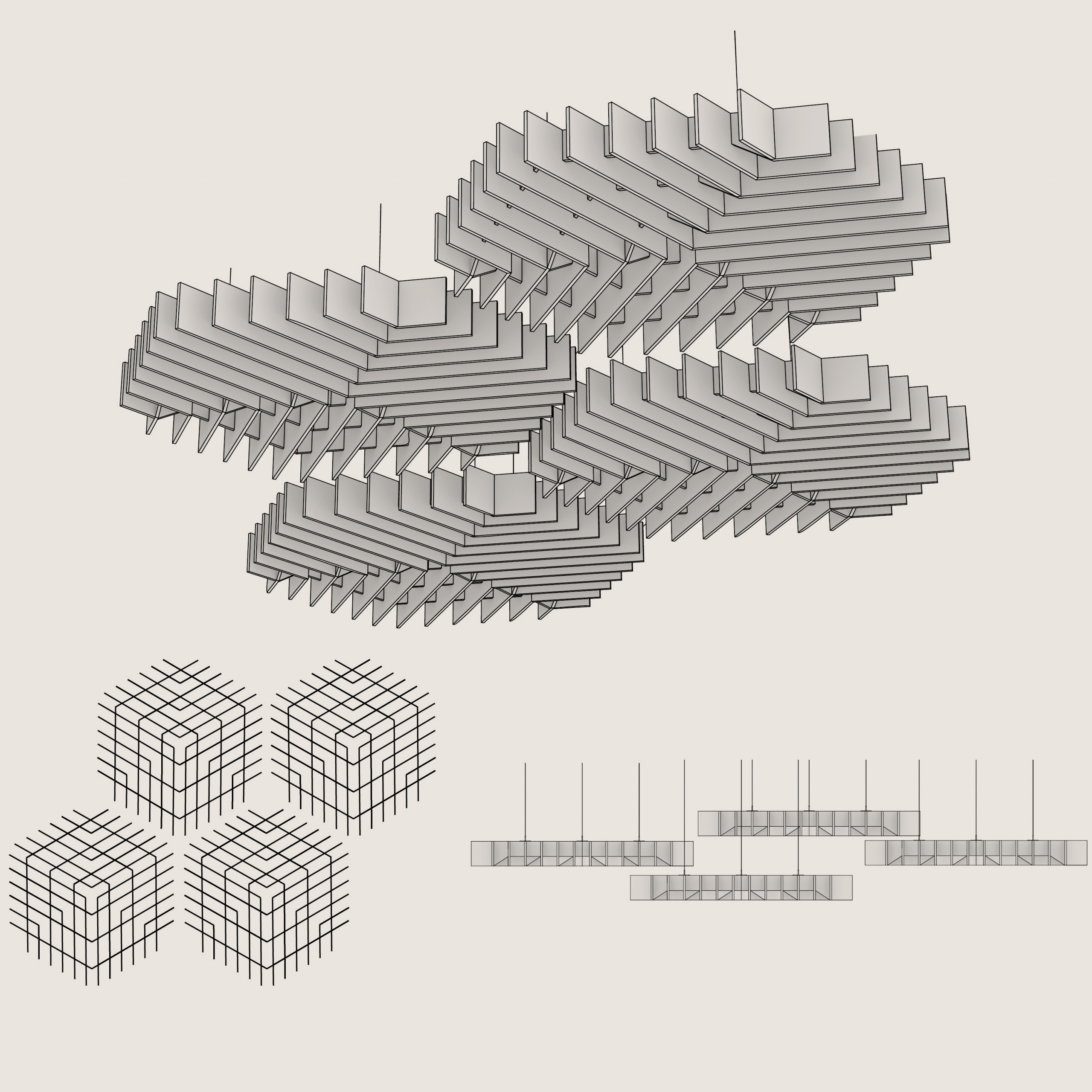

Multiple Modules

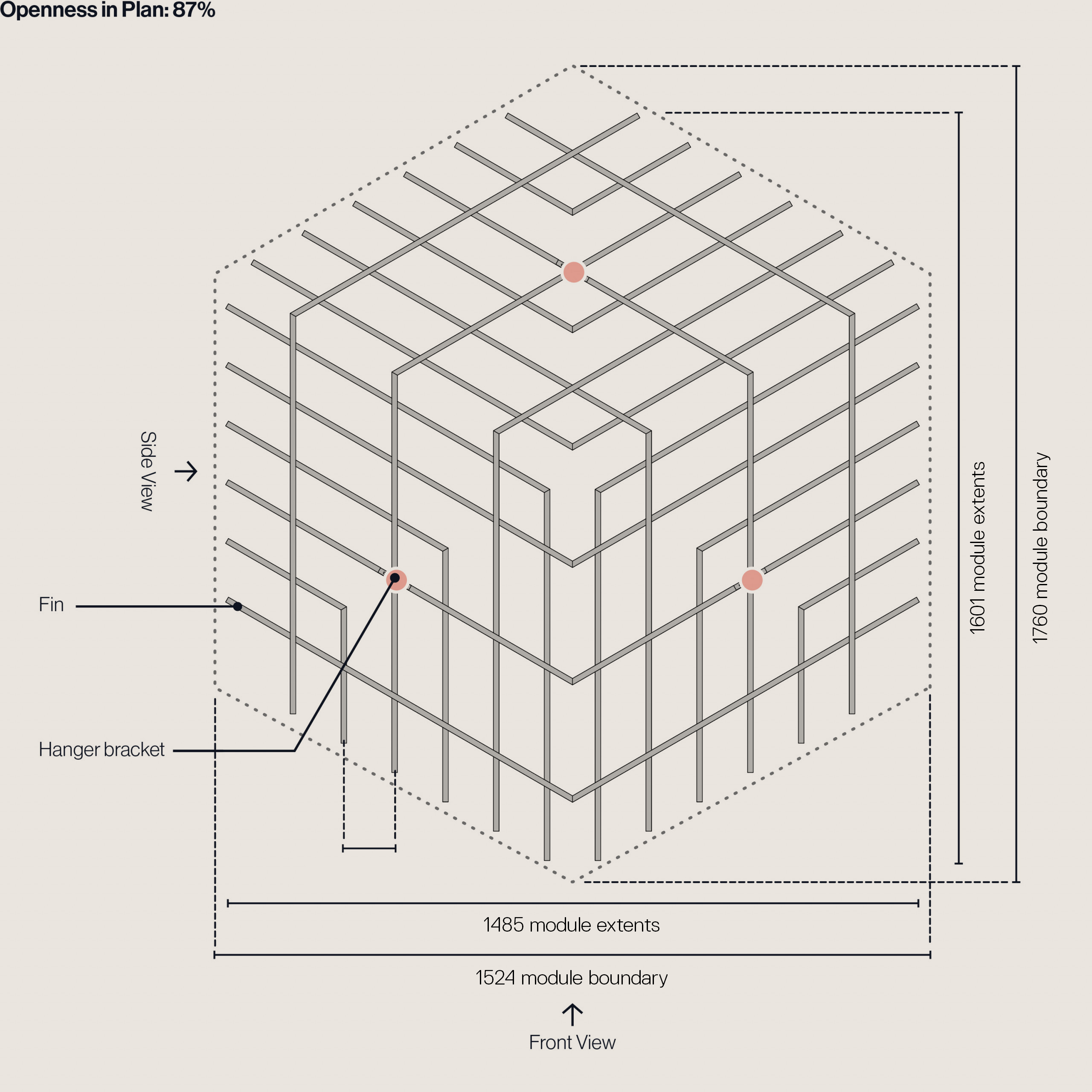

Understanding the Module - Plan

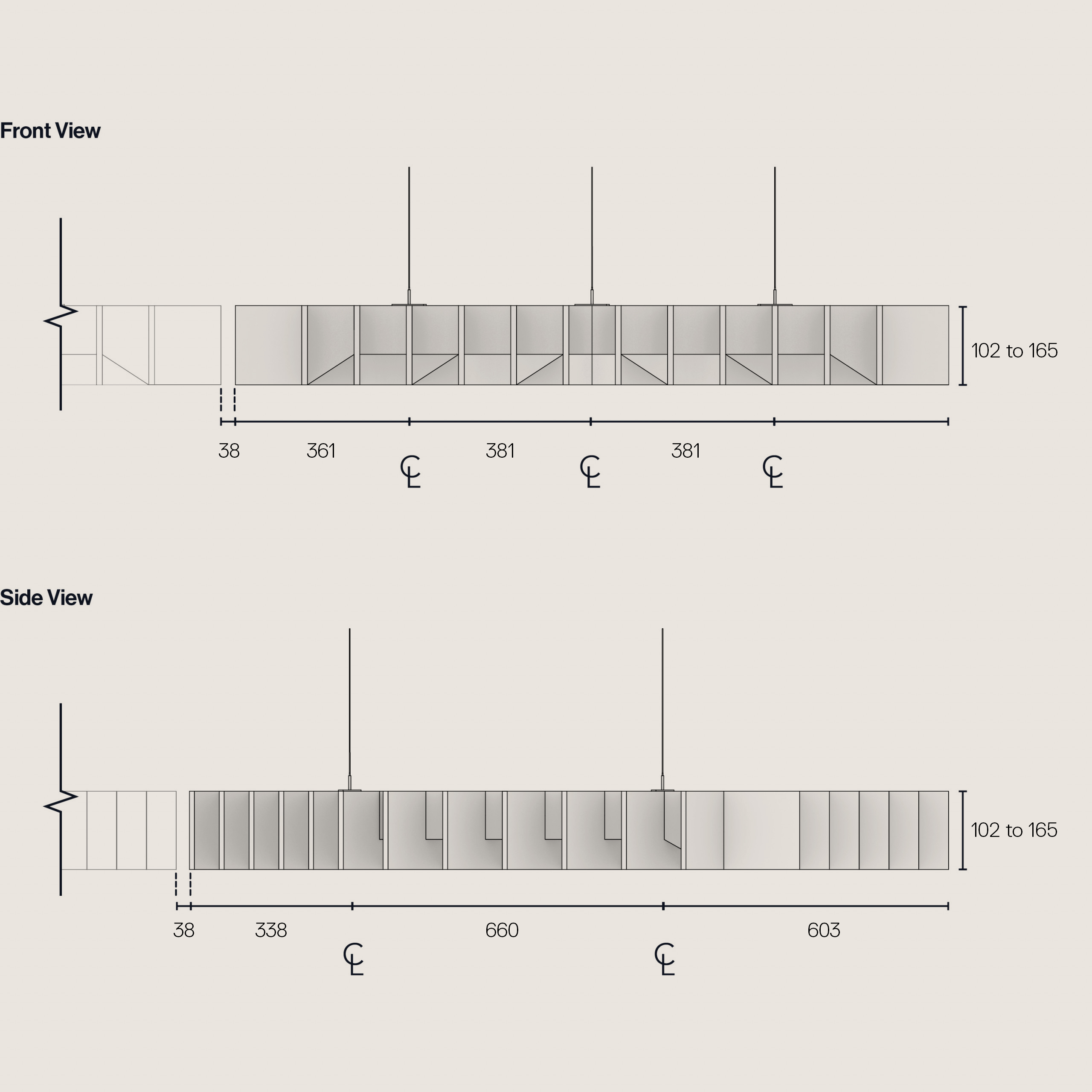

Understanding the Module - Elevations

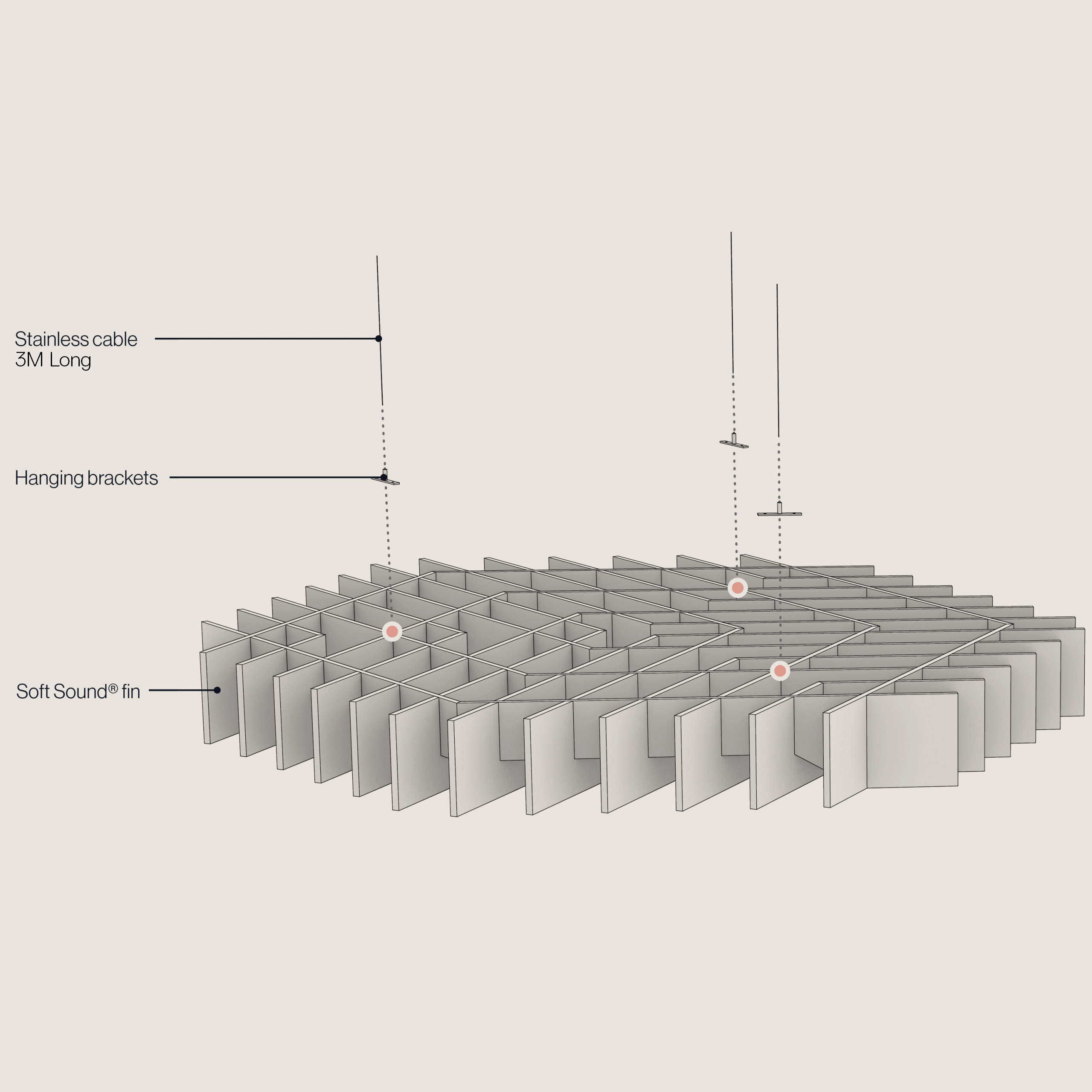

Attachment & Install

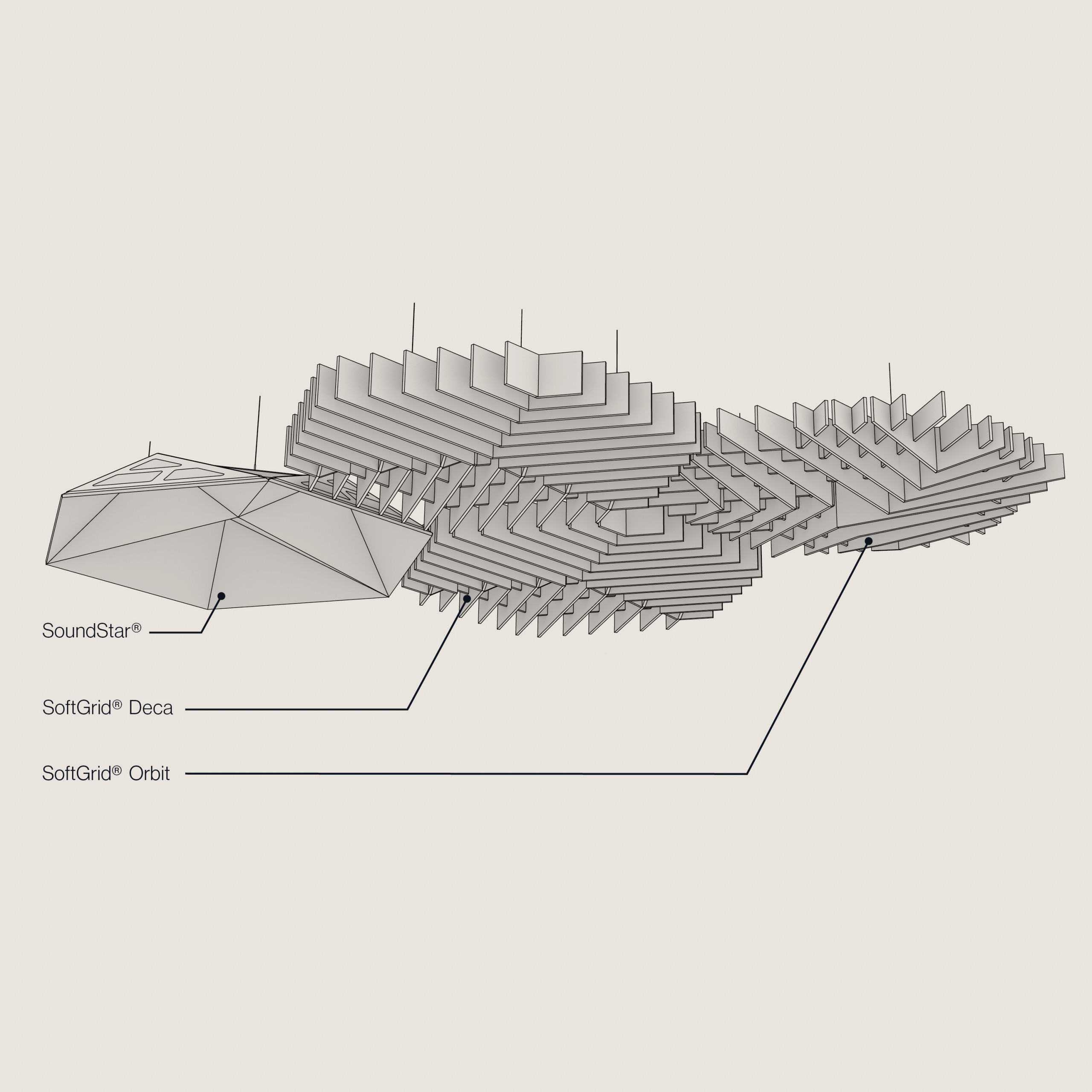

Combining With Other Products

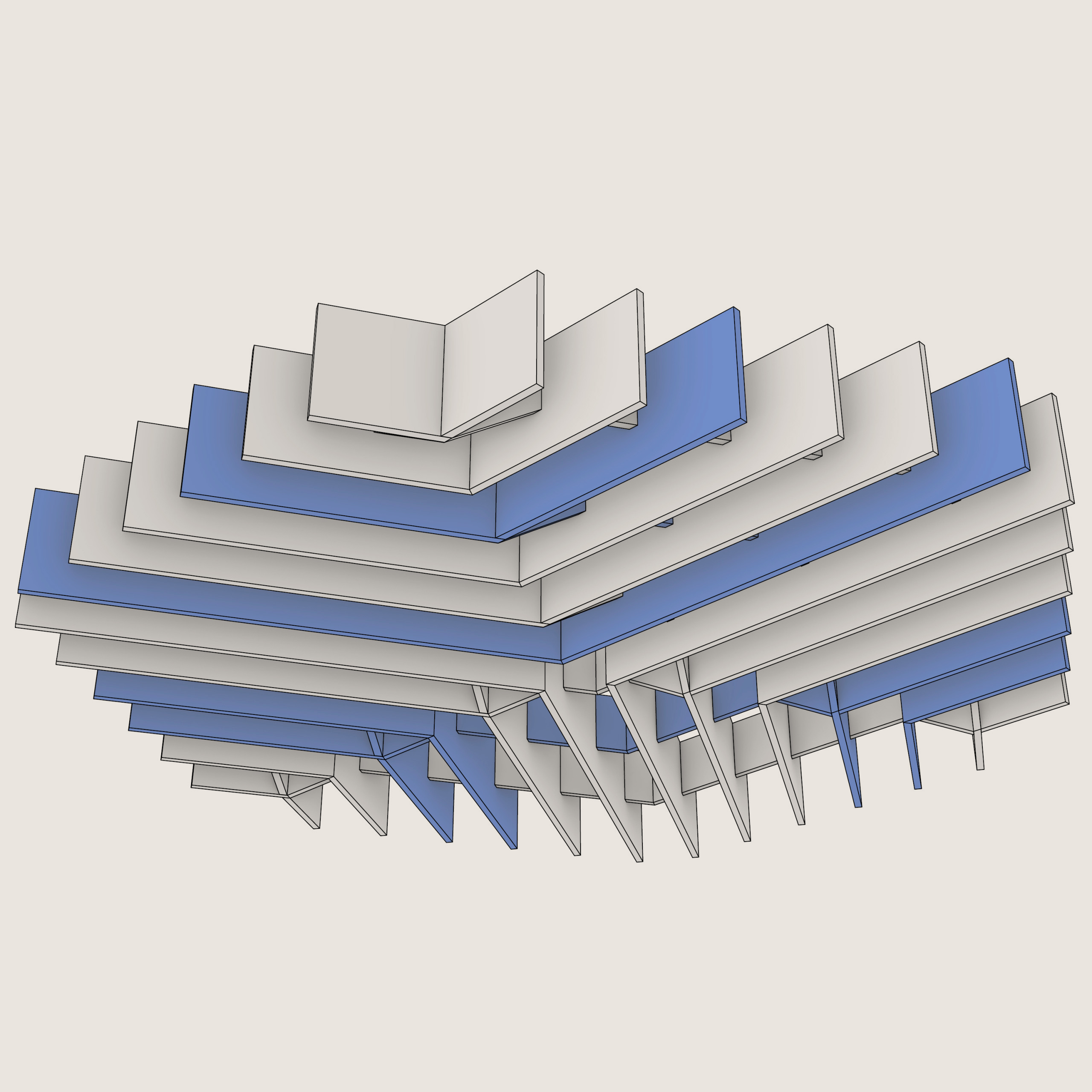

Optional SoftGrid® Deca Duo Tone

Sustainability and Certifications
  • 488

    Each module is made from 488 recycled water bottles

  • Cradle to Cradle®

    Bronze Status Pending

  • 100%

    Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)

  • Declare

    Red list free

Materials and Finishes

Materials and Finishes

Soft Sound® Color Group A

  • White

  • Snow

  • Marble

  • Heather Gray

  • Graphite

  • Carbon

  • Onyx

  • Apple

  • Tangerine

  • Lemon

  • Taupe

  • Sand

  • Kiwi

  • Whisper

  • Sky Blue

  • Denim

  • Absinthe

  • Abyss

  • Azore

  • Mars

  • Macchiato

Soft Sound® Wood Texture

  • Gray Ash

  • White Oak

  • Golden Oak

  • Oak

  • American Walnut

  • Charred Oak

  • Charred Ash

  • Ebony

Resources

Product

Download

SoftGrid® DECA Brochure

SoftGrid® DECA – DWG (Metric)

Projects with SoftGrid® DECA

Prometheus 20400
