SoftGrid® SLOPE

Technical documents Get models Find an agent

Acoustic
Ceiling Clouds

Slope’s acoustic ceiling modules are similar to Dome’s design, except Slope’s waves curve downwards in only one direction. Designed to seamlessly connect to one another by aligning baffle fins, Slope’s baffles look great as either a continuous, uninterrupted field or as smaller sloping squares. Plus, the baffles are made from our Soft Sound® material, so you can get acoustic control and elegant design in one product. And now, for larger jobs, with the addition of SoftGrid® Max options, you can do it all while maximizing value and minimizing the impact on the environment.

SoftGrid™ SLOPE in use

—

The System

Key Features

Acoustic Performance

SoftGrid®'s Soft Sound® material reduces the impact of noise from everyday annoyances like ringing, typing, and chatter resulting in a more pleasant and productive environment. SoftGrid®'s material works in concert with the design to help reduce and control reverberations leaving a lasting impression at scales ranging from assembly halls to conference rooms.
Expansive Color Library

Choose from a large library of Soft Sound® colors and wood textures. Mix and match colors to accent fins and complement the color scheme of your space.
Preconfigured Solutions

SoftGrid® modules can be trimmed down to a minimum of four fin intersections. By rearranging our adjustable hangers, we make it easy for you to specify standard modules that can be easily field-modified around anticipated and unforeseen site conditions during install.
Continuous Baffles

Utilizing a hidden fin-to-fin alignment system, SoftGrid® provides continuity in all directions across your space. In addition, our optional hanging points offer a fine-tuning capability for installers. Our custom formulated material thickness and density ensures rigidity that limits deflection.
Open Accessibility in Plan

SoftGrid®'s open design makes integrating systems above or below the modules simple and feasible. Easily removable fins and open structure makes accessing lights, HVAC, rigging points, plumbing, AV equipment, and life safety systems easy for your maintenance team.

Product Details

Specifications

Dimensions

Min. 2400 x 2400 x 100-220 MM
Max. 2700 x 2700 x 100-220 MM

Fin Material

12mm Soft Sound® (PET)

Openness in Plan

Fire Rating

ASTM E84 - Class A | UNE-EN 13501-1, B-s1,d0

Acoustics

Slope - True NRC® 0.60: Ceiling F-100 Method
Slope - True NRC® 0.70: Wall A Method
Slope Max - True NRC® 0.35: Ceiling F-100 Method

Attachment Method

1/32" Stainless Cable

Accessibility

Yes, quick release cables

Trimmability

Yes, per installation manual

Product Diagrams

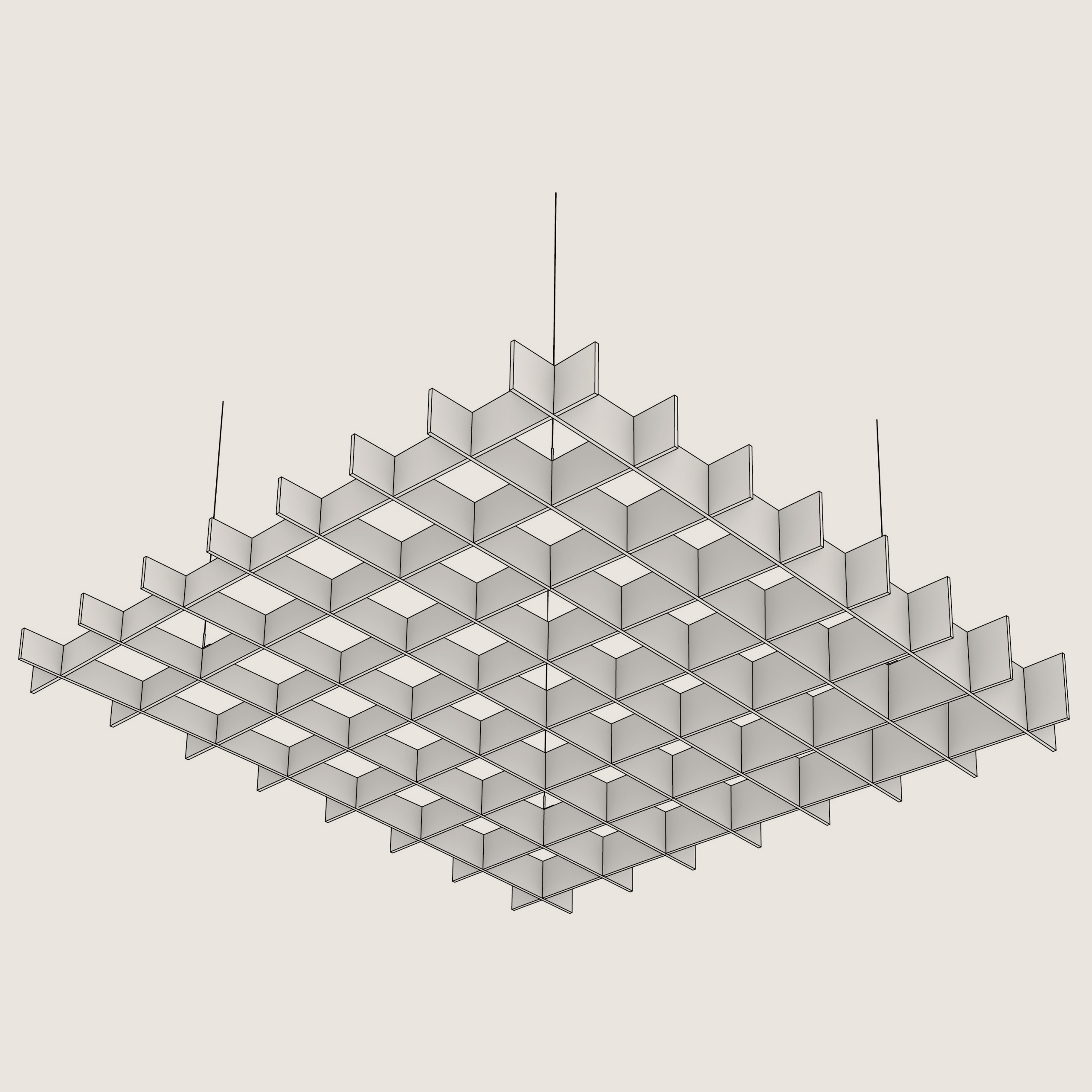

Standard Module

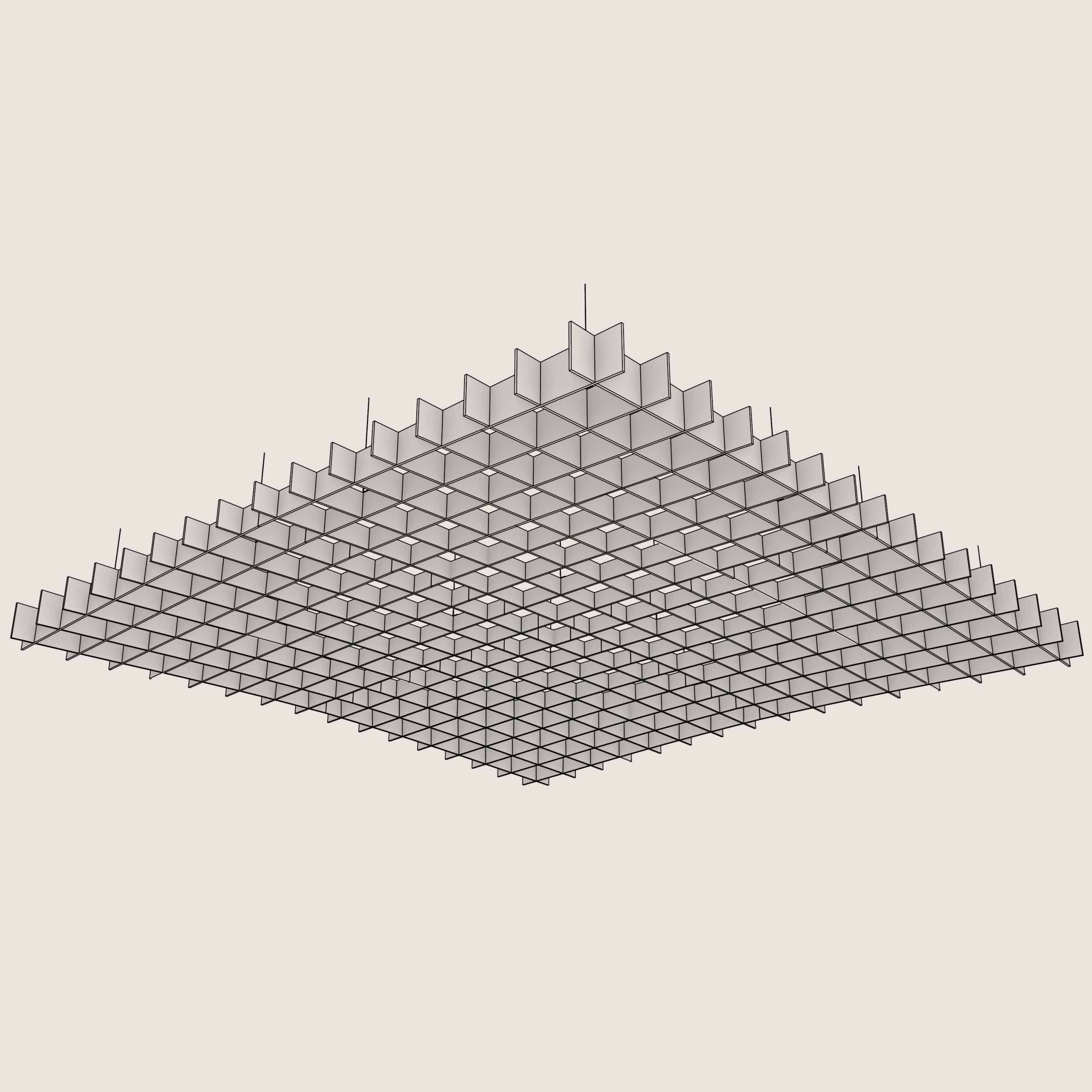

Multiple Modules

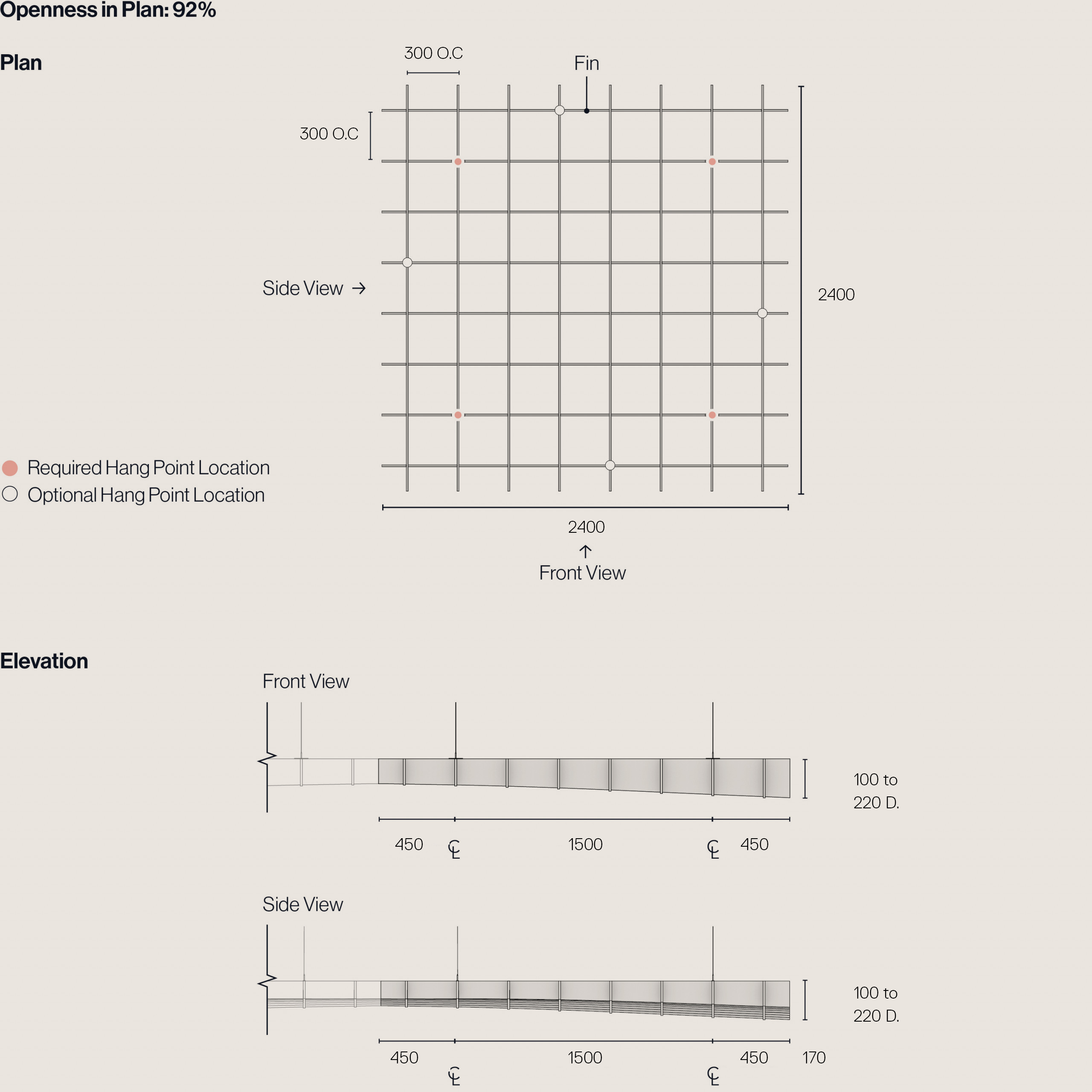

Understanding the Module - Slope

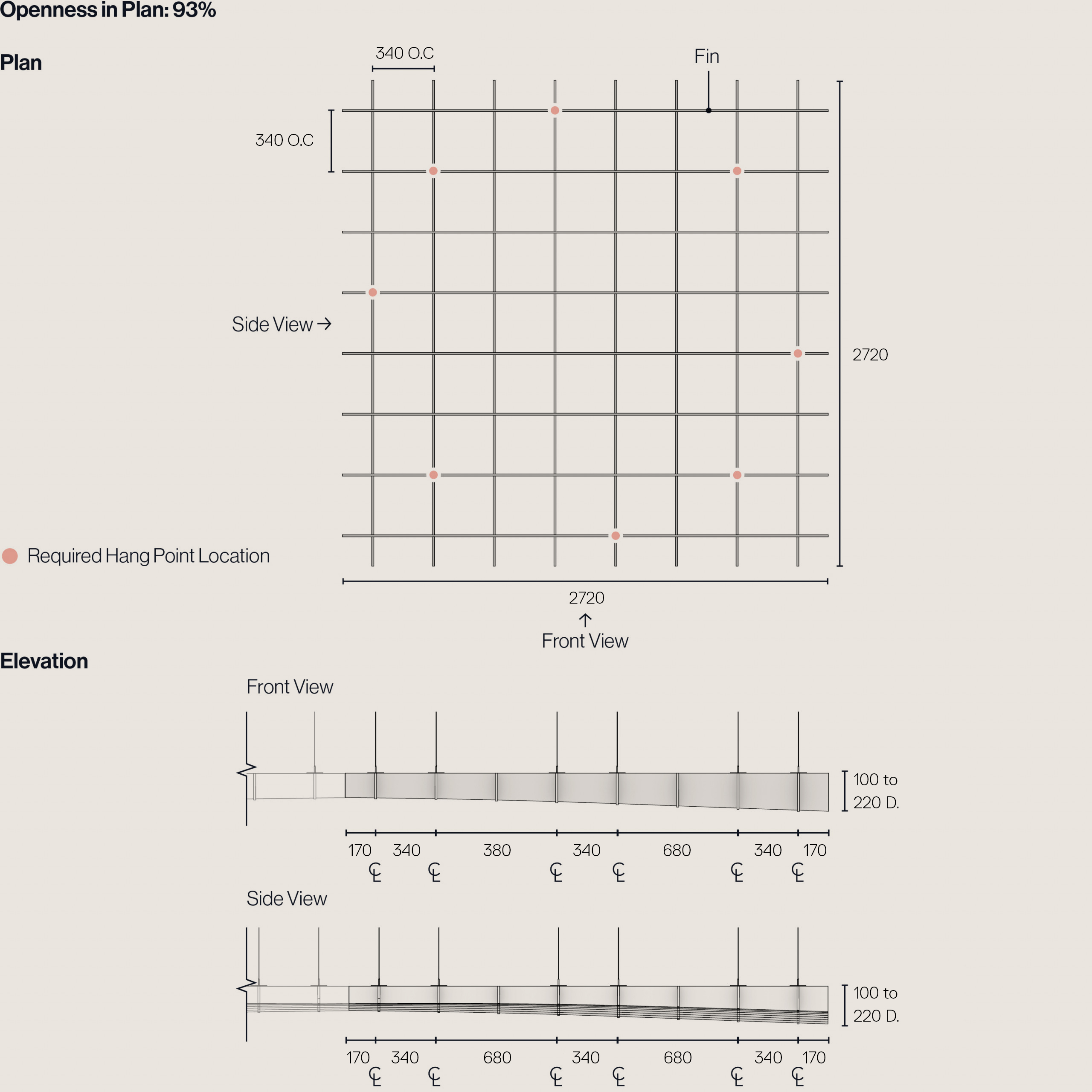

Understanding the Module - Slope Max

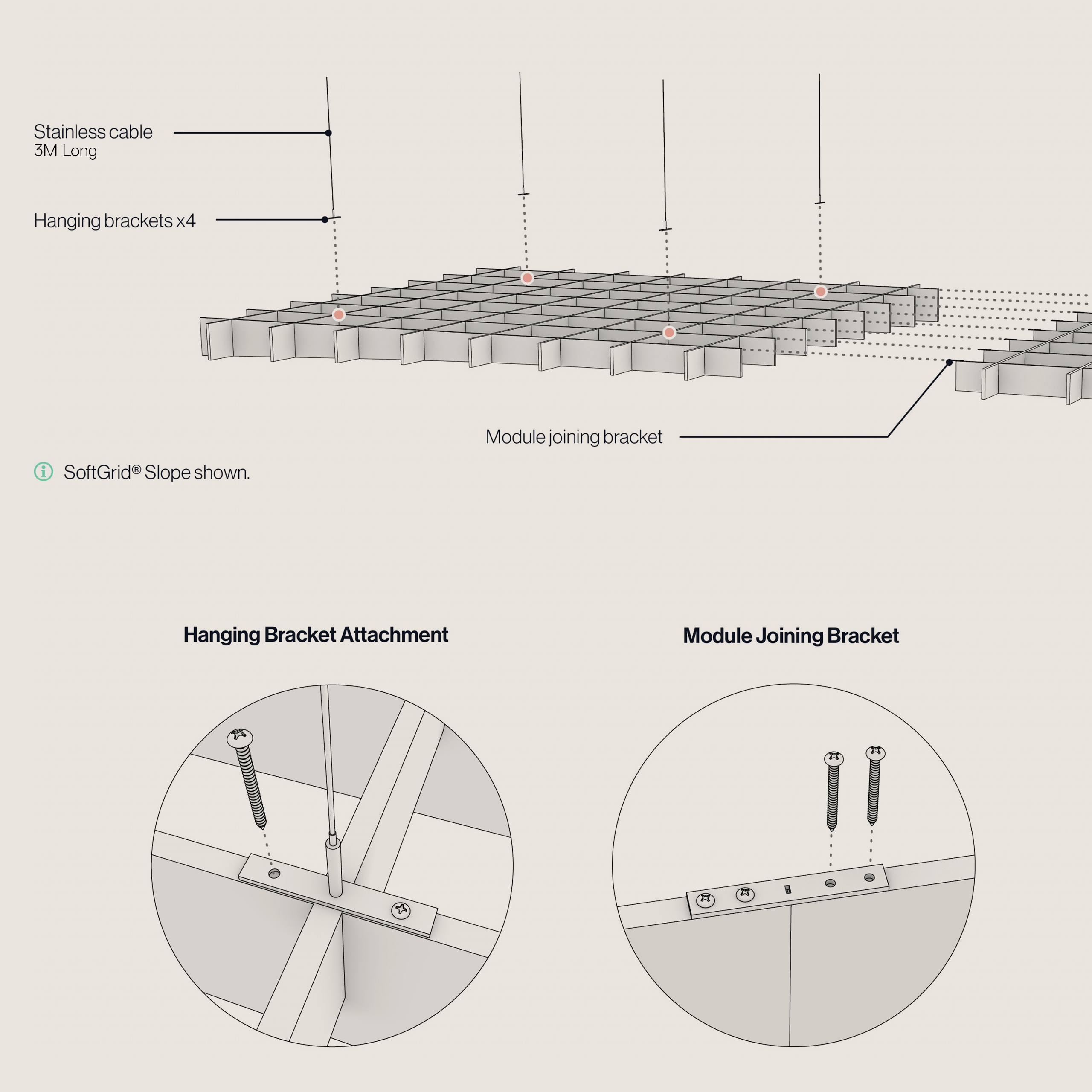

Attachment Details

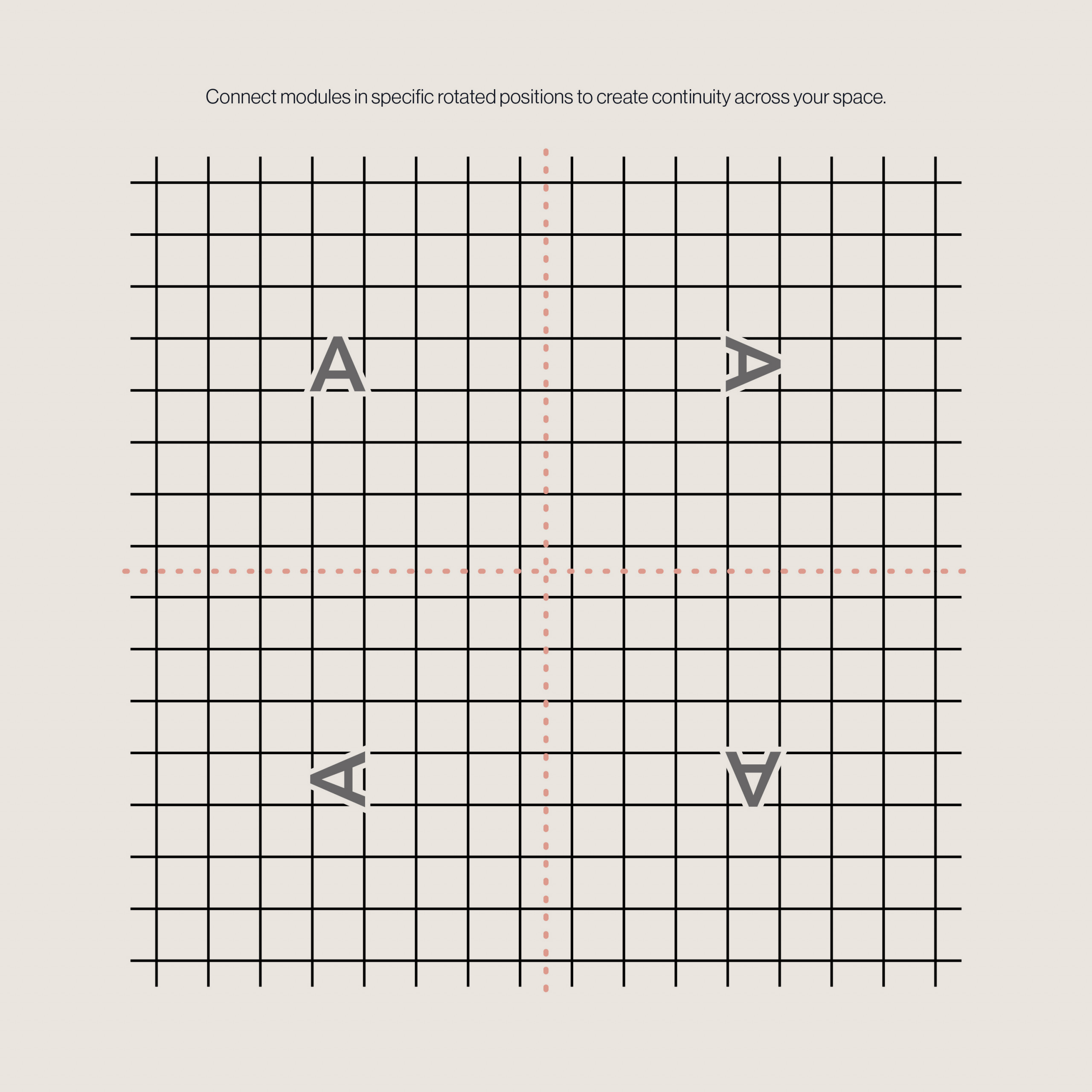

Module Configuration

Sustainability and Certifications

488

Each module is made from 488 recycled water bottles
Cradle to Cradle®

Bronze Status Pending
100%

Declare certified to be fully salvageable/reusable in its entirety, recyclable (100%)
Declare

Red list free
